USER MANUAL BSS 4801 AEG

D Bluetooth Sound System

NL Bluetooth geluidsystem

Location of Controls

Voeding (Voedingsadapter): .DC 6V,5A

Portee: 10-15 metres environ

Frequences de transmission: 2,4 GHz

Protocoles: A2DP

Cordless via Bluetooth

Supporto Bluetooth: V2.1 + EDR

Gamma: ca. 10-15 metric

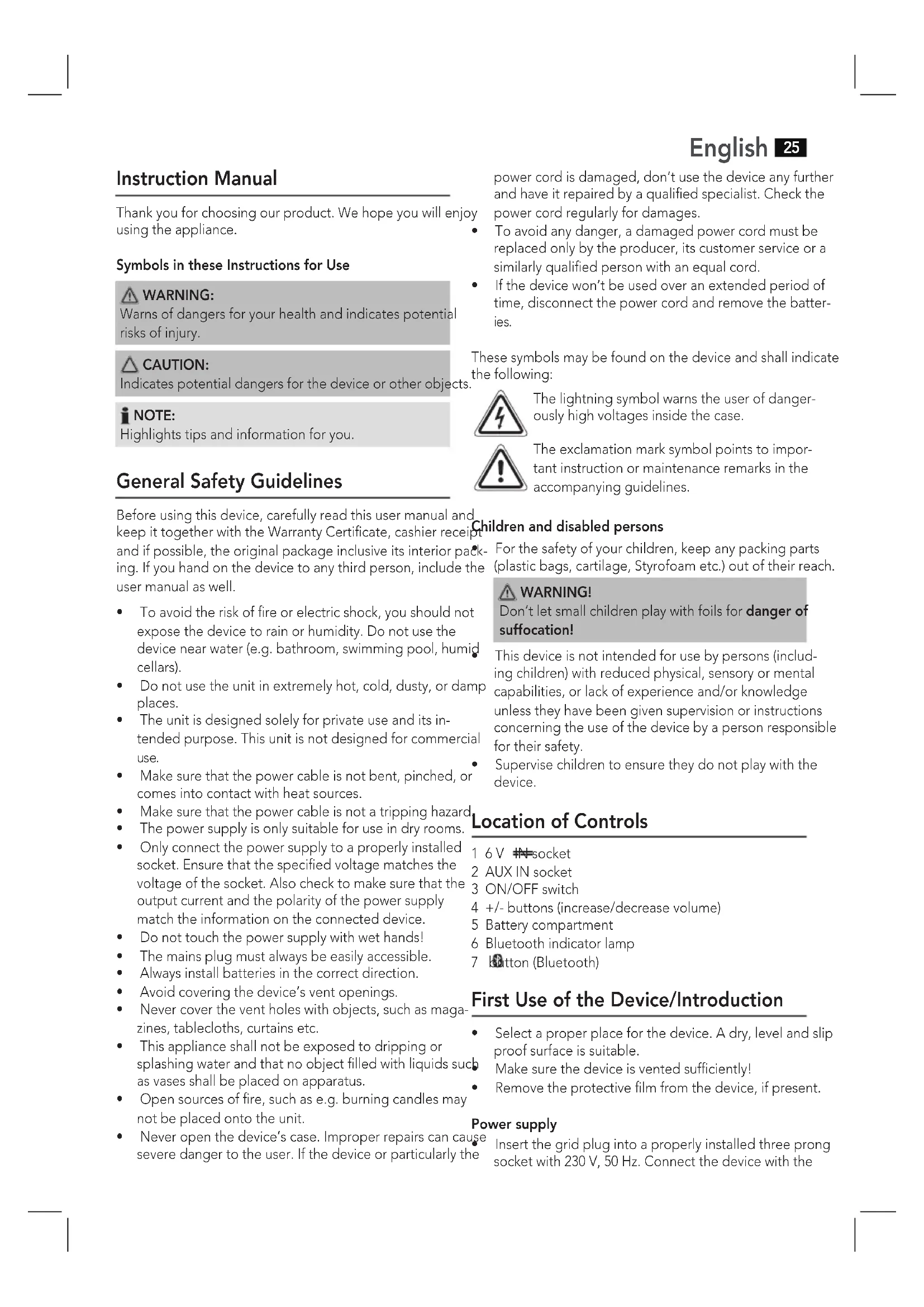

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects

NOTE:

Highlights tips and information for you.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• To avoid the risk of fire or electric shock, you should not expose the device to rain or humidity. Do not use the device near water (e.g. bathroom, swimming pool, humid cellars).
• Do not use the unit in extremely hot, cold, dusty, or damp places.
  The unit is designed solely for private use and its intended purpose. This unit is not designed for commercial use.
  Make sure that the power cable is not bent, pinched, or comes into contact with heat sources.
  Make sure that the power cable is not a tripping hazard.
  The power supply is only suitable for use in dry rooms.
• Only connect the power supply to a properly installed socket. Ensure that the specified voltage matches the voltage of the socket. Also check to make sure that the output current and the polarity of the power supply match the information on the connected device.
• Do not touch the power supply with wet hands!
  The mains plug must always be easily accessible.
  Always install batteries in the correct direction.
• Avoid covering the device's vent openings.
• Never cover the vent holes with objects, such as magazines, tablecloths, curtains etc.
• This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on apparatus.
• Open sources of fire, such as e.g. burning candles may not be placed onto the unit.
• Never open the device's case. Improper repairs can cause severe danger to the user. If the device or particularly the

English

25

power cord is damaged, don't use the device any further and have it repaired by a qualified specialist. Check the power cord regularly for damages.

• To avoid any danger, a damaged power cord must be replaced only by the producer, its customer service or a similarly qualified person with an equal cord.
• If the device won't be used over an extended period of time, disconnect the power cord and remove the batteries.

These symbols may be found on the device and shall indicate the following:

The lightning symbol warns the user of dangerously high voltages inside the case.

The exclamation mark symbol points to important instruction or maintenance remarks in the accompanying guidelines.

Children and disabled persons

For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.

Supervise children to ensure they do not play with the device.

Location of Controls

16V #socket
2 AUX IN socket
3 ON/OFF switch
4 +/- buttons (increase/decrease volume)
5 Battery compartment
6 Bluetooth indicator lamp
7 Batton (Bluetooth)

First Use of the Device/Introduction

• Select a proper place for the device. A dry, level and slip proof surface is suitable.
  Make sure the device is vented sufficiently!
• Remove the protective film from the device, if present.

Power supply

Insert the grid plug into a properly installed three prong socket with 230V,50Hz .Connect the device with the

26

English

plug connector by inserting its plug into the IN jack of the device.

• Make sure the grid voltage corresponds to the figures or volume. the rating plate.

CAUTION:

The included AC adapter may only be used with this device. Do not use it for other devices.
Use only an AC adapter with 6V (1-3). A different AC adapter may damage the unit.

NOTE:

Disconnect from mains power supply during longer periods of non-use.

Volume

By pressing the buttons (4) you can adjust the desired

Sound Settings

If necessary, change the EQ setting in your playback unit to create the best sound.

Bluetooth (7)

• Press the button in order to disconnect the existing Bluetooth connection.

• Keep the button pressed in order to re-establish a connection.

Battery Operation (Batteries not supplied)

• Open the cover to the battery compartment (5) on the bottom of the device.
• Insert the 4 batteries type AA/R6 1.5 V. Observe the correct polarity (see bottom of battery compartment)!
• Close the battery compartment.

Should the device not be used for a long periods, remove the batteries, to prevent any "leakage".

WARNING:

Do not expose the batteries to intense heat, such as sunlight, fire or similar. Danger of explosion!

CAUTION:

• Different battery types or new and used batteries may not be used together.
• Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer.

NOTE:

The batteries will be de-activated automatically if you have connected a mains adapter.

Playing back music files

You have two options to playback your own music data with the device: Wired or wireless via Bluetooth.

By cable (Cable not included)

1. Connect the 3.5mm stereo RCA cable to an external audio source. If required, use a suitable adapter (not included).
2. Insert the other end of the cable into the AUX-IN jack (2) on the unit. The device switches automatically into AUX mode.
3. Start the playback of your audio source. Listen to the sound playback via the speaker. You can adjust the volume using the / buttons (4).
4. For the further procedure, please refer to the user manual of the external audio source.

NOTE:

If possible, adjust the volume of the external unit to a comfortable level.
- No wireless connection via Bluetooth is possible when an audio cable is connected to the AUX IN socket.

General Operation

Turning the device on/off (3)

• Turn the device on by setting the ON/OFF switch to the "ON" position on the rear side of the device. You will hear short beeps and the indicator light (6) will flash. The device is in Bluetooth connection mode.
• To turn off the device, set the ON/OFF switch to the "OFF" position. Then, disconnect the device from the mains.

NOTE:

After about 15 minutes without signal, the device will automatically switch to standby. In order to switch the device on again, switch the ON/OFF switch to the "OFF" position and then to the "ON" position.

Cordless via Bluetooth

Bluetooth involves a technology for wireless radio connection of devices over a short distance. Devices with Bluetooth standard are transmitting between 2.402 and 2.480GHz in the ISM band (Industrial, Scientific and Medical). Interference can be caused for example by WLAN-networks, DAB radios, cordless phones, or microwave ovens which work on the same frequency band.

This device offers you the possibility to use a Bluetooth-enabled device. The functional radius is limited to approx. 15 metres depending on the surroundings and the unit used. If your playing device supports the A2DP profile (Advanced

Audio Distribution Profile) and has a music-player function, then you can also wirelessly transfer music to the device. The A2DP profile involves a multi-vendor Bluetooth profile. By streaming, stereo-audio signals are wirelessly transferred between the playing device (source) and the receiving device.

Due to the different device manufacturers, models, and software versions, a full functionality cannot be guaranteed.

- Logging on devices (Pairing)

Before you listen to music via the unit, you must pair the devices.

1. Ensure, that the Bluetooth function is activated in your player (e.g. mobile phone). For this, refer to the operation manual of your player.
2. After turning it on, the indicator lamp (6) will flash to show that the device is in pairing mode.
3. Keep the button (7) pressed down for approx. 3 seconds. You will hear two beeps. The devices can now be connected to one another.
4. Chose the Bluetooth menu in your player and register the device in your player. For this, refer to the operation manual of your player. The device "AEG BSS 4801" will show in your player as a selection.

NOTE:

Only one playback unit can be connected to the speaker. If the speaker is already connected to another playback unit, the speaker will not appear in the BT selection menu.

1. Now enter the password "0000" in your player, depending on the device manufacturers, model, and software version.

If pairing was done successfully, you will hear a beep and the indicator lamp (6) will light up.

For the further procedure, please refer to the user manual of the playback unit. If possible, adjust the volume of the external unit to a comfortable level.

NOTE:

Depending on the device manufacturer, you need to perform the registration (PAIRING) again to connect the devices
If you have problems in pairing a playback device, deactivate the WiFi function / mobile data function in your playback device.
- The Bluetooth compatibility cannot be ensured for devices (e.g. mobile phones) getting released in the future.
To ensure an optimal connection, make sure that the battery of your player is completely charged.
- Some of the mobile phone brands have an energy-saving mode. Deactivate the energy-saving mode as it can otherwise result in problems during the data transfer through Bluetooth.
To be able to transfer audio data, Bluetooth needs to stay activated in your player Observe the operation manual of your player.

NOTE:

• If a mobile phone on which you are playing music receives a call, the music will be interrupted. The sound however is not played back via the speaker. After you have ended the call, the devices are connected to each other again and playback continues. The volume increases slowly.

Reconnecting devices

This device is designed to support automatic re-connection.

The following conditions must be met:

• the devices need to have been paired with each other before
• Bluetooth is activated in your player
• your player supports this function

The automatic reconnection will be activated after the device has been switched on. This may last a few seconds. If the registration has been successful, a beep will sound and the indicator light (6) will light up.

Cleaning

CAUTION:

Do not submerge the device in water.

Before cleaning disconnect from mains power supply.
Clean the device with a soft damp cloth without detergents.

Troubleshooting

Fault Cause Solution
Unit cannot be operated.	Unit crashes and "hangs".	Disconnect from the mains for around 5 seconds. Then switch the un on again.
No audio signal via the Bluetooth connection	Speaker is not paired to the audio source.	Check whether a connec tion exists. If necessary, pair the speaker again to the audio source.
	Volume too low	Increase the volume on the speaker
		Increase the volume on the audio source.
	Audio cable is connected	Remove the cable from the AUX IN socket (2).

28 English

Fault Cause So	ution
Speaker cannot be connected	Pairing does not work	Check whether the audio source supports the A2D protocol.
	Audio source is switched off	Switch on the audio source
	Bluetooth is switched off at the audio source.	Switch on the Bluetooth function in the audio source.
	Bluetooth version is not supported.	Use a different playback unit.

Technical Specifications

Model:

Power supply (AC adapter): DC 6 V, Φ5A-

Battery operation: .4x 1.5 V, Type AA/Ro

Power output: 100 W PMPO

Power Consumption: 10 W

Protection class: III

Net weight: approx. 0.88kg

AC adapter

Protection class:

Input: AC 100-240 V~50/60 Hz

Output: DC 6V, 1.5 A

Polarity: 0

Bluetooth

Bluetooth support: V2.1 + EDR

Range: approx. 10-15 metres

Transmission frequency: 2.4 GHz

Protocols: .A2DP

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical.
applicances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

4801 Your municipality provides you with information about collecting points.
