USER MANUAL EKF3030 ELECTROLUX

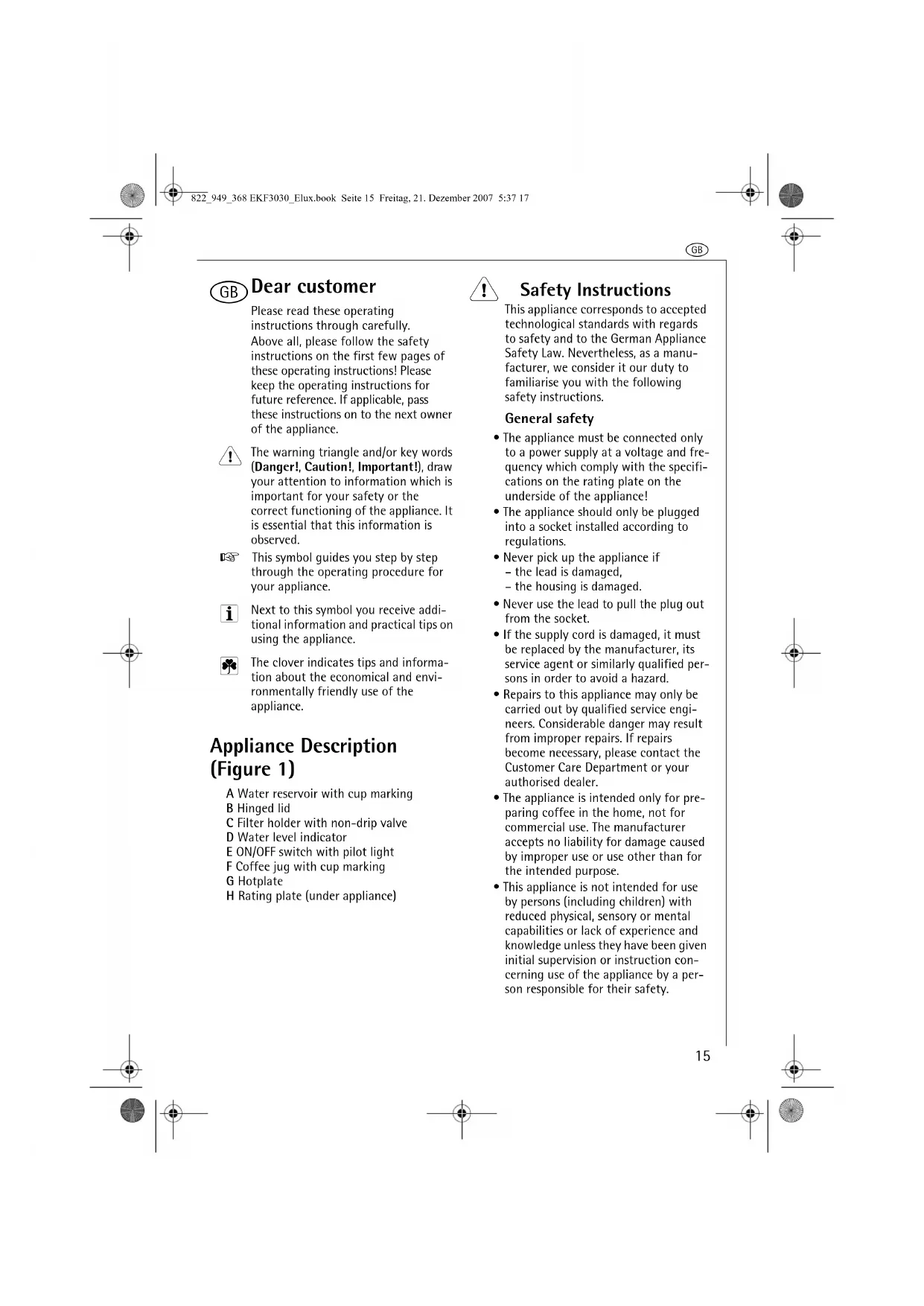

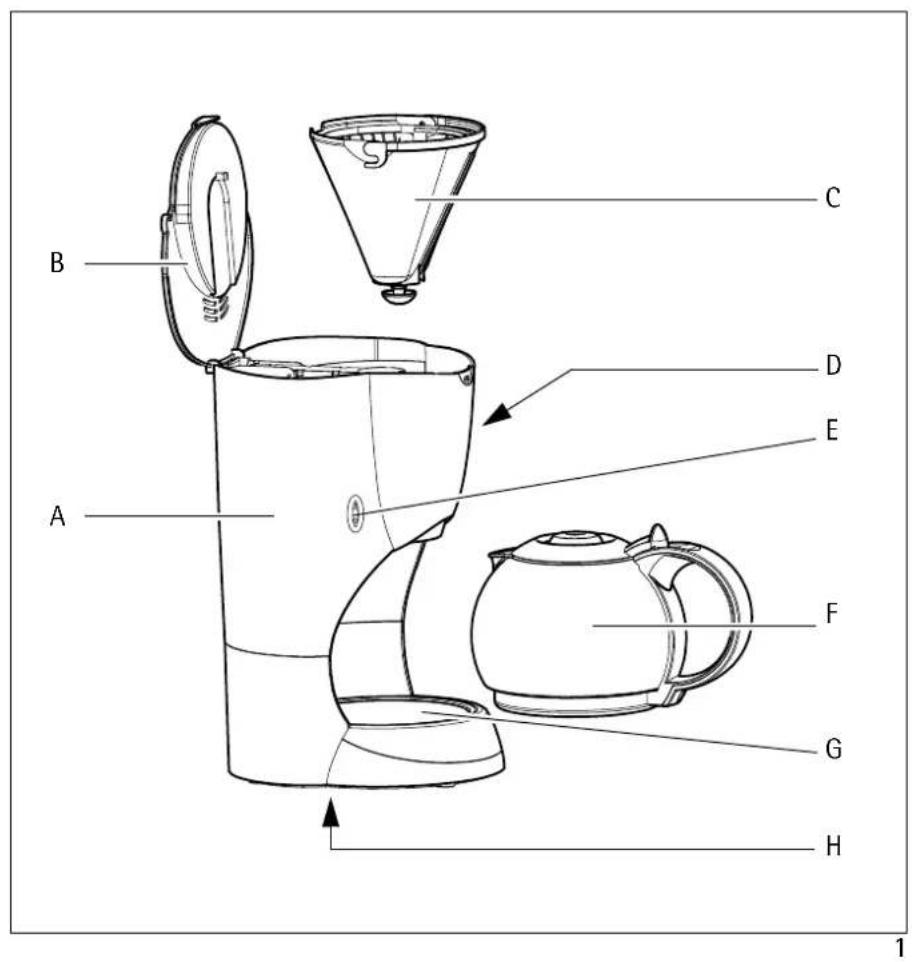

Dear customer Please read these operating instructions through carefully.Above all, please follow the safety instructions on the first few pages of these operating instructions! Please keep the operating instructions for future reference. If applicable, pass these instructions on to the next owner of the appliance. The warning triangle and/or key words (Danger!, Caution!, Important!), draw your attention to information which is important for your safety or the correct functioning of the appliance. It is essential that this information is observed.0 This symbol guides you step by step through the operating procedure for your appliance. Next to this symbol you receive addi-tional information and practical tips on using the appliance. The clover indicates tips and informa-tion about the economical and envi-ronmentally friendly use of the appliance. Appliance Description (Figure 1) A Water reservoir with cup markingB Hinged lidC Filter holder with non-drip valveD Water level indicatorE ON/OFF switch with pilot lightF Coffee jug with cup markingG HotplateH Rating plate (under appliance) 1 Safety Instructions This appliance corresponds to accepted technological standards with regards to safety and to the German Appliance Safety Law. Nevertheless, as a manu-facturer, we consider it our duty to familiarise you with the following safety instructions.General safety• The appliance must be connected only to a power supply at a voltage and fre-quency which comply with the specifi-cations on the rating plate on the underside of the appliance!• The appliance should only be plugged into a socket installed according to regulations.• Never pick up the appliance if– the lead is damaged,– the housing is damaged.• Never use the lead to pull the plug out from the socket.• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per-sons in order to avoid a hazard.• Repairs to this appliance may only be carried out by qualified service engi-neers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.• The appliance is intended only for pre-paring coffee in the home, not for commercial use. The manufacturer accepts no liability for damage caused by improper use or use other than for the intended purpose.• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction con-cerning use of the appliance by a per-son responsible for their safety.822_949_368 EKF3030_Elux.book Seite 15 Freitag, 21. Dezember 2007 5:37 17g

Safety of children• Never leave the appliance running unattended. Take particular care when children are around!• Children should be supervised to ensure that they do not play with the appliance.Points to note when using the appliance• Never allow the cord to come into con-tact with the hotplate!• Before cleaning and carrying out maintenance, switch the appliance off and unplug from the mains socket.• The hotplate, water outlet pipe and fil-ter cover will heat up during use. Keep children away!• Do not fill the appliance with water when it is hot.Switch the coffee maker off and wait approx. 5 minutes for it to cool down!• Please follow the instructions for des-caling!• Never immerse the unit in liquid.• The manufacturer accepts no liability for any damage caused by improper or incorrect use.• Do not leave the appliance unattended. Unplug from the mains socket even when leaving the room for a short time. Disposal

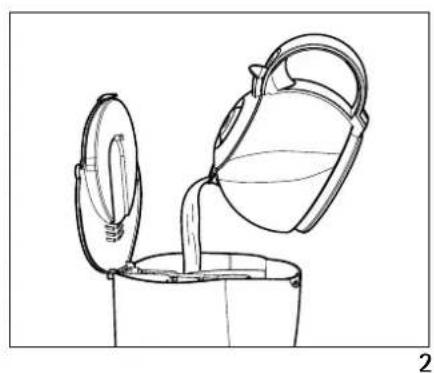

Packaging materialThe packaging materials are environ-mentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging mate-rials in the appropriate container at the community waste disposal facili-ties. Old applianceThe symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recy-cling of electrical and electronic equip-ment. By ensuring this product is disposed of correctly, you will help pre-vent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Operation Before using your coffee maker for the first timeBefore using the appliance for the first time, clean it by running water through it once or twice without using paper filter and coffee.Making coffee0 Open the lid (figure 1/B).0 Fill in water (figure 2). Fill the water reservoir only with fresh cold water. Never fill the water reser-voir with mineral water, distilled water, milk, ready made coffee, tea etc. You can use the coffee jug to fill in the amount of water you require. There is a gauge for 2-10 cups in the water reser-voir and on the coffee jug.The markings apply for the amount of fresh water.The quantity of coffee produced is lower as the ground coffee absorbs water.0 Insert paper filter.Insert a size 1x4 paper filter in the fil-ter holder (figure 1/C). Please fold the perforated edges before doing this.0 Fill in ground coffee.Please use ground coffee, medium grind. The quantity of coffee is matter of personal taste. For an average strong 822_949_368 EKF3030_Elux.book Seite 16 Freitag, 21. Dezember 2007 5:37 17g

coffee one measuring spoon (approx. 6-7 g) is sufficient per cup.0 Close the lid (figure 1/B).0 Place the coffee jug complete with lid onto the hotplate.0 Switch on the appliance with the ON/OFF switch (figure 1/E).The pilot lamp lights up. After a few seconds, hot water flows into the filter. When the water has stopped flowing, the appliance automatically switches to the warming mode. After use the appliance must be switched off by hand.0 Remove the jug. Whilst boiling, the jug must not be removed for longer than 30 seconds or the filter will overflow.Once the jug has been removed, the filter valve prevents coffee from drip-ping onto the hotplate. The hotplate always keeps the coffee hot. It remains on until the appliance is switched off with the ON/OFF switch (figure 1/E) and the pilot lamp goes out. To guarantee uniform coffee strength it should be stirred in the coffee jug after preparation. If the water has stopped flowing and you wish to refill water for a fresh jug of coffee, switch the appliance off and allow it to cool down for a few minutes. Cleaning and Care

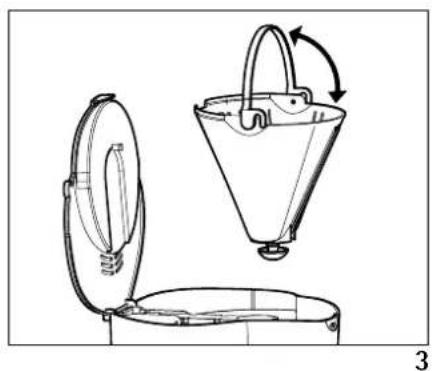

Unplug the power cord from the mains socket before cleaning.0 To clean the filter holder, swing up the handle and remove the filter holder (figure 3).To clean the filter valve thoroughly, activate it several times whilst it is being rinsed. Reinsert filter holder and swing handle down. 0 Clean the appliance with a damp cloth but never immerse it in water! Coffee jug and jug lid are dishwasher proof. Descaling - making your coffee maker last longer As a precautionary measure, we recom-mend descaling every three months.Only use an environmentally friendly descaler and follow the instructions on the packet. Please do not use a descaler with a concentrated formic base, or any descaler in powder form. We recommend to use only original decalcifying tabs from Electrolux (PNC 900 195 537/7).Fill the water reservoir with water and only then add the descaler. Not vice versa! Place the coffee jug with its lid onto the hotplate. Allow the descaler to take effect for about 15 minutes, then switch the appliance on. Switch it off when the descaler solution has finished flowing through. If necessary repeat the descaling process. Following this, allow the appliance to run at least twice with plain water. Thoroughly rinse the coffee jug, lid and filter holder under running water, activate the filter valve repeat-edly during the rinse process. Coffee jug If your coffee jug smashed, you can purchase a new one from your sales dealer or the service centre specifying the model of your coffee maker, see rating plate (figure 1/H). Technical Data Mains voltage: 220 – 240 VPower consumption: 915 - 1080 W This appliance conforms with the fol-lowing EC Directives:• Low Voltage Directive 2006/95/EC• EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC822_949_368 EKF3030_Elux.book Seite 17 Freitag, 21. Dezember 2007 5:37 17d
