USER MANUAL RU260RC ROADSTAR

This product meets the essential requirements laid down by EEC Directive 89/336 and has been built in accordance with European standards EN50013, EN50020.

Car Stereo MP3 Player with PLL / FM Stereo Radio, USB-Port, MMC/SD Card Reader. 4 x 7,5 W RMS and Remote Control.

RU-260RC

Instruction manual

Bedienungsanleitung

• Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

• Ihr neue Gelda wurde unter Beachtung der strengen ROADSTAR-Qualitatsvorschriften gefertigt.

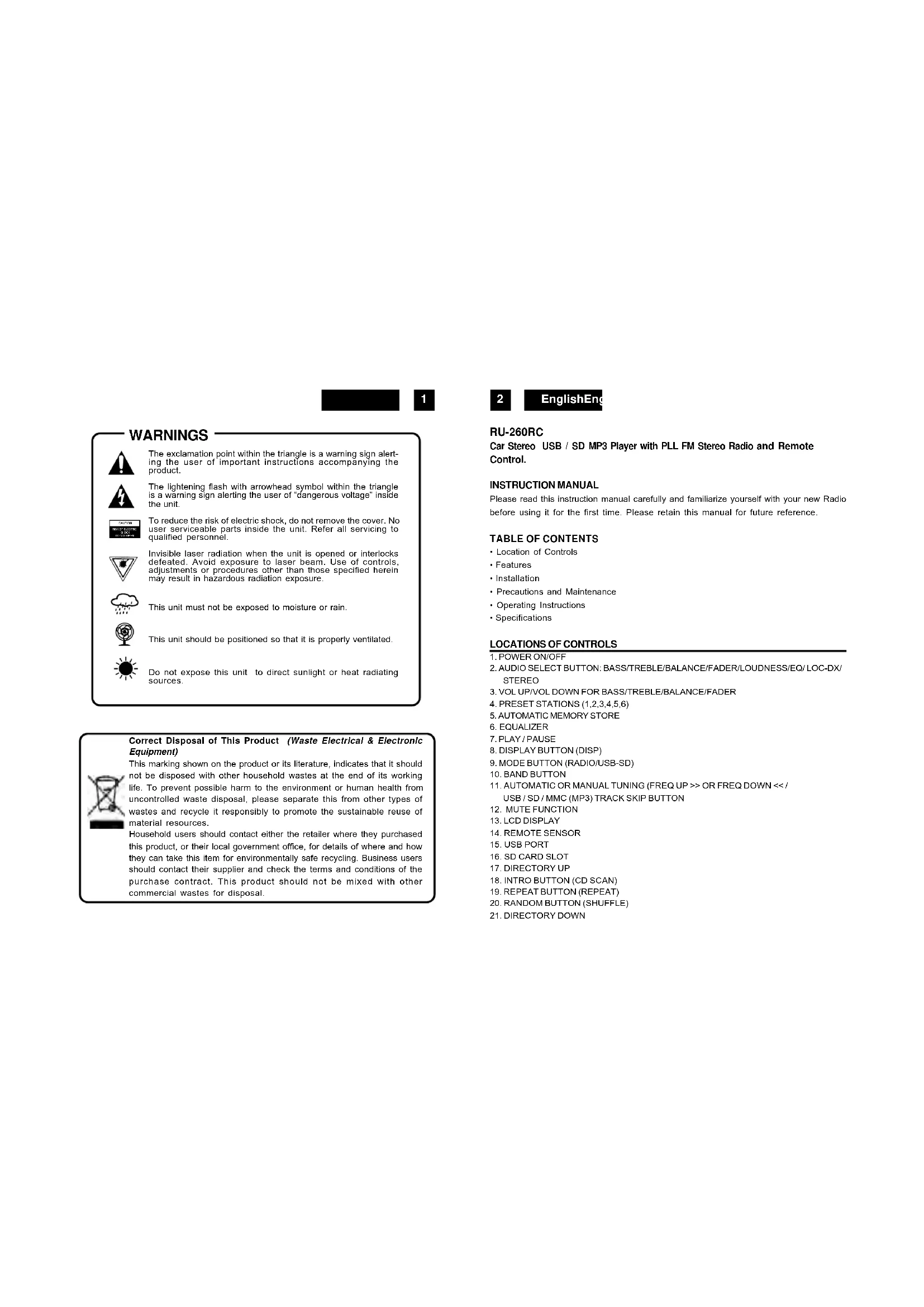

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

Invisible laser radiation when the unit is opened or interlocks defeated. Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

2

EnglishEn

RU-260RC

Car Stereo USB / SD MP3 Player with PLL FM Stereo Radio and Remote

Control.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Radio

before using it for the first time. Please retain this manual for future reference.

TABLE OF CONTENTS

• Location of Controls

• Features

• Installation

• Precautions and Maintenance

• Operating Instructions

• Specifications

LOCATIONS OF CONTROLS

1. POWER ON/OFF

2. AUDIO SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/LOUDNESS/EQ/LOC-DX/STEREO

3. VOL UP/OL DOWN FOR BASS/TREBLE/BALANCE/FADER

4.PRESETSTATIONS(1,2,3,4,5,6)

5.AUTOMATIC MEMORY STORE

1. EQUALIZER

2. PLAY/PAUSE

3. DISPLAY BUTTON (DISP)

4. MODE BUTTON (RADIO/USB-SD)

10.BAND BUTTON

1. AUTOMATIC OR MANUAL TUNING (FREQUP >> OR FREQ DOWN << USB/SD/MMC (MP3) TRACK SKIP BUTTON

2. MUTE FUNCTION

13.LCD DISPLAY

1. REMOTE SENSOR

2. USB PORT

3. SD CARD SLOT

4. DIRECTORY UP

5. INTRO BUTTON (CD SCAN)

6. REPEAT BUTTON (REPEAT)

7. RANDOM BUTTON (SHUFFLE)

8. DIRECTORY DOWN

22. CLOCK BUTTON

FEATURES

The unit features a detachable front control panel, FM/FM stereo, USB / SD:

Electronic Volume, Bass, Treble, Fader and Balance control.
- Precision electronic tuning with phase-lock loop (P.L.L.) circuitry.
- Programmable 18 preset memory tuning (6 each for FM1/ FM2 / FM3)
Loudness control
- Manual / Auto (Seek) / up and down tuning control
Band selector for FM1/FM2/FM3
Clock Function
- MP3 Repeat Function
- Preamplified Line-out
- Lighting system

INSTALLATION

PRECAUTIONS

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.

4

EnglishEn

MOUNTING EXAMPLE

Installation in the dashboard

Note: Keep the release key in the safe place as you may need it in future to remove the unit from the car.

BUILT-IN ISO CONNECTOR

RCA Jack Line Out (Rear) -

Gray: Red (right)

:White(left)

CONNECTOR A

2. 3

3. MEMORY +12V
   5.AUTOANTENNAOUTPUT

5. +12V (TO IGNITION KEY)
6. GROUND

Note: 12 V wire (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTORB

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
   6.FRONT LEFT SPEAKER (-)
6. REAR LEFT SPEAKER (+)
7. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connector and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing centre.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

OPERATING INSTRUCTIONS

POWERON/OFF(1)(PWR)

Push Power button in order to switch on the unit. Push PWR button newly in order to switch off the unit and push REL button (14) to release the front panel.

Note: Never release the front panel when the unit is on. Power remains on even when car radio is off.

SELECT (2)/VOLUME UP/DOWN (3)

6

EnglishEn

Rotate the VOLUME Knob (3) to control the VOLUME. To select other functions, press the SELECT (2) button shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the SELECT button.

1. VOLUME (rotate knob)
2. SELECT (push down)
   3.BASS
3. TREBLE
   5.BALANCE
   6.FADER
4. LOUDNESS ON/OFF
5. EQUALIZER (ROCK-POP-CLASS-SDP OFF)
   9.DX/LOC
6. STEREO/MONO

VOLUME CONTROL

Rotate the VOLUME knob to increase or decrease the volume. This knob can be used to adjust the BASS, TREBLE, BALANCE and FADER.

This knob also selects the possible options in RDS function.

- PRESET STATIONS (1,2,3,4,5,6) (4)

(A) RADIO MODE:

When pressed short, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank.

- AMS (AUTOMATIC PRESET STATION (5)

When pressed, the strongest radio stations are stored in sequence to the memory of the unit.

-EQUALIZER BUTTON (6)

Press in sequence this button to change the Equalizer preset.

Press this button to Play or put in Pause the MP3 song when reproduced by USB or SD.

- DISPLAY BUTTON (8)

When this key is pressed, it is operated as the conversion of each display mode.

-MODE BUTTON (9)

By pressing this key, user can select.

RADIO mode or USB-SD mode.

-BAND BUTTON (10)

Each band is toggled cyclically by pressing this key FM1--FM2--FM3.

-AUTOMATIC OR MANUAL TUNING (FREQ UP >> OR FREQ DOWN <<)

(A) RADIO MODE

When pressed short, these keys are operated as MANUAL tuning mode.

When pressed longer than 1 sec., they are operated as SEEK tuning mode.

When pressed short, they are operated as TRACK UP or TRACK DOWN mode.

-LCD DISPLAY (13)

The Liquid Crystal Display will display the current state of the unit.

-USB PORT(15)

-SD/MMC SLOT-IN (16)

Insert the SD/MMC card into the card slot. Playback starts automatically.

During "PLAY", press (17) 'PAUSE' button to "PAUSE". Press it again to resume play.

-INTRO BUTTON MP3 SCAN (18)

When this button is pressed, 'SCN' indication is displayed and the first several seconds

of each track of the disc are played. Press again to stop intro and listen to track.

• REPEAT BUTTON (19)

When this button is pressed, 'RPT' indication is displayed and play of the selected

track will be continually repeated until the Track repeat mode is cancelled by pressing

RPT button again.

-RANDOM BUTTON (20)

When this button is pressed, 'SHF' Indication is displayed and each track of the disc

are played in random instead of normal progression. To cancel RANDOM mode, press

'SHF' button (20) again.

7

8

EnglishEn

-DIRECTORYDOWNBUTTON(21)

Press this button to move down through the directory menu.

-CLOCK BUTTON (22)

Press this button to display the current time.

CLOCK SETTING

To set the clock, press the CLK (Clock Setting) button (22) for three seconds.

Move the Volume knob (3) to set the Hour, then press the SEL button (2) to switch to Minute mode. Adjust the Volume to set the minute then press SEL button again to complete the operation.

• ID3 Tag

If the MP3 file is available with ID3 TAG, pressing the display button repeatedly will show information of the song.

SPECIFICATIONS

TUNER

Sensitivity 2 dBμ

Stereo separation 35 dB

Signal to noise radio 55 dB

Frequency range 87.5-108 MHz

Channel step 50 kHz

Intermediate frequency 10.7 MHz

LINE-OUT

Output 350mV max.

Impedance 10kOhm

GENERAL

Power Supply 13.8V DC

Speaker impedance

Output power

(10.8-15.6V allowable)

4 or 8 ohm

7.5WRMSx4CH

Note: Specifications and the design are subject to possible modification without notice due to improvement.
