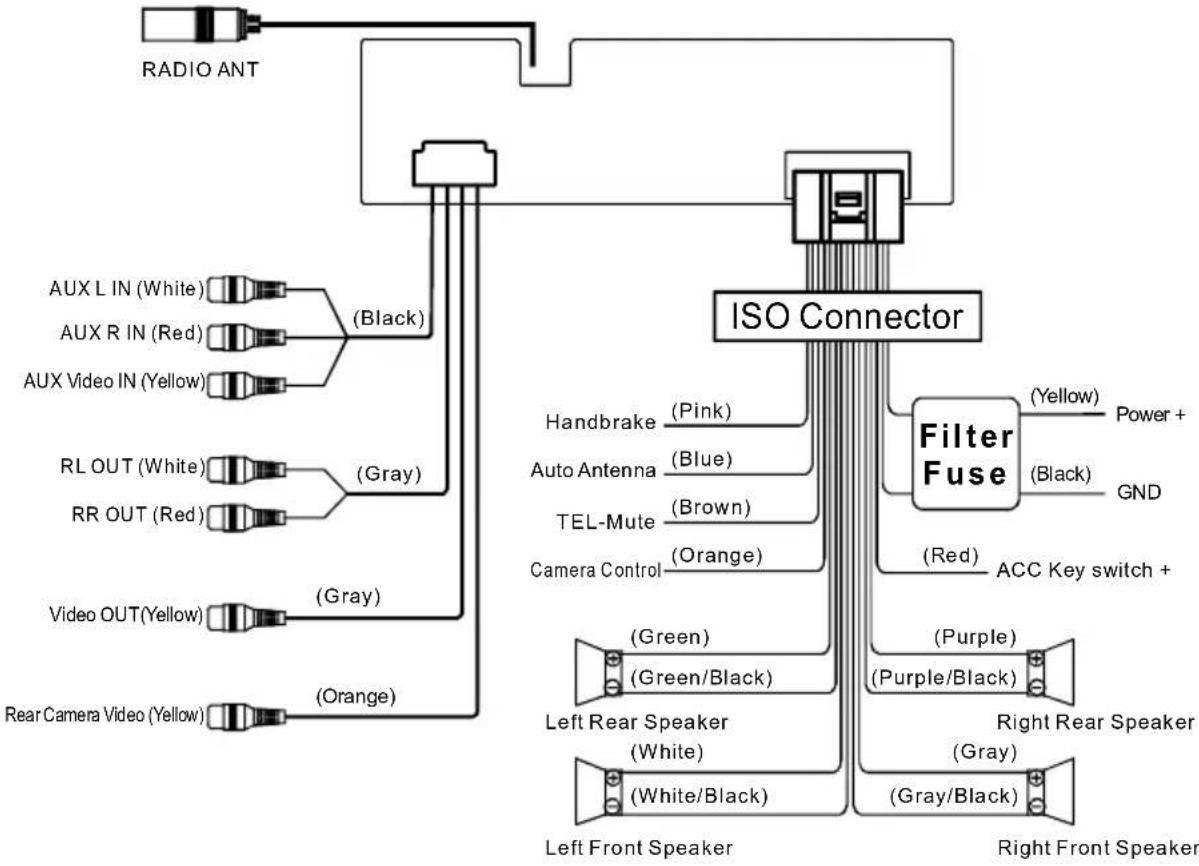

USER MANUAL MCR1406 Marquant

Technical diagram of a front-end computer with labeled ports and control panel, showing front, top, and side views with component numbers.

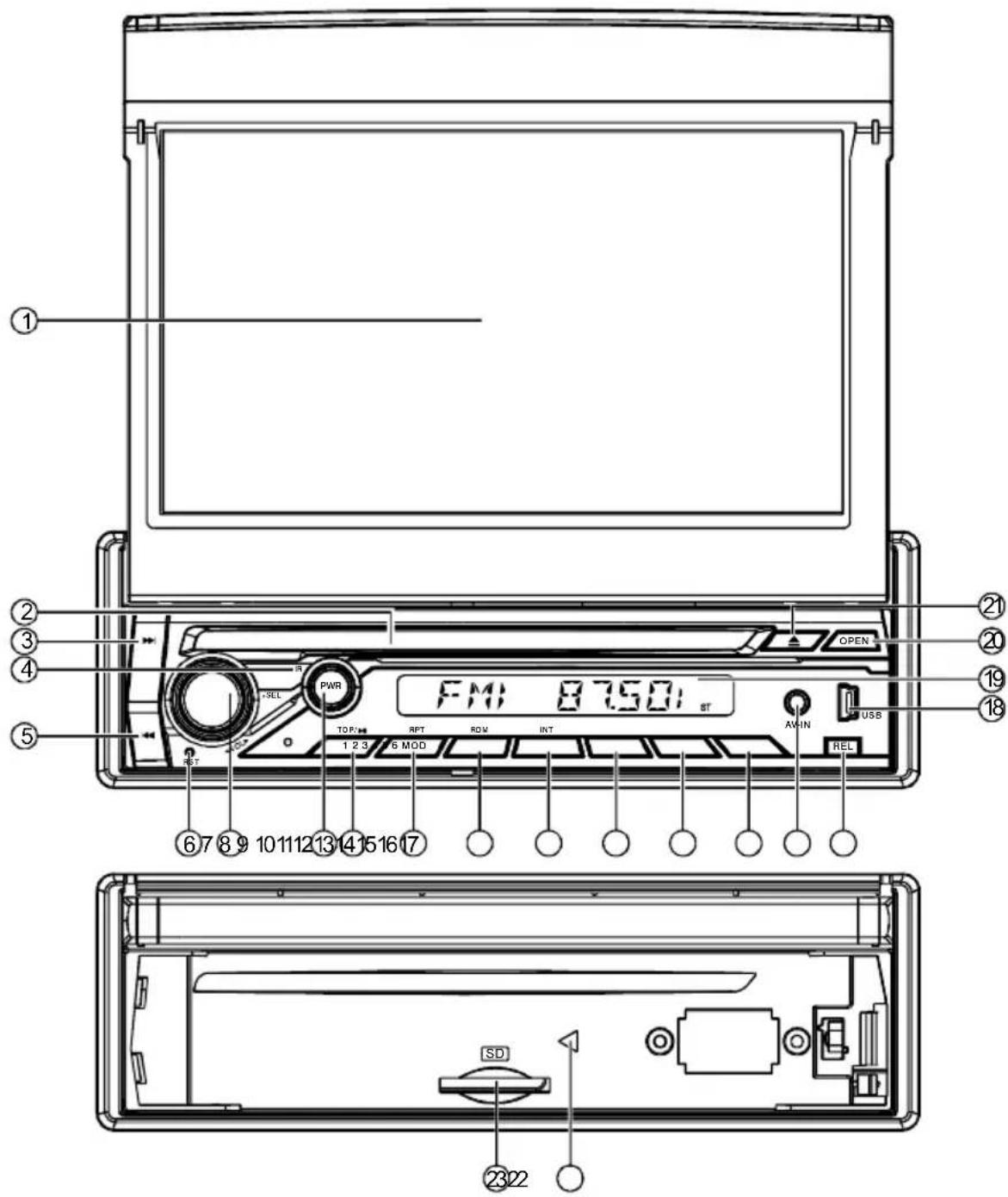

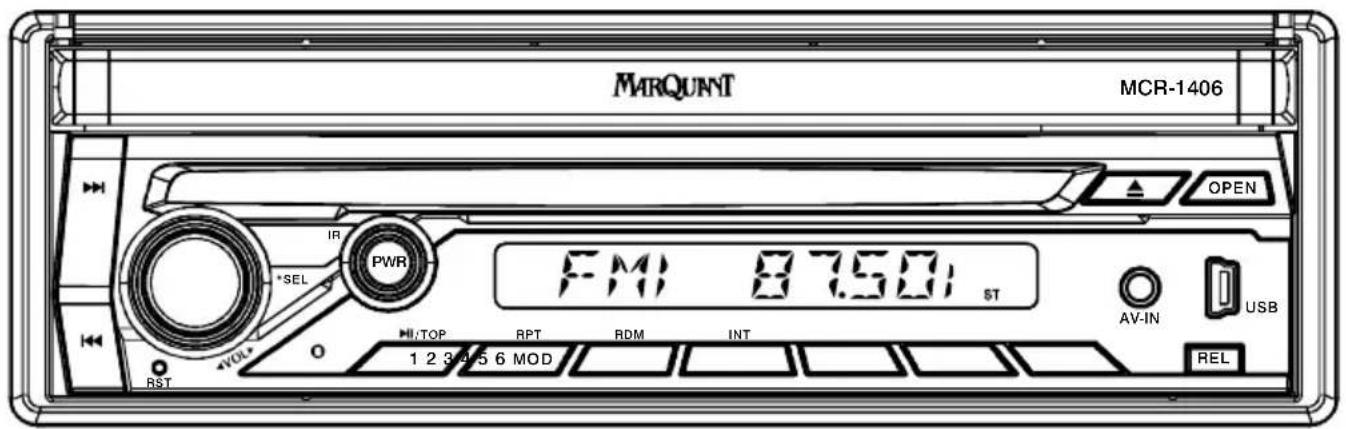

1. TFT-LCD Display
2. Disc Slot
3. Fast Reverse Button/Next Track
4. IR Sensor
5. Fast Forward Button/Previous Track
6. Reset Button
7. Audio Volume/SEL Button
8. Power/TFT ON/OFF Button

9. 1/Play/PBC Button

10. 2/Repeat Button

11. 3/Random Button
12. 4/INT Button
13. 5 Button
14. 6 Button
15. Mode Button
16. AV IN Interface
17. Release Button
18. USB Socket

19. LCD Display

20. Open Button

21. EJECT Button
22. Disc Lamp
23. SD Card Slot

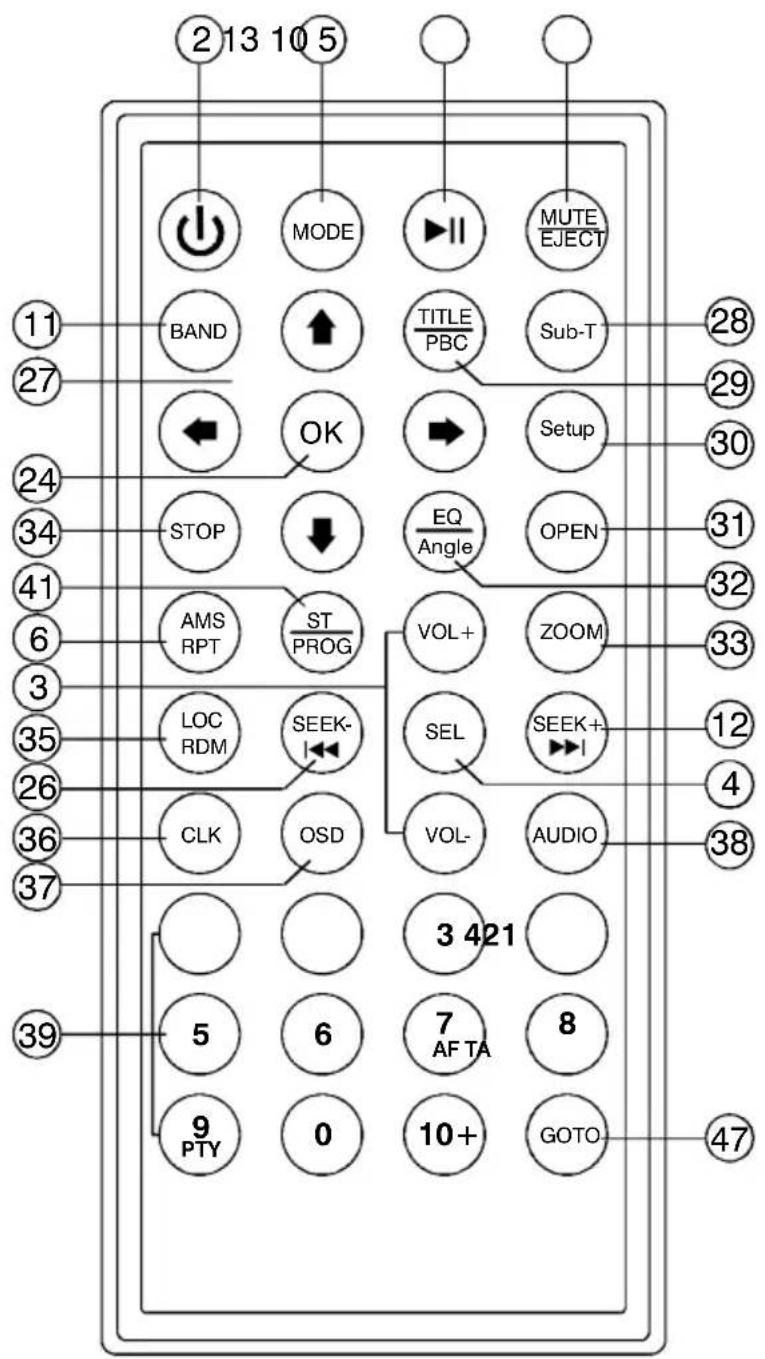

2 13 10 5 MODE MUTE EJECT BAND TITLE PBC Sub-T 28 27 OK Setup 29 30 24 STOP EQ Angle OPEN 31 41 AMS RPT ST PROG VOL+ ZOOM 32 6 LOC RDM SEEK- SEL SEEK+ 12 35 1 CLK OSD VOL- AUDIO 38 39 5 6 7 AFTA 8 9 PTY 0 10+ GOTO 47

2 Power (TFT ON/OFF)

3 Volume +/-

4 Audio SEL

5 Mute / Eject

6 AMS / Repeat

10 Play / Pause

11 Band

12 Seek up/▶▶

13 Mode

24 OK

26 Seek Down/

27 ←/→ ↑ ↓

28 Subtitle

29 Title Display / PBC

30 Setup

31 Open

32 EQ/Angle

33 Zoom

34 Stop

35 LOC/Random

36 CLK

37 OSD

38 Audio

39 Number Keys

7/AF(FOR RDS)

8/TA(FOR RDS)

9/PTY(FOR RDS)

41 Stereo / Program

47 Playing Time Setting

CAUTION:	DC Power:12V	Speaker Impedance:4 Ω
RECEIVING:		AM 522-1620KHz
RANGE:		FM 87.5-108.0MHz

Initial System Starts Up

Operating the unit for the first time or after replacing the car battery, Press RESET button with a pointed object (such as ballpoint) to set the unit to initial procedure.

NOTE: When some errors occur in the LCD display, you can also press RESET button to resume to normal. And it will erase the clock setting and some memorized functions.

Turning the Unit ON/OFF

Press POWER button to turn on the unit. When the unit is on:

Short press POWER button, turn off the monitor, press POWER button again to turn on the monitor.

Long press POWER button to turn off the unit.

Volume Control

Press VOLUME +/- button for increase or decrease the sound volume.

Viewing Angle

Long Press the button "OPEN" on the front Panel or on the remote control "Open" Button repeatedly to adjust the angle view.

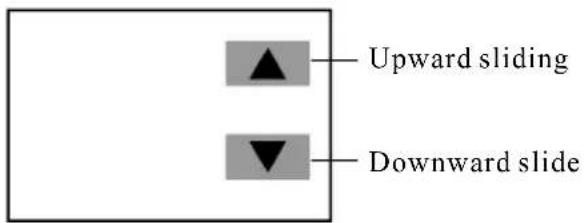

Touch screen Calibrate

If the position of touch occurs warp, you can calibrate by pressing the the “+” cursor. access the touch screen calibrate mode interface.

Click the icon 📁 to access the touch screen calibrate mode interface; Long Press the remote control Button"6" to access the Setting mode interface.

Upward sliding Downward slide

+

Aim at the “+” and click it, the symbol will moves around the touch screen, click it six times, system will finish calibration automatically and exit calibration mode.

If the calibration setting has been finished, the , the interface will pop up. Otherwise system need calibrate renewedly.

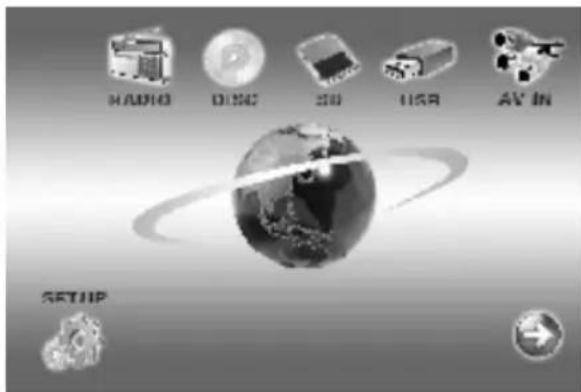

Menu Function

Press MENU button to enter as below main menu display screen, you can touch the icon of the screen to enter different working mode.

Long press MENU button to enter navigation mode directly, long press it again to exit navigation mode directly.

MADIO DISC 3D USA AV IN SETUP

Setting the general & display & audio setup

Touch 📄 icon in the screen to enter setting mode, as below picture. You can touch the screen to set up the audio, display, time parameters etc.

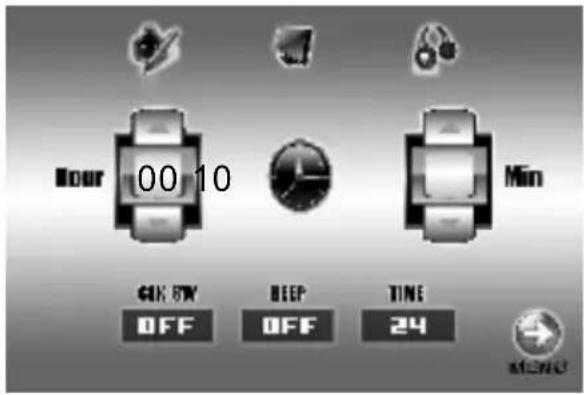

General Setup

This item is for Selecting a General.

1. The time required for 12 hours, 24 hours; Hour system or choice
2. ON/OFF Beep.

Display Setup

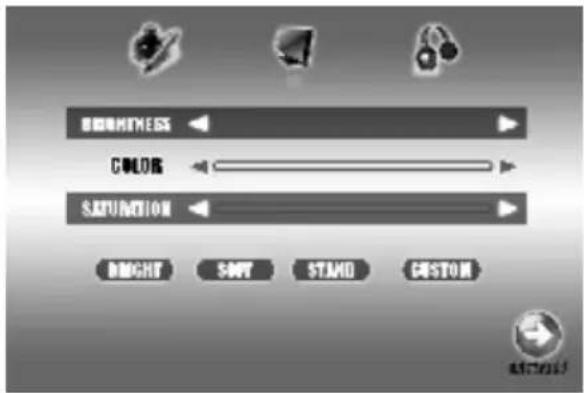

This item is for Selecting a Display.

You can adjust each item by pressing the icon ◀ or ▶ in the touch screen.

-Brightness: 00\~50
-Color:00\~50
-Saturation:00\~50

Click the icon “Bright Soft Stand Custom” to access the System Default setup.

Hour 00 10 Min OK 5W OFF EEP OFF TIME 24

BORNINESS COLOR SATFUNCTION RIGHT SOFF STAND CUSTOM

Audio Setup

This item is for Selecting a Audio.

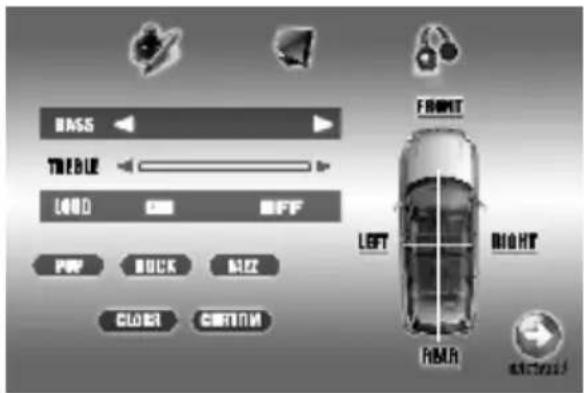

You can adjust each item by pressing the icon ◀ or ▶ in the touch screen.

-BASS: -7 / +7
-TREBLE:-7/+7
-LOUD: ON/OFF

-Click the "Left/Right" to access the Balance Setup.

-Click the "Front/Rear" to access the Fader Setup.

BASS TREBLE LOAD OFF PWF BACK SIZE CLOCK CORMI FRONT LEFT RIGHT RAILA

Click the icon "POP ROCK JAZZ CLASS CUSTOM" to access the EQ setup.

After finishing setting, click the icon → to exit the menu setup interface.

IR Sensor

Receiver for wireless IR remote control.

Radio Operation

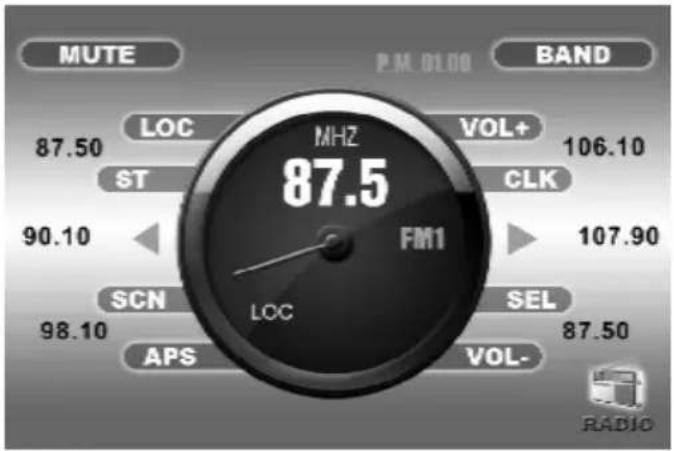

1. Touch the radio icon in the main menu display screen to select radio mode, the LCD will displays as following:

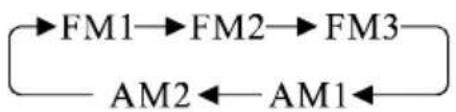

1. Touch the icon "BAND" repeatedly to select bands in the following:

1. Touch the icon "APS" or press APS key in IR handset shortly to activate automatically memory storing function.

2. Press SEEKING + or SEEKING - or icon ◀ / ▶ shortly to manual seek the radio station

3. Long press SEEKING + or SEEKING - or icon ◀ / ▶ to automatically seek the radio station

4. Touch the frequency bar in the display screen to select preset memory station.

5. Long press icon "APS" to scan each preset memory station for 10S.

6. Touch the icon "ST" or Press ST key in IR handset to set stereo or mono receiving mode.

7. During radio mode, repeat press SEL button to select the desired mode in the following order:

After finishing setting, click the icon

to exit the menu setup interface.

AV-IN Operation

1. Press the icon

to enter main menu display screen.

1. You can touch icon "AV-IN" to switch to your desired av in mode.

RDS operation

1. Touch TFT displays "SEL" icon to access the RDS Setup interface.
2. Long Press Click Using The Remote control "7" Button/Touch TFT displays "AF" icon, if showing AF in the LCD display, it is RDS mode, if no show AF, it is normal FM frequency.
3. Long Press Click Using The Remote control "8" Button/Touch TFT displays "TA" icon, enter traffic information frequency. When broadcast traffic information can switch to RDS mode automotive.
4. Long Press Click Using The Remote control "9" Button/Touch TFT displays "PTY" icon, You can select the title of RDS, press VOL+/- button to select as below program type:

POP.M

NEWS

ROCK.M

AFFAIRS

EASY.M

INFO

LIGHT.M

SPORT

CLASSICS

EDUCATE

OTHER.M

DRAMA

JAZZ

CLUTURE

COUNTRY

SCIENCE

NATION.M

VARIED

OLDES

FINANCE

FOCK.M

CHILDREN

SOCIAL

RELIGION

PHONE N

TRAVEL

LEISURE

DOCUMENT

Playing USB storage device and SD Card

To enjoy the music and video in SD card and USB storage device, only need to insert USB and SD card into the slot, so the unit starts to play automatically. After leave this mode, you can press MENU button and touch the media icon or to switch to Play USB storage or SD card.

Playing DVD/VCD/SVCD/CD Disc

1. Insert the multimedia disc

To enjoy the music and video in DVD/VCD/SVCD/CD disc, only need to insert a disc with labeled side up into the disc slot, so the unit starts to play automatically. After leave this mode, you can press MENU button and touch the icon 📷 to switch to Play the multimedia disc again. After leave this mode, you can touch the icon ➤ to go back main menu.

2. Eject the disc

Press EJECT button to eject the disc.

Pause the playing

Touch the icon ▶/□ to pause the playing, touch it again to restore playing.

Playing the next /previous chapter

Touch the icon |<< or >>| shortly to skip the next or previous chapter.

Fast forward or remind playing

Long touch the icon I<< or >>I to fast forward or remind the disc.

Repeat playing

Touch the icon "RPT" to play one track repeatedly, Press RPT key in IR handset to play the track repeatedly.

Random Playing

Touch the icon “RDM” or Press RDM key in IR handset to play any track randomly.

On Screen Display

Press OSD key in IR handset, the screen will display Track/Chapter nbr, current playing time etc.

Program Playing

Press PROG key in IR handset to enter programming page, press arrow key and number key in IR handset to program the tracks to be played.

Audio selector

Repeatedly press AUDIO key in IR handset to change the different audio track mode.

Subtitle selector

Press SUB-T key in IR handset to select language.

Setting Disc playback time

Press GOTO key in IR handset to set the specific time to play, use arrow keys and number keys to set track/chapter on time, and press ENTER key to play.

Stop the playback

Press[STOP]key in IR handset to suspend the playback, press it again to stop the playback.

Multi-angle selector

Press ANGLE key in IR handset to watch the DVD content from different angle if the disc support.

Go to Title

Press TITLE key in IR handset to show all track's title on screen. Then press nbr keys or arrow keys to choose your desired track nbr and press ENTER key or PLAY/PAUSE key to start.

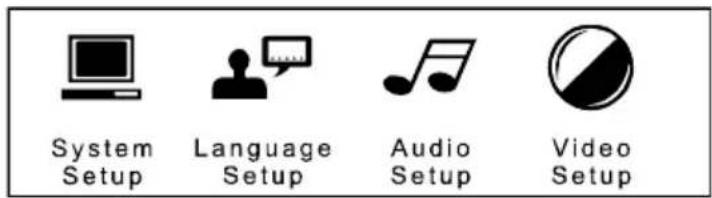

Enter setup model

1. Press SETUP key in IR handset in the stop mode when playing multimedia.
2. The main page of setup menu is displayed.

System Setup Language Setup Audio Setup Video Setup

1. Select the preferred item by using the arrow keys
2. Press ENTER key to confirm setting.

Multimedia Playing Setup (system setup menu)

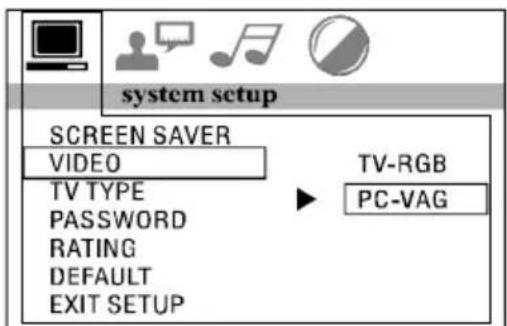

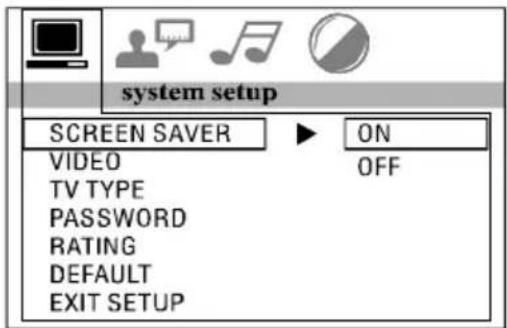

System Setup

The setup page include all the items of TV system, screen saver, TV type, password, rating & default features

TV system setup menu

system setup SCREEN SAVER ▶ ON VIDEO OFF TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

This player can play discs recorded in either PAL or NTSC format. Select NTSC format when you connected to NTSC TV. Select PAL format when you connected to PAL TV. If you select AUTO, the unit will auto select the format (PAL/NTSC) according to your disc content.

Video Setup Menu

system setup SCREEN SAVER VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP TV-RGB PC-VAG

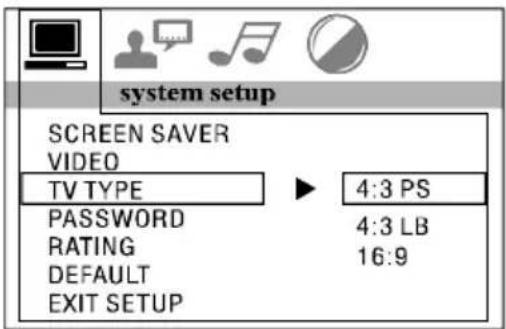

TV Type Setup Menu

system setup SCREEN SAVER VIDEO TV TYPE ▶ 4:3 PS PASSWORD 4:3 LB RATING 16:9 DEFAULT EXIT SETUP

1. 4:3 PS

Playback in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off)

2. 4:3LB

Playback in LEFTERR BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen).

3. 16:9

Select when a wide-screen TV set is connected.

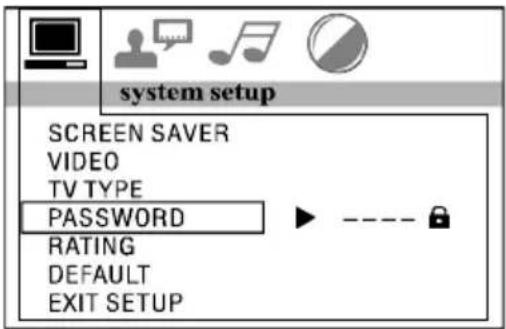

Password Setup Menu

system setup SCREEN SAVER VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

Enter the password and press ENTER button. Type the old password (The initial factory code is 0000) and key in 4 characters password now you want to use, and type again to confirm

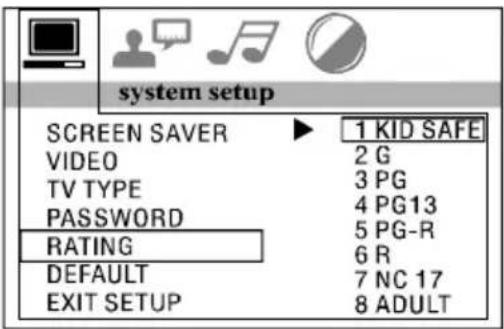

Rating setup menu

system setup SCREEN SAVER ▶ 1 KID SAFE VIDEO 2 G TV TYPE 3 PG PASSWORD 4 PG13 RATING 5 PG-R DEFAULT 6 R EXIT SETUP 7 NC 17 8 ADULT

Select suitable guidance rating by the cursor button and confirmed by pressing ENTER key.

Rating 1: [KIDSAFE]

Select this when the program are safe to all kid view.

Rating 2: [G]

Select this that allows admission to person of all ages.

Rating 3: [PG]

Select following when children under 13 are forbidden to view

Rating 4: [PG13]

Select following when children under 13 are forbidden to view.

Rating 5: [PG-R]

Select this when the PG-R was printed on the DVD disc.

Rating 6: [R]

Select this when children under 17 are forbidden to view.

Rating 7: [NC 17]

Select this when children under 17 are forbidden to view.

Rating 8: [ADULT]

Select this when only allows admission to all adults.

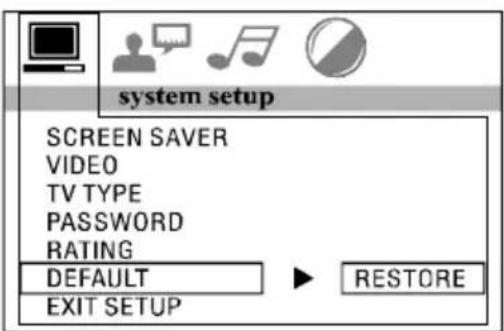

Default setup menu

system setup SCREEN SAVER VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP RESTORE

Select restore to become factory initial setting.

Language Setup

This setup page includes all the items of OSD language, Audio language, Subtitle Language and Menu Language features.

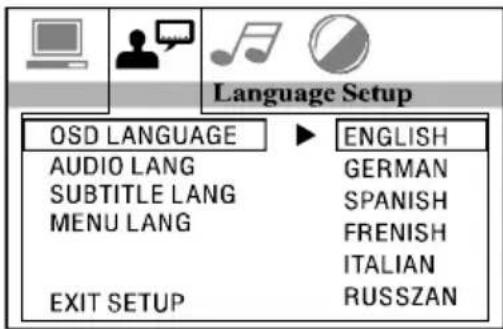

OSD Language Setup

Language Setup OSD LANGUAGE ▶ ENGLISH AUDIO LANG GERMAN SUBTITLE LANG SPANISH MENU LANG FRENISH ITALIAN EXIT SETUP RUSSZAN

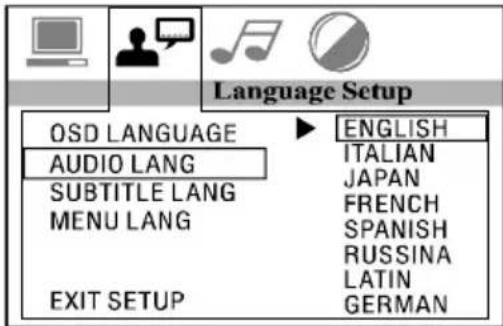

Audio Language Setup

Language Setup OSD LANGUAGE ▶ ENGLISH AUDIO LANG ITALIAN SUBTITLE LANG JAPAN MENU LANG FRENCH EXIT SETUP SPANISH RUSSINA LATIN GERMAN

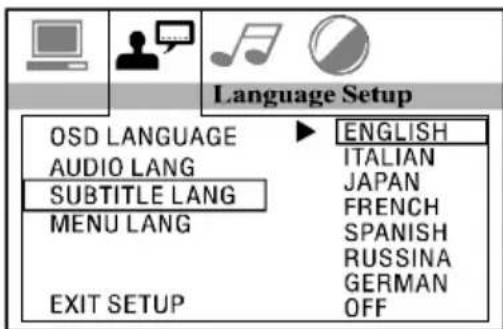

Subtitle Language Setup

Language Setup OSD LANGUAGE ▶ ENGLISH AUDIO LANG SUBTITLE LANG MENU LANG EXIT SETUP ITALIAN JAPAN FRENCH SPANISH RUSSINA GERMAN OFF

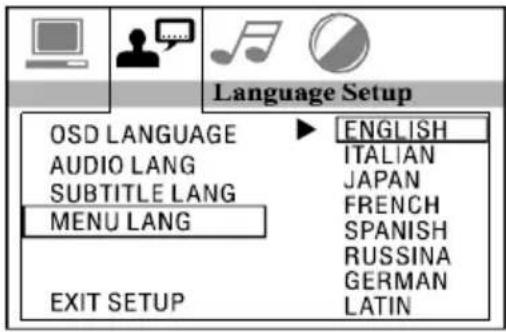

Menu Language Setup

Language Setup OSD LANGUAGE ▶ ENGLISH AUDIO LANG SUBTITLE LANG MENU LANG EXIT SETUP ITALIAN JAPAN FRENCH SPANISH RUSSINA GERMAN LATIN

AUDIO SETUP

This setup page includes all the items for AUDIO.

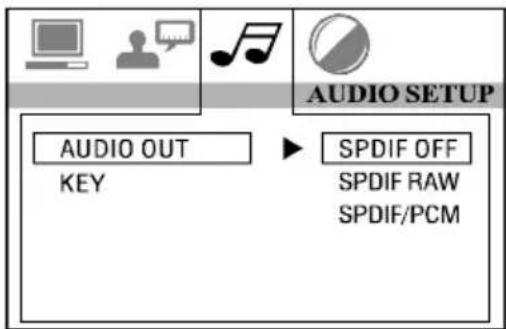

Audio Out Setup

AUDIO SETUP AUDIO OUT KEY SPDIF OFF SPDIF RAW SPDIF/PCM

This is to activate the audio output from SPDIF OFF mode to SPDIF RAW mode or SPDIF PCM mode.

SPDIFOFF:

Analog or optical output port has no output signal at all.

SPDIFRAW:

When the player is connected with the power amplifier by the analog or optical port, please select this item when the playing disc which is recorded in Dolby Digital, DTS or MPEG. The analog or optical output signal of the unit will be the same as the digital signal (RAW format) of the playing disc. At the same time, the power amplifier you connected must have decode function of Dolby Digital, DTS or MPEG.

SPDIFPCM:

When the player is connected with the 2 channels, digital stereo amplifier, please select this item. When the playing disc which is recorded in Dolby Digital or MPEG. The analog or optical output will be modulated to 2 channels output by PCM.

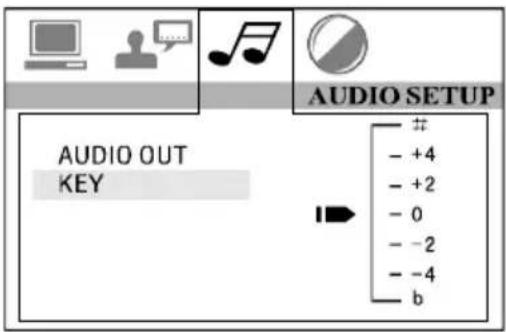

Key Setup Menu

AUDIO SETUP AUDIO OUT KEY # - +4 - +2 - 0 - -2 - -4 b

This is to select Treble or Bass according to your needs.

This is for the user to set Brightness, Contrast, Hue and Saturation of the picture by pressing the arrow left/right button.

Press ENTER key to confirm the change.

NOTE: Only on TV/AV mode, the Video setup is available.

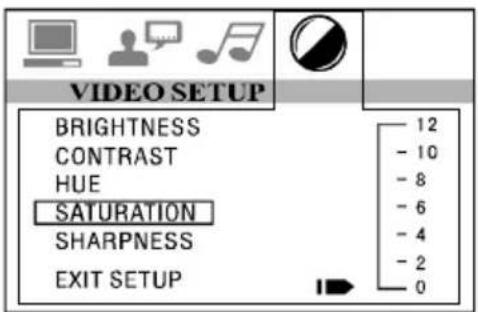

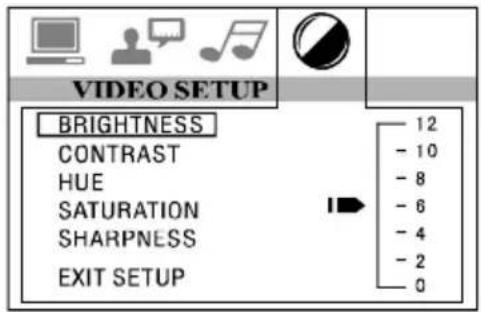

VIDEO SETUP

This setup page includes all the items for VIDEO.

Brightness Setup Menu

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS EXIT SETUP 12 - 10 - 8 - 6 - 4 - 2 0

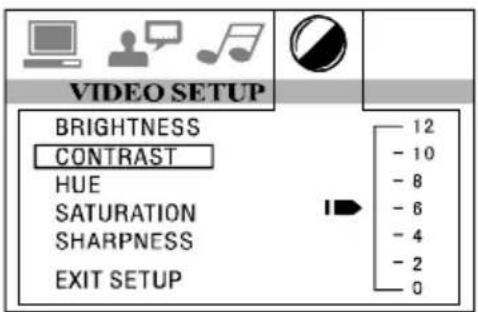

Contrast Setup Menu

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS EXIT SETUP 12 - 10 - 8 - 6 - 4 - 2 0

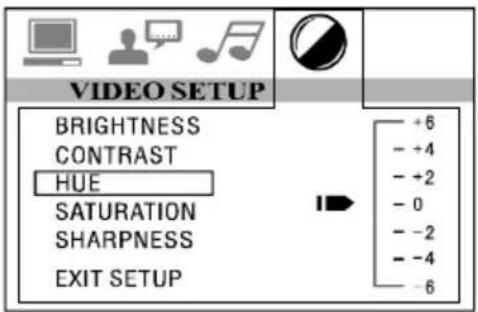

HUE Setup Menu

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS EXIT SETUP +6 - +4 - +2 - 0 - -2 - -4 - 6

Saturation Setup Menu

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS EXIT SETUP 12 - 10 - 8 - 6 - 4 - 2 0

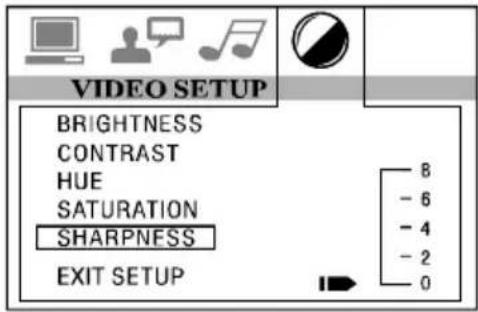

Sharpness Setup Menu

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS EXIT SETUP 8 -6 -4 -2 0

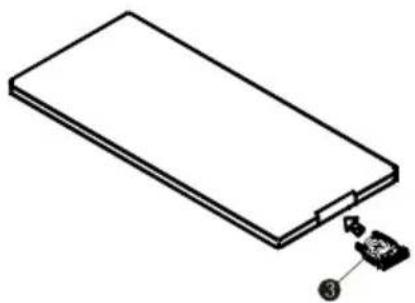

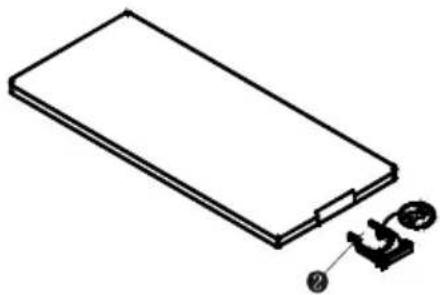

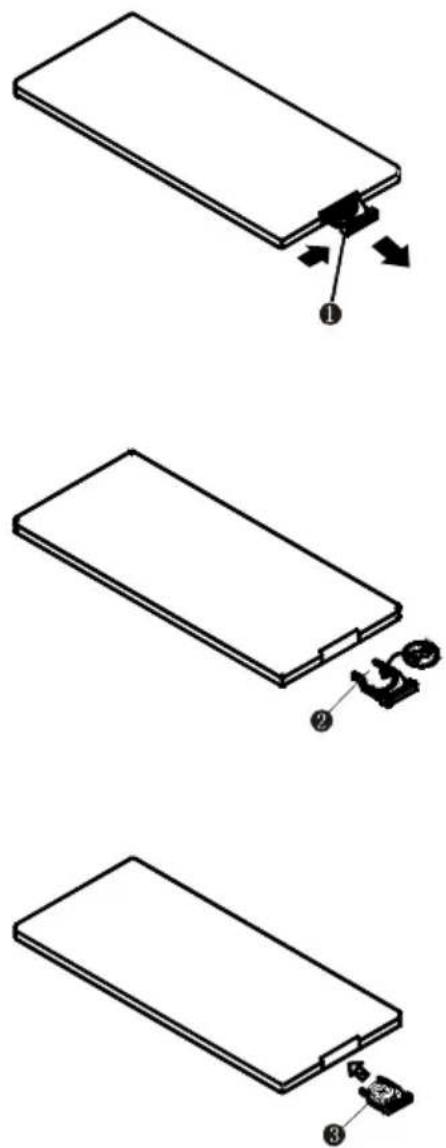

Replace the Battery

When the operational range of the remote control becomes short or non-functions while operating. Replace a new CR2025 battery. Make sure the battery polarity before replacement.

1. Pull out the battery holder while pressing the stopper 1.

2. Pull the button type battery (+) mark upward into the battery holder.

3. Insert the battery holder into the remote controller.

Bedienungsanleitung

Technical diagram of a front-end computer with labeled ports and control panel, showing internal components and part numbers.

CAUTION: DC Power:12V Speaker Impedance:4 Ω

RECEIVING: AM 522-1620KHz RANGE: FM 87.5-108.0MHz

system setup SCREEN SAVER ▶ ON VIDEO OFF TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

TV Standard: PAL / NTSC.

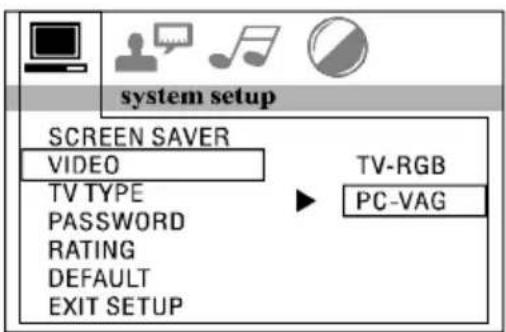

Video Setup Menü

system setup SCREEN SAVER VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP TV-RGB PC-VAG

system setup SCREEN SAVER ▶ 1 KID SAFE VIDEO 2 G TV TYPE 3 PG PASSWORD 4 PG13 RATING 5 PG-R DEFAULT 6 R EXIT SETUP 7 NC 17 8 ADULT

Rating / Bewertung

Simple line drawing of a rectangular object with arrows indicating direction, no text or symbols present

Isometric line drawing of a rectangular electronic component with a small attached component (no text or symbols)

Isometric line drawing of a rectangular electronic device with a labeled component (no text or symbols present)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE CE MANUEL ENTIÈREMENT ET CONSERVEZ-LE POUR CONSULTATION ULTÉRIEURE

MARQUINT MCR-1406 OPEN IR PWR *SEL FM 8750 ST AV-IN USB RST TOP RPT RDM INT 1 2 3 4 5 6 MOD REL

Technical diagram of a front-end computer with labeled ports and control panel, showing front, top, and side views with component numbers.

CAUTION:	DC Power:12V	Speaker Impedance:4 Ω
RECEIVING:		AM 522-1620KHz
RANGE:		FM 87.5-108.0MHz

system setup SCREEN SAVER ▶ ON VIDEO OFF TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

system setup SCREEN SAVER ▶ 1 KID SAFE VIDEO 2 G TV TYPE 3 PG PASSWORD 4 PG13 RATING 5 PG-R DEFAULT 6 R EXIT SETUP 7 NC 17 8 ADULT

Rating 1 : [KID SAFE]

Simple line drawing of a rectangular object with arrows indicating direction, no text or symbols present

Technical line drawing of a rectangular electronic component with a small mechanical assembly attached (no text or symbols)

Isometric line drawing of a rectangular electronic component with a small labeled component (no text or symbols)

GEBRUIKSAANWIJZING

LEES DEZE HANDLEIDING ZORGVULDIG DOOR ALVORENS DE UNIT TE GEBRUIKEN EN BEWAAR HET VOOR LATERE NASLAG

MARQUINT MCR-1406 OPEN IR PWR *SEL FM 8750 ST AV-IN USB RST TOP RPT RDM INT 1 2 3 4 5 6 MOD REL

Technical diagram of a front-end computer with labeled ports and control panel, showing front, top, and side views with component numbers.

12 "Nexttrack"-toets

13 "Mode"-toets

24 "ENTER"-toets

26 "Vorigetrack"-toets

27 ← /→ ↑ ↓

CAUTION: DC Power:12V Speaker Impedance:4 Ω

RECEIVING: AM 522-1620KHz RANGE: FM 87.5-108.0MHz

system setup SCREEN SAVER ▶ ON VIDEO OFF TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

system setup SCREEN SAVER ▶ 1 KID SAFE VIDEO 2 G TV TYPE 3 PG PASSWORD 4 PG13 RATING 5 PG-R DEFAULT 6 R EXIT SETUP 7 NC 17 8 ADULT

Rating 1: [KID SAFE]

Simple line drawing of a rectangular object with arrows indicating direction, no text or symbols present

Isometric line drawing of a rectangular electronic component with a small mechanical component attached (no text or symbols)

Isometric line drawing of a rectangular electronic component with a small labeled component (no text or symbols)
