USER MANUAL Resolv 40a SAMSON

Two-way Active Studio Monitor System

Owners Manual

SAMSON

A U D I O

Safety Instructions/Consignes de sécurité/Sicherheitsvorkehrungen

WARNING

DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE

AVIS

RISQUE DE CHOC ELECTRONIQUE

NE PAS OUVRIR

CAUTION

FOR CONTINUED PROTECTION AGAINST RISK

ATTENTION

UTILISER UN FUSIBLE DE

RECHANGE DE MÉME TYPE

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. To reduce the hazard of electrical shock, do not remove cover or back. No user serviceable parts inside. Please refer all servicing to qualified personnel. The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

Important Safety Instructions

1. Please read all instructions before operating the unit.
2. Keep these instructions for future reference.
3. Please heed all safety warnings.
4. Follow manufacturers instructions.
5. Do not use this unit near water or moisture.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. If the wide blade or third prong is provided for your safety, when the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on and pinched particularly at plugs, convenience receptacles and at the point at which they exit from the unit.
11. Unplug this unit during lightning storms or when unused for long periods of time
12. Refer all servicing to qualified personnel. Servicing is required when the unit has been damaged in any way, such as power supply cord or plug damage, or if liquid has been spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

Copyright 2005, Samson Technologies Corp

Printed August, 2005 v5

Samson Technologies Corp

575 Underhill Blvd.

P.O.Box 903

Syosset, NY 11791-903

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: [phone]

www.samsontech.com

Contents

Introduction 1

Resolv 40a Features 2

Resolv 40a Layout 3

Front View Layout 3

R40a Rear Panel Layout 4

Setting up the Resolv 40a 5

Positioning the Resolv 40a

Connecting the Resolv 40a

Operating the Resolv 40a 3

Resolv 40a Rear Control Panel 3

Connecting to the Resolv120a Subwoofer 1

Resolv 40a Wiring Guide 1

Specifications 55

Table des matieres

Introduction 1

Resolv 40a Features 24

Resolv 40a Layout 25

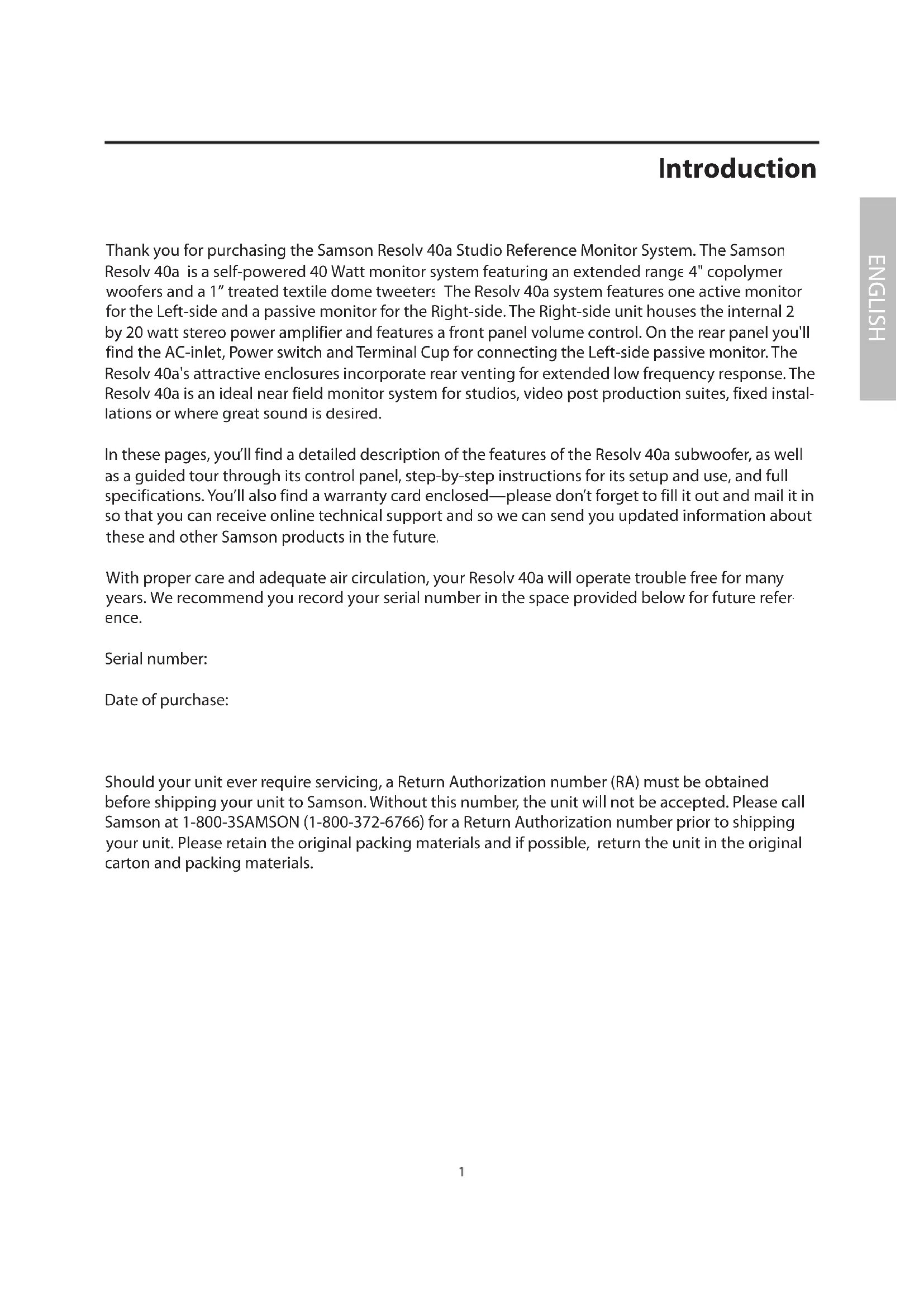

Thank you for purchasing the Samson Resolv 40a Studio Reference Monitor System. The Samson Resolv 40a is a self-powered 40 Watt monitor system featuring an extended range copolymer woofers and a 1^ treated textile dome tweeters. The Resolv 40a system features one active monitor for the Left-side and a passive monitor for the Right-side. The Right-side unit houses the internal 2 by 20 watt stereo power amplifier and features a front panel volume control. On the rear panel you'll find the AC-inlet, Power switch and Terminal Cup for connecting the Left-side passive monitor. The Resolv 40a's attractive enclosures incorporate rear venting for extended low frequency response. The Resolv 40a is an ideal near field monitor system for studios, video post production suites, fixed installations or where great sound is desired.

In these pages, you'll find a detailed description of the features of the Resolv 40a subwoofer, as well as a guided tour through its control panel, step-by-step instructions for its setup and use, and full specifications. You'll also find a warranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Samson products in the future.

With proper care and adequate air circulation, your Resolv 40a will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.

Serial number:

Date of purchase:

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials.

Resolv 40a Features

The Samson RESOLV 40a reference monitors provide a smooth response that is accurate, and at the same time pleasant to listen to. Here are some of its main features

Two-way, active studio reference monitor with ported tuned enclosure providing extremely accurate monitoring for recording studio, post-production and multi-media applications.
- 4" Copolymer Butyl Surround woofer provides tight and controlled low frequency response.
- 1" Treated Textile Dome High Frequency Driver.
- Two by 25 watts of internal power.
- Passive crossovers utilizing a multi-pole design for linear response from bottom to top.
- RCA inputs make connecting to most any signal source.
A/V shielded for multimedia applications providing clean operation near computer monitors.
- 2 meter, 18-gauge speaker cable for Left-side Extension monitor included.
Solid MDF (Medium Density Fiberboard) construction, maximum SPL.
- Black satin finish is attractive and durable thanks to the heavy vinyl covering.
- Three-year extended warranty.

Resolv 40a Layout

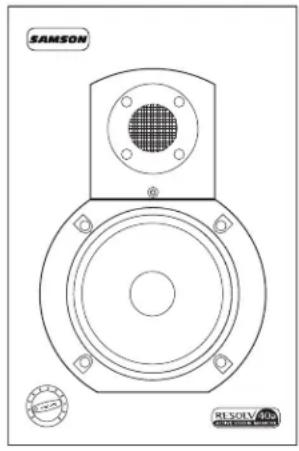

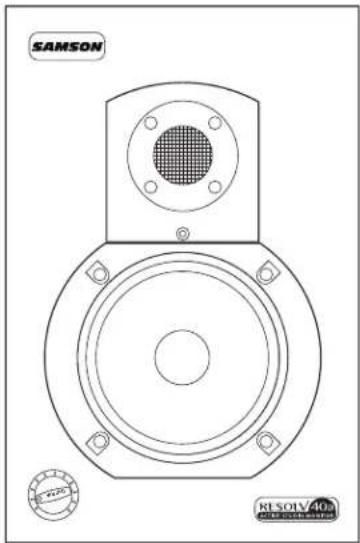

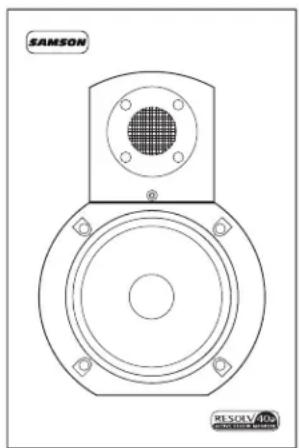

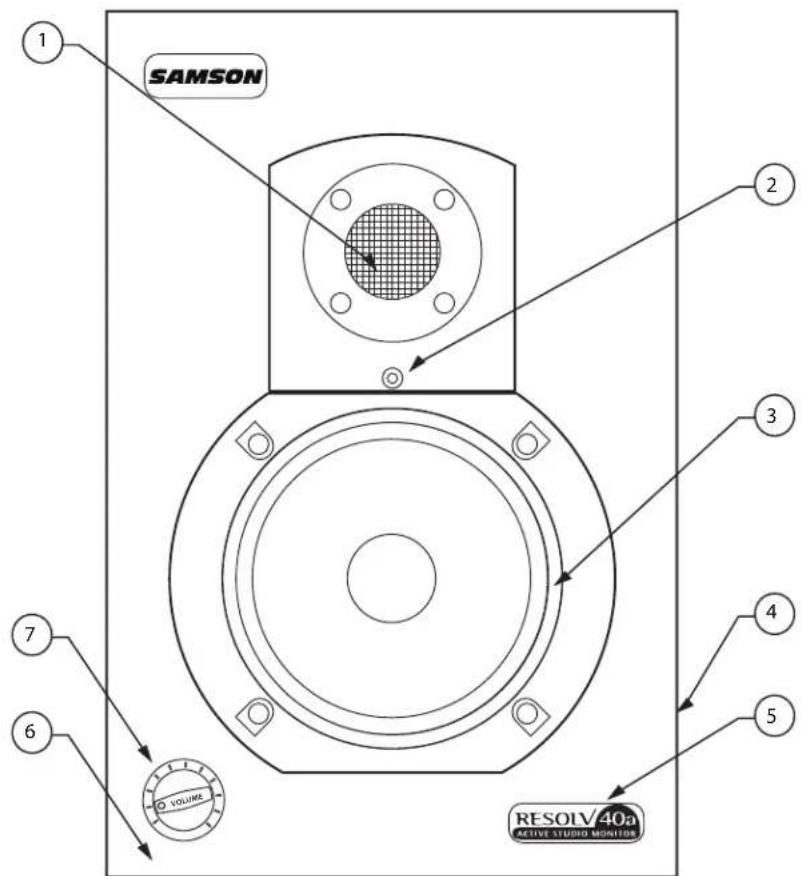

Front View Layout

1 1" TREATED TEXTILE DOME TWEETER - Smooth high frequency response produced from treated textile dome.
2 POWERLED (ACTIVE) - Blue LED illuminates indicating the unit is powered on, ready for operation.
3 4" LOW FREQUENCY DRIVER - Heavy duty 4,'' extended range low frequency transducer.

4 TUNED PORT (REAR) - Quiet port design offering inear extended low frequency response.
5 ENCLOSURE - Rigid MDF construction.
6 FINISH -Sleek black textured vinyl finish.
7 VOLUME (RIGHT SIDE ONLY) - Controls the overall amount of output level.

Resolv 40a Layout

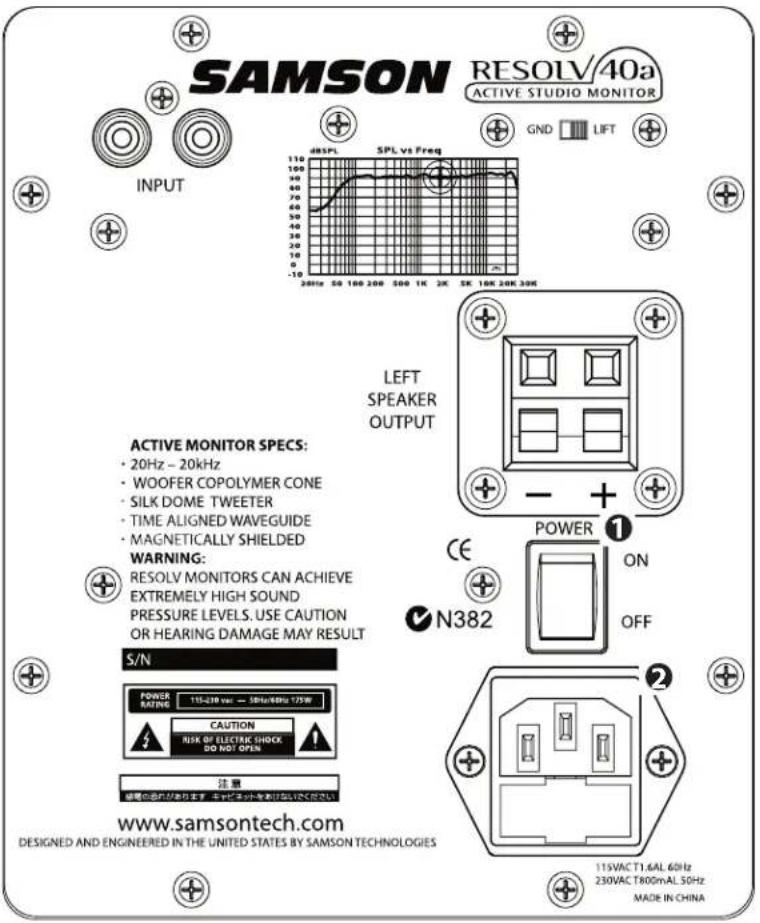

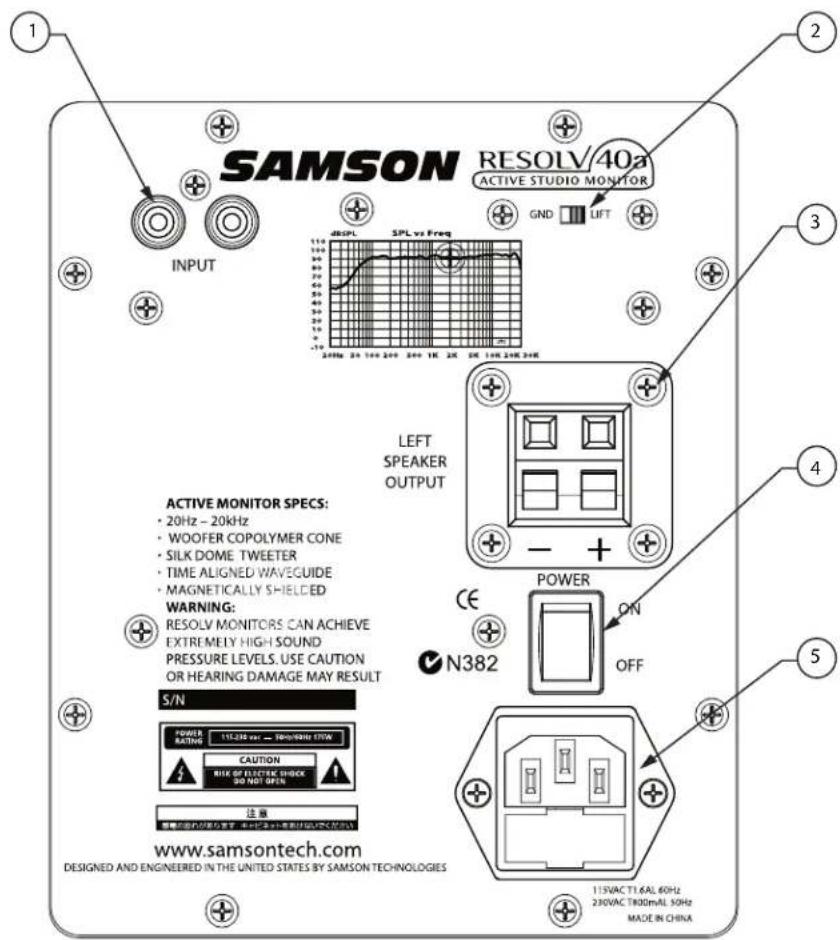

R40a Rear Panel Layout

1 RCA INPUT - Used to connect signals from unbalanced, -10dB devices. The Red connector is the for Right input and the White is for the Left input.
2 GROUND LIFT - Slide switch used to remove the signa ground from the RCA connectors.
3 TERMINAL CUP - Push Terminals for connecting the Left-side Extension Speaker
4 POWER SWITCH - Main power switch. When set to the on position, the front panel blue LED illumines indicating the Resolve 40a is powered up and ready for operation.
5 AC INLET - Connect the supplied IEC power cable here

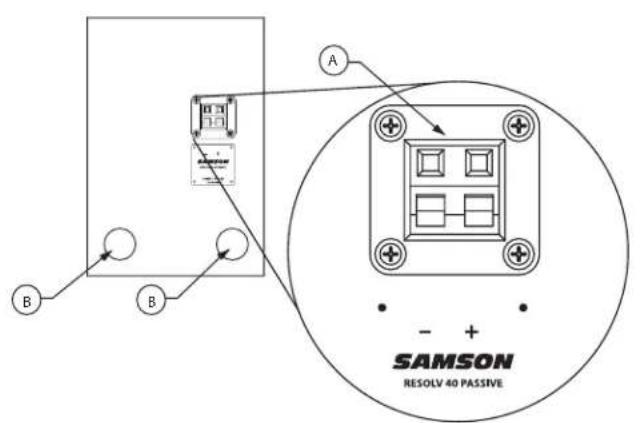

R40P Rear Panel Layout

A TERMINAL CUP - Push Terminals for connecting the Left-side Extension Speaker.
B TUNED PORT (REAR) - Quiet port design offering linear extended low frequency response.

Setting up the Resolv 40a

Background on the Resolv 40a Studio Reference Monito

The Resolv 40a is a near field reference monitor featuring a custom designed, 4^ copolymer, low frequency driver and a 1^ treated textile tweeter, employing a Ferro fluid cooled voice coil and neodymium magnet. The monitor's crossover has been carefully designed with high quality components insuring a linear frequency and phase response. The Resolv 40a enclosure is constructed from MDF (Medium Density Fiberboard) and is finished in scuff resistant, textured paint. The monitor's enclosure also includes a tuned vent port that provides extended low-end response, and with a low turbulence design, the low frequency driver can move freely with minimal effect on the overall impedance. On the rear of one enclosure you'll find Resolv 40a's control panel, which features an RCA unbalanced input. This input is connected to Resolv 40a's internal stereo power module providing 25 watts per channel through passive crossovers

Positioning the Resolv 40a

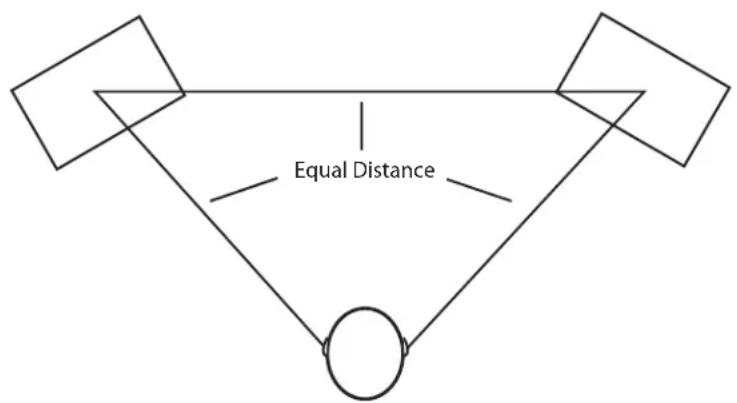

Near field monitoring has become the choice of many engineers in large and small studios because it minimizes the effect of room acoustics. This is especially important in today's project studios since the budget for room acoustics is often close to nothing. By positioning the reference monitors in the near field (close to the listeners), you can greatly reduce the effects of room acoustics. The most important considerations when evaluating the effects of room acoustics are reflective surfaces that are around the monitoring area. These can include flat tabletops, glass mirrors or framed pictures, large open walls and even the surface of your mixing console. Mostly all reflecting sound will eventually reach the listening position, but since it is slightly delayed from the direct source, the result is random cancellation of some frequencies, or comb filtering. If possible, remove any and all reflective surfaces. You may also want to hang some acoustic foam on walls that are close to the monitors. When positioning the monitors you'll want to set up what is commonly referred to as the "mix triangle". In this ideal configuration, the space between the left and right monitor is equal to the distance from the listener to each monitor, forming an equilateral triangle. (Figure 1.)

Prime Listening Spot
Figure 1.

Setting up the Resolv 40a

Positioning the Resolv 40a - continued

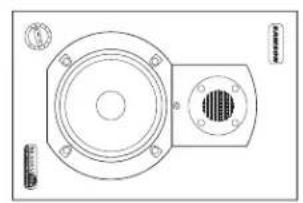

Speaker Orientation

The Resolv 40a's can be used in either the vertical or horizontal position. When using the monitors in the horizontal position, be certain to place the left and right side tweeters on the outer most sides. (Figure 2) This will improve the stereo imaging and bass response by increasing the coupling of the low-end drivers

Figure 2.

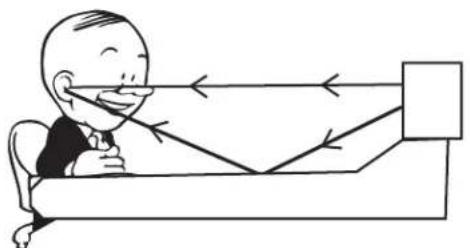

A Moment of Reflection

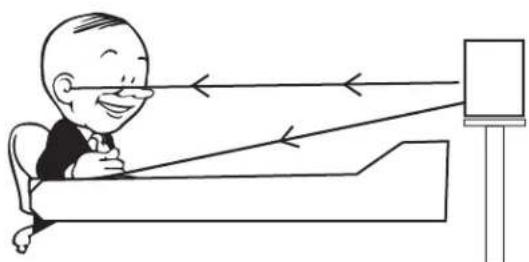

When choosing the height of your monitor system, be careful to avoid reflections off the surface of the mixing console. (Figure 3.) These reflections arrive at the listening position slightly delayed from the original sound resulting in strange cancellations and overall unpredictable response. Visualize straight lines representing the beams of sound radiating from the monitors and choose a height that reduces the occurrence of reflections that will end up in the prime listening spot. (Figure 4.) In most cases, the ideal position is slightly behind and above the mixing console's meter bridge

Figure 3

Figure 4

Connecting the Resolv 40a

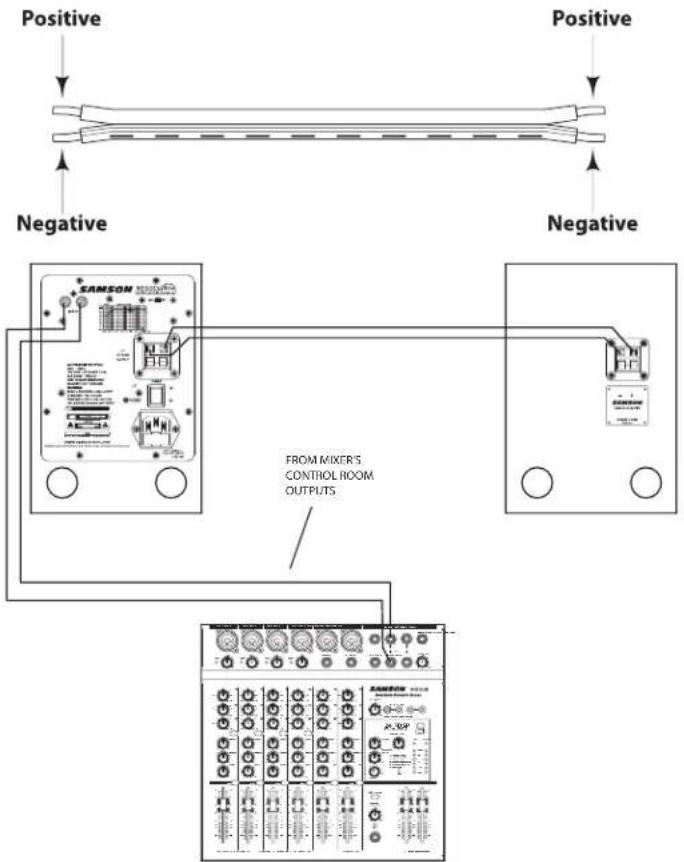

Resolv 40a Quick Connections

Note: Before plugging in and turning on, remember the "LAST ON FIRST OFF" rule of power amplifiers (and power monitors). When powering up your system, be sure that all the wires are connected, turn your mixer and any other out board gear on, and then last turn your Resolv 40a's on. When powering down, turn your Resolv 40a's off first and then your mixer and outboard gear

The Resolv 40a connections can be made via the rear panel RCA Inputs. Follow the simple steps and diagram below for a quick connection using a standard recording console's control room outputs

Using the included 18-gauge Extension Speaker cable, connect the negative side of the wire to the Black terminal and the positive side to the Red terminal on the Right-side monitor.
Now, connect the Negative side of the wire to the Black terminal and the Positive side to the Red terminal on the Left-side monitor.

Note: Just about all un-shielded speaker wire will have a marking indicating the negative side. To avoid phase cancelation problems, be sure to maintain the correct connection for the positive and negative sides throughout your system

• Lower your mixer's master outputs to all the way off.
  Connect the mixer's left Control Room output to the stereo input on the Right-side Resolv 40a .
• Set the Resolv 40a's input Volume control to the 2 o'clock position.
• Run an audio signal (like some music from a CD) through your mixer and raise the Control Room level to a comfortable listening level.

Operating the Resolv 40a

Resolv 40a Rear Control Panel

The Resolv 40a's rear control panel is where you will make your connections for both AC power and audio signals. The following section details the rear panel controls and connections

Powering the Resolv 40:

Since the Resolv 40a is an active studio monitor with an on-board power amplifier, it is necessary to connect the unit to an AC power supply. Make sure that the main Power switch is set to the off position and connect the supplied IEC power cable into the AC inlet.

Things that go Hum!

When running power cables, be careful not to run the AC power cords or AC extension cords in parallel to your input cables. This will help reduce any AC hum that can be picked up. If your have to cross an AC line with an audio line, try to cross them at a 90 degree angle for the least amount of induced hum.

1 POWER SWITCH - The POWER switch is used to turn on the Resolv 40a's active electronics. When set tc

the on position, the front panel blue LED illuminates, indicating the Resolve 40a is powered up and ready for operation.

ACINLET-Connect the supplied IEC power cable here

Operating the Resolv 40a

Resolve 40a Rear Control Panel - continuc

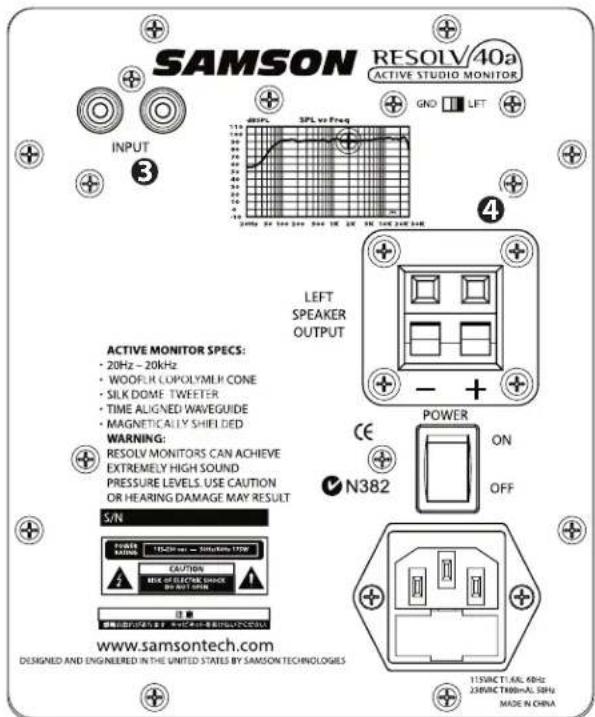

The Ins and The Outs

The Resolv 40a features a stereo pair of input connectors providing easy installation with a variety of audio devices like recording consoles, hard disk recorders, CD players and computer sound cards, to name a few. The following section details the Resolv 40a's input connectors. In addition, there is a detailed cable-wiring diagram on page 12.

RCA AUDIO INPUT - The RCA input accepts unbalanced signals used to connect signals from unbalanced -10dBV devices.
TERMINAL CUP - Push Terminals for connecting the Left-side Extension Speaker.

Resolv 40a Front Control Panel

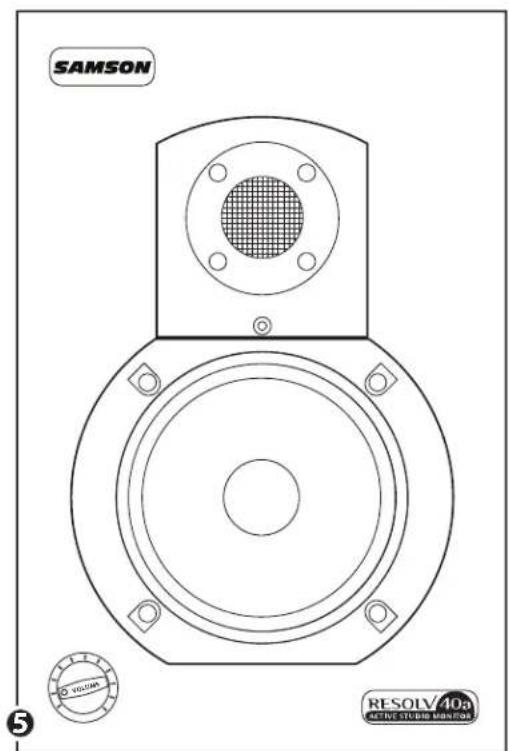

VOLUME CONTROL - (FRONT PANEL)

The volume control is used to adjust the overall output level of the Resolv 40a. When operating the unit for the first time, start with the volume control set all the way off. Slowly raise the Volume control to reach a comfortable listening level

Connecting to the Resolv120a Subwoofer

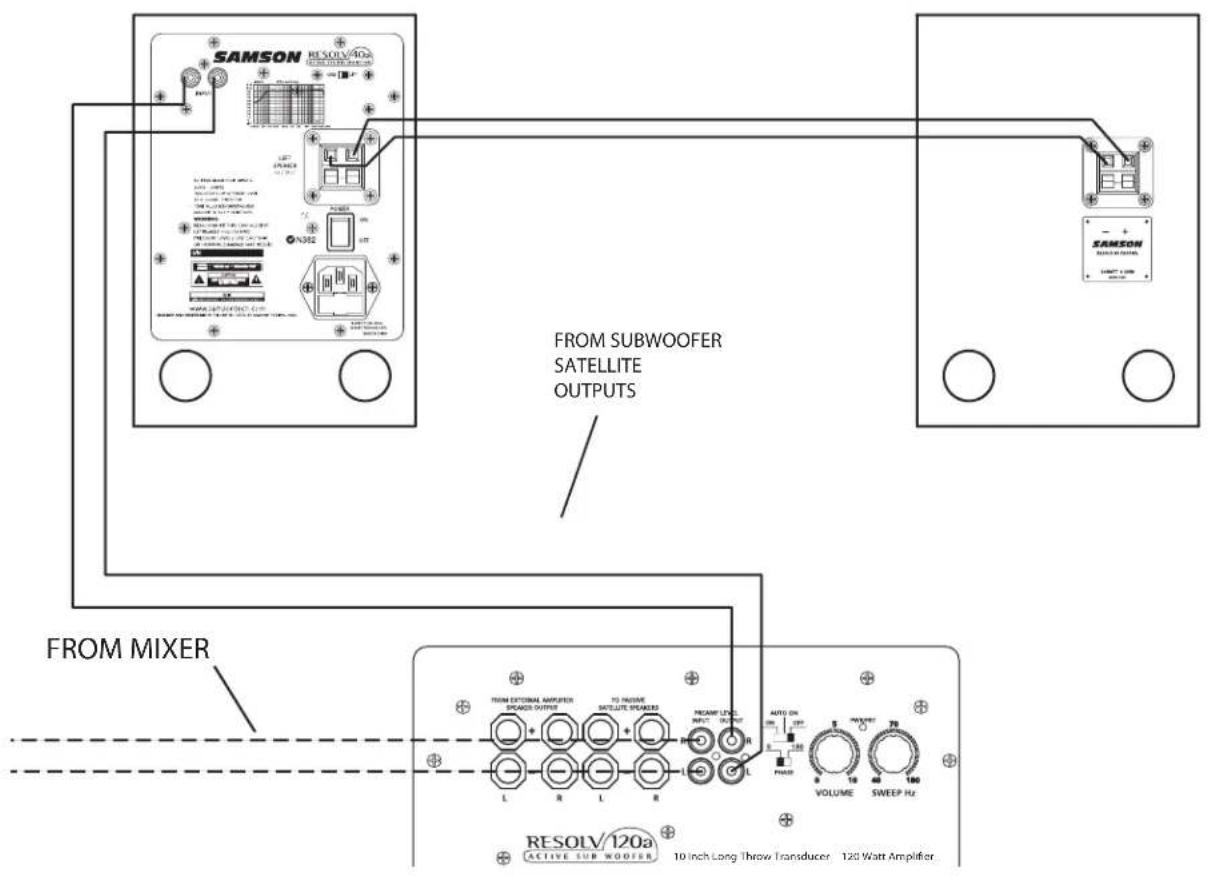

Resolv 40a with Mono Sub

Adding a subwoofer and extended low frequency response to your Resolv 40a system is easy using the Resolv 40a's LINE _EVEL inputs. Below is a typical system set-up using the RESOLV 120a with a mixer and a pair of Resolv 40a's satellite speakers. The Resolv 40a's inputs utilize industry standard RCA connectors. For a detailed wiring diagram, see the section 'Resolv 40a Connections" on page 12. Follow the steps in the diagram below to set up your system.

Lower your mixer's master outputs to all the way off.
Connect the mixer's left output to the RESOLV 120's LEFT LINE INPUT and the mixer's right output to the RESOLV 120's RIGHT LINE INPUT. Now connect the RESOLV 120's LEFT LINE OUTPUT to the left input of the Resolv 40a, and the RESOLV 120's RIGHT LINE OUTPUT to the right input of the Resolv 40a
Run an audio signal (like some music from a CD) through your mixer and raise the level to a comfortable listening level.
Now adjust the SWEEP control to the desired frequency. Consult your studio monitors owner's manual for a recommended crossover point. You can also use your ears by adjusting the SWEEP control to the frequency that sounds good to you. A good place to start is about 70Hz

Resolv 40a Connections

Resolv 40a Wiring Guide

There are several ways to interface the Resolv 40a, depending on your exact monitoring set-up. Follow the cable diagrams below for connecting your monitor system.

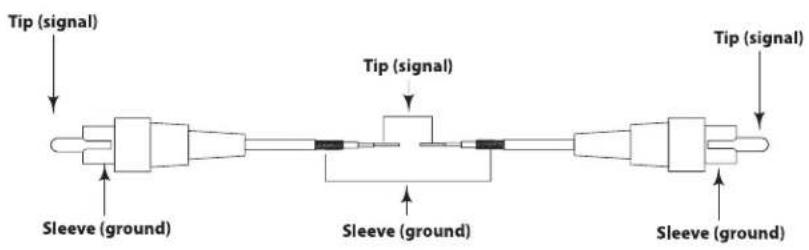

RCA to RCA Cable

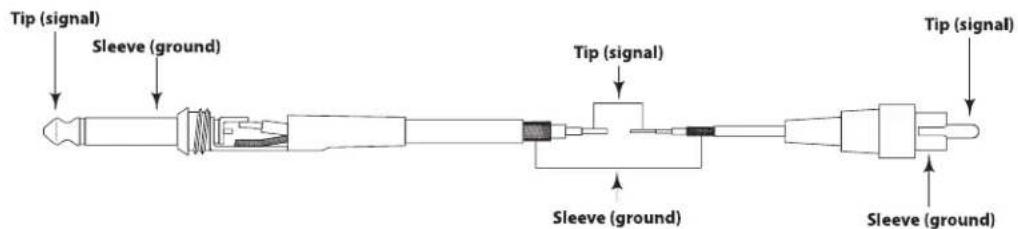

Unbalanced 1 / 4'' to RCA Cable

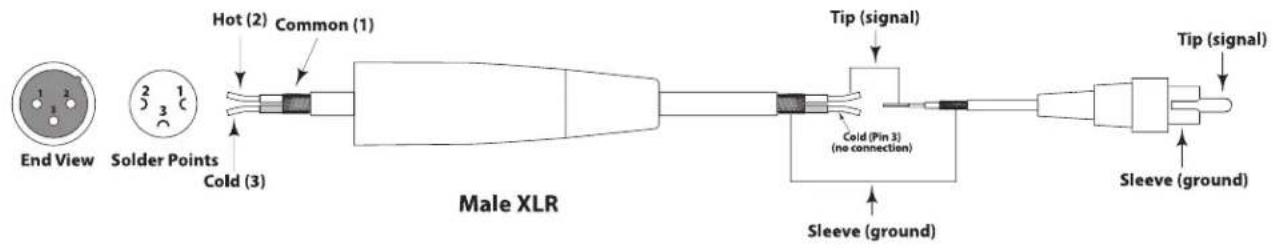

Un-Balanced XLR to RCA Cable

Introduction

Resolv 40a Anschlüsse

Resolv 40a Verdraughtung

Transducers: 4" polypropoline with butyl surround,

1-inch treated textile tweeter

Frequency response: 70Hz - 24KHz +/-3 dB

Amplifier:

Power Rating: 2 x 25 Watts RMS

Crossover Frequency: 3.3KHz : HPF, 6 dB/oct, LPF 12 dB/oct

Inputs:

Unbalanced -10dBV Line Level

Connector: RCA

Enclosure:

Construction: MDF (Medium Density Fiberboard)

Finish: Black Textured

Dimensions: 6.5^ × 9.75^ × 7.5^

168mm× 245mm× 190mm

Weight:

R40a(active) 10 lbs./4.54 kg. R40P(passive) 7 lbs./3.18 kg.

\section*{Caracteristiques techniques}

Puisance: 2x25 Watts efficace

Fréquence de coupure: 3,3 kHz : HPF, 6 dB/oct, LPF 12 dB/oct

Entres:
