Active Speaker 178.846 - Speaker Skytec - Free user manual and instructions

Product type	Active speaker
Brand	Skytec
Model	Active Speaker 178.846 (PD-15A MP3)
Output power (RMS)	250 W
Output power (music)	500 W
Sensitivity	125 dB
Frequency response	40 - 18000 Hz
Speaker (woofer)	15 inches (38 cm)
Inputs	2x Line/Mic (XLR or 6.3 mm jack) + 1x Line (RCA)
Output	Balanced line output (XLR) for daisy-chaining
Built-in MP3 player	Yes, with USB port and controls (Play/Pause, Stop, Repeat, Prev, Next)
Controls	Master volume, channel volume, line volume, bass, treble
LED indicators	Power (green), limit (red) – indicates clipping
Power supply	230 V~ / 50 Hz, 16A fuse, grounded power plug
Dimensions (W x H x D)	685 x 460 x 400 mm
Weight	22 kg
Enclosure material	Rugged plastic with metal grille
Suspension points	Yes, for wall or ceiling mounting
Base	Yes, for installation on stand or tripod
Protection	Do not expose to rain or moisture; use indoors
Maintenance	Unplug before cleaning; wipe with a dry, lint-free cloth
Safety	Do not open the device; repairs by qualified technician; keep out of reach of children
Included accessories	Power cord; user manual

Frequently Asked Questions - Active Speaker 178.846 Skytec

How to connect the speaker?

Connect the power cord to a grounded 230V~ / 50Hz outlet protected by a 16A fuse. Before turning on, fully lower the volume. Use XLR or 6.3 mm jack cables for audio sources.

What to do if no LED lights up?

Check that the power cord is properly connected and the ON/OFF switch is in the ON position. If the green LED does not light up, test another outlet or replace the fuse (locate the fuse holder near the power input).

How to use the built-in MP3 player?

Insert a USB drive into the dedicated port. Press PLAY/PAUSE to start playback. Use the PREV and NEXT buttons to change tracks, STOP to stop, and REPEAT to repeat a track. The player volume is adjusted with the specific control.

Why is there a constant hum?

A constant hum or buzzing often comes from a grounding issue. Check that all devices (amp, mixer, sources) are properly grounded. Try unplugging cables one by one to locate the source. Use shielded cables.

What to do if the sound is distorted or clipping?

If the red 'Limit' LED lights up continuously, lower the volume immediately to avoid damaging the speaker. Clipping can also come from a too-high source: reduce the gain on the mixer or the line input volume.

Can I use the speaker outdoors?

No, this speaker is designed for indoor use only. It is not waterproof or moisture-resistant. Exposure to water or high humidity can damage components and void the warranty.

How to clean the speaker?

Always unplug the speaker before cleaning. Use a soft, dry (lint-free) cloth to wipe the exterior. Do not use chemicals or liquids as they may seep inside.

Can I repair the speaker myself?

No, the speaker contains no user-serviceable parts. Any repairs must be carried out by a qualified technician. Opening the device poses a risk of electric shock and voids the warranty.

How to stack multiple speakers?

You can stack speakers up to a total load of 60 kg. Place them on a flat, stable surface. Use a stand suitable for the speaker's weight. Do not exceed the maximum load.

What to do if the audio output is intermittent?

An intermittent signal often comes from a bad connection. Check all cables and plugs; try new, working cables. If the problem persists, it may be a damaged speaker; contact a professional.

USER MANUAL Active Speaker 178.846 Skytec

Power Dynamics Professional Audio

Active Speakers

178.843 PD-12A MP3 12Inch

178.846 PD-15A MP3 15Inch

HANDLEIDING
INSTRUCTION MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES

Backpanel

MP3 control

NL

ABS ACTIEVE PA LUIDSPREKERS

Constante brom, lawaai of zoem

ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this Power Dynamics active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac/50Hz.
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.

• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.

• Route cables so that peoples will not trip over them pulling the speaker over.

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
  Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
  Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
  Only use the supplied mains lead or another lead recommended by Power Dynamics.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

CAUTION: Risk of electric shock. Do not open LET OP: Niet openen. Gevaar voor electrische schok ATTENTION: Risque d'electrocution. Ne pas ouvrir ACHTUNG: Stromschlaggefahr. Nicht Offnen ADVARSEL: Maijke abnes. Risiko for elektrisk chok

Do not expose to rain / moisture
Niet in vochtige ruimtes gebruiken
Tenir à l'abri de la pluie et de l'humidité
Vor Regen und Feuchtigkeit schützen
Ma ikke anwendes i vade/fugtige omgivelser

PRODUCT FEATURES

General

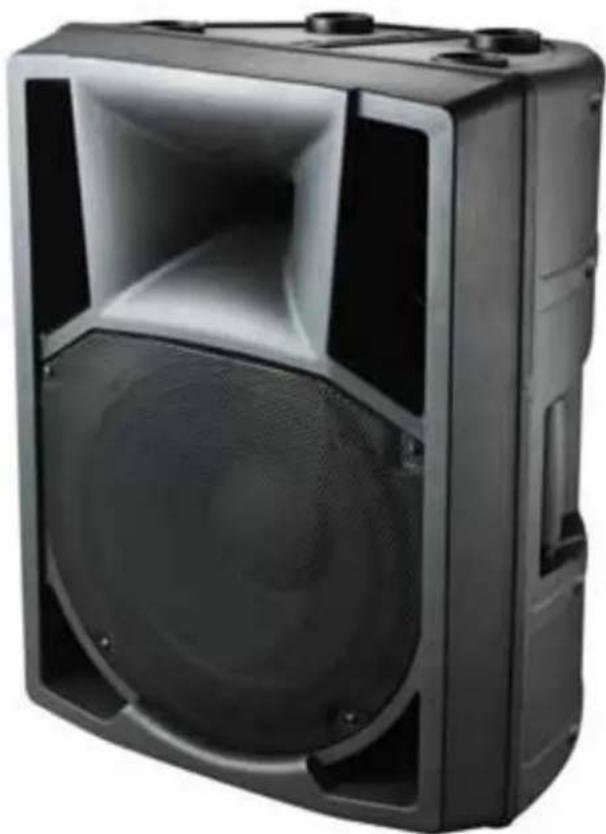

• Professional & sturdy ABS enclosure;
• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;
• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

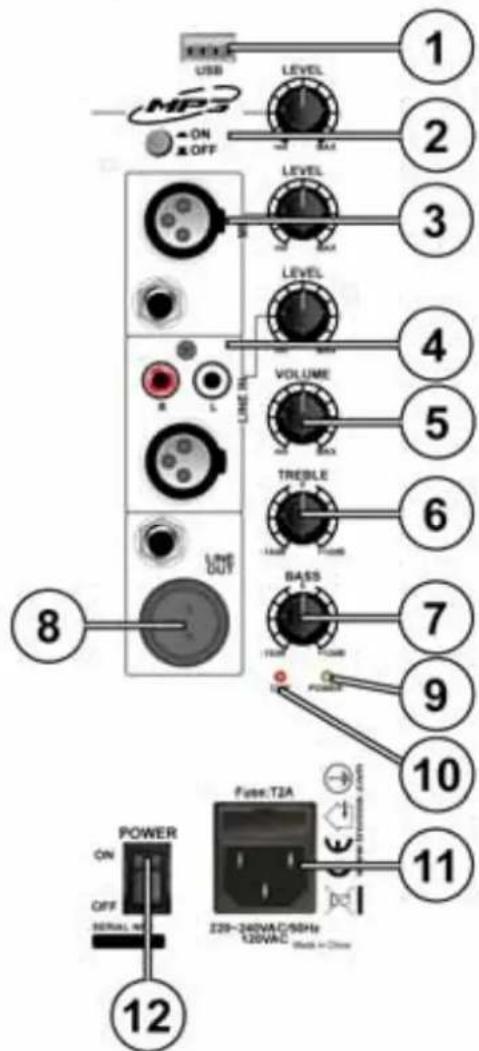

INPUT PANEL

1. USB Input MP3 player
2. MP3 player on/off Volume control for MP3 player
3. Balanced input connector MIC (XLR or 6.3mm Jack)

Volume control for MIC

1. Line input for audio input source e.g. mixer, CD player, etc.
   Volume control for Line Input
2. Master volume control.
3. Treble Tone control
4. Bass Tone control
5. Balanced output connector (line out). For connette a second active speaker box.
6. Clip lindication.

These LED will light up when amplifier are on max power. It can occur that these LED will lit up now and then, this is not a problem. But if it lights up continually you need to adjust the volume down, otherwise permanent damage to equipment might occur

1. Power Indication.

This clear green indicator will light when the amplifier is turned on.

1. Mains Power Connector / Fuse

This main fuse secures the speaker against defects. Replace this only with a fuse of same type and value.

1. On/Off Switch.

For switching the speaker on and off. Always adjust the volume down to its minimum before switching this speaker on.

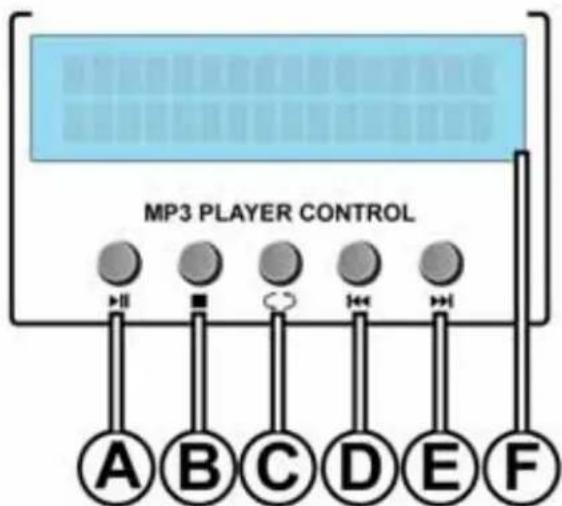

MP3 Control

A. PLAY/PAUSE
Track play or pause mode
B. STOP
Track stop playing
C. REPEAT
Playing same track again
D. PREV
Play previous track
E. NEXT
Play next track
F. Display MP3 information

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

No output

Possible cause Action

Speaker cables Reseat all connectors

Inspect cable for damage

Inspect wire or connector

for stray strand that m

Intermittent

Possible cause Action

Poor connections While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Reseat all connectors

Constant noise, buzzing and/or humming

Possible cause Action

Faulty electronic Any constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as required. Chain check for noisy sources or electronic components. Check wiring for shielding.

SPECIFICATIONS

Item PD-12A MP3	D-15A MP3
Output power 200W	250W
Output power (music)	400W 500W
Sensitivity	122dB	125dB
Frequency Range 50	18.000Hz 40	18.000Hz
Input(s)	1x Line/Mic + 1x Mic	2x Line/Mic + 1x Line
Woofer (inch) 12"	15"
Dimensions 585 x 420	0 x 310 mm 685 x 460	0 x 400 mm
Weight	17kg	22kg
Ref. Nr.	178.843	178.846

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Trionios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

F

ENCEINTES SONO ACTIVES

CE - RTTE Declaration of Conformity

Importer: TRONIO S BV

Product Description: Passive PA Speaker

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN61000-3-2/-3-3

The product meets the requirements stated in the above mentioned Standards.

05-03-2012

S i g n a t u r e

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
