Product Type	Active speaker (powered speaker)
Brand	Skytec
Model	SPJ800ABT
Maximum Power	200 W
RMS Power	100 W
Frequency Response	65 Hz - 18 kHz
Max SPL	115 dB
Impedance	4 ohms
Woofer	8 inches (200 mm)
Horn Type	Piezo
Directivity	90° x 60° (constant)
Enclosure Material	Molded ABS with perforated metal grille
MP3 Player	Yes (USB, SD, Bluetooth)
Bluetooth	Yes (device name: SKYTEC PLAYER, code 0000)
Inputs	Microphone (XLR/Jack), Line (RCA), USB, SD
Outputs	Line out (for second speaker)
Power Supply	220-240 V ~ 50 Hz (grounded plug)
Dimensions (W x H x D)	220 x 253 x 390 mm
Weight	5.05 kg
Mounting	35 mm stand insert, mounting brackets (suspension, max 60 kg)
Handle	Yes, ergonomic
Usage	Indoor only (protect from moisture)
Maintenance	Clean with a dry cloth; do not use liquid
Safety	Do not expose to more than 90 dB SPL for a long time; do not open or repair yourself; unplug before replacing fuse
Spare parts / Repairability	Replaceable fuse; contact customer service for any repairs

Frequently Asked Questions - SPJ800ABT Skytec

How to connect the speaker via Bluetooth?

Turn on the speaker, press the MODE button until 'AUX' is displayed. On your phone or computer, search for Bluetooth devices. Select 'SKYTEC PLAYER'. The password is 0000.

How to play MP3 files from a USB drive or SD card?

Insert the USB drive or SD card into the corresponding ports. Use the 'USB/SD/BLUETOOTH SWITCH' button to select the source. Playback starts automatically. Use the PLAY/PAUSE, PREV, NEXT buttons to control playback.

What to do if the speaker produces no sound?

First check the cable connections (power and audio). Make sure the volume is not at minimum. Test with another audio source or a working speaker. If the problem persists, check the fuse and replace it if necessary.

Can I use the speaker outdoors?

The speaker is designed for indoor use. If used outdoors, protect it from moisture and rain. Humidity can significantly reduce its lifespan.

How to suspend the speaker from the ceiling?

Use suitable mounting brackets (not supplied). Ensure the support can withstand at least 60 kg. Make sure no one is under the speaker during installation. Mount only one speaker per stand.

What is the rated power of the speaker?

The maximum power is 200 W and the RMS (continuous) power is 100 W. Do not exceed this power to avoid damaging the speakers.

What cables should I use to connect an audio source?

Use good quality shielded cables. For line input, use an RCA cable. For microphone, use an XLR or 6.35 mm jack cable. Avoid poor quality cables that may generate noise.

How to adjust the microphone volume?

On the input panel, turn the 'Microphone volume adjustment' knob (usually marked MIC VOL). Start at a low level and increase gradually to avoid feedback.

Why is there constant humming?

Constant humming often comes from a grounding issue or a noisy electrical device. Check that all cables are properly connected and that the speaker is connected to a grounded outlet. Move the speaker away from interference sources.

How to clean the speaker?

Use a dry, soft cloth. Never use liquids or abrasive cleaners. Clean the grille regularly to prevent dust buildup. Protect the speaker from moisture.

USER MANUAL SPJ800ABT Skytec

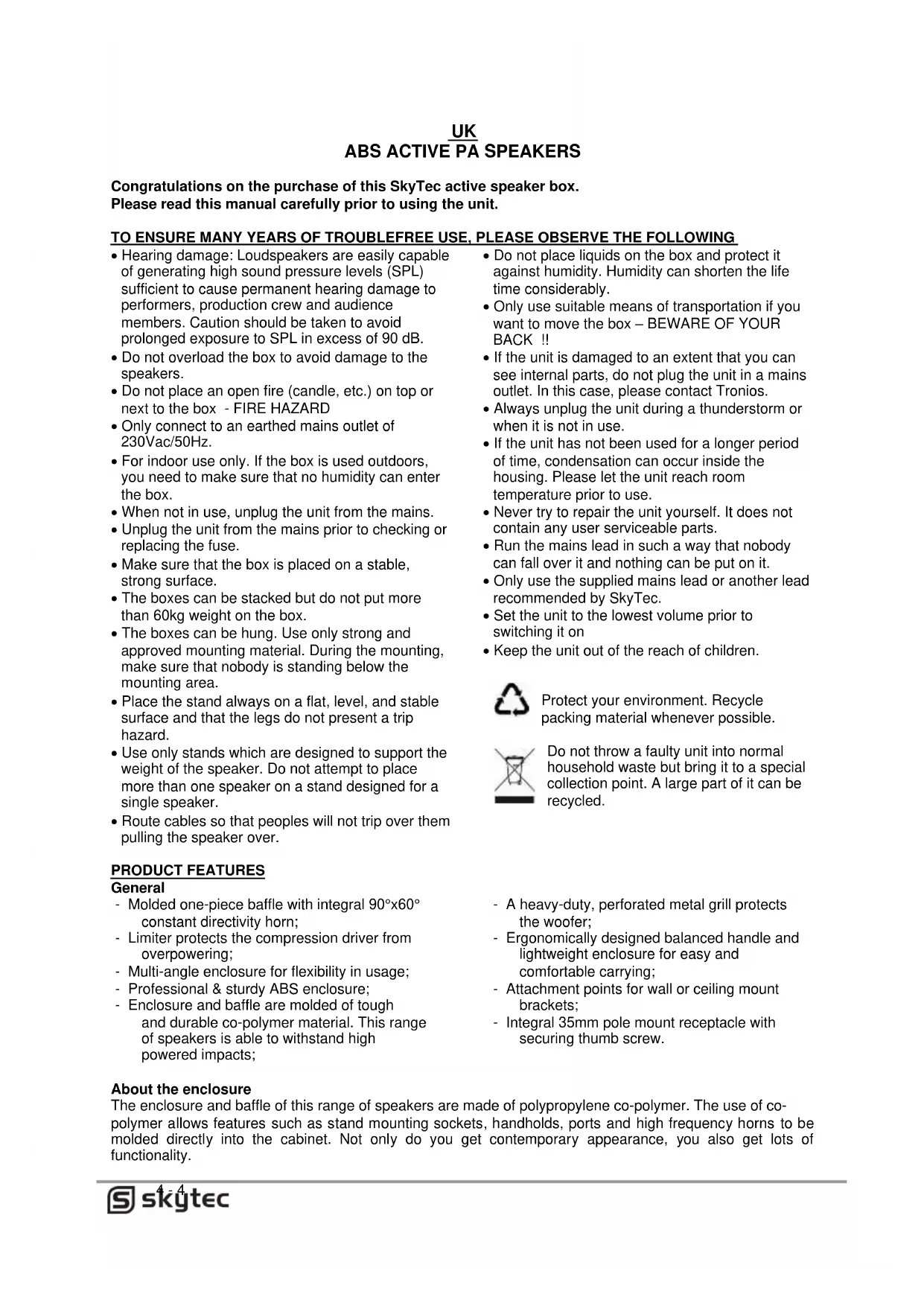

UK ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this SkyTec active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac / 50Hz .
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.
• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.
• Route cables so that peoples will not trip over them pulling the speaker over.

PRODUCT FEATURES

General

• Molded one-piece baffle with integral 90^ × 60^ constant directivity horn;
• Limiter protects the compression driver from overpowering;

• Multi-angle enclosure for flexibility in usage;
  Professional & sturdy ABS enclosure;
  Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.

• Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
• Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
• Only use the supplied mains lead or another lead recommended by SkyTec.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

Protect your environment. Recycle packing material whenever possible.

Do not throw a faulty unit into normal household waste but bring it to a special collection point. A large part of it can be recycled.

• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

About the enclosure

The enclosure and baffle of this range of speakers are made of polypropylene co-polymer. The use of copolymer allows features such as stand mounting sockets, handholds, ports and high frequency horns to be molded directly into the cabinet. Not only do you get contemporary appearance, you also get lots of functionality.

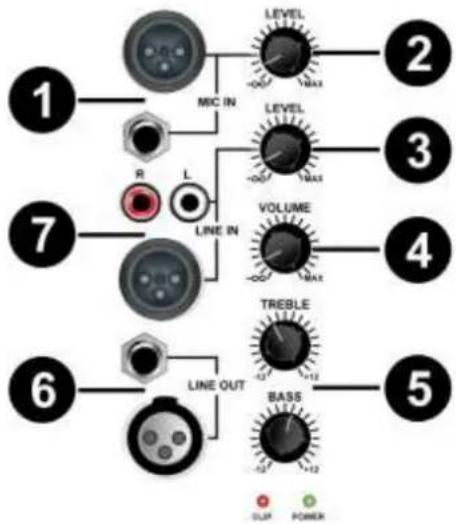

INPUT PANEL

12" & 15" Versie:

1. Input connector for microphones
2. Volume control for the microphone
3. Volume control for the line input
4. Volume control for the output
5. Tone control for the output
6. Output connector to a second box or amplifier (line level)
7. Line input connector for the audio input source e.g. mixer, CD player, etc.

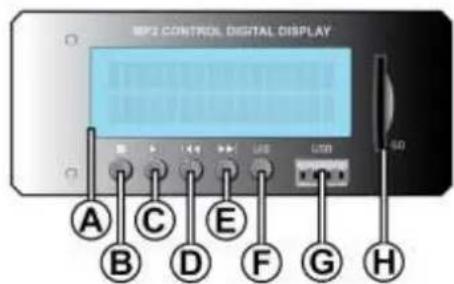

MP3 PANEL

A. DISPLAY

Shows MP3 information

B. STOP

Track stop playing

C. PLAY/PAUSE

Track play or pause mode

D. PREV

Play previous track

E. NEXT

Play next track

F. USB/SD / BLUETOOTH SWITCH

Use switch for playing from USB stick, SD card or Bluetooth

G. USB CONNECTION

For connection of a USB stick with MP3 files

H. SD CARD CONNECTION

For connection of a SD CARD with MP3 files

How to connect with your Bluetooth device:

First turn on speaker, then press on "MODE" (F) till you see "AUX". Then use your mobile or computer to search a Bluetooth device. When you find the "SKYTEC PLAYER" then connect. The password is: 0000

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

Possible cause Action

No output

Cables Reseat all connectors

Substitute known good cables

Check solder joins

Inspect cable for damage

Inspect wire or connector for stray strand that may short

Intermittent

Poor connections

While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Check the soldering on your connectors.

Constant noise, buzzing and/or humming

Faulty electronic Any constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as required. chain check for noisy sources or electronic components. Check wiring for shielding.

Poor low-frequency output

Improper polarity

When two speakers in close proximity to each other are connected out-of-polarity, they can partially cancel each other out, especially at low frequencies. Check your speaker cables to be sure they are all identically wired and connected. Check the balanced line signal cables to be sure they are all correctly wired.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Trionios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

NL ABS ACTIEVE PA LUIDSPREKERS

Manufacturer: TRONIOS BV

[phone]

[phone]

Bedrijivenpark Twente 415

7602 KM - ALMELO

The Netherlands

Product number: 178.040; 178.041; 178.042; 178.045

Product Description: SPJ Active Speaker Series

Trade Name: SKYTEC

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN 61000-3-2/-3-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

ALMELO.

8-6-2015

Name: P. Feldman

Controller regulations

Signature

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
