Product type	Active Bluetooth MP3 speaker
Brand	Skytec
Model	SPJ Active Speaker with Bluetooth and MP3 178.045
Category	Loudspeaker
Power supply	230 V~50 Hz, fuse 16 A
Microphone inputs	2 x XLR/Jack with independent volume control
Line input	1 x RCA (for CD, DVD player, etc.)
Line output	1 x for connecting a second active speaker
Controls	Microphone volume, line volume, master volume, bass/treble
Bluetooth function	Yes, wireless playback
MP3 function	Yes, via USB key or SD card
Enclosure material	Polypropylene
Protection grille	Heavy duty perforated
Handles	Ergonomic for transport
Mounting points	For wall or ceiling mounting
Base	For installation on stand or PA system
Use	Indoor use only
Protection	Do not expose to moisture
Cleaning	With a dry cloth, no solvents
Safety	Do not open, repair by qualified technician

Frequently Asked Questions - SPJ Active Speaker with Bluetooth and MP3 178.045 Skytec

How to connect my phone via Bluetooth?

Make sure the speaker is turned on. Enable Bluetooth on your phone and select 'Skytec SPJ' from the list of devices. The Bluetooth light flashes and then becomes solid once connected.

What to do if the sound is intermittent?

Check the connections of cables and plugs. A cable or connector problem is often the cause. Replace cables if necessary.

How to adjust the bass and treble?

Use the 'Bass' and 'Treble' potentiometers on the input panel. Turn clockwise to increase, counterclockwise to decrease.

Can I use the speaker outdoors?

No, this speaker is designed for indoor use only. Moisture or rain can damage the device.

How to clean the speaker?

Use a soft, dry cloth. Never use solvents, abrasive products, or water. Unplug the speaker before cleaning.

What types of cables to use for microphones?

Use good quality balanced XLR or Jack (6.35 mm) cables. Make sure the connections are fully inserted.

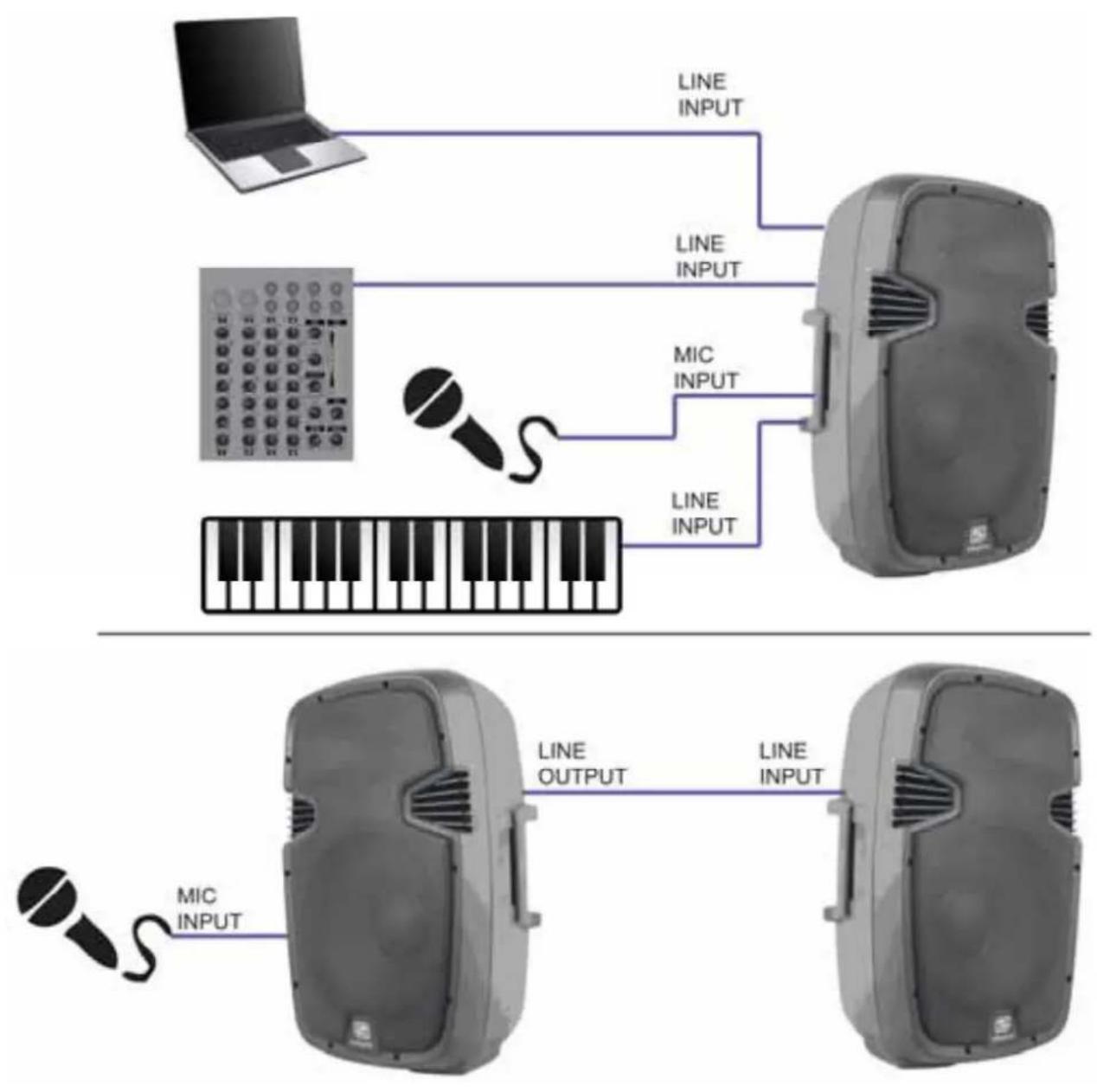

How to connect a second speaker?

Use the line output (Line Out) of the first speaker to connect it to the line input of the second active speaker. Adjust the volumes evenly.

What to do if the speaker does not turn on?

Check that the power cord is properly plugged in and that the mains socket is live. If the fuse is blown, replace it with a fuse of the same type (16 A). If the problem persists, contact a technician.

The volume is too low, what to do?

Increase the master volume and the source volume (mic or line). Check that the bass/treble settings are not reduced to minimum. Make sure the Bluetooth or MP3 player is at sufficient volume.

How to play music via USB or SD?

Insert a USB key or SD card containing MP3 files into the corresponding slot. Press the 'USB/SD' button to select the source. Playback starts automatically.

USER MANUAL SPJ Active Speaker with Bluetooth and MP3 178.045 Skytec

SPJ ACTIVE SPEAKER SERIES WITH BLUETOOTH & MP3 PLAYER

178.042 / 178.045

INSTRUCTION MANUAL HANDLEIDING MODE D'EMPLOI BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES

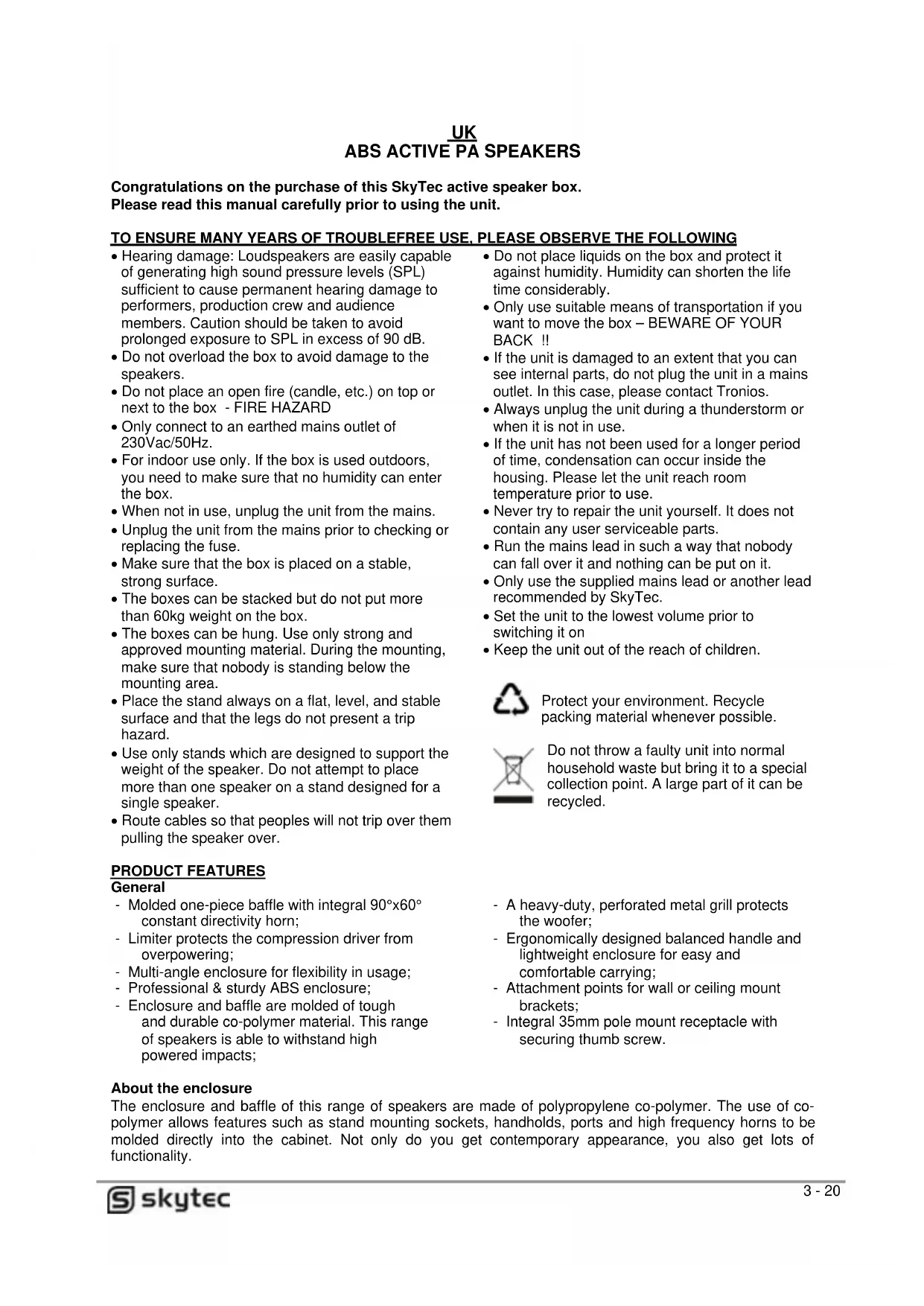

ABS ACTIVE UK PA SPEAKERS

Congratulations on the purchase of this SkyTec active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac / 50Hz .
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.
• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.
• Route cables so that peoples will not trip over them pulling the speaker over.

PRODUCT FEATURES

General

• Molded one-piece baffle with integral 90^ × 60^ constant directivity horn;
• Limiter protects the compression driver from overpowering;
• Multi-angle enclosure for flexibility in usage;
• Professional & sturdy ABS enclosure;

• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.

• Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
• Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
• Only use the supplied mains lead or another lead recommended by SkyTec.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

Protect your environment. Recycle packing material whenever possible.

Do not throw a faulty unit into normal household waste but bring it to a special collection point. A large part of it can be recycled.

About the enclosure

The enclosure and baffle of this range of speakers are made of polypropylene co-polymer. The use of copolymer allows features such as stand mounting sockets, handholds, ports and high frequency horns to be molded directly into the cabinet. Not only do you get contemporary appearance, you also get lots of functionality.

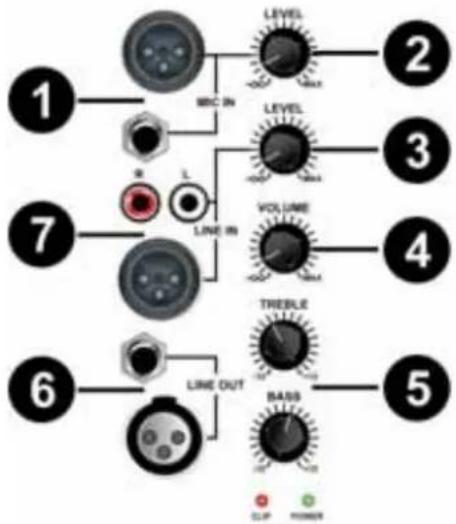

INPUT PANEL

12" & 15" Versie:

1. Input connector for microphones
2. Volume control for the microphone
3. Volume control for the line input
4. Volume control for the output
5. Tone control for the output
6. Output connector to a second box or amplifier (line level)
7. Line input connector for the audio input source e.g. mixer, CD player, etc.

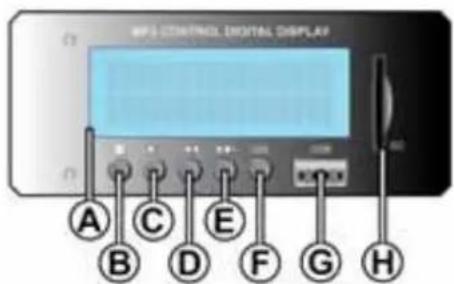

MP3 PANEL

A. DISPLAY

Shows MP3 information

B. STOP

Track stop playing

C. PLAY/PAUSE

Track play or pause mode

D. PREV

Play previous track

E. NEXT

Play next track

F. USB/SD / BLUETOOTH SWITCH

Use switch for playing from USB stick, SD card or Bluetooth

G. USB CONNECTION

For connection of a USB stick with MP3 files

H. SD CARD CONNECTION

For connection of a SD CARD with MP3 files

How to connect with your Bluetooth device:

First turn on speaker, then press on "MODE" (F) till you see "AUX". Then use your mobile or computer to search a Bluetooth device. When you find the "SKYTEC PLAYER" then connect. The password is: 0000

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

Possible cause Action

No output

Cables Reseat all connectors

Substitute Check

known solder

good joins

cables

Inspect cable for damage Inspect wire or connector for stray strand that may short

Intermittent

Poor connections

While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Check the soldering on your connectors.

Constant noise, buzzing and/or humming

Faulty electronic Any constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as required. chain check for noisy sources or electronic components. Check wiring for shielding.

Poor low-frequency output

Improper polarity

When two speakers in close proximity to each other are connected out-of-polarity, they can partially cancel each other out, especially at low frequencies. Check your speaker cables to be sure they are all identically wired and connected. Check the balanced line signal cables to be sure they are all correctly wired.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Tronios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

NL ABS ACTIEVE PA LUIDSPREKERS

CE-Declaration of Conformity

Impor ter: TRONIO S BV

Product Description: Skytec, Sj Active Speaker Series

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN 6100-3-2/-3-3

The product met the requirements stated in the above mentioned Declaration(s).

A L M E L O

19-10-2012

S i g n a t u r e

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
