MWG 786 - Microwaves CLATRONIC - Free user manual and instructions

Product Type	Microwave with grill
Brand	Clatronic
Model	MWG 786
Power Supply	230-240 V~, 50 Hz
Microwave Consumption	1200 W
Grill Consumption	900 W
Microwave Power	700 W / 2450 MHz
Oven Capacity	20 liters
Net Weight	Approximately 11.50 kg
Functions	Microwave, Grill, Combination (3 modes), Defrost, Keep Warm
Supplied Accessories	Turntable, Roller ring, Grid
Safety	Door lock, Overheating protection, Do not use if door is damaged
Maintenance	Clean with damp cloth, do not use abrasive cleaners or steam cleaner
Reparability	Repair by qualified personnel only, do not disassemble yourself
Usage	Household use, do not use outdoors
Ventilation Clearances	20 cm above, 10 cm rear, 5 cm sides
Suitable Dishware	Glass, porcelain, ceramic, heat-resistant plastic, microwave-safe
Prohibited Dishware	Metal, aluminum (except grill-only mode), recycled cardboard
Power Levels	Low, Defrost, Med, M.High, High, Grill, Combi.1, Combi.2, Combi.3

Frequently Asked Questions - MWG 786 CLATRONIC

How to open the microwave door?

Press the button under the timer display to open the door. The door opens by pivoting.

What types of containers can I use?

Use containers made of heat-resistant glass, ceramic, microwave-safe plastic. Avoid metal, aluminum (except in grill-only mode) and recycled cardboard.

Can I use metal or aluminum?

In microwave or combination mode, no. In grill-only mode, you can use metal and aluminum containers.

How to clean the microwave interior?

Keep the interior clean with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or a steam cleaner.

How to defrost food?

Place the food in a suitable container, select the Defrost mode and set the time according to the quantity. Stir or turn halfway through.

What are the different power levels?

The levels are: Low (keep warm), Defrost (defrost), Med (gentle cooking), M.High (medium cooking), High (fast reheating), Grill, Combi.1, Combi.2, Combi.3 (grill + microwave combinations).

Can I heat liquids in closed containers?

No, never heat liquids in closed containers, as this could cause an explosion. Use an open container and place a glass rod to prevent overheating.

How to replace the oven light?

The interior light must be replaced by a professional. Contact a specialized store.

Can the appliance be used by children?

Children aged 8 and up can use it under supervision. Children under 8 should stay away. Cleaning by children under 8 is not allowed.

What to do in case of smoke or fire?

Turn off the appliance and unplug it. Keep the door closed to smother the flames. Do not open the door.

USER MANUAL MWG 786 CLATRONIC

Exterior view of a CMTRONC microwave oven with visible dish, control knobs, and no text or symbols on the main body.

CE

DEUTSCH

Inhalt

Overview of the Components ......Page 3

Instruction Manual Page 30

Table of contents ...... Page 30

Technical Data Page 34

Disposal Page 34

JEZYKPOLSKI

Spis tres'ci

• Do not remove any installed parts from inside the oven or anything from the inside of the door!
  • The foils on the inside of the door must not be removed!

UWAGA:

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WAARSCHUWING Kookvertraging:

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

Elementi di comando

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

Table of contents

General Notes 30

Important Safety Information! 30

Warning Labels on the Appliance 32

Overview of the Components 32

Information on Grilling and Combined Operation 32

Suitable Microwave Tableware 32

Initial Operation.... 32

Using the Device 33

Operation 33

Cleaning....33

Technical Data 34

Disposal 34

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

Important Safety Information!

Please read carefully and keep for future use.

WARNING:

• The microwave oven is intended for heating foods and drinks. Drying foods or clothes or heating electric pads, slippers, sponges, wet cleaning rags, or similar can cause injuries, combustion, or fire.
• The microwave oven is not suitable for warming/heating up living animals.
• When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.
• Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not heat liquids in closed containers. DANGER OF EXPLOSION!
• Do not place your microwave in a cupboard.
• The appliance requires sufficient space for air circulation in order to function properly. Leave a distance of 20 cm above, of 10 cm on the back, and of 5 cm on both sides of the appliance. Do not cover the appliance. Never block the openings of the appliance. Do not remove the feet.
• Place the appliance with the back facing a wall.

WARNING:

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless they are continuously supervised.
• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
• If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
• The contents of babies, bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
• Use oven cloths or kitchen gloves when removing the containers. DANGER OF BURNS!
• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.

WARNING Delay in boiling:

During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.
• Do not use any aggressive abrasive cleaners or sharp metal scrapers to clean the glass door. You could scratch the surface. This can destroy the glass.
• Steam cleaner is not to be used.
• Also follow the instructions which are given in the "Cleaning" chapter.
• Do not operate the appliance with an external timer or separate remote control system.
• This device is used
  • for heating up and cooking solid or liquid foods
  • for browning and grilling solid foods.
  It is intended for the use in households and for similar applications, such as:
• in staff kitchens of stores, offices, and other industrial areas;
• by guests in hotels, motels, and other housing facilities;
  • in agricultural estates;
• in bed and breakfasts.

Warning Labels on the Appliance

Please note the warning label on the back of the microwave oven:

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

Overview of the Components

1 Power control
2 Timer
3 Door opener
4 Grilling grid
5 Roller ring
6 Door lock
7 Viewing window
8 Grill heating
9 Turntable
10 Mica sheet

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware. Plastic containers are not suitable.
• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.
• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.
• Please use the grilling grid to move the food to be cooked nearer to the heating element.

Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and allows the microwave radiation to heat the food evenly.
• Round/oval dishes and plates are more suitable than rectangular ones as the food in the corners may overcook.
• Microwaves are not able to penetrate metal, so that no metal vessels or plates should be used.

CAUTION:

Do not use any paper dishes made of recycled material as these may contain small amounts of metal, which may result in sparks or fires.

The list below is intended to help you select suitable microwave tableware:

Material	Suitable formicrowave grill combination *
Heat-resistant glass vessel	yes yes yes
Non-heat-resistant glass vessel	no no no
Heat-resistant ceramic vessel/plate	yes yes yes
Plastic vessels suitable for microwave use	yes no no
Kitchen roll yes no no
Metal tray no yes no
Grilling grid	no yes no
Aluminium foil and foil containers	no yes no

*) Combination of microwave with grill.

Initial Operation

• Press the button below the timer clock to open the door of the microwave. The door swings open.
• Remove any accessories from the cooking chamber and unpack. Place the roller ring on the recessed area of the cooking chamber and move it back and forth until it locks into place.
• Place the turntable on the roller ring in such a way that the turntable cannot be moved anymore.
• Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.
• In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.
• Remove any protective foils that may be adhered to the housing.
• Insert the mains plug into a properly installed power socket.

CAUTION:

• Do not remove any installed parts from inside the oven or from inside the door!
• The mica sheet (10) is also part of the appliance and must not be removed. It protects the electronic component located behind it from dirt.

Using the Device

What you should know about microwave operation

• Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.
• Only food should be heated up with this device.
  • The device is not suitable for baking in floating fat.
• Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficient.
• In order to interrupt the cooking process, turned the timer to "0".
• Microwaves provide their full energy levels immediately. Pre-heating is therefore not necessary.
• Never operate the microwave function when the oven is empty.
• The microwave oven does not replace your traditional cooker. It is used mainly for:

• defrosting deep-frozen food
- rapid warming/heating of food or drinks
- cooking meals.

Operation

1. Place the food to be heated in a suitable piece of tableware.
2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)

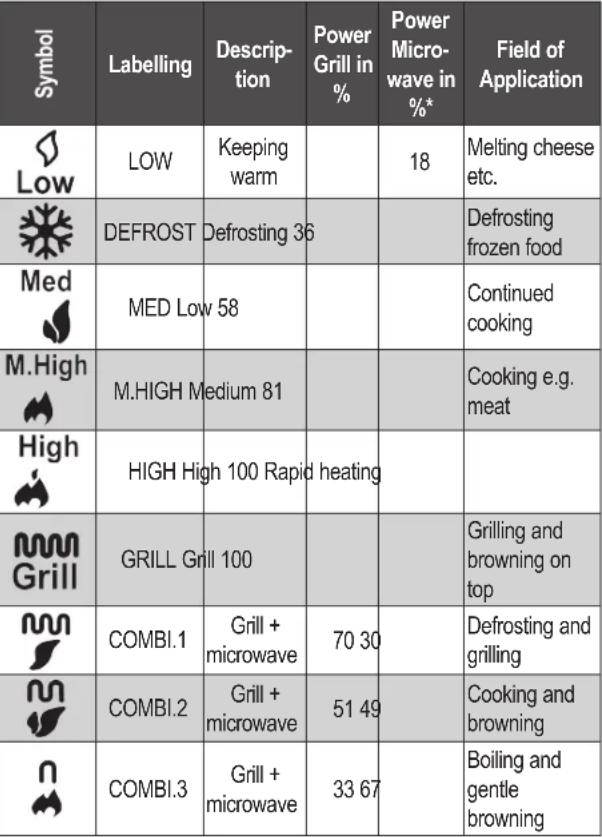

3. Adjust the microwave power as required:

* 100 % = 700 W

1. Set the required cooking time with the timer. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time.

i NOTE:

• preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.
• once the cooking time is set the oven switches itself on. The light inside the oven goes on.
• Please note: A cover should be placed over the food when operating the microwave.

When the time has finished the oven switches off automatically. A sound is heard. The food should then be removed.

Cleaning

WARNING:

Turn the microwave off and remove the mains plug.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Do not use a metal scraper to clean the viewing window. The surface could be scratched and the glass could possibly break.

Interior

• Keep the interior of the oven clean. Splashes and overflowing liquids on the walls of the oven can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used.
• Wipe off the viewing window on the inside and outside with a damp cloth and remove splashes and stains from overflowing liquids regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• The switches should also only be cleaned with a damp cloth.

Accessories

• The glass plate should occasionally be cleaned with washing-up liquid or in the dishwasher.
• Clean the roller ring and the inner bottom surface regularly. Remove the roller ring and clean by hand using a mild detergent. Dry the roller ring thoroughly and then reinstall it on the bottom of the cooking chamber.
• Clean the grill after each use with a dishwashing detergent or place it in a dishwasher for cleaning.

Odours

- In order to remove any unpleasant odours that may emanate from the microwave, place a dish filled with water and lemon juice that is suitable for microwave use in the oven and heat it for approximately 5 minutes. Then wipe out the oven with a soft cloth.

Oven light

- If you need to replace the lighting in the oven, please contact a specialist workshop near you.

Technical Data

Model: MWG 786

Power supply: 230-240 V\~, 50 Hz

Power consumption:

microwave: 1200 W

grill: 900 W

Rated microwave power output: 700 W / 2450 MHz

Cavity volume: 20 litres

Protection class: ....I

Net weight: approx. 11.50 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment; do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

Instrukcja obsługi

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

CTC Clatronic Sp. z o.o

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.

WARNING - HIGH VOLTAGE

WARNING - MICROWAVE ENERGYDO NOT REMOVE THIS COVER.

DO NOT operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.DO NOT tamper with the door safety interlocks.MAINTENANCE should be carried out only by a qualified serviceman.Remove plug or disconnect from the mains before removing cover.
