1 Introduction

Thank you for purchasing the UCOM Twintalker 4710. It's a short range, low powered radio communication device with a range of maximum 5 Km. It has no running costs other than the minimal cost of re-charging the batteries.

The TwinTalker operates on 8 channels.

The Twintalker is protected against vertically falling water drops when enclosure tilted up to 15^ according to the IPX2 standard.

2 Intended purpose

It can be used for different professional purposes. For example: support crane operation. It can be used for recreational purposes. For example: to keep in contact during travelling with 2 or more cars, biking, skiing. It can be used to keep in contact with your children when they are playing outside, etc...

3 C E M a r k

The CE symbol on the unit, user guide and giftbox indicates that the unit complies with the essential requirements of the R&TTE directive 1995/5/EC.

4 Safety instructions

4.1 General

Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all functions of the device. Keep this manual in a safe place for future use.

4.2 Burning injuries

• If the cover of the antenna is damaged, do not touch because when an antenna comes in contact with the skin, a minor burn may result when transmitting.
• Batteries can cause property damage such as burns if conductive material such as jewellery, keys or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

4.3 Injuries

• Do not place your device in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a PMR is placed in the bag deployment area and the air bag inflates, the communicator may be propelled with great force and cause serious injury to the occupants of the vehicle.
• Keep the PMR at least 15 centimetres away from a pacemaker.
• Turn your PMR OFF as soon as interference is taking place with medical equipment.

4.4 Danger of explosion

• Do not replace batteries in a potentially explosive atmosphere. Contact sparking may occur while installing or removing batteries and cause an explosion.
• Turn your PMR off when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
• Never throw batteries in fire as they may explode.

Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fuelling areas such as below deck on boats, fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.

4.5 Poisoning danger

- Keep batteries away from small children.

4.6 Legal

• In some countries it is prohibited to use your PMR while driving a vehicle. In this case leave the road before using the device.
• Turn your PMR OFF when on board an aircraft when instructed to do so. Any use of the PMR must be in accordance with airline regulations or crew instructions.
• Turn your PMR OFF in any facilities where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.
• Replacing or modifying the antenna may affect the PMR radio specifications and violate the CE regulations. Unauthorised antennas could also damage the radio.

4.7 Notes

• Do not touch the antenna while transmitting, it could affect the range.
• Remove the batteries if the device is not going to be used for a long period.

5 Cleaning and maintenance

• To clean the unit, wipe with a soft cloth dampened with water. Don't use a cleaner or solvents on the unit; they can damage the case and leak inside, causing permanent damage.
• Battery contacts may be wiped with a dry lint-free cloth.
• If the unit gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a soft cloth to minimize potential water damage. Leave the cover off the battery compartment overnight or until completely dry. Do not use the unit until completely dry.

6 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By re-using some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

7 Using a PMR device

To communicate between PMR devices they need to be set all on the same channel and CTCSS code and within receiving range (up to max. 5 km in open field). Since these devices use free frequency bands (channels), all devices in operation share these channels(total 8 channels). Therefore, privacy is not guaranteed. Anybody with a PMR set to your channel can overhear the conversation. If you want to communicate (transmitting a voice signal) you need to press the PTT-button ⑬.

Once this button pressed, the device will go into transmit mode and you can speak into the microphone. All other PMR devices in range, on the same channel and in standby mode (not transmitting) will hear your message. You need to wait until the other party stops transmitting before you can reply to the message. At the end of each transmission the unit will send a beep if the Roger Beep is enable (see chapter 14.17). To reply, just press the PTT-button and speak into the microphone.

If 2 or more users press the PTT-button at the same time the receiver will receive only the stongest signal and the other signal(s) will be suppressed. Therefore you should only transmit a signal (press PTT-button when the channel is free.

8 Included in the package

• 2 x Twintalker 4710
• 2 x Beltclip
• 1 x Duo Charger
• 1 x Power adapter
• 2 x NiMH (3 x AAA) battery pack
• 2 x Earpiece with microphone and PTT button
  • User guide
  • Card with service address and Hotline

9 Getting started

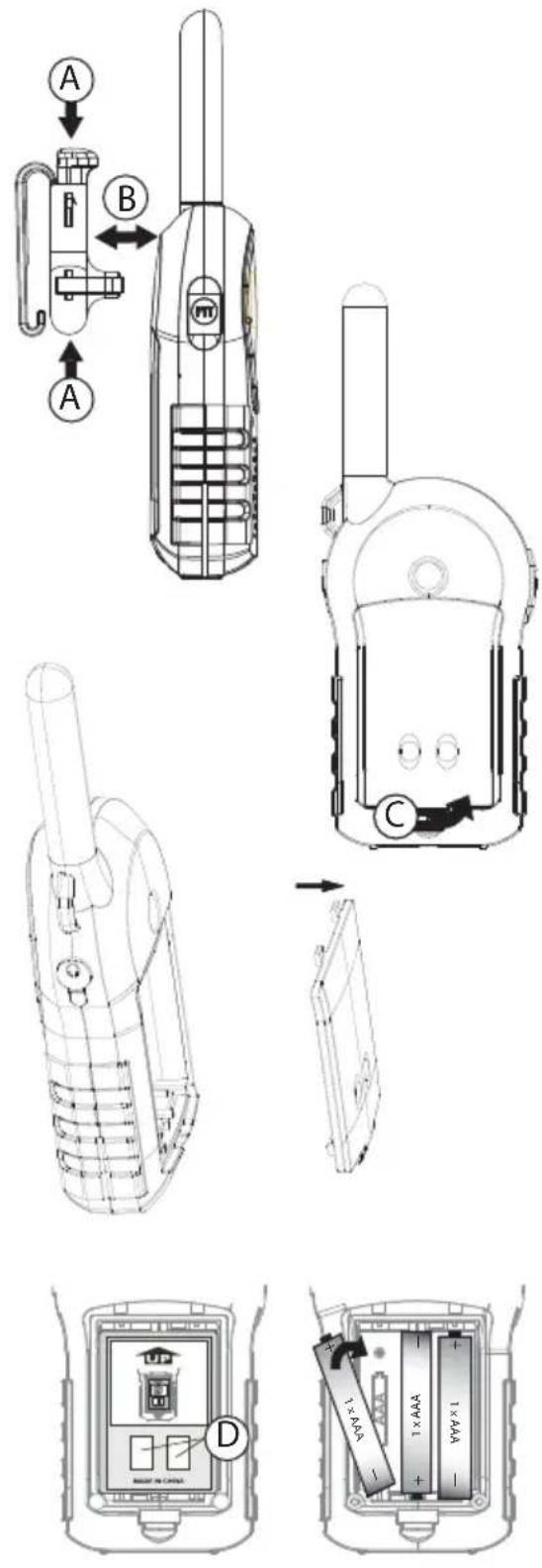

Technical diagram showing exploded and assembled views of a mobile phone device with labeled components A, B, C, D and internal components.

9.1 Installing/Removing the Belt Clip

1. To install the belt clip, align the pin with the hole in the backside. Gently push until it clicks into position.
2. To remove the belt clip from the unit, push the belt clip (A), while pulling the clip away from the unit (B).

9.2 Battery Installation

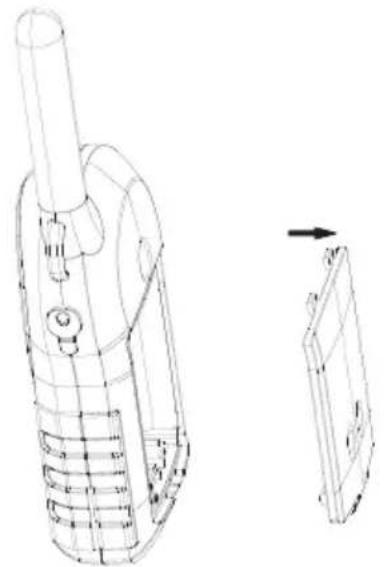

1. Remove the belt clip (See chapter 9.1.2).
2. Pull the battery cover tab (C) and gently remove the battery cover.

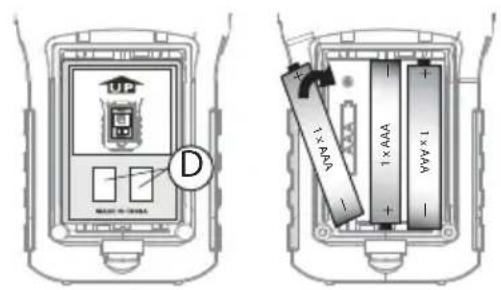

3. Install the rechargeable battery pack following the polarity as shown. The metal contacts (D) should face outwards from the radio to connect on the battery door. Or install 3 'AAA' alkaline or rechargeable batteries following the polarity as shown.
4. Re-install the Battery Cover and Belt Clip (See chapter 9.1.1).

10 Charging batteries

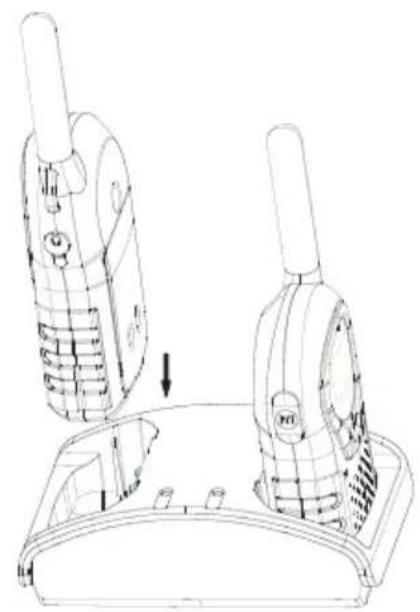

Line drawing of two mobile phones on a base, one with a downward arrow indicating motion (no text or symbols)

When NiMh battery packs are installed, the desktop charger provides drop-in charging conveniency

1. Put the desktop charger on a flat surface.

2. Plug the supplied adapter into the electric socket. Pay attention to the mentioned voltage and compare this with the indications of the power supply. Connect the low tension plug at the end of the cable with the connector ③1 on the backside of the desktop charger.

3. Put the PMR in the charger as indicated.

4. The charging LED will turn on if it's properly inserted and charging.

It will take about 12 to 14 hours to fully charge the batteries. There is no indication on the display when the batteries are being charged.

The device can also operate with 3 x AAA NiMh batteries or with 3 x AAA Alkaline batteries.

3 x AAA batteries cannot be charged with the charger.

11 Battery Charge Level

The BATTERY CHARGE LEVEL is indicated by the number of squares present inside the BATTERY icon on the LCD Display.

8:38 SQL

• Battery Full
• Battery 2/3 charged
• Battery 1/3 charged
• Battery empty

When the battery charge level is low, a beep will be heard.

12 Description

See folded cover page - Illustration 1

1. TX LED

– Burns during transmission

1. Antenna

2. LCD Display

3. Earpiece connector

4. MENU button

- Enter the setting menu

1. DOWN button

– Decrease the speaker volume

- Select the previous value in the menu.

1. CALL button

1. Speaker

2. SCAN/MONITOR button

3. Microphone

4. UP button

- Increase the speaker volume

- Select the next value in the menu.

1. Lock button

1. PUSH TO TALK button PTT

2. ON-OFF button

13 LCD Display information

See folded cover page - Illustration 2

1. Baby monitor icon

2. VOX icon

3. CTCSS code

4. Key Tone icon

5. Chronometer icon

6. Auto Power Off icon

7. Roger Beep icon

8. Volume icon

9. Key pad lock icon

10. Squelch Level indication

11. Call Tone icon

12. a. Scan icon

b. Dual Scan icon

1. Channel number / Volume level indication

2. Battery level indication

3. RX icon.

- Displayed when receiving

1. TX icon.

- Displayed when transmitting

14 Using the Twintalker 4710

14.1 Turning the Unit ON/OFF

8 38 == SQL

To turn ON:

- Press and hold the - button for 21 seconds. The unit will "beep" and the LCD display will display the current channel.

To switch OFF:

- Press and hold the - button for 2 seconds. The unit will "beep" and the LCD display will turn blank.

14.2 Adjusting Speaker Volume

16 VOL

- Press the - button in stand-by-mode to increase the speaker volume. The volume level is displayed.

- Press the - button to decrease the speaker volume.

14.3 Receiving a Signal

The unit is continuously in the RECEIVE mode when the unit is switched ON and not transmitting.

In order for other people to receive your transmission, they must also be on the same channel and have set the same CTCSS code. (See chapter 14.5 and 14.6)

14.4 Transmitting a Signal

0 38 SQL

- Press and hold the PTT - button symbol is displayed. ⑬ to TRANSMIT. The TX

- Hold the unit in a vertical position with the MICROPHONE 10cm from the mouth and speak into the microphone.

- Release the PTT - button when you want to stop transmitting.

To check the channel activity use the monitor function (See chapter 14.7). The maximum transmitting time is limited to 1 minute. Release and press PTT - button to restart transmitting.

14.5 Changing Channels

8 38

• Press the - button once, the current channel number flashes on the display.
• Press the - button or the - button to change the channel.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

If no button is pressed within 5 seconds during setting, the unit will return to standby.

14.6 CTCSS (Continuous Tone Coded Squelch System)

The 2 digit CTCSS code corresponds to a specific tone frequency the radio emits. Two users, with the same channel and CTCSS set can hear one another. They will not be able to hear anyone else on the channel unless the other radios have the same exact CTCSS code enabled. The Twintalker 4710 has 38 CTCSS codes available.

8 38

• Press the - button twice. The current CTCSS code flashes on the display.
• Press the - button or the - button to change to another code.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

• Any PMR set on the same channel can receive and listen to the conversation, also when the other use a CTCSS code.
• To disable CTCSS code, set the code to '0'.

14.7 Monitor

You can use the monitor feature to check for weaker signals in the current channel.

• Press and hold the -button to activate channel monitoring.
• Release the -button to stop monitoring.

14.8 Baby Monitor function

One of the units can be set as Babymonitor. The radio will transmit a signal when it is activated by the crying baby or another sound in the room (VOX).

The PMR will no longer be able to receive signals to avoid that your baby is disturbed during his sleep.

The other PMR must be set to the same channel and CTCSS code to receive the signal from the Baby Monitor.

To set the PMR as the Baby Monitor:

In Baby Monitor mode, different functions are disabled (accept Button Lock, Menu and On/Off function). Only when the Baby Monitor mode is disabled, all functions can be used again.

Baby 3

- Press the - button three times, the current Baby Vox setting flashes on the display and the BABY icon is displayed.

- Press the - button to turn the BABY MONITOR function ON. Use the ▲ button and the - button to select the VOX sensitivity level (1 to 3) which displayed.

- Press the PTT - button ⑬ to confirm and return to stand-by mode.

To deactivate the Baby Monitor:

Baby OF

• In stand-by, press the - button ⑤ three times, the current Baby Vox setting flashes on the display and the BABY icon is displayed.
• Press the ▼ - button ⑥ until 'OF' appears on the display, to turn the babymonitor off.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

If in Baby Monitor mode an earpiece is plugged in, then the Baby Monitor mode will be disabled when pressing the PTT - button ⑬

14.9 Call Tones

A call tone alerts others that you want to start talking.

14.9.1 Setting the Call Tone

The Twintalker 4710 has 10 call tones

10

• Press the - button four times, is displayed.
• Press the - button or the - button to change to another Call Tone. Select 'OF' to disable the call tones.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

14.9.2 Sending a call Tone

Press the • button briefly. The call tone will be transmitted on the set channel.

14.10 VOX Selection

The PMR is capable of voice activated (VOX) transmission. In VOX mode, the radio will transmit a signal when it is activated by your voice or other sound around you. VOX operation is not recommended if you plan to use your radio in a noisy or windy environment.

- When you use the PMR with the supplied earpiece (See chapter 15), the VOX function will be disabled as soon as you plug in the earpiece connector.

- VOX mode will be disabled when you press the PTT - button . ⑬

OF VOX I

- Press the - button five times, the current VOX setting flashes on the display and the VOX icon is displayed.

- Press the -button to turn the VOX feature ON. Press the ▲-button again to set the VOX sensitivity level between 1 and 3. Press the ▼ button ⑥ until 'OF' appears on the display, to turn VOX OFF.

- Press the PTT - button ⑬ to confirm and return to stand-by mode.

14.11 Squelch level selection

The adjustable Squelch allows you to optimise the radios sensitivity. It also allows you to increase the sensitivity and receive weaker signals.

There are 4 decreasing levels of sensitivity. 1 is the most sensitive, for detecting the weakest signals. 4 is the least sensitive, for hearing only stronger signals and cutting out interference from weak signals.

At higher sensitivity settings it is normal to hear occasionally background static noise.

4 SQL

- Press the - button six times, the current Squelch Level flashes on the display.

- Press the - button or the - button to change to another Squelch Level

- Press the PTT - button ⑬ to confirm and return to stand-by mode.

14.12 Channel Scan

Channel scan performs searches for active signals in an endless loop from channel 1 to 8 including the CTCSS codes.

- When you start the Channel Scan function when your CTCSS - code is set to '0', the PMR will search for all signals (with or without CTCSS - code).

- When you start the Channel Scan function when you have set a CTCSS - code (1 - 38), the PMR will only search for signals with CTCSS - code. Signal without CTCSS - code will be ignored.

6 -- SQL

- Press the - button briefly to activate Channel Scan. The channel scan icon is displayed.

- When an active signal (one of 8 channels) is detected, press the PTT - button to fix the channel and starts communicating over the active channel. If you don't press the PTT - button Channel Scan will restart after 5 seconds.

- Press the - button or the - button to bypass the current channel and continue to search for another active channel.

- Press the - button briefly to deactivate Channel Scan.

14.13 Dual Channel scan

In stand-by, the PMR is set on one set channel with CTCSS code. The PMR will only receive signals transmitted on that channel and CTCSS code.

Dual Channel Monitor allows you to monitor a second channel with CTCSS code.

OF D

- Press the - button seven times, the dual channel scan icon appears on the display.

- Press the - button or the - button to changed the channel.

- Press the - button to confirm the channel selection and go to CTCSS SUB-CHANNEL SELECTION.

- Press the - button or the - button to changed the CTCSS.

- Press the PTT - button ⑬ to confirm and return to stand-by mode.

6 5 32

Press the -button seven times to disable the function. Then press the -button or the ▼ button until 'OF' is displayed.

When the Dual Channel Monitor function is activated, the PMR will switch sequentially between the standby channel + CTCSS and the Dual Channel + CTCSS.

When there is activity on the Dual Channel + CTCSS, the active channel will be displayed for 5 seconds after the activity has ended. Within this period, you have the possibility to answer the transmission.

14.14 Automatic Power Off (APO)

To save energy, you can activate the Automatic Power Off function. In case you forgot to Power Off the unit, it will switch Off automatically after the set time.

12 hr APO

• Press the - button eight times, the current Power OFF time flashes on the display.
• Press the - button or the1 - button to change to another time (1 - 12 hour). Select 'OF' to disable the APO feature.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

14.15 Key Tone On/Off

When a button is pressed, the unit will beep briefly.

On Baby VO VOLAPG

• Press the - button nine times, the current Key Tone setting flashed on the display.
• Press the - button or the - button to enable (ON) or disable (OF) the Key Tone.
• Press the PTT - button ⑬ to confirm and return to stand-by mode.

14.16 Chronometer

The Twintalker 4710 has a chronometer function (mm:ss).

00:00

• Press the - button ten times. The counter is displayed.
• Press the - button to start counting.
• Press the - button again to stop counting and see the lap time. The counter continues in the background. Press the button to proceed counting.
• When the counter is stopped, press the - button to reset the counter.

After selecting this function, and also after resetting the counter, the measurement should be started within 5 seconds. If not, the device shall return to stand-by.

14.17 Roger Beep On/Off

After the PTT - button ⑬ is released, the unit will send out a roger beep to confirm that you have stopped talking.

ON b←b

• Press the - button eleve times, the current Roger Beep setting flashes on the display.
• Press the - button or the - button to enable (ON) or disable (OF) the Roger Beep.
• Press the PTT- button ⑬ to confirm and return to stand-by mode.

14.18 Button Lock

8 38 Key

• Press and hold the - button for 3 seconds to activate the Button Lock mode. The Button Lock icon is displayed on the LCD Screen.
• Press and hold the - button again to deactivate Button Lock.

The Button Lock is not valid for the ▶ button, the -button ⑭ and the PTT- button ⑬

14.19 Display back light

To activate the backlight of the LCD display, press any button except the PTT-button ⑬ or the • button.

The LCD backlight will light up for 5 seconds.

15 Earpiece connection

The Twintalker 4710 can be used with the included earpiece.

The connector is located under the protective rubber cover on the right side of the unit ④. To attach the earpiece, remove the rubber flap to expose the connector.

Insert the earpiece plug into the connector (2,5mm jack).

The small button on the earpiece has the same function as the PTT button ⑬ on the unit When you use the PTT - Button from the Earpiece, you must also use the microphone from the earpiece wire.

Do not connect other earpieces. This may damage your device.

16 Troubleshooting

No power Clean the battery contacts with a soft cloth.Replace the batteries.
No transmission Make sure the PTT - button is pressed 13completely before you speak.Monitor the channel activity and switch to another channel if the current is used.
No reception Check the speaker volume.Make sure that you are in the reception range of the sender and change if necessary your location.
Limited Range and noise during transmission	The talking range depends on the terrain.Steal constructions, concrete buildings or the use in vehicles have a bad influence on the range.Try to avoid as many obstacles as possible and communicate in a clear line of sight.Change your locations.
Interference The receiver and transmitter are too close. Themimimum distance between 2 units is 1,5m.

17 Technical specifications

ChannelsSub-codeFrequencyRangeBatteriesTransmission PowerModulation TypeChannel spacingDuo Charger adapter

8CTCSS 38446.00625MHz - 446.09375 MHzUp to 5 Km (Open field)3 x AAA Alkaline or NiMH rechargeable=< 500mW ERPFM - F3E12,5 kHzInput : 230V AC / 50HzOutput : 9V DC / 200mA

Channel Frequency Chart: CT		CSS Code Chart
Channel	Frequency (MHz)	Code Frequency (Hz)	Code Freq. (Hz)	Code Freq. (Hz)	Code Freq. (Hz)	Code Freq. (Hz)
1	446,00625	0	Disabled	10	94,8	20	131,8	30	186,2
2	446,01875	1	67,0	11	97,4	21	136,5	31	192,8
3	446,03125	2	71,9	12	100,0	22	141,3	32	203,5
4	446,04375	3	74,4	13	103,5	23	146,2	33	210,7
5	446,05625	4	77,0	14	107,2	24	151,4	34	218,1
6	446,06875	5	79,7	15	110,9	25	156,7	35	225,7
7	446,08125	6	82,5	16	114,8	26	162,2	36	233,6
8	446,09375	7	85,4	17	118,8	27	167,9	37	241,8
		8	88,5	18	123,0	28	173,8	38	250,3
		9	91,5	19	127,3	29 179,9

18 Service address and hotline support

The service adresses are printed on the extra service card included in the package or can be found on www.ucom.be.

19 Declaration of conformity and manufacturer

Topcom Europe Nv.

Grauwmeer 17

3001 Heverlee

Belgium

The declaration of conformity can be found on the last page of this user guide.

20 Warranty

20.1 Warranty period

Ucom units have a 36-month warranty period. The warranty period starts on the day the new unit is purchased. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.

The warranty has to be proven by presentation of a copy of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

20.2 Warranty handling

A faulty unit needs to be returned to an authorized service centre including a valid purchase note. If the unit develops a fault during the warranty period, the service centre will repair any defects caused by material or manufacturing faults free of charge.

The service centre will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit.

The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by the appointed service centres.

20.3 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty.

The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.

No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.

1 Inleiding 21

2 Gebruiksdoel 21

3 CE-markering 21

14.6 CTCSS (Continuous Tone Coded Squelch System) 28

14.7 Monitor 28

14.13 Dual Channel-scan 31

UCOM Twintalker 4710 DCP

20.1 Garantieperiode 36
20.2 Afwikkeling van garantieclaims 36
20.3 Garantiebeperkingen 36

1 Inleiding

Technical diagram showing exploded and assembled views of a mobile phone device with labeled components A, B, C, D and internal components.

Line drawing of two flip phone holders in a tray, one with a downward arrow indicating compression or disassembly (no text or symbols present)

8 38 == SQL

Inschakelen:

14.6 CTCSS (Continuous Tone Coded Squelch System)

14.13 Dual Channel-scan

ON Battery VTC

14.6 CTCSS (Continuous Tone Coded Squelch System) 46

14.7 Monitor 46

14.8 Fonction Baby Monitor 47

14.17 Bip Roger On/Off 51

UCOM Twintalker 4710 DCP

Technical diagram of a walkie-talkie with labeled components A, B, and C showing internal wiring and valve connections.

Line drawing of a mobile phone with a side-view inset showing the front and back views (no text or symbols)

D 1 x AAA 1 x AAA 1 x AAA × 1

Line drawing of two mobile phones with a device base, showing internal components and a downward arrow indicating motion (no text or symbols)

8 38 = SQL

8 38 VOL APO

14.6 CTCSS (Continuous Tone Coded Squelch System)

On On Baby MO MO VUL APD

14.17 Bip Roger On/Off

ON Baby Voice

The declaration of conformity can be found on the last page of this user guide.

20 Garantie

14.6 CTCSS (Continuous Tone Coded Squelch System) 65

Technical diagram showing exploded and assembled views of a mobile phone device with labeled components A, B, C, D and internal components.

Technical line drawing of two flip phone holders in a base case, showing internal components and wiring (no text or symbols)

8 38 == SQL

Zum Einschalten:

14.6 CTCSS (Continuous Tone Coded Squelch System)

On Baby box OK

DECLARATION OF CONFORMITY

We, TE Nv, Grauwmeer 17, 3001 Heverlee, Belgium, declare that our product :

Product name: Twintalker 4710 Duo Combi Pack

is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC and carries the CE mark accordingly.

Supplementary information:

The product complies with the requirements of:

- Low Voltage Directive 73/23/EEC

- EN 60950-1 : 2001

- Efficient use of frequency spectrum

- ETSI EN 300 296-1 V1.1.1 (2001-03)

- ETSI EN 300 296-2 V1.1.1 (2001-03)

- EMC

- ETSI EN 301 489-1 V1.4.1(2002-08)

- ETSI EN 301 489-5 V1.3.1(2002-08)

Date: 06/06/2006.

Place: Heverlee, Belgium

Name: Verheyden Geert

Function: Technical Director

Ateleop

Signature:

European contact: Topcom Europe Nv, R&D department, Research Park, Grauwmeer 17, 3001 Heverlee, Belgium. Tel : [phone] , Fax : [phone]

SERVICE RETURN CARD - RÜCKSENDEKARTE - CARTE DE RETOUR SERVICE - RETOURFICHE

RETURN WITH YOUR DEFECT PRODUCT

Two identical rectangular frames with evenly spaced vertical lines inside, no text or symbols present.

Location/Ort./Lieu/Plaats: Post code/Postleitzahl/Code Postal/Postcode:

Two identical rectangular frames with evenly spaced vertical lines inside, no text or symbols present.

Country/Land/Pays/Land:

Tel./Tél.:

E-mail:

(Original Proof of Purchase has to be attached to this return card to be valid for warranty)
