Product Type	TMC Traffic Message Channel Receiver
Brand	Garmin
Model	GTM 30
Category	GPS Accessory
Power Supply	12V Cigarette lighter adapter
Connection	Mini-USB port to compatible Garmin GPS
Reception Frequency	FM RDS (Radio Data System)
Antenna	Built-in internal antenna; optional external antenna (included depending on packaging)
Main Functions	Real-time traffic information reception, display on GPS map, alternative route calculation
Compatibility	Compatible Garmin GPS devices (with mini-USB port)
Data acquisition time	Up to 5 minutes
Light indicator	Power indicator
Subscription	Depending on region: specific subscription or free public service; automatic activation upon signal reception
Warranty	Standard Garmin limited warranty
Dimensions (approx.)	Approximately 6 x 4 x 2 cm (without cable)
Weight (approx.)	Approximately 50 g (without cable)
Maintenance and cleaning	No special maintenance. Clean with a soft, dry cloth.
Safety instructions	Do not obstruct driver visibility. Install out of reach of vehicle controls.
Spare parts and repairability	Not applicable. In case of failure, contact Garmin support.

Frequently Asked Questions - GTM 30 GARMIN

How to connect the GTM 30 receiver to my Garmin GPS?

Disconnect the power cable from your GPS. Plug the small end of the GTM receiver into the mini-USB port of the GPS. Plug the receiver's cigarette lighter adapter into a 12V vehicle outlet.

What to do if the receiver does not receive traffic information?

Make sure you are in an area covered by an FM station broadcasting traffic info. Park in an open area, outside covered garages and away from tall buildings. If necessary, plug in the supplied external antenna.

Is the traffic service subscription paid?

It depends on the region. Some areas offer free public service, others require a specific subscription. The subscription activates automatically upon first signal reception.

How to check the service area and subscription?

On your GPS, go to Tools > Settings > Traffic > Subscriptions. You can see information about your active subscription there.

Can I use the GTM 30 receiver with any Garmin GPS?

The receiver is compatible with Garmin GPS devices that have a mini-USB port and support traffic information. Check the compatibility list on the Garmin website.

How to register my GTM 30 receiver?

Go to http://my.garmin.com and enter the 9-digit serial number located on the receiver's label.

What does the light indicator on the receiver mean?

The light turns on when the receiver is connected to a power source. It indicates that the device is powered on.

How to install the external antenna?

Plug the external antenna into the GTM receiver. Use the suction cups to attach the antenna vertically to the windshield, without obstructing the driver's view.

What to do if the windshield is metallic and affects reception?

Metallic windshields can reduce performance. In that case, use the external antenna and place it near a side window if possible.

Where to find more information about the traffic service?

Visit www.garmin.com/fmtraffic to find coverage areas and available subscriptions.

USER MANUAL GTM 30 GARMIN

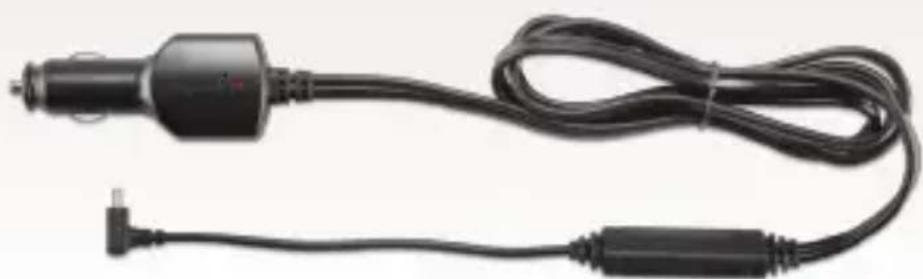

GTM™ 30 series traffic receiver

Instructions 2-5

Instructions 6-9

Istruzioni 10-13

Anweisungen 14-17

Instrucciones 18-21

Instruções 22-25

Instructies 26-29

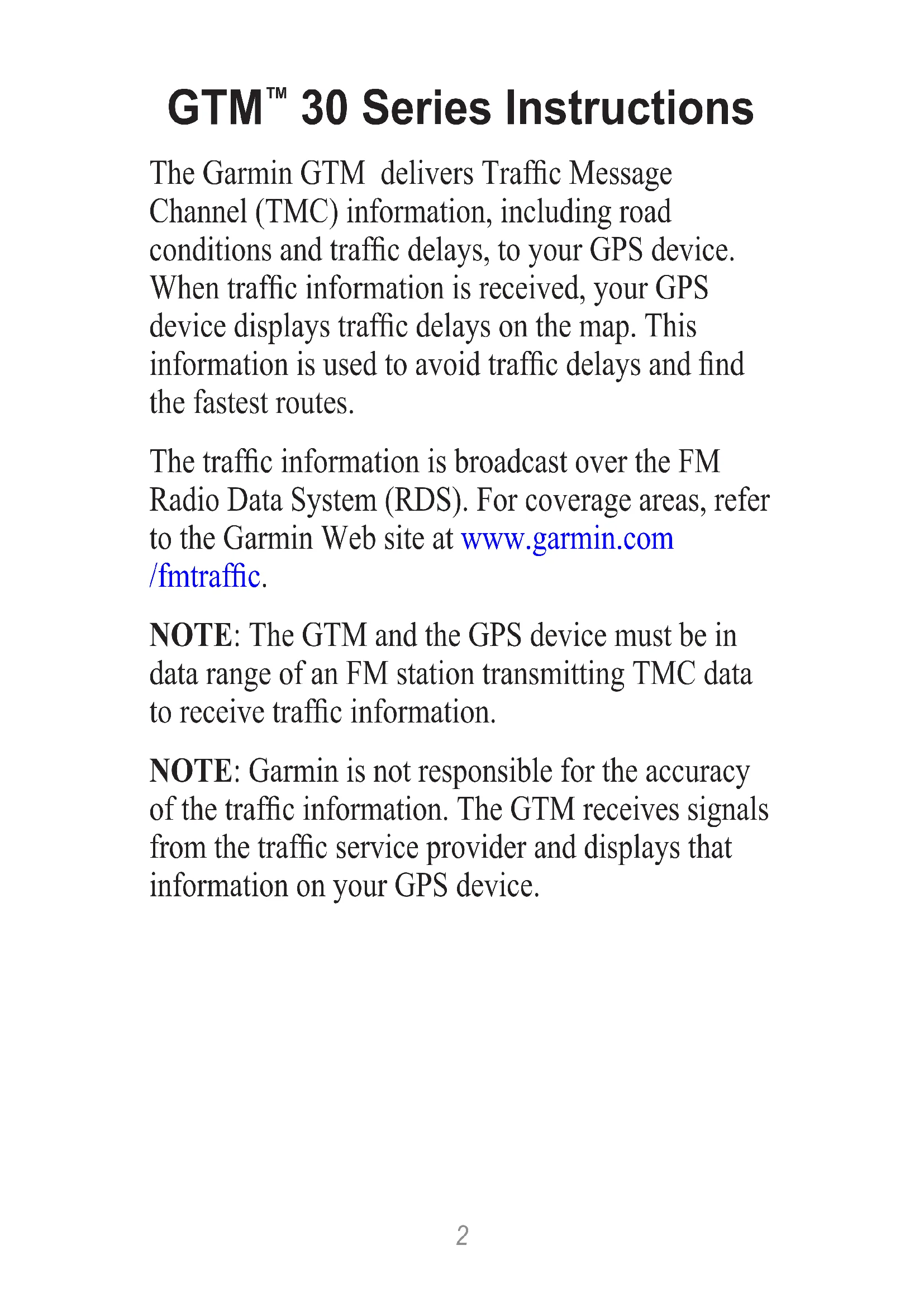

The Garmin GTM delivers Traffic Message Channel (TMC) information, including road conditions and traffic delays, to your GPS device. When traffic information is received, your GPS device displays traffic delays on the map. This information is used to avoid traffic delays and find the fastest routes.

The traffic information is broadcast over the FM Radio Data System (RDS). For coverage areas, refer to the Garmin Web site at www.garmin.com/fmtraffic.

NOTE: The GTM and the GPS device must be in data range of an FM station transmitting TMC data to receive traffic information.

NOTE: Garmin is not responsible for the accuracy of the traffic information. The GTM receives signals from the traffic service provider and displays that information on your GPS device.

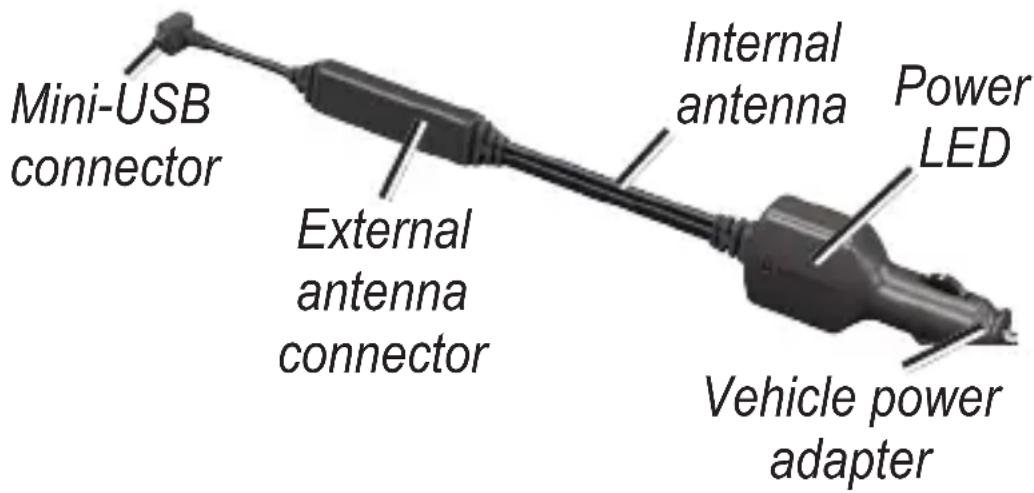

Connecting Your GTM

WARNING

See the Important Safety and Product Information guide in the GPS device product box for product warnings and other important information.

1. Remove the power cable from your GPS device.
2. Connect the small end of the GTM to the mini-USB port on your GPS device.

1. Plug the vehicle power adapter on the GTM into a power outlet in your vehicle.

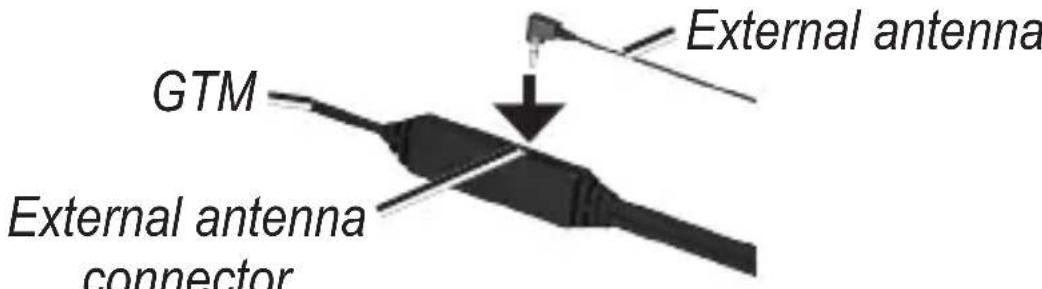

2. The internal antenna is sufficient in strong signal areas. An external antenna may have been included in the product box. To increase the signal range, connect the external antenna to the GTM. Use the attached suction cups to route the external antenna on the windshield vertically, if possible. Be sure not to obstruct the driver's view.

1. Route the GTM so that it does not interfere with vehicle operating controls.
2. For added support, attach the additional suction cup anywhere on the GTM.

The GTM may take up to five minutes to acquire data.

When the GTM is connected to power, the LED turns on.

Viewing Traffic Information

When the device has acquired data, appears on the map page of your GPS device.

From the map, select

See the product documentation for your GPS device for more information.

TIP: If you have trouble receiving traffic information, you may be in a poor signal area. Drive your vehicle to an open area, out of garages and away from tall buildings. Connect the external antenna, if necessary.

NOTE: Heated (metallized) windshields could degrade the performance of the GTM.

Verifying Your Service Area

Touch Tools > Settings > Traffic

( > Subscriptions), and select a subscription to check service information.

Service and Subscription Information

Depending on your region, your traffic receiver receives traffic data through either a premium service or a free, public service. For information about your traffic service subscription, see the product packaging or the traffic settings in the GPS device. The subscription activates automatically after your Garmin GPS device acquires satellite signals while receiving traffic signals from the service provider.

You can add other FM TMC subscriptions at any time. Go to www.garmin.com/fmtraffic.

Registering Your GTM

To register your GTM, go to http://my.garmin.com and enter the 9-digit serial number printed on the tag attached to the GTM.

Warranty Information

Garmin's standard limited warranty applies to this accessory. Go to www.garmin.com/support/warranty.html.

Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the regions. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to Each of the regions. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transito to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receivea transido to each of the region. Depending on the region, you can receive a transido to each of the region. Depending on the region, you can receive a transido to each of the region.

Garmin® and the Garmin Logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. GTM™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. RDS-TMC Traffic Information Services France © ViaMichelin 2006.

© 2011 Garmin Ltd. or its subsidiaries

Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA

Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK

Garmin Corporation
No. 68, Jangshu 2nd Road, Sijhih, Taipei County, Taiwan (R.O.C.)

www.garmin.com

Part Number 190-01314-91 Rev. B September 2011 Printed in Taiwan
