USER MANUAL New Breeze 9 Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 34

Device Overview 36

Control Panel and Key Functions 37

Remote Control and Indicators 38

Installation 46

Cleaning and Care 51

Troubleshooting 53

Error Codes 54

Notes on Refrigerant R290 55

Product Data Sheet 56

Disposal Considerations 60

Declaration of Conformity 60

TECHNICAL DATA

Item number	10029702, 10029703, 10040152, 10040153	10029704, 10029705, 10040154, 10040155
Power supply 220-240 V ~ 50/60 Hz
Cooling capacity 7000 BTU 9000 BTU
Room size 21-34 m² 26-44 m²

SAFETY INSTRUCTIONS

Special notes

• Only use agents recommended by the manufacturer for defrosting or cleaning.
• Never store the appliance in a room in which there are permanent sources of ignition (e.g. open flames, a switched on gas appliance or a switched on electric heater).
• Do not puncture or burn the appliance.
  Note that coolant may be odourless.

Note: Only use the unit in rooms larger than Xm^2 (see table):

Model X (m2)
5000 BTU/h, 7000 BTU/h, 8000 BTU/h 4 m2
9000 BTU/h, 10000 BTU/h, 10500 BTU/h 12 m2
12000 BTU/h, 14000 BTU/h, 16000 BTU/h, 18000 BTU/h 15 m2

General safety instructions

• The device is only suitable for indoor use.
• Do not use the product if it needs to be repaired or if it has not been installed properly.

• Do not use the product in the following areas:

• near heat sources,

• in areas where oil can splash,
• in areas exposed to direct sunlight,
• in areas where splash water can occur,

• near bathtubs, in washrooms, near showers or swimming pools.

• Never insert your fingers or other objects into the ventilation openings. In particular, warn children of the dangers this may cause.

• Ensure that the unit is held vertically during transport and storage so that the compressor is correctly positioned.
• Always turn off the appliance before cleaning and unplug it from the wall outlet.

• Switch off the appliance before moving it and unplug it from the wall outlet. Move the appliance slowly and carefully.

• To avoid the risk of fire, do not cover the unit.

• All fan connections must comply with local electrical safety regulations. If necessary, refer to these regulations.
  Supervise children so that they do not play with the unit.
• If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person to avoid danger.
• This equipment may be used by children over the age of 8 and by persons (including children) with limited physical, sensory or mental capabilities and/or lack of experience and knowledge, provided they have been instructed in the use of this equipment by a person responsible for their safety and understand the hazards associated with the use of this equipment. Cleaning and maintenance of the appliance may only be carried out by children under supervision.
• The appliance must be installed in accordance with national wiring regulations.
  Type and voltage of fuses: T, 250 V AC, 2 A or higher.
• Contact customer service for cleaning and maintenance.
• Do not pull the power cord, deform or modify it, or immerse it in water. Incorrect handling of the power cord may result in damage to the equipment and/or electric shock.
  National gas regulations must be observed.
• Do not block the ventilation openings.
• Do not operate the appliance solely by inserting or removing the power plug, as this may result in electric shock or fire due to heat.
• Immediately unplug the appliance from the wall outlet if it emits strange noises, odours or smoke.

Instructions for Handling Damage

• In case of damage to the device, contact the manufacturer, customer service or a similarly qualified person.
• If damage occurs, turn off the power, unplug the power cord, and contact the manufacturer, the service representative, or a similarly qualified person.
  The power cord must be securely earthed.
• If the power cord is damaged, turn off the power to avoid danger and unplugging the power cord from the wall outlet. The power cord must be replaced by the manufacturer, customer service or a similarly qualified person.

WARNING

Risk of injury! Repairs to the coolant circuit may only be carried out by trained specialist personnel. Never attempt to repair the unit yourself!

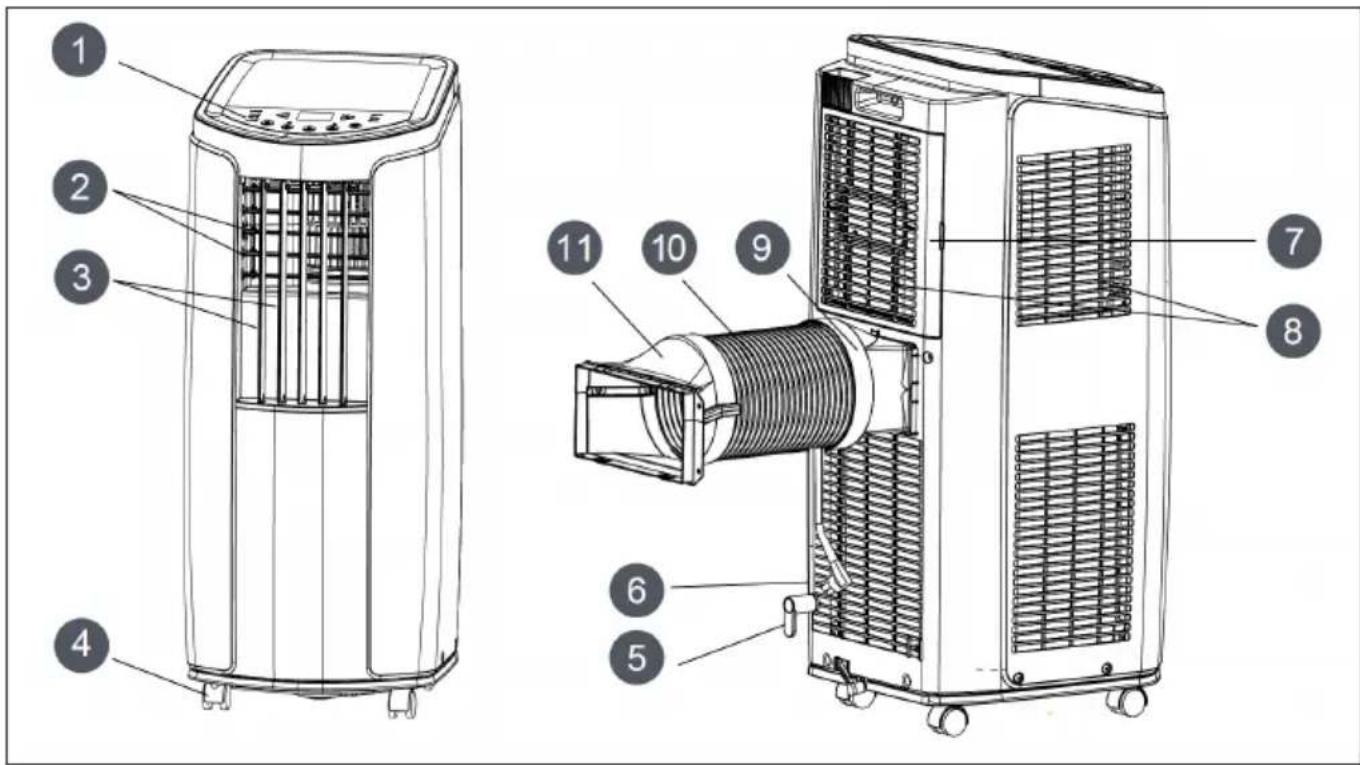

DEVICE OVERVIEW

1	Control panel	7	Ventilation slots
2	Ventilation slats	8	Air intake
3	Vibrating fins	9	Connection A
4	Rollers	10	Exhaust air hose
5	Cable holders	11	Connections B and C
6	Plugs and power cord

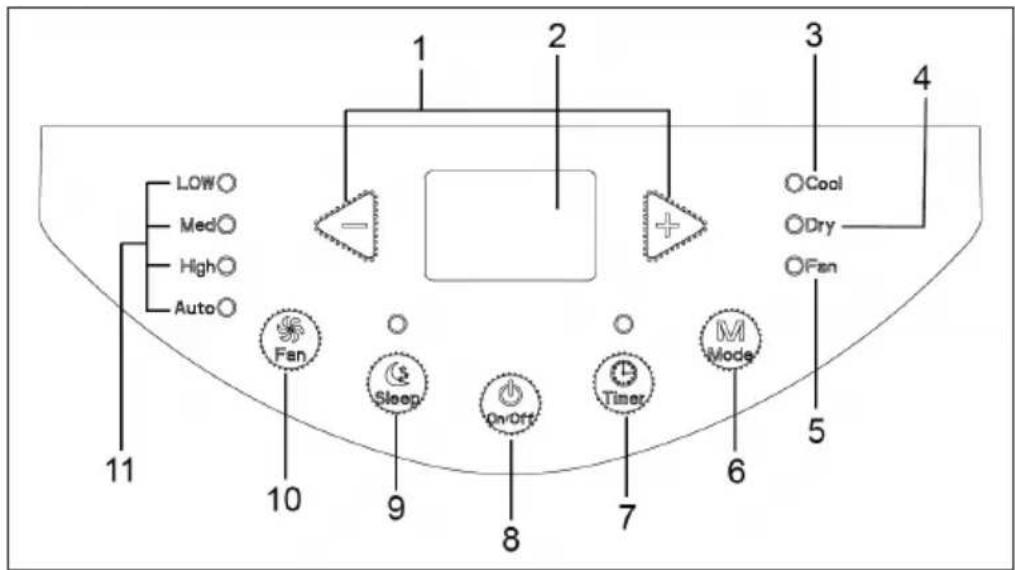

CONTROL PANEL AND KEY FUNCTIONS

1 +/-Key
2 Temperature display
3 Cooling display
4 Drying indicator
5 Fan display
6 Mode
7 Timer
8 On/off button
9 Sleep mode
10 Fan
11 Fan speed

+/-	In cooling mode, press these buttons to adjust the temperature in \( {1}^{ \circ }\mathrm{C} \) increments. The adjustable temperature range is between \( {16}^{ \circ }\mathrm{C} - {30}^{ \circ }\mathrm{C} \) . This button is inactive in auto,drying or fan mode.
MODE	Press this button to select the mode in the following order: Cooling> Drying> Fan.
	COOL: The cooling indicator lights up in this mode. This display shows the set temperature. The adjustable temperature is between \( {16}^{ \circ }\mathrm{C} \) and \( {32}^{ \circ }\mathrm{C} \) .
	DRY: The drying indicator lights up in this mode. This display shows no temperature.
	FAN: On this mode only the fan works. The fan indicator lights. The display shows no temperature.
FAN	Press this button to select the speed in the following order: low > medium > high > auto > low.
TIMER	Press this button to call up the timer. Then press the +/- key to set the timer. Each time the button is pressed, the time will change by 0.5 hours until 10 hours are reached. After that, the value will change by 1 hour each time you press the button. After you have entered the desired value, wait 5 seconds until the display automatically accepts the time. As soon as the timer starts running, the timer indicator will light up in the display. If you want to cancel the timer, press the timer button again in timer mode.
SLEEP	Press this button to activate sleep mode. If the device is currently in cooling mode, the temperature will increase by \( {1}^{ \circ }\mathrm{C} \) over the course of one hour as soon as the sleep mode starts. Over the next 2 hours, the temperature will rise by a further \( {2}^{ \circ }\mathrm{C} \) and then will stay at this level. The sleep function does not work in fan, auto or drying mode.

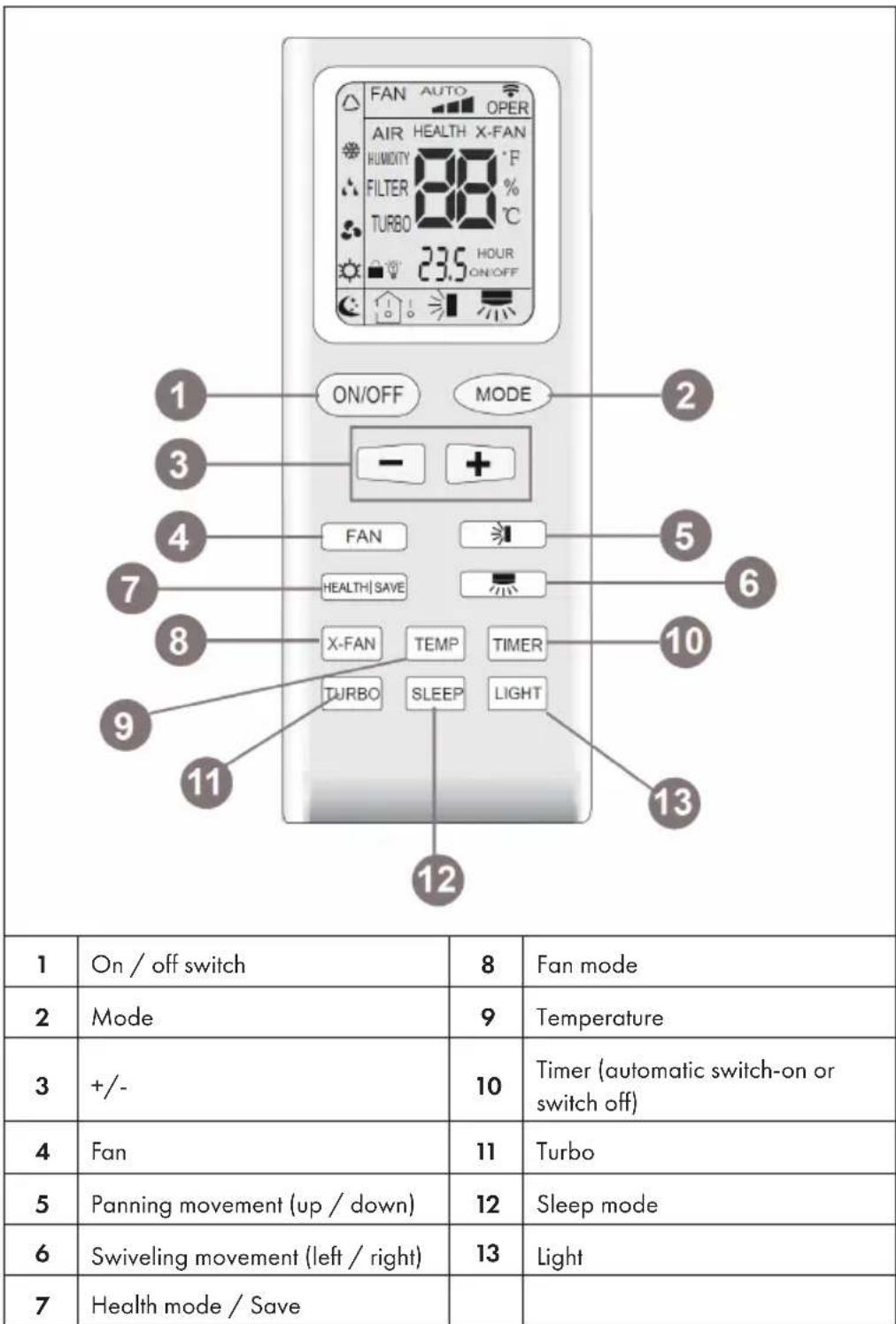

REMOTE CONTROL AND INDICATORS

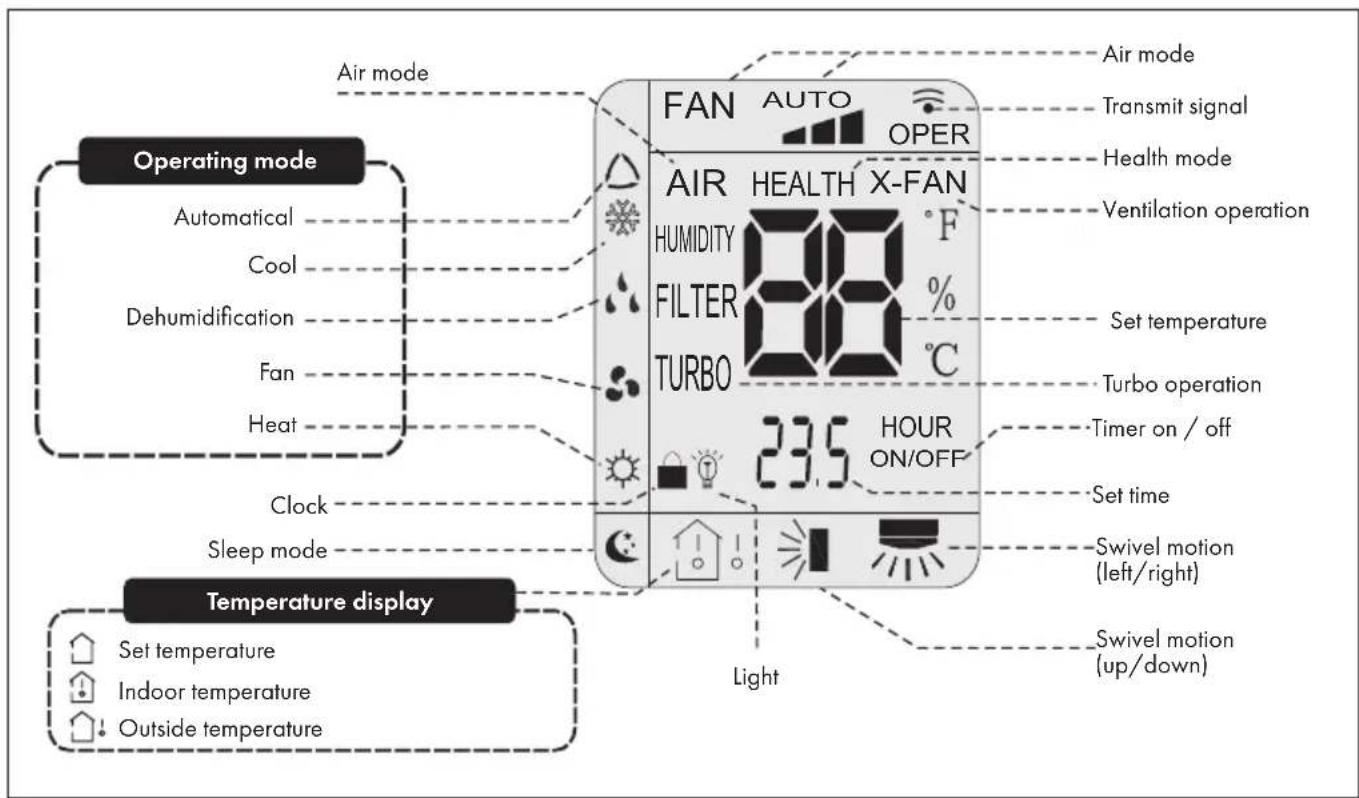

Remote control indicators

Notes:

• This is a universal remote control for air conditioning systems with multiple functions. If you press a button with functions that the device does not have, the device will remain in its current state.
  After the device is connected, the air conditioner will emit a sound and the operating light will light up red. You may now operate the device using the remote control.
• If the device is switched on, the transmit symbol on the remote control will flashe once after each key press.
• When the device is switched off, the set temperature will appear on the remote control. When switched on, the remote control display will show the symbol for starting up.

1 On/off switch (ON/OFF)

Press to turn the device on or off. After startup, will light up green. (The colour of the display differs from model to model).

2 Mode

Press to go through and select the modes.

AUTO	In automatic mode, the air conditioner will run automatically depending on the ambient temperature. The set temperature cannot be changed and is also not displayed. Press the FAN button to set the fan level. and press to adjust the pan movement. Press and adjust the swivel movement.
COOL	When you select cooling mode, the air conditioner will run in cooling mode. The symbol will appear on the display. You can press the [+] and [-] buttons to set the temperature. Press the FAN button to set the fan level. Press and adjust the swivel movement.
DRY	The fan will run at low speed in dehumidification mode. You cannot change the fan level in dehumidification mode. The symbol appears on the display. Press and adjust the swivel movement.
FAN	The device will only run in ventilation mode. All function symbols in the display have gone out. The operating indicator will light up. With the FAN button you can set the fan speed. Press and adjust the swivel movement.
HEAT	The device will heat in this mode. The symbol appears on the display. Use the [+] and [-] buttons to set the temperature. Press and adjust the swivel movement. (Devices with exclusive cooling do not receive a signal when you press the HEAT button.)

Note: To avoid a cold wind after starting, the indoor fan will start blowing with a delay of 1-5 minutes. The exact time is determined by the room temperature. The range of the adjustable temperature is between 16^ and 30^ . Possible fan levels: auto, low, medium, high.

3+/-Keys

Temperature setting: If you press [+] or [-] , the set temperature will be increased or decreased by 1^ C (or 1^ F). Hold the button down. After 2 seconds, the set time on the remote control will change. Release the button after the desired time value has been reached. The display will change accordingly. The temperature cannot be set in auto mode.

Timer on / off or setting the time: press +/- to set the time (see TIMER).

4 FAN

Press to set the fan speed in these steps: automatic, low, medium, high.

Note: In automatic mode, the fan automatically adjusts the level depending on the ambient temperature. In dehumidification mode, the fan runs at a low temperature.

5 Swivel movement up / down

Swiveling movement up / down. The settings appear in the following order: if you press on the remote control, the pan movement is automatically set. The horizontal slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you select in the temof control, you set a fixed pan position. The horizontal slats will stop in the position as indicated in the symbol.

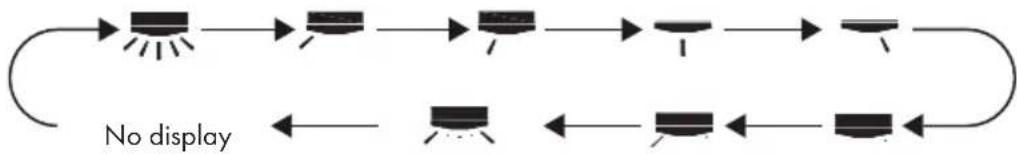

6 Swivel movement left / right

Swiveling movement left / right. The settings appear in the following order: if you press on the remote control, the pan movement is automatically set. The vertical slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you press on the remote control, the pan movement is automatically set. The horizontal slats in the air conditioning system automatically move up and down at the greatest possible angle.

When you select on the remote control, you set a fixed pan position. The horizontal slats stop in the position as indicated in the symbol.

7 HEALTH/SAVE

Health function: after pressing the HEALTH button, the setting of the remote control changes in this order: HEALTH > AIR > AIR > HEALTH > No display. When the respective symbol is selected with the remote control, the corresponding mode will start.

SAVE function: if you press the Save button in cooling mode, the device will run in SAVE mode. 'SE' will appear on the remote control display. The device will run in automatic mode, the temperature cannot be set. Press SAVE again to exit this mode and the device will return to its originally set level and temperature. Note: This function is only available on some models.

8 Fan operation / X fan

After pressing this button in cooling mode and in dehumidification mode, the display will show and the fan will continue to run for 2 minutes to dry the device. After switching on the device, ventilation mode will be automatically activated. This function is not available in automatic mode, ventilation mode and heating mode. If you switch off the device again after activating this function, the fan will run at a low level to dry condensation in the device.

9 TEMP / Temperature setting

Press this button to show the set temperature, indoor temperature or outdoor temperature on the display.

Selection of on the remote control: display of the set temperature.
- Selection of on the remote control: display of the internal temperature.
- Selection of on the remote control: display of the outside temperature.

Note: On some models, the outside temperature cannot be displayed. Display only for models with a two-digit display.

10 TIMER / automatic timer

Automatic switch-off: when the device is switched on: press this button to set the automatic switch-off. 'HOUR' and 'OFF' will flash on the display. Press the [+] and [-] buttons within 5 seconds to set the time for the shutdown. Pressing [+] and [-] increases or decreases the time by 1/2 hour. If you hold down [+] and [-] for 2 seconds, the time value changes quickly. Then press TIMER to confirm. 'T-OFF' and 'H' will no longer flash.

Automatic switch-on: when the device is switched off: press this button to set the automatic switch-on. 'T-OFF' and 'H' will flash on the display. Press the [+] and [-] buttons within 5 seconds to set the time for switching on. Pressing [+] and [-] increases or decreases the time by 1/2 hour. If you hold down [+] or [-] for 2 seconds, the time value changes quickly. Then press TIMER to confirm.

Note: The setting range is 0.5-24 hours. The time interval between two entries must not exceed 5 seconds, otherwise the remote control will leave the input mode.

11TURBO

When this button is pressed in cooling or heating mode, the air conditioner will go into quick cooling mode or quick heating mode. 'TURBO' will appear on the remote control display. Press the button again to exit turbo mode. The 'TURBO' display will go out.

12 SLEEP

When this button is pressed in cooling or heating mode, the air conditioner will go into sleep mode. The symbol will appear on the remote control display. Press the button again to exit sleep mode. The sleep symbol will disappear.

13 Light

This button turns off the remote control indicator light. The symbol is hidden. Press the button again to turn the light back on. The symbol will reappear.

Child safety

Press [+] and [-] at the same time to switch on the childproof lock. When the child lock is activated, the splay appears on the remote control. If you now press any buttons,

will flash three times and the remote control will not send any signal.

General Operation

• After connecting to the power supply, press the ON/OFF button on the remote control to switch on the device.
• Press MODE to select the desired operating mode: AUTO, COOL, DRY, FAN, HEAT.
• Press [+ ] and [-] to set the desired temperature. The temperature cannot be set in AUTO mode.
• Press FAN to set the desired fan level: AUTO, LOW (low), MEDIUM (medium) and HIGH (high).
• Press and toselect the pan movement.

Replacement of the remote control batteries

• Press the retaining clip on the battery compartment of the remote control and slide off the cover in the direction of the arrow.
• Replace the old batteries with two LRO3 batteries. Make sure that the polarity is correct.
• Put the battery cover back on.

Note: The distance between the signal generator and the signal receiver must not be more than 8 metres.

• If the signal in the room is disturbed by fluorescent lights, neon lamps or mobile phones, move the remote control closer to the device.
• Replace the batteries with the same type.
• Remove the batteries if you will not be using the remote control for a long time.
• If the display on the remote control becomes blurred or shows nothing, replace the batteries.

INSTALLATION

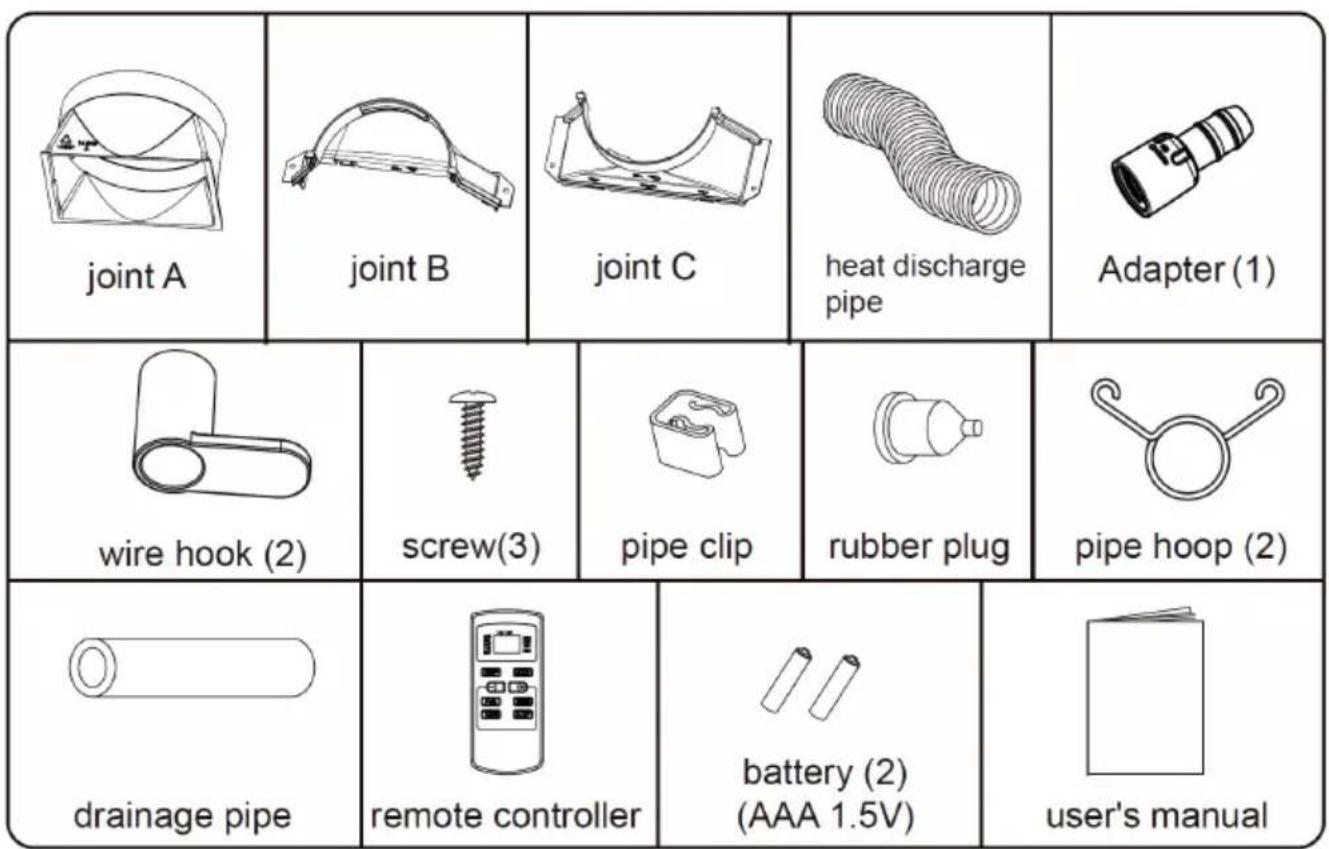

Accessory

Additionally you need: a cross screwdriver, a straight screwdriver, a saw, a gauge, a scissor and a pencil.

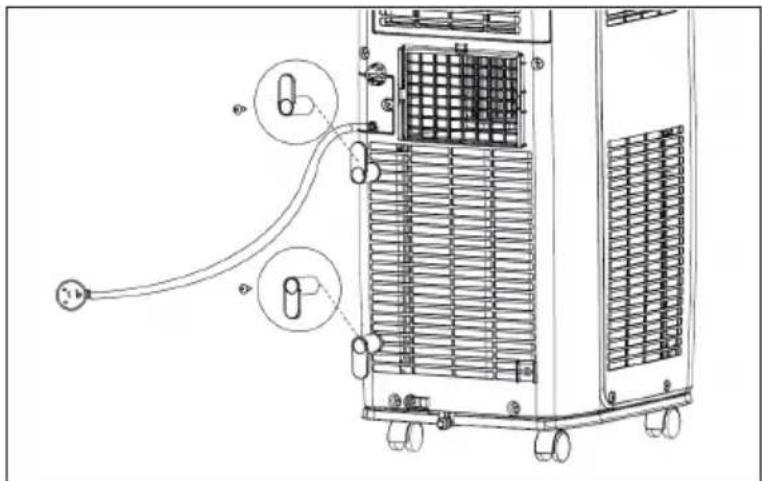

Installing the Wire Hook

• Assemble the wire hook at the back of the unit with screws (the direction of wire hook is as shown in the following fig.
• Wind the power cord around the wire hook.

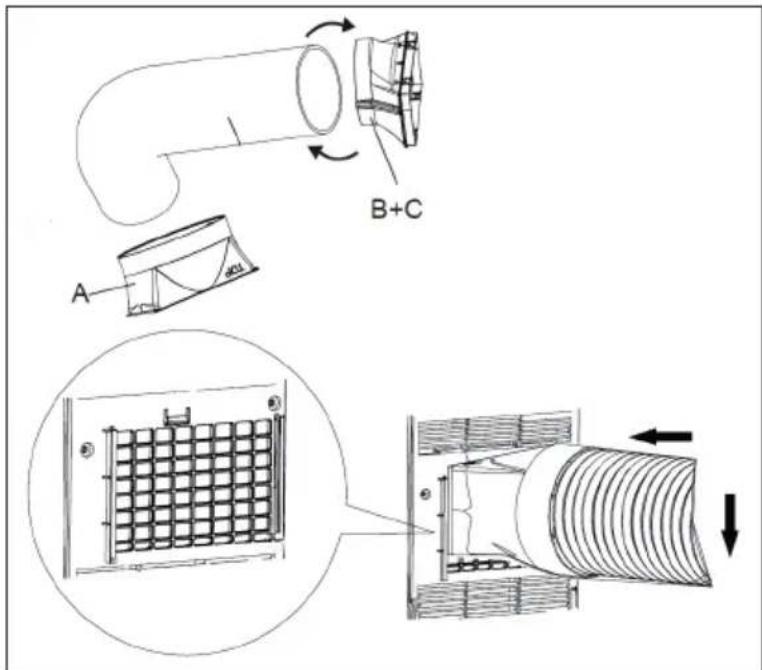

Installing the Heat Discharge Pipe

1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.
2. Insert joint A of heat discharge pipe (the side with „TOP“ is upwards) into the groove until you hear a sound.

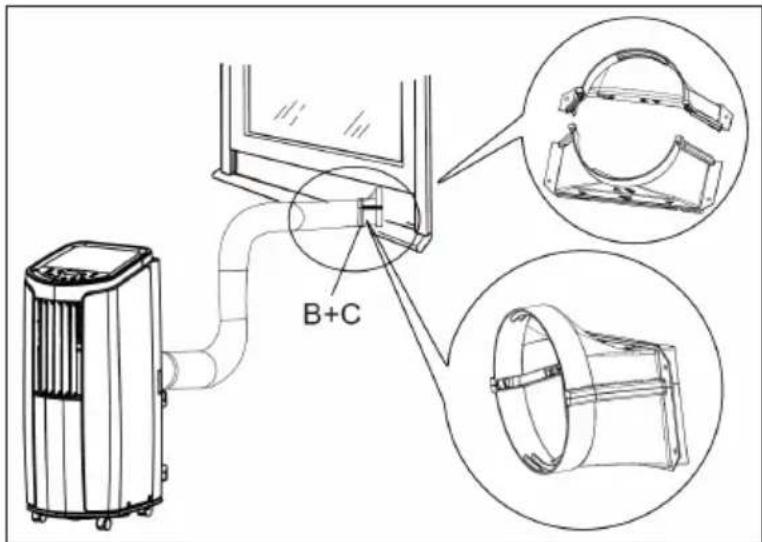

1. Aim the locating pole of joint B of heat discharge pipe at the opening of joint C; rotate it slightly to make joint B and joint C connect tightly.

2. in order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge.

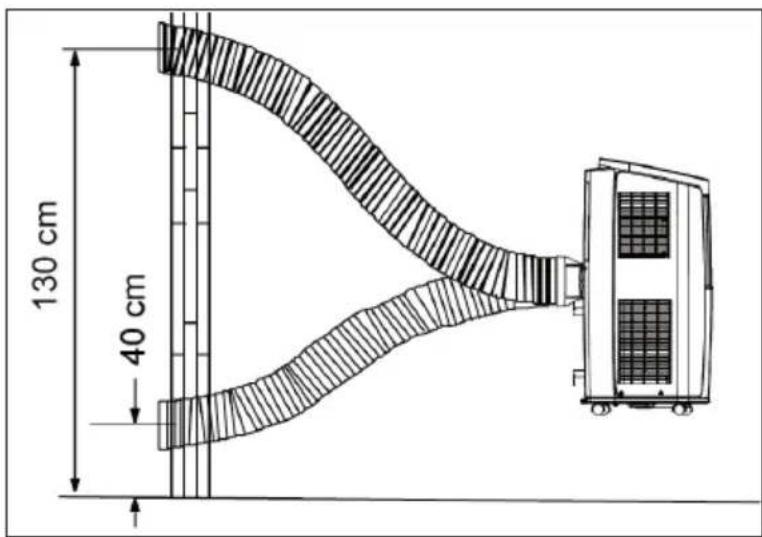

1. Correct installation is as shown in figure. When installing it on a wall, height of hall should be about 40~cm - 130 cm from floor.

2. If the pipe is bent too much, it would easily cause malfunctions.

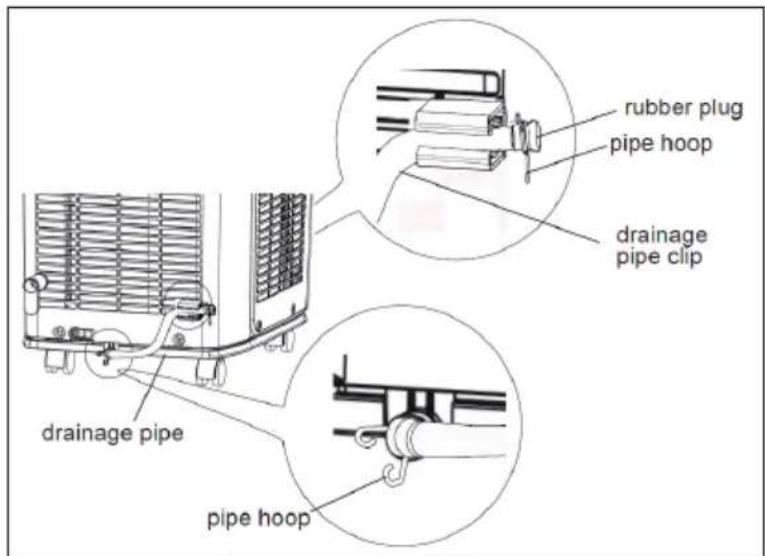

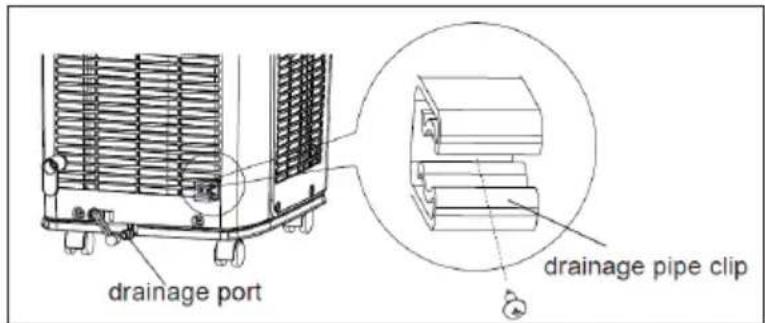

Manual Removement of collected Water

When using the continuous drainage option from the bottom hole, install drainage pipe before using, other- wise poor drainage will affect normal operation of the unit.

Remove the rubber plug at drainage port. Fix the drainage pipe clip on the right of rear side plate near drainage port with a screw.

Put the drainage pipe into drainage port and screw it up, and then bind it with pipe hoop.

Put the rubber plug into the other siede of drain- age pipe, fix it with pipe hook and then fix it in the drainage pipe clip.

Drainage way as follows

In cooling or drying operation, the condensation water will be drained to the chassis and spattered by water- striking motor. As the temperature of condenser is high, most of the condensation water will be evaporated and drained to outdoor. So usually, only a little condensation water will be accumulated inside the chassis and you do not need to discharge the water frequently. When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is displayed to remind user to discharge water:

• Move the unit to a suitable place for discharging water; do not tilt the unit and keep it horizontal during moving;
• Take the drainage pipe from the clip and pull out the rubber plug on the drainage pipe to discharge water;
• After full water protection is eliminated and the compressor has been stopped for 3 minutes, the unit will resume operation.

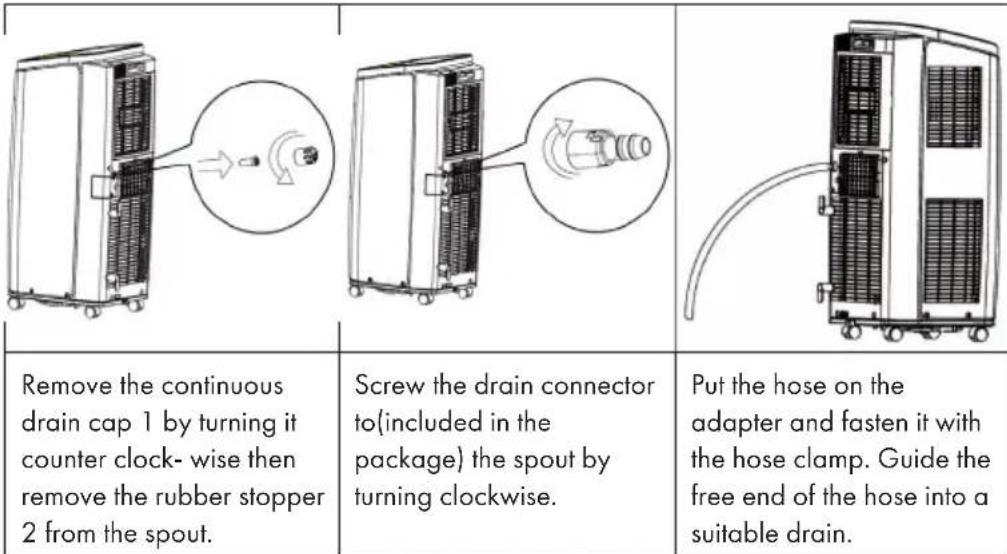

Using a continuous Drainage

The water can be discharged automatically via the central outlet. You will need the supplied rubber hose, hose adapter and hose clamp. This is how you set up the drain:

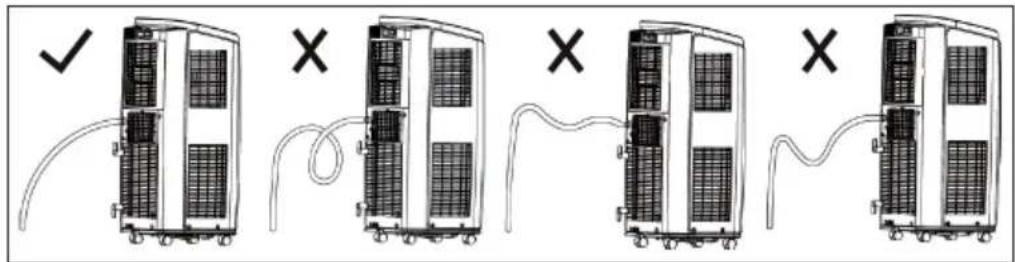

Important Hint on using a continuous Drainage

When using continuous drainage option from the middle hole, place portable on a level surface and make sure garden hose is clear of any obstructions and is directed downward. Placing portable on an uneven surface or improper hose installation may result in water filling up the chassis and causing the unit to shut off. Empty water in the chassis if shut off occurs, then check portable location and hose for proper setup.

CLEANING AND CARE

Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock. Do not wash air conditioner with water. Otherwise, it may cause electric shock. Do not use volatile liquid (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of air conditioner.

Clean outer Case and Grille

Clean outer case: If there's dust on the surface of outer case, please use soft towel to wipe it. If the outer case is very dirty (such as grease), please use neutral abluent to wipe it. Clean grille: Use cleaner or soft brush to clean it.

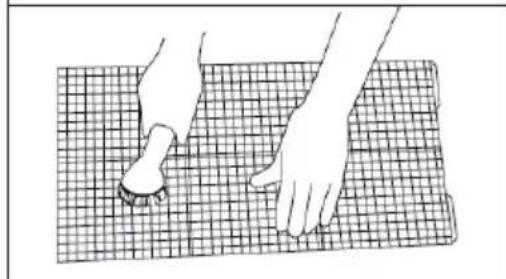

Clean Filter

• Remove filter.
  Use clean water to clean the filter. If the filter is very dirty (such as grease), use warm water 40^ (104^) melted with neutral abluent to clean it and then put at shady place to dry it..
  After the filter is cleaned and completely dried, reinstall it well.

Cleaning the Heat Discharge Pipe

Remove the heat discharge pipe from air conditioner, clean and dry it, and then reinstall it. (For the method of installation and removal, please refer to the instruction for "Installation and disassembly of heat discharge pipe").

Checking before Use-Season

• Check whether air inlets and air outlets are blocked.
• Check whether plug and socket are in good condition.
• Check whether filter is clean.
• Check whether batteries are installed in remote controller.
• Check whether joint, window bracket and heat discharge pipe are installed tightly.
• Check whether heat discharge pipe is damaged.

Checking after Use Season

• Disconnect power supply. Clean filter and outer case.
• Remove dust and sundries on the air conditioner.
• Eliminate accumulated water in chassis (refer to the section of „Drainage way" for details).
• Check whether window bracket is damaged or not. If yes, please contact dealer.

Long-time Storage

If you don't use the air conditioner for a long time, make sure there's no accumulated water in chassis. Pull out the plug and wrap the power cord. Clean the air conditioner and pack it well to prevent dust.

TROUBLESHOOTING

Problem Possible Cause Solution
Air conditioner can't operate.	Is plug loose? Reinsert the plug.
	Whether the unit is restarted up after stopping immediately.	Wait for 3min, and then turn it on again.
Poor cooling. The air filter is too dirty. Clean the air filter.
		The set temperature is proper.	Adjust the temperature.
		Door and window are not closed.	Close dorrs and windows.
Air conditioner can't receive signal from remote contr- oller or remote controller is not sensible.	Remote controller is not within the receiving range.	The receiving range of remote controller is 8 m. Do not exceed this range.
	Whether it's blocked by obstacles.	Remove the obstacles.
	Is sensitivity of remote controller low.	Check the batteries of remote controller. If the power is low, please replace the batteries.
	There's a fluorescence lamp in the room.	Move the remote controller close to air conditioner or turn off the fluorescence lamp and try it again.
No fan blown out from air conditioner.	Air outlet or air inlet is blocked.	Eliminate the obstacles.
Set temperature can't be adjusted.	The unit operates under auto mode.	Temperature can't be adjusted under auto mode.
	The required temperature exceeds the temperature setting range.	Temperature setting range: 16°C-30°C.
There's abnormal sound during operation.	The unit is interfered by thunder, radio, etc.	Disconnect power, put thro- ugh the power again, and then turn on the unit again.

ERROR CODES

H8 Chassis is full of water.	Pour out the water inside chassis. If "H8" still exits, please contact professional person to maintain the unit.
F1	Malfunction of ambient temperature sensor. Please contact professional person to deal with it.
F2	Malfunction of evaporator temperature sensor. Please contact professional person to deal with it.
F0	Refrigerant is leaking or system is blocked. Re-energize the unit after turning off and pulling out the plug for 30 min; If there's still malfunction, please contact after-sales service.
H3	Overload protection for compressor. Check if the unit is under high-temperature and high- humidity environment; if ambient temperature is too high, power off the unit and then energize it for operation after the ambient temperature drops to 35 °C below
E8	Overload malfunction. Check if the evaporator and condenser are blocked by some objects; if yes, take away the objects, power off the unit and then energize it for operation. If the malfunction still occur, please contact our after-sales service center.
F4 Outdoor tube temperature sensor is open/short-circuited.	Please contact professional person to deal with it.

Warnings

• The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
• Switch off the device and disconnect it from the power supply before cleaning.
• Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
• To prevent leaks, operate this unit on a horizontal surface.
• Any person performing work on a refrigerant circuit should have a current certifi cate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specifi cation.
  If the device stops working, dispose of it properly.
• Store the device in a well-ventilated place when not in use.
• Store the device so that it is not damaged.
• Repairs may only be carried out by the manufacturer or an authorised specialist company.
• Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
• Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.

Information for rooms with refrigerant pipes

• Limit the piping to a minimum.
• Be careful not to damage the piping.
• Appliances with flammable refrigerants may only be installed in a well-ventilated room.
• Comply with national gas regulations.
• All mechanical connections must be freely accessible for maintenance purposes.

CAUTION

Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.

Information according to regulation (EU) No. 626/2011

Supplier's trademark:

Klarstein

Supplier's model identifier:

10029702, 10029703,

10040152, 10040153

Inside sound power levels at standard rating conditions on cooling mode in dB:

63 dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio (EER rated): 2,6

Energy efficiency class:

A

Energy consumption 0,8 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity _rated in kW:

2,1 kW

Information according to regulation (EU) No. 206/2012

Model identifier(s) 10029702, 10029703, 10040152, 10040153
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	2,1 kW
Rated capacity for heating P	rated for heating	-kW
Rated power input for cooling P	EER	0,8 kW
Rated power input for heating P	COP	- kW
Rated Energy efficiency ratio EERd 2,6 -
Rated Coefficient of performance COPd - -
Power consumption in thermostat-off mode	PTO	109	W
Power consumption in standby mode	PSB	0,3 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: QDDSD: QSD	0,8	DD: kWh/a SD: kWh/h
Sound power level	LWA	63	dB(A)
Global warming potential	GWP	3	kgCO2eq.
Contact details for obtaining more information	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Supplier's trademark:

Klarstein

Supplier's model identifier:

10029704, 10029705,

10040154, 10040155

Inside sound power levels at standard rating conditions on cooling mode in dB:

64dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio (EER_rated)): 2,7

Energy efficiency class:

A

Energy consumption 1,0 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity _rated in kW:

2,6 kW

Model identifier(s) 10029704, 10029705,	10040154, 10040155
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	2,6 kW
Rated capacity for heating P	rated for heating	- kW
Rated power input for cooling P	EER	1,0 kW
Rated power input for heating P	COP	- kW
Rated Energy efficiency ratio EERd 2,7 -
Rated Coefficient of performance	COPd	--
Power consumption in thermostat-off mode	PTO	102	W
Power consumption in standby mode	PSB	0,3 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: QDDSD: QSD	1,0 DD: kWh/aSD: kWh/h
Sound power level	LWA	64	dB(A)
Global warming potential	GWP	3	kgCO2eq.
Contact details for obtaining more information	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type New Breeze is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10040152

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type New Breeze is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use. Berlin/10040152

Estimado cliente,

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

Chere cliente, cher client,

12 SLEEP (mode nuit)

FICHE DE DONNÉES PRODUIT

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

1 Interruftore on/off

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
