Brand	Sharp
Model	AEXM24CR
Product type	Multi-split air conditioner (multiple indoor units)
Power supply	220-240 V, 50 Hz (standard estimate)
Operating modes	Auto, Cooling, Heating, Dehumidification (Dry), Fan
Plasmacluster function	Available on models AY-XPM7CR/9CR/12CR (generates clustered ions to purify air)
Automatic cleaning function	Available on models AY-XPM7CR/9CR/12CR (duration: 40 minutes)
Timer	Programmable on/off timer (in 10-minute increments), one-hour off timer
Full power	Function to cool or heat quickly at maximum power
Airflow direction	Vertical (motorized with SWING function) and horizontal (manually adjustable)
Remote control	Wireless, range 7 meters, AAA (R03) batteries, LCD display
Filters	Air filter (clean every 2 weeks), dust filter (gray, replaceable), deodorizing filter (green, washable)
Optional air purifying filter	Disposable type, change every 3-6 months (models AY-XM7CR/9CR/12CR)
Maintenance	Clean filters regularly, use vacuum or lukewarm water with mild detergent, dry in shade
Safety	Grounding mandatory, do not install near flammable gases, turn off circuit breaker before maintenance
Protection	Automatic restart after power failure (memory of settings except timer)
Operating temperatures (Cooling)	Indoor: 21°C to 32°C DB, Outdoor: 21°C to 43°C DB
Operating temperatures (Heating)	Indoor: 20°C to 27°C DB, Outdoor: -7°C to 24°C DB
Spare parts	Dust filter type AZ-F900C, deodorizing filter type AZ-F910C

Frequently Asked Questions - AEXM24CR SHARP

How to clean the filters of the Sharp AEXM24CR air conditioner?

The air filters should be cleaned every two weeks. Open the panel, remove the filters, use a vacuum or wash them with lukewarm water and mild detergent. Dry them in the shade before reinstalling. The deodorizing filter (green) should be cleaned every 3 to 6 months by soaking it in a mild detergent solution for 10 to 20 minutes, then rinsing and drying in the sun. The dust filter (gray) is not washable and must be replaced every 3 to 6 months.

What to do if the air conditioner does not cool properly?

First check the filters: if they are dirty, clean them. Make sure the outdoor unit is not obstructed and the thermostat is set correctly. Ensure windows and doors are closed. If the room contains many people or heat-generating appliances, performance may be reduced. If the problem persists, contact after-sales service.

How to use the on/off timer?

Ensure the clock is set. For the timer off (TIMER OFF), press the TIMER OFF button, set the time using TIME ADVANCE/REVERSE (in 10-minute steps), then press SET/C. For the timer on (TIMER ON), do the same with the TIMER ON button. Both timers can be combined. The orange TIMER indicator lights up on the unit. The automatic sleep function adjusts the temperature for comfort.

What does the PLASMACLUSTER indicator mean?

The PLASMACLUSTER indicator shows that the clustered ion air purification function is active. It is available on models AY-XPM7CR/9CR/12CR. A blue indicator indicates AIR PURIFIER mode, a green indicator indicates COOLING mode. You can select these modes via the remote control (PLASMACLUSTER button).

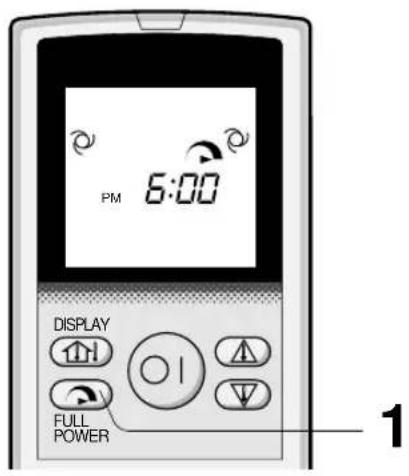

How to activate full power mode (FULL POWER)?

During operation, press the FULL POWER button on the remote control. The unit then operates at maximum power to cool or heat quickly. Temperature and fan speed cannot be adjusted during this mode. To cancel, press FULL POWER again or change the mode.

What to do if the remote control does not work?

First check the batteries: if they are weak, replace both batteries with identical new ones (AAA/R03). Make sure the remote control is aimed at the receiver on the indoor unit and that no obstacle (curtain) blocks the signal. If the problem persists, use the auxiliary mode by pressing the AUX button on the indoor unit.

Why does the unit make a cracking noise?

The cracking noise is normal and comes from the expansion/contraction of the front panel and other components due to temperature changes. This is not a malfunction.

How to maintain the air conditioner before a long period of inactivity?

Run the unit in COOL mode at 32°C for half a day to dry the mechanism, or use the automatic cleaning mode (if available). Then turn off the unit and circuit breaker. Clean the filters and reinstall them. Ensure the air inlets/outlets are clear.

What are the filter types and how to replace them?

There are three filters: the air filter (clean every 2 weeks), the dust filter (gray, non-washable, replace every 3 to 6 months, type AZ-F900C), and the deodorizing filter (green, washable, replace every 3 years, type AZ-F910C). To replace the dust filter, remove the air filters, change the dust filter by placing the black side up under the tabs, then reinstall.

What to do if the unit does not turn on or does not respond?

Check if the circuit breaker is tripped or a fuse has blown. If the unit does not operate immediately after stopping or changing mode, wait 3 minutes (compressor protection). Ensure the remote control has valid batteries and is pointed correctly. If the OPERATION, TIMER, and TEMPERATURE indicators flash, contact after-sales service.

USER MANUAL AEXM24CR SHARP

3D rendering of a cylindrical mechanical component with horizontal grooves and a flat base (no text or symbols)

• Uses ozone layer friendly refriderant R-410A.
• Verwendet das die Ozonschicht schonende Kühlmittel R-410A.
• Utilise un réfrigérant qui n'attaque pas la couche d'ozone, le R-410A.
• Utiliza refrigerante R-410A que no daña la capa de ozono.
• Utilizza il refrigerante R-410A che non danneggia il buco nell'ozono.
• Usa refrigerante R-410A amigo da camada de ozono.
• Χρησιμοποιεί ψυκτικό R-410Α αβλαβές για το στρώμα του όζοντος.
• Gebruikt de ozon-vriendelijke koelvloeistof R-410A.
• Ozon tabakasına zarar vermeyen R-410A Soğutucu madde kullanılır.
• Использует охладитель R-410A безвредный для озонового слоя.

INDOOR UNIT

ZIMMERGERÄT

UNITE INTERIEURE

UNIDAD INTERIOR

UNITA' INTERNA

UNIDADE INTERIOR

ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ

BINNEN-UNIT

iç ÜNİTE

ВНУТРЕННИЙ БЛОК

AY-XM7CR

AY-XM9CR

AY-XM12CR

AY-XPM7CR

AY-XPM9CR

AY-XPM12CR

OUTDOOR UNIT

AUSSENGERÄT

UNITE EXTERIEURE

UNIDAD EXTERIOR

UNITA' ESTERNA

UNIDADE EXTERIOR

ΕΞΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ

BUITEN-UNIT

DIŞ ÜNİTE

НАРУЖНИЙ БЛОК

AE-XM18CR

AE-XM24CR

MULTI SPLIT TYPE

ROOM AIR CONDITIONER

MEHRFACH-AUFTEILUNGS-ZIMMER-KLIMAGERÄT

CLIMATISEUR DE SALLE

DE TYPE A DIVISION MULTIPLE

MANUAL DE INSTRUÇÕES

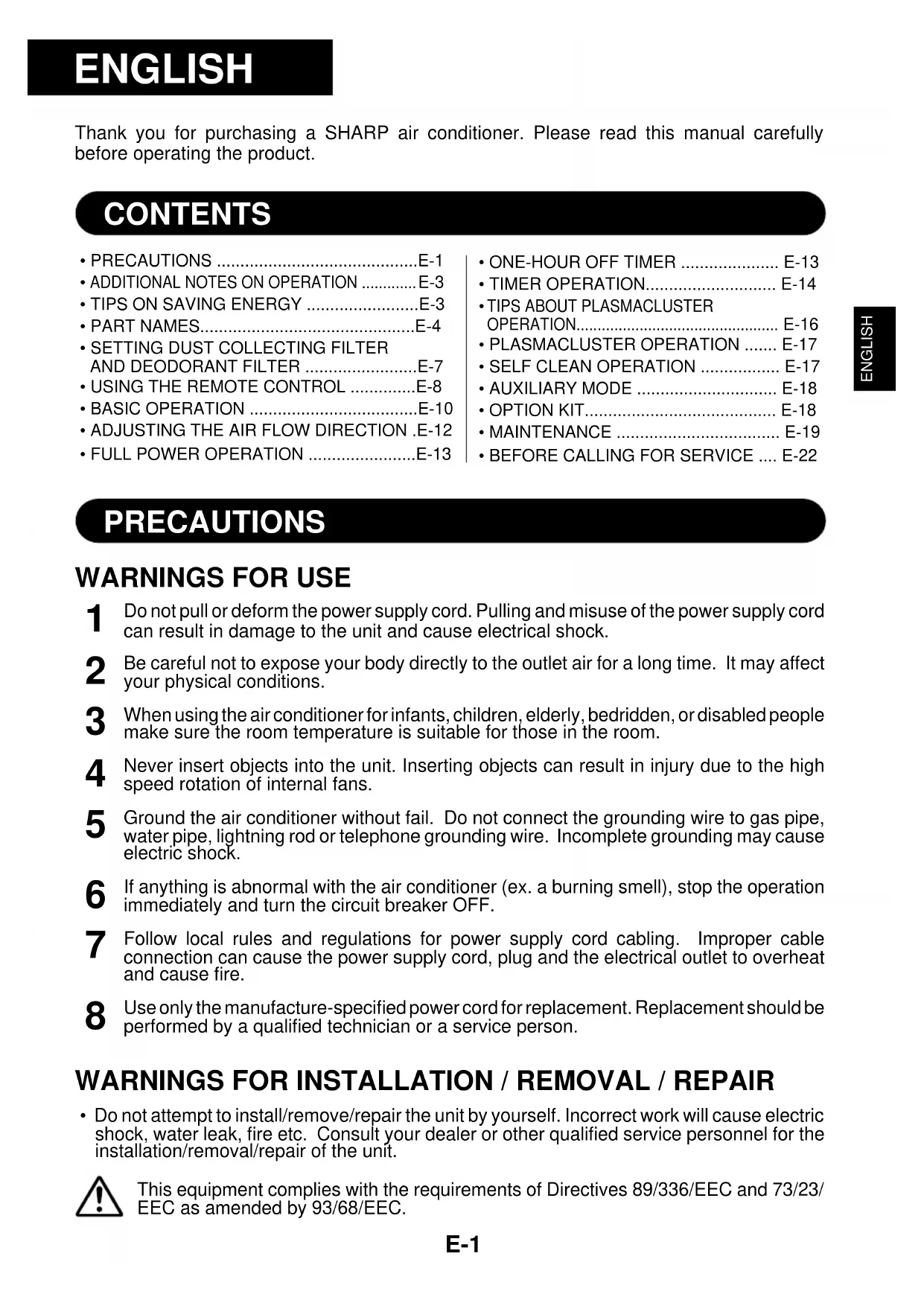

Thank you for purchasing a SHARP air conditioner. Please read this manual carefully before operating the product.

CONTENTS

• PRECAUTIONS ......E-1
  • ADDITIONAL NOTES ON OPERATION ...... E-3
  • TIPS ON SAVING ENERGY .....E-3
• PART NAMES......E-4

• SETTING DUST COLLECTING FILTER AND DEODORANT FILTER ....E-7
  • USING THE REMOTE CONTROL .....E-8
  • BASIC OPERATION .....E-10
  • ADJUSTING THE AIR FLOW DIRECTION .E-12
  • FULL POWER OPERATION ......E-13

• ONE-HOUR OFF TIMER ...... E-13
  • TIMER OPERATION..... E-14
  • TIPS ABOUT PLASMACLUSTER OPERATION.... E-16
  • PLASMACLUSTER OPERATION ..... E-17

• SELF CLEAN OPERATION ...... E-17
  • AUXILIARY MODE ...... E-18
  • OPTION KIT..... E-18
• MAINTENANCE ...... E-19
• BEFORE CALLING FOR SERVICE .... E-22

PRECAUTIONS

WARNINGS FOR USE

1 Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.
2 Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.
3 When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.
4 Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.
5 Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.
6 If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.
7 Follow local rules and regulations for power supply cord cabling. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.
8 Use only the manufacture-specified power cord for replacement. Replacement should be performed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

- Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

PRECAUTIONS

CAUTIONS FOR USE

1 Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.
2 Do not operate the buttons with wet hand. It may cause electric shock.
3 For safety, turn the circuit breaker off when not using the unit for an extended period of time.
4 Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.
5 Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.
6 This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.
7 Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.
8 Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.
9 Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.
11 This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency.
  Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.
• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

ADDITIONAL NOTES ON OPERATION

D.B. = Dry-bulb
W.B. = Wet-bulb

- The built-in protective device may prevent the unit from operating when used out of this range.

- Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings.

If the timers were set before a power failure, they will need to be re-set after power recovery.

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.
• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1^ higher than the desired temperature in the COOL mode and 2^ lower in the HEAT mode will save approximately 10 percent in power consumption.
• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

- Blocking direct sunlight during cooling operation will reduce power consumption.

- Close the windows and doors during cooling and heating operations.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

- The indoor unit still consumes a small amount of power when it is not operating.

INDOOR UNIT
(For models AY-XPM7CR, AY-XPM9CR, AY-XPM12CR)

OUTDOOR UNIT

NOTE: Actual units might vary slightly from those shown above.

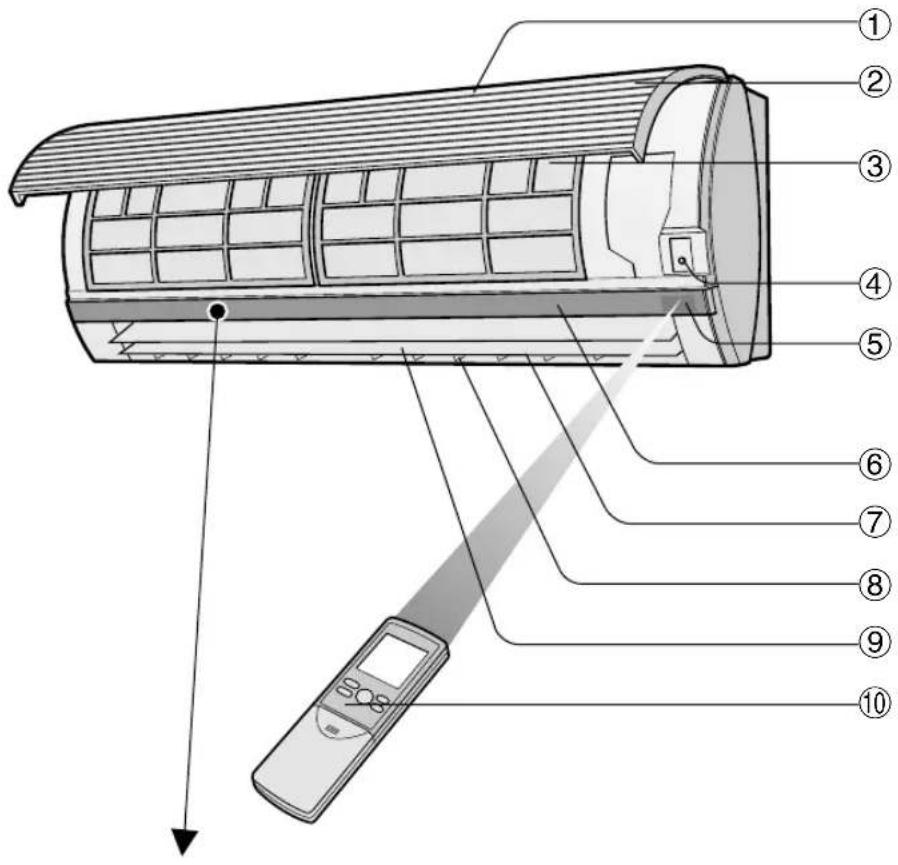

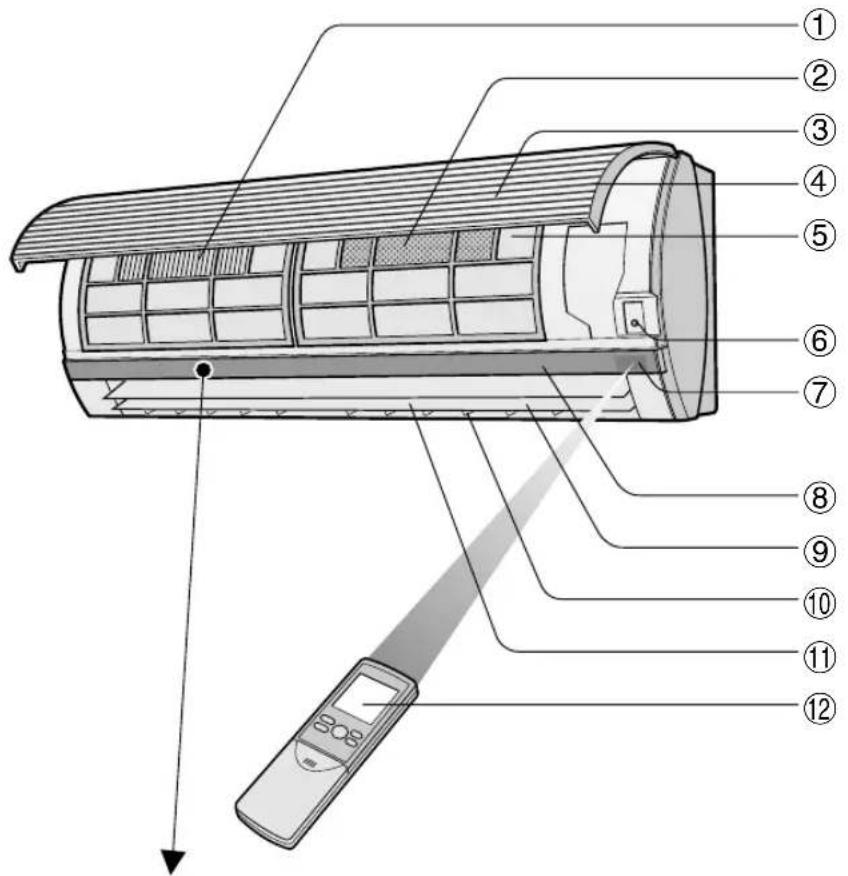

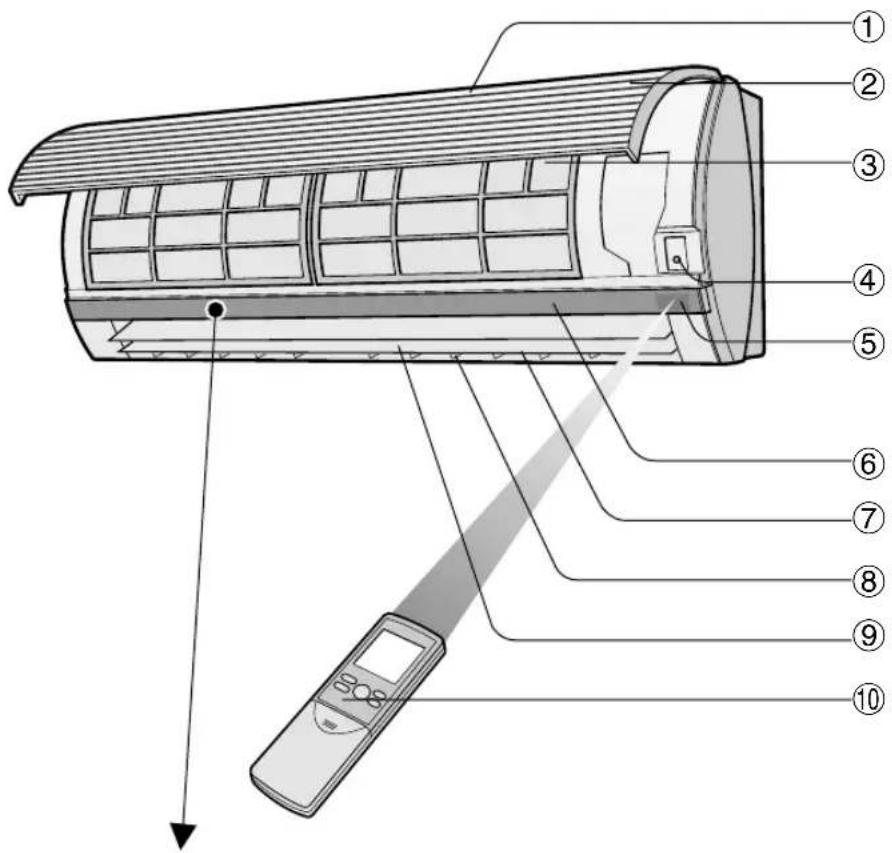

① DUST COLLECTION FILTER (non-washable)
② DEODORANT FILTER (washable)
③ Inlet (Air)
④ Open Panel
⑤ Air Filters

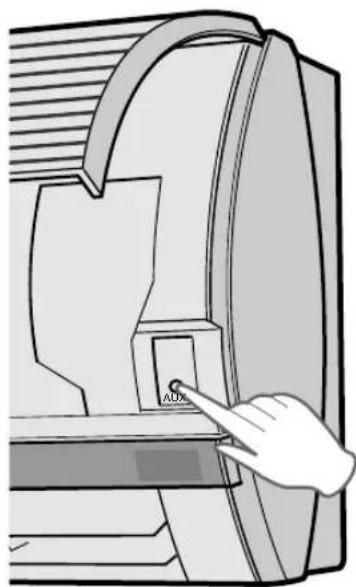

⑥ AUX. Button
⑦ RECEIVER Window
⑧ Indicator Panel
⑨ Vertical Adjustment Louvres
⑩ Horizontal Adjustment Louvres
⑪ Outlet (Air)
⑫ Remote Control

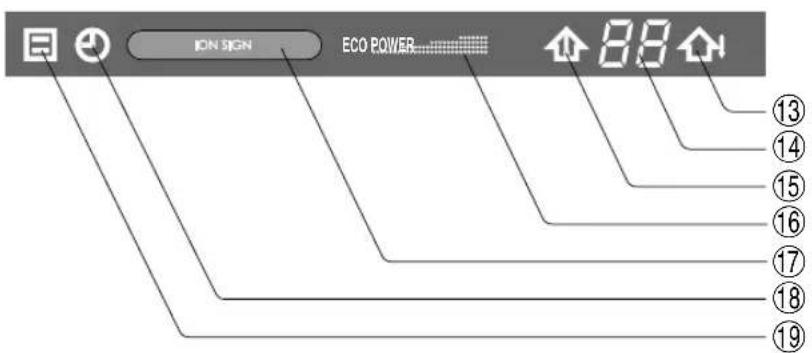

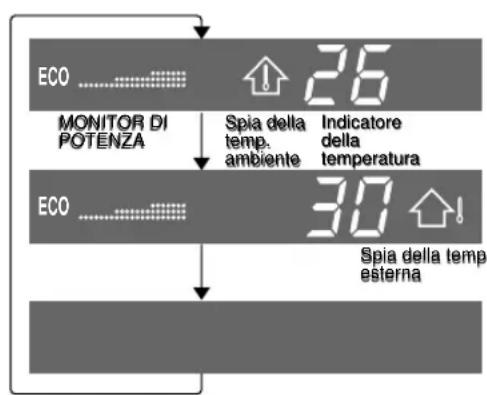

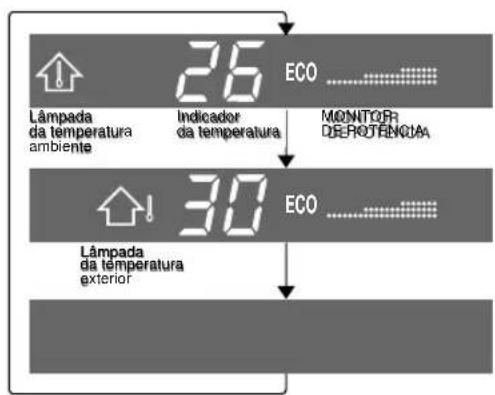

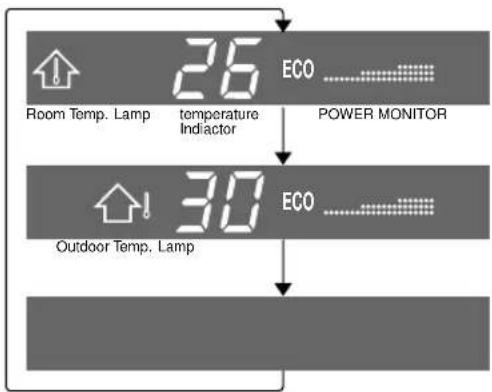

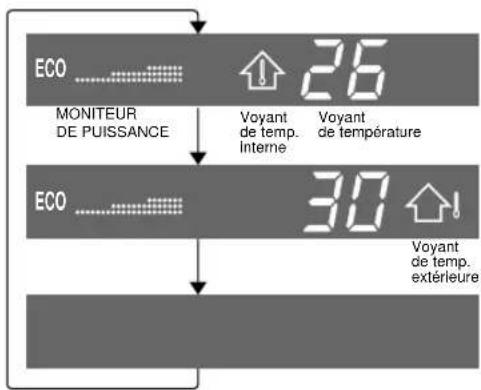

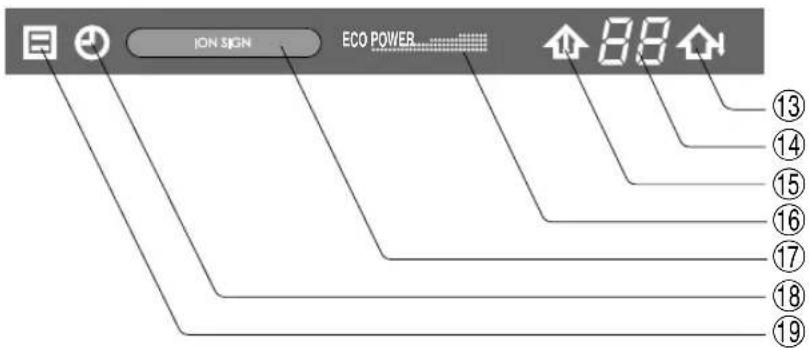

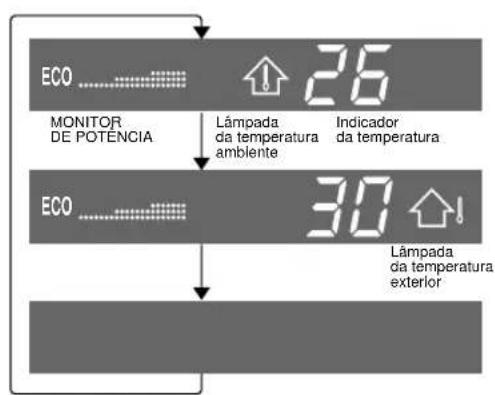

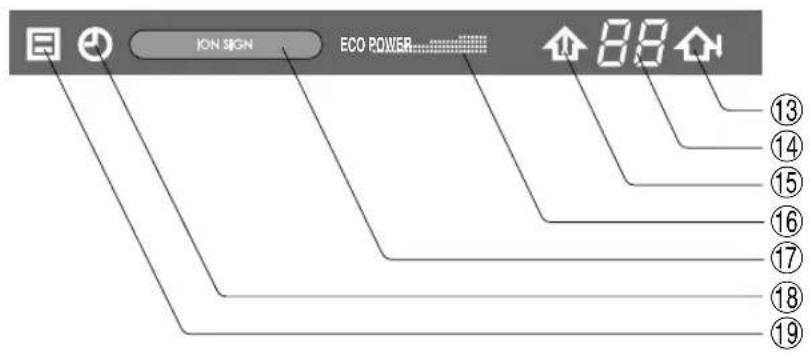

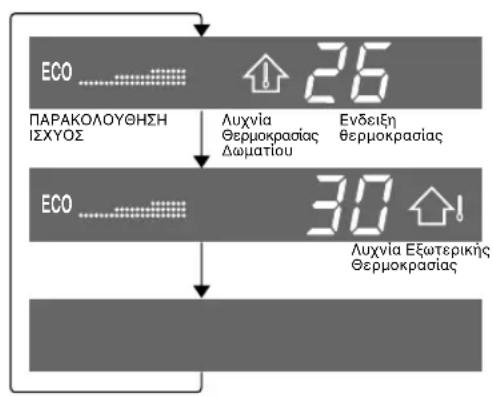

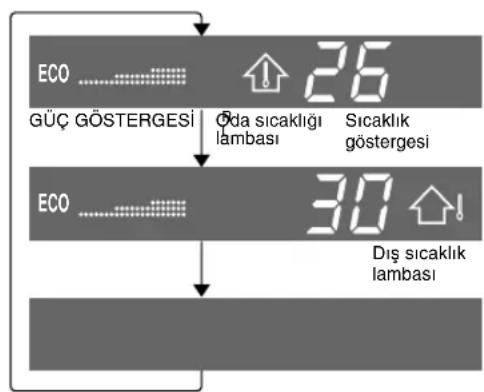

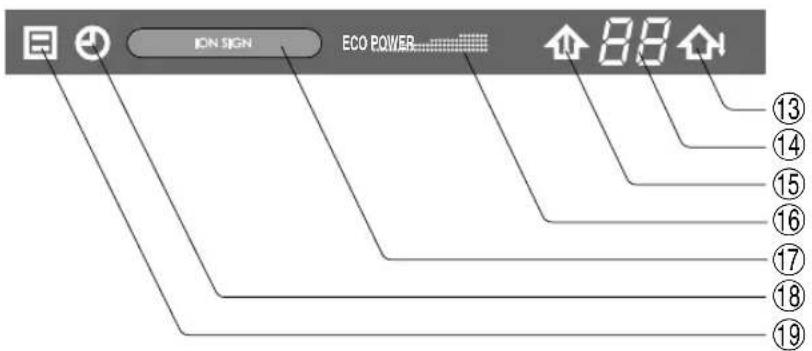

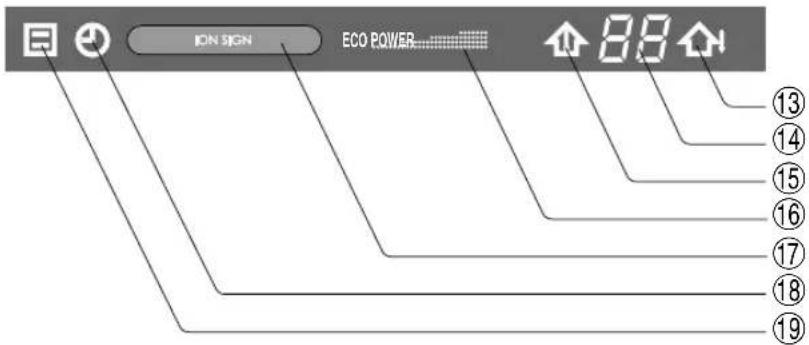

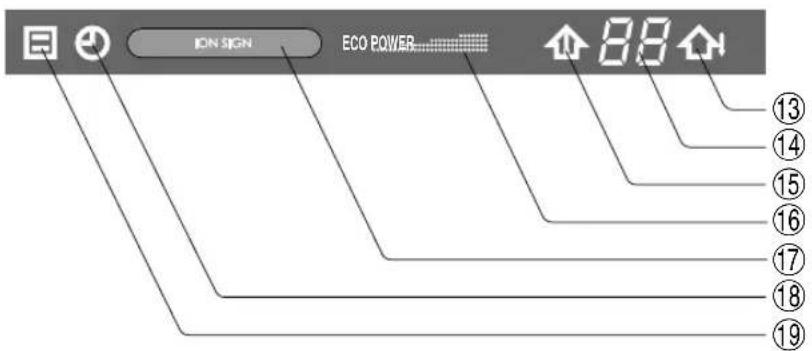

⑬ OUTDOOR Temp. Lamp (green ↗!
⑭ TEMPERATURE INDICATOR
⑮ ROOM Temp. Lamp (green

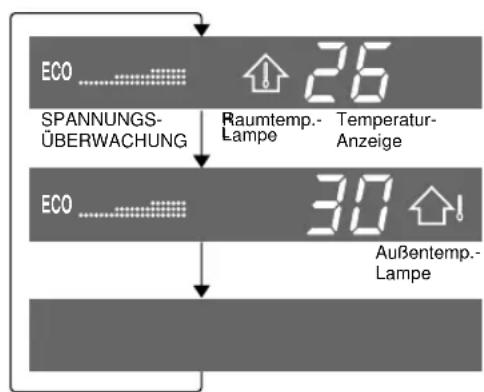

⑯ POWER MONITOR
⑰ PLASMACLUSTER Lamp (blue,green)
⑱ TIMER Lamp (orange)
⑲ OPERATION Lamp (red)

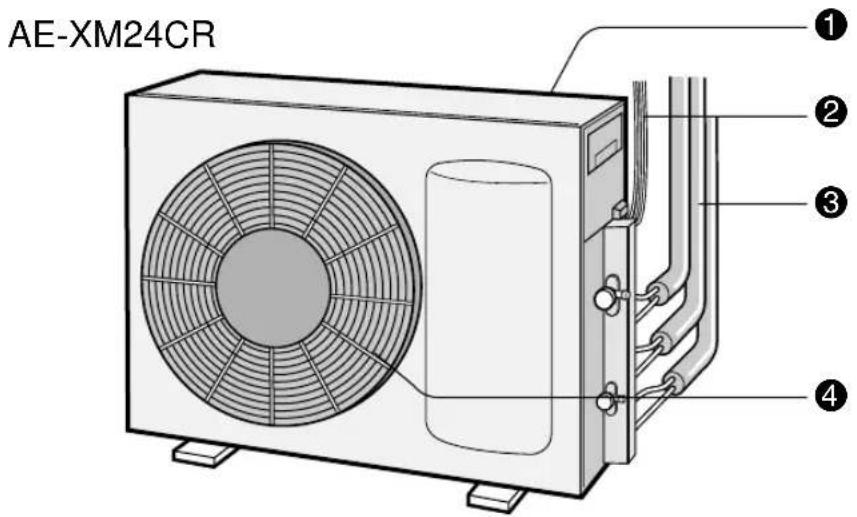

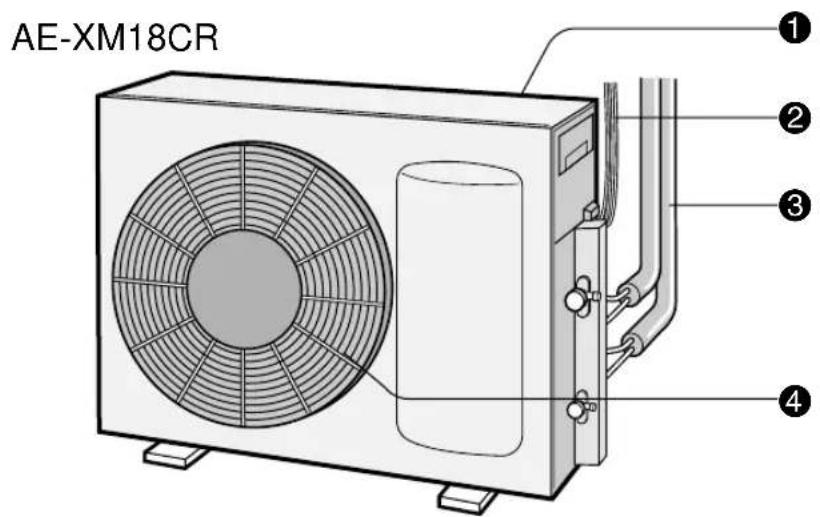

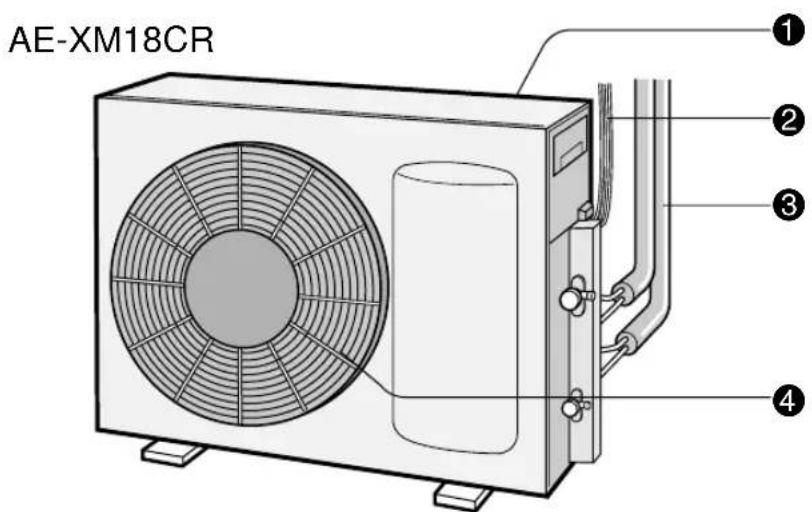

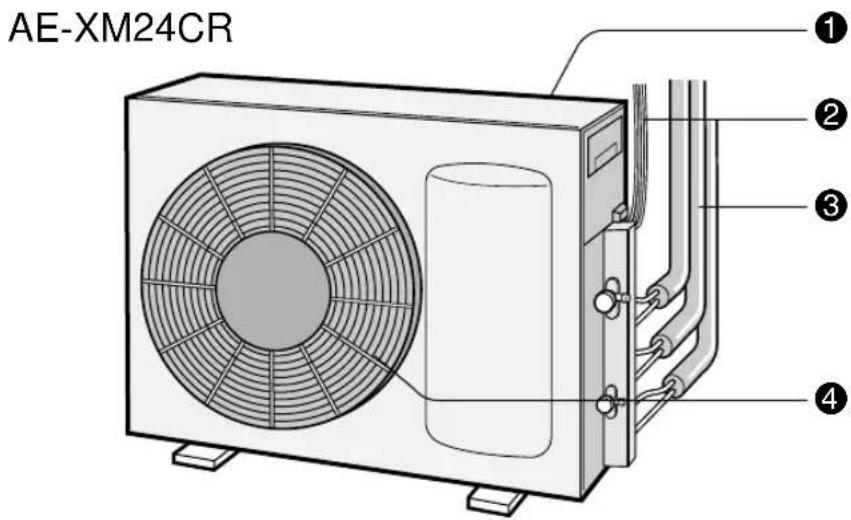

① Inlet (Air)
② Interconnecting
③ CordRefrigerant Tube
4 Outlet (Air)

INDOOR UNIT (For models AY-XM7CR, AY-XM9CR, AY-XM12CR)

OUTDOOR UNIT

① Inlet (Air)
② Open Panel
③ Air Filters
④ AUX. Button
⑤ RECEIVER Window
⑥ Indicator Panel
⑦ Vertical Adjustment Louvres
⑧ Horizontal Adjustment Louvres
⑨ Outlet (Air)
⑩ Remote Control

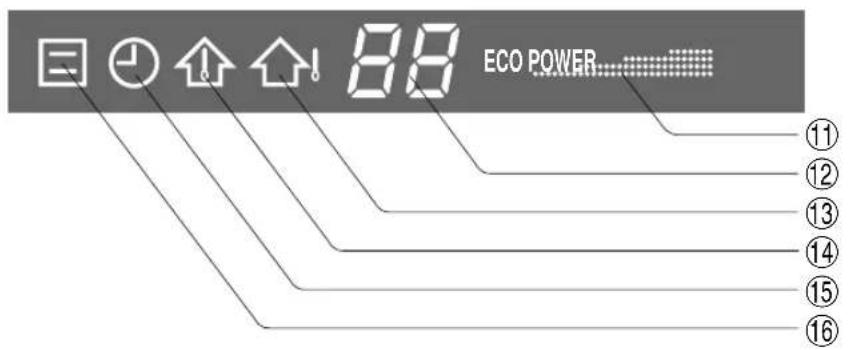

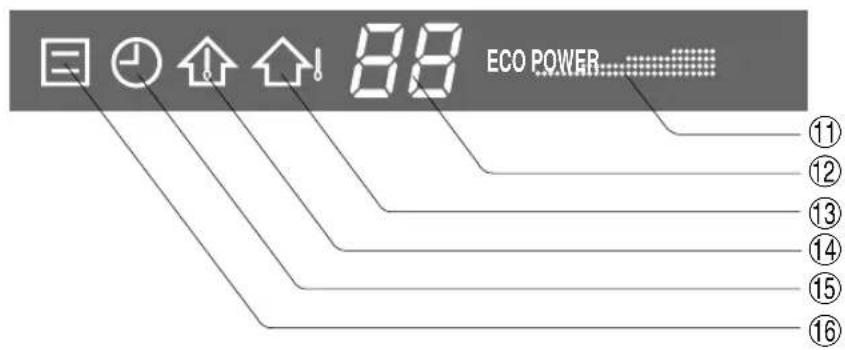

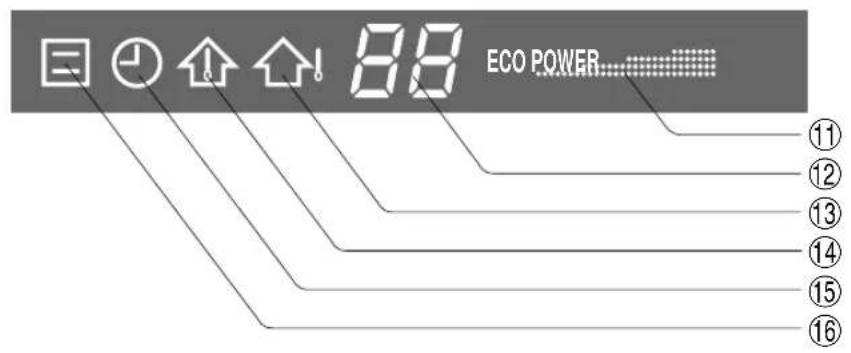

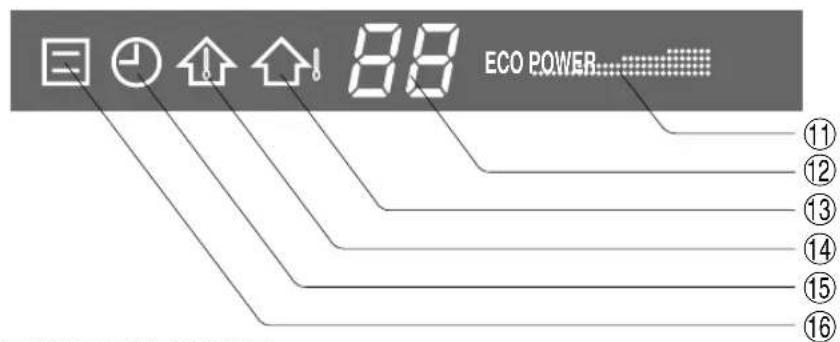

⑪ POWER MONITOR
⑫ TEMPERATURE INDICATOR
⑬ OUTDOOR Temp. Lamp (green ↗)
⑭ ROOM Temp. Lamp (green
⑮ TIMER Lamp (orange)
⑯ OPERATION Lamp (red)

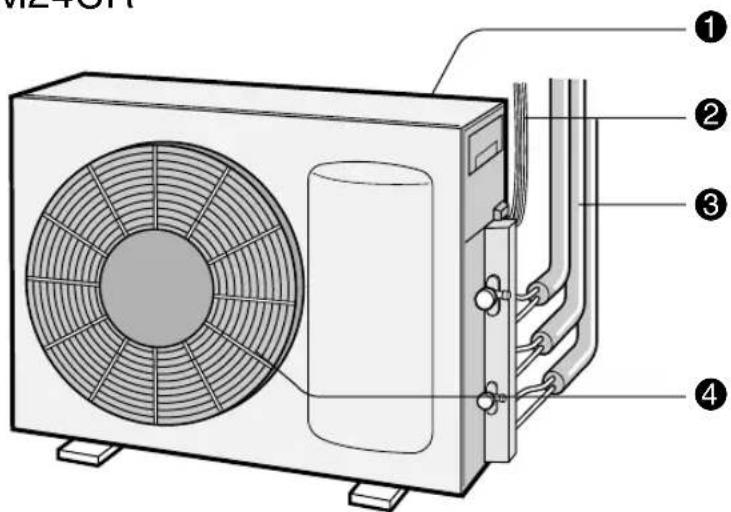

① Inlet (Air)
② Interconnecting Cord
③ Refrigerant Tube and
4 Outlet (Air)

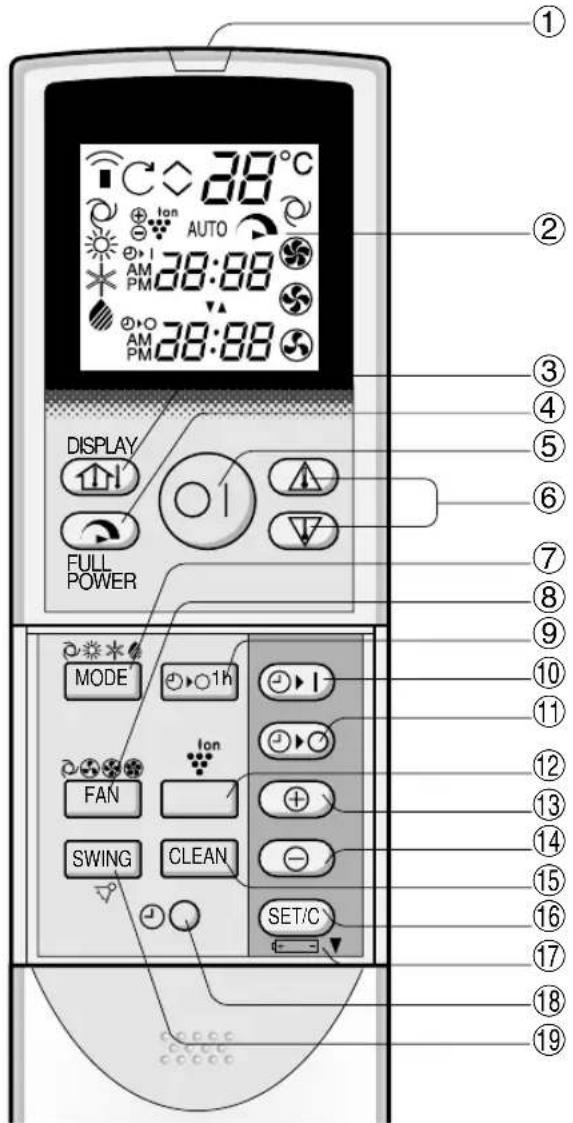

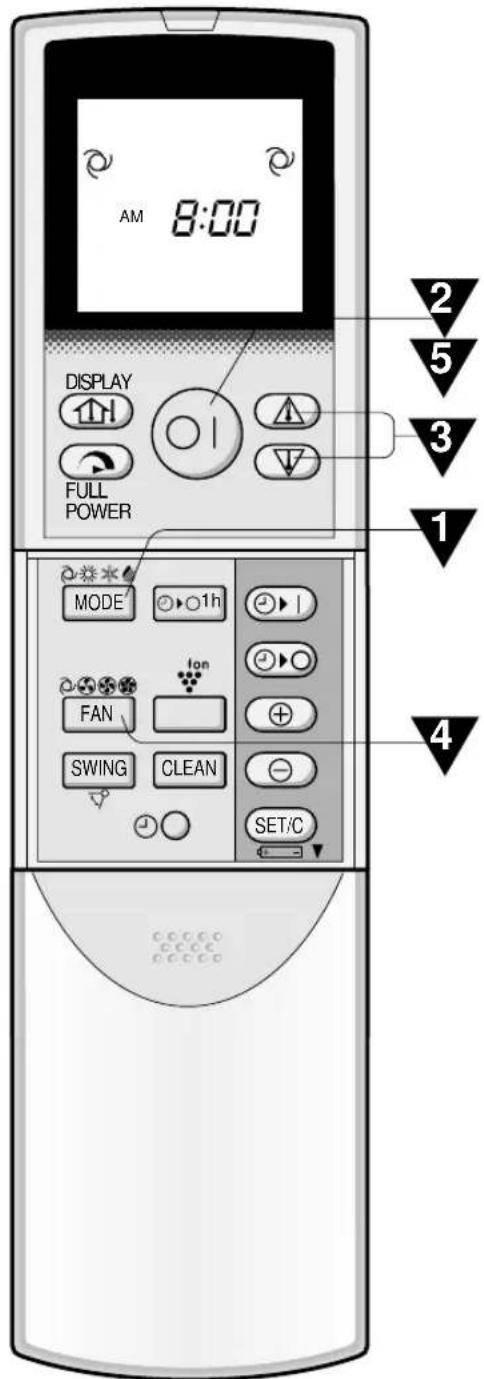

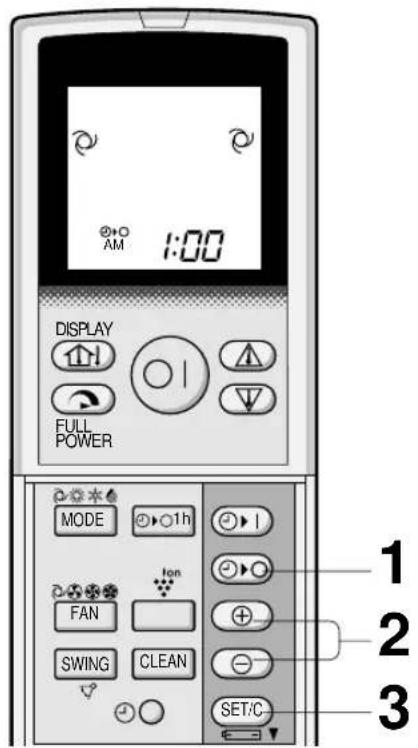

REMOTE CONTROL

① TRANSMITTER
② DISPLAY (Liquid Crystal Display)

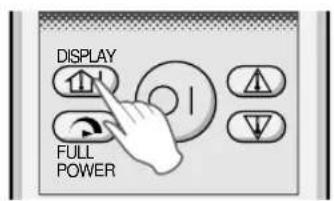

③ DISPLAY Button
④ FULL POWER Button
⑤ ON/OFF Button
⑥ THERMO. (Thermostat) Button
⑦ MODE Button
⑧ FAN Button

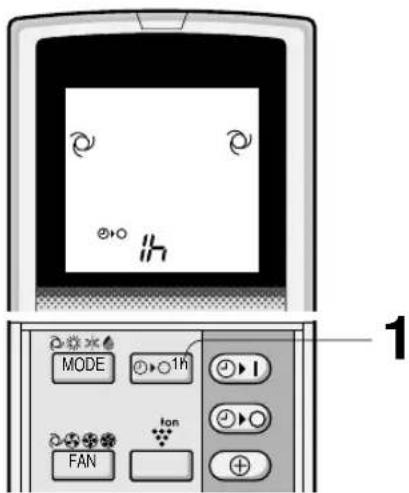

⑨ ONE-HOUR OFF TIMER Button
⑩ TIMER ON Button (for setting the timer)
⑪ TIMER OFF Button (for setting the timer)

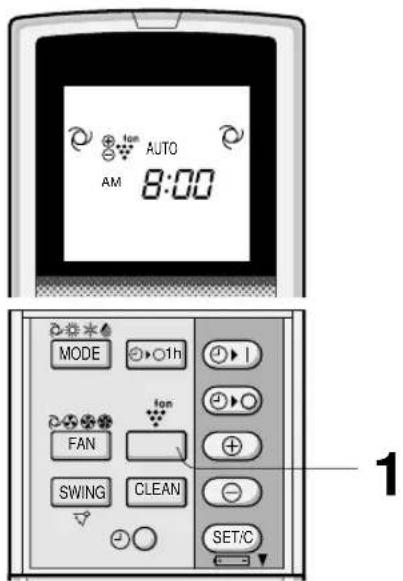

⑫ PLASMACLUSTER Button
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
⑬ TIME ADVANCE Button
⑭ TIME REVERSE Button

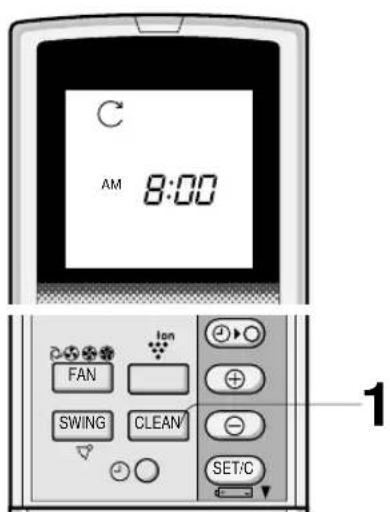

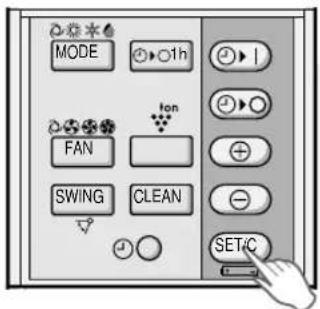

⑮ SELF CLEAN Button
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

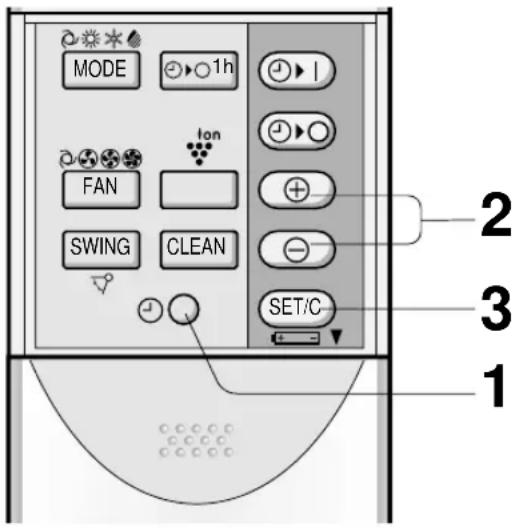

⑯ TIMER SET/CANCEL Button

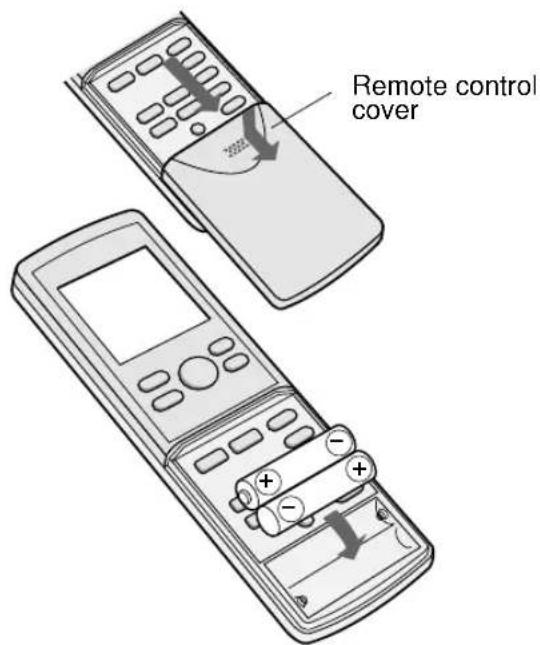

⑰ Indicates BATTERY COMPARTMENT is below this mark
⑱ CLOCK Button
⑲ SWING Button

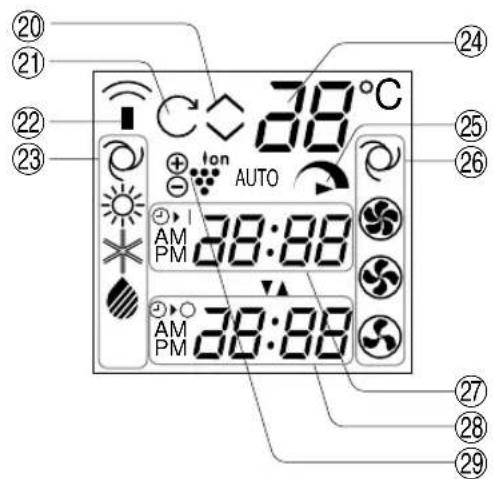

L.C.D. REMOTE CONTROL DISPLAY

⑳ THERMOSTAT SETTING FOR AUTO AND DRY MODES
②1 SELF CLEAN SYMBOL (only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
⑳ TRANSMITTING SYMBOL
②3 MODE SYMBOLS

⑳ TEMPERATURE INDICATOR
⑳ FULL POWER SYMBOL
②6 FAN SPEED SYMBOLS

⑳ TIMER ON INDICATOR/CLOCK Indicates the on timer preset time or current time.
②8 TIMER OFF INDICATOR Indicates the preset time for off timer or one-hour off timer.
⑲ PLASMACLUSTER SYMBOL (only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

SETTING DUST COLLECTION FILTER AND DEODORANT FILTER

(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

The dust collection filter and the deodorant filter are packed as accessory of this unit. During operation of the air conditioner, the filters remove dust and tobacco smoke from the air and discharges clean air.

DUST COLLECTION FILTER (gray) Set the black side facing upward.

DEODORANT FILTER (green)

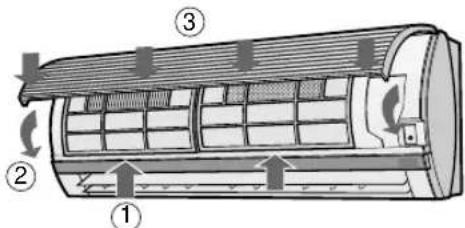

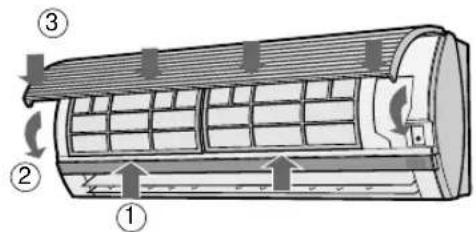

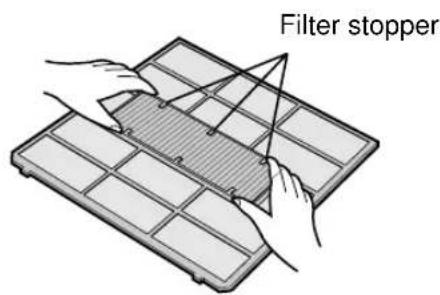

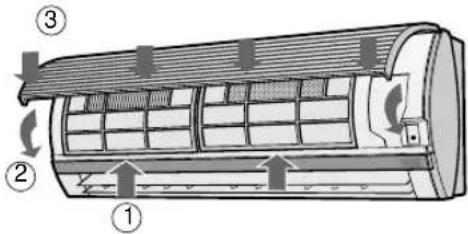

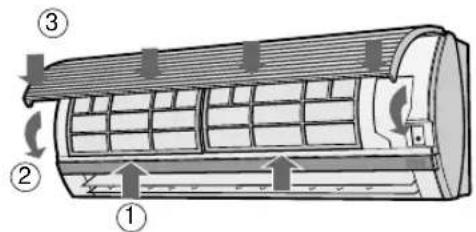

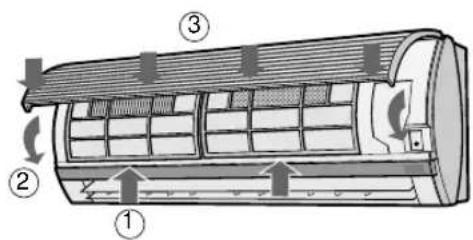

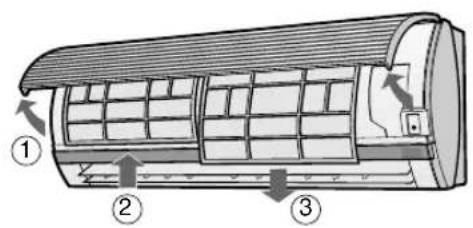

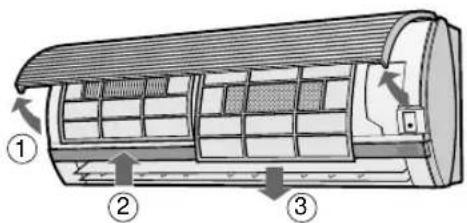

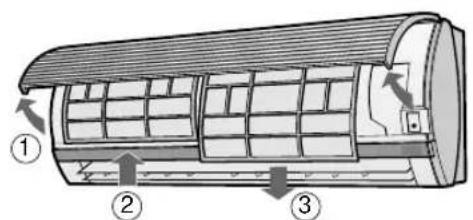

1 Take out the air filters.

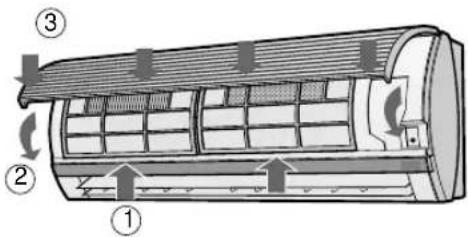

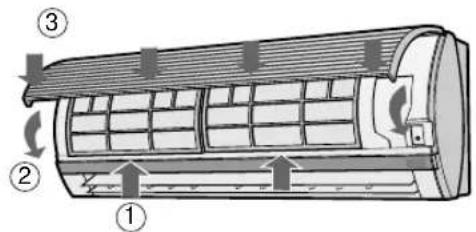

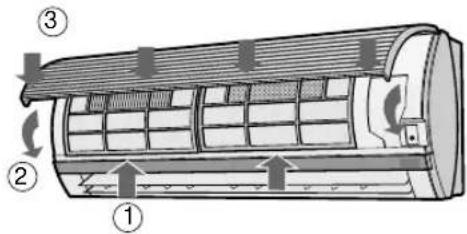

① Open the open panel.
②Push the air filters up slightly to unlock them.
③Pull the air filters down to remove them.

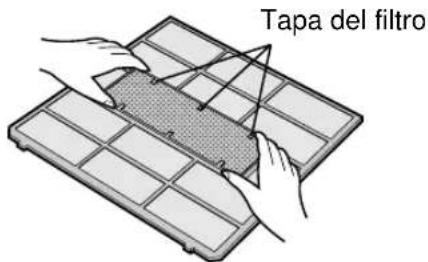

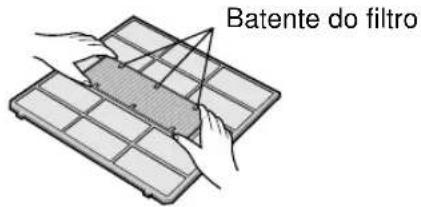

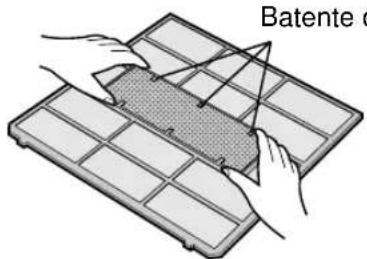

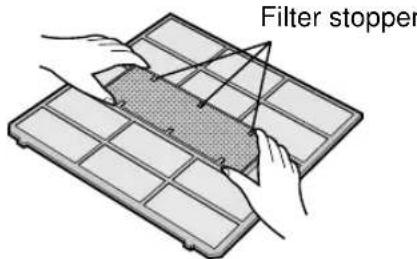

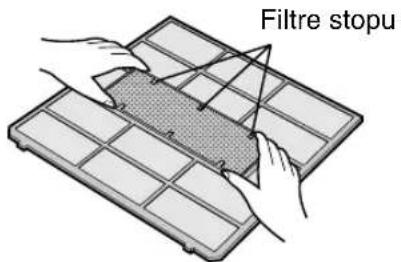

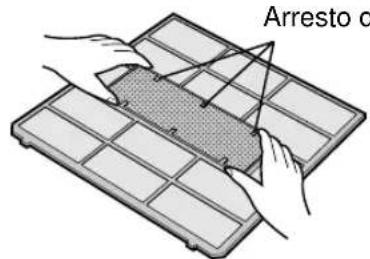

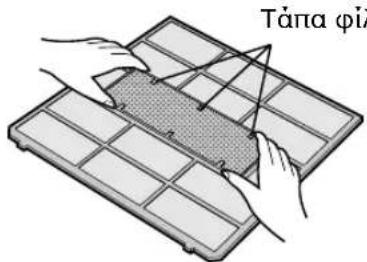

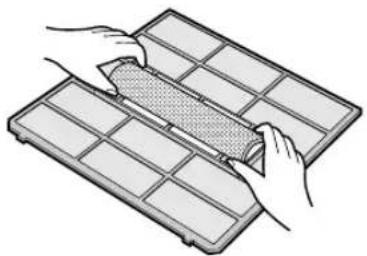

2 Set the dust collection filter and the deodorant filter under the filter stoppers located on the air filter.

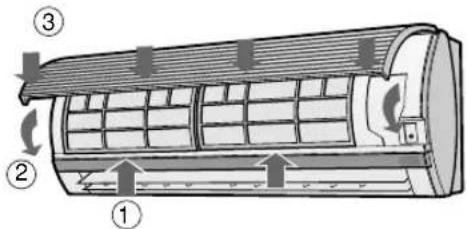

3 Reinstall the air filters

①Reinstall the air filters in the original positions.
②Close the open panel.
③Push the arrow-marked of the panel firmly to lock it in place.

Precautions

• The filters are sealed in a plastic bag to keep their dust collection effect.
  Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)
• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)

LOADING BATTERIES Use two size-AAA (R03) batteries.

1 Remove the remote control cover.

2 Insert batteries in the compartment, making sure the ⊕ and ⊖ polarities are correctly aligned.

- The display indicates "AM 6:00" when batteries are properly installed.

3 Reinstall the cover.

NOTES:

• The battery life is approximately one year in normal use.
- When you replace the batteries, always change both batteries, and make sure they are the same type.
- If the remote control does not operate properly after replacing the batteries, take out the batteries and reinstall them again after 30 seconds.
- If you will not be using the unit for a long time, remove the batteries from the remote control.

HOW TO USE THE REMOTE CONTROL

Point the remote control towards the unit's signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

• Make sure there is no curtain or other object between the remote control and the unit.
• The remote control can send signals from up to 7 metres away.

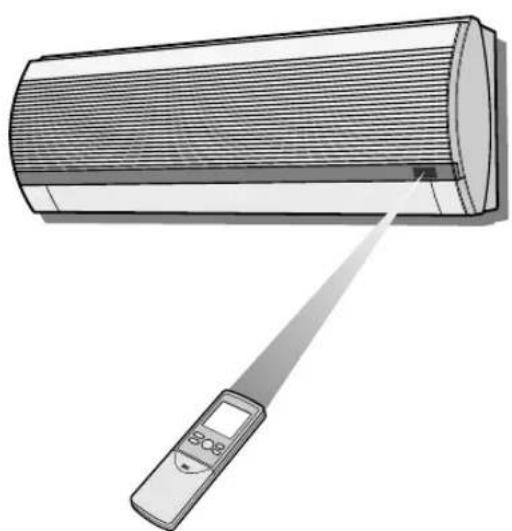

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

Example: 5 o'clock in the afternoon

Clock Display
12-hour mode PM 5:00
24-hour mode 17:00

1 To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.
2 Press the TIME ADVANCE or REVERSE button to set the current time.

- Keep the button pressed to advance or reverse the time display quickly.

3 Press the SET/C button.

- The colon (:) blinks to indicate that the clock is functioning.

NOTE:

- The current time cannot be set when the timer is operating.

BASIC OPERATION

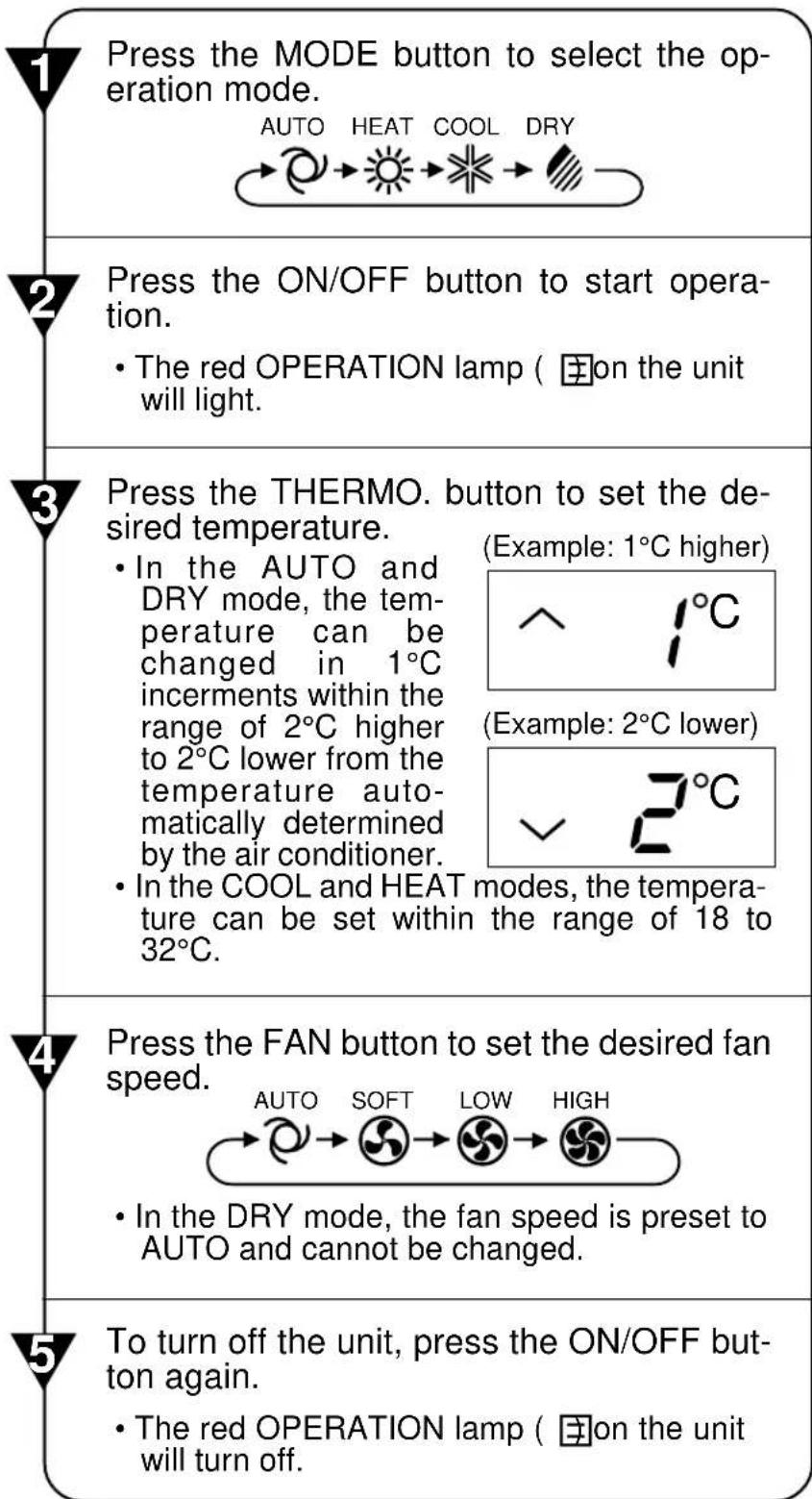

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

NOTES:

This air conditioner is a multi-type, and two (or three) indoor units are connected to one outdoor unit. When the setting mode differs among indoor unit(s), the indoor unit(s) operated later may not work.

• When the indoor unit(s) is/are operating in HEAT mode, the remaining unit(s) can not operate in COOL or DRY mode.
• When the indoor unit(s) is/are operating in COOL or DRY mode, the remaining unit(s) can not operate in HEAT mode.

When the mode of the indoor unit(s) later operated is/are different from those which is/are in operation, 4 seconds later, a long BEEP will be emitted and the temperature indicator on the indicator panel will indicate" -- " and the OPERATION lamp and TIMER lamp will blink alternately. This shows that the later operated unit(s) is/are not working. In such case, change the remote control's mode and send the same mode signal which the other indoor unit(s) is/are operating in. The BEEP will be emitted twice from the indoor unit(s) later operated, and the unit(s) will operate.

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on.

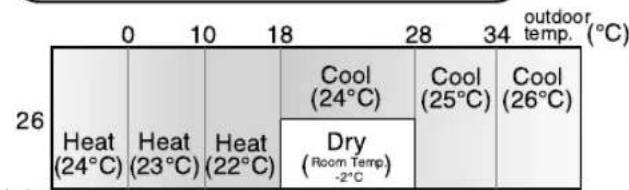

Modes and Temperature Settings

indoor temp.
(°C)
the figures in ( ) are temperature settings

• During operation, if the outdoor temperature changes, the temperature settings will automatically slide as shown in the chart.
• Mode of the unit operated first will have priority over other unit(s) without reference to the chart.

-TIPS ABOUT INDICATOR PANEL

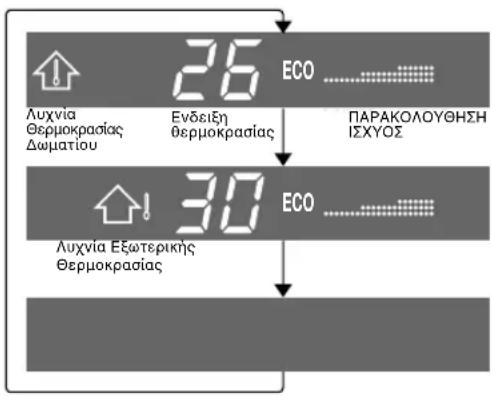

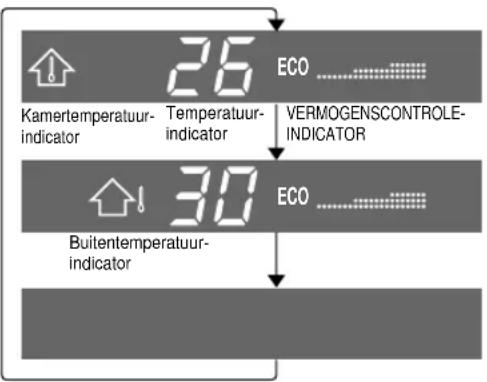

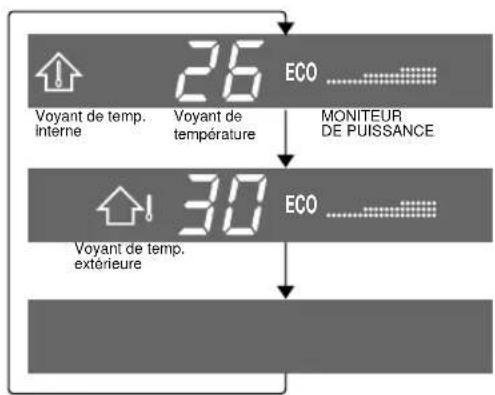

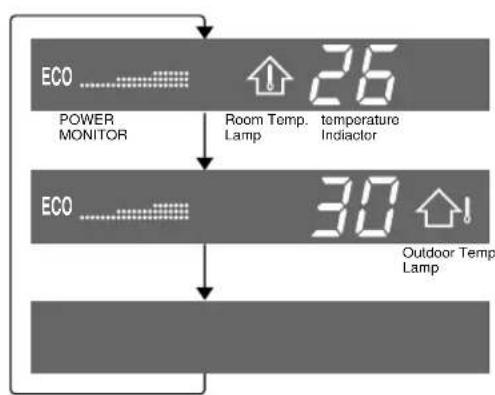

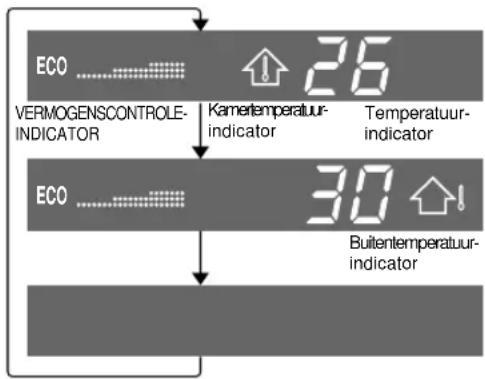

The indicator panel will change each time you press the DISPLAY button in the following manner.

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

The room temperature and POWER MONITOR are displayed.

The outdoor temperature and POWER MONITOR are displayed.

No display.

POWER MONITOR

When the room temperature or the outdoor temperature is displayed, the POWER MONITOR will light up in 4 levels for COOL and HEAT modes (3 levels for DRY mode), to indicate the operation power. When the air conditioner is operating at maximum power in the COOL and HEAT modes, "POWER" will light and "ECO" will turn off on the indicator panel.

NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures.
  • Temperature display ranges
  Room temperature: 0^ 40^ (Lo is displayed when less than 0^ and H, when higher than 40^ )
  Outdoor temperature: -9^ 45^ ( L_0 is displayed when less than -9^ and H, when higher than 45^ )
• -- is displayed during the first 120 seconds of operation while the temperatures are being detected. (Temperature detection may more than 120 seconds when other unit(s) is/are already being operated.)
• -- is displayed for 5 seconds when the unit is not in operation.

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum comfort:

COOL and DRY modes Horizontal air flow

HEAT mode Diagonal air flow

HOW TO ADJUST THE AIR FLOW DIRECTION

Press the SWING button on the remote control once.

• The vertical adjustment louvre will change its angle continuously.

Press the SWING button again when the vertical adjustment louvre is at the desired position.

- The louvre will stop moving within the range shown in the diagram.

- The adjusted position will be memorized and will be automatically set to the same position when operated the next time.

Adjustment range

COOL and DRY modes

The adjustment range is narrower the SWING range in order to prevent condensation from dripping.

HEAT mode

The range is wide so the air flow can be directed toward the floor.

HORIZONTAL AIR FLOW DIRECTION

Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction.

Illustration of a hand holding a ruler above a curved surface with horizontal striations (no text or symbols)

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for the adjustment.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

Do not adjust the horizontal adjustment louvre extremely to the right or left when operating the air conditioner with fan speed "SOFT" for an extended period of time.

Condensation may form on the louvres.

In this operation, the air conditioner works at maximum power to makes the room cool or warm so rapidly that you can use it just after you come home.

1 To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display

• The temperature display will go off.

TO CANCEL

Press the FULL POWER button again.

- FULL POWER operation will also be cancelled when the operation mode is changed, or when the unit is turned off.

NOTE:

- You cannot set the temperature and fan speed during the FULL POWER operation.

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.

1 Press the ONE-HOUR OFF TIMER button.

• The remote control displays “
- The orange TIMER lamp ( ☑ on the unit will light up.
- The unit will stop operating after one hour.

TO CANCEL

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp ( ☑ on the unit will turn off. Or, turn the unit off by pressing the ON/OFF button.
• The red OPERATION lamp ( ☐) and the orange TIMER lamp ( ☑) on the unit will turn off.

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

NOTES:

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
• When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour with the formerly set condition.
• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER activates, press the ONE-HOUR OFF TIMER button again during operation.
• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

TIMER OPERATION

NOTE:

Before setting the timer, make sure the clock is properly set with the current time.

TIMER OFF

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

1 Press the TIMER OFF ( ⏻ button.
2 The TIMER OFF indicator will blink; press the TIME ADVANCE or REVERSE buttons to set the desired time. (The time can be set in 10-minute increments.)
3 Point the remote control at the signal receiver window on the unit and press the TIMER SET (SET/C) button.

- The orange TIMER lamp ( ⏻ ) on the unit will light.

- The unit will generate a beep when it receives the signal.

When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

- One hour after the time operation begins, the temperature setting rises 1^ higher than the original thermostat setting.

HEAT MODE:

- One hour after the timer operation begins, the temperature setting drops 3^ lower than the original thermostat setting.

TO CANCEL TIMER MODE

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp ( ⊕ on the unit will turn off.
  • The current clock time will be displayed on the remote control.

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

NOTE:

- If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMER CANCEL button cancels all settings.

TO CHANGE TIME SETTING

Cancel the TIMER setting first, then set it again.

TIMER ON

1 Press the TIMER ON ( ⏻ button.
2 The TIMER ON indicator will blink; press the TIME ADVANCE or REVERSE buttons to set the desired time. (The time can be set in 10-minute increments.)
3 Point the remote control at the signal receiver window on the unit and press the TIMER SET (SET/C) button.
- The orange TIMER lamp ( ⏻ ) on the unit will light.
- The unit will generate a beep when it receives the signal.
4 Select the operation condition.
- The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function) - If unit(s) is/are operated in one mode while TIMER ON is set with another unit in different mode, the timer may not activate the required operation.

The PLASMACLUSTER and the SELF CLEAN buttons are provided only on models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

COMBINED USE OF ON AND OFF TIMERS

You can use the ON and OFF timers in combination.

Example:

To stop operation at 11:00 p.m. and resume operation (With the same mode and temperature settings) to bring the room temperature to the desired level by 7:00 a.m.

1 Set the TIMER OFF to 11:00 p.m. during operation.
2 Set the TIMER ON to 7:00 a.m.

The arrow (▼ or ▲) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first.

NOTES:

• You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.
• Either timer can be programmed to activate prior the other.

TIPS ABOUT PLASMACLUSTER OPERATION

(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

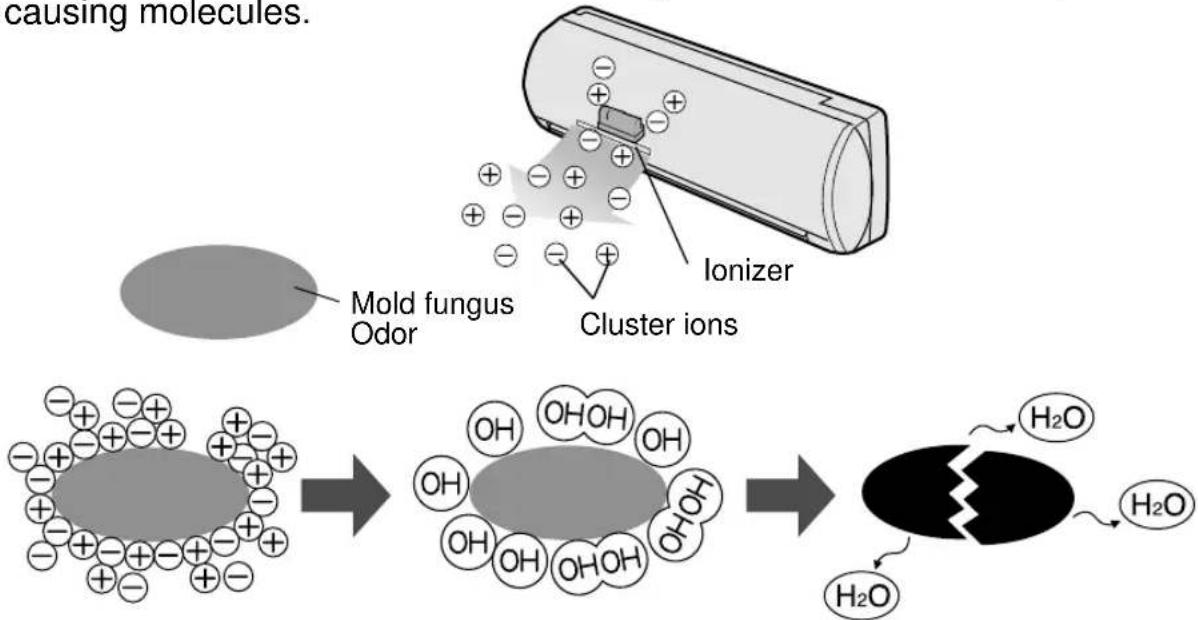

The ionizer inside the air conditioner will release cluster ions, which are collective mass of positive and negative ions, into the room.

The cluster ions reduce airborne mold fungus and deodorize/decompose odor-causing molecules.

AIR CLEAN OPERATION

Cluster ions released into the air will reduce airborne mold fungus and deodorize/decompose odor-causing molecules.

It is said that plenty of negative ions exist in places such as waterfalls or forests in natural environment. In this operation mode, negative inos will be released in an increased rate, in order to bring the room air close to this condition.

PLASMACLUSTER AUTO OPERATION

Dust sensor and odor sensor will detect foul air in the room.

Air Clean Operation will be performed for one minute after the air conditioner is operated to detect foul air.

Air Clean Operation and Refreshing Operation will be selected and be performed automatically depending on the air foul degree.

Air Clean Operation will be performed when the air is detected to be foul, Refreshing Operation will be performed when the air is clean.

SELF CLEAN OPERATION

Plasmacluster Operation will be performed with FAN or HEAT mode, in order to reduce the growth of mold fungus, and dry inside of the air conditioner unit.

Utilize the operation at seasonal change over terms.

Mold fungus already grown can not be eliminated by this operation.

TIPS ABOUT DUST SENSOR AND ODOR SENSOR

What does Dust Sensor react to?

- Dust sensor reacts to mold fungus, plants/flowers pollen, dead ticks, dust, tobacco smoke etc.

What does Odor Sensor react to?

- Odor Sensor reacts to tobacco smoke, motor exhaust, odor emitted from animals, etc.

Dust and Odor Sensor also may react to vapour of insecticides, cosmetics, alcohol, chemicals and the like, and to extreme change of temperature/humidity.

PLASMACLUSTER OPERATION

(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

You can choose PLASMACLUSTER AUTO OPERATION, AIR CLEAN OPERATION or REFRESHING OPERATION

1 When the unit is in operation, press the PLASMACLUSTER button to select the mode.

PLASMACLUSTER AUTO AIR CLEAN REFRESHING CANCEL

• In the AIR CLEAN operation, the blue PLASMACLUSTER lamp on the unit will light up.
• In the REFRESHING operation, the green PLASMACLUSTER lamp on the unit will light up.

TO CANCEL

Press the PLASMACLUSTER button until PLASMACLUSTER symbol on the remote control display goes off.

• The PLASMACLUSTER lamp on the unit will turn off.

NOTES:

• Setting of the PLASMACLUSTER operation will be memorized and will operate in the same mode, the next time you turn on the air conditioner.
• To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
• When the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (eg. HEATING or COOLING). The mode symbol of the remote control will go off and the fan speed can not be set AUTO. At this time, you may feel HEATING is performed with units in other rooms. Indoor fan will decrease its rotating speed and will turn ON and OFF depending on the room temperature.

SELF CLEAN OPERATION

(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

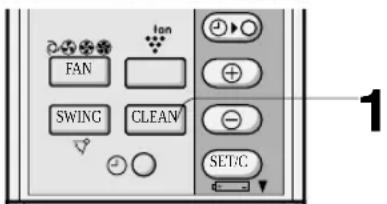

1 Press the SELF CLEAN button when the unit is not operating.

• The remote control displays " ©".
- The red OPERATION lamp ( ☐ and the blue PLASMACLUSTER lamp on the unit will light up.
• The unit will stop operation after forty minutes.
- The remaining operation time will be indicated on the TEMPERATURE INDICATOR of the indoor unit in minute decrements.

TO CANCEL

Press the SELF CLEAN button.

Or, turn the unit off by pressing the ON/OFF button.

- The red OPERATION lamp (☐), the blue PLASMACLUSTER lamp and the TEMPERATURE INDICATOR on the unit will turn off.

NOTE:

- You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation.

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

Lift the front panel of the indoor unit and press the AUX. button on the operation panel.

• The red OPERATION lamp (☐) on the unit will light and the unit will start operating in the AUTO mode.
• The fan speed and temperature setting are set to AUTO.

TO TURN OFF

Press the AUX. button on the operation panel again.

- The red OPERATION lamp ( ☐ ) on the unit will turn off.

NOTE:

If the AUX. button is pressed during normal operation, the unit will turn off.

OPTION KIT (only for models AY-XM7CR/AY-XM9CR/AY-XM12CR)

Air Purifying Filter

During operation of the air conditioner, the air purifying filter removes dust and tobacco smoke from the air and discharges clean air.

The apatite antibacterial material used in the air purifying filter suppresses activities of adsorbed viruses and other germs.

The replacement period for the disposable type is approximately 3\~6 months.

Contact your dealer for the purchase of this option.

3D illustration of a layered rectangular block with textured surface (no text or symbols)

Type AZ-F900B

Be sure to turn off the air conditioner and turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

1 TURN OFF THE UNIT

2 REMOVE THE FILTERS

①Lift the open panel.
②Push the air filters up slightly to unlock them.
③Pull the air filters down to remove them.

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

3 CLEAN THE FILTERS

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

4 REINSTALL THE FILTERS

①Reinstall the filters in the original positions.
②Close the front panel.
③Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. We can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the COOL mode, temperature setting 32^ C, for about half a day to allow the mechanism to thoroughly dry.
2 Stop the operation.
Turn off the circuit breaker, if you have one exclusively for the air conditioner.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.
3 Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

Be sure to turn off the air conditioner and turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols)

1 TURN OFF THE UNIT
2 REMOVE THE FILTERS

①Lift the open panel.
②Push the air filters up slightly to unlock them.
③Pull the air filters down to remove them.

3 TAKE OFF THE DEODORANT FILTER AND THE DUST COLLECTION FILTER FROM THE AIR FILTERS
4 CLEAN THE FILTERS

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

5 REINSTALL THE DEODORANT FILTER AND THE DUST COLLECTION FILTER
6 REINSTALL THE FILTERS

①Reinstall the filters in the original positions.
②Close the front panel.
③Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. We can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the SELF CLEAN OPERATION to allow the mechanism to thoroughly dry.
2 Stop the operation. Turn off the circuit breaker, if you have one exclusively for the air conditioner.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.
3 Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

CLEANING THE DEODORANT FILTER (GREEN)

The filter should be cleaned every 3\~6 months

Illustration of hands handling a grid-patterned device with a mesh coil (no text or symbols)

1 REMOVE THE AIR FILTERS
2 CLEAN THE DEODORANT FILTER

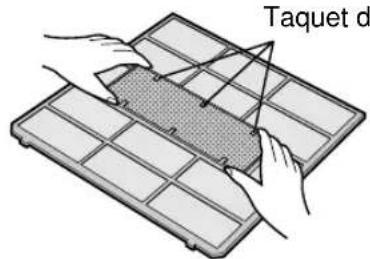

1 Take off the deodorant filter from the air filters.
2 Soak the deodorant filter in mild detergent dilution for 10 to 20 minutes.

Rinse thoroughly with water, dry completely under sunlight.

3 Set the clean deodorant filter under the filter stoppers located on the air filters.

3 REINSTALL THE AIR FILTERS

NOTE:

- Replacement is necessary at the interval of 3 years, as the deodorising effect will deteriorate. The new filters are available at your nearest dealer.

Replacement filter: Type AZ-F910C

CHANGING THE DUST COLLECTION FILTER (GRAY)

The filter should be changed every 3\~6 months

1 REMOVE THE AIR FILTERS
2 CHANGE THE DUST COLLECTION FILTER

1 Take off the old dust collection filter from the air filters.
2 Set the new dust collection filter, the black side facing upward, under the filter stoppers located on the air filters.

3 REINSTALL THE AIR FILTERS

NOTE:

- The dirty dust collection filter is not washable for reuse. The new filters are available at your nearest dealer.

Replacement filter: Type AZ-F900C

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATEThe unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.	WATER VAPOURIn the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.
UNIT DOES NOT SEND OUT WARM AIRThe unit is preheating or de-icing.	THE OUTDOOR UNIT DOES NOT STOPAfter stopping the operation, the outdoor unit will rotate its' fan for about a minute to cool down the unit.
ODORSCarpet and furniture odors that entered into the unit and the air conditioner's inner component odors at the early stage of installation may be sent out from the unit.
CRACKING NOISEThe unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.	UNIT DOES NOT OPERATE IN YOUR REQUESTED MODEWhen one indoor unit is operating in COOL or DRY mode, you can not operate the other unit in HEAT mode. (4 seconds later, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate "_" and the OPERATION lamp and TIMER lamp will blink alternately.)When one indoor unit is operating in HEAT mode, you can not operate the other unit in COOL nor DRY mode. (4 seconds later, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate "_" and the OPERATION lamp and TIMER lamp will blink alternately.)
SWISHING NOISEThe soft, swishing noise is the sound of the refrigerant flowing inside the unit.
INDOOR UNIT BECOMES WARM EVEN WHEN IDLEThis is because the refrigerant also flows through the idle indoor unit's pipes when the other unit is operated in HEAT mode.

(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

ODOR EMITTED FROM THE PLASMACLUSTER AIR OUTLETThis is the smell of ozone generated from the ionizer. Density of the ozone is very little, having no adverse effect over your health. The ozone released into the air will decompose soon, and its density in the room will not increase.	A LOW BUZZ NOISE EMITTEDThis is a sound emitted when the unit is generating cluster ions.
INDOOR UNIT BECOMES WARM EVEN WHEN NOT DURING HEATING OPERATIONWhen the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (eg. HEATING or COOLING). At this time, you may feel warm air coming out from the unit air outlet if HEATING is performed with units in other rooms. Indoor fan will decrease its rotating speed and will turn ON and OFF depending on the room temperature.	UNIT DOES NOT SEND OUT AIR (PLASMACLUSTER operation without accompanying air conditioning mode, SELF CLEAN operation)• The other unit(s) is/are de-icing.
	During PLASMACLUSTER AUTO OPERATION, the air conditioner operates in the REFRESHING OPERA-TION even when there is odor in the room.• In case for example, when the room is full of tobacco smokes before the air conditioner is turned on, the ODOR SENSOR may become unreactive.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty, clean them.	Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.	Check the thermostat is proper setting.
Make sure windows and doors are closed tightly.	A large number of people in the room can prevent the unit from achieving the desired temperature.	Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote control batteries have become old and weak.	Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.	Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when OPERATION Lamp, TIMER Lamp and TEMPERATURE INDICATOR on the indicator panel blink.

AUSSENGERÄT

⑰ PLASMACLUSTER-Lampe (blau, grün)

AUSSENGERÄT

⑲ PLASMACLUSTER-SYMBOL

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

VORSICHT

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

Illustration of a hand holding a curved object with horizontal lines and a ruler, no text or symbols present

VORSICHT

HINWEIS:

PLASMACLUSTER-BETRIEB

3D illustration of a layered rectangular block with textured surface (no text or symbols)

Typ AZ-F900B

1 SCHALTEN SIE DAS GERÄT AUS.
2 ENTNEHMEN SIE DIE FILTER.

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

4 SETZEN SIE DIE FILTER WIEDER EIN.

Illustration of hands using a tool to cut a grid on a flat surface (no text or symbols)

1 SCHALTEN SIE DAS GERÄT AUS.
2 ENTNEHMEN SIE DIE FILTER.

Illustration of hands handling a grid-patterned device with a mesh coil (no text or symbols)

D.B. = Sec W.B. = Humide

UNITE EXTERIEURE

UNITE EXTERIEURE

AFFICHAGE L.C.D. DE LA TELECOMMANDE

⑳ REGLAGE DU THERMOSTAT POUR LES MODES AUTO ET SEC
②1 SYMBOLE DE NETTOYAGE AUTOMATIQUE (uniquement pour les modèles AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
⑳ SYMBOLE DE TRANSMISSION
②3 SYMBOLES DE MODE

: AUTO : SEC

: CHAUFFAGE :RAIS

⑳ VOYANT DE TEMPERATURE
⑳ SYMBOLE PLEIN REGIME
⑳ SYMBOLES DE VITESSE DU VENTILATEUR

: AUTO : BASS

: HAUTE : FAIE

Precautions

Illustration of a wall-mounted air conditioner with a handheld remote control (no text or symbols)

ATTENTION

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

MONITEUR DE PUISSANCE

Illustration of a hand touching a curved surface with horizontal striations (no text or symbols)

ATTENTION

REMARQUE :

Exemple :

REMARQUE :

3D illustration of a layered material or panel structure with no text or symbols

Type AZ-F900B

Illustration of two hands using a tool to cut a grid on a tiled surface (no text or symbols)

Illustration of hands using a tool to cut or spread a grid on a grid-patterned surface (no text or symbols)

1 ETEINDRE L'APPAREIL
2 ENLEVER LES FILTRES

Illustration of hands handling a grid-patterned device with a mesh coil (no text or symbols)

1 RETIRER LES FILTRES A AIR
2 NETTOYER LE FILTRE DESODORISANT

UNIDAD EXTERIOR

① FILTRO DE RECOGIDA DE POLVO (no-lavable)
② FILTRO DESODORANTE (lavable)
③ Entrada de aire
④ Panel de abertura
⑤ Filtros de aire
⑥ Tecla de AUX.
⑦ Célula RECEPTORA
⑧ Panel de indicaciones
⑨ Deflectores de Ajuste Vertical
⑩ Deflectores de Ajuste Horizontal
⑪ Salida de aire
⑫ Mando a distancia

⑬ Lámpara de Temp. EXTERIOR (verde

⑭ INDICADOR DE TEMPERATURA

⑮ Lámpara de Temp. AMBIENTE (verde

⑯ MONITOR DE POTENCIA

⑰ Lámpara de PLASMA-CLUSTER (azul, verde)

⑱ Lámpara de RELOJ AUTO-MÁTICO (anaranjada Ⓓ)

UNIDAD EXTERIOR

VISUALIZADOR DEL MANDO A DISTANCIA (PANTALLA DE CRISTAL LIQUIDO)

⑳ A JUSTE DEL TERMOSTATO PARA LOS MODOS AUTOMÁTICO Y DESHUMECTAR
② SÍMBOLO DE LIMPIEZA AUTOMÁTICA (solo para los modelos AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
⑳ SÍMBOLO DE TRANSMISIÓN
⑳ SÍMBOLOS DE MODO

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

PRECAUCIÓN

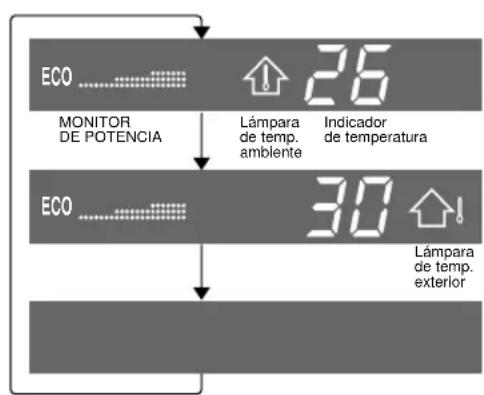

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

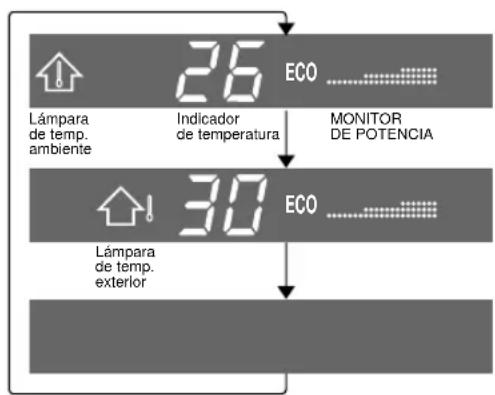

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

MONITOR DE POTENCIA

Illustration of a hand holding a ruler on a curved surface, no text or symbols present

PRECAUCIÓN

NOTA:

NOTA:

Stacked rectangular material with textured surface (no text or symbols)

Tipo AZ-F900B

1 DESCONECTE LA UNIDAD
2 SAQUE LOS FILTROS

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols)

1 DESCONECTE LA UNIDAD

2 SAQUE LOS FILTROS

Illustration of two hands handling a grid-patterned device (no text or symbols visible)

1 SAQUE LOS FILTROS DE AIRE
2 LIMPIE EL FILTRO DESODORANTE

UNITA' ESTERNA

UNITA' INTERNA (per i modelli AY-XM7CR, AY-XM9CR, AY-XM12CR)

UNITA' ESTERNA

DISPLAY DEL TELECOMANDO L.C.D.

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

PRECAUZIONI

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

Illustration of a hand holding a curved object with horizontal stripes and a ruler, no text or symbols present

PRECAUZIONI

NOTA:

3D illustration of a layered rectangular material or panel structure (no text or symbols)

Tipo AZ-F900B

1 SPEGNETE L'UNITA'
2 RIMUOVETE I FILTRI

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

4 REINSTALLATE I FILTRI

Illustration of two hands using a tool to cut a grid on a flat surface (no text or symbols)

1 SPEGNETE L'UNITA'
2 RIMUOVETE I FILTRI

Illustration of hands handling a grid-patterned device with a mesh coil (no text or symbols)

1 ESTRAETE I FILTRI AD ARIA
2 PULITE IL FILTRO DEODORANTE

UNIDADE EXTERIOR

UNIDADE EXTERIOR

① Entrada (Ar)
② Painel aberto
③ Filtros de ar
④ Botão AUX.
⑤ Janela RECEPTORA
⑥ Painel indicador
⑦ Reguladores verticais
⑧ Reguladores horizontais
⑨ Saída (Ar)
⑩ Controlo remoto

⑪ MONITOR DE POTÊNCIA

⑫ INDICADOR DE TEMPERATURA

⑬ Lâmpada de temperatura EXTERIOR (verde

⑭ Lâmpada de temperatura AMBIENTE (verde

⑮ Lâmpada TEMPORIZADOR (laranja Ⓕ)

FILTRO DE RECOLHA DE POEIRA (cinzento)

Instale o lado negro virado para cima.

NOTAS:

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

ATENÇÃO

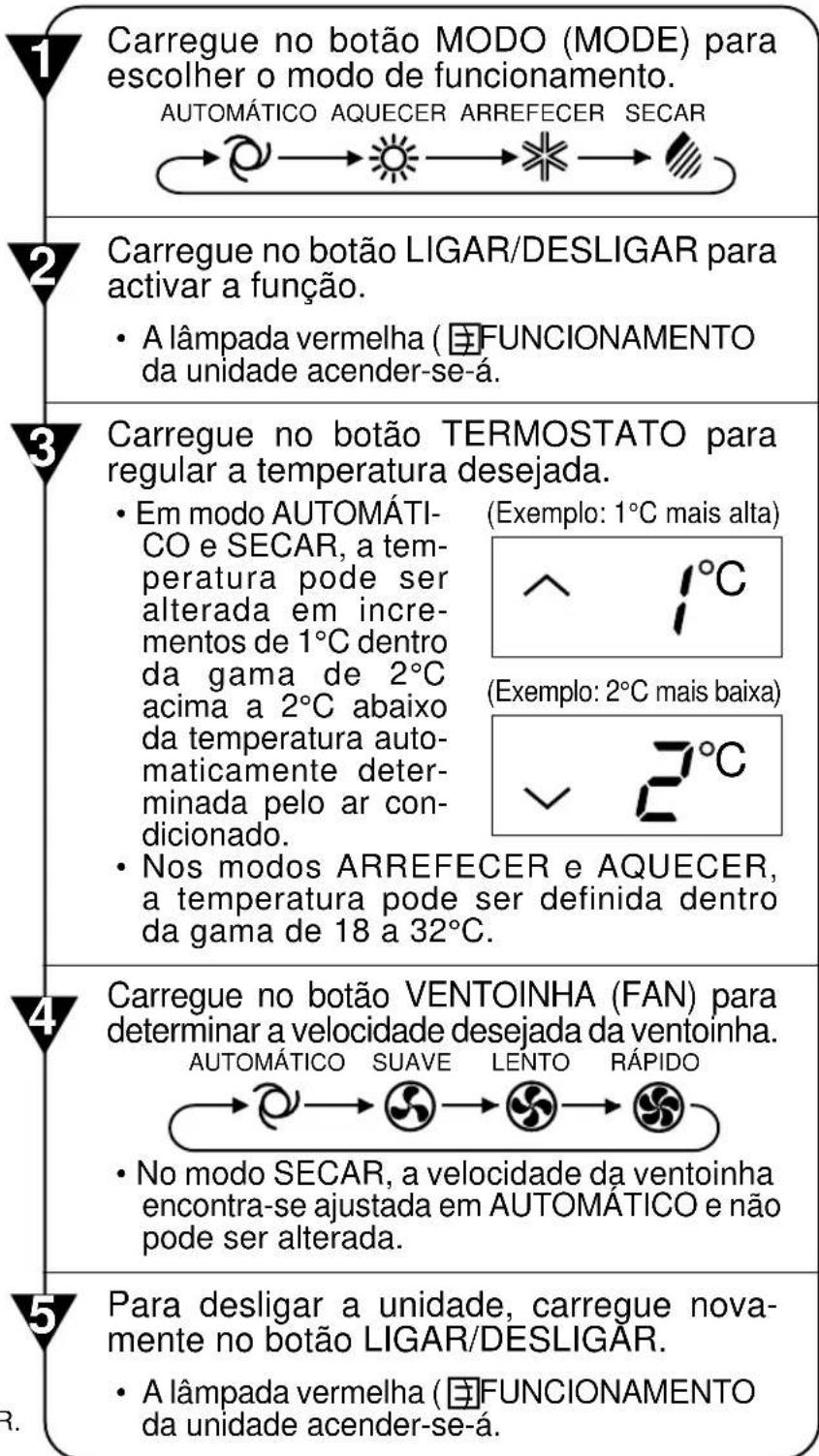

Os botões PLASMACLUSTER e AUTO LIMPEZA existem apenas nos modelos AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

Os botões PLASMACLUSTER e AUTO LIMPEZA existem apenas nos modelos AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

São mostrados a temperatura ambiente e o MONITOR DE POTÊNCIA.

São mostrados a temperatura exterior e o MONITOR DE POTÊNCIA.

Nenhuma indicação.

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

MONITOR DE POTÊNCIA

Illustration of a hand pressing down on a curved surface with horizontal striations (no text or symbols)

ATENÇÃO

Os botões PLASMACLUSTER e AUTO LIMPEZA existem apenas nos modelos AY-XPM7CR/AY-XPM9CR/AY-XPM12CR.

NOTA:

Exemplo:

NOTA:

3D illustration of a layered rectangular block with textured surface (no text or symbols)

Tipo AZ-F900B

1 DESLIGAR A UNIDADE

2 RETIRAR OS FILTROS

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

3 LIMPE OS FILTROS

4 REINSTALE OS FILTROS

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols)

1 DESLIGAR A UNIDADE

2 RETIRAR OS FILTROS

Illustration of two hands handling a grid-patterned device (no text or symbols visible)

1 REMOVA OS FILTROS DE AR
2 LIMPE O FILTRO DESODORIZANTE

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

ΠΡΟΣΟΧΗ

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

Illustration of a hand holding a ruler above a curved surface with horizontal lines (no text or symbols)

ΠΡΟΣΟΧΗ

ΣΗΜΕΙΩΣΗ:

ΣΗΜΕΙΩΣΗ:

Stacked rectangular material with textured surface (no text or symbols)

Túpoç AZ-F900B

Illustration of hands using a tool to cut a grid pattern (no text or symbols)

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols)

Illustration of hands handling a grid-patterned device with a mesh coil (no text or symbols)

WAARSCHUWINGEN BIJ DE PLAATSING/INSTALLATIE

BUITEN-UNIT

① STOFOPVANGFILTER (niet-wasbaar)

② ONTGEURINGSFILTER (wasbaar)

③ Inlaat (lucht)

④ Opklapbaar paneel

⑤ Luchtfilters

⑥ AUX.-toets

⑦ ONTVANGST-venster

⑧ Indicatorpaneel

BINNEN-UNIT (voor modellen AY-XM7CR, AY-XM9CR, AY-XM12CR)

BUITEN-UNIT

AE-XM24CR

LCD-SCHERM VAN DE AFSTANDSBEDIENING

⑳ THERMOSTAATINSTELLING VOOR AUTOMATISCHE BEDIENING EN DROOGSTAND
②1 ZELFREINIGINGSSYMBOL

⑲ PLASMACLUSTERSYMBOOL

STOFOPVANGFILTER (grijs)

Illustration of two hands installing or adjusting a grid-like structure (no text or symbols visible)

Illustration of a wall-mounted air conditioner with a digital display and pointer, no text or symbols present

LET OP

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

VERMOGENSCONTROLEINDICATOR

Illustration of a hand pressing down on a curved panel with horizontal stripes (no text or symbols)

LET OP

KOELEN/DROGEN-FUNCTIE:

LUCHT REINIGEN

OPMERKING:

3D illustration of a layered rectangular block with textured surface (no text or symbols)

Type AZ-F900B

Illustration of hands cutting a grid with a knife (no text or symbols)

1 SCHAKEL HET TOESTEL UIT

Illustration of hands using a tool to cut or spread a grid on a 3x3 grid (no text or symbols)

1 SCHAKEL HET TOESTEL UIT

DE BINNEN-UNIT WORDT WARM, OOK AL IS HIJ NIET IN WERKING

DIŞ ÜNİTE

DIŞ ÜNİTE

TOZ TOPLAMA FİLTRESİ (gri)

Illustration of a wall-mounted air conditioner with a digital display and a power cord emitting light (no text or symbols)

UYARI

(AY-XM7CR/AY-XM9CR/AY-XM12CR)

(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

Illustration of a hand holding a curved object with horizontal lines and a ruler, no text or symbols present

UYARI

BİR SAAT SONRA KAPANMA AYARI

NOT:

3D illustration of a layered rectangular material or panel structure (no text or symbols)

Tip AZ-F900B

Illustration of two hands using a tool to cut a grid on a 3x3 grid (no text or symbols)

1 ÜNİTEYİ KAPATIN
2 FILTRELERİ ÇIKARIN

Illustration of hands using a tool to cut or spread a grid on a rectangular board (no text or symbols)

1 ÜNİTEYİ KAPATIN
2 FILTRELERİ ÇIKARIN

Illustration of two hands handling a grid-patterned object on a rectangular panel (no text or symbols)

1 HAVA FILTRELERİNİ ÇIKARIN
2 KOKU GİDERME FİLTRESİNİ TEMİZLEYİN
