Operating Instructions

(Household) AC/Rechargeable Shaving Trimmer

Model No. ER-GD60/ER-GD50

English	3	Dansk	89	Česky 173
Deutsch	17	Portuguès	103	Slovensky 187
François	33	Norsk	117	Magyar 201
Italiano	47	Svenska	131	Română 215
Nederlands	61	Suomi	145	Türkçe 229
Espanol	75	Polski	159

Panasonic

Operating Instructions

(Household) AC/Rechargeable Shaving Trimmer

Model No. ER-GD60/ER-GD50

Contents

Safety precautions. 6 Troubleshooting 14

Intended use 9 Blade life. 15

Parts identification 9 Battery life 15

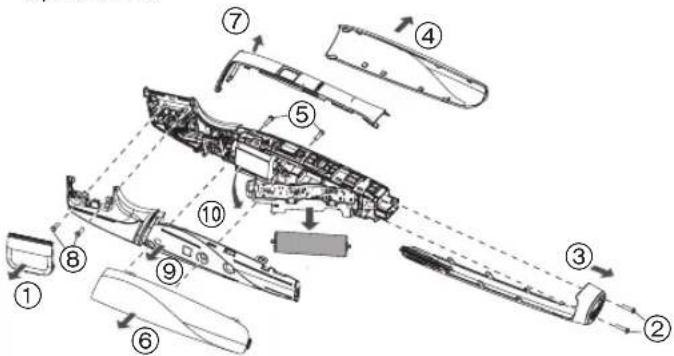

Preparation. 10 Removing the built-in rechargeable

Using the trimmer 11 battery. 15

Cleaning 13

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

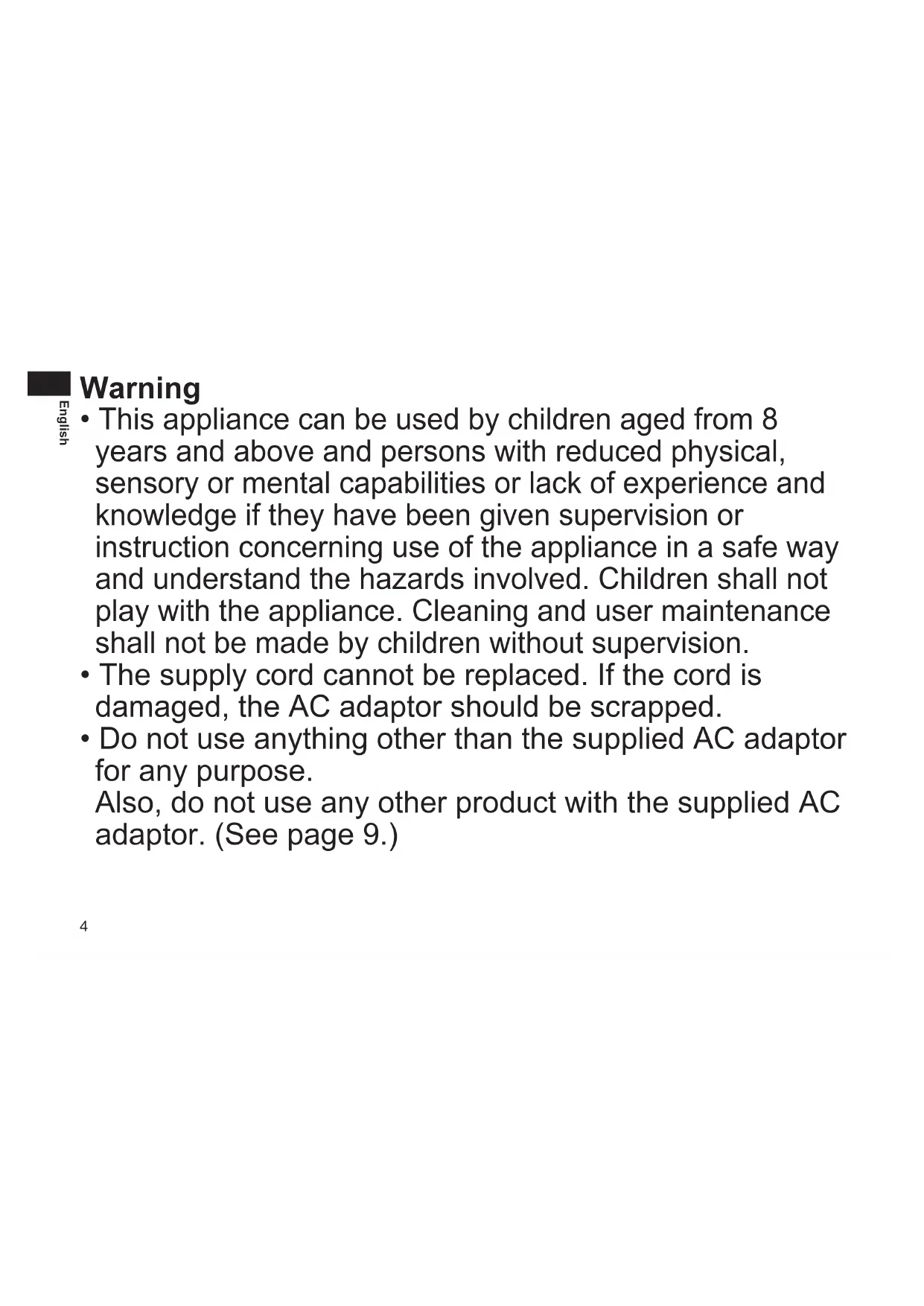

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
• Do not use anything other than the supplied AC adaptor for any purpose.

Also, do not use any other product with the supplied AC adaptor. (See page 9.)

• Keep the appliance dry.

The symbol on the left means "Do not wash the product with water".

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER	Denotes a potential hazard that will result in serious injury or death.
WARNING	Denotes a potential hazard that could result in serious injury or death.
CAUTION	Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

• Doing so may cause electric shock or injury.

Do not immerse the appliance and AC adaptor in water or wash with water.

Do not place the appliance and AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.

• Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

The main unit or AC adaptor is deformed or abnormally hot.

• The main unit or AC adaptor smells of burning.

There is abnormal sound during use or charging of the main unit or AC adaptor.

• Immediately request inspection or repair at an authorized service centre.

This product

This product has a built-in rechargeable battery. Do not throw into flame or heat.

• Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

Preventing accidents

Do not store within the reach of children or infants. Do not let them use it.
- Putting the blade, and/or oil container in the mouth may cause accidents and injury.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

• Failure to do so may result in physical problems.

CAUTION

Protecting the skin

Do not press the blade against your lip or the skin. Do not use this product for any purpose other than trimming beard.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

• Doing so may cause skin injury.

Check that the blades are not damaged or deformed before use.

• Failure to do so may cause skin injury.

CAUTION

Note the following precautions

Do not allow metal objects or trash to adhere to the

power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

• Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the adaptor from the household outlet when not using.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Failure to do so may cause electric shock or injury.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products. Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.

• Do not solder, disassemble, or modify the battery.

• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Never tear the paper tube.

Doing so may cause fluid leak, overheating, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

• The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.
  Do not rub your eyes. Wash immediately with clean water and consult a physician.
• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• Before using an attachment, check that it has been installed correctly. Failure to do so may cause beard to be cut too short.
  The appliance should not be used on animals.
  Before and after each use, apply oil at the marked places. (See page 13.)

Failure to apply the oil may cause the following problems.

• The trimmer has become blunt.
• Shorter operating time.

• Louder sound.

• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body. Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

• Store the trimmer in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.

Parts identification

A

B

C
D

E

F

G

H

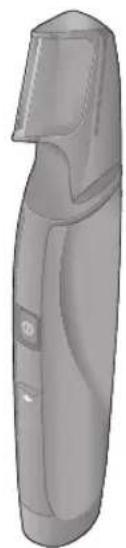

A Main body

① Power switch (1)
② Charge status lamp (
③ Appliance socket

Blade

④ Mounting hook
⑤ Cleaning lever
⑥ Moving blade
⑦ Stationary blade

Trimming height comb attachment

⑧ Dial
⑨ Trimming height indication mark

Detail trimming attachment ER-GD60
AC adaptor (RE9-86)

(The shape of the power

plug differs depending on

the area.)

Adaptor
① Power plug
② Cord

⑬ Appliance plug

Accessories

Cleaning brush
Oil
Pouch ER-GD60

Attach one of the attachments when carrying the trimmer.

Preparation

Charging the trimmer

• Make sure that the trimmer is turned off.
  1 Connect the appliance plug to the appliance socket.
  2 Plug in the adaptor into a household outlet.

• Check that the charge status lamp (1) glows.

• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor when the charge status lamp stops glowing.

(for safety and to reduce energy usage)

If you remove and reinsert the appliance plug while charging, the charge status lamp glows and turns off after approximately 5 seconds.

Notes

• If there is crackling noise on radios or other devices while charging, charge the trimmer using a different household outlet.
• When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.

• When charging the trimmer for the first time or when it has not been in use for more than 6 months, the lamp on the main body may not glow for a few minutes, or the operating time may shorten. Please charge it for more than 8 hours in such cases.

• Recommended ambient temperature for charging is 0^ - 35^ . The charging time may change or battery performance may decrease outside of the recommended temperature.

• A full charge supplies enough power for approximately 50 minutes of use. (Based on dry using at 20^ - 30^ .) The operating time may differ depending on the frequency of use, the operating method and the ambient temperature.
• You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends strongly on factors such as how it is used and stored.

AC operation

If you connect the AC adaptor to the trimmer in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
• The battery will be discharged, even with the AC operation.

Using the trimmer

• Check that the blades are not damaged or deformed before use.
• Apply the oil to the blade before and after each use. (See page 13.)
• Use the appropriate attachment as needed.

(See pages 11 and 12.)

It can also be used without the attachment. (See this page.)
- When you finish using the trimmer, turn it off.
- The appliance may not operate in an ambient temperature lower than approximately 0^ .

Press the power switch to turn on the power.

How to use the trimmer

• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.
• Before trimming, comb your moustache with a comb.

Without attachment

Design precise lines

Place the blade horizontally against the skin and towards the beard line trim slowly.

Trimming height: approx. 0.1mm (Fixed blade thickness is 0.1mm )

Detail trimming attachment ER-GD60

Use the attachment for trimming narrow areas and for detailed trimming.

Trim gradually from the ends by bringing the blade in contact with the skin.

Trimming height comb attachment

Make sure that the trimmer is turned off.
Actual beard length will be a little longer than the height you set.
- The desired results may not be achieved if beard is too long. In this case, trim the beard to a length of about 20mm before using the trimmer.
- For areas with thick or dense beard growth, trim a bit at a time. Beard sometimes gets caught or builds up in the attachment. When this happens, clean the attachment. (See page 13.)

1 Turn the dial and adjust the trimming height indication mark (a) to the desired height.

• Trimming height (estimate): 0.5mm to 10mm

Indicator 0.5 1 1.5 2 2.5	3	3.5	4	4.5	5
Trimming height (mm)(estimate)	0.5	1	1.5	2	2.5	3	3.5	4	4.5	5

Indicator 5.5 6 6.5 7 7.5	8 8	5 9	9.5	10
Trimming height (mm)(estimate)	5.5	6 6	5 7	7.5 8	8.5	9 9.5	10

2 Apply the flat part of the comb against your skin and cut your beard by combing it left and right.

Flat part of the comb

Removing and mounting the attachments

Take care not to injure hands, etc., with the blade when removing or mounting the attachment.
Make sure that the trimmer is turned off.

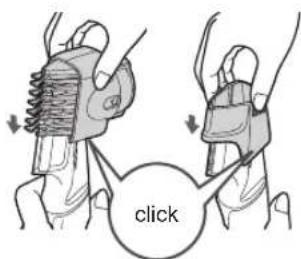

Mounting the attachment

Mount the attachment to the main body until it clicks.
If the attachment is not attached correctly, it may shift and end up cutting too much during use.

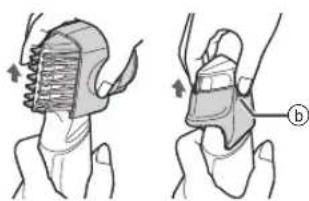

Removing the attachment

Hold the main body securely and remove the attachment from the main body.
- Hold the rib (b) part securely and remove the detail trimming attachment.

Cleaning

• Clean the trimmer and the blade after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)
  Make sure that the trimmer is turned off.
• Remove the attachment and blade. (See pages 12 and 14.)

With water

• Do not wash the appliance with water.
• Doing so may cause malfunction if put in water.

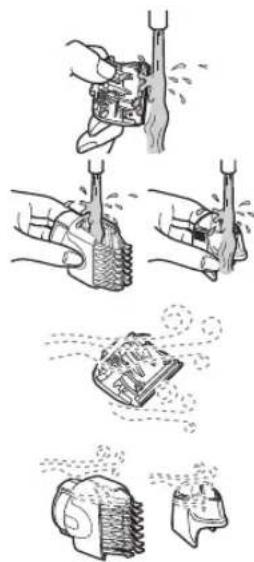

Blade and the attachment

1. Clean the blade and the attachments with running water. Rinse with water and shake up and down several times to remove the water.
2. Wipe off the water with a towel and let it dry naturally.
3. Apply the oil to the blade after drying. (See this page.)

With the brush

1. Brush off any hair trimmings from the main body and from around the blade
2. Brush off the hair trimmings from the blade edge.

3. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever (C) to raise the moving blade.

4. Apply the oil to the blade. (See this page.)

Lubrication

• Apply the oil to the blade before and after each use.

Apply a drop of the oil to each indicated point.

Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Failure to apply the oil may cause the following problems due to rust, wear or burn out.

• The trimmer has become blunt.
• Shorter operating time.
• Louder sound.

Replacement parts

Replacement part is available at your dealer or Service Centre

Replacement parts for ER-GD60/ER-GD50

Blade WER9500

Removing and mounting the blade

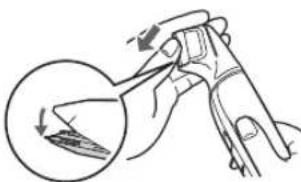

Removing the blade

Hold the trimmer and push the blade with your thumb.

Mounting the blade

Fit the mounting hook (B) into the blade mounting (A) on the trimmer and then push in until you hear a click.

Troubleshooting

Perform the following actions.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem Action

The trimmer has become blunt.

Operating time is short.

Trimmer stopped functioning.

The trimmer cannot be charged.

Makes a loud sound.

Until problems are solved, please follow each procedure as follows:
1. Charge the trimmer. (See page 10.)
2. Clean the blade and apply oil. (See page 13.)
3. Replace the blade. (See pages 13 and 14.)
4. Have the battery replaced by an authorized service centre.

Charge the battery for approximately 8 hours continuously to rejuvenate it. If few uses remain even after charging, the battery has reached the end of its life. (Fluid may be leaking due to degradation at the end of battery life.) Contact an authorized service centre for repair.

Insert the appliance plug into the trimmer firmly.
Apply oil. (See page 13.)
Confirm that the blade is properly attached.

Blade life

Blade life varies according to the frequency and period of use of the trimmer.

For example, the blade life is approximately 3 years when using the trimmer for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the trimmer.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the trimmer, and must not be used to repair it. If you dismantle the trimmer yourself, it may cause malfunction.

• Remove the trimmer from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑩ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials

This trimmer contains a Nickel-Metal Hydride battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	1.2 V---
Charging time Approx. 1 hour
Airborne Acoustical Noise	71 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Bedienungsanleitung

Identification of dele

A

B

C
D

E

F

G

H

Apparats krop

• Brug违法犯罪
• Drug犯罪
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicited by a criminal
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Illicit drug dealing
• Il illicit drug dealing
• Inden du starter med at trimme overskaegget, skal du frisere det med en kam.

Uden tilbehør

Udforming af pracisionslinjer

(Husholdning) AC/Rechargeable Shaving Trimmer

Modelln. ER-GD60/ER-GD50

Innhold

• Kontroller at lampen for ladestatus
  ser.
  Lading fullfores etter omtrent 1 time.

3 Koble fra adapteren nár lampen for ladestatusen slutter Å lyse.

Reserveder for ER-GD60/ER-GD50 BladWER9500

Model c. ER-GD60/ER-GD50

Obsah

Model No. ER-GD60/ER-GD50

Icindekiler

Sar seviye lambasinin yanip

2026, Oshinohara, Yasu-Shi, Shiga, Japan

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.Ş.

Cobançesme Mah. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7YILDIR

MEMO

Panasonic Corporation

http://www.panasonic.com

© Panasonic Corporation 2017

EN,GE,FR,IT,DU,SP,DA,PT,NW,SW,FI,PL,CZ,SK,HU,RO,TK

Printed in Japan

ER9710GD601E Y0217-0
