USER MANUAL DO0570CM SIEMENS

de Deutsch 2
en English 7
fr Francais 11
it Italiano 15
nI Netherlands 20

DO0570CM

6720820350

9001217910

Montage- und

Gebrauchsanleitung

Installation and

operating instructions

Notice de montage

et d'utilisation

Eine Störung, was tun?

This appliance is intended for domestic use and the household environment only.

Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
This appliance is intended for use up to an altitude of 2000m above sea level.
The appliance may only be installed and stored in a frost-free room (due to residual water).

Risk of electric shock! If an fault occurs, immediately disconnect the plug from the power supply! Immediately shut off the cold water supply to the appliance should it leak.

The appliance may only be connected and put into operation by qualified professional.
To avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
Shut off the water supply before connecting the appliance. Do not insert the plug into the mains socket.

Caution!

Fill the appliance with water first, then insert the mains plug, otherwise the resettable safety temperature limitation will trip.

Observe the statutory regulations as well as the connection regulations of the electrical and water utility companies.
Only connect the appliance to a correctly earthed electrical socket. Do not use extension cables.
Disconnect the power supply before opening the appliance.

The appliance may not be powered via an external switching device such as a timer switch in order to exclude the danger of an unintentional reset of the safety temperature limitation in the event of a fault.
The connection cable may not make contact with hot components. This can damage the insulation.
The small water heater is only suitable for use with an open (unpressurised) and a single tap connection. The warm water outlet is used for pressure compensation and may only be connected to suitable fittings (Order No. BZ13051, BZ13062 and BZ13071).
The tap outlet must always remain free. Do not use perlators (diffusers) or shower taps.
This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.

• Keep children away from the appliance.
  Please monitor children to ensure that they do not play with the appliance.
  The warm water pipe may be hot. Please inform and instruct children appropriately.
• Do not use aggressive or abrasive cleaning detergents!
  Do not use a steam cleaner.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.

Installation instructions

Unpacking

Inspect the new appliance for transport damage!
Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

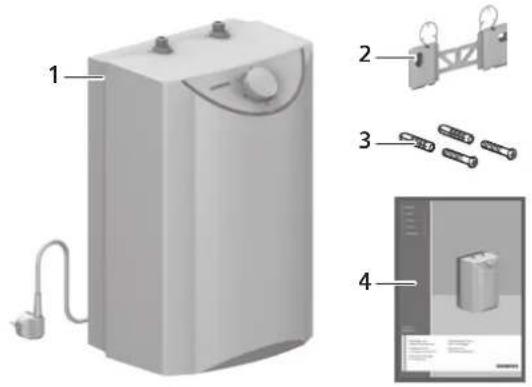

Scope of delivery

1 Appliance with operating panel
2 Installation bracket
3 Mounting (2 screws, 2 wall plugs)
4 Documentation

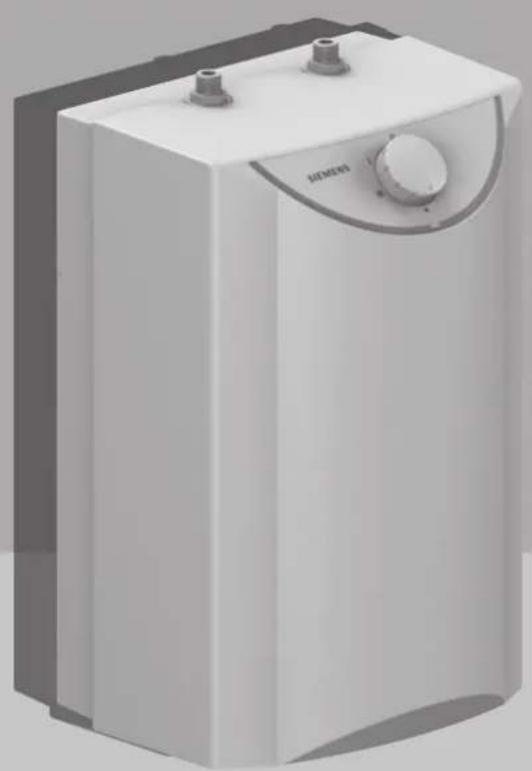

Product description

The small water heater is only suitable for open (unpresurised) installation. It heats and stores drinking water up to approx. 85^ . Different temperature levels can be selected with the temperature selector knob.

The appliance may not be operated with pre-heated water, as otherwise the safety temperature limitation will trip.

The appliance is connected using the mains plug.

Preparations for installation

• Shut off the water supply before connecting the appliance.
• Do not insert the mains plug.

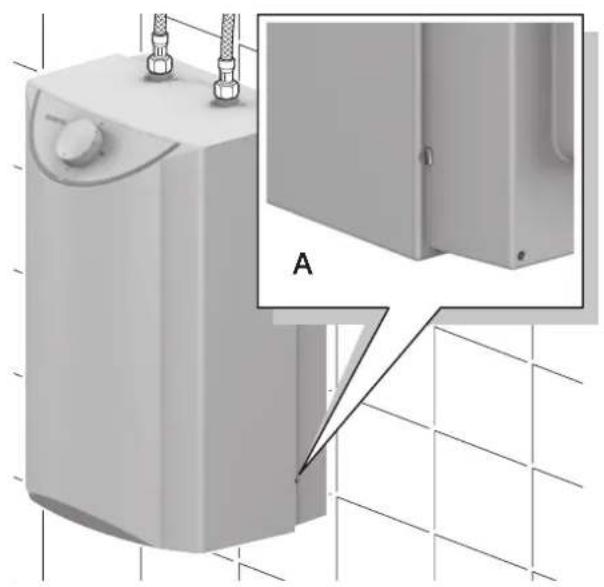

Remove the installation bracket on the appliance and break off the retaining rings (A).
Fix the connection cable to the rear of the appliance to suit the required length (B).

Wall mounting

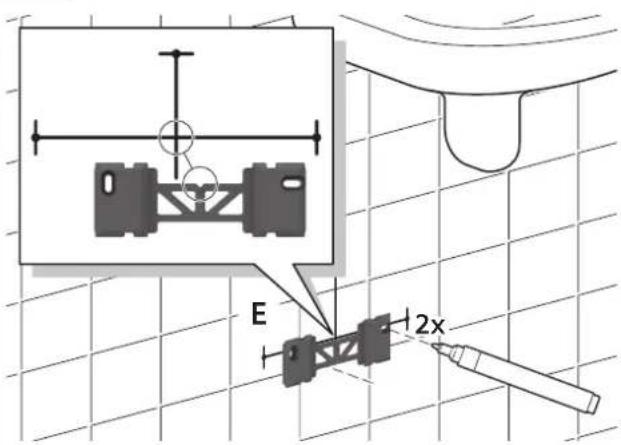

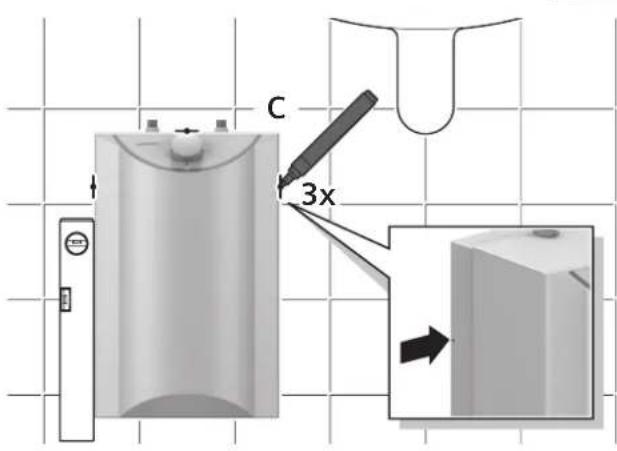

Align the appliance on the wall and use the three indents (top, left and right on the appliance) to apply markings (C).

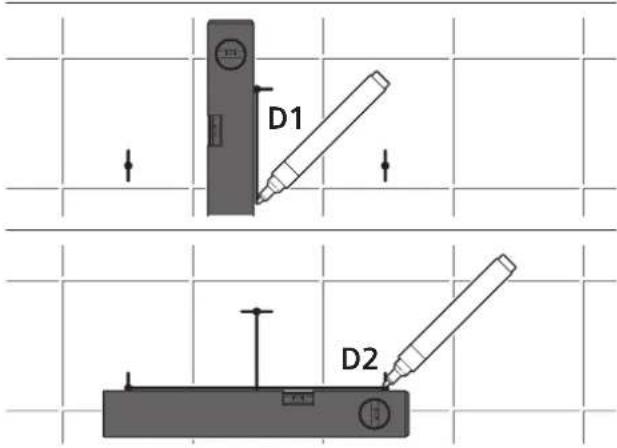

Connect the markings by a pattern of crossed lines with a spirit level (D1 and D2).
Place the installation bracket on top at the point of intersection of the drawn lines and mark the position for the holes (E).

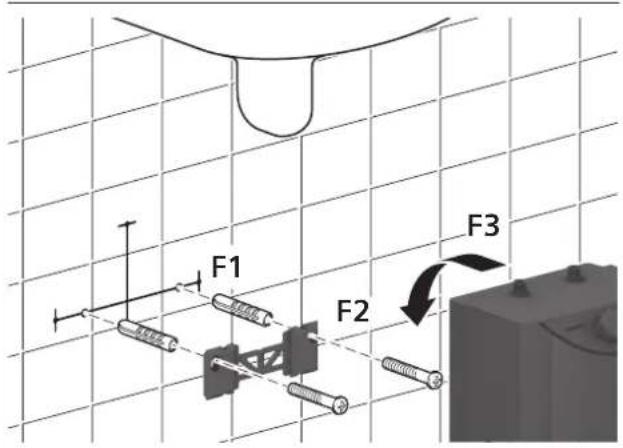

Drill the holes and insert wall plugs (F1).
- Attach the installation bracket (notch at top) to the wall using the screws (F2).
Suspend the appliance in the installation bracket (F3).

Exchanging appliances

When replacing an old Siemens small water heater with this new appliance, the existing drill holes with wall plugs can be used. Please note that the new appliance is approx. 2cm higher.

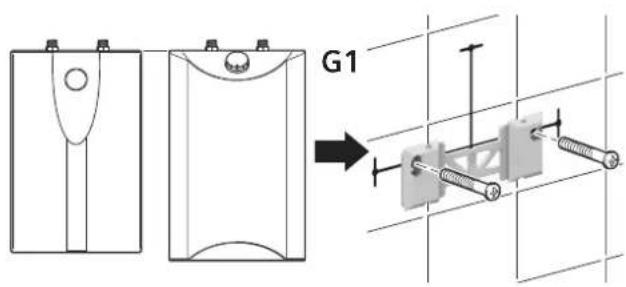

If the new appliance is to be flush at the top like the old appliance (G1):

• Attach the new installation bracket to the wall with the notches at the top.

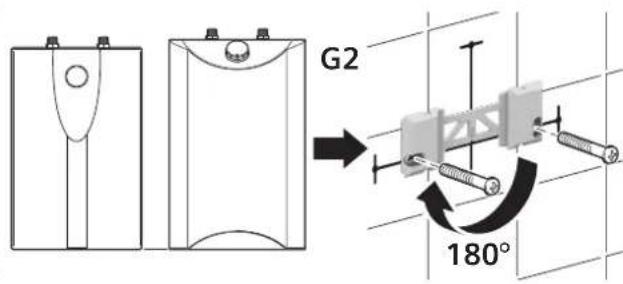

  If the new appliance is to be flush at the bottom like the old appliance (G2):
  Turn the installation bracket around and attach to the wall with the notches at the bottom.

Water connection

Caution!
The existing fitting may not be covered with scaling.
Do not grease the thread!

Info: Replacement for damaged threaded nozzles available from customer service.

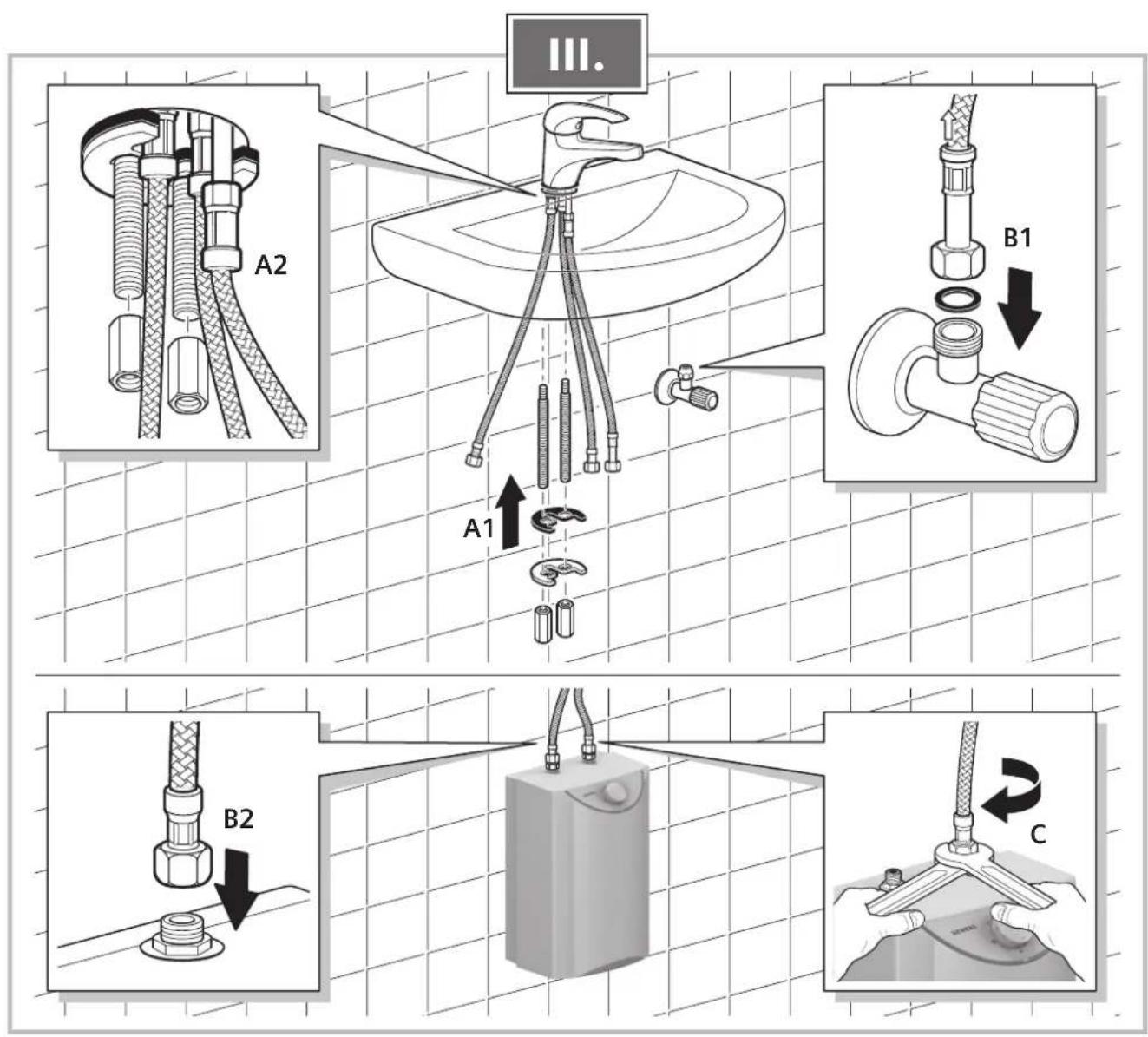

Fit the taps if required (A1 and A2).
Insert the seals (B1).
Ensure the axial fit of the connection pipes in the nozzles.
Place the union nuts on the thread and tighten them by hand (B2).
Tighten the screw fitting (C). Counter the threaded nozzles on the warm water heater with a wrench
After the unit has been used to heat water a few times, retighten the screw fitting.
Set the flow to 5I / min (= 11 in 12 seconds) on the corner valve.

First start-up

Electrical connection

Important: Do not insert the plug into the mains socket yet.
Fill the appliance with water first. Water must flow from the fitting.

Only then insert the plug into the mains socket.

Note: If the appliance is not filled with water, the resettable safety temperature limitation will trip!

Checking the heating

Turn the rotary selector switch to "III" (approx. 85^ ).
Monitor the heating process until the pilot lamp switches off after approx. 12-18 minutes.
Check the temperature.
Caution: If the safety temperature limitation has switched off the small water heater, unplug the mains plug, open the warm water tap and allow approx. 4 litres of water to flow. Then plug the mains plug back in. The appliance is ready again for operation.

Limitation of the water temperature

The temperature of the water leaving the tap for the small water heater can be mechanically set to stage "I" (approx. 38^ or stage e approx. 60^ see"Operation",page 9

Conserving energy

Set the rotary selector to "e" to conserve energy.
Hand over the installation and operating instructions to the user and explain how the appliance operates.

Technical data

Type DO0570CM
Rated output [kW] 2.2
Rated capacity [I] 5.0
CLICKFIX plus installation technology √
Mixed water quantities 40 °C (15°C/85°C) / (15°C/85°C) [I] 9.5/14
Variable temperature adjustment up to	[°C]	85
Stand-by power consumption at 65°C/24 h	[kWh/d]	0.20
Electrical connection	[V]	230
Heat-up time to 60 °C (supply temperature 12°C)	[min]	8
Fuse protection	[A]	10
Water connection	["]	3/8
Maximum flow	[l/min]	5
Cable length	[m]	0.6

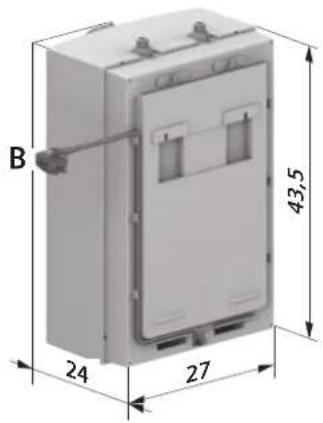

Dimensions (Height x Width x Depth)	[mm]	435 x 270 x 240
Weight, filled	[kg] 7.8
Energy efficiency class		A
Load profile		XXS
Annual energy consumption	[kWh]	484
Daily energy consumption	[kWh]	2.340
Sound power level	[dB]	15
Hot water heating energy efficiency	[%]	36.8

Operating instructions

Before using the appliance, please read the instructions carefully and observe them!
Important: The appliance may never be exposed to frost!

Risk of electric shock! If a fault occurs, immediately disconnect the plug from the power supply! Immediately shut off the cold water supply to the appliance should it leak.

Please read and observe the detailed safety instructions at the start of these instructions!

IV. Operation

The small water heater heats and stores drinking water up to approx. 85^

Setting the water temperature

The required outlet temperature from 35^ to 85^ can be set with the rotary selector switch.

or:
Set the required fixed outlet temperature (A):

Frost protection
I Approx. 38^ (soft lock-in)
e Conserve energy approx. 60^ (soft lock-in)
III Hot water approx. 85^

The pilot lamp lights up during heat up; a little expansion water drips from the outlet.

The appliance with be covered more quickly with limescale at higher temperatures.

Tip: Set the rotary selector switch to "e" to operate the appliance economically and to reduce the effects of limescale.

Note: If the appliance has not been used for an extended period, e. g. during a holiday, allow the water to briefly heat up to stage "III".

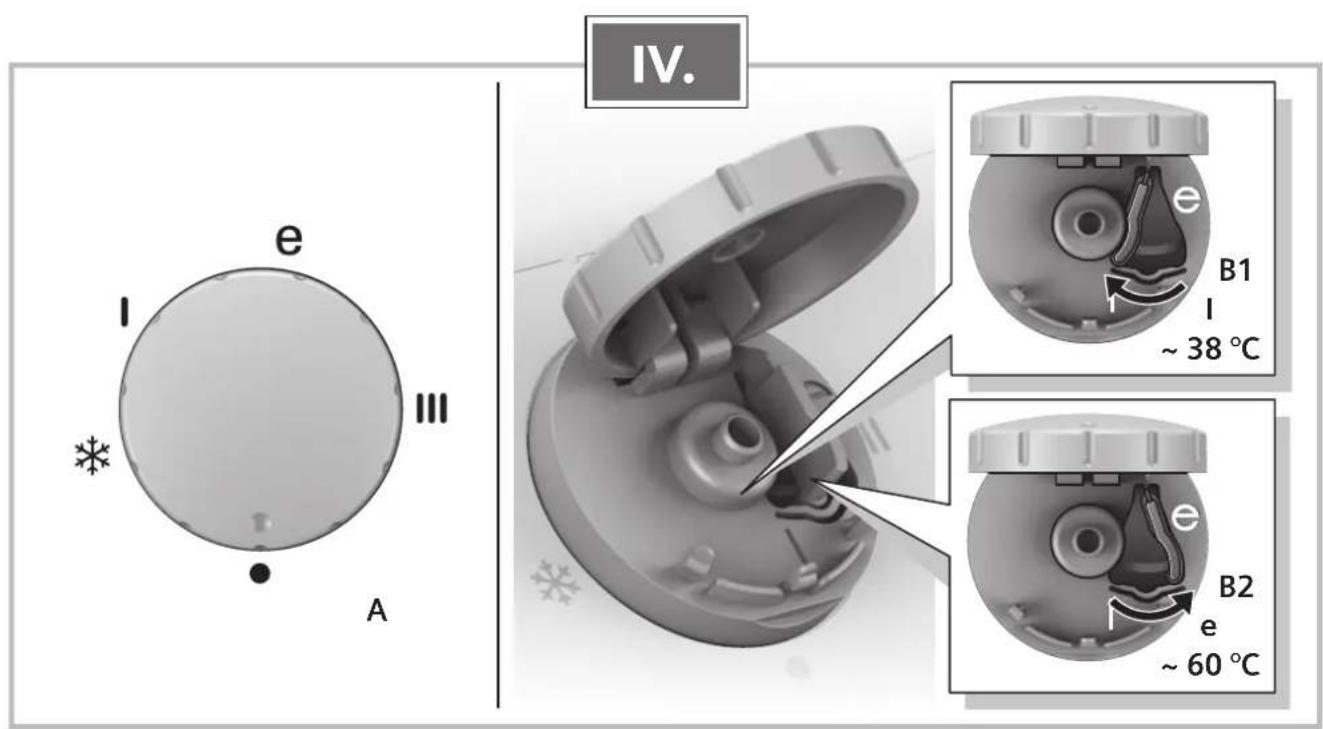

Limitation of the water temperature

Limit the outlet temperature to avoid scalding with hot water:

Set the rotary selector switch to "●".
Open the cover of the rotary selector switch.
Select between "I" = approx. 38°C (B1) or "e" = approx. 60°C (B2).
Close the cover.

Switching off

Set the rotary selector switch to "●" (A). The heating is switched off.

Cleaning

Do not use aggressive or abrasive cleaning detergents!

Do not use a steam cleaner.

Clean appliance externally with a mild cleaning agent.
Clean the dirt and lime scale deposits in the aerator filter.

Dscaling

Descale the outlet pipe with commercially available descending agent or vinegar.
Please observe the manufacturers warnings when.
descaling.

If the water flows significantly slower when the tap is fully opened, the small water heater and tap should be descaled by a specialist.

Maintenance

The following repairs and maintenance may only be carried out by an authorised customer service representative to avoid potential sources of danger.

The electrical mains supply and the water supply must be shut off before all work on the appliance.

Exchange of the electrical connection cable

When the electrical cable is visibly damaged:

Switch off the device, unplug the mains plug and contact customer service.

A fault, what to do?

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

The electrical mains supply and the water supply must be shut off before all work on the appliance.

Fault Cause Solution Who
The appliance does not start (heat), only cold water flows.	The fuse in the house electrical installation has tripped/blown.	Check the fuse in the house electrical installation.	Customer
	The mains plug is not inserted. Insert the mains plug into the mains socket.	the plug into the mains socket.	Customer
	The safety temperature limitation has tripped.	Unplug the mains plug, open the warm water tap and allow approx. 4 litres of water to flow. Insert the plug into the mains socket.	Customer
Too low a water flow or no water flow	The filter in the tap is clogged. Remove the filter and either clean it or descale it.	Cleve the filter and either clean it or descale it.	Customer
	The water outlet or the tap is clogged by limescale.	Descale or install a new fitting. Servicing expert
The warm water connection nozzle	is clogged.	Clean the warm water connection nozzle and exchange the water connection if necessary.	Servicing expert

If the fault could not be eliminated, please call customer service.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the number near both water connection nozzles of the small water heater.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer, from whom the appliance was purchased, or directly from our representative in the country. Furthermore, the guarantee conditions can also be found on the Internet at the website address stated. The bill of sale or receipt must be produced when making any claims under the terms of this guarantee.
