USER MANUAL DE18401 SIEMENS

Exterior view of a Siemens electronic air conditioner unit (no text or symbols on the device body)

Montage- und

Gebrauchsanleitung

Installation and

operating instructions

Notice de montage

et d'utilisation

Montage-en

gebruikshandleiding

Instrukcja montażu

i użytkowania

Simple diagram of a coffee maker with min/max labels and cup (no text or symbols beyond labels)

Eine Störung, was tun?

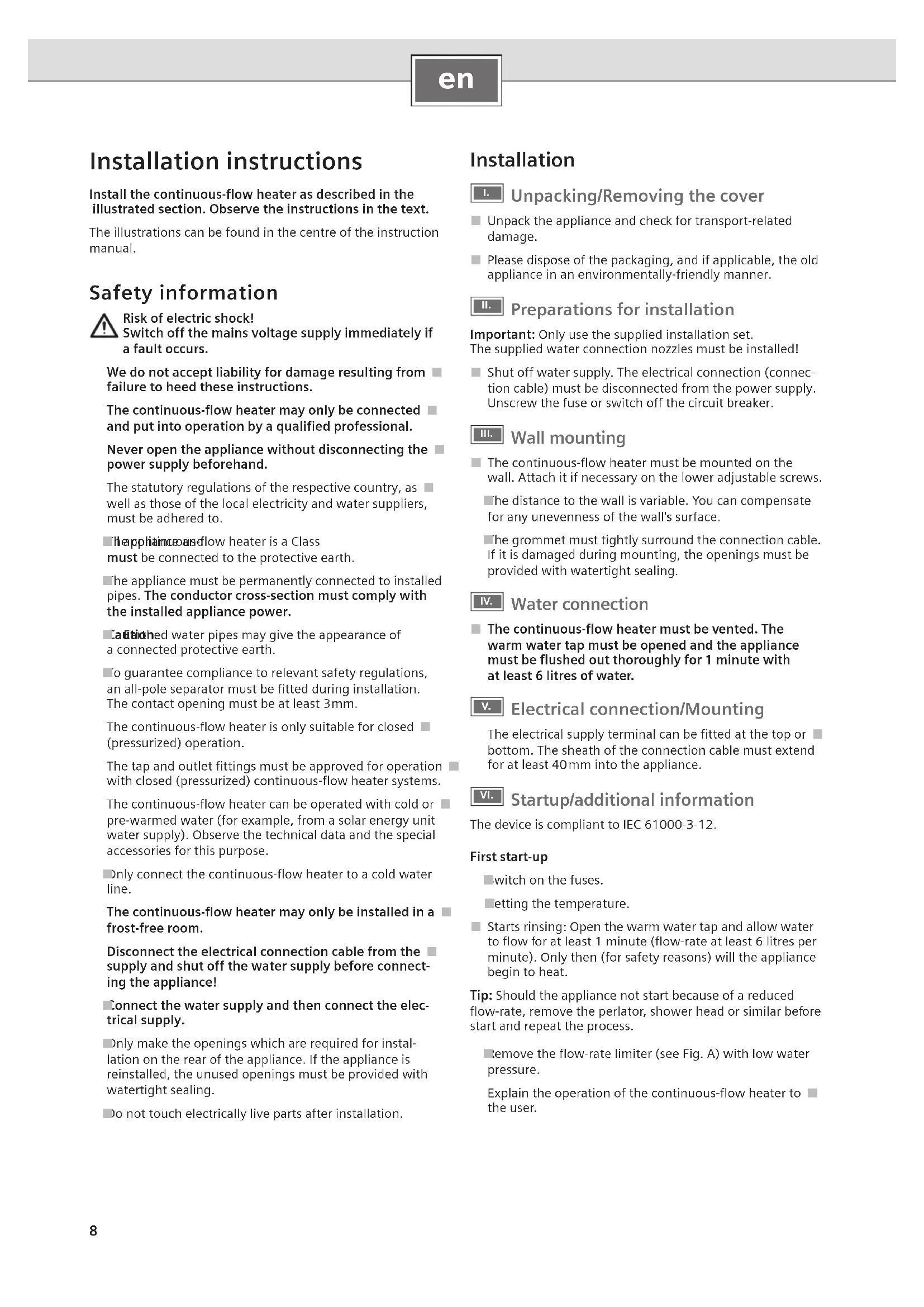

Installation instructions

Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.

The illustrations can be found in the centre of the instruction manual.

Safety information

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs.

We do not accept liability for damage resulting from failure to heed these instructions.

The continuous-flow heater may only be connected and put into operation by a qualified professional.

Never open the appliance without disconnecting the power supply beforehand.

The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.

■ The phthimcoas-flow heater is a Class must be connected to the protective earth.

The appliance must be permanently connected to installed pipes. The conductor cross-section must comply with the installed appliance power.

Cautioned water pipes may give the appearance of a connected protective earth.

To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation. The contact opening must be at least 3mm.

The continuous-flow heater is only suitable for closed (pressurized) operation.

The tap and outlet fittings must be approved for operation with closed (pressurized) continuous-flow heater systems.

The continuous-flow heater can be operated with cold or pre-warmed water (for example, from a solar energy unit water supply). Observe the technical data and the special accessories for this purpose.

■ Only connect the continuous-flow heater to a cold water line.

The continuous-flow heater may only be installed in a frost-free room.

Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!

■ Connect the water supply and then connect the electrical supply.

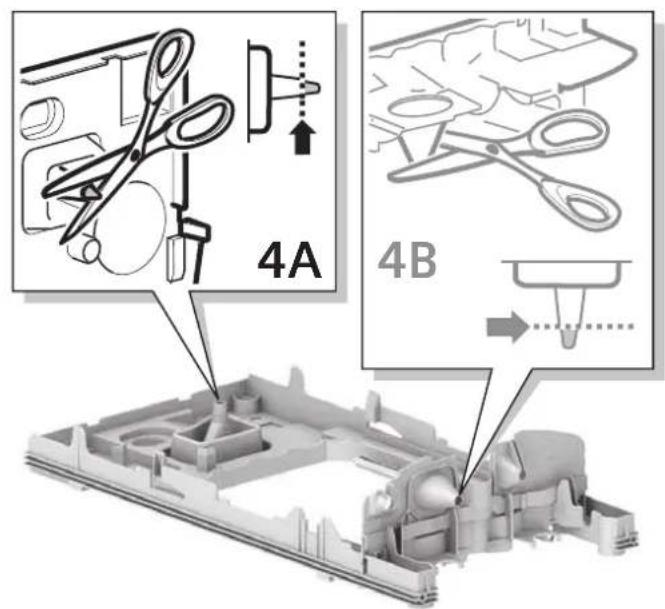

Only make the openings which are required for installation on the rear of the appliance. If the appliance is reinstalled, the unused openings must be provided with watertight sealing.

Do not touch electrically live parts after installation.

Installation

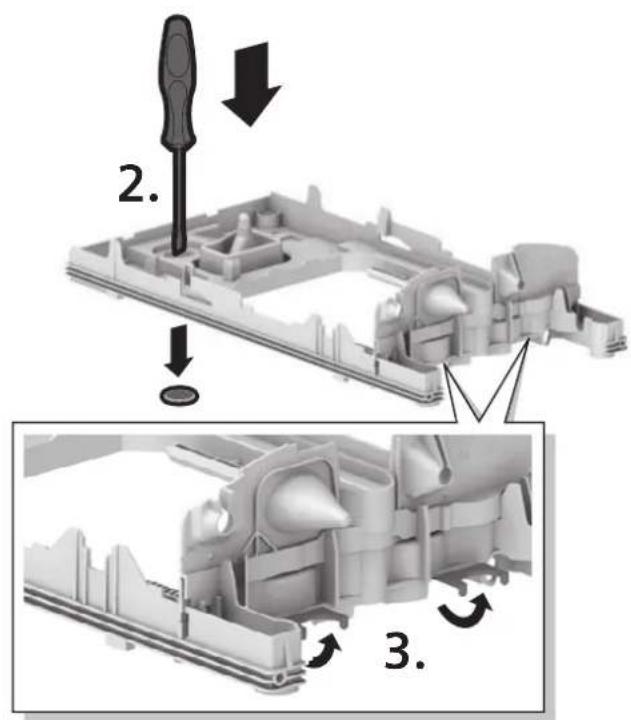

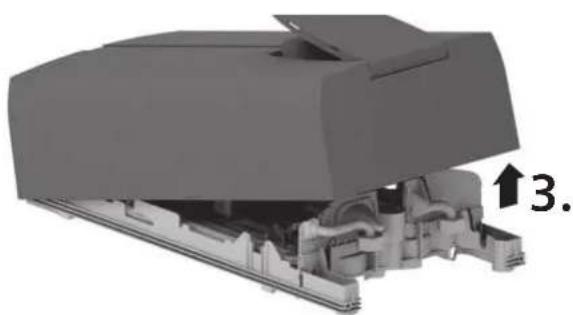

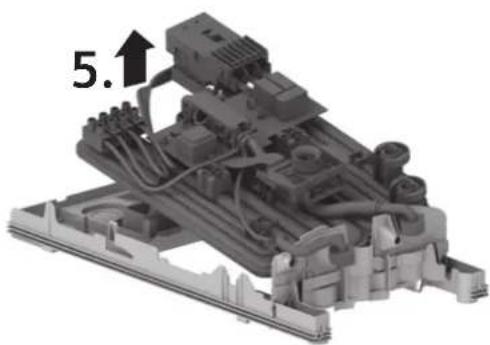

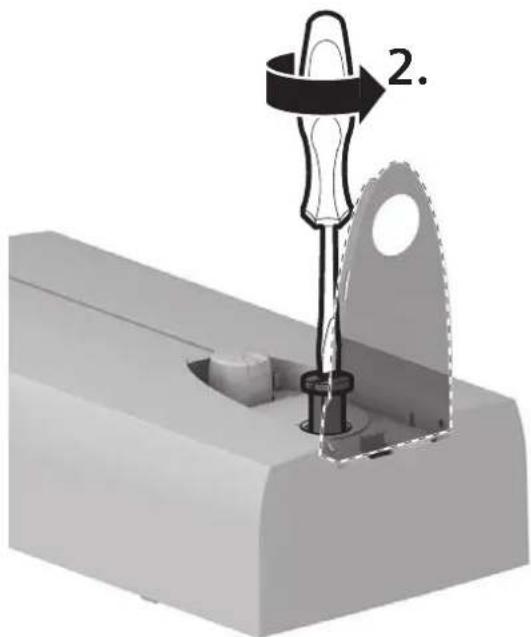

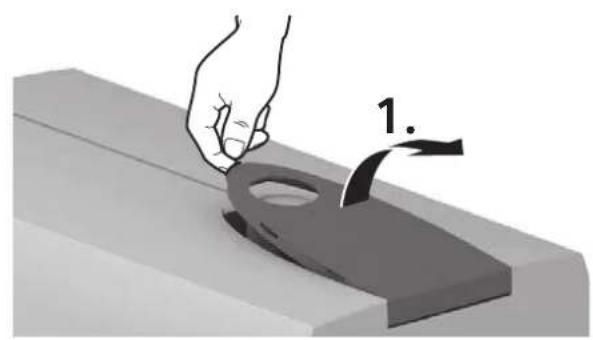

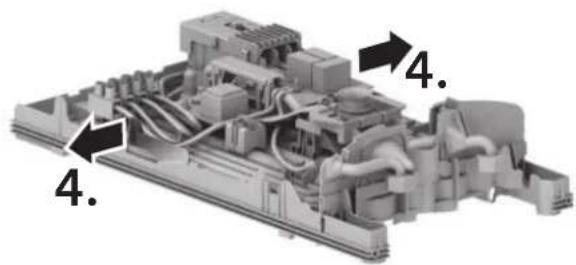

Unpacking/Removing the cover

• Unpack the appliance and check for transport-related damage.
  Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

Preparations for installation

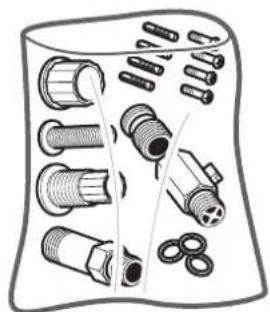

Important: Only use the supplied installation set. The supplied water connection nozzles must be installed!

Shut off water supply. The electrical connection (connection cable) must be disconnected from the power supply. Unscrew the fuse or switch off the circuit breaker.

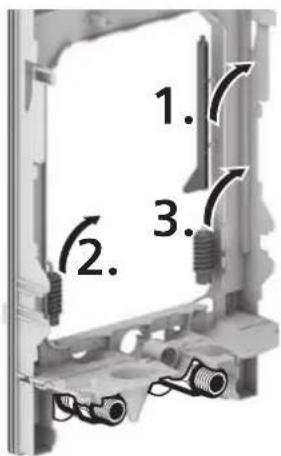

Wall mounting

The continuous-flow heater must be mounted on the wall. Attach it if necessary on the lower adjustable screws.

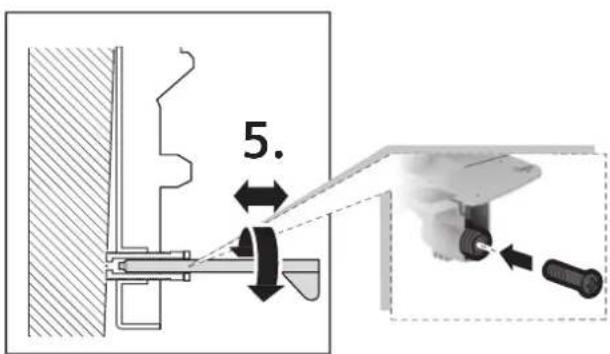

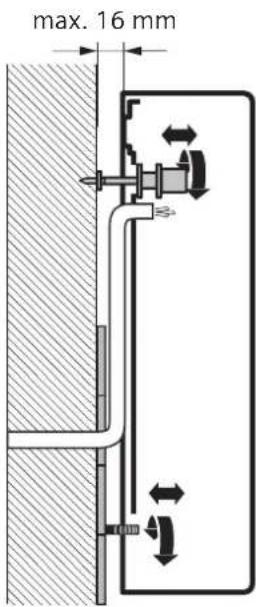

The distance to the wall is variable. You can compensate for any unevenness of the wall's surface.
The grommet must tightly surround the connection cable. If it is damaged during mounting, the openings must be provided with watertight sealing.

Water connection

The continuous-flow heater must be vented. The warm water tap must be opened and the appliance must be flushed out thoroughly for 1 minute with at least 6 litres of water.

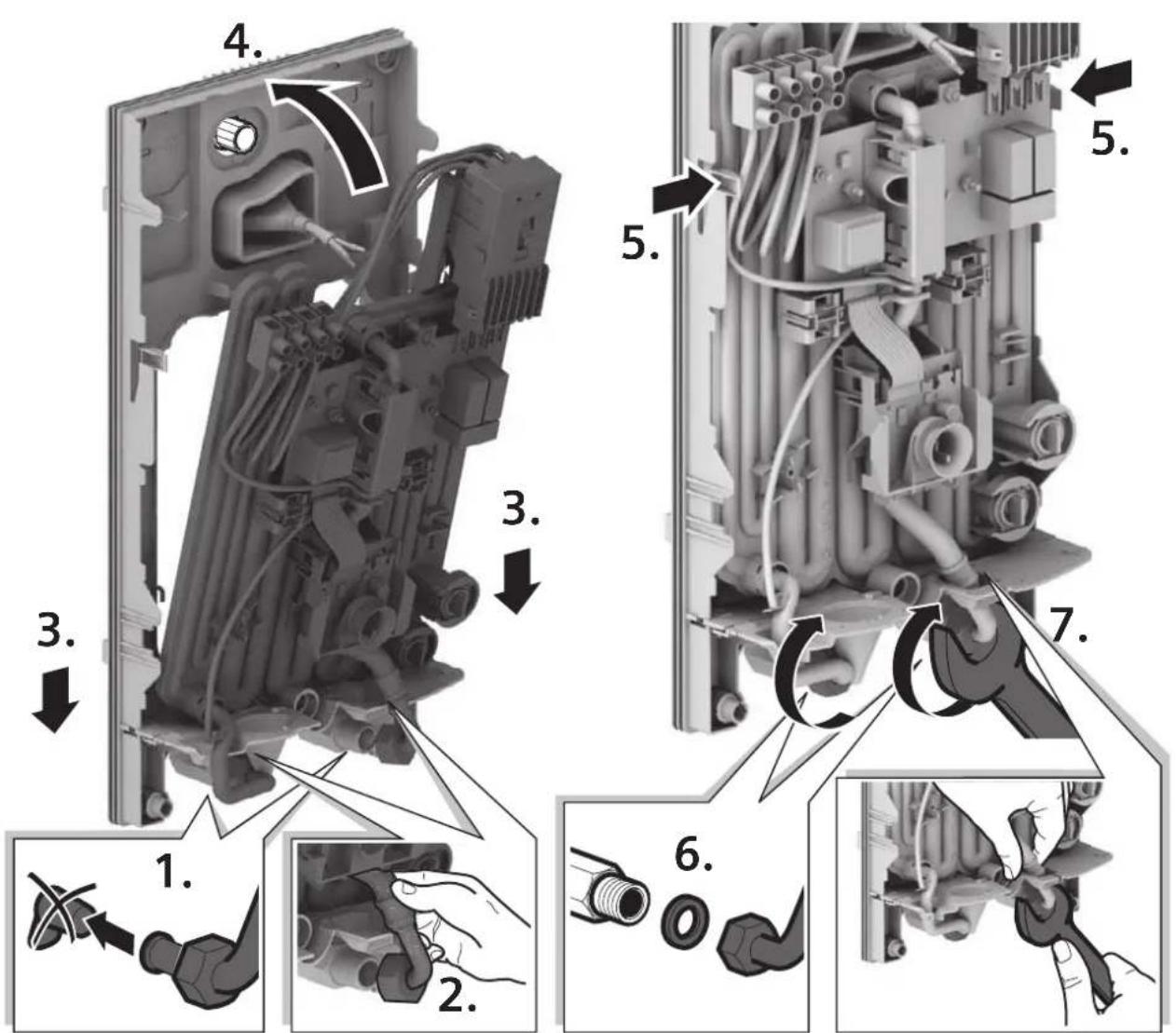

Electrical connection/Mounting

The electrical supply terminal can be fitted at the top or bottom. The sheath of the connection cable must extend for at least 40 mm into the appliance.

Startup/additional information

The device is compliant to IEC 61000-3-12.

First start-up

• switch on the fuses.
• etting the temperature.

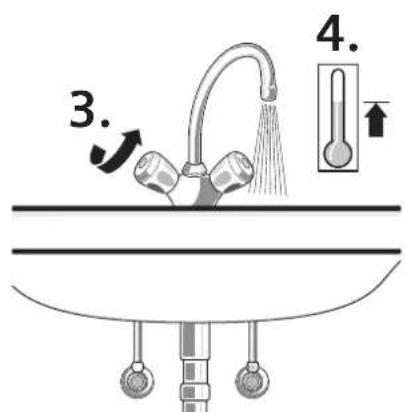

■ Starts rinsing: Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat.

Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.

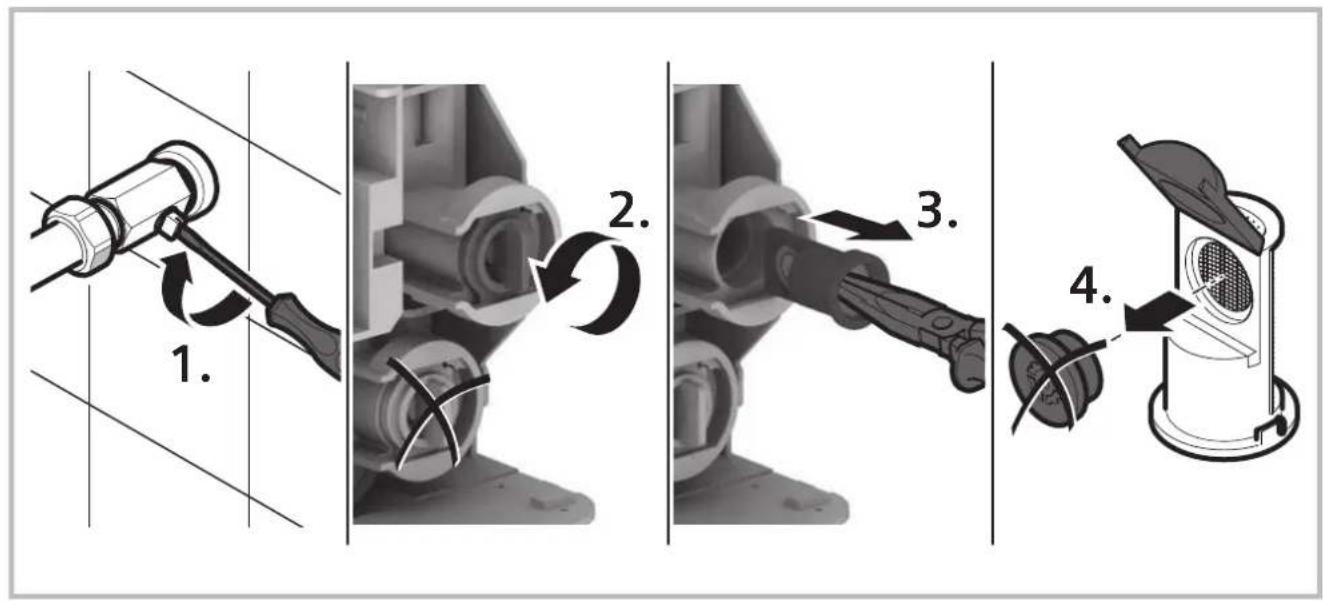

■ Remove the flow-rate limiter (see Fig. A) with low water pressure.

Explain the operation of the continuous-flow heater to the user.

If the continuous-flow heater does not have sufficient water flow due to low water line pressure in your domestic plumbing system, remove the flow-rate limiter.

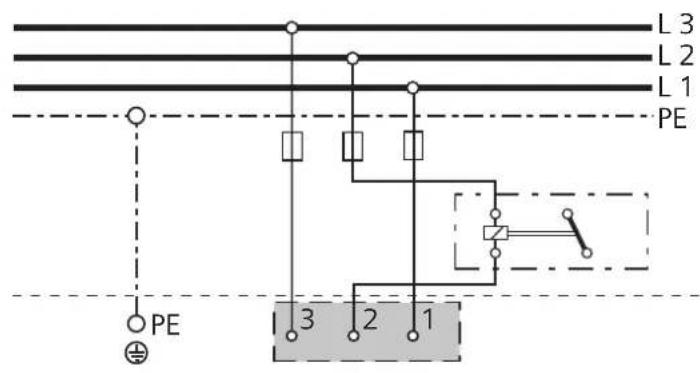

Priority circuit for the combination with electrical storage heaters: For operation with a priority circuit, a special load shedding relay BZ 45L20 (special accessory) is required. Other existing load shedding relays, with the exception of electronic load shedding relays, may malfunction.

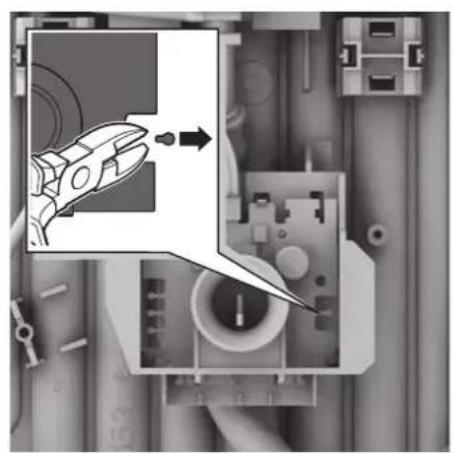

The control electronics must be coded when operated with a load shedding relay.

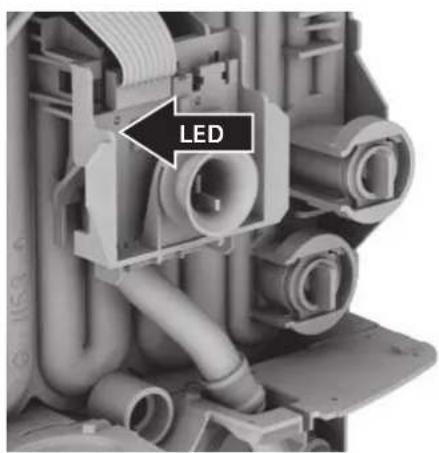

Status display on the appliance

LED	Appliance status
Off	Off
Lights up	Ready
Slow flash (1/s)	Appliance is heating
Fast flash (4/s)	Desired water temperature is not reached (water flow too high for appliance rating).

Technical data

		DE 18401 DE 21	1401 DE 24401	DE 27401
Rated output	[kW] 18 21 24 27
Rated voltage	[V] 400 400	400 400
Fuse protection	[A] 32 32 40	40
Minimum conductor cross-section	[mm2]	4	4	6	6
Warm water flow at rated output with temperature increase from
12 °C to 38 °C [l/min] 9.9 11.6 13.6 13.9
12 °C to 60 °C [l/min] 5.4 6.3 7.2 7.6
Start-up flow	[l/min] 2.6 2.6 2.6
Start-up flow pressure *	[MPa (bar)]	0.025 (0.25)	0.025 (0.25)	0.025 (0.25)	0.025 (0.25)
Application area in water specific electric resistance at 15 °C	[Ωcm]	≥1 300 ≥1 300	≥1 300 ≥1 300
Rated pressure	[MPa (bar)]	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)
Maximum permissible supply temperature	[°C]	20 20 20 20
Maximum mains impedance at connection point	[Ω]	≤0.400	≤0.400	≤0.400	≤0.400

* The pressure loss on the mixer must also be added.

236 20 472 332 388 100 42 G ½ A 124 137

Special accessories

■ Pipe kit BZ 45U20: for use of the continuous-flow heater as an under sink appliance
■ Priority switch (load shedding relay) BZ 45L20: for operation with a priority circuit
■ Mounting kit BZ 45K23: for surface mount installation

Operating instructions

Please read the operating instructions carefully before you use the appliance!

Safety information

This appliance is intended for domestic use or for household-based non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs.

We do not accept liability for damage resulting from failure to heed these instructions.

The continuous-flow heater may only be connected and put into operation by a qualified professional.

Repairs may only be undertaken by a suitably qualified specialist to avoid potential sources of danger.

The continuous-flow heater may only be installed in a frost-free room.

Persons (including children) with diminished bodily, sensory or mental perception, or those who lack knowledge or experience should not operate the appliance, unless they are monitored or have received instruction concerning use of the appliance by persons responsible for their safety.

Keep children away from the appliance. Please monitor children to ensure that they do not play with the appliance.

■ The mixer and the warm water pipe may be hot.

Please switch off all fuses immediately if a malfunction occurs. Immediately shut off the cold water supply to the appliance should it leak. The malfunction can only be repaired by a specialist or an authorised service agent.

Your new appliance

The electronically regulated flow-through heater warms the water while it flows through the unit.

How to operate the continuous-flow heater

The warm water temperature can be continuously adjusted on the electronically regulated flow-through heater:

min max

Washbasin

Shower

With the use of a thermostat battery, the following settings are recommended for high temperatures or large quantities of water, for example:

Dish washing

Cleaning

Turn on the hot-water tap.

The continuous-flow heater switches on and heats the water when the hot-water tap is turned on.

It switches off again when the tap is turned off. Changing the supply water temperature correspondingly changes the outgoing water temperature.

Increasing the water temperature

min max

If a higher temperature for a completely opened warm water tap is not achieved, more water flows than the flow-through heater can warm as a result its performance capabilities. In this case, the warm water tap must be closed somewhat.

Decreasing the water temperature

Simple diagram of a balance scale with min and max labels, no text or symbols present

Startup after a water cutoff

Switch off the appliance (unscrew the fuse in the house electrical installation).

Turn on the hot-water tap until the air is purged from the pipe.

■ switch the fuse back on again.

The appliance is ready for operation.

Saving energy

Set the desired warm water temperature directly on the flow-through heater.

Mixing with cold water at the armature for water that is too hot consumes unnecessarily water and energy.

At approx. 40 °C (temperature selection position 📋) the unit operates most economically.

Cleaning

Simply wipe the appliance with a damp cloth. Do not use intensive or abrasive cleaning agents.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the numbers on the inner side of the fold up operating panel on the continuous-flow heater.

A fault, what to do?

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

Fault Cause Solution Who
Water flow-rate is too low. The filter	in either the water tap or the showerhead is clogged	Remove the filter and either clean it or descale it.	Customer
	The filter in the corner regulating valve is clogged.	Get a servicing expert to clean the filter.	Servicing expert
The desired water temperature is not reached.	The continuous-flow heater is connected to a thermostatically-controlled water tap.	Set the temperature on the continuous-flow heater to “max”.	Customer
	The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low.	Reduce the flow-rate at the water tap supply.	Customer
		By a qualified professional: use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one.	Servicing expert
The water is not sufficiently warm.	The fuse in the house electrical installation has tripped/blown.	Check the fuse in the house electrical installation.	Customer
	The appliance's automatic circuit breaker has been tripped.	Get the appliance's automatic circuit breaker checked by an electrician. Check the permissible supply temperature.	Servicing expert
	The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low.	By a qualified professional: use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one.	Servicing expert
From time to time, cold water flows out.	The air sensor in the appliance detects air in the water and momentarily switches the heating element off.	After a few seconds, the continuous-flow heater automatically goes back into operation.	Continuous-flow heater automatically resolves problem
Winter operation:The desired water temperature leaving the tap is no longer reached.	The supply temperature has reduced.	Reduce the water flow on the taps until the desired water temperature is reached.	Customer
The appliance does not start (heat), no water flows.	Power failure or initial start-up. Starts rinsing:Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat.Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.	Customer

If the fault could not be eliminated, please call customer service.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

Simple diagram of a mixing scale with min and max labels, no text or symbols present

Illustration of an open book with a curved arrow pointing upward, no text or symbols present

Line drawing of a Siemens air conditioner unit with control panel and indicator lights (no text or symbols)

Technical diagram showing 3D views of a mechanical assembly with labeled components and annotations

Illustration of mechanical components including bolts, nuts, and washers arranged in a cross-sectional view (no text or symbols)

Hand pressing a circular object on a surface, labeled '1.' (no text or symbols on the object itself)

3D mechanical assembly diagram showing internal components and a numbered arrow (no text or symbols)

3D mechanical assembly diagram showing a tool interacting with a component, labeled with number 2 (no text or symbols on the diagram itself)

4. 4.

3D mechanical assembly diagram showing internal components and wiring, labeled with number 5.1 (no text or symbols on the structure itself)

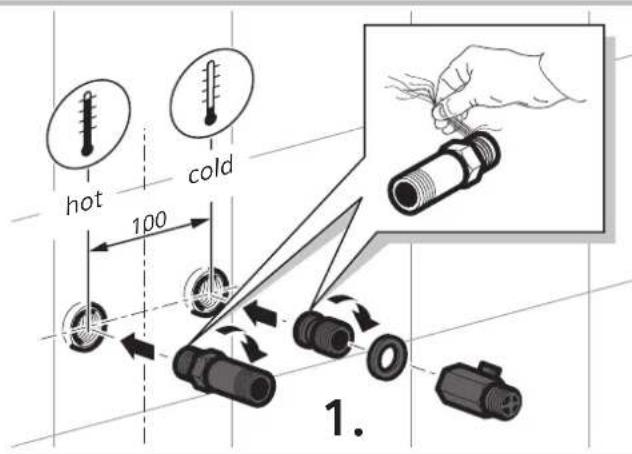

hot cold 100 1.

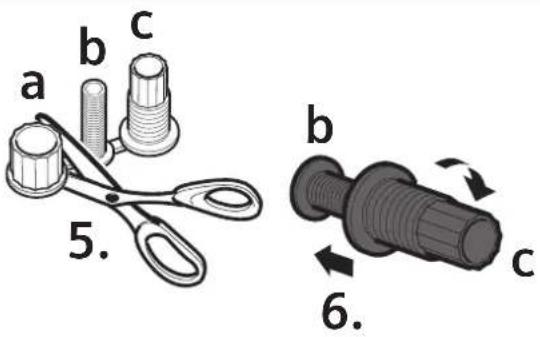

a b c 5. 6. b c

2. 3.

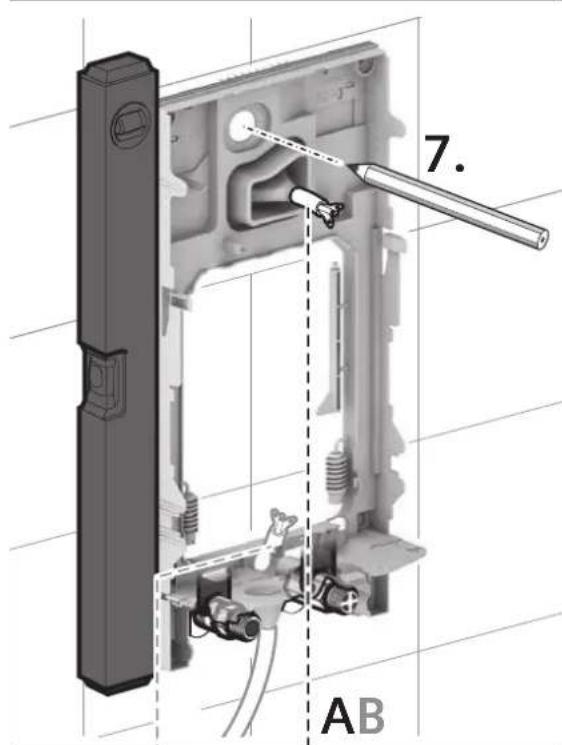

7. AB

4A 4B

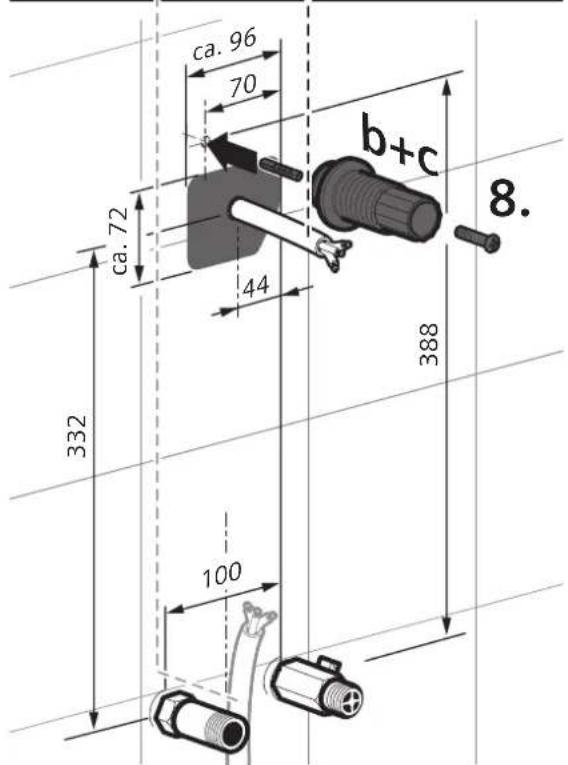

ca. 96 70 b+c 8. ca. 72 44 332 388 100

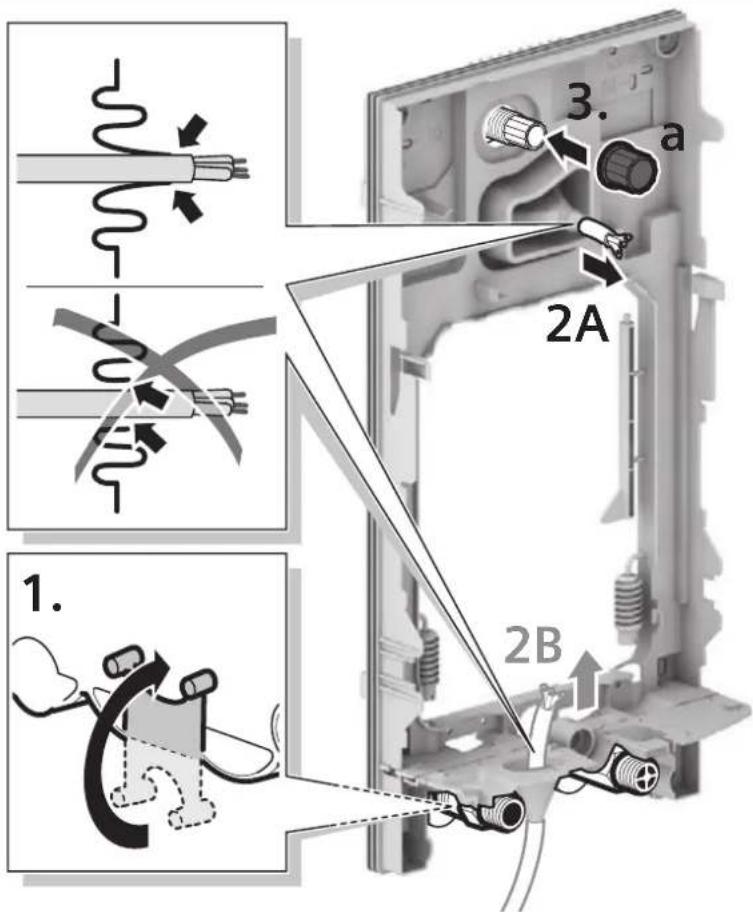

1. 2A 3. a 2B

A

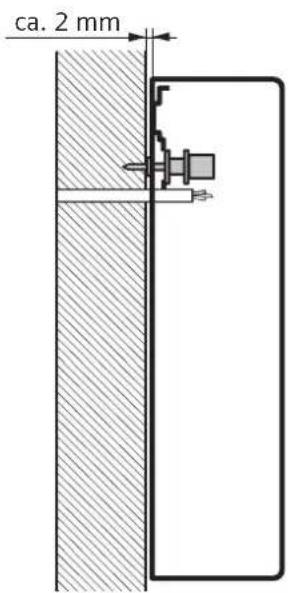

ca. 2 mm

B

max. 16 mm

1. 2. 3.

1.

Diagram of a mechanical component with an arrow indicating motion or transformation (no text or symbols present)

5.

Technical diagram showing mechanical assembly steps with numbered annotations and component illustrations

1 Minute entlüften!

Vent for one minute!

Close-up of a mechanical component with a circular knob and curved arrow indicator (no text or symbols)

3. 4.

A

Technical diagram illustrating four-step assembly steps of a mechanical device, labeled 1 to 4 with directional arrows indicating motion.

B

L 3 L 2 L 1 PE PE 3 2 1

C

Mechanical assembly diagram showing a pin inserted into a housing component with a magnified inset highlighting the tool path (no text or symbols present)

D

LED
