USER MANUAL DE08101M SIEMENS
de Deutsch 2
en English 12
fr Francais 22
nI Netherlands 32
pl Polski 42
DE04101M
DE10104M
DE05101M
DE06101M
DE06111M
DE08101M
DE08111M
6720820338
9001217906
Montage- und
Gebrauchsanleitung
Installation and
operating instructions
Notice de montage
et d'utilisation
Montage-en
gebruikshandleiding
Instrukcja montazu
i uzytkowania

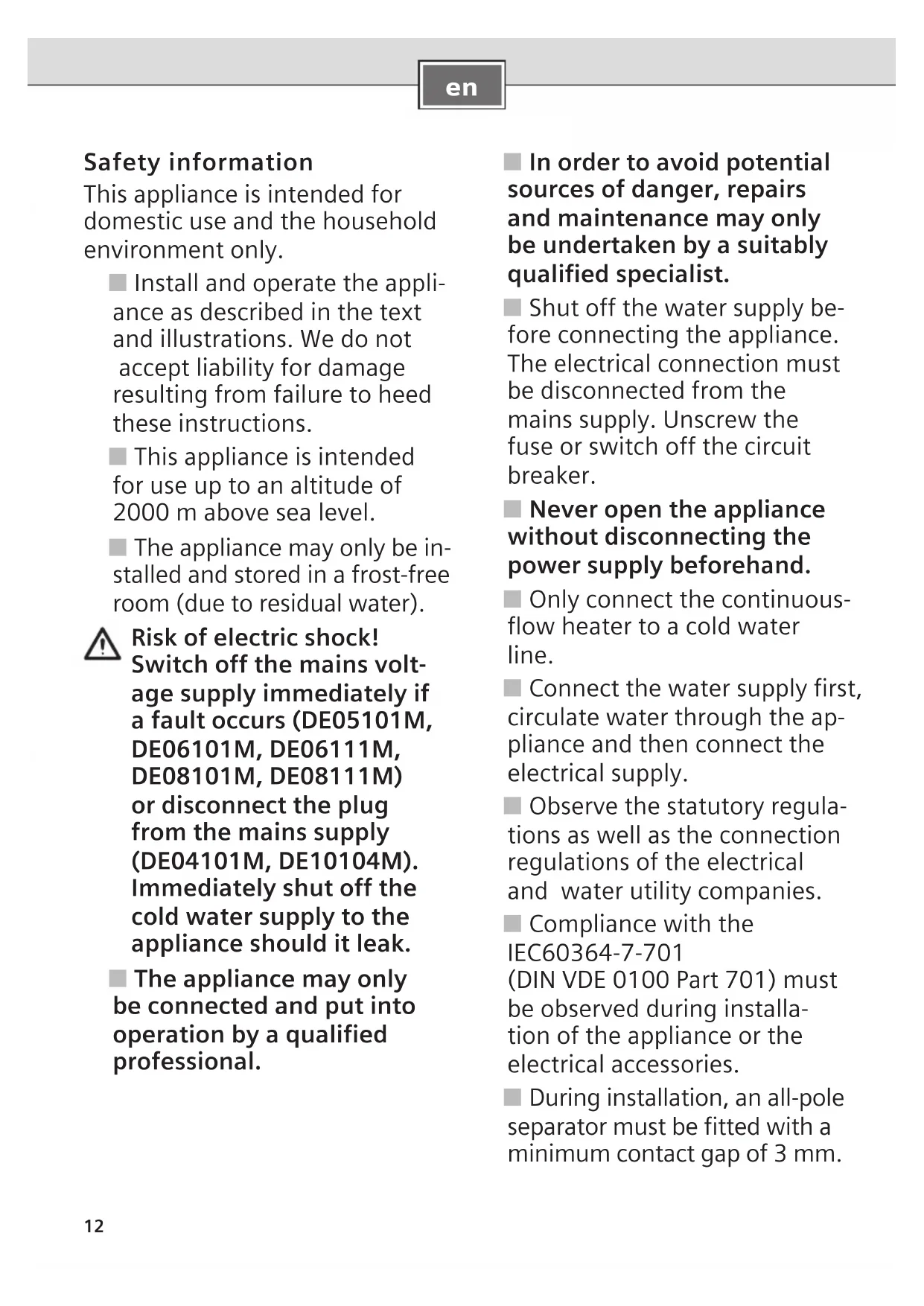

Sicherheitshinweise
Eine Störung, was tun?
Achtung!
This appliance is intended for domestic use and the household environment only.
Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
This appliance is intended for use up to an altitude of 2000m above sea level.
The appliance may only be installed and stored in a frost-free room (due to residual water).
Risk of electric shock! Switch off the mains voltage supply immediately if a fault occurs (DE05101M, DE06101M, DE06111M, DE08101M, DE08111M) or disconnect the plug from the mains supply (DE04101M, DE10104M). Immediately shut off the cold water supply to the appliance should it leak.
The appliance may only be connected and put into operation by a qualified professional.
In order to avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
- Shut off the water supply before connecting the appliance. The electrical connection must be disconnected from the mains supply. Unscrew the fuse or switch off the circuit breaker.
Never open the appliance without disconnecting the power supply beforehand.
Only connect the continuousflow heater to a cold water line.
Connect the water supply first, circulate water through the appliance and then connect the electrical supply.
Observe the statutory regulations as well as the connection regulations of the electrical and water utility companies.
Compliance with the IEC60364-7-701 (DIN VDE 0100 Part 701) must be observed during installation of the appliance or the electrical accessories.
During installation, an all-pole separator must be fitted with a minimum contact gap of 3mm
The continuous-flow heater is a Class I appliance and must be connected to the protective earth.
Permanently installed appliances must be permanently connected to fixed wiring. The conductor cross-section must comply with the appliance being installed.
Caution: Earthy water pipes may give the appearance of a connected protective earth.
The continuous-flow heater is suitable for connection to DVGW-tested plastic pipes.
After installation, electrically live parts must be touch protected.
The appliance should be disconnected from the electrical mains supply when working on the water supply. After service work is complete, proceed as during the first-time appliance start-up.
No changes may be made to the appliance.
This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experi
ence, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.
- Keep children away from the appliance.
Please monitor children to ensure that they do not play with the appliance.
The warm water pipe may be hot. Please inform and instruct children appropriately.
If the power cord of this unit is damaged, it must be replaced by the manufacturer, an authorised servicing agent or a similarly qualified person so as to avoid danger.
Do not use aggressive or abrasive cleaning detergents!
Do not use a steam cleaner.
The appliance is only to be descaled by a suitably qualified specialist.
Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.
Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.
Installation instructions
Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.
The illustrations can be found in the centre of the instruction manual.
Unpacking
Inspect the new appliance for transport damage!
Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.
Scope of delivery
1 Housing
2 Mounting (3 screws, 3 wall plugs)
3 Operation indicator (only on DE06111M and DE08111M)
4 Installation bracket
5 Mounting bracket
6 Aerator
7 Documentation

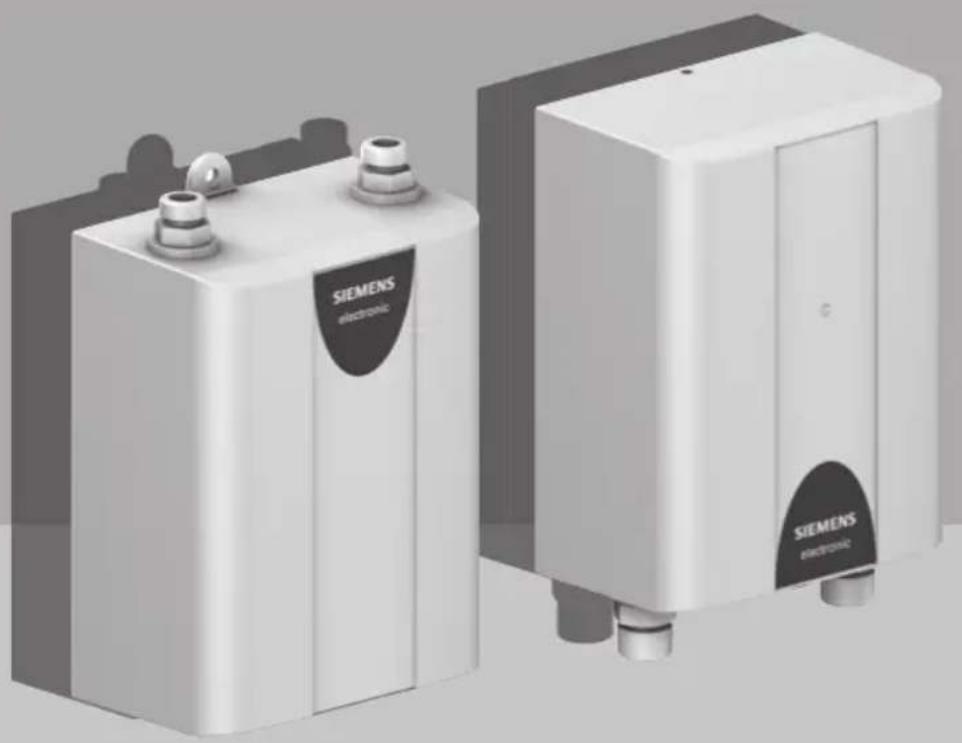

Product description
The electronic continuous-flow heater is suitable for both open (unpressurised) and closed (pressurised) connections. It heats the water as it passes through the appliance.
The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off as soon as the tap is closed.
The appliance may not be operated with pre-heated water, as otherwise the overtemperature protection will trip.
This installation and operating instruction manual describes various appliance types:
Over-sink appliances:
- DE06111M and DE08111M: for fixed electrical connection
Undersink appliances:
- DE04101M and DE10104M: with plug connection
- DE05101M, DE06101M and DE08101M: for fixed electrical connection
Only for permanently installed appliances:
The device is compliant to IEC 61000-3-12.
Preparations for installation
Shut off the water supply before connecting the appliance. The electrical connection must be disconnected from the mains supply. Un-screw the fuse or switch off the circuit breaker.
For all appliances
A clearance of about 60~mm on all sides of the appliance is required for installation.
Observe the technical appliance data.
Break out the installation bracket from the rear of the appliance (A).
Only for DE04101M and DE10104M
Break out one of the side knock-outs (B1) provided for an incoming electrical supply cable.
Feed the desired length of the incoming electrical supply cable downwards through the knockout (B2).
Important: Connect the unit only to a mains socket with protective contact that is installed according to regulations. Do not use an extension cord. If necessary, equip the unit with a longer cord.
Only for DE05101M, DE06101M, DE06111M, DE08101M and DE08111M (fixed electrical connection)
Press the upper and lower latches (C1), then remove the housing cover (C2).
Wall mounting
Undersink appliances
- Attach mounting template D to the wall.
Mark the locations for the holes; drill the holes and insert the wall plugs. - Attach the installation bracket to the wall using the screws (D1).
Only for permanently installed appliances:
Pass the connection cable through the cable grommet, suspend the appliance in the installation bracket and screw it onto the mounting bracket (D2).
Only for appliances with mains plug:
- Suspend the appliance in the installation bracket and screw it onto the mounting bracket (D3).
Over-sink appliances
- Attach mounting template E to the wall.
Mark the locations for the holes; drill the holes and insert the wall plugs. - Attach the installation bracket to the wall (E1).
Pass the connection cable through the cable grommet, suspend the appliance in the installation bracket and screw it onto the mounting bracket (E2).
Only for DE05101M, DE06101M, DE06111M, DE08101M and DE08111M (fixed electrical connection)
The variants for feed through of cables using flush mounting electrical connection should be observed on the mounting template.
The cable grommet must completely enclose the connection cable to guarantee optimum protection against dampness. The opening must be sealed watertight if it is damaged.
Use the openings provided on the rear for mounting.
Water connection
Left: pressurised (closed); right: unpressurised (open)
The appliance is only approved for heating water with a specific electric resistance of ≥ 1300 cm at 15^ . Your water utility company can give you information about the specific water resistance.
Installation
Ensure the axial fit of the connection pipes in the nozzles.
- Tighten the union nuts on the nozzles with an open-end wrench and counter hold with a suitable open-end wrench.
The T-piece (for the pressurised connection) and flexible connection hose are available commercially.
Only the approved unpressurised valves may be used when connecting without pressure (Special accessories: Single-lever mixer tap BZ13062, Two handle fixture BZ13051).
Exchange the perlator from the tap fixture with the supplied aerator to change the spray pattern of the tap.

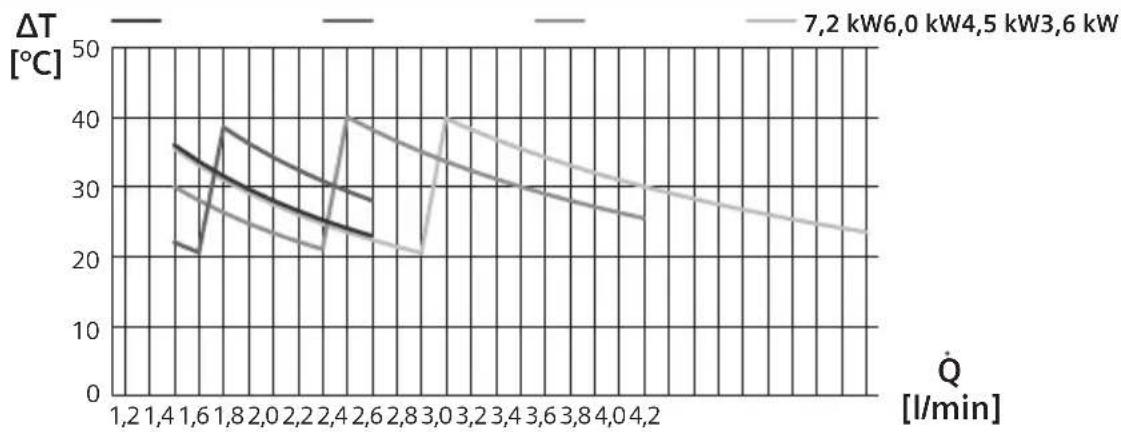

Controlling temperature
The supply temperature (probably lower in winter) and pressure fluctuations can influence the temperature of the water leaving the tap.
Turn the valve slowly in the closed direction for higher temperatures (F1).
Add cold water for lower temperatures (F2).
Electrical connection
DE05101M, DE06101M, DE06111M, DE08101M and DE08111M (fixed electrical connection)
Connect the appliance on the terminal strip in accordance with the connection schematic.
Put on the housing cover and push it onto the rear wall of the appliance so that the upper and lower latches engage.
DE04101M and DE10104M
Replacing the Power Supply Cord:
The power supply cord must be replaced by our customer service only in order to avoid a hazard. The mains plug must be pulled before replacing.
For all appliances

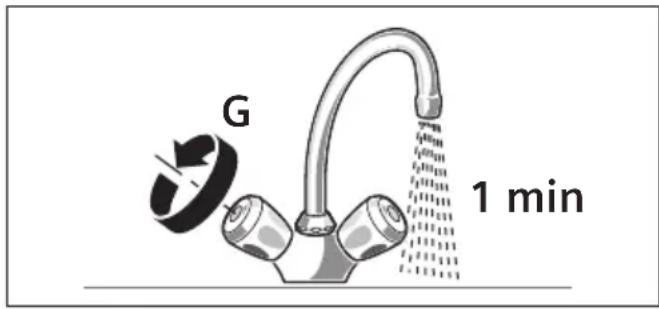

Vent the continuous-flow heater: Fully open the warm water tap and flush out the appliance for about 1 minute (G), until bubbles no longer emerge.
After installation
DE05101M, DE06101M, DE06111M, DE08101M and DE08111M (fixed electrical connection)
Switch on the fuses.
DE04101M and DE10104M
Insert the plug into the mains socket.
First start-up
Initial rinsing
Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 2 litres per minute). Only then (for safety reasons) will the appliance begin to heat.
Info: The appliance will not heat if the dispensed water flow is interrupted prematurely. Open the warm water tap again and allow water to flow for at least 1 minute.
Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, aerator or similar before starting and repeating the process.
Important: If the continuous-flow heater does not have sufficient water flow due to low water line pressure in your domestic plumbing system:
- Switch off the circuit-breakers/fuses or remove the mains plug.
Remove the flow-rate limiter (H1-H4).
Controlling temperature
The supply temperature (probably lower in winter) and pressure fluctuations can influence the temperature of the water leaving the tap (see Fig. IV, left: pressurised [closed], right: unpressurised [open]).
Turn the valve slowly in the closed direction for higher temperatures (F1).
Add cold water for lower temperatures (F2).
Hand over the installation and operating instructions to the user and explain how the appliance operates.
Technical data
| Type | DE04101M DE10104M Undersink | DE05101M Undersink | DE06101M Undersink | DE08101M Undersink | DE06111M Over-sink | DE08111M Over-sink | |
| Design | pressurised | pressurised | pressurised | pressurised | pressurised | ||
| Power | [kW] 3.6 | 4.5 6 7.2 6 7 | 2 | ||||
| Electrical connection | [V] 230 | 230 230 230 | 230 230 | ||||
| Minimum cable cross-section | [mm²] 1 | 5 2.5 4 4 4 4 | |||||
| Rated current | [A] 15.7 | 19.1 26 | 31.3 26 | 31.3 | |||
| Fuse protection | [A] | 16 | 20 | 32 | 32 | 32 | 32 |
| Water connection thread | [Inch] | G 3/8 | G 3/8 | G 3/8 | G 3/8 | G 1/2 | G 1/2 |
| Supply temp. max. | [°C] | 20 | 20 | 20 | 20 | 20 | 20 |
| Warm water output at supply temp. of 12 °C to 38 °C | [I/min] | 1.9 2.4 3.2 | 3.9 3.2 | 3.9 | |||
| Protection type | IP | 24 | 24 | 24 | 24 | 24 | 24 |
| Switch on flow pressure (without flow rate limiter) | [bar] | <0.25 | <0.25 | <0.25 | <0.25 | <0.25 | <0.25 |
| Switch on flow | [I/min] | 1.8 | 1.8/1.9 | 1.8/2.1 | 1.8/2.3 | 1.8/2.1 | 1.8/2.3 |
| Switch off flow | [I/min] | 1.6 | 1.6/1.7 | 1.6/2.0 | 1.6/2.2 | 1.6/2.0 | 1.6/2.2 |
| Flow lomit at | [I/min] | 2 | 2 | 3 | 4 | 3 | 4 |
| Weight | [kg] | 1.1 1.1 1.1 | 1.1 1.1 | 1.1 | |||
| Application area in water: specific electric resistance at 15°C | [Ωcm] | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Rated pressure | [MPa(bar)] | 1.0 (10.0) | 1.0 (10.0) | 1.0 (10.0) | 1.0 (10.0) | 1.0 (10.0) | 1.0 (10.0) |
| Plug-in ready | ✓ | - | - | - | - | - | |
| Fixed connection | - | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Energy efficiency class | A | A | A | A | A | A | |
| Load profile | XXS XXS | XXS | XXS XXS | XXS | |||
| Annual energy consumption | [kWh] | 467 470 470 | 471 470 471 | ||||
| Daily energy consumption | [kWh] | 2.145 | 2.150 | 2.154 | 2.161 | 2.154 | 2.161 |
| Sound power level | [dB] | 15 | 15 | 15 | 15 | 15 | 15 |
| Hot water heating energy efficiency | [%] | 39.4 | 39.3 | 39.2 | 39.1 | 39.2 | 39.1 |
The temperature of the water leaving the tap is dependent on the flow of water:
Operating instructions
Please read and observe the detailed safety instructions at the start of these instructions!
Important: The appliance may never be exposed to frost!
Risk of electric shock!
Switch off the mains voltage supply immediately if a fault occurs (DE05101M, DE06101M, DE06111M, DE08101M, DE08111M) or disconnect the plug from the mains supply (DE04101M, DE10104M).
- Immediately shut off the cold water supply to the appliance should it leak.
Operation
The electronic continuous-flow heaters of this series operate automatically.
Switching on
- Open the tap fully. The electronic continuous-flow heater switches on. The water is heated as it flows through the appliance.
- The over-sink appliances DE06111M and DE08111M feature an automatic operation indicator. The operation indicator lights yellow at half power and red at full power, dependent on the water flow rate.
Switching off
Close the tap, and the appliance will switch off.
Regulating water temperature
Open the tap fully, and the appliance switches on.
Now increase the temperature of the water by reducing the flow of water.
Info: In winter, the temperature of the water supply may be lower, so that the temperature of the water leaving the tap will not be reached. Please proceed as described under "Water connection".
Cleaning
Do not use aggressive or abrasive cleaning detergents! Do not use a steam cleaner.
Clean appliance externally with a mild cleaning agent.
Clean the dirt and lime scale deposits in the aerator filter.
Maintenance
Repairs and maintenance may only be carried out by an authorised customer service representative to avoid potential sources of danger.
The electrical mains supply and the water supply must be shut off before all work on the appliance.
Customer Service
We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer.
You will find the number between both water connection nozzles of the continuous-flow heater.
Disposal
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling of used appliances as appli cable throughout the EU.
Please ask your specialist retailer about current disposal facilities
Guarantee
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer, from whom the appliance was purchased, or directly from our representative in the country. Furthermore, the guarantee conditions can also be found on the Internet at the website address stated. The bill of sale or receipt must be produced when making any claims under the terms of this guarantee.
Subject to change without notice.
A fault, what to do?
Attention!
Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.
If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.
| Fault Cause Solution | Who | ||
| The appliance does not start (heat), no water flows. | The fuse in the house electrical installation has tripped/ blown. | Check the fuse in the house electrical installation. | Customer |
| Power failure or initial start-up. | Starts rinsing: Open the warm water tap and allow water to flow for at least 30 seconds (flow-rate at least 2 litres per minute). Only then (for safety reasons) will the appliance begin to heat. Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process. | Customer | |
| The air sensor in the appliance detects air in the water and momentarily switches the heating element off. | |||
| The desired water temperature leav-ing the tap is no longer reached. | The supply temperature has reduced. | Reduce the water flow on the taps until the desired water temperature is reached. | Customer |
| Water flow-rate is too low. | The filter in either the water tap or the showerhead is clogged. | Remove the filter and either clean it or descale it. | Customer |
| The filter in the corner regulating valve is clogged. | Remove, clean and reinstall the filter. Circulate water through the appliance. If necessary, repeat this procedure until the filter is free of particles. | Servicing expert | |
| The water is not sufficiently warm. | The appliance's automatic circuit breaker has been tripped. | Get the appliance's automatic circuit breaker checked by an electrician. Check the permissible supply temperature. | Servicing expert |
| Water flow-rate is too high and/or the cold water supply temperature is too low. | Use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one. | Servicing expert |
If the fault could not be eliminated, please call customer service.
European Trade Center Building, 5th floor
1784 Sofia
Tel:070020818
Fax:028787972
mailto:informacia.servis-bg@bshg.com
www.siemens-home.bg
CH Schweiz, Suisse, Svizzera, Switzer
BSH Hausgerate AG
Central Branch Service
17 km E.O. Athinon-Lamias &
Potamou 20
14564 Kifisia
Unit 1 & 2, 3rd Floor
North Block, Skyway House
3 Sham Mong Road
Tai Kok Tsui, Kowloon
Hong Kong
Tel: 25656151
Fax:25656681
mailto:siemens.hk.service@bshg.com
www.siemens-home.com.hk
HR Hrvatska, Croatia
BSH kučni urežadi d.o.o.
Kneza Branimira 22
10000 Zagreb
Tel. 015520999
Fax:016403603
mailto:informacije.servis-hr@bshg.com
www.siemens-home.com/hr
LU Luxembourg
www.siemens-home.com/lu
ME Crna Gora, Montenegro
Elektronika komerc
UI.Slobode 17
84000 Bijelo Polje
Tel/Fax:050432575
Mobil: 069324812
mailto: ekobosch.servis@t-com.me
MK Macedonia, Makedonna
GORENEC
Jane Sandanski 69 lok.3
1000 Skopje
Tel.022454600
Mobil:070697463
mailto:gorenec@yahoo.com
PH Philippines
Hafele Philippines, Incorporated
Levi Mariano Avenue, Brgy. Ususan,
Taguig City 1632
Metro Manila
Tel:08423353
Fax:05713662
mailto: siemens-home@hafele.com.ph
PL Polska, Poland
TH Ratcha Anachak Thai,
BSH Home Appliances Limited
2034/1-5 Itai Thai Building,
1st Floor, New Petchburi Road
Bangkapi, Huaykwang,
Bangkok, 10310
Tel:027697970
Fax:027697971
Service Call Center 02 351 8995
Spareparts 02 769 7975
www.siemens-home.com/th
TR Türkiye, Turkey
BSH Ev Aletleri Sanayi ve Ticaret A. S.
Fatih Sultan Mehmet Mahallesi
Balkan Caddesi No: 51
34771 Umraniye, Istanbul
Tel:02164446688
Fax:02165289188
mailto:careline.turkey@bshg.com
www.siemens-home.com/tr
www.siemens-homeappliances.com
9001217906
