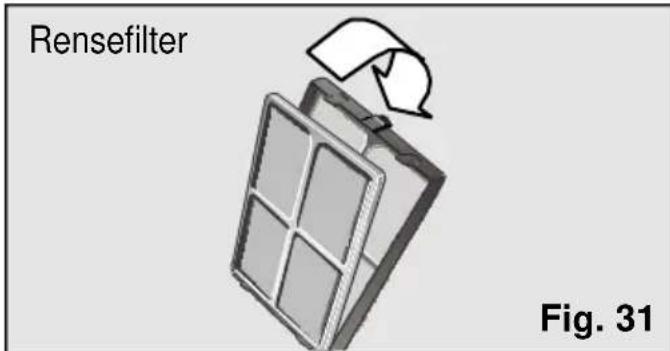

Vlies filter

Illustration of a door handle with a paper clip above it (no text or symbols)

Abb. 31

3D rendering of a BOB air duct system with coiled tubing (no text or symbols visible)

Technical illustration of a mechanical component with cross-sectional view (no text or symbols)

Environmental protection

Recommendations for the disposal of packaging 20

Recommendations for the disposal of your old appliance....20

Recommendations for saving energy ....20

Important Information

Before connecting your appliance....21

Your new appliance

Description of the appliance ....22

Control panel....23

Description of accessories....24

Requirements for use

Requirements for use ....24

Transportation requirements ....25

Instructions for Use

Cooling....25

Ways of releasing air outdoors 26

Dehumidification 28

Air purification 29

Heating 29

Cleaning and Maintenance

Cleaning the appliance ....30

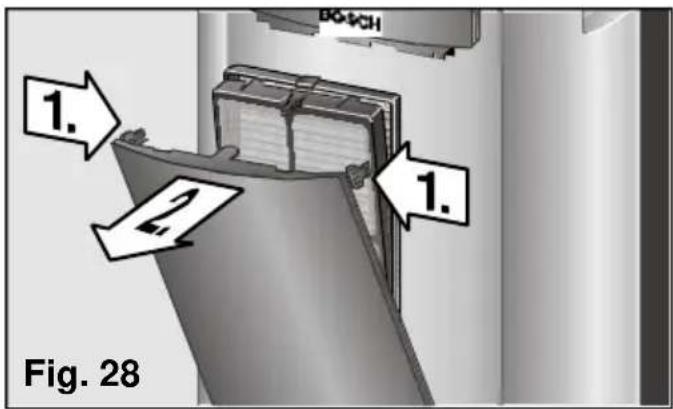

Cleaning and changing the purifying filters ....30

Storage requirements ....31

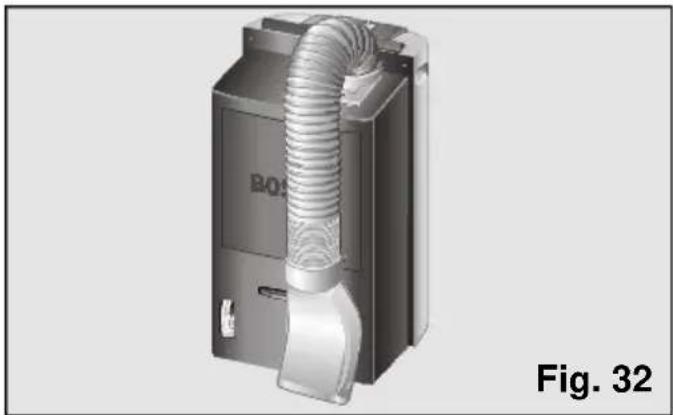

Prior to use at change of season ....31

Things to check before calling the Technical Service

General operation ....31

Noise 31

Technical service / Warranty / Technical Information....32

Recommendations for the disposal of packaging

□ Respect the environment when disposing of the packaging your appliance comes packed in.
☐ Our products are carefully packed for transportation. All of the material used in our packaging is environmentally friendly (the cardboard is manufactured from used paper) and may be recycled.
□ Recycling packaging helps conserve raw materials and reduces the amount of waste produced in the world.
□ Actively help protect the environment by disposing of packaging properly. Take it to your nearest local council disposal point or it may be possible to return it to your supplier.

Recommendations for the disposal of your old appliance

□ Unplug your appliance from the mains electricity supply and cut the power cable.
□ Appliances of this kind include both recyclable material, which may be used again, and hazardous products (such as heavy metals and liquid refrigerants), which may pollute the soil or the atmosphere. Actively help protect the environment by ensuring that your old appliance is disposed of in accordance with environmentally friendly practices. Dispose of your appliance at an official disposal or recycling point (ask your local council where the nearest disposal point is). Appliances of this kind contain refrigerants which must be disposed of in accordance with current regulations.
☐ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning symbol for a trash bin with crossed and unshaded lines, indicating no waste or discharge.

Recommendations for saving energy

Your appliance consumes energy when in use. The consumption of energy produces an environmental impact. Energy consumption can be reduced enhancing the efficiency of your appliance.

□ Turn your air appliance off when it is not needed.
□ Select an ideal temperature; excessively low temperatures result in high energy consumption.
☐ Locate your appliance away from possible heat sources (sunlight, etc.) and in a position with good air circulation.
☐ Ensure that your appliance is installed properly. The energy consumed can be cut by up to 30% by reducing the entry of heat into the room with awnings, blinds or curtains on glazed surfaces.
☐ Use the accessories supplied with your appliance and the specific accessories described in “Description of accessories” in order to minimise the entry of air from outdoors. When using accessories which require holes to be drilled in walls or windows, the hole should be as precise as possible and sealed with silicon, plaster or similar material to prevent air from flowing through any gaps.
It is recommended that you follow the manufacturer's instructions concerning the air expulsion tube (see "Ways of releasing air outdoors") in order to prevent efficiency loss and unnecessary energy consumption.

☐ Avoid sharp bends on the air expulsion tube and do not lengthen it more than necessary.
☐ When expelling hot air through sliding windows, install the accessory which prevents hot air entering the room from outdoors and enhances efficiency.
☐ Make sure that the diffusion duct is positioned in such a way that the window can be closed as far as possible in order to prevent air from outdoors entering the room.
☐ Check that the sleeves (collection and diffusion) are correctly joined to the air

expulsion tube. See "Ways of releasing air outdoors"

□ Make sure that the air intakes and outlets are not obstructed. Keep them clean and free of dirt, dust and foreign objects.
☐ Make sure that the filters fitted on your appliance are clean and installed properly (see “Cleaning and Maintenance”).
☐ In the summer, ventilate the building when the air outdoors is at its coolest (early morning, night).

Important Information

Before connecting your appliance

☐ Read the instructions book before using the appliance for the first time. It contains important information concerning not only how to use the appliance, but also maintenance and personal safety.
□ Keep this instructions book. It may be needed by another user at a later date.
☐ Do not use the appliance when damaged.
☐ Your appliance should be assembled and connected to the mains electricity supply in accordance with the assembly instructions and current regulations. You may lose your warranty if you fail to observe these instructions.
☐ Our appliances are manufactured in accordance with current safety regulations. Only technicians instructed in these matters are authorised to repair them. Your safety is at stake.

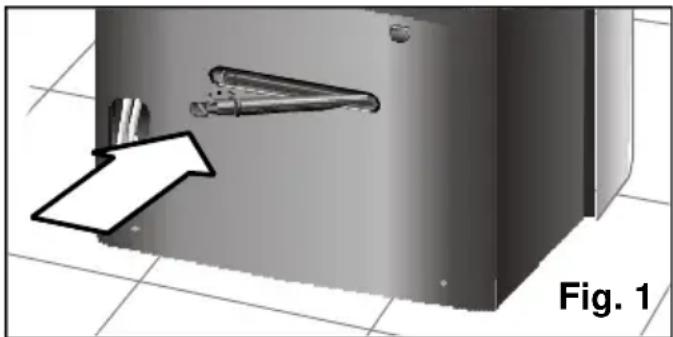

☐ Make sure that the drainage plug is fully inserted. It may have come loose during transportation, Fig. 1.

3D diagram of a mechanical component with a directional arrow and label 'Fig. 1' (no readable text or symbols)

Description of the appliance

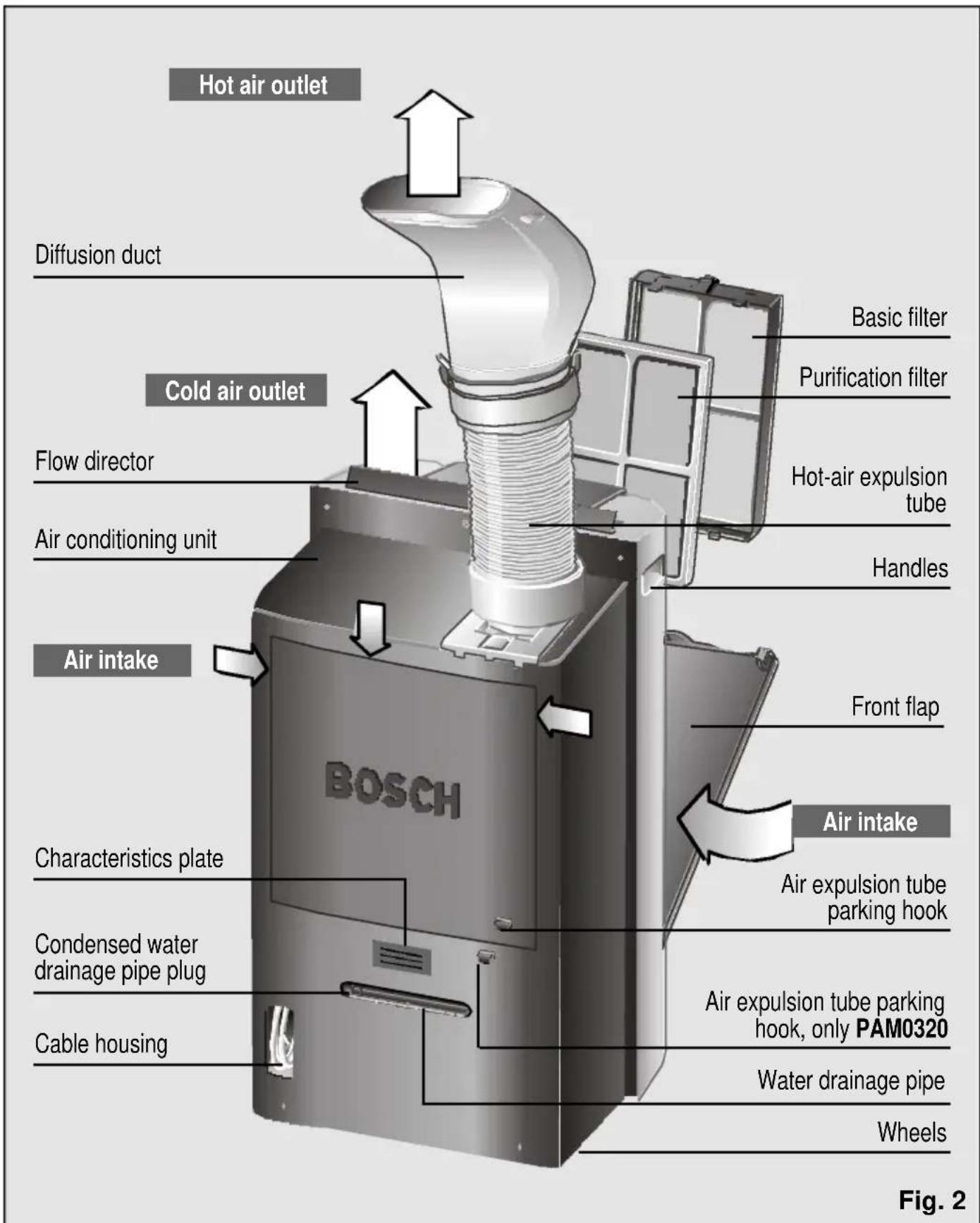

Hot air outlet Diffusion duct Cold air outlet Flow director Air conditioning unit Air intake BOSCH Characteristics plate Condensed water drainage pipe plug Cable housing Basic filter Purification filter Hot-air expulsion tube Handles Front flap Air intake Air expulsion tube parking hook Air expulsion tube parking hook, only PAM0320 Water drainage pipe Wheels Fig. 2

Your new appliance

Control panel

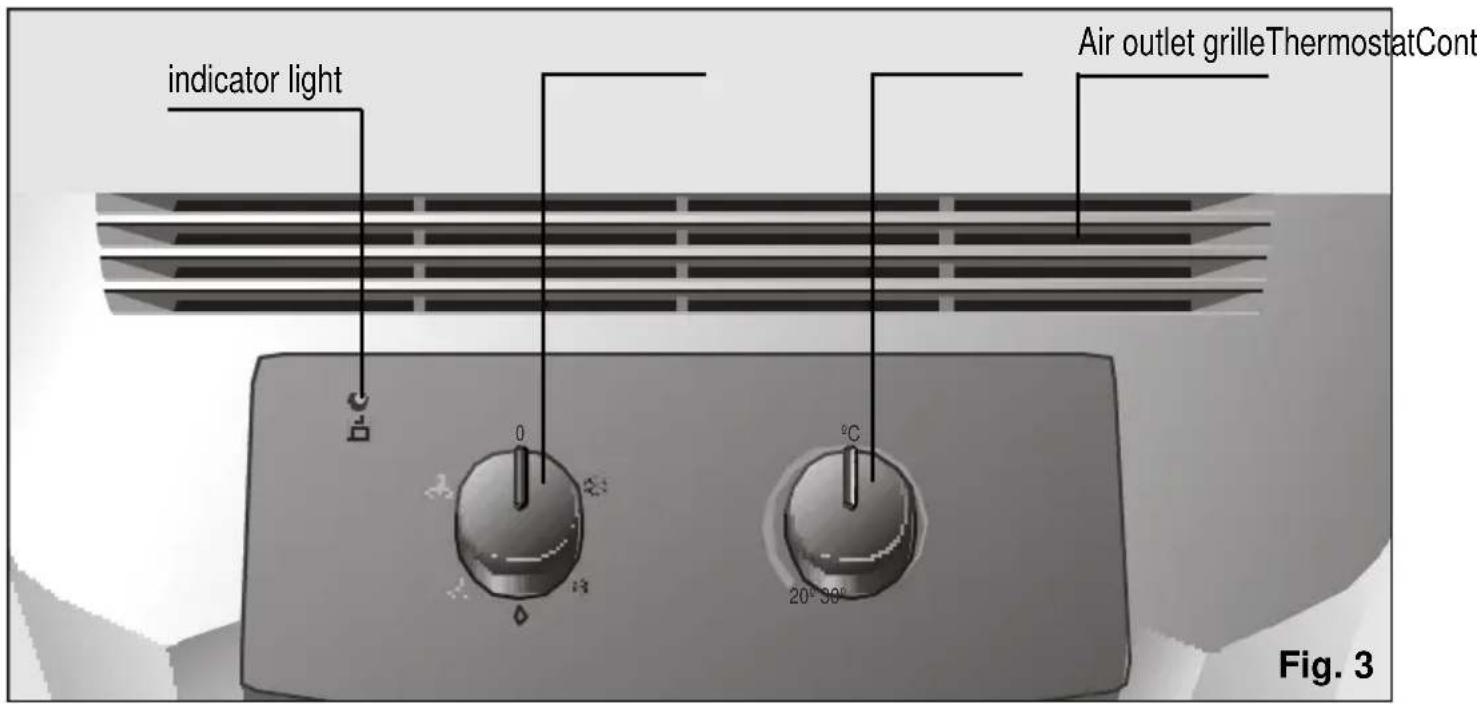

indicator light Air outlet grilleThermostatCont Fig. 3

Model PAM0320

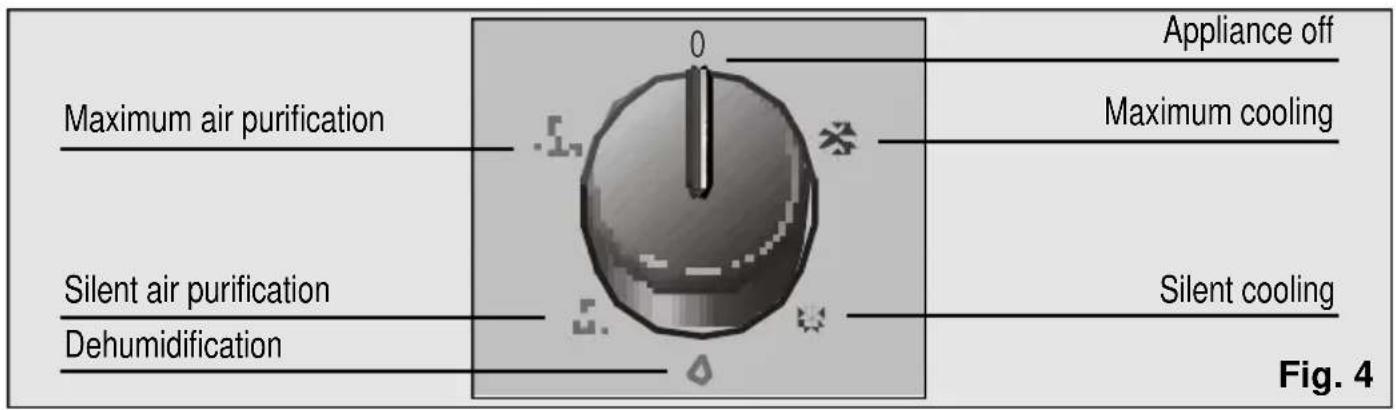

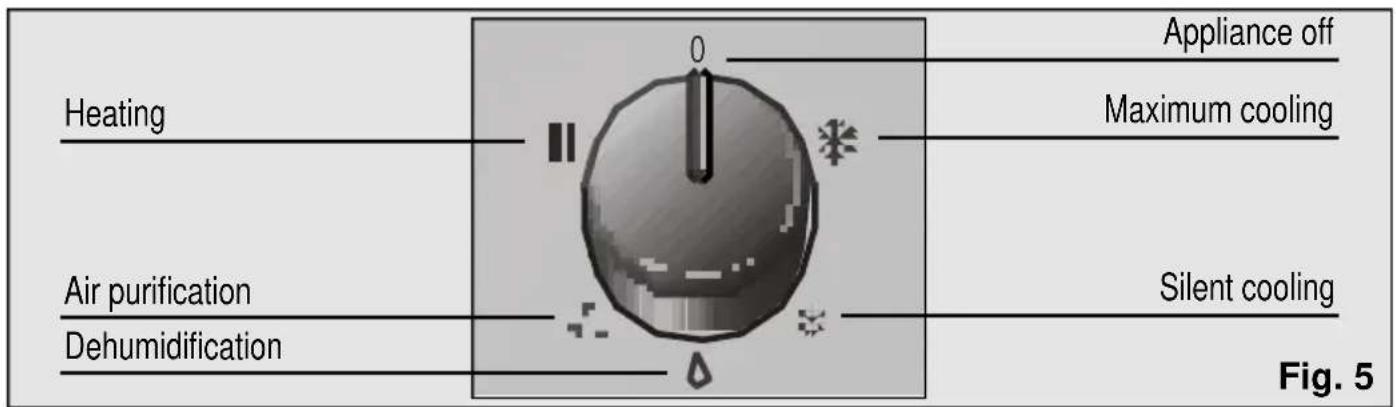

Appliance off Maximum air purification Maximum cooling Silent air purification Silent cooling Dehumidification Fig. 4

Model PAM0330

Heating Air purification Dehumidification Appliance off Maximum cooling Silent cooling Fig. 5

Description of accessories

	Suction pad filter	Base PurFilter	Purifying Double active Window	Wall grommet Sliding balconyfilter grommet accessoryArt. No: Art. No: Art. No: PAZ10000	PAZ11001 448069
PAM0320	√	√		●	●	★
PAM0330	√	√	√	●	●	★
Approx.measurementmin / max(length x width) cm.					∅ wall14	70x10/205x10

√ Standard accessories: These accessories are supplied with the appliance.

- Optional accessories: These accessories are available for purchase from the manufacturer's official technical service and authorised distributors.

* Optional accessories: These accessories are only available for purchase from the manufacturer's official technical service.

Requirements for use

☐ This home appliance should be connected to a 220/240 V, 50 Hz mains electricity supply via an earthed socket.
☐ It must be protected with a 10 A slow-action fuse.
☐ Should an extension lead be required, then this lead should be at least 1.5 mm^2 thick per terminal, less than 25 m long and earthed.
☐ There is a cavity at the back of the appliance to house the mains electricity supply cable. See Fig. 2.
☐ Do not allow water to enter your appliance and do not cover the air intakes/outlets.

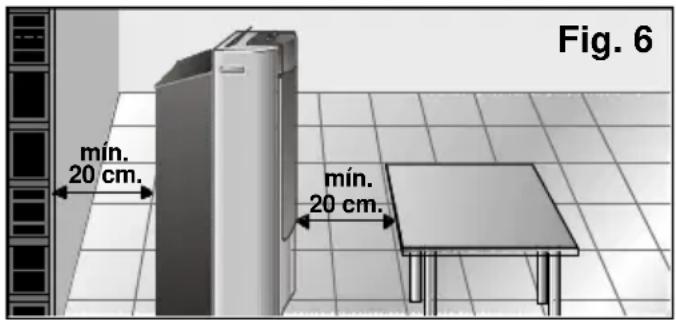

☐ For safety reasons, the appliance must be at least 20 cm away from any nearby surface before it is turned on, Fig. 6.

The mains electricity supply connection cable must only be replaced by authorised members of the manufacturer's Official Technical Service.

When the appliance is turned off and then turned back on, it takes the compressor 3 minutes to start up again. This period of time is required in order to ensure correct operation.

Requirements for use

Avoid direct contact with the air expelled through the expulsion tube.

Transportation requirements

The appliance is fitted with wheels to make it easier to move around. If necessary, you can tilt the appliance in order to move it. You should not turn the appliance back on again for a minimum period of one hour after performing this procedure.

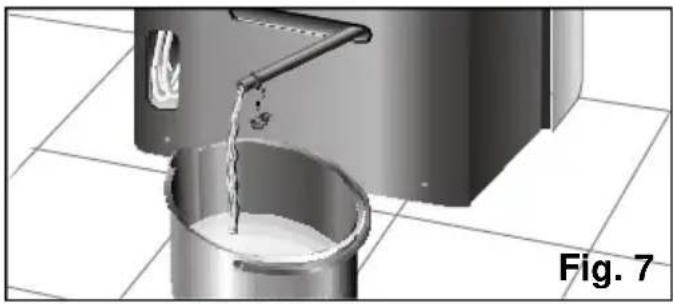

☐ Before tilting it, empty the condensed water from the internal tank by extracting the

water drainage pipe from its housing and removing the plug, Fig. 7. Do not forget to replace the plug and reinsert the pipe in its housing when the tank is empty.

3D rendering of a kitchen appliance pouring liquid into a bucket on tiled floor (no text or symbols)

Instructions for Use

Cooling

The appliance cools and dehumidifies the air in the room at the same time in order to create a pleasant atmosphere.

□ Plug the appliance into the mains electricity supply.
☐ Lead the hot air expulsion tube outside. In order to avoid excessive noise and efficiency loss, the air expulsion tube should be positioned as shown in Fig. 14. See "Ways of releasing air outdoors".
☐ Check that the plug, Fig. 1, is fitted on the drainage pipe to prevent water from leaking onto the support surface.
☐ Lift the air director on the top of the appliance. This air director is not installed on the appliance on PAM0330 models. See figures 25 and 26 in "Heating".

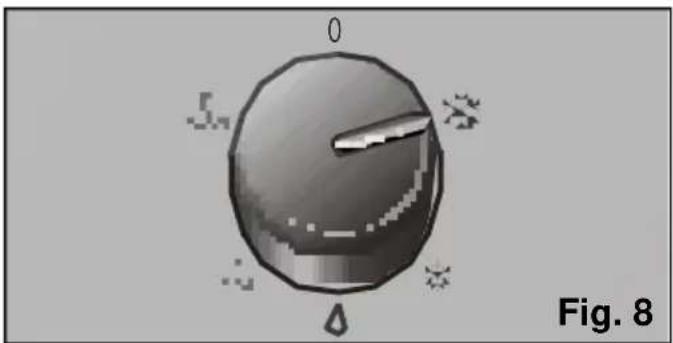

□ Select the maximum ✗ or silent ✗ cooling function, Fig. 8. (The silent cooling function reduces the air flow on the appliance).

Illustration of a stylized 3D sphere with labeled points and decorative elements, no readable text or symbols.

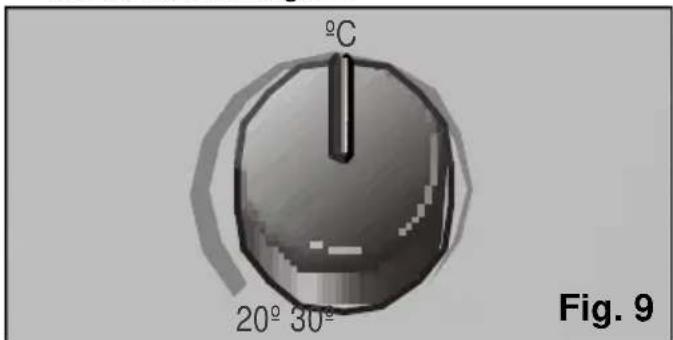

☐ Set the thermostat to the desired temperature, Fig. 9. If the appliance turns itself off automatically because the thermostat trips, it is necessary to wait for ambient temperature to rise 2-3°C before it comes back on again.

°C 20° 30° Fig. 9

During air conditioning, some of the condensed water produced evaporates automatically and is expelled outdoors together with the expelled air through the hot air expulsion tube.

In conditions of extreme humidity, the appliance accumulates condensed water in an internal tank. When a certain level is reached an indicator light, Fig. 3, comes on indicating that the condensed water tank is full and needs to be emptied. When this happens, the appliance stops cooling the air in the room until the water is drained, as explained in "Transportation requirements", Fig. 7.

☐ It is recommended that you turn the appliance off while draining the water.

Instructions for Use

Warning!

Remember that when the appliance is turned off and turned back on, it is necessary to wait for approximately 3 minutes before the compressor starts up again. This period of time is required in order to ensure correct appliance operation.

Ways of releasing air outdoors

Fitting the air expulsion tube and accessories onto the appliance

Fit the air expulsion tube onto the fixture with the "push" tab and thread it anti-clockwise, Fig. 10.

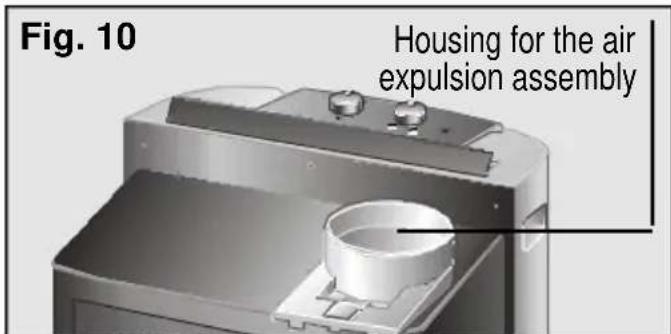

Fig. 10 Housing for the air expulsion assembly

If easier, the housing can also be removed from the appliance by pressing the "Push" tab and sliding it out, Fig. 11A.

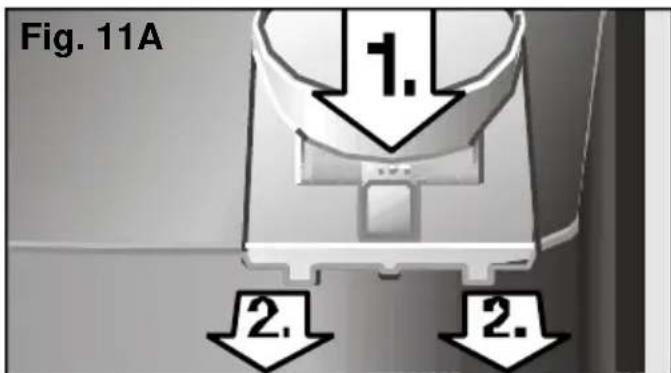

Fig. 11A 1. 2. 2.

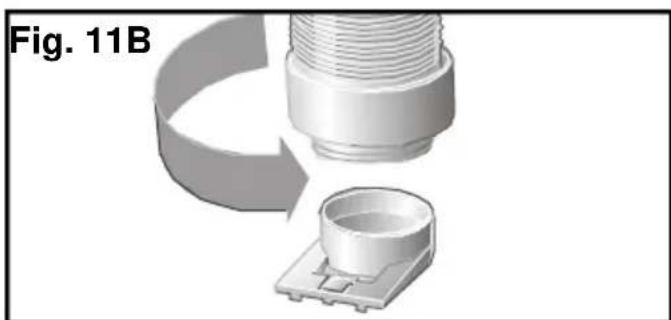

Once out, thread the expulsion tube as shown on Fig. 11B, making sure that it is properly secured.

3D rendering of a mechanical component with threaded end and base, labeled Fig. 11B (no text or symbols on the diagram itself)

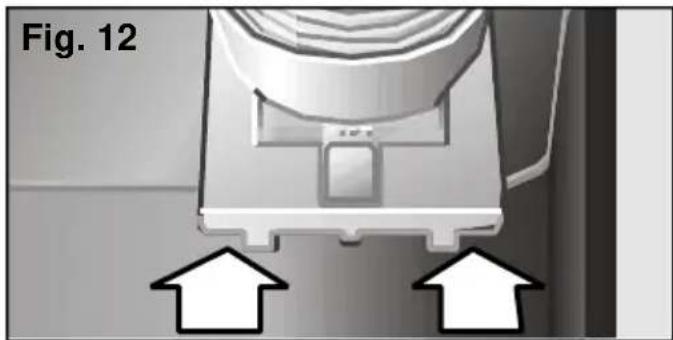

Then fit the assembly onto the appliance by slotting it into position Fig. 12.

Close-up of a mechanical component with two white arrows pointing to features, labeled 'Fig. 12' (no readable text or symbols beyond label)

Securing the diffusion duct onto the air expulsion tube

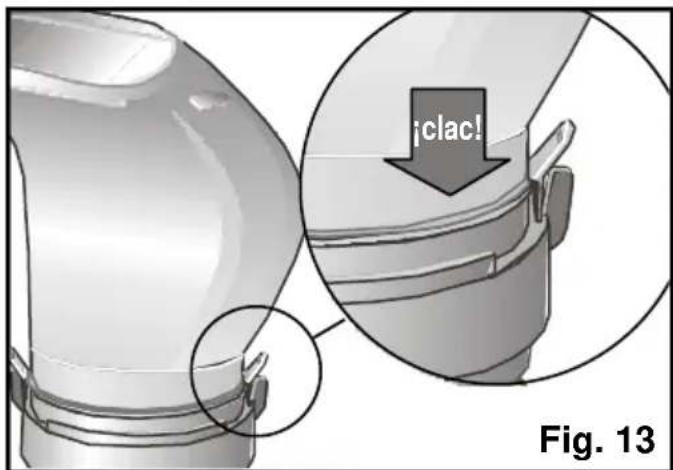

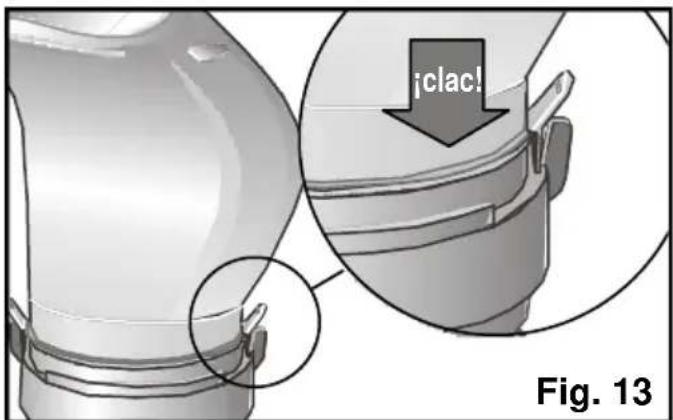

Fit the diffusion duct onto the free end of the tube pushing both parts gently until the duct clicks into place. Make sure that the clips are closed. Otherwise, the duct may fall off. Fig 13.

jclac! Fig. 13

Temporary installation

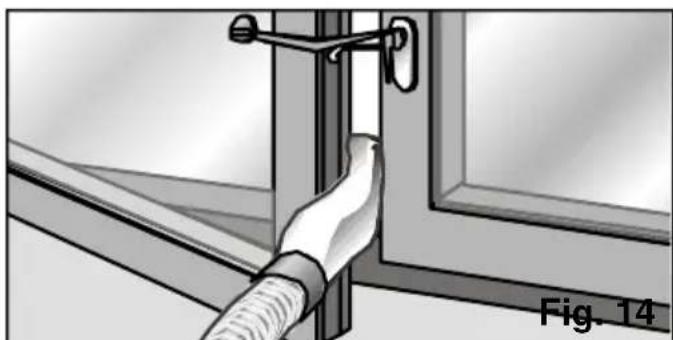

□ Open the window slightly and position the diffusion duct between the jamb and the glaze frame.
☐ Close the window as far as possible and secure it with the suction pad supplied, Fig. 14.

Illustration of a hand holding a tool near a window frame, labeled Fig. 14 (no text or symbols on the diagram itself)

Instructions for Use

- The sliding window/balcony installation accessory can also be used (See "Description of accessories"). Fig. 15: a, b, c, d. This accessory can be used for both horizontal and vertical windows / balconies.

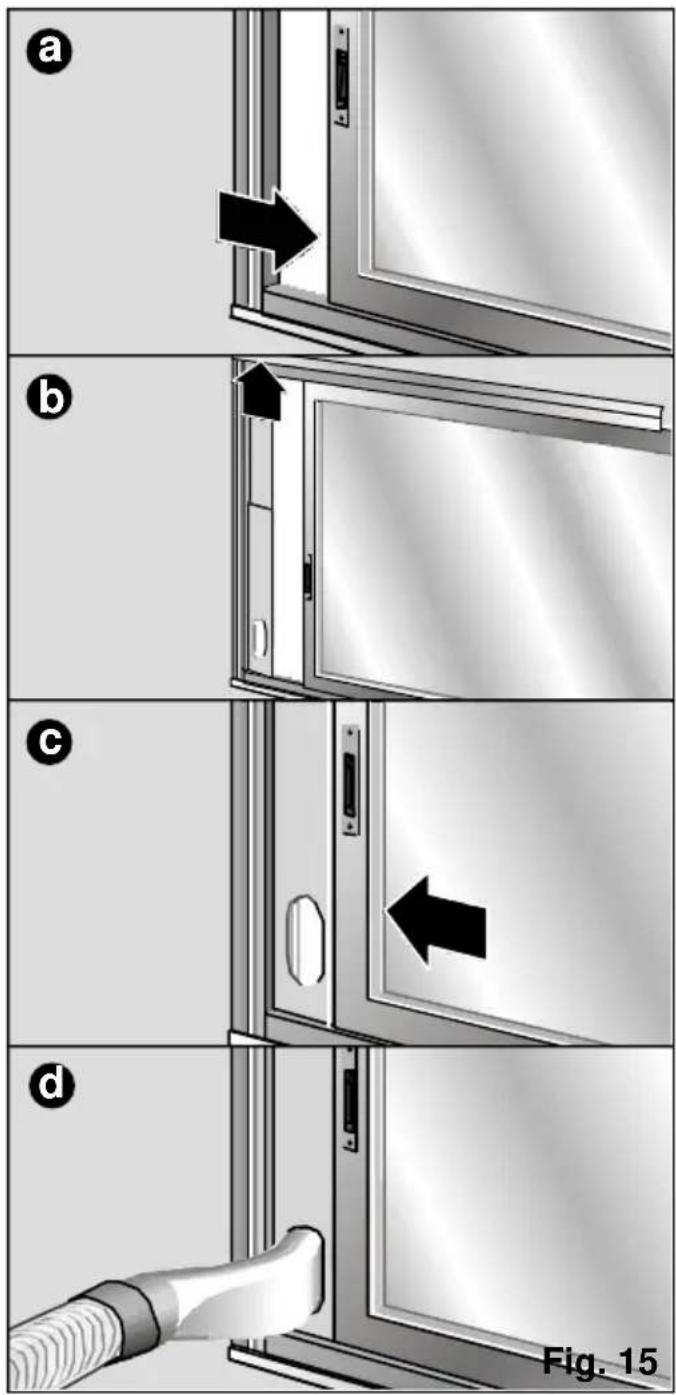

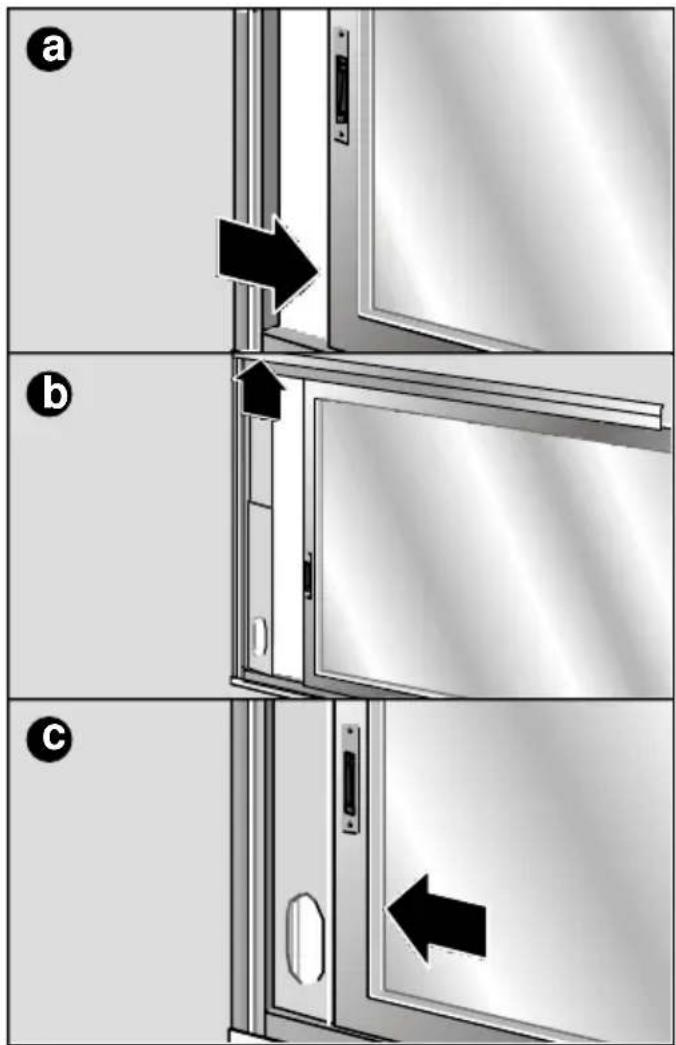

a b c d Fig. 15

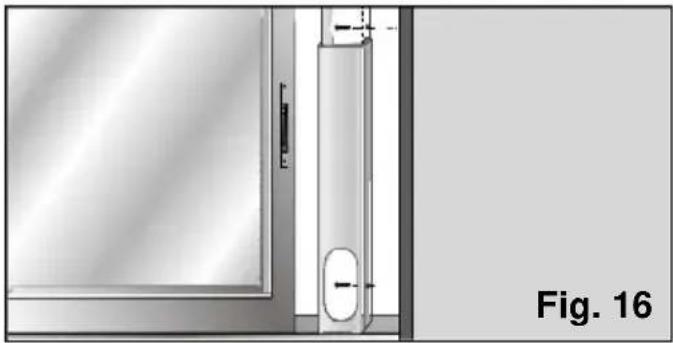

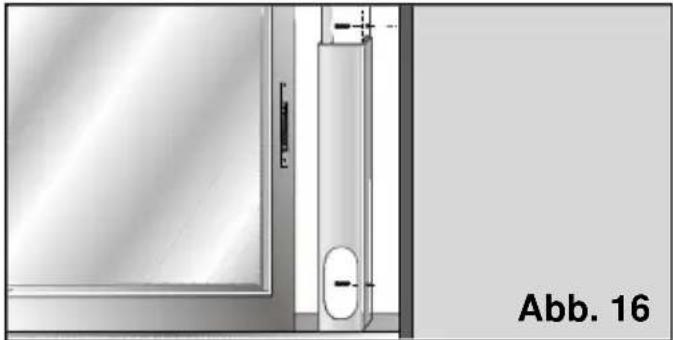

- The accessory has two holes on the side to fit it to the window / balcony with. The user can secure it to the frame or wall with two screws (not included with the accessory) to prevent it from moving or falling out of place, Fig. 16.

Technical diagram showing a door with a vertical panel and a labeled section 'Fig. 16' (no text or symbols on the diagram itself)

Permanent installation

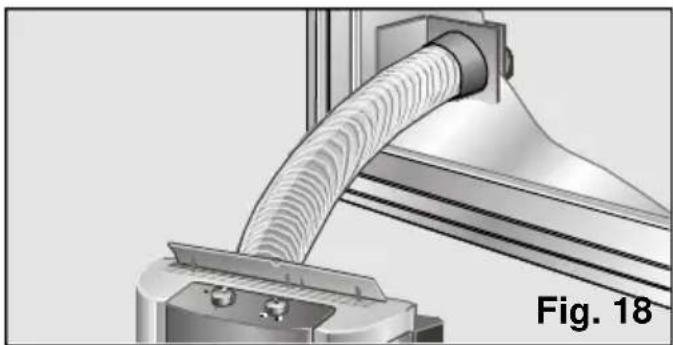

Permanent installation is performed using the wall grommet / window grommet. See "Description of accessories".

☐ To expel hot air through the wall, it is necessary to make a hole in the wall and fit the wall grommet, Fig. 17.

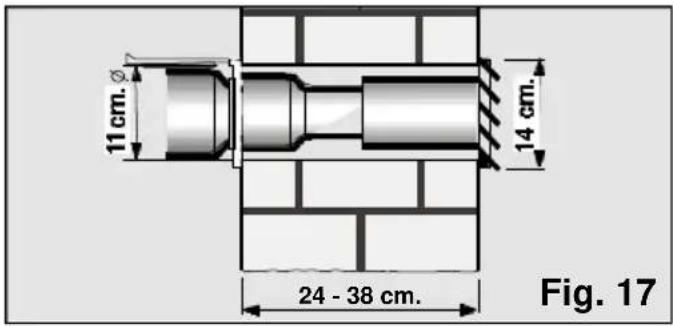

11 cm. 14 cm. 24 - 38 cm. Fig. 17

- Remove the diffusion sleeve and connect the air expulsion tube to the accessory. - If permanent installation is to be performed through the window, then it is only necessary to use the transparent end piece on the accessory. A 14 cm diameter hole needs to be cut in the glass, Fig. 18.

Mechanical assembly showing a coiled pipe being inserted into a housing (no text or symbols visible)

Notes

Do not extend the hot air expulsion tube more than necessary (maximum length; 140 cm).

Instructions for Use

Do not form sharp bends when positioning the tube, otherwise the correct expulsion of hot air may be impeded. This may cause a reduction in the cooling power and performance of the appliance.

In order to achieve maximum cooling efficiency and minimum noise levels, the expulsion tube should be fitted above the total height of the appliance, Fig. 19.

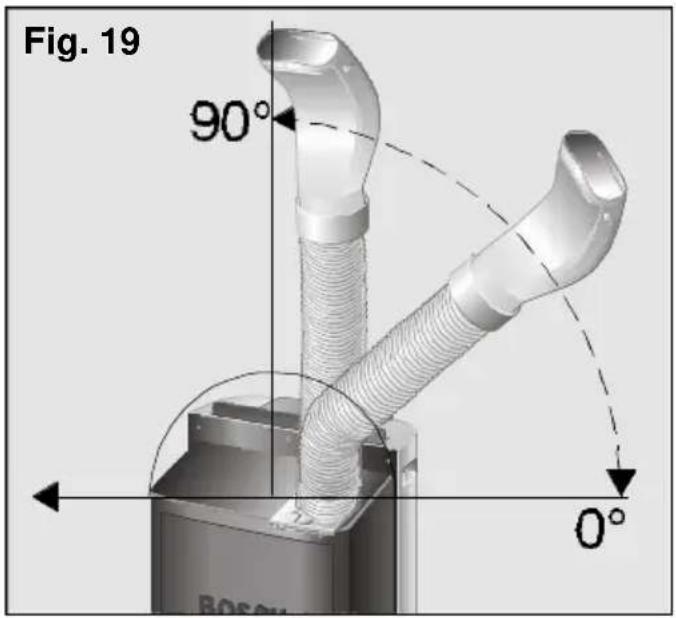

Fig. 19 90° 0°

Dehumidification

In position , the appliance reduces the humidity in the atmosphere.

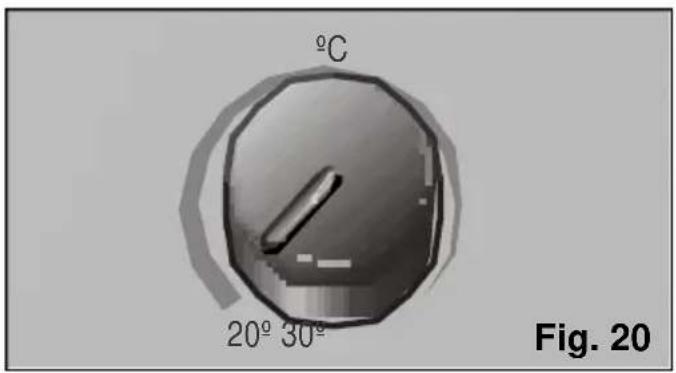

☐ Set the thermostat to its minimum temperature setting, Fig. 20.

°C 20° 30° Fig. 20

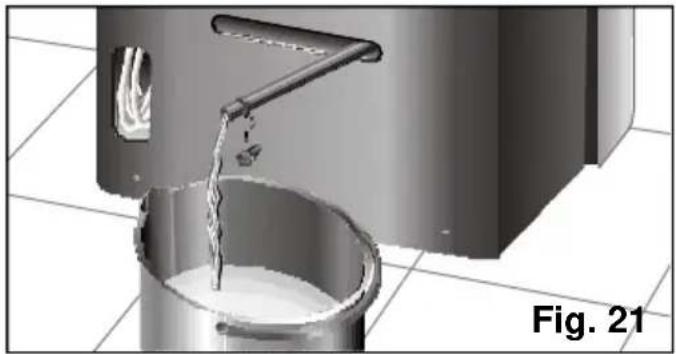

☐ Place a bowl at the drainage pipe outlet and remove the plug to collect the condensed water, Fig. 21

3D rendering of a mechanical component with a pipe pouring liquid into a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

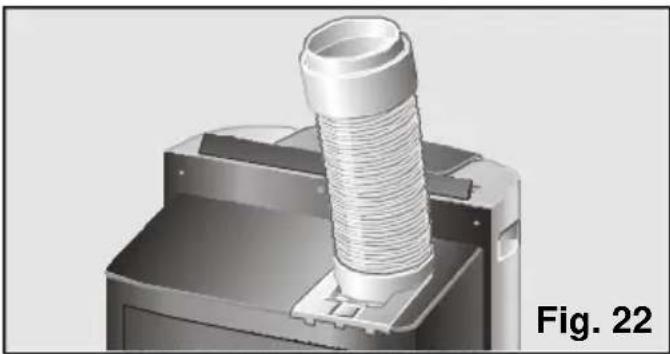

☐ Remove the diffusion duct and set the air expulsion tube to the position shown in figure 22.
☐ The expulsion tube may also be totally dismantled if desired.

3D rendering of a mechanical component with a coiled spring and housing (no text or symbols visible)

☐ Lift the air director on the top of the appliance. This air director is not installed on the appliance on PAM0330 models. See figures 25 and 26 in "Heating".

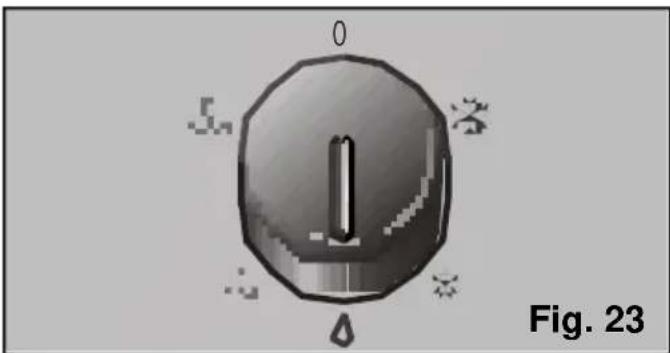

□ Select the dehumidification function on the control knob, Fig. 23.

Close-up of a metallic knob with a central vertical bar and surrounding symbols (no readable text or numbers)

Warning!

The amount of water dehumidified may vary depending on ambient conditions (See "Technical Information").

Do not forget to replace the plug onto the water drainage pipe when you change function, otherwise the appliance will shed water when operated.

Remember that ambient temperature must be 18°C or higher in order for the appliance to work.

Air purification

The air entering the room (ventilation) is circulated through a purifying filter when the appliance is set to this function.

The appliance is fitted with a basic filter and a purifying filter for:

- Pollen, bacteria and dust.

☐ Put the air expulsion tube in the same position as for dehumidification.
☐ Lift the air director on the top of the appliance. This air director is not installed on the appliance on PAM0330 models. See figures 25 and 26 in "Heating".

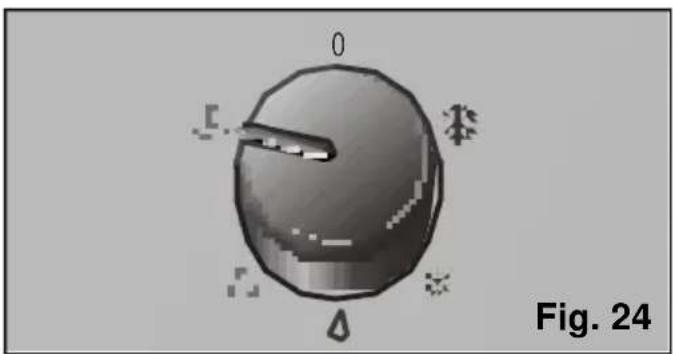

□ Select the purifying speed: maximum ✗ or silent ✗, Fig. 24.

Diagram of a 3D object with labeled points and directional arrows, no readable text or symbols present

□ When the appliance or the model is fitted with optional filters, we recommend that these be left on regardless of the function selected (cooling, dehumidification, air purification) in order to purify the air more effectively.

Note:

Due to the internal configuration of the PAM0320 models, air is also expelled outdoors when the appliance is set to the ventilation function. In order to reduce the noise produced, it is recommended that you remove the air expulsion tube.

Heating (only on PAM0330)

When set to position , the appliance heats the air in the room until the temperature set by the user is reached. The air in the room is purified at the same time.

□ Plug the appliance into the mains electricity supply.
☐ Put the air expulsion tube in the same position as for dehumidification.

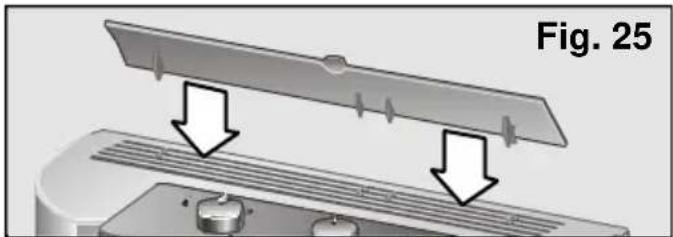

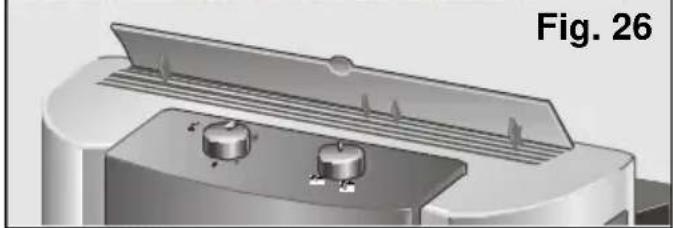

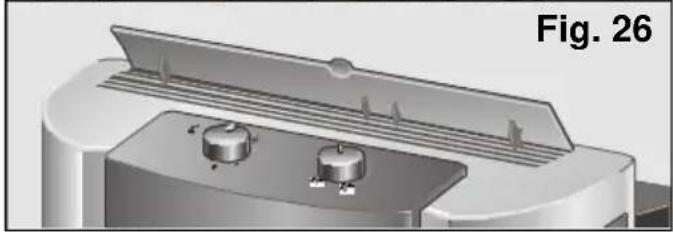

☐ This air director is not installed on the appliance on PAM0330 models. The manufacturer recommends that an air director be previously installed in order to distribute the air flow better. The director is fitted as shown in the following figures.

Diagram showing a device with two arrows pointing to a panel and a button, labeled Fig. 25 (no text or symbols on the diagram itself)

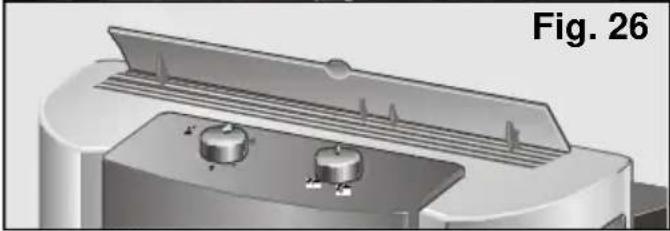

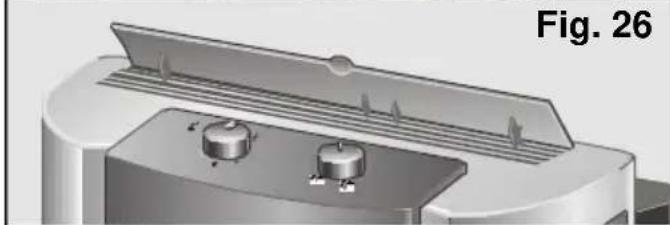

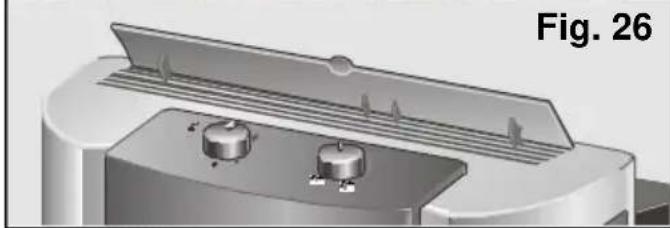

3D rendered mechanical component with two circular ports and a flat top, labeled Fig. 26 (no text or symbols on the component itself)

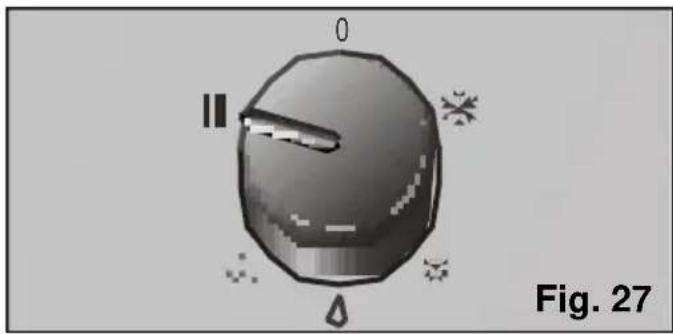

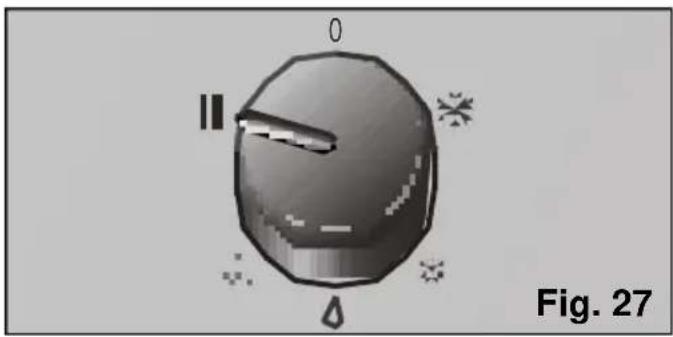

□ Select the heating function, Fig. 27.

Illustration of a stylized 3D object with labeled parts (0, II, △) and decorative elements, no readable text or symbols beyond labels.

☐ Set the thermostat to the desired temperature. When this temperature is reached, the appliance turns itself off automatically. It comes back on again when the temperature drops 2-3°C.

Warning!

Do not cover the air intakes or outlets on your appliance!

Cleaning and Maintenance

Cleaning the appliance

☐ For safety reasons, you should unplug the appliance from the mains electricity supply before cleaning.
☐ The appliance can be cleaned with a cloth or sponge, slightly warm water and a mild detergent.
□ Never use hot water (more than 40°C), bleach, benzene, petrol, acid, scouring pads, brushes or strong detergents. Prevent water from entering the appliance.
☐ Do not clean the appliance with a hose.

Cleaning and changing the purifying filters

Press the side tabs, (Fig. 28, 1.), on the front flap of the appliance and pull it open (it is not necessary to remove it), (Fig. 28, 2.). The flap is fitted with a stop and can be opened up to this point without risk of falling.

1. 2 1. Fig. 28

All models are fitted with a basic filter which needs to be cleaned regularly, Fig. 29. The filter is accessed by pressing the tab at the top and removing it from its housing, Fig. 30. The filter is cleaned under a cold tap, dried and replaced.

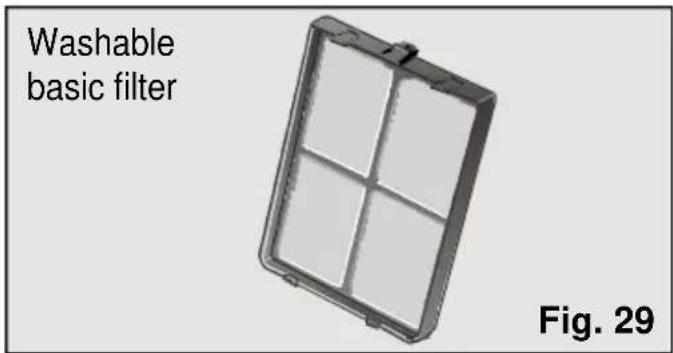

Washable basic filter Fig. 29

Technical illustration of a mechanical component with an inset magnified view showing detail (no text or symbols)

Apurifying filter is also fitted inside the basic filter on some models.

Purifying filter Fig. 31

This purifying filter needs to be changed every year in order to remain operational.

(These accessories are available for purchase from the Manufacturer's Official Technical Service and authorised distributors). See "Description of accessories".

Installing the purifying filter:

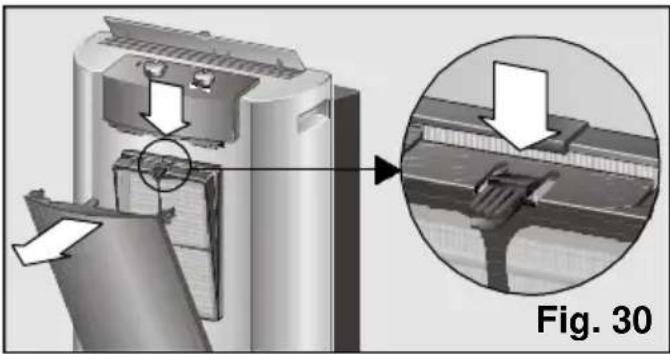

□ Remove the basic filter from the appliance, Fig. 30.

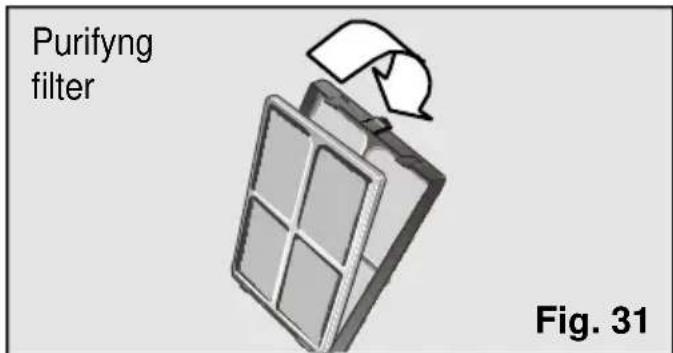

□ Fit the purifying filter inside the basic filter as shown in Fig. 31.
☐ Install the assembly onto the appliance by lining the lower studs up with the slots on the front casing of the appliance and pressing the top clip in until it clicks into position. The assembly is fitted properly when it clicks into position.
- Close the front flap. - In order to maintain cooling power, only fit one set of filters onto the support.

Note

The front flap can also be removed in order to clean the appliance or change the filters more easily.

Cleaning and Maintenance

To do this, open the flap up to the safety stop (the flap opens to a slight angle, Fig. 28) and pull outwards. In order to refit it, line the lower studs on the flap up with the holes on the casing until the studs meet the clips on the casing.

Storage requirements

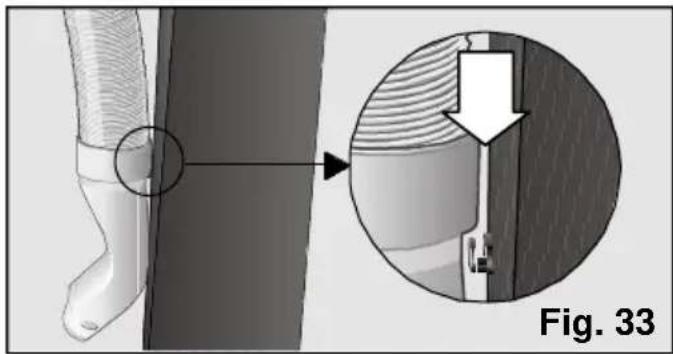

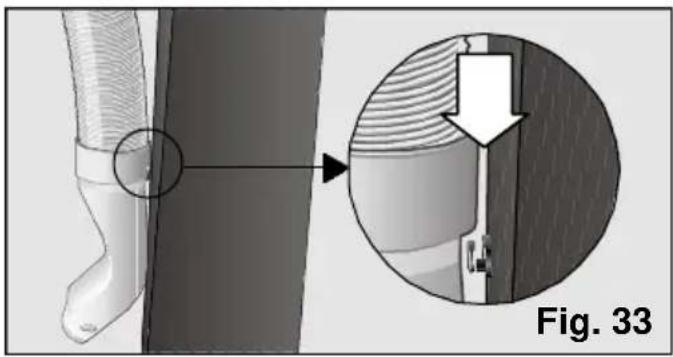

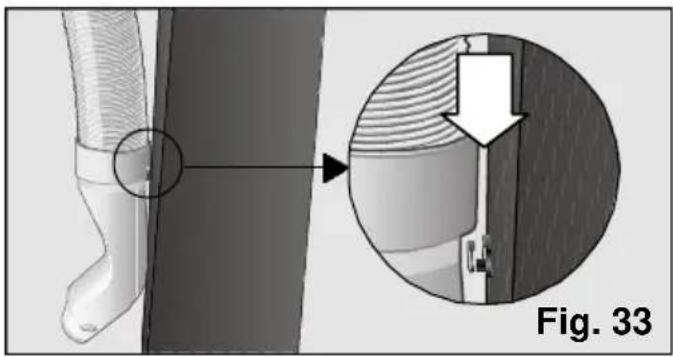

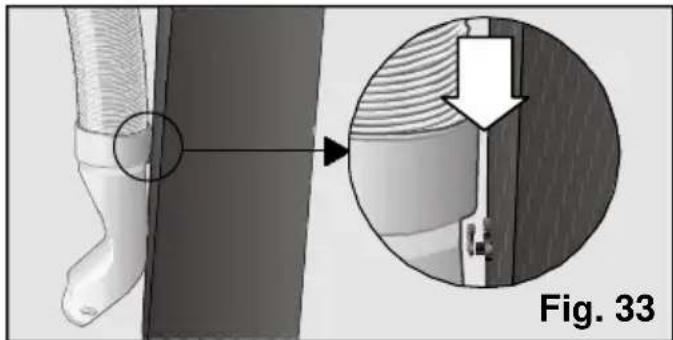

When the appliance is out of use for a long period, set the expulsion tube to parking position so that the appliance takes up as little space as possible.

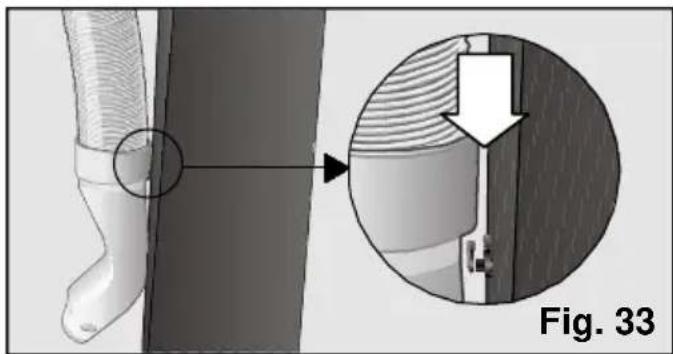

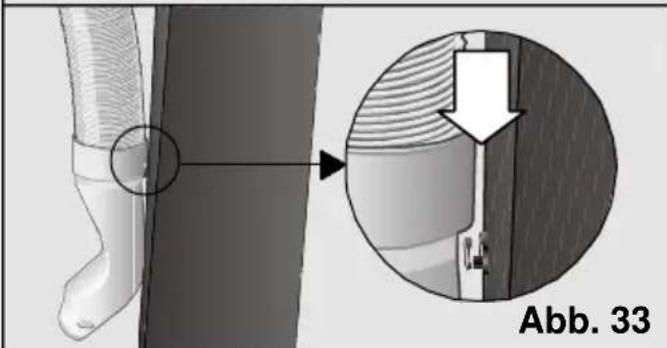

☐ To do this, bend the tube towards the back of the appliance and secure it with the diffusion hook. Figs. 32 and 33.

Prior to use at change of season

□ Clean the air filter.
□ Clean the casing and the grilles if necessary.

3D rendering of a BOB air conditioner unit with coiled tubing, labeled Fig. 32 (no text or symbols on the device itself)

Medical illustration showing a surgical procedure on a mechanical component, with an inset magnified view of the insertion site (no text or symbols present)

Things to check before calling the Technical Service

General requirements for operation What to do if...

... the appliance does not work ...

□ Check that it is plugged in properly.
□ Make sure that the control knob is not set to off ●.
☐ Check that the mains electricity supply is working. Check the fuse box.
□ Set the thermostat to a lower temperature.

... the appliance does not work and the light indicating that the condensed water tank is full is on ...

☐ Set the appliance on a flat surface. If the light does not go out, empty the internal water tank. (See instructions in "cooling").

... the appliance does not reduce room temperature sufficiently ...

☐ Check the joins on the hot air expulsion tube.
□ Make sure that the expulsion tube is not too bent and that it is not extended to more than 140 cm.

□ Make sure that the plug is fitted on the drainage water pipe.
☐ Fit the suction pad to close the window as far as possible.
☐ Lower blinds to reduce direct sunlight.

... there is water on the control panel grille or on the basic filter housing ...

☐ There is no cause for concern. This is normal.

Noise

... the appliance makes a lot of noise ...

Some noise is normal and other types of noise can be solved easily. You need to be able to distinguish between these types of noise:

Things to check before calling the Technical Service

Perfectly normal noise

☐ The sound of water flowing in cycles is due to the pump, which circulates the water to enhance the power of the appliance.
☐ A dull, humming sound is inevitable due to the compressor.
☐ A faint, whistling sound is due to the refrigerant passing through the thinner pipes on the appliance when the compressor starts up.
☐ A short clicking sound is produced when the pump connects and disconnects or when the regulator connects or disconnects the electronics system.

Easy-to-solve noises

□ Make sure that the air expulsion tube and the diffusion and collection sleeves are fitted properly onto the appliance.
□ Make sure that the air intakes and outlets on the appliance are free of obstacles.
☐ Make sure that the appliance is not in direct contact with furniture or other appliances. The air output may be flowing directly onto these and thereby increasing the noise level.

Any other type of fault or repair work should be dealt with by a specialised Technician. Get in touch with your authorised dealer, customer service or the Technical Service Network.

Technical service / Warranty / Technical Information

Technical service

Should your appliance fail to work properly and all the instructions for use and installation (especially the section headed "Requirements....") have been carefully observed, then remember that our Technical Service Network is at your full disposal.

When contacting the Technical Service, quote the model code (E-NR) and the appliance's factory number (FD). This information can be found on characteristics plate, Fig. 2.

Warranty

The conditions of warranty depend on the relevant Supplier in a particular country. Contact the establishment where you purchased your appliance for more information and quote the appliance model and factory number. The receipt of purchase for the appliance must be produced prior to any work carried out under warranty.

Technical Information

Model PAM0320 PAM0330
Maximum consumption (W) 760 950
Cooling (W) 1700 2000
Energy efficiency (letter) B C
Dehumidification (l/day) (*) 35 40
Power in heating function (W)	-	1800
Fuse (A)	10	10
Working range
- Cooling (min./max. °C)	20 – 35	20 – 35
- Dehumidification (min./max. °C)	18 – 35	18 – 35
(*) The amount of water may vary when conditions in the room to be dehumidified are other than 30°C and 80% RH.

Sommaire

Conditions de transport ....39

Mode d'Emploi

Climatisation ....39

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

3D rendering of a mechanical component with a triangular handle and arrow indicator, labeled Fig. 1 (no text or symbols on the object itself)

Conditions de transport

3D rendering of a bucket pouring liquid into a container on tiled floor, labeled Fig. 7 (no text or symbols on the diagram itself)

Mode d'Emploi

Climatisation

3D rendered object with a pointed tip and surrounding small symbols, labeled 'Fig. 8' (no readable text or symbols on the object itself)

3D rendering of a mechanical component with threaded end and base, labeled Fig. 11B (no text or symbols on the diagram itself)

Close-up of a mechanical component with two white arrows pointing to features, labeled 'Fig. 12' (no text or symbols on the object itself)

Illustration of a hand inserting a cable into a window frame (no text or symbols)

Mode d'Emploi

Technical diagram showing a door and vertical panel with a labeled section 'Fig. 16' (no text or symbols on the diagram itself)

Installation fixe

Mechanical assembly showing a pipe passing through a housing with a base, labeled Fig. 18 (no text or symbols on the diagram itself)

Remarques :

3D rendering of a mechanical component pouring liquid into a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with a coiled spring and mounting base, labeled Fig. 22 (no text or symbols on the object itself)

Close-up of a metallic device with a central vertical bar and surrounding symbols (no readable text or labels)

Attention!

3D rendered object with angular features and label 'Fig. 24' (no readable text or symbols)

Diagram showing a device with two downward arrows pointing to a panel or component, labeled Fig. 25 (no text or symbols on the diagram itself)

3D rendering of a mechanical device with two circular components and a lid, labeled Fig. 26 (no text or symbols on the device itself)

Illustration of a stylized 3D object with geometric features and symbols, labeled 'Fig. 27' (no readable text or symbols on the object itself)

Technical illustration of a mechanical component with an inset magnified view showing detail (no text or symbols)

3D rendering of a mechanical device with coiled tubing and a labeled section (Fig. 32), no readable text or symbols beyond label.

Medical illustration showing a surgical procedure on a foot with magnified view of the procedure (no text or symbols present)

Diagram of a waste sorting symbol with crossed and unexposed lines, indicating no waste disposal or classification.

3D diagram of a mechanical component with a tool inserted, showing a directional arrow and grid background (no text or symbols)

3D rendering of a mechanical device pouring liquid into a bucket on tiled floor, labeled Fig. 7 (no text or symbols on the diagram itself)

Illustration of a stylized helmet with a blade and triangular head, labeled Fig. 8 (no text or symbols on the helmet itself)

3D rendering of a mechanical device with a central cylindrical component and mounting brackets (no visible text or symbols)

3D rendering of a mechanical component with threaded top and base, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating motion or force, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Illustration of a hand holding a flexible hose to install a wall-mounted door frame (no text or symbols visible)

Technical diagram showing a door and vertical panel with a labeled section 'Fig. 16' (no text or symbols on the diagram itself)

Instalación fija

Mechanical assembly showing a coiled pipe being inserted into a housing (no text or symbols visible)

Notas:

3D rendering of a mechanical component with liquid flowing through a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with coiled spring and housing (no text or symbols)

Close-up of a metallic dial with a central knob and surrounding symbols (no readable text or labels)

¡Atención!

3D rendered object with angular features and symbols, labeled Fig. 24 (no readable text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or force, labeled Fig. 25 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with two circular ports and a flat lid, labeled Fig. 26 (no text or symbols on the diagram itself)

Illustration of a stylized 3D object with geometric symbols and label 'Fig. 27' (no readable text or symbols on the object itself)

Technical illustration of a mechanical device with an inset close-up showing a detail (no text or symbols present)

3D rendering of a BO3 air duct system with no visible text or symbols on the device itself

Medical illustration showing a surgical procedure on a foot with an arrow indicating a specific anatomical feature (no text or symbols present)

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below.

3D diagram of a mechanical component with a directional arrow and labeled Fig. 1 (no text or symbols on the object itself)

3D rendering of a mechanical device pouring liquid into a container on tiled floor (no text or symbols)

Instruções de Uso

Climatização

3D-rendered abstract geometric shape with no visible text or symbols, labeled 'Fig. 8' at bottom right (no readable text or symbols on the shape itself)

3D rendering of a mechanical device with a cylindrical component and mounting base (no visible text or symbols)

3D rendering of a mechanical component with threaded shaft and base, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating motion or force directions (no text or symbols present)

Illustration of a hand inserting a cable into a window frame, labeled Fig. 14 (no text or symbols on the diagram itself)

Instruções de Uso

Technical diagram showing a door and vertical panel with a labeled section 'Fig. 16' (no text or symbols on the diagram itself)

Instalação fixa

Mechanical assembly showing a pipe being inserted into a housing component, labeled Fig. 18 (no text or symbols on the diagram itself)

Notas:

3D rendering of a mechanical component with liquid flowing through a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

3D rendered mechanical component with threaded spring and housing (no text or symbols)

Close-up of a metallic mechanical knob with no visible text or symbols, labeled as Fig. 23 (no readable document text)

Atenção!

Diagram of a spherical object with labeled points and a scale, marked as Fig. 24 (no text or symbols on the object itself)

Diagram showing a device with ventilation slots and a labeled section 'Fig. 25' (no text or symbols on the diagram itself)

3D rendered mechanical component with two circular features and a flat top, labeled Fig. 26 (no text or symbols on the component itself)

Illustration of a stylized 3D object with geometric shapes and symbols, labeled 'Fig. 27' (no readable text or symbols on the object itself)

Technical illustration of a mechanical component with an inset magnified view showing detail (no text or symbols)

3D rendering of a BO5 air duct system with coiled tubing, labeled as Fig. 32 (no text or symbols on the device itself)

Medical illustration showing a surgical procedure on a patient's leg, with an inset close-up of the procedure (no text or symbols present)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

3D diagram of a kitchen appliance with a handle and a paper clip, labeled Fig. 1 (no text or symbols on the main diagram)

3D rendering of a mechanical component with fluid flow, labeled Fig. 7 (no text or symbols on the diagram itself)

3D-rendered abstract geometric shape with no visible text or symbols, labeled 'Fig. 8' at bottom right (no readable text or symbols)

3D rendering of a mechanical device with a cylindrical component and control panel (no visible text or symbols)

3D rendering of a mechanical component with threaded top and base, showing a curved arrow indicating rotation or assembly (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating motion or force, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Illustration of a hand connecting a cable to a window frame, labeled Fig. 14 (no text or symbols on the diagram itself)

Technical diagram showing a door frame and a vertical panel with a minus symbol, labeled Fig. 16 (no text or symbols on the diagram itself)

Vaste installatie

Mechanical assembly showing a coiled pipe being inserted into a housing (no text or symbols visible)

Opmerkingen:

3D rendering of a mechanical component with liquid flowing through a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with a coiled spring and housing (no text or symbols visible)

Close-up of a metallic dial with no visible text or symbols, labeled as Fig. 23 (no readable document content)

Let op!

Diagram of a spherical object with labeled points and symbols, no readable text or symbols present

Verwarming (alleen in model PAM0330)

Diagram showing a device with two arrows pointing to a panel and a base component, labeled Fig. 25 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with two circular ports and a flat top, labeled Fig. 26 (no text or symbols on the diagram itself)

Illustration of a stylized 3D object with geometric symbols and label 'Fig. 27' (no readable text or symbols on the object itself)

Wasbare basis filter Fig. 29

Technical illustration of a mechanical component with an inset magnified view showing detail (no text or symbols)

3D rendering of a BOB air conditioner unit with coiled tubing, labeled Fig. 32 (no text or symbols on the device itself)

Medical illustration showing a surgical procedure on a patient's foot, with an inset magnified view of the procedure (no text or symbols present)

Symbol of a trash bin crossed with no text or labels

3D diagram of a mechanical component with a tool inserted, showing a directional arrow and grid background (no text or symbols)

3D rendering of a mechanical device pouring liquid into a bucket on tiled floor (no text or symbols)

Istruzioni d'uso

Climatizzazione

Illustration of a stylized helmet with a blade and triangular base, labeled Fig. 8 (no text or symbols on the helmet itself)

3D rendering of a mechanical component with threaded end and base, labeled Fig. 11B (no text or symbols on the diagram itself)

Diagram of a mechanical component with two upward arrows indicating motion or force, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Diagram of a hand holding a flexible hose to install a window frame, labeled Fig. 14 (no text or symbols on the diagram itself)

Istruzioni d'uso

Exterior view of a modern office building (no signage)

Installazione fissa

Mechanical assembly showing a fiber pipe being inserted into a device labeled 'BOSCN', with no visible text or symbols on the diagram itself.

Note:

3D rendering of a mechanical device pouring liquid into a bucket, labeled Fig. 21 (no text or symbols on the diagram itself)

3D rendering of a mechanical component with a coiled spring and mounting base, labeled Fig. 22 (no text or symbols on the object itself)

Close-up of a metallic dial with a central knob and surrounding symbols (no readable text or labels)

Attenzione!

3D rendered object resembling a dome or sphere with labeled points (0, 1, 2, 3) and a small symbol, no readable text or symbols beyond labels.

Illustration of a stylized 3D object with geometric symbols and label 'Fig. 27' (no readable text or symbols on the object itself)

Technical illustration of a mechanical component with an inset magnified view showing a detail (no text or symbols present)

3D rendering of a mechanical device with coiled tubing and a labeled section (Fig. 32), no readable text or symbols beyond label.

Medical illustration showing a surgical procedure on a limb with magnified detail (no text or symbols)

Warning symbol for a trash bin with crossed and uncorrected lines, indicating no waste or plastic waste.

Så sparar Du energi

3D rendered mechanical component with a white arrow pointing to a component, labeled 'Bild. 1' (no text or symbols on the object itself)

3D rendering of a mechanical component pouring liquid into a bucket on a tiled floor, labeled 'Bild. 7' (no other text or symbols)

3D rendered object with a pointed tip and surrounding symbols, labeled 'Bild. 8' at bottom right (no readable text or labels)

3D rendering of a connector component with a magnified inset showing internal structure (no text or symbols)

Close-up of a mechanical component with two white arrows pointing upward, labeled 'Bild. 12' (no other text or symbols)

Illustration of a hand securing a wall-mounted lock with a hose, labeled 'Bild. 14' (no other text or symbols)

Exterior view of a modern office building (no signage)

Fast installation

Mechanical assembly showing a pipe passing through a housing with a base mount (no text or symbols visible)

Observationer:

3D rendering of a metal pipe pouring liquid into a bucket, with no visible text or symbols

3D rendered mechanical component with threaded spring and housing (no text or symbols visible)

Pixelated abstract shape resembling a stylized letter or symbol with no readable text or symbols

OBS!

3D rendered object with labeled points and a label 'Bild. 24' (no readable text or symbols on the object itself)

Illustration of a stylized 3D object with geometric shapes and symbols, labeled 'Bild. 27' (no readable text or symbols on the object itself)

Technical illustration of a mechanical component with an inset magnified view showing a detail (no text or symbols present)

3D rendering of a mechanical device with coiled tubing and a labeled section (Fig. 32), no readable text or symbols beyond label.

Medical illustration showing a foot and ankle joint with a magnified inset of the knee joint detail (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or restriction (no text or labels)

Råd om energisparing

3D diagram of a mechanical component with a tool inserted, showing a downward arrow and grid pattern (no text or symbols)

3D rendering of a mechanical component pouring liquid into a bucket, labeled Fig. 7 (no text or symbols on the diagram itself)

Bruksanvisning

Klimatisering

Illustration of a stylized helmet with a tool, surrounded by small icons and stars (no text or symbols)

3D rendering of a mechanical component with threaded top and base, labeled Fig. 11B (no text or symbols on the diagram itself)

Close-up of a mechanical component with two white arrows pointing to features, labeled 'Fig. 12' (no text or symbols on the object itself)

Sprededysekobling-luftutblåsingsslange

Monter sprededysen på den ledige enden av slangen ved å trykke delene lett mot hverandre til det høres et "klikk". Pass på at klemmene lukkes så man unngår at sprededysen faller av. Fig 13.

Diagram of a hand holding a flexible hose to install a window frame, labeled Fig. 14 (no text or symbols on the diagram itself)

Bruksanvisning

Exterior view of a modern office building (no signage)

Fast installasjon

Mechanical assembly showing a pipe being inserted into a housing (no text or symbols visible)

Noter:

Bruk ikke unødvendig lang utluftingsslange for varmluften (maksimal lengde 140 cm).

Bruksanvisning

3D rendering of a metal container pouring liquid into a bucket, with no visible text or symbols

3D rendering of a mechanical component with a coiled spring and mounting base, labeled Fig. 22 (no text or symbols on the object itself)

Close-up of a metallic dial with a central knob and surrounding symbols (no readable text or labels)

3D rendered object with labeled points (0, 1, 2, 3, 4) and a symbol, no readable text or symbols beyond labels

Diagram showing a device with a lid and ventilation slots, labeled Fig. 25 (no text or symbols on the diagram itself)

3D rendered mechanical component with two circular ports and a flat top, labeled Fig. 26 (no text or symbols on the diagram itself)

□ Velg varmefunksjon, Fig. 27.

Illustration of a stylized 3D object with labeled parts (0, II, △) and decorative elements, no readable text or symbols beyond labels.

Technical illustration of a mechanical component with an inset magnified view showing a detail (no text or symbols present)

Noen modeller har dessuten i tillegg et rensefilter som ligger inni standardfilteret.

Rensefilter Fig. 31

3D rendering of a Bosch air purifier with coiled duct and valve (no text or symbols visible)

Medical illustration showing a foot with a magnified inset of the internal structure, labeled Fig. 33 (no text or symbols on the diagram itself)

Hensyn som vil spare deg for henvendelser til teknisk service

Symbol of a trash bin crossed with no text or labels

3D diagram of a mechanical component with a directional arrow and label 'Ábra. 1' (no readable text or symbols beyond label)

A készülék leírása

3D rendering of a water pipe pouring liquid into a bucket on tiled floor, labeled 'Ábra. 7' (no other text or symbols)

Használati útmutató

A légkondicionálás

3D-rendered abstract geometric shape with no text or symbols, labeled 'Ábra. 8' at bottom right (no other readable text or symbols)

Exterior view of a window with a door and doorbell, labeled 'Ábra. 16' (no other text or symbols)

Használati útmutató

Fix rögzítés

Close-up of a mechanical component with coiled cable and a labeled section (Ábra. 18), no readable text or symbols beyond the label.

Megjegyzés:

3D rendering of a mechanical component with liquid flowing through it, labeled 'Ábra. 21' (no other text or symbols)

3D rendering of a mechanical component with a coiled spring and mounting base, labeled 'Ábra. 22' (no other text or symbols)

3D rendered object with angular markings and a small symbol, labeled 'Ábra. 24' at bottom (no readable text or symbols on the object itself)

Használati útmutató

Illustration of a stylized 3D object with geometric shapes and symbols, labeled 'Ábra. 27' (no readable text or symbols on the object itself)

3D rendering of a Bosch air purifier with coiled duct and housing (no text or symbols visible)

Medical illustration showing a surgical procedure on a patient's foot, with magnified detail of the procedure (no text or symbols present)
