USER MANUAL CSTE12HKE PANASONIC

Operating Instructions

Indoor Unit Outdoor Unit

Before operating the unit, read these

Before operating the unit, read these

operating instructions thoroughly and

operating instructions thoroughly and

keep them for future reference.

keep them for future reference.

© 2007 Panasonic HA Air-Conditioning (M) Sdn. Bhd.

(11969-T). All rights reserved. Unauthorized copying

and distribution is a violation of law.2

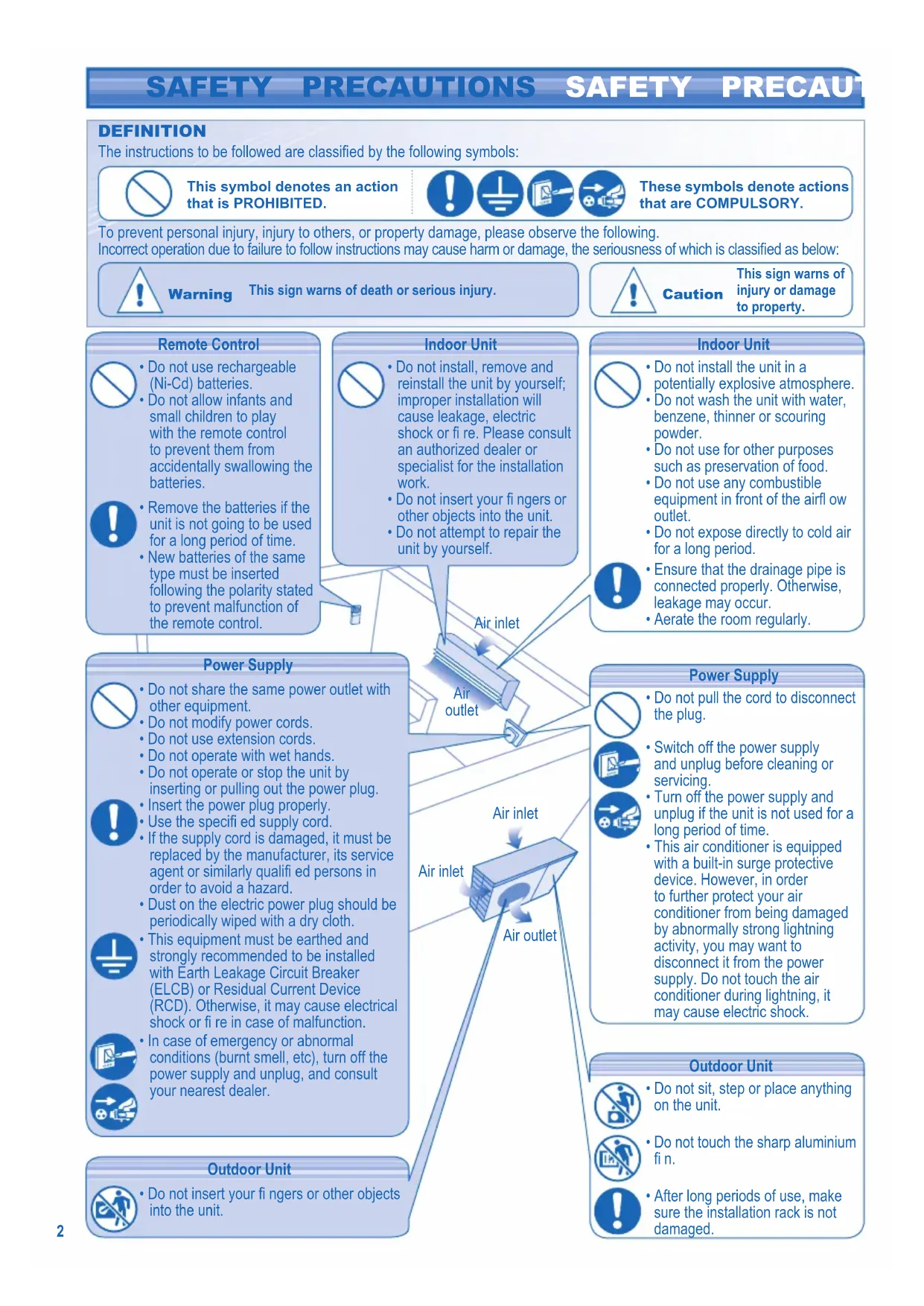

SAFETY PRECAUTIONS SAFETY PRECAUTIONS Remote Control

• Do not use rechargeable

• Do not allow infants and

small children to play

with the remote control

to prevent them from

accidentally swallowing the

• Remove the batteries if the

unit is not going to be used

for a long period of time.

• New batteries of the same

type must be inserted

following the polarity stated

to prevent malfunction of

• Do not sit, step or place anything

• Do not touch the sharp aluminium

• After long periods of use, make

sure the installation rack is not

• Do not pull the cord to disconnect

• Switch off the power supply

and unplug before cleaning or

• Turn off the power supply and

unplug if the unit is not used for a

long period of time.

• This air conditioner is equipped

with a built-in surge protective

device. However, in order

to further protect your air

conditioner from being damaged

by abnormally strong lightning

activity, you may want to

disconnect it from the power

supply. Do not touch the air

conditioner during lightning, it

may cause electric shock.

• Do not share the same power outlet with

• Do not modify power cords.

• Do not use extension cords.

• Do not operate with wet hands.

• Do not operate or stop the unit by

inserting or pulling out the power plug.

• Insert the power plug properly.

• Use the specifi ed supply cord.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualifi ed persons in

order to avoid a hazard.

• Dust on the electric power plug should be

periodically wiped with a dry cloth.

• This equipment must be earthed and

strongly recommended to be installed

with Earth Leakage Circuit Breaker

(ELCB) or Residual Current Device

(RCD). Otherwise, it may cause electrical

shock or fi re in case of malfunction.

• In case of emergency or abnormal

conditions (burnt smell, etc), turn off the

power supply and unplug, and consult

your nearest dealer.

DEFINITION The instructions to be followed are classifi ed by the following symbols:

This symbol denotes an action

These symbols denote actions

that are COMPULSORY.

To prevent personal injury, injury to others, or property damage, please observe the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classifi ed as below:

This sign warns of death or serious injury.

• Do not install, remove and

reinstall the unit by yourself;

improper installation will

cause leakage, electric

shock or fi re. Please consult

an authorized dealer or

specialist for the installation

• Do not insert your fi ngers or

other objects into the unit.

• Do not attempt to repair the

• Do not install the unit in a

potentially explosive atmosphere.

• Do not wash the unit with water,

benzene, thinner or scouring

• Do not use for other purposes

such as preservation of food.

• Do not use any combustible

equipment in front of the airfl ow

• Do not expose directly to cold air

• Ensure that the drainage pipe is

connected properly. Otherwise,

• Aerate the room regularly.

• Do not insert your fi ngers or other objects

ENGLISH Replacement or installation of power plugs shall be performed by authorized/

qualifi ed personnel only. The wires in this mains lead are coloured in accordance

with the following code:

The appliance is not intended for use by young children or the infi rm person without

supervision. Young children should be supervised to ensure that they do not play

OPERATION CONDITION OPERATION CONDITION Use this air conditioner under the following temperature range

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

NOTICE: When the outdoor temperature is out of the above temperature range,

the heating capacity will drop signifi cantly and outdoor unit might stop for

TABLE OF CONTENTS TABLE OF CONTENTS NOTE :

The illustrations in this manual are

for explanation purposes only and

may differ from the actual unit. It is

subjected to change without notice

for future improvement.

ENVIRONMENTAL REQUIREMENTS Battery Disposal

The batteries must be recycled or disposed of properly.

END-OF-LIFE DISPOSAL

“Instructions for end-user” for air conditioners:

This air conditioner bears the above mark, indicating that electrical equipment should not be disposed of

alongside general household waste. European Community countries (*), should have a dedicated collection

system for these products. Do not try to dismantle the system yourself as this could have harmful effects on

your health and on the environment as a result of incorrect waste handling. This dismantling and disposal

of refrigerant, oil and other parts must be done by a qualifi ed installer in accordance with relevant local and

national regulations. Air conditioners must be treated at a specialized treatment facility for re-use, recycling and

recovery and should not be disposed of in the municipal waste stream. Please contact your installer, dealer or

local authority for more information. Penalties may also be applicable for incorrect disposal of waste products,

in accordance with national legislation.

*subject to the national law of each member state

Information on Disposal in other countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your

installer, dealer or local authority and ask for the correct method of disposal.

QUICK GUIDE BACK COVER

• Do not switch ON the unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit.

• Do not install the unit in oily and smoky areas.4

• Used when remote control is misplaced

Press and hold until 1 beep is

heard, then release.

Press and hold until 1 beep is

heard, then release.

Press again until 2 beeps, then

Press the button to turn off.

Super alleru-buster fi lter OFF/ON TO TURN ON OR OFF THE UNIT

• Please be aware of the OFF indication on the remote control display

to prevent the unit from starting / stopping improperly.

• Selection range: 16°C ~ 30°C.

• Operating the unit within the recommended temperature could induce

HEAT mode : 20°C ~ 24°C.

DRY mode : 1°C ~ 2°C lower than room temperature.

MODE TO SELECT OPERATION MODE AUTO mode - For your convenience

• Unit selects operation mode every 30 minutes according to

temperature setting, outdoor and room temperature. During operation

mode selection the power indicator blinks.

HEAT mode - To enjoy warm air

• For cold air prevention, air might not blow out immediately and power

indicator blinks when operation starts.

• Also operates in defrost mode (maximum 12 minutes) where by the

power indicator blinks. The melted frost is drained at outdoor unit and

indoor fan is stopped.

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation.

• Opens for air intake when operation starts, and closes when operation

stops. During this time, do not hold it as it may cause malfunction or

Maximum distances: 8m

adjusted according to the operation mode.

AIR SWING TO ADJUST VERTICAL AIRFLOW DIRECTION

• Keeps the room ventilated.

• If AUTO is set, the louvers swing up/down

• In heat mode, the air blows horizontally for a while, then

starts to blow downwards.

• To provide fresh air effect by producing negative ions.

- Ion operation could be activated independently.

Press OFF/ON to stop the operation.

- During Ionizer only operation, Quiet and Powerful

could not be activated. QUIET TO ENJOY QUIET ENVIRONMENT

• This operation reduces airfl ow noise.

POWERFUL TO ACHIEVE TEMPERATURE QUICKLY

• To turn ON or OFF the unit at a preset time.

Set the time. Confi rm.

• When ON Timer is set, the unit may start earlier (up

to 50 minutes) before the actual set time in order to

achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote

control and repeats daily once set. For clock setting,

please refer to Remote Control Preparation at back

• If timer is cancelled manually or due to power failure,

you can restore the previous setting (once power is

resumed) by pressing

Not used in normal operations.

Set the temperature 1°C higher in cool mode or 2°C

lower in heat mode than the desired temperature to

achieve a 10% power saving.

Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

• QUIET and POWERFUL can be activated in all modes

and can be cancelled by pressing the respective

• QUIET and POWERFUL can not be selected at the

CARE & CLEANING CARE & CLEANING Remove

WASHING INSTRUCTIONS WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent.

• Do not use water hotter than 40°C.

INDOOR UNIT INDOOR UNIT Wipe the unit gently with a

• Clean the fi lter regularly for best performance and to

reduce power consumption.

• Please consult your nearest dealer for seasonal

FOR SEASONAL INSPECTION AFTER EXTENDED FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE NON-USE

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the

following temperature difference between air inlet and air

Cooling: ≥ 8°C Heating: ≥ 14°C NON SERVICEABLE CRITERIAS NON SERVICEABLE CRITERIAS TURN OFF POWER SUPPLY AND UNPLUG then CALL Authorized Distributor under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

FOR EXTENDED NON-USE FOR EXTENDED NON-USE

• Activate heat mode for 2~3 hours to thoroughly dry the unit.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

SUPER ALLERU-BUSTER FILTER SUPER ALLERU-BUSTER FILTER

• Vacuum the fi lter whenever necessary.

• Replace the fi lter every 10 years or

purchase the replacement fi lter if it is

Part no.: CZ-SA16P AIR FILTERS AIR FILTERS

• It is recommended to clean the air fi lters

• Wash/rinse the fi lters gently with water to

avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under the shade,

away from fi re or direct sunlight.

• Replace any damage fi lter.

Wash gently and dry.

ALUMINIUM FIN ALUMINIUM FIN CAUTION

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.7

ENGLISH TROUBLESHOOTING TROUBLESHOOTING Symptom

Heating/Cooling operation is not working

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

• Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation. • Check if the unit has been installed at an incline.

Remote control does not work.

(Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries.

The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set.

The unit does not receive the signal from the

• Make sure the receiver not obstructed.

• Certain fl uorescent lights may interfere with signal transmitter. Please

consult your nearest dealer.

Ion indicator on the indoor unit is blinking.

button twice. If the indicator is still blinking, please consult

Mist emerges from indoor unit. • Condensation effect due to cooling process.

Water fl owing sound during operation. • Refrigerant fl ow inside the unit.

The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or

Indoor fan stops occasionally during automatic

• This helps to remove the surrounding odours.

Operation is delayed a few minutes after

• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.

Timer indicator is always on. • The timer setting repeats daily once set.

Power indicator blinks during operation and

the indoor fan is stopped.

• The unit is in defrost mode, and the melted frost is drained from the

Indoor fan stops occasionally during heating

• To avoid unintended cooling effect.

Power indicator is blinking up to 70 minutes

before ON timer is activated.

• This is a preliminary step in preparation for the operation when the ON

Cracking sound can be heard during

• Panel expanding/contracting due to change in temperature.

The following symptoms do not indicate malfunction.

The following symptoms do not indicate malfunction.

Check the following before calling for servicing.

Check the following before calling for servicing.

The unit stops and the timer indicator blinks.

The unit stops and the timer indicator blinks.

Press for 5 seconds.

• Turn off the power supply and call authorized distributor.

Browse for respective error code,

where “beep” sounds are heard.

• Press the “RESET” button to

Unit might be operated with

limited function depending

(Operation starts, 4 “beep”

rechargeables (Ni-Cd).

• Schakel in noodgevallen of abnormale

INFORMATIE OVER WETGEVING

tapijt, meubels of kleding.

• Remova as pilhas do controlo remoto.43

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

OFF/ON Start/stop the operation.

Select the desired temperature.
