USER MANUAL CSE18HB4EA PANASONIC

Operating Instructions

Indoor Unit Outdoor Unit

Before operating the unit, read these

Before operating the unit, read these

operating instructions thoroughly and

operating instructions thoroughly and

keep them for future reference.

keep them for future reference.

© 2008 Panasonic HA Air-Conditioning (M) Sdn. Bhd.

(11969-T). All rights reserved. Unauthorized copying

and distribution is a violation of law.2

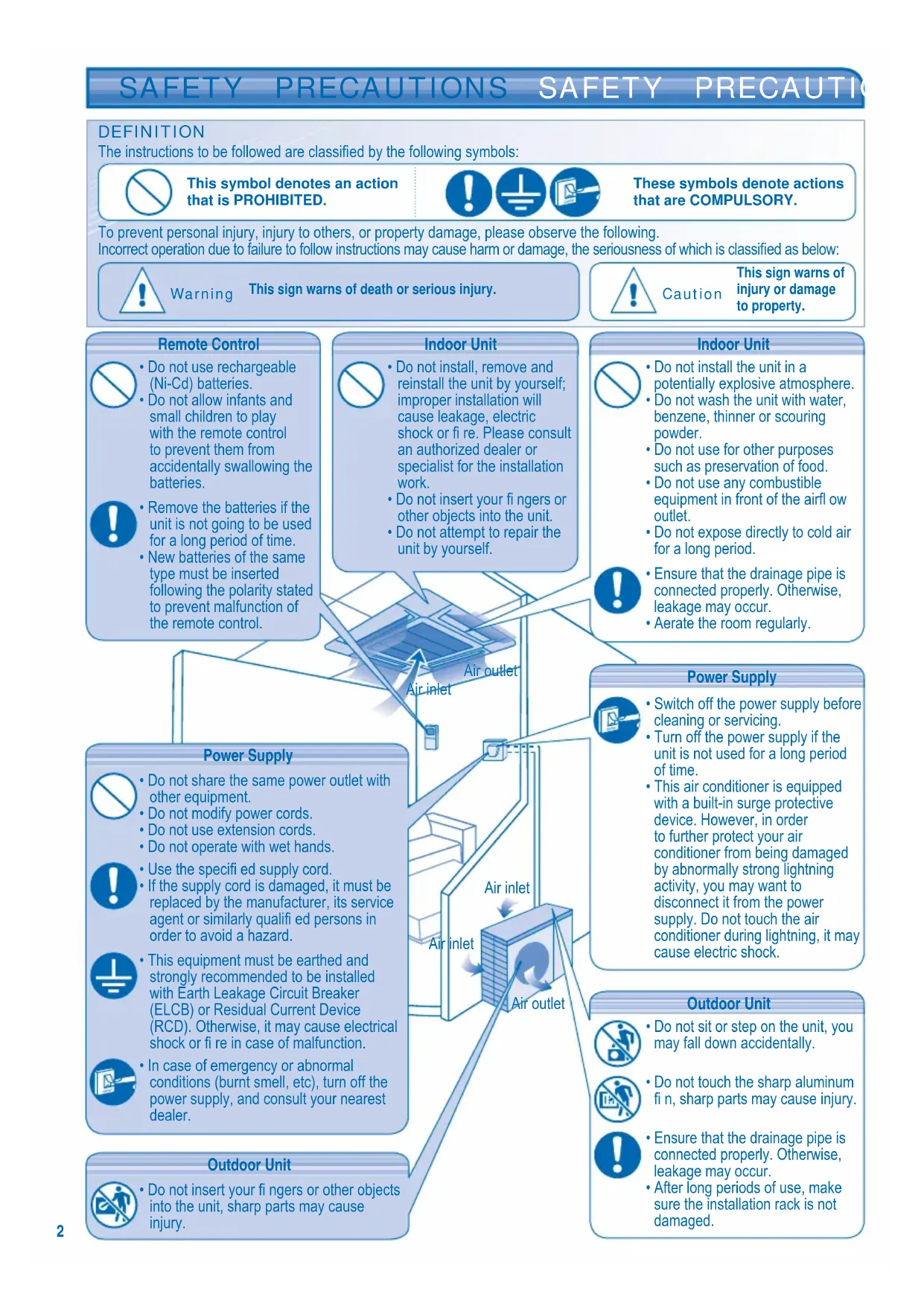

SAFETY PRECAUTIONS SAFETY PRECAUTIONS Air outlet

DEFINITION The instructions to be followed are classifi ed by the following symbols:

This symbol denotes an action

These symbols denote actions

that are COMPULSORY.

To prevent personal injury, injury to others, or property damage, please observe the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classifi ed as below:

This sign warns of death or serious injury.

• Do not share the same power outlet with

• Do not modify power cords.

• Do not use extension cords.

• Do not operate with wet hands.

• Use the specifi ed supply cord.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualifi ed persons in

order to avoid a hazard.

• This equipment must be earthed and

strongly recommended to be installed

with Earth Leakage Circuit Breaker

(ELCB) or Residual Current Device

(RCD). Otherwise, it may cause electrical

shock or fi re in case of malfunction.

• In case of emergency or abnormal

conditions (burnt smell, etc), turn off the

power supply, and consult your nearest

• Do not install, remove and

reinstall the unit by yourself;

improper installation will

cause leakage, electric

shock or fi re. Please consult

an authorized dealer or

specialist for the installation

• Do not insert your fi ngers or

other objects into the unit.

• Do not attempt to repair the

• Do not install the unit in a

potentially explosive atmosphere.

• Do not wash the unit with water,

benzene, thinner or scouring

• Do not use for other purposes

such as preservation of food.

• Do not use any combustible

equipment in front of the airfl ow

• Do not expose directly to cold air

• Ensure that the drainage pipe is

connected properly. Otherwise,

• Aerate the room regularly.

• Do not use rechargeable

• Do not allow infants and

small children to play

with the remote control

to prevent them from

accidentally swallowing the

• Remove the batteries if the

unit is not going to be used

for a long period of time.

• New batteries of the same

type must be inserted

following the polarity stated

to prevent malfunction of

• Switch off the power supply before

cleaning or servicing.

• Turn off the power supply if the

unit is not used for a long period

• This air conditioner is equipped

with a built-in surge protective

device. However, in order

to further protect your air

conditioner from being damaged

by abnormally strong lightning

activity, you may want to

disconnect it from the power

supply. Do not touch the air

conditioner during lightning, it may

cause electric shock.

• Do not sit or step on the unit, you

may fall down accidentally.

• Do not touch the sharp aluminum

fi n, sharp parts may cause injury.

• Ensure that the drainage pipe is

connected properly. Otherwise,

• After long periods of use, make

sure the installation rack is not

• Do not insert your fi ngers or other objects

into the unit, sharp parts may cause

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety. Children should be supervised to

ensure that they do not play with the appliance.

• Do not switch ON the unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit.

• Do not install the unit in oily and smoky areas.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and

electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to

applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could otherwise arise from

inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local

municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your

local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement

set by the Directive for the chemical involved.

The illustrations in this manual are

for explanation purposes only and

may differ from the actual unit. It is

subjected to change without notice

for future improvement.4

OPERATION CONDITION OPERATION CONDITION Use this air conditioner under the following temperature range

(CU-E10HBEA, CU-E15HBEA, CU-E18HBEA, CU-E21HBEA)

NOTICE: • This unit is still able to operate as a cooler with outdoor temperature as low as -10°C in a non-living room, such

as a computer room, with a room temperature of 16°C or above, and room humidity up to 80%. When the

outdoor temperature drops to -10°C, compressor will be cut off and resume operation again once the

temperature rises to more than -10°C.

• When the outdoor temperature is out of the above temperature range, the heating capacity will drop signifi cantly

and outdoor unit might stop for protection control.

(CU-2E15GBE, CU-2E18CBPG, CU-3E18EBE, CU-3E23CBPG, CU-4E27CBPG)

Minimum 16 - -10 -11

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

OPERATION CONDITION OPERATION CONDITION5

ENGLISH MULTI AIR CONDITIONER FUNCTION MULTI AIR CONDITIONER FUNCTION

DEFINITION Multi air conditioner system has one outdoor unit connected to multiple indoor units.

• It is possible to operate the indoor units individually or simultaneously.

• The operation mode priority is given to the fi rst unit that turned on.

• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.

• The power indicator blinks to indicate the indoor unit is standing by for different operation mode.

INDOOR UNIT INDOOR UNIT6

OFF/ON TO TURN ON OR OFF THE UNIT

• Please be aware of the OFF indication on the remote control display

to prevent the unit from starting/stopping improperly.

TEMP TO SET TEMPERATURE

• Selection range: 16°C ~ 30°C.

• Operating the unit within the recommended temperature could

induce energy saving.

HEAT mode : 20°C ~ 24°C.

COOL mode : 26°C ~ 28°C.

DRY mode : 1°C ~ 2°C lower than room temperature.

TO SELECT OPERATION MODE AUTO mode - For your convenience

• Unit selects operation mode every 30 minutes according to

temperature setting, outdoor and room temperature. During operation

mode selection the power indicator blinks.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up. The power indicator blinks during this

COOL mode - To enjoy cool air

• Unit operates at low fan speed to give a gentle cooling operation.

Maximum distances: 8m

• Used when remote control is misplaced or

1 Press once. Automatic

Press and hold until you

hear one beep, then release.

Repeat step 2. Press and

hold until you hear two

beeps, then release.

Repeat step 3. Press and

hold until you hear three

beeps, then release.

Press the button to turn off.7

ENGLISH TO SET THE TIMER TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

Set the time. Confi rm.

• When ON Timer is set, the unit may start earlier (up

to 35 minutes) before the actual set time in order to

achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote

control and repeats daily once set. For clock setting,

please refer to Remote Control Preparation at back

• If timer is cancelled manually or due to power failure,

you can restore the previous setting (once power is

resumed) by pressing

OPTIONAL SETTINGS OPTIONAL SETTINGS CLOCK Press and hold for approximately 10

seconds to show 12-hour (am/pm) or

24-hour time indication.

RESET Press to restore the remote control’s

Set the temperature 1°C higher in cool mode or 2°C

lower in heat mode than the desired temperature to

achieve a 10% power saving.

Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

can be activated in all modes

and can be cancelled by pressing the respective

can not be selected at the

adjusted according to the operation mode.

• In heat mode, the air blows

horizontally for a while, then

starts to blow downwards.

AIR SWING MANUAL AIR SWING – MANUAL

• The airfl ow direction can be

adjusted as desired by using

• Do not adjust the vertical

airfl ow direction louvers by

• The air is discharge evenly

through 4 output vents.

TO ACHIEVE TEMPERATURE QUICKLY QUIET TO ENJOY QUIET ENVIRONMENT

• This operation reduces airfl ow noise.CLOSE OPEN CLOSECLOSEOPEN 8

CLOSE OPE N OPE N CLOSE CARE & CLEANING CARE & CLEANING

• Switch off the power supply before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

WASHING INSTRUCTIONS WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent.

• Do not use water hotter than 40°C.

• Clean the fi lter regularly for best performance and to

reduce power consumption.

• Please consult your nearest dealer for seasonal

FOR SEASONAL INSPECTION AFTER EXTENDED FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE NON-USE

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the following

temperature difference between air inlet and air outlet vents:

Cooling: ≥ 8°C Heating: ≥ 14°C NON SERVICEABLE CRITERIAS NON SERVICEABLE CRITERIAS TURN OFF POWER SUPPLY then CALL Authorized

Distributor under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

FOR EXTENDED NON-USE FOR EXTENDED NON-USE

• Activate heat mode for 2~3 hours to remove moisture left in

the internal parts thoroughly.

• Turn off the power supply.

• Remove the remote control batteries.

CAUTION INDOOR UNIT INDOOR UNIT Wipe the unit gently with a

AIR FILTER AIR FILTER

• lt is recommended to clean the air fi lter

• Wash/rinse the fi lters gently with water to

avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under the

shade, away from fi re or direct sunlight.

Remove the air fi lter

from the tabs and pull it

from the tabs and pull it

OFF CLOCK RESET SET CHECK TROUBLESHOOTING TROUBLESHOOTING Symptom

Heating/Cooling operation is not working

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

• Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation. • Check if the unit has been installed at an incline.

Remote control does not work.

(Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries.

The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set.

The unit does not receive the signal from the

• Make sure the receiver not obstructed.

• Make sure the remote control signal transmission is within the range.

• Certain fl uorescent lights may interfere with signal transmitter. Please

consult your nearest dealer.

Mist emerges from indoor unit. • Condensation effect due to cooling process.

Water fl owing sound during operation. • Refrigerant fl ow inside the unit.

The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or

Indoor fan stops occasionally during automatic

• This helps to remove the surrounding odours.

Operation is delayed a few minutes after

• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.

Timer indicator is always on. • The timer setting repeats daily once set.

Power indicator blinks during operation and

the indoor fan is stopped.

• The unit is in defrost mode, and the melted frost is drained from the

Indoor fan stops occasionally during heating

• To avoid unintended cooling effect.

Power indicator blinks before the unit is

• This is a preliminary step in preparation for the operation when the ON

Cracking sound can be heard during

• Changes of temperature cause the expansion/contraction of the unit.

The following symptoms do not indicate malfunction.

The following symptoms do not indicate malfunction.

Check the following before calling for servicing.

Check the following before calling for servicing.

The unit stops and the timer indicator blinks.

The unit stops and the timer indicator blinks.

Press until you hear

beep sound, then jot

down the error code.

• Turn the unit off and reveal the error code to your nearest dealer.

• The unit may be operable

(with 4 beeps) on a limited

basis, depending on the

rechargeables (Ni-Cd).

OFF CLOCK RESET SET CHECK

AIR SWING MANUAL AIR SWING - MANUAL

Drücken Sie die beiden

Schiebeverschlüsse in

Schiebeverschlüsse in

OFF CLOCK RESET SET CHECK

AIR SWING MANUAL AIR SWING - MANUAL

• Schakel in noodgevallen of abnormale

INFORMATIE OVER WETGEVING INFORMATIE OVER WETGEVING OPMERKING :

INFORMATIE OVER WETGEVING

BINNENEENHEID BINNENEENHEID46

AIR SWING MANUAL LUCHTSWING - MANUAL

tapijt, meubels of kleding.

AIR SWING MANUAL FLUXO DE AR - MANUAL

• Remova as pilhas do controlo remoto.57

CLOSE OPE N OPE N CLOSE

OFF CLOCK RESET SET CHECK

CLOSE OPE N OPE N CLOSE

OFF CLOCK RESET SET CHECK

2 OFF/ON Start/stop the operation.

TEMP Select the desired temperature.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

OFF CLOCK RESET SET CHECK
