USER MANUAL AC5500B TRISTAR

Exterior view of a modern air purifier with ventilation grille and wheels (no text or symbols visible)

Technical diagram of a device with numbered components, including a cylindrical component and various parts labeled 14 through 20.

Technical diagram of an air conditioner unit with numbered labels pointing to different components.

1 2 3

Drain tube Remote control

Technical line drawing of a mechanical device with coiled tubing and a zoomed-in inset showing internal components (no text or symbols)

Line drawing of a portable air conditioner unit with wheels and cooling pipes (no text or symbols)

Gebruik

K M L O Q N P SLEEP THREE TAX DRYD SLEEP THREE TAX DRYD SLEEP THREE TAX DRYD

E [e-mail]

www.tristar.eu

STEK

Operation and maintenance

UK

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. This device is not suitable for outdoor installation or use. When fixed or moved, the device can not be set horizontally or declined to more than 45° or upside-down. The refrigerant circuit is checked for leak tightness. The cooling capacity is 9.000 BTU.

Before use

Place the appliance on a flat stable surface and hold at least 30 cm. free space around it. Make sure the unit is placed in a upright position. Let the unit, after transport, wait for more than 4 hours before it is plugged in into the wall outlet. Prevent the cabinet to get wet. Make sure the power cable to the power plug is not curled up on the back of the device, it can be too hot. Place the plug always into a grounded outlet. Never place the appliance near any heat sources or direct sunlight.

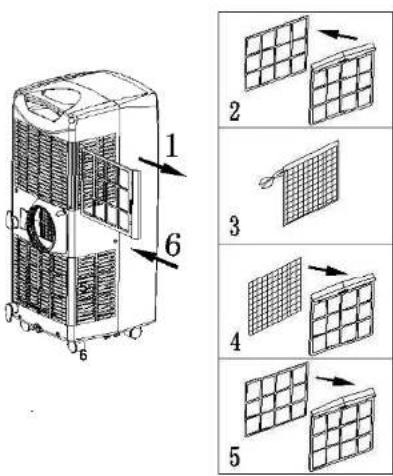

Installation of the carbon filter (No. 18)

1

Remove the air filter frame (No. 8) from the unit.

2

Separate the filter holder from the filter frame.

3

Remove the carbon filter (No. 18) from its plastic bag.

4

Insert the carbon filter into the filter frame.

Fix the filter by reassembling the fixer onto the filter frame.

Re-fit the filter frame inside the unit.

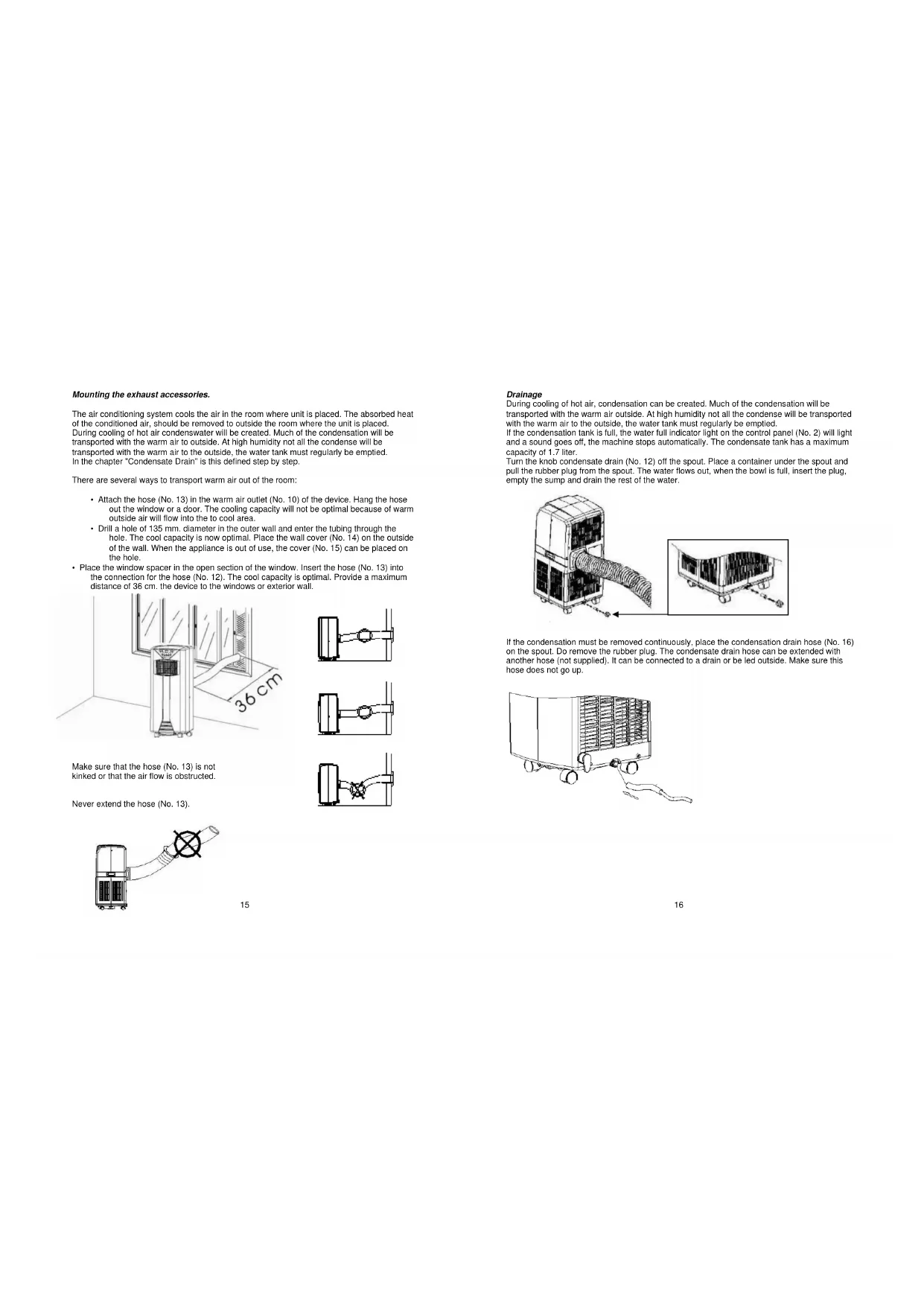

Mounting the exhaust accessories.

The air conditioning system cools the air in the room where unit is placed. The absorbed heat of the conditioned air, should be removed to outside the room where the unit is placed. During cooling of hot air condenswater will be created. Much of the condensation will be transported with the warm air to outside. At high humidity not all the condense will be transported with the warm air to the outside, the water tank must regularly be emptied. In the chapter "Condensate Drain" is this defined step by step.

There are several ways to transport warm air out of the room:

• Attach the hose (No. 13) in the warm air outlet (No. 10) of the device. Hang the hose out the window or a door. The cooling capacity will not be optimal because of warm outside air will flow into the to cool area.
• Drill a hole of 135 mm. diameter in the outer wall and enter the tubing through the hole. The cool capacity is now optimal. Place the wall cover (No. 14) on the outside of the wall. When the appliance is out of use, the cover (No. 15) can be placed on the hole.
• Place the window spacer in the open section of the window. Insert the hose (No. 13) into the connection for the hose (No. 12). The cool capacity is optimal. Provide a maximum distance of 36~cm . the device to the windows or exterior wall.

Technical line drawing of a mechanical device with a 36 cm dimension label (no text or symbols on the device itself)

Make sure that the hose (No. 13) is not kinked or that the air flow is obstructed.

Never extend the hose (No. 13).

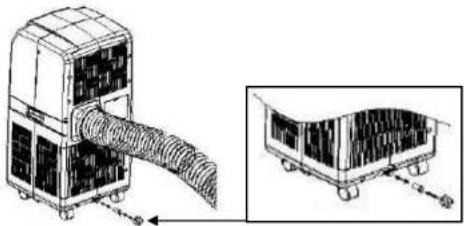

Drainage

During cooling of hot air, condensation can be created. Much of the condensation will be transported with the warm air outside. At high humidity not all the condense will be transported with the warm air to the outside, the water tank must regularly be emptied. If the condensation tank is full, the water full indicator light on the control panel (No. 2) will light and a sound goes off, the machine stops automatically. The condensate tank has a maximum capacity of 1.7 liter.

Turn the knob condensate drain (No. 12) off the spout. Place a container under the spout and pull the rubber plug from the spout. The water flows out, when the bowl is full, insert the plug, empty the sump and drain the rest of the water.

Technical line drawing of a mechanical device with internal tubing and a zoomed-in view (no text or symbols)

If the condensation must be removed continuously, place the condensation drain hose (No. 16) on the spout. Do remove the rubber plug. The condensate drain hose can be extended with another hose (not supplied). It can be connected to a drain or be led outside. Make sure this hose does not go up.

Line drawing of a portable air conditioner unit with wheels and heat sinks (no text or symbols)

Use

Always place the plug into a grounded socket.

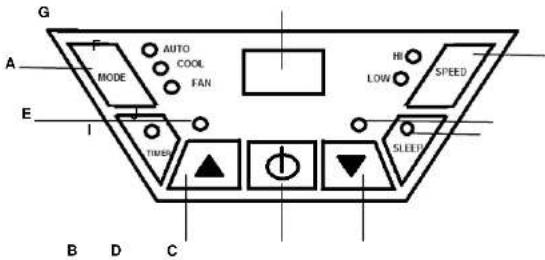

G A MODE AUTO COOL FAN E I TAMES HI SPEED LOW SPEED B D C

A Mode (function) button F Speed (ventilation) button

B Temperature up button G Display window

C Temperature down button H Timer operation indicator

D On/Off (power) button 1 Sleep operation indicator

E Water full indicator J Compressor operation indicator

Press the on/off button (D), the device switches in the following mode:

At room temperatures between 20°C and 23°C the device automatically switches on the Fan mode. At a room temperature above the 23°C the device automatically switches on the Cool mode. The display (G) indicates the temperature of the room (between 0°C and 50°C).

Cooling

Press the on/off button (D) then press the mode button (A) and select the COOL mode, the indicator COOL lights on, Set the desired temperature to the temperature setting buttons, button B to set up the temperature and C key to set the temperature down. The display will return to room temperature. If the temperature is below room temperature, the compressor turns on and the device starts cooling. The compressor indicator (J) goes on. If the desired temperature is reached, the fan still works but is the compressor and the corresponding indicator (J) turn off again. With the speed button (F) select the desired fan speed.

Fan function

Press the on/off button (D) and then press the mode button (A) and select the FAN mode, the LED FAN will light. In FAN mode the device does not cool, the device is now used as a fan.

Auto function

This feature is designed to switch to a certain temperature to be used only as a fan above this temperature the device will automatically turn to the air conditioning mode (cooling). Example: Turn the power on by pressing the power button (D), Select the COOL mode with the mode button(A), set the temperature to 25°C. Then select the AUTO mode by pressing the mode button (A), the lights COOL and AUTO come on to 25°C FAN function is, from 25 °C the device cools.

If the temperature falls below the 25 °C the FAN mode comes on again. Attention! The minimum set temperature in the AUTO mode is 25 °C, when a lower temperature is selected, the device cools only to 25 °C.

Timer function

Press the timer function button (H) and set the desired number of hours, from 1 up to 24 hours. The timer function is available in the cooling, fan and auto mode.

Example:

- Set in 2 hours during the off mode, the machine will begin two hours later with the last set mode.

- Set in 2 hours, while the unit is in operation, the device automatically stops 2 hours later.

Sleep function

This feature only works in the cooling mode. Press the sleep function button (I). The temperature raises in the first and second hours, respectively, 1°C per hour. Then the device keeps the temperature down. After 12 hours in sleep mode the device will automatically turn off. When using the sleep mode the unit automatically turns in low fan speed.

Remote control

Place the battery in the remote behind the flap on the back. Point the remote at the device and select the desired functions on the remote control.

K M L O Q N P M TIME TTEMP+ TIME- PWM PWM10 RFTP

K Control light, lights up when the keys are operated.

L Function button: cooling, ventilation or automatically.

M On/off button

N Fan speed control.

O Temperature setting button, right temperature up and left temperature down.

P Sleep function button.

Q Timer function button.

Regulating the air flow direction

Turn the vertical louvers left and right by moving the roller on the air vent. For horizontal louvers, adjust them up and down by hands directly to control the air flow direction.

the air vent. For horizontal louvers, adjust them up and down by hands directly to control the air flow direction.

The cooling capacity of the unit depends on the following factors:

• All windows and doors must be closed, otherwise the hot air will stay flowing inside
• If the room temperature is not extremely high and for example, there are many
  heat sources in space, such as computers etc.
• Are the dimensions of the area suitable for this device?
  The cooling capacity for the AC-5500B is maximal 66 m3.
  • Is the heat discharged outwards properly
  • Make sure the filters are cleaned regularly.

Cleaning

Always remove the plug from the socket when the device is cleaned.

Clean the outside with a damp cloth. Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device. Do not immerse in water or other liquid. Remove filters from the device and clean it with warm soapy water, let the filters dry completely before being replaced. Turn the appliance without filters. If the unit is stored after the season, drain the condensate water and put the cord on the cord storage area (No. 7).

For faults or queries, please contact the helpdesk:

T [phone]

F [phone]

E [e-mail]

www.tristar.eu

STEK

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
  • To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
  • This appliance is for household use only and only for the purpose it is made for.
  • The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
  • Proof of the guarantee is provided by the proof of purchase. Without proof of
  purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning,
  maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.

• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC

on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Line drawing of a vertical air conditioner unit mounted on a wall, with a 36 cm height dimension label (no text or symbols beyond the measurement)

Diagram of a car air conditioning unit with coiled tubing and a side-view inset showing internal components (no text or labels)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Utilisation

E [e-mail]

www.tristar.eu

STEK

MISES EN GARDES IMPORTANTES

Technical line drawing of a window with a 36 cm dimension label (no other text or symbols)

Technical illustration of a car air conditioning unit with coiled tubing and side-view detail (no text or symbols)

Line drawing of a cart with a handle and a curved ramp, no text or symbols present

Inbetriebnahme

K M L O Q N P N RNDG TNDP+ HNDG HND+ FAN 35010 N EFP

WATER 36 cm

Three schematic diagrams of mechanical components or assemblies, no text or symbols present

Technical illustration of a mechanical device with coiled tubing and a close-up view of its internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Uso

G A MODE AUTO COOL FAN HI SPEED LOW E I TUES SLEEP B D C

Technical diagram of a solar air conditioner unit with labeled components and corresponding panel assembly diagrams.

1

Line drawing of an air conditioner unit mounted on a wall, with a 36 cm dimension label (no text or symbols on the device itself)

Diagram of a car air conditioning unit with coiled tubing and a close-up view of its internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Utilizzo

Technical illustration of a modular air duct system with meshed panels and directional arrows (no text or symbols)

Line drawing of a cart with a cable extending from its side, no text or symbols present

Utilizzo

Technical line drawing of a window with a 36 cm dimension label (no text or symbols beyond the measurement)

Technical line drawing of a mechanical device with coiled tubing and internal components, shown in two views (no text or symbols)

Ako se kondenzat mora neprekidno uklanjati, postavite crijevo za odvod kondenzata (br. 16) na izljevnik. Uklonite gumeni čep. Crijevo za odvodnju kondenzata se može produžiti drugim crijevom (nije Isporučeno). Može se spoljtl na odvod ili provesti van. Pobrinite se da crijevo ne bude okrenuto prema gore.

Line drawing of a portable air conditioner unit with wheels and heat sinks (no text or symbols)

Upotreba

Utikač uvijek ukopčajte u uzemljenu zidnu utičnicu.

G A MODE AUTO COOL FAN HI SPEED LOW E I TURRY SLEEP B D C

A Gumb Mode (rad)

F Gumb Speed (ventilacija)

B Gumb za podizanj

temperature G Prozor zaslona

C Gumb za snižavar

temperature H Indikator rada Timer

D. Gumb On/Off (nap
