USER MANUAL SCP 7 Superior

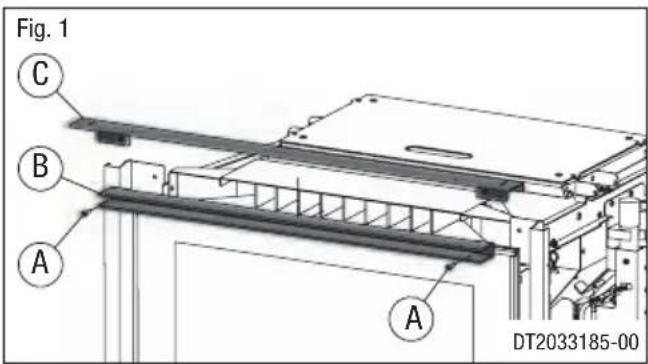

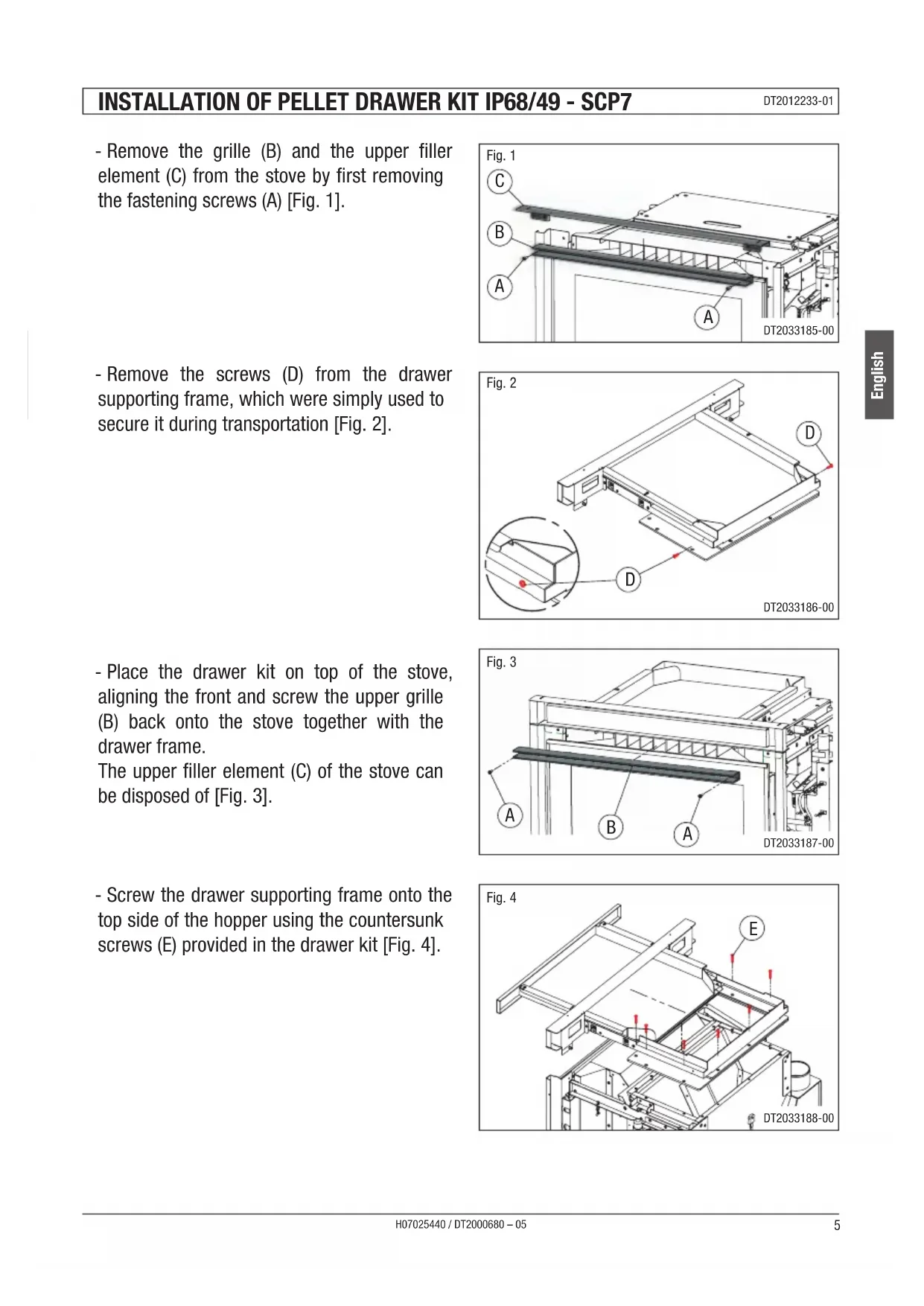

• Remove the grille (B) and the upper filler element (C) from the stove by first removing the fastening screws (A) [Fig. 1].

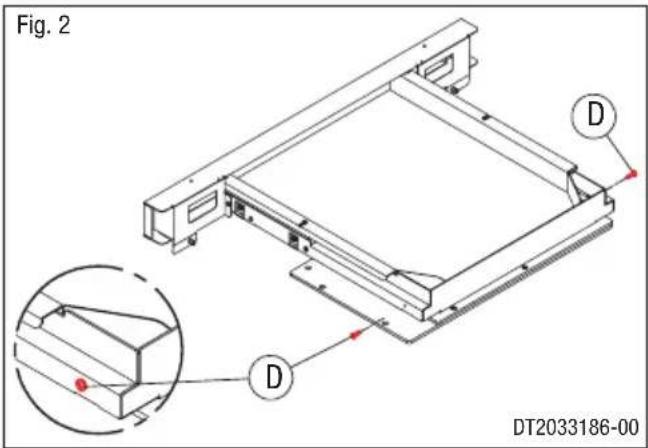

• Remove the screws (D) from the drawer supporting frame, which were simply used to secure it during transportation [Fig. 2].

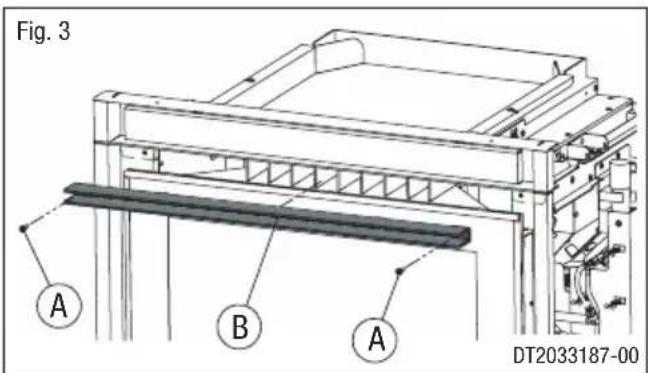

• Place the drawer kit on top of the stove, aligning the front and screw the upper grille (B) back onto the stove together with the drawer frame.

The upper filler element (C) of the stove can be disposed of [Fig. 3].

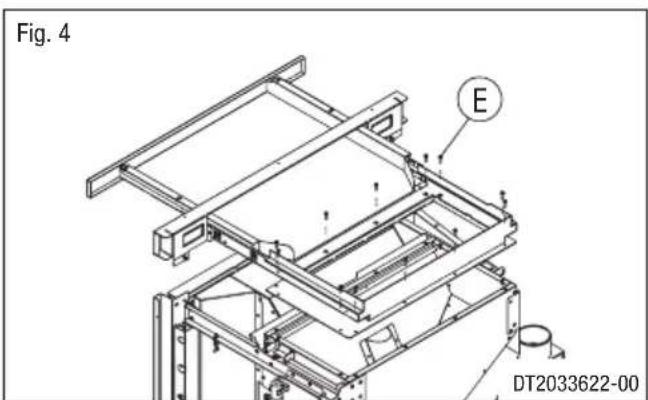

• Screw the drawer supporting frame onto the top side of the hopper using the countersunk screws (E) provided in the drawer kit [Fig. 4].

PELLET LOADING WITH OPTIONAL DRAWER KIT

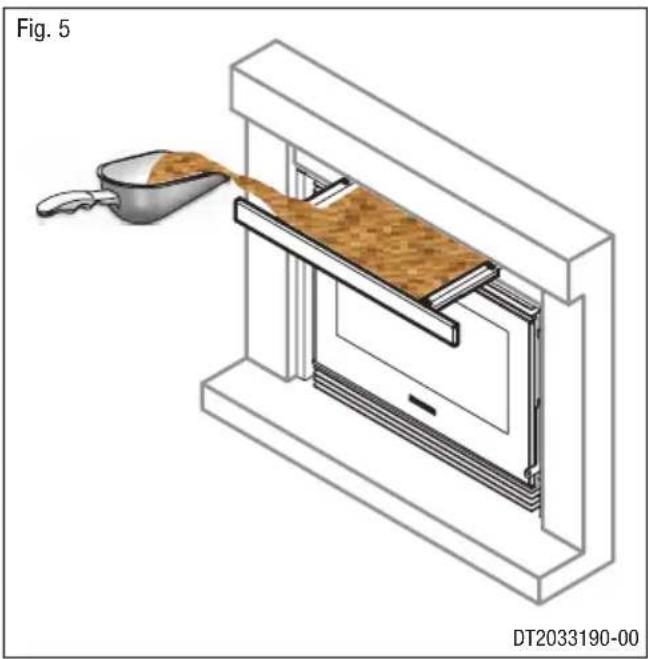

If the pellet drawer kit is installed, pellets can be loaded from the front using the relative pullout drawer inserted in the upper part.

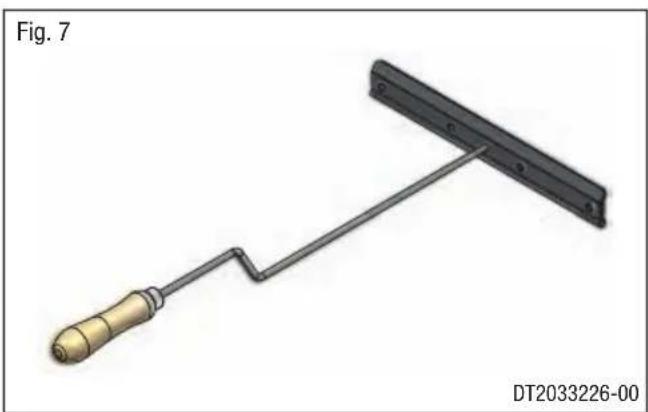

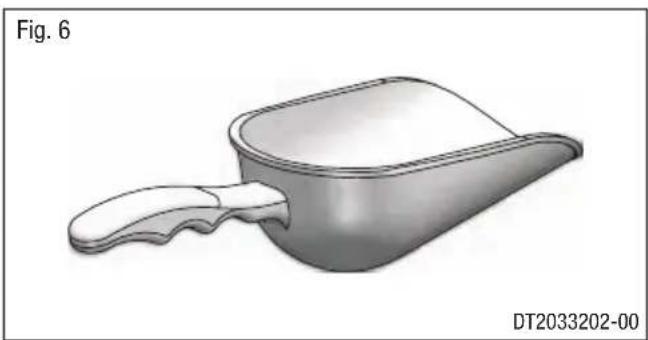

Since space is restricted, to load pellets safely and easily we recommend using the plastic scoop provided in the kit to fill the fully open drawer (drawing capacity is equivalent to 5 scoops) and then use the relative "scraper" provided in the kit to carefully push the pellets into the hopper.

As a rough guide to use, when the filling sensor gives a warning, the hopper of the IP 68/49 and SCP 7 can be filled up with approx. 10 scoops; in other words to fill the hopper do not use the drawer more than twice.

The hopper of the IP 78/58 and SCP 9 can be filled up with approx. 25 scoops; in other words to fill the hopper do not use the drawer more than 5 times.

The hopper of the IP 78/68 can be filled up with approx. 30 scoopfuls; in other words to fill the hopper do not use the drawer more than 6 times.

Do not overfill the drawer and the pellet hopper, otherwise pellets will overflow and be wasted.

• Remove the grille (B) and the upper filler element (C) from the stove by first removing the fastening screws (A) [Fig. 1].

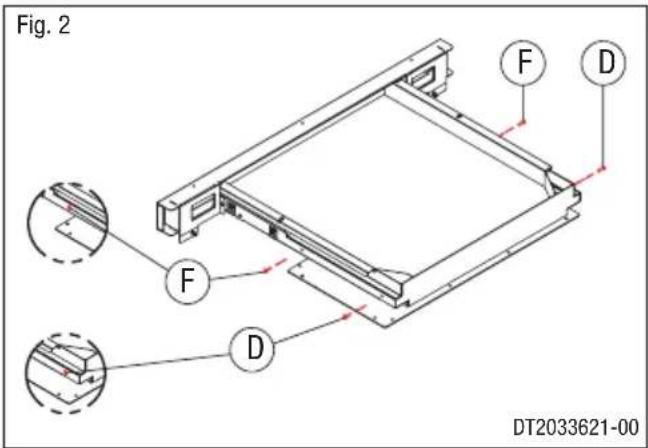

• Remove the screws (D) from the drawer supporting frame, which were simply used to secure it during transportation and the screws (F) of the limit opening switch [Fig. 2].

Be careful during the opening of the drawer as it can come out completely and fall down.

• Place the drawer kit on top of the stove, aligning the front and screw the upper grille (B) back onto the stove together with the drawer frame.

The upper filler element (C) of the stove can be disposed of [Fig. 3].

• Screw the drawer supporting frame onto the top side of the hopper using the countersunk screws (E) provided in the drawer kit [Fig. 4].

• Close the drawer and re-tight again the screws of the limit opening switch.
