USER MANUAL Mobicool T25 DC DOMETIC

GB D F E I NL DK N S FIN T25 DC/AC T30 DC/AC Thermoelectric coolbox

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is resold, this

operating manual must be handed over to the purchaser along with it.

10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Notes on using the operating manual

The following symbols are used in this operating manual:

Safety instruction: failure to observe this instruction can cause

injury or damage the device.

Safety instruction relating to a danger from an electrical current

or voltage. Failure to observe this instruction can damage the

device and impair its function and cause injury.

Supplementary information for operating the device.

➤ Action: this symbol indicates that action is required on your part.

The required action is described step-by-step.

✓ This symbol indicates the result of an action.

Please observe the following safety instructions.

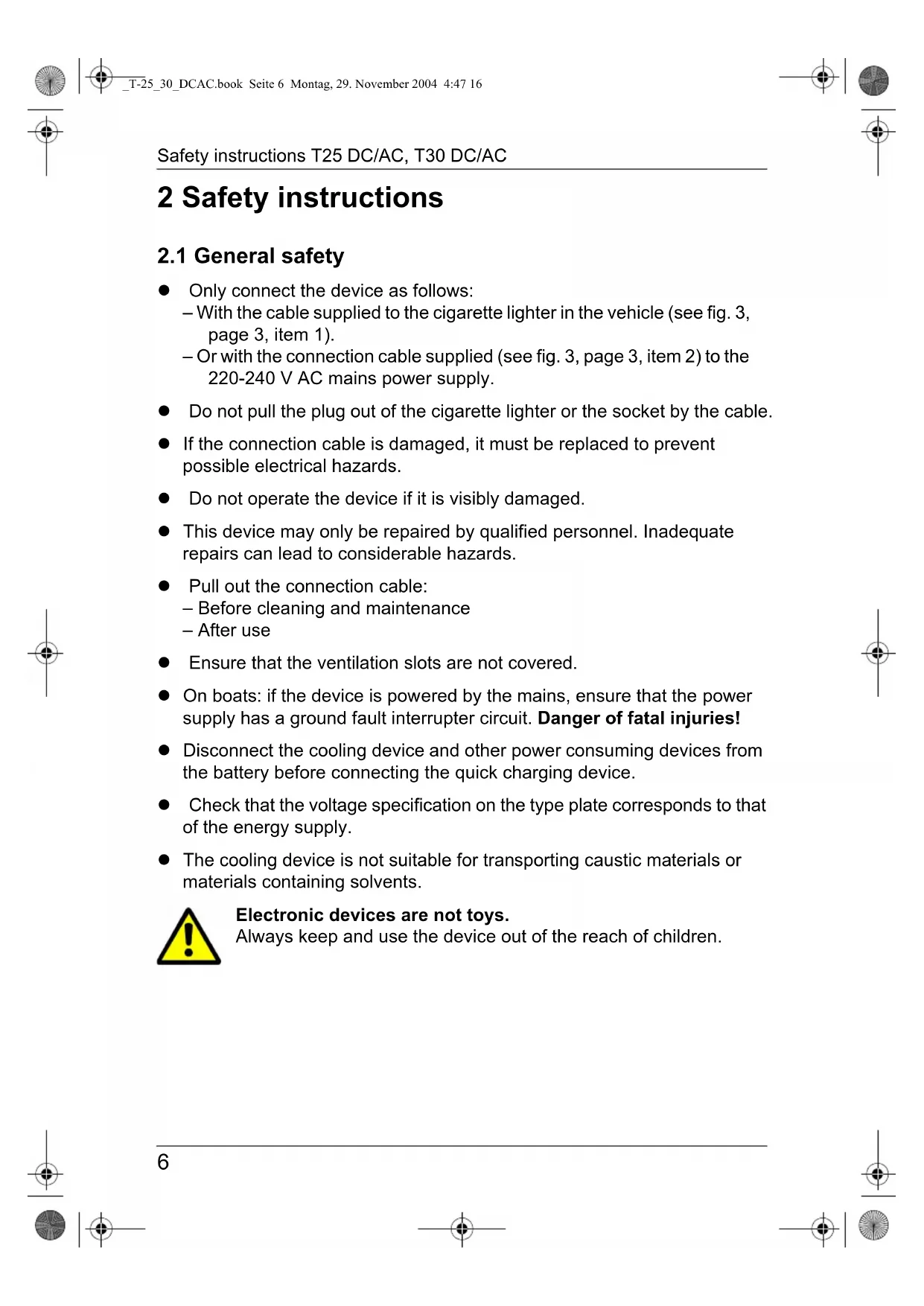

_T-25_30_DCAC.book Seite 5 Montag, 29. November 2004 4:47 16Safety instructions T25 DC/AC, T30 DC/AC

z Only connect the device as follows:

– With the cable supplied to the cigarette lighter in the vehicle (see fig. 3,

– Or with the connection cable supplied (see fig. 3, page 3, item 2) to the

220-240 V AC mains power supply.

z Do not pull the plug out of the cigarette lighter or the socket by the cable.

z If the connection cable is damaged, it must be replaced to prevent

possible electrical hazards.

z Do not operate the device if it is visibly damaged.

z This device may only be repaired by qualified personnel. Inadequate

repairs can lead to considerable hazards.

z Pull out the connection cable:

– Before cleaning and maintenance

z Ensure that the ventilation slots are not covered.

z On boats: if the device is powered by the mains, ensure that the power

supply has a ground fault interrupter circuit. Danger of fatal injuries!

z Disconnect the cooling device and other power consuming devices from

the battery before connecting the quick charging device.

z Check that the voltage specification on the type plate corresponds to that

of the energy supply.

z The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

Electronic devices are not toys.

Always keep and use the device out of the reach of children.

_T-25_30_DCAC.book Seite 6 Montag, 29. November 2004 4:47 16T25 DC/AC, T30 DC/AC Scope of delivery

2.2 Operating the device safely

z Before starting the device, ensure that the power supply line and the plug

z Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

z Do not fill the inner container with ice or fluid.

z Never immerse the device in water.

z Protect the device and the cable against heat and moisture.

z Do not touch exposed cables with your bare hands. This especially

applies when operating the device with the AC mains: danger of fatal

z MOBICOOL cannot be held liable for damage resulting from improper

usage or incorrect operation.

Before starting the device check if all of the parts belonging to the scope of

delivery are present.

Quantity Description

1 Connection cable for cigarette lighter

The cooler is suitable for cooling foodstuffs. The device is also suitable for

The device has been designed for use with a 12 V DC on-board

power supply socket of a car (cigarette lighter), boat or caravan.

The device can also be connected to the 220-240 V AC mains

If you wish to cool medicines, please check if the cooling capacity of the

device is suitable for the medicine in question.

The handle has a locking function, which means that the lid will only open

when the handle is folded all the way back.

When opening the lid, make sure that the lugs on the side of it

audibly and completely latch into the handle, which is folded all the

way back, in order to prevent the lid from snapping shut.

5 Technical description

The cooler is suitable for mobile use. It can cool down or keep products cool

up to max. 20 °C below ambient temperature.

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is

discharged by a fan.

5.1 Description of the device

Your cooler consists of the following parts (see fig. 5, page 4):

(on the back of the lid)

Before starting your new cooling device for the first time, you

should clean it inside and outside with a damp cloth for hygienic

reasons (please also refer to the “Cleaning and maintenance”

chapter on page 10).

Food may only be stored in its original packaging or in suitable

6.1 Energy saving tips

z Choose a well ventilated installation location which is protected against

z Allow food to cool down first before placing it in the device.

z Do not open the cooling device more often than necessary.

z Do not leave the lid or door open for longer than necessary.

6.2 Using the cooler

➤ Place the cooler on a firm base.

As is the case with every fridge, your cool box must be well venti-

lated so that the heat which is withdrawn may also be carried off,

otherwise it is not possible for the equipment to function properly.

➤ Connect the 12 V connection cable (see fig. 3, page 3, item 1) to the

cigarette lighter or a 12 V socket in your vehicle or ...

➤ Connect the 220-240 V connection cable

(see fig. 3, page 3, item 2) to the 220-240 V AC mains supply.

Close the cooler by pushing down the lid and turning the handle

✓ After a certain period of time, the temperature inside the container will

cool down by up to max. approx. 20 °C.

Ensure that the objects placed in the cooler are suitable for

cooling/warming to the selected temperature.

➤ If you wish to switch off the device, pull out the connecting cable.

_T-25_30_DCAC.book Seite 9 Montag, 29. November 2004 4:47 16Cleaning and maintenance T25 DC/AC, T30 DC/AC

7 Cleaning and maintenance

Before cleaning the cooler, pull the cable out of the socket or the

Do not clean the cooler under running water or in dish water.

Do not use abrasive cleaning agents or hard objects during clean-

ing as these can damage the cooler.

➤ Occasionally clean the device interior and exterior with a damp cloth.

➤ Place the packaging material in the appropriate recycling waste bins

If you wish to finally dispose of the device, ask your local recycling

centre or specialist dealer for details about how to do this in

accordance with the applicable disposal regulations.

_T-25_30_DCAC.book Seite 10 Montag, 29. November 2004 4:47 16T25 DC/AC, T30 DC/AC Troubleshooting

Fault Possible cause Suggested remedy

seen from the outside

flowing from the cig-

arette lighter in your

The ignition must be switched on in most

vehicles for voltage to flow at the ciga-

The ignition is on and

the cooler is not work-

Pull the plug out of the

socket is dirty. This

If the plug of your cooler becomes very

warm in the cigarette lighter socket,

either the socket must be cleaned or the

plug has not been assembled correctly.

The fuse of the ciga-

Replace the fuse (5 A) in the cigarette

lighter plug (see fig. 4, page 4, item A).

The vehicle fuse has

Replace the vehicle cigarette lighter fuse

(usually 15 A). Please refer to the oper-

ating manual of your vehicle.

Your cooler does not

cool satisfactorily and

the outer fan wheel is

This can only be repaired by an author-

ised customer services unit.

cool satisfactorily and

the outer fan wheel is

This can only be repaired by an author-

ised customer services unit.

This can only be repaired by an author-

ised customer services unit.

_T-25_30_DCAC.book Seite 11 Montag, 29. November 2004 4:47 16Technical data T25 DC/AC, T30 DC/AC

This device is CFC-free.

This device carries the GS symbol to indicate tested and proven safety.

Versions, technical modifications and delivery options reserved.

T25 DC/AC T30 DC/AC Capacity: 22 litres 28 litres

Connection voltage: 12 V DC

Power consumption: 38 W at 12 V DC

40 W at 230 V AC Temperature range: Max. 20 °C under ambient temperature

Weight: Approx. 4.1 kg Approx. 4.4 kg

Testing/certification:
