USER MANUAL Mobicool T26 DC DOMETIC

Please read these instructions before start-up carefully and keep them

in a safe place. Should the system be resold hand over these instruc-

tions along with the system.

9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Please observe the following safety instructions.

1 Safety instructions

z Do not operate the device if it is visibly damaged.

z Ensure that the ventilation slots are not covered.

z This device may only be repaired by qualified personnel.

Inadequate repairs can lead to considerable hazards.

z Electronic devices are not toys.

Always keep and use the device out of the reach of children.

z Food may only be stored in its original packaging or in suitable

z The cooling device is not suitable for transporting caustic

materials or materials containing solvents.

z Persons (including children) whose physical, sensory or mental

capabilities or lack of experience and knowledge prevents them

from using the appliance safely should not use this appliance

without initial supervision or instruction by a responsible person.

z Only connect the device as follows:

– With the 220-240 V connection cable supplied to a 220-

240 V mains power supply

– With the 12 V cable supplied to a 12 V socket

T26_32_DC-AC.book Seite 5 Freitag, 14. März 2008 3:19 15Safety instructions T26 DC/AC, T32 DC/AC

z Do not pull the plug out of the cigarette lighter or the socket by

z If the connection cable is damaged, it must be replaced to pre-

vent possible electrical hazards. This can only be repaired by an

authorised customer services unit.

z Pull out the connection cable:

– Before cleaning and maintenance

z On boats: if the device is powered by the mains, ensure that the

power supply has a ground fault interrupter circuit. Danger of

z Disconnect the cooling device and other power consuming

devices from the battery before connecting the quick charging

z Check that the voltage specification on the type plate corre-

sponds to that of the energy supply.

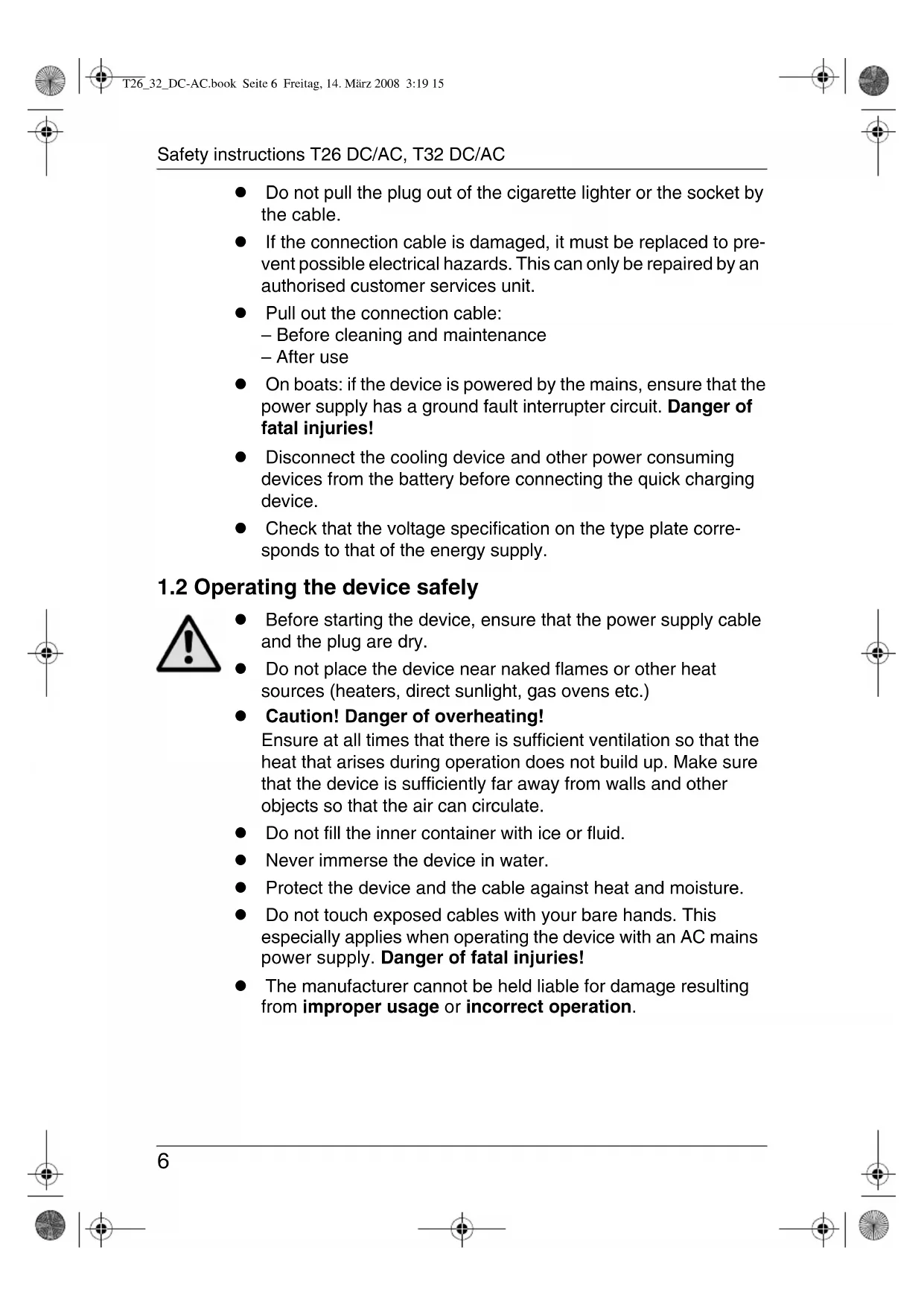

1.2 Operating the device safely

z Before starting the device, ensure that the power supply cable

and the plug are dry.

z Do not place the device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.)

z Caution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the

heat that arises during operation does not build up. Make sure

that the device is sufficiently far away from walls and other

objects so that the air can circulate.

z Do not fill the inner container with ice or fluid.

z Never immerse the device in water.

z Protect the device and the cable against heat and moisture.

z Do not touch exposed cables with your bare hands. This

especially applies when operating the device with an AC mains

power supply. Danger of fatal injuries!

z The manufacturer cannot be held liable for damage resulting

from improper usage or incorrect operation.

T26_32_DC-AC.book Seite 6 Freitag, 14. März 2008 3:19 15T26 DC/AC, T32 DC/AC Intended use

The cooler is suitable for cooling foodstuffs.

If your device has the additional equipment for warming, you can heat up

foodstuffs or keep them warm. There is a switch to change between heat-

ing and cooling modes.

The device has been designed for use with a 12 V DC on-board power supply

socket of a car (cigarette lighter), boat or caravan as well as a 220-240 V AC

If you wish to cool medicines, please check if the cooling capacity

of the device is suitable for the medicine in question.

For versions with the additional insulating lid:

4 Technical description

The cooler is suitable for mobile use. If can cool goods to max. 20 °C under

the ambient temperature or keep them cool.

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is

discharged by a fan.

Quantity Description

1 A, page 3 1 Cooling device

2 1, page 3 1 Connection cable for 12 V DC connection

4.1 Optional accessories

The device is available in different versions. The version you bought may

have the following additional features:

The contents of your cooler can be warmed or kept warm to max. 65 °C.

z ABS (activatable battery protection)

An integrated battery monitor can be switched on to protect your vehicle

battery from discharging to dangerously low levels (see “Using the bat-

tery monitor” chapter on page 10).

Insulating lid as an alternative to the unit lid for transporting (not for cool-

4.2 Description of the device

Before starting your new cooling device for the first time, you

should clean it inside and outside with a damp cloth for hygienic

reasons (please also refer to the “Cleaning and maintenance”

chapter on page 11).

5.1 Energy saving tips

z Choose a well ventilated installation location which is protected against

z Allow warm food to cool down first before placing it in the device to keep

z Do not open the cooling device more often than necessary.

z Do not leave the lid open for longer than necessary.

(Only on versions with the additional heating or ABS

5.2 Using the cooler

The lid of the cool box must always be secured with the lock when

loading and unloading (6, page 4). If the lid is fully open without

being secured, the box could tip over.

If the handle is folded back of if the cooler is being carried, the lid

is locked (7 A, page 4). You can only open the lid when the han-

dle is folded forwards (7 B, page 4).

Like every cooling device, your cooler must be properly ventilated

so that any heat created can dissipate. Otherwise proper function-

ing cannot be ensured.

➤ Place the cooler on a firm base.

➤ Connect the 12 V connection cable (2 1, page 3) into the cigarette

lighter socket or a 12 V socket in the vehicle

➤ Plug the 220-240 V connection cable (2 2, page 3) into the AC voltage

socket and connect it to the 220-240 V AC mains supply.

Switch off the battery monitor (3 2, page 3, ABS accessory) (OFF

➤ Only on versions with the additional heating feature: Push the switch

(4 3, page 3) on the control panel to "COLD" or "HOT" to switch on the

✓ The indicators on the control panel show you the operating mode:

✓ The cooler starts cooling/heating the interior

Ensure that the objects placed in the cooler are suitable for cooling

to the selected temperature.

➤ If you wish to switch the cooler off:

– Slide the switch (4 3, page 3) to the “OFF” position (only with the

– Pull out the connection cable

Operating display Operating mode

Green (4 1, page 3) Cooling

Red (4 2, page 3) Heating

T26_32_DC-AC.book Seite 9 Freitag, 14. März 2008 3:19 15Operation T26 DC/AC, T32 DC/AC

5.3 Using the battery monitor

(Only on versions with the additional ABS feature)

If you operate your cooler with the 220-240 V AC mains supply,

switch off the battery monitor.

➤ Push the switch (3 2, page 3) on the operating panel to “ON” to switch

on the battery monitor.

✓ The red LED (3 1, page 3) on the operating panel displays the status of

the battery monitor:

➤ Push the switch (3 2, page 3) on the operating panel to “OFF” to switch

off the battery monitor.

5.4 Changing the lid

(Only on versions with the additional insulating lid feature)

As an alternative to the unit lid, you can use an insulating lid when transport-

➤ Fold the handle of the cooler forwards.

➤ Open the lid until it is vertical and then remove it by lifting it upwards.

➤ Place the insulating lid with the guide lugs into the slots on the cooler.

Please remember: the insulating led is only suitable for trans-

port and not for cooling.

Operating display Operating mode

LED glows The switch-on voltage (13.1 V ± 0.2 V) is present

and the cooler is in operation.

LED flashes The switch-off voltage (11.7 V ± 0.2 V) has been

reached and the battery monitor has switched off

T26_32_DC-AC.book Seite 10 Freitag, 14. März 2008 3:19 15T26 DC/AC, T32 DC/AC Cleaning and maintenance

6 Cleaning and maintenance

Before cleaning the cooler, pull the cable out of the socket or the

Do not clean the cooler under running water or in dish water.

Do not use abrasive cleaning agents or hard objects during clean-

ing as these can damage the cooler.

➤ Occasionally clean the device interior and exterior with a damp cloth.

Fault Possible cause Suggested remedy

Your cooler does not func-

tion (plug is inserted, LED

(accessory) does not

flowing from the 12 V

lighter) in your vehicle.

The ignition must be switched on in

most vehicles for voltage to flow at the

No voltage present at

the AC voltage socket.

Try using another plug socket.

Your cooler does not cool

(plug is inserted, LED

(4 1, page 3, acces-

This can only be repaired by an author-

ised customer services unit.

Your cooler does not heat

(plug is inserted, LED

(4 2, page 3, acces-

This can only be repaired by an author-

ised customer services unit.

(cigarette lighter):

The ignition is on and the

cooler is not working.

Pull the plug out of the

socket and make the fol-

The cigarette lighter

socket is dirty. This

results in a poor elec-

If the plug of your cooler becomes very

warm in the cigarette lighter socket,

either the socket must be cleaned or the

plug has not been assembled correctly.

The fuse of the 12 V

Replace the fuse (5 A) in the 12 V plug

The vehicle fuse has

Replace the vehicle's 12 V socket fuse

(usually 15 A). (Please refer to the oper-

ating manual of your vehicle.)

T26_32_DC-AC.book Seite 11 Freitag, 14. März 2008 3:19 15Disposal T26 DC/AC, T32 DC/AC

➤ Place the packaging material in the appropriate recycling waste bins

If you wish to finally dispose of the device, ask your local recycling

centre or specialist dealer for details about how to do this in accord-

ance with the applicable disposal regulations.

Versions, technical modifications and delivery options reserved.

T26 DC/AC T32 DC/AC Gross capacity: 26 litres 30 litres

Connection voltage: 12 V DC

220-240 V AC, ~50 Hz

consumption: max. 47 W Cooling capacity: max. 20 °C under ambient temperature

approx. 65 °C interior temperature

Dimensions in mm: see figure 8, page 4 see figure 8, page 4

Testing/certification:
