USER MANUAL Mobicool P24 DC DOMETIC

P24 DC/AC P28 DC/AC S25 DC/AC

Please read these instructions before start-up carefully and keep them

in a safe place. Should the system be resold hand over these instruc-

tions along with the system.

9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Please observe the following safety instructions.

1 Safety instructions

z Do not operate the device if it is visibly damaged.

z Ensure that the ventilation slots are not covered.

z This device may only be repaired by qualified personnel.

Inadequate repairs can lead to considerable hazards.

z Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

z Persons (including children) whose physical, sensory or mental

capabilities or lack of experience and knowledge prevents them

from using the appliance safely should not use this appliance

without initial supervision or instruction by a responsible person.

z Electronic devices are not toys.

Always keep and use the device out of the reach of children.

z Children must be supervised to ensure that they do not play with

z Food may only be stored in its original packaging or in suitable

_P24_P28_S25_DC-AC.book Seite 5 Dienstag, 21. April 2009 2:40 14Safety instructions P24 DC/AC, P28 DC/AC, S25 DC/AC

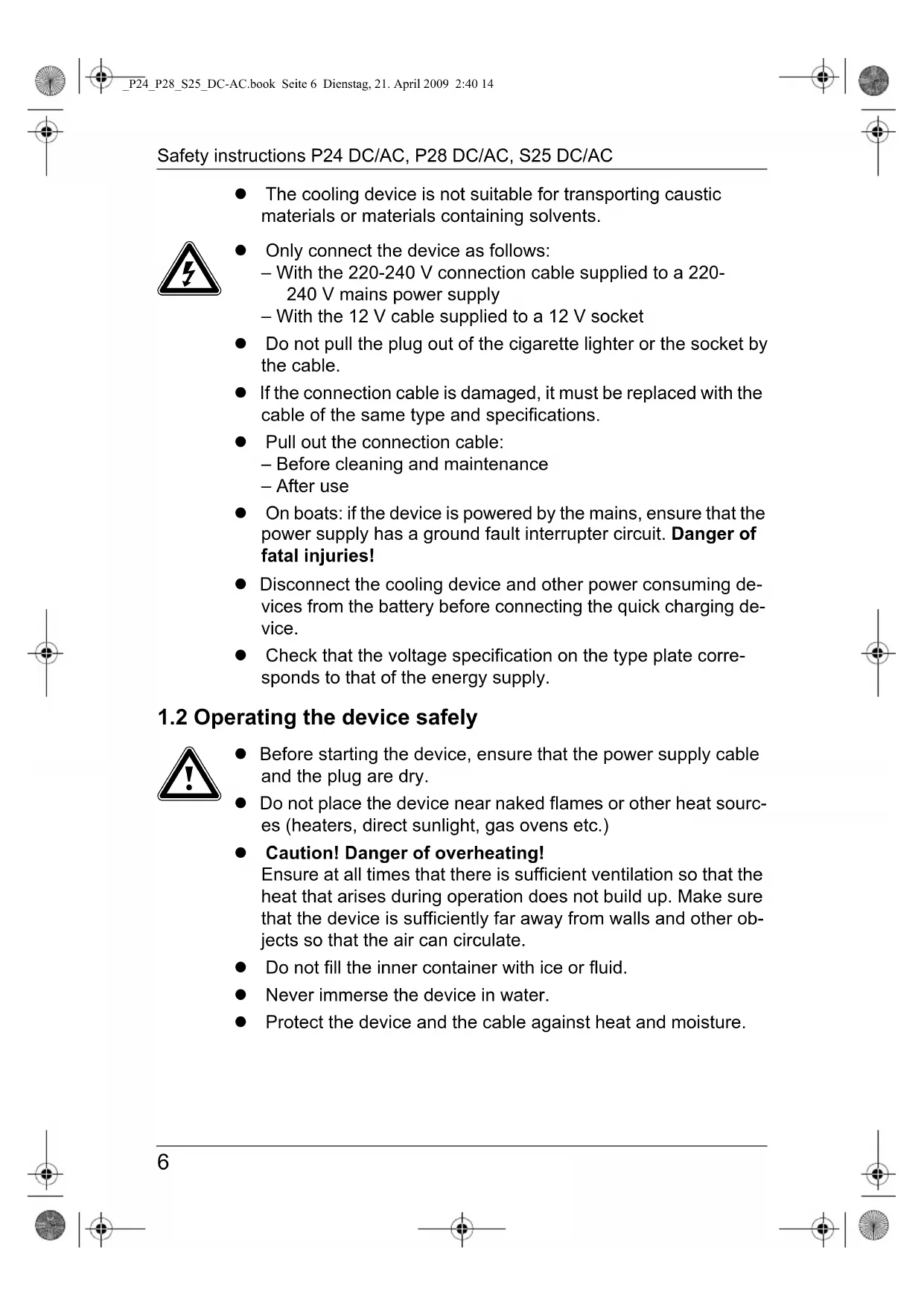

z The cooling device is not suitable for transporting caustic

materials or materials containing solvents.

z Only connect the device as follows:

– With the 220-240 V connection cable supplied to a 220-

240 V mains power supply

– With the 12 V cable supplied to a 12 V socket

z Do not pull the plug out of the cigarette lighter or the socket by

z If the connection cable is damaged, it must be replaced with the

cable of the same type and specifications.

z Pull out the connection cable:

– Before cleaning and maintenance

z On boats: if the device is powered by the mains, ensure that the

power supply has a ground fault interrupter circuit. Danger of

z Disconnect the cooling device and other power consuming de-

vices from the battery before connecting the quick charging de-

z Check that the voltage specification on the type plate corre-

sponds to that of the energy supply.

1.2 Operating the device safely

z Before starting the device, ensure that the power supply cable

and the plug are dry.

z Do not place the device near naked flames or other heat sourc-

es (heaters, direct sunlight, gas ovens etc.)

z Caution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the

heat that arises during operation does not build up. Make sure

that the device is sufficiently far away from walls and other ob-

jects so that the air can circulate.

z Do not fill the inner container with ice or fluid.

z Never immerse the device in water.

z Protect the device and the cable against heat and moisture.

_P24_P28_S25_DC-AC.book Seite 6 Dienstag, 21. April 2009 2:40 14P24 DC/AC, P28 DC/AC, S25 DC/AC Intended use

z A few water drops may form inside the cooler if it has been cool-

ing for a lengthy period. This is normal because the moisture in

the air condenses to water when the temperature in the cooler

falls. The cooler is not defective. Wipe it out with a dry cloth if

z Do not touch exposed cables with your bare hands. This

especially applies when operating the device with an AC mains

power supply. Danger of fatal injuries!

z The manufacturer cannot be held liable for damage resulting

from improper usage or incorrect operation.

The cooler is suitable for cooling foodstuffs.

If your device has the additional equipment for warming, you can heat up

foodstuffs or keep them warm. There is a switch to change between heat-

ing and cooling modes.

The device has been designed for use with a 12 V DC on-board power supply

socket of a car (cigarette lighter), boat or caravan as well as a 220-240 V AC

The appliance may also be used for camping use. The appliance shall not to

be exposed to rain. It can be used as a box or cupboard.

of the device is suitable for the medicine in question.

For versions with the additional insulating lid:

The cooler is suitable for mobile use. If can cool goods to max.

under the ambient temperature or keep them cool.

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is

discharged by a fan.

Pockets on the outside provide additional storage space. Note that objects

stored in them are not cooled.

4.1 Optional accessories

The device is available in different versions. The version you bought may

have the following additional features:

The contents of your cooler can be warmed or kept warm to max. 65 °C.

Insulating lid as an alternative to the unit lid for transporting (not for cool-

4.2 Description of the device

(Only on versions with the additional heating feature)

Before starting your new cooling device for the first time, you

should clean it inside and outside with a damp cloth for hygienic

reasons (please also refer to the chapter “Cleaning and mainte-

5.1 Energy saving tips

z Choose a well ventilated installation location which is protected against di-

z Allow warm food to cool down first before placing it in the device to keep

z Do not open the cooling device more often than necessary.

z Do not leave the lid open for longer than necessary.

z Clean the lid seal regularly.

5.2 Using the cooler

S25: Lift the cooler by the handle, not by the shoulder strap.

Otherwise you risk spillage.

The lid of the cooler must always be secured with the lock when

loading and unloading (fig. 3, page 4). If the lid is fully open with-

out being secured, the box could tip over.

(Only on versions with the additional heating feature)

If the handle is folded back of if the cooler is being carried, the lid

is locked. You can only open the lid when the handle is folded for-

Like every cooling device, your cooler must be properly ventilated

so that any heat created can dissipate. Otherwise proper function-

ing cannot be ensured.

➤ Place the cooler on a firm base.

➤ Connect the 12 V connection cable (fig. 2 1, page 4) into the cigarette

lighter socket or a 12 V socket in the vehicle

➤ Plug the 220-240 V connection cable (fig. 2 2, page 4) into the AC volt-

age socket and connect it to the 220-240 V AC mains supply.

➤ Only on versions with the additional heating feature: Push the switch

(fig. 4 3, page 4) on the control panel to “COLD” or “HOT” to switch on

Close the box tightly by pushing down the lid.

✓ The indicators on the control panel show you the operating mode:

✓ The cooler starts cooling/heating the interior

Ensure that the objects placed in the cooler are suitable for cooling/

warming to the selected temperature.

➤ If you wish to switch the cooler off:

– Slide the switch (fig. 4 3, page 4) to the “OFF” position (only with the

– Pull out the connection cable

5.3 Changing the lid

(Only on versions with the additional insulating lid feature)

As an alternative to the unit lid, you can use an insulating lid when transport-

➤ Fold the handle of the cooler forwards.

➤ Open the lid until it is vertical and then remove it by lifting it upwards.

➤ Place the insulating lid with the guide lugs into the slots on the cooler.

Remember that the lid is only suitable for keeping cool and not for

5.4 Connecting to a cigarette lighter

If you connect the device to the cigarette lighter of your vehicle, re-

member that the ignition must be turned on to supply the device

6 Cleaning and maintenance

Before cleaning the cooler, pull the cable out of the socket or the

Do not clean the cooler under running water or in dishwater.

Do not use abrasive cleaning agents or hard objects during clean-

ing as these can damage the cooler.

➤ Occasionally clean the device interior and exterior with a damp cloth.

_P24_P28_S25_DC-AC.book Seite 11 Dienstag, 21. April 2009 2:40 14Troubleshooting P24 DC/AC, P28 DC/AC, S25 DC/AC

➤ Place the packaging material in the appropriate recycling waste bins

M If you wish to finally dispose of the device, ask your local recycling

centre or specialist dealer for details about how to do this in

accordance with the applicable disposal regulations.

Fault Possible cause Suggested remedy

Your cooler does not func-

tion (plug is inserted, LED

(accessory) does not

flowing from the 12 V

lighter) in your vehi-

The ignition must be switched on in

most vehicles for voltage to flow at the

No voltage present at

Try using another plug socket.

Your cooler does not cool

(plug is inserted, LED

(fig. 4 1, page 4, acces-

This can only be repaired by an author-

ised customer services unit.

Your cooler does not heat

(plug is inserted, LED

(fig. 4 2, page 4, acces-

This can only be repaired by an author-

ised customer services unit.

Operation with a 12 V

socket (cigarette lighter):

The ignition is on and the

cooler is not working.

Pull the plug out of the

socket and make the follow-

The cigarette lighter

socket is dirty. This

results in a poor elec-

If the plug of your cooler becomes very

warm in the cigarette lighter socket,

either the socket must be cleaned or

the plug has not been assembled cor-

The fuse of the 12 V

Replace the fuse (5 A) in the 12 V plug

The vehicle fuse has

Replace the vehicle's 12 V socket fuse

(usually 15 A). (Please refer to the

operating manual of your vehicle.) _P24_P28_S25_DC-AC.book Seite 12 Dienstag, 21. April 2009 2:40 14P24 DC/AC, P28 DC/AC, S25 DC/AC Technical data

Versions, technical modifications and delivery options reserved.
