USER MANUAL Mobicool S15 DOMETIC

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is resold, this

operating manual must be handed over to the purchaser along with it.

9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Please observe the following safety instructions.

1 Safety instructions

z Do not operate the device if it is visibly damaged.

z Ensure that the ventilation slots are not covered.

z This device may only be repaired by qualified personnel. Inade-

quate repairs can lead to considerable hazards.

z Persons (including children) whose physical, sensory or mental

capabilities or lack of experience and knowledge prevents them

from using the appliance safely should not use this appliance

without initial supervision or instruction by a responsible person.

z Electronic devices are not toys.

Always keep and use the device out of the reach of children.

z Children must be supervised to ensure that they do not play with

z Food may only be stored in its original packaging or in suitable

z The cooling device is not suitable for transporting caustic mate-

rials or materials containing solvents.

_S15_U15.book Seite 5 Freitag, 20. Februar 2009 5:13 17Safety instructions S15 DC, S15 DC/AC, U15 DC

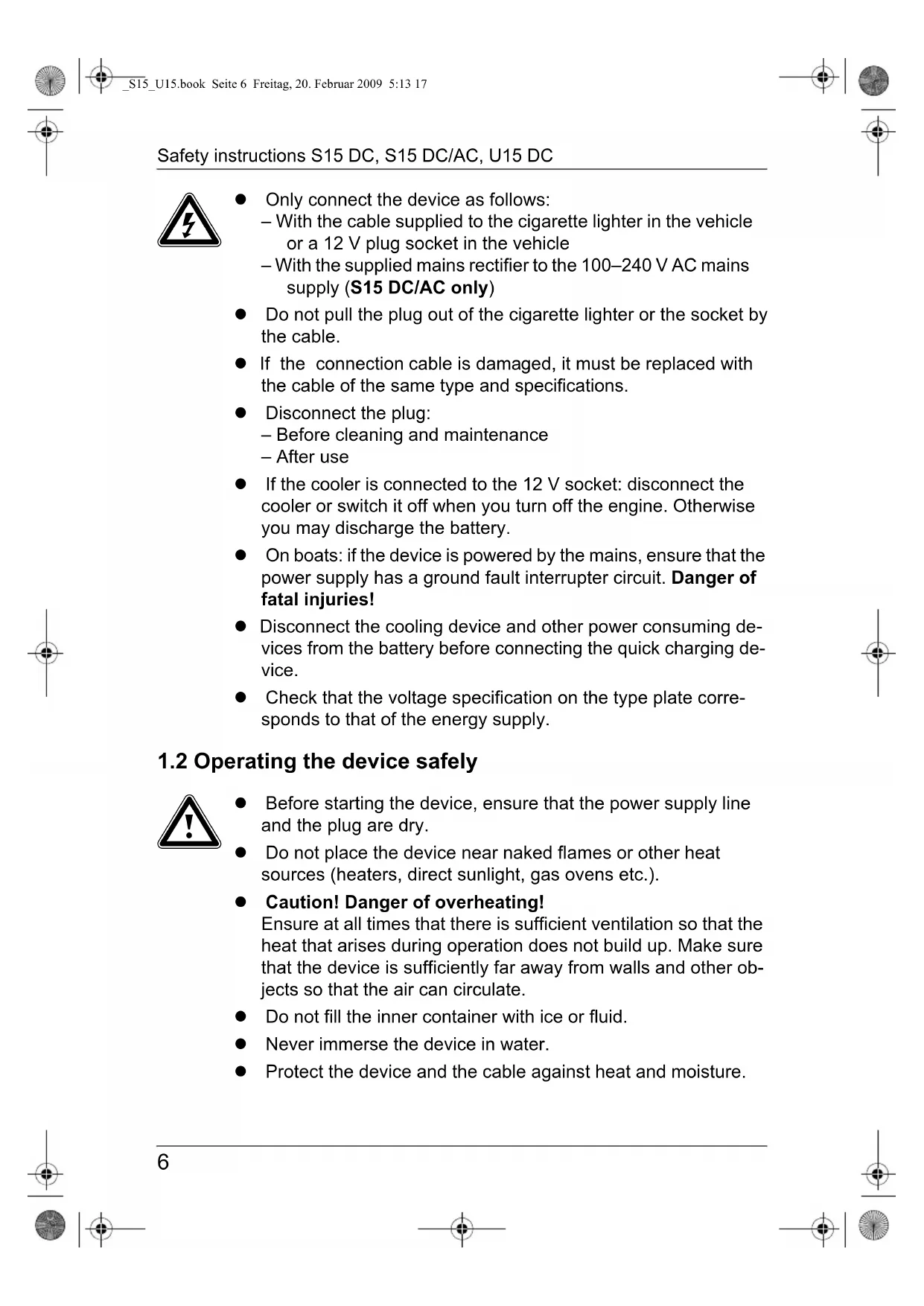

z Only connect the device as follows:

– With the cable supplied to the cigarette lighter in the vehicle

or a 12 V plug socket in the vehicle

– With the supplied mains rectifier to the 100–240 V AC mains

supply (S15 DC/AC only)

z Do not pull the plug out of the cigarette lighter or the socket by

z If the connection cable is damaged, it must be replaced with

the cable of the same type and specifications.

z Disconnect the plug:

– Before cleaning and maintenance

z If the cooler is connected to the 12 V socket: disconnect the

cooler or switch it off when you turn off the engine. Otherwise

you may discharge the battery.

z On boats: if the device is powered by the mains, ensure that the

power supply has a ground fault interrupter circuit. Danger of

z Disconnect the cooling device and other power consuming de-

vices from the battery before connecting the quick charging de-

z Check that the voltage specification on the type plate corre-

sponds to that of the energy supply.

1.2 Operating the device safely

z Before starting the device, ensure that the power supply line

and the plug are dry.

z Do not place the device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

z Caution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the

heat that arises during operation does not build up. Make sure

that the device is sufficiently far away from walls and other ob-

jects so that the air can circulate.

z Do not fill the inner container with ice or fluid.

z Never immerse the device in water.

z Protect the device and the cable against heat and moisture.

_S15_U15.book Seite 6 Freitag, 20. Februar 2009 5:13 17S15 DC, S15 DC/AC, U15 DC Intended use

z A few water drops may form inside the cooler if it has been cool-

ing for a lengthy period. This is normal because the moisture in

the air condenses to water when the temperature in the cooler

falls. The cooler is not defective. Wipe it out with a dry cloth if

z Do not touch exposed cables with your bare hands. This espe-

cially applies when operating the device with an AC mains pow-

er supply. Danger of fatal injuries!

z Mobicool cannot be held liable for damage resulting from

improper usage or incorrect operation.

The cooling device is suitable for cooling foodstuffs.

The device is designed for operation on:

z A 12 V DC vehicle-electrics socket of a car (cigarette lighter), boat or

z A 100–240-V AC mains supply (S15 DC/AC only)

The appliance may also be used for camping use. The appliance shall not to

S15 DC/AC, U15 DC/AC only: To operate the device using a

of the device is suitable for the medicine in question.

4 Technical description

The cooler is suitable for mobile use. You can cool products to a maximum

of 18 °C under the ambient temperature .

The cooler is deep enough to take 1.5 litre bottles.

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is

discharged by a fan.

You can carry the cooler with the long adjustable shoulder strap or the

You can store the 12 V connection cable and the rectifier (S15 DC/AC only)

in a pocket on the side.

4.1 Description of the device

Quantity Description

4 Carrying strap (S15 only)

3 connection sockets for voltage supply (fig. 4, page 4)

_S15_U15.book Seite 8 Freitag, 20. Februar 2009 5:13 17S15 DC, S15 DC/AC, U15 DC Operation

Before starting your new cooling device for the first time, you

should clean it inside and outside with a damp cloth for hygienic

reasons (please also refer to the “Cleaning and maintenance”

chapter on page 10).

5.1 Energy saving tips

z Choose a well ventilated installation location which is protected against di-

z Allow warm food to cool down first before placing it in the device to keep

z Do not open the cooling device more often than necessary.

z Do not leave the lid or door open for longer than necessary.

5.2 Using the cooler

The lid of the cool box must always be secured with the lock when

loading and unloading (fig. 2, page 3). If the lid is fully open with-

out being secured, the box could tip over.

Like every cooling device, your cooler must be properly ventilated

so that any heat created can dissipate. Otherwise proper function-

ing cannot be ensured.

➤ Place the cooler on a firm base.

➤ Connect the 12 V connection cable to the cigarette lighter or a 12 V plug

socket in the vehicle.

➤ S15 DC/AC only: connect the 12 V connection cable to the rectifier

(fig. 3, page 3) and plug rectifier into a 100 – 240 V AC socket.

Close the box tightly by pushing down the lid.

Ensure that the objects placed in the cooler are suitable for cooling

to the selected temperature.

➤ If you wish to switch the cooler off:

– Disconnect the plug.

5.3 Connecting to a cigarette lighter

If you connect the device to the cigarette lighter of your vehicle,

remember that the ignition must be turned on to supply the device

6 Cleaning and maintenance

Before cleaning the cooler, disconnect the plug from the socket or

Do not clean the cooler under running water or in dish water.

Do not use abrasive cleaning agents or hard objects during clean-

ing as these can damage the cooler.

➤ Occasionally clean the device interior and exterior with a damp cloth.

_S15_U15.book Seite 10 Freitag, 20. Februar 2009 5:13 17S15 DC, S15 DC/AC, U15 DC Troubleshooting

➤ Place the packaging material in the appropriate recycling waste bins

If you wish to finally dispose of the device, ask your local recycling

centre or specialist dealer for details about how to do this in accord-

ance with the applicable disposal regulations.

Fault Possible cause Suggested remedy

Your cooler does not func-

tion (plug is inserted).

lighter) in your vehicle.

The ignition must be switched on in most

vehicles for voltage to flow at the ciga-

No voltage present in

the AC voltage socket.

Try using another plug socket.

Your cooler does not cool

This can only be repaired by an author-

ised customer services unit.

When operating from the

12 V socket (cigarette

The ignition is on and the

cooler is not working.

12 V plug is dirty. This

results in a poor electri-

If the plug of your cooler becomes very

warm in the 12 V socket fitting, either the

fitting must be cleaned or the plug has

not been assembled correctly.

The fuse of the 12 V

Replace the fuse (5 A) in the 12 V plug

The vehicle fuse has

Replace the vehicle's 12 V socket fuse

(usually 15 A). Please refer to the oper-

ating manual of your vehicle.

_S15_U15.book Seite 11 Freitag, 20. Februar 2009 5:13 17Technical data S15 DC, S15 DC/AC, U15 DC

This device carries the GS symbol to indicate tested and proven safety.

Versions, technical modifications and delivery options reserved.

S15 DC S15 DC/AC Gross capacity: 15 litres

Connection voltage: 12 V DC 12 V DC

100–240 V AC, ~50/60 Hz

Power consumption: 35 W DC: 35 W AC: 20 W Cooling capacity: Max. 18 °C under ambient temperature

Dimensions (L x W H): 345 x 225 x 425 mm

Weight approx. 3.1 kg approx. 3.3 kg

Testing/certification:

U15 DC Gross capacity: 15 litres

Connection voltage: 12 V DC Power consumption: 35 W Cooling capacity: Max. 18 °C under ambient temperature

Dimensions (L x W H): 345 x 225 x 425 mm

Weight: approx. 3.5 kg

Testing/certification:
