Brand	Bauknecht
Model	DBTRI 9110
Product type	Range hood
Installation version	Extraction or recirculation
Material	Stainless steel with iXelium coating
Controls	Electronic with control panel
Lighting	Integrated LED
Number of speeds	4 (min, med, max, intensive)
Intensive function	Timed 5 minutes
Grease filter	Metallic, dishwasher safe
Charcoal filter	Replacement every 4 months (recirculation model)
Power supply	220-240 V, 50 Hz
Minimum distance from stove	50 cm (electric), 65 cm (gas)
Safety	Disconnect before maintenance, grounding required
Maintenance	Clean grease filters monthly
Repairability	Spare parts available from authorized service center
Control type	Push buttons
Filter material	Metal and activated carbon

Frequently Asked Questions - DBTRI 9110 BAUKNECHT

How to clean the grease filters?

The metal grease filters are cleaned once a month by hand or in the dishwasher at low temperature and short cycle. After washing, let dry then reassemble.

What to do if the hood does not work?

First check the power supply and connection. Turn off the hood then on again. If the problem persists, contact the after-sales service.

How to replace the LED bulb?

The hood is equipped with LED lighting. For replacement, contact the authorized After-Sales Service.

What is the minimum distance between the hood and the stove?

The minimum distance is 50 cm for electric stoves and 65 cm for gas or mixed stoves.

How to install the hood in recirculation mode?

Remove the non-return valve, mount the deflector, connect the exhaust duct and install a charcoal filter. Replace the charcoal filter every 4 months.

How often to replace the charcoal filter?

The charcoal filter must be replaced every 4 months to ensure good odor absorption.

The hood is noisy, what to do?

Check that the filters are clean and the air vents are not blocked. Use the maximum recommended duct diameter to reduce noise.

Can I use steam cleaners?

No, never use steam cleaners. Use a soft microfiber cloth dampened with water or a glass cleaner.

What to do if the lighting does not work?

Check the bulb and its installation. If it is defective, contact the after-sales service for replacement.

How to remove the extraction panel?

Pull the front panel firmly downwards. To reassemble, insert it onto the pins provided at the front of the hood.

USER MANUAL DBTRI 9110 BAUKNECHT

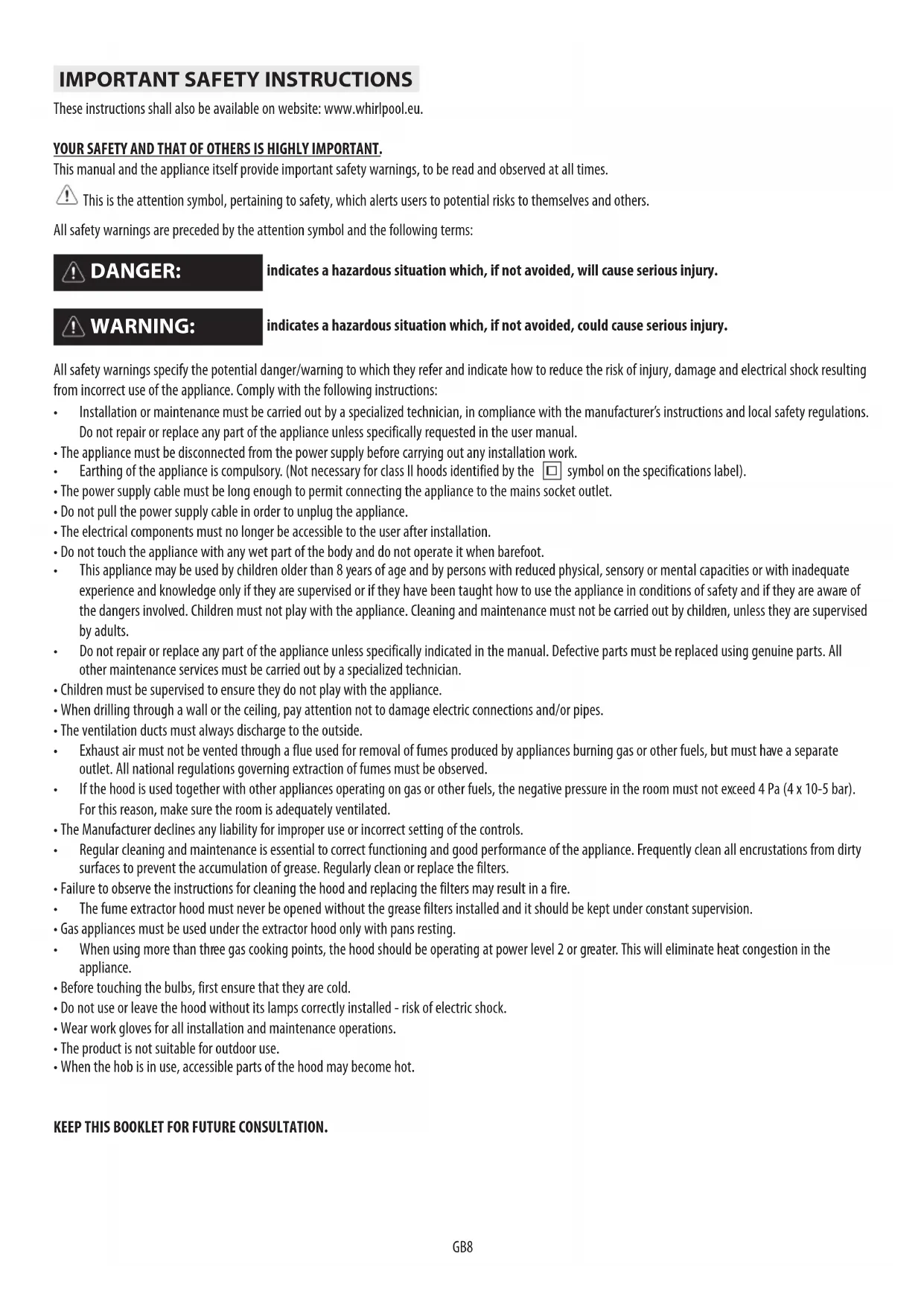

IMPORTANT SAFETY INSTRUCTIONS

These instructions shall also be available on website: www.whirlpool.eu.

YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT.

This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others.

All safety warnings are preceded by the attention symbol and the following terms:

DANGER:

indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING:

indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings specify the potential danger/warning to which they refer and indicate how to reduce the risk of injury, damage and electrical shock resulting from incorrect use of the appliance. Comply with the following instructions:

• Installation or maintenance must be carried out by a specialized technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically requested in the user manual.
• The appliance must be disconnected from the power supply before carrying out any installation work.
• Earthing of the appliance is compulsory. (Not necessary for class II hoods identified by the symbol on the specifications label).
• The power supply cable must be long enough to permit connecting the appliance to the mains socket outlet.
• Do not pull the power supply cable in order to unplug the appliance.
• The electrical components must no longer be accessible to the user after installation.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
  This appliance may be used by children older than 8 years of age and by persons with reduced physical, sensory or mental capacities or with inadequate experience and knowledge only if they are supervised or if they have been taught how to use the appliance in conditions of safety and if they are aware of the dangers involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children, unless they are supervised by adults.
• Do not repair or replace any part of the appliance unless specifically indicated in the manual. Defective parts must be replaced using genuine parts. All other maintenance services must be carried out by a specialized technician.
• Children must be supervised to ensure they do not play with the appliance.
• When drilling through a wall or the ceiling, pay attention not to damage electric connections and/or pipes.
  The ventilation ducts must always discharge to the outside.
  Exhaust air must not be vented through a flue used for removal of fumes produced by appliances burning gas or other fuels, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.
  If the hood is used together with other appliances operating on gas or other fuels, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). For this reason, make sure the room is adequately ventilated.
• The Manufacturer declines any liability for improper use or incorrect setting of the controls.
  Regular cleaning and maintenance is essential to correct functioning and good performance of the appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease. Regularly clean or replace the filters.
• Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.
  The fume extractor hood must never be opened without the grease filters installed and it should be kept under constant supervision.
  Gas appliances must be used under the extractor hood only with pans resting.
• When using more than three gas cooking points, the hood should be operating at power level 2 or greater. This will eliminate heat congestion in the appliance.
• Before touching the bulbs, first ensure that they are cold.
• Do not use or leave the hood without its lamps correctly installed - risk of electric shock.
• Wear work gloves for all installation and maintenance operations.
• The product is not suitable for outdoor use.
• When the hob is in use, accessible parts of the hood may become hot.

KEEP THIS BOOKLET FOR FUTURE CONSULTATION.

Declaration of conformity C

• This appliance has been designed, manufactured and marketed in compliance with:
• safety objectives of the "Low Voltage" Directive 2006/95/EC (which replaces 73/23/EEC and subsequent amendments);
• the ecodesign requirements of european regulations n. 65/2014, and n. 66/2014 in conformity to the european standard EN 61591
• the protection requirements of Directive "EMC" 2004/108/EC.

Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

Energy saving tips

• Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

INSTALLATION

After unpacking the appliance, check for any transport damage. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation.

PREPARING FOR INSTALLATION

WARNING:

this is a heavy product; the hood should only be lifted and installed by two or more people.

The minimum distance between the support of the cooking pans on top of the cooker and the bottom of the hood must not be less than 50~cm for electric cookers and 65~cm for gas or mixed cookers. Before installation also check the minimum distances stated in the manual of the cooker.

If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.

ELECTRICAL CONNECTION

Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.

This information may be found on the inside of the hood, under the grease filter.

Power cable replacement (type H05 VV-F 3 x 0,75 mm²) must be carried out by a qualified electrician. Contact an authorized service centre.

If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place after installation. If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardised double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with installation rules.

GENERAL RECOMMENDATIONS

Before use

Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage.

During use

To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

The packing material is 100% recyclable and is marked with the recycle symbol . The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product

This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Scraping of household appliances

This appliance is manufactured with recyclable or reusable materials. Dispse of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.
For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

TROUBLESHOOTING GUIDE

The appliance does not work:

• Check for the presence of mains electrical power and if the appliance is connected to the electrical supply;
• Turn off the appliance and restart it to see if the fault persists.

The hood's suction level is not sufficient:

• Check the suction speed and adjust as necessary;
• Check that the filters are clean;
• Check the air vents for any obstructions.

The light does not work;

• Check the light bulb and replace if necessary;
• Check that the light bulb has been correctly fitted.

AFTER-SALES SERVICE

Before calling the After-Sales Service:

1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".
2. Switch the appliance off and back on again it to see if the fault persists.

If after the above checks the fault still occurs, get in touch with the nearest After-Sales Service.

Always specify:

• A brief description of the fault;
  The exact type and model of the appliance;
  The service number (number after the word "Service" on the rating plate), located on the inside of the appliance. The service number is also indicated on the guarantee booklet;
• Your full address:
• Your telephone number.

If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly).

IXELIUM CLEANING

ATTENTION

• Do not use steam cleaners.
• Disconnect the appliance from the power supply.

IMPORTANT: Do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean it immediately with a damp cloth.

IMPORTANT:

The steel of the hood has iXelium surface treatment.

To clean it, proceed as follows:

• Use a soft cloth (preferably microfiber) wetted with water or with a normal glass cleaner.
• Do not use paper towels, as they may leave marks and bits of paper on the hood.
• Do not use abrasive, corrosive or chlorine-based products, or steel wool.
• Do not use steam equipment.
• Do not use flammable products.
• Do not leave acid or alkaline substances such as vinegar, mustard, salt, sugar or lemon juice on the hood.

Use specific detergents to clean the appliance and follow the Manufacturer's instructions.

IMPORTANT: Clean the filters at least once a month to remove oil and grease residuals.

MAINTENANCE

WARNING:

• Use safety gloves.
• Disconnect the appliance from the power supply.

GREASE FILTERS

The metal grease filter has unlimited duration. It should be washed at least once a month, either by hand, or by placing it in the dishwasher (use a short cycle and low temperature). If washed in the dishwasher, the grease filter surface may become matt. This will not cause any reduction of performance.

To remove the filter pull out the handle.

After the filter has been washed and dried, replace following the inverse procedure.

REPLACING LAMPS

The hood lighting system is based on LED technology.

The LEDs provide optimal illumination, with a lifetime up to ten times longer than traditional lamps but with 90% less energy consumption.

Contact the technical support service for replacements.

CARBON FILTER (filter hoods only)

It retains the unpleasant odors produced during cooking.

Change the carbon filter every 4 months

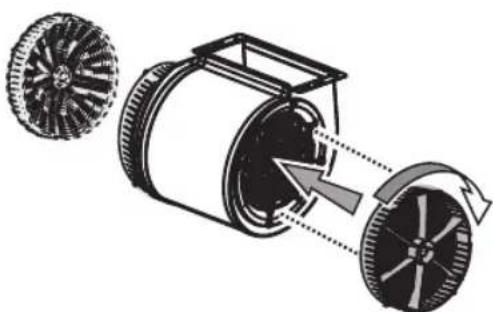

Fitting or changing the carbon filter

1. Disconnect the hood from the power supply.
2. Open the extraction panel and remove it.
3. Remove the grease filters.
4. Fit one carbon filter each side, covering both protection grilles of the motor impeller. Turn the filters clockwise to secure them to the middle pins.

Proceed in reverse order to remove.

Re-fit the grease filters and extraction panel.

MATERIAL SUPPLIED

Remove all the components from the packets. Check that all the components are included.

• Hood assembled with motor, lamps and grease filters installed.
• 1 pre-assembled truss
• 1 filter connector with extension
• Instructions for assembly and use#
• 1 electrical cable
• 1 cable clamp
• 1 assembly template
• 6 screws 0 6x70
• 6 wall plugs 010x60
• 14 screws 0.4 × 7
• 42 screws 3.5x9.5
• 2 adapter inserts

INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONS

The hood is designed for installation and use in "Extractor version" or in "Filter version".

Note: The model with electric shutter can only be used in "Extractor version" and the exhaust pipe must be connected to a peripheral extraction unit.

Extractor Version

Fumes are extracted and expelled to the outside through an exhaust pipe (not supplied) fixed to the hood exhaust pipe connector.

Depending on the exhaust pipe purchased, provide for suitable fixing to the exhaust pipe connector.

IMPORTANT: If already installed, remove the carbon filter/s.

Filter Version

Air is filtered through the carbon filter/s and recycled into the surrounding environment.

IMPORTANT: check that air recirculation is facilitated.

If the hood does not have a carbon filter/s, order one/them and fit it/them before use.

Install the hood away from very dirty locations, windows, doors and sources of heat.

The hood comes supplied with all the materials required for installation on most walls/ceilings. However, a qualified technician is needed to make sure that the plugs are suitable for your ceiling.

INSTALLATION - ASSEMBLY INSTRUCTIONS

The instructions below, to be carried out in the order in which they are numbered, refer to the figures (with the same step numbers) given on the last pages of this manual.

Before starting the installation steps:

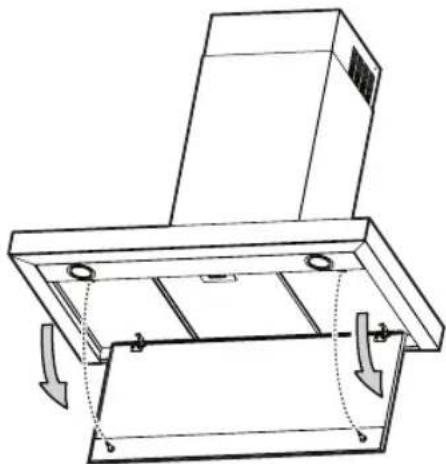

• remove the extraction panel "P"
• push the lever (located at the bottom of the panel) to the left
• release the panel from the supports

• remove the grease filter

• Remove the tape fixing the control electronics box to the motor body.

Note: the drawing is only for reference, the box may be temporarily fixed to other sides of the motor body.

1. Fully tighten the screws, already partially tightened, that fix the electronics box to the motor body.
2. Adjust the extension of the hood support structure, as the final height of the hood depends on this.

Note: in some cases the support structure is fixed to the motor group with 1 or more screws. Check for and temporarily remove any screws to enable adjustment of the support structure.

Fix the two sections of the structure using 16 screws (4 each corner).

Note: if required; fit the reinforcement bracket into the truss and place it on the motor unit.

After installing the truss to the ceiling, fix the bracket in its position.

4 Place the ceiling hole diagram directly above the cooktop (the center of the diagram must match the center of the cooktop and the edges must be parallel to the sides of the cooktop, the side of the diagram with the wording FRONT (or with the arrows) corresponds to the control panel side).

Prepare the electrical connection.

1. Drill as shown (6 holes for 6 wall plugs) and insert the 6 plugs in the 6 drilled holes, tighten 4 screws on the outer holes shown on the drawing, leaving a space of about 1cm between the screw head and the ceiling.
2. Fit an exhaust pipe inside the truss and connect it to the collar of the motor compartment (* exhaust pipe and clamps are not provided).
3. For filter operation (7F), remove the fumes non-return valve "E", fit the deflector F on the truss and fix it with 4 screws to the special bracket. Adjust the deflector according to the flue width. Finally, connect the exhaust pipe to the collar located on the deflector.
4. Hook the truss on the 4 screws (see step 8).

WARNING: the side of the truss with electrical connection box corresponds to the side of the control panel with hood assembled.

1. Tighten firmly the 4 screws.
2. Insert and tighten firmly another 2 screws in the remaining free holes for secure fixing.

Note - only for Extraction version: connect the upper end of the exhaust duct to the outdoor exhaust device (e.g.: hole on the ceiling).

1. Fix the reinforcement bracket (see step 3) to the truss in a position as intermediate as possible.

Carry out the electrical connection to the mains power supply, only turn on the power supply with assembly completed.

1. Fix the hood to the truss with 8 screws.

WARNING: the side of the truss with electrical connection box corresponds to the side of the control panel with hood assembled.

1. Carry out the electrical connection of control panel and the lamps.

Position the power cable in its housing and secure the cable to the cable clamp (14a).

Note: hook the excess cable to the appropriate cable glands (fitted with screw for tightening).

1. Join the two top sections of the flue to cover the truss so that one of the slots on the sections is on the same side as the control panel and the other is on the opposite side.

Screw the two sections with 8 screws (4 each side - see the plan diagram for joining the two sections).

1. Fix the top flue assembly to the truss, near the ceiling, with 2 screws (one each side).
2. Join the two bottom sections of the flue covering the truss using 6 screws (3 each side - also see the plan diagram for joining the two sections).
3. Insert the bottom section of the flue in the special seat to completely cover the motor compartment and electrical connection box.
4. Apply the 2 tabs (supplied) to cover the fixing points of the bottom flue sections (IMPORTANT! THE TABS FOR THE BOTTOM FLUE ARE THE NARROWER AND LESS DEEP ONES).

The wider and deeper tabs are those used for the top flue, and must be cut to size.

Re-fit the grease filters and the perimeter extraction panel.

Turn the mains power on again at the central electrical panel and check for correct hood operation.

MAINTENANCE

WARNING:

• Disconnect the appliance from the power supply.

Cleaning the perimeter extraction panel

Removal:

Pull the panel (FRONT) firmly downwards.

Cleaning:

Clean the extraction panel as often as the grease filter.

The steel of the extraction panel has iXelium surface treatment.

To clean it, proceed as follows:

• Use a soft cloth (preferably microfiber) soaked with water or with a normal glass cleaner.
• Do not use paper towels, as they may leave marks and bits of paper on the panel.
• Do not use abrasive, corrosive or chlorine-based products, or steel wool.
• Do not use steam equipment.
• Do not use flammable products.
• Do not leave acid or alkaline substances such as vinegar, mustard, salt, sugar or lemon juice on the panel.

DO NOT USE ALCOHOL!

Fitting:

The panel must be fixed at the front, in the special pins on the hood surface.

IMPORTANT: Always make sure the panel is firmly fixed in place.

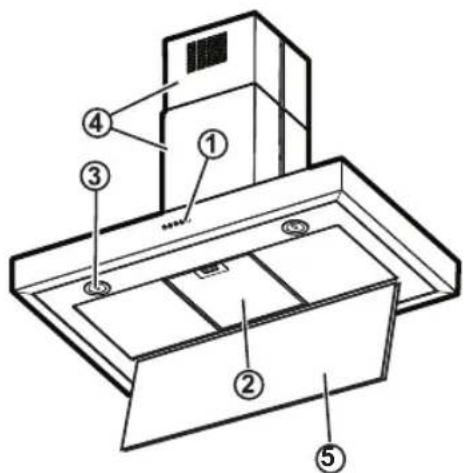

DESCRIPTION AND USE OF HOOD

1. Control panel.
2. Grease filter.
3. Lamps.
4. Telescopic flue.
5. Perimeter extraction panel.

Control panel

1.Motor ON/OFF

2. Speed selection (increase/decrease)

Indicator lights:

a. running at minimum extraction speed
b. running at medium extraction speed
c. running at maximum extraction speed
d. running at intensive extraction speed

NB = the intensive extraction speed is timed for 5 minutes, after which the motor will revert to medium speed.

3. Light ON/OFF

NB = control backlighting brightness increases when the function is in use.

CONSIGNES DE SECURITE IMPORTANTES

GUIDA RICERCA GUASTI
