USER MANUAL RHE627RB ROSIERES

UK Instruction on mounting and use

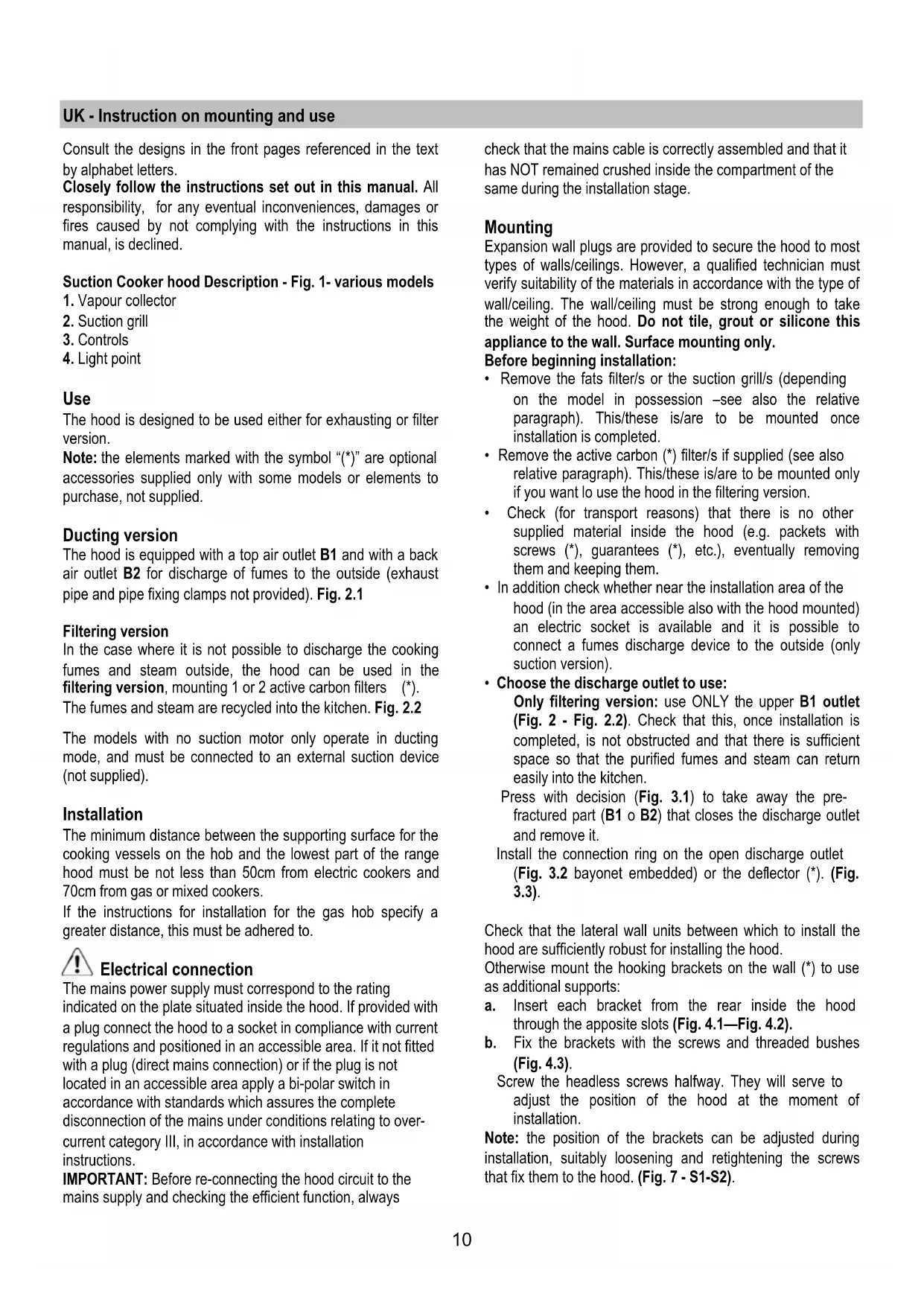

UK - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

Suction Cooker hood Description - Fig. 1- various models

The hood is designed to be used either for exhausting or filter

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

The hood is equipped with a top air outlet B1 and with a back

air outlet B2 for discharge of fumes to the outside (exhaust

pipe and pipe fixing clamps not provided). Fig. 2.1

In the case where it is not possible to discharge the cooking

fumes and steam outside, the hood can be used in the

filtering version, mounting 1 or 2 active carbon filters (*).

The fumes and steam are recycled into the kitchen. Fig. 2.2

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 50cm from electric cookers and

70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area. If it not fitted

with a plug (direct mains connection) or if the plug is not

located in an accessible area apply a bi-polar switch in

accordance with standards which assures the complete

disconnection of the mains under conditions relating to over-

current category III, in accordance with installation

IMPORTANT: Before re-connecting the hood circuit to the

mains supply and checking the efficient function, always

check that the mains cable is correctly assembled and that it

has NOT remained crushed inside the compartment of the

same during the installation stage.

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Before beginning installation:

• Remove the fats filter/s or the suction grill/s (depending

on the model in possession –see also the relative

paragraph). This/these is/are to be mounted once

installation is completed.

• Remove the active carbon (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only

if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with

screws (*), guarantees (*), etc.), eventually removing

them and keeping them.

• In addition check whether near the installation area of the

hood (in the area accessible also with the hood mounted)

an electric socket is available and it is possible to

connect a fumes discharge device to the outside (only

• Choose the discharge outlet to use:

Only filtering version: use ONLY the upper B1 outlet

(Fig. 2 - Fig. 2.2). Check that this, once installation is

completed, is not obstructed and that there is sufficient

space so that the purified fumes and steam can return

easily into the kitchen.

Press with decision (Fig. 3.1) to take away the pre-

fractured part (B1 o B2) that closes the discharge outlet

Install the connection ring on the open discharge outlet

(Fig. 3.2 bayonet embedded) or the deflector (*). (Fig.

Check that the lateral wall units between which to install the

hood are sufficiently robust for installing the hood.

Otherwise mount the hooking brackets on the wall (*) to use

as additional supports:

a. Insert each bracket from the rear inside the hood

through the apposite slots (Fig. 4.1—Fig. 4.2).

b. Fix the brackets with the screws and threaded bushes

Screw the headless screws halfway. They will serve to

adjust the position of the hood at the moment of

Note: the position of the brackets can be adjusted during

installation, suitably loosening and retightening the screws

that fix them to the hood. (Fig. 7 - S1-S2).11

Installing the aesthetic panel (*)

a. Extract the steam collector (freeing it from the blocking

b. Put perforation diagram N3 on the REAR of aesthetic

panel J (the arrow on the diagram turned upward towards

the UPPER EDGE of the aesthetic panel). Fig. 6

c. Make BLIND HOLES K as indicated. Fig. 6

d. Put the steam collector over the aesthetic panel and fix it

with 8 screws L. Fig. 6

e. Remount the door on the hood, first on upper guides M1,

then on the lower M2. Fig. 6

f. Close completely and re-open the door to check its

correct sliding on the guides.

Electrical or mechanical valve (*)

In some products an electrically or mechanically activated

valve is envisaged instead of an aspiration motor.

This is usually installed on discharge outlet B1 and fixed to the

caisson of the hood with 3 screws, while a stopper is installed

in outlet B2, fixed in its turn with 1 screw.

If you want to install the valve on outlet B2, dismantle the

valve from the caisson, remove the fixing screws, and install it

in place of the stopper, the latter to be fixed on the cover of

a. Use perforation diagram N2 (*). Position the diagram on

the front edges of the wall unit (right wall unit, B side) –

(left wall unit, C side) WITHOUT CONSIDERING THE THICKNESS OF THE DOORS, and make the holes as

b. If necessary, fix the hood to the wall

(*) on the wall so its upper edge coincides with the upper

edge of template N2 (*). Fig. 7-8

c. Make the holes as indicated. Fix 2 hooks (*) R to the wall

with screws and dowels. Fig. 7

d. In case the thickness of the lateral wall units is 16mm,

put, with embedded fixing, the O (*) spacers at the sides

of the hood in correspondence with the holes used for the

passage of the fixing screws to the lateral wall units. Fig.

e. Hang the hood onto the hooks (*) and adjust the position

of the hood with headless screws S1 and adjusting the

position of the hooking brackets with screws S2. Fig. 7

f. Fix the hood to the lateral wall units with 4 screws P. Fig.

g. Mount the lower corner Q (*) to the hood with two screws

and plastic washers T. They will serve to cover possible

spaces between the rear of the hood and the wall. Fig. 7

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

Use the keys or buttons envisaged for the control of the lights

and the power of the available suction.

Only in some models: switching on and off the fan that

adjusts the suction power and, in some cases, switching the

lights on and off, is controlled by opening and closing the

If your product is provided with an electrically or mechanically

activated valve, the keys and/or the buttons and/or the

handles available are for controlling the lights and for opening

and closing the valve.

Before performing any maintenance operation, isolate the

hood from the electrical supply by switching off at the

connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

Traps cooking grease particles.

If situated inside the support grill, it may be one of the

Paper filter must be replaced once a month or if colouring

appears on upper side, in such cases the colouring is evident

through the grill openings.

Sponge filter should be washed with hot soapy water once a

month and replaced every 5 to 6 washes.

Metallic filter must be cleaned once a month, with non

abrasive detergents, by hand or in dishwasher on low

temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

To access fats filter V, open the suction grill with hooks H1 or

H2 (depending on the model in possession) and free it from

Some models are provided with anti-grease filter incorporated

in the suction grill, these should be removed from the housing

by pulling the handles H2 (Fig. 9) upwards and sliding out,

wash these filters as with metallic filters.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more or

less prolonged use, depending on the type of cooking and the

regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least

every four mounths (or when the filter saturation indication

system – if envisaged on the model in possession – indicates

Cover the grill that protects the suction motor with the carbon

filter so that the slots on the filter correspond to the pins on the12

sides of the motor protection grill.

Turn the carbon filter clockwise to block them (bayonet fixing).

Proceed in reverse for mounting.

Note: 2 filters are needed in the models with 2 motors. The

system of montage and dismantling is identical.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

Remove the suction gril to access the lamp area.

Remove the damaged lightbulb and replace with an oval

incandescent lightbulb max. 40W E14.

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it shall be handed

over to the applicable collection point for the recycling of

electrical and electronic equipment. Disposal must be carried

out in accordance with local environmental regulations for

For more detailed information about treatment, recovery and

recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you

purchased the product.13

FR - Prescriptions de montage et mode d’emploi

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE). Ved at sørge for, at dette

and Electronic Equipment, WEEE).

Electrical and Electronic Equipment (WEEE)

2002/96/EC, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment
