USER MANUAL HAVCR26WH KONIG

KÖNIG ELECTRONIC

HAV-CR26BL + WH

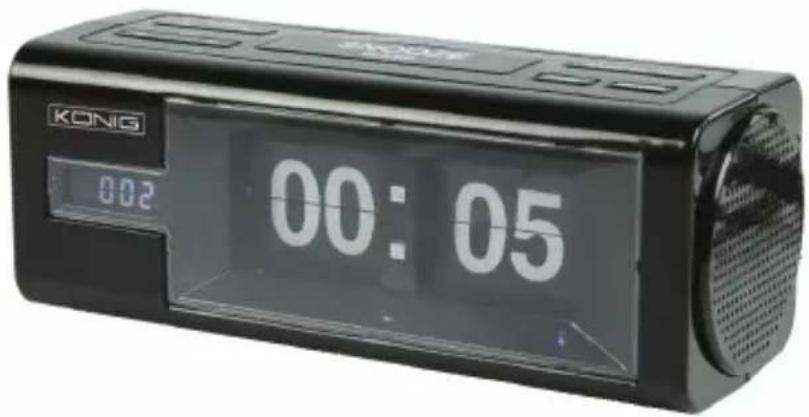

KONG 00:05

MANUAL (p. 2)

Digital Flip Clock Radio

MODE D'EMPLOI (p. 10)

Digital vippe clock radio

ANLEITUNG (s. 5)

MANUAL DE USO (p. 22)

• Flip clock with snooze alarm
• FM radio
• Wake up to radio or buzzer
• Sleep function
• Back-up batteries for power failure protection

12:30 2 1

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

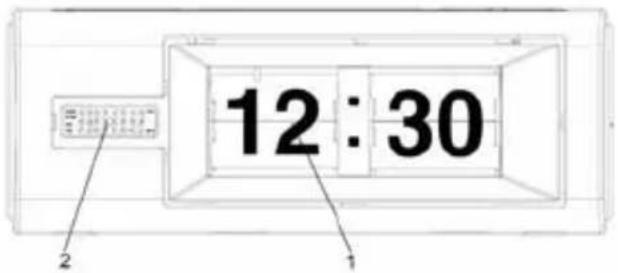

(1) Flip clock display
(2) Digital clock LCD
(3) Shipment protection strips (remove before using clock)

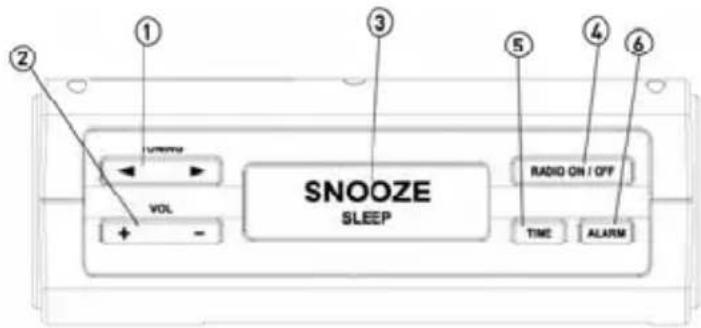

① ② ③ ④ ⑤ ⑥ VOL + - SNOOZE SLEEP RADIO ON / OFF TIME ALARM

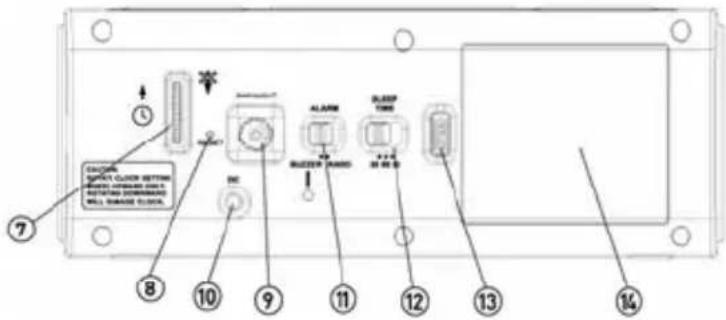

ONIONAL SIGNAL CLOCK SETTING ONIONAL SWITCHING AND RUTTING DIMENSIONS WILL WARE SHEET ① ⑦ ⑧ ⑩ ⑨ ⑪ ⑪ ⑫ ⑬ ⑭ ⑬ ⑭ ⑬ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭ ⑭

IMPORTANT: BE SURE TO REMOVE THE FLIP PROTECTION STRIPS FROM THE BOTTOM OF THE CLOCK BEFORE USING THE CLOCK.

These strips protect the flip mechanism during transportation. Operating the clock without removing the strips will damage the clock.

1. BATTERY INSTALLATION

Your clock has a battery back-up which will keep the clock running during a power failure. The back-up power supply uses 4xAA alkaline batteries which will run the clock for about 24 hours without AC power.

1. Press the battery cover, release button, [13] and open the battery compartment door [14] on the underside of the unit.
2. Insert 4x AA alkaline batteries inside the battery compartment following the polarity (+/-) markings shown. DO NOT USE RECHARGEABLE BATTERIES. Rechargeable batteries discharge after several months and are not suitable to use as back-up power.
3. Replace the battery compartment cover.

2. WHEN TO REPLACE BACK-UP BATTERIES?

To test the power in the back-up batteries, unplug the AC/DC adapter to initiate battery back-up. If the radio sound is weak or distorted, replace batteries. If the flip clock slows down and shows another time than the time displayed on the digital clock LCD, replace the batteries. Note: the night light function will not work and the “alarm to radio” function will automatically change to “alarm to buzzer” when the AC power is absent.

3. POWER SUPPLY

The clock operates via an AC/DC adapter. Plug the DC jack of the AC/DC adapter into the DC power in jack [10] on the rear of the product and connect to your AC supply.

4. SETTING AND SYNCHRONIZING THE TIME

1. Both the flip clock [B] and the digital clock [A] are driven by a built-in, electronic quartz clock. Setting the flip clock [B] requires synchronizing the flip display with the time shown on the LCD.
2. To set the digital clock [A], press and hold the time key [5] for 3 seconds. The hour digits will flash. Adjust hour by pressing ◀▶ the tuning key [1]. Press time key [5] to set hour. Adjust minutes by pressing ◀▶ the tuning key [1]. Press time key [5] to set and start the clock.
3. To set the flip clock, use the flip display adjustment wheel [15] on the back of the unit to match the time on the flip clock display with the digital clock. Only turn the flip display adjustment wheel [15] in the direction indicated. Turning the wheel in the reverse direction will permanently damage the clock mechanism.

5. SETTING THE ALARM

1. Press and hold the alarm key [6] for 3 seconds until the LCD display shows "alarm" in its upper left corner and the hour digits are flashing. Adjust hour by pressing ◀▶ the tuning key [1]. Press alarm

key [6] to set hour. Adjust minutes by pressing ◀▶ the tuning key [1]. Press alarm key [6] to set minutes. The LCD display will show an “alarm” icon and the alarm time in its upper left corner.

1. If the alarm is set, the LCD display will show the alarm time. Pressing the time key [5] will display the time on the LCD for 5 seconds. If the alarm is not set, the LCD will show the time.
2. The alarm can wake you by either radio or buzzer. Use the alarm mode slide switch [11] on the back to toggle between "alarm to buzzer" and "alarm to radio".
3. Press the snooze button if you wish to suspend the alarm by 10 minutes.
4. For "alarm to radio", the radio will turn on for 5 minutes.

- Press alarm key [6] to turn off radio.

- Press snooze key [3] to suspend radio for 10 minutes.

1. For "alarm to buzzer", the buzzer sound will turn on for 1 minute.

2. Press alarm key [6] to turn off the buzzer.

3. Press snooze key [3] to suspend buzzer for 10 minutes.

Turn on the night light by turning the backlight dimmer knob [9] clockwise for the desired brightness. When the backlight dimmer knob is turned fully counterclockwise, the light is switched off.

1. Press the radio on/off button [4] to turn on.
2. Choose an FM station by using ◀▶ the tuning key [1]. The frequency will be shown on the LCD display. If the alarm is set, the LCD display will toggle between alarm time and radio frequency every 3 seconds.
3. Adjust the volume turning the +/- on the VOL key [2]. The volume level will be shown on the LCD display for 3 seconds after adjustment is made.
4. Press the radio on/off button [4] again to turn the radio off.

8. SLEEP MODE

Sleep mode will play the radio for a set time and then automatically switch off. The duration of sleep mode is set using the sleep time switch [12] on the back of the unit. The options are 30, 60 or 90 minutes. To activate the sleep mode, first switch the radio on, using the on/off key [4] . Then press and hold the snooze/sleep key [3] for 2 seconds. This will activate the sleep function. The LCD display will alternate for 3 seconds showing the minutes remaining in sleep mode and the time. If the alarm is set, the LCD display will alternate for 3 seconds showing sleep time remaining and the alarm time. The sleep function can be ended by pressing and holding the snooze/sleep key [3] for 2 seconds.

9. AUTO SYNCHRONIZATION

In rare instances the flip clock may advance two minute 'cards' simultaneously or fail to advance a minute 'card'. The clock radio has a built-in auto synchronization function to correct this. After the digital clock and flip clock have been manually synchronized (see above: setting and synchronizing the time), the flip clock will automatically be synchronized to the digital clock every 24 hours (at 0.00 hr). If the flip clock is running slow, the digital clock will automatically advance the flip display (up to five flips/minutes). If the flip clock is running fast, the digital clock will automatically postpone the movement of flips (up to five flips/minutes).

The alarm function is controlled by the digital clock and is not affected by any inconsistency between the flip clock display and the digital clock.

IMPROVING RECEPTION

Rotate the unit horizontally for optimum reception. A loop antenna for FM reception is built into the unit. Do not put the unit near electrical appliances such as TV's, DVD-players, etc. to avoid unwanted electromagnetic interference.

TECHNICAL SPECIFICATIONS:

FM frequency 87.5 – 108 MHz

Clock format 24-Hour for EU/12-hour for North America

Alarm format 24-Hour for EU/12-hour for North America

Batteries 4 AA (not included)

Power source DC 6.8 V

Power consumption 0.6 W

Safety precautions:

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

DEUTSCH

VERPACKUNGSINHALT

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

⑦ ⑧ ⑩ ⑨ ⑪ ⑫ ⑫ ⑬ ⑭ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑫

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

Piles : 4 AA (non fournies)

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

Simple line drawing of a V-shaped structure with a numbered label '3' at the base (no text or symbols within the diagram itself)

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

SNOOZE SLEEP TUNING VOL RADIO ON / OFF TIME ALARM SNOOZE SPEED CREAM SWITCH MUSIC CREAM SWITCH MASCIAL CREAM SWITCH MASCIAL CREAM SWITCH WELL CREAM SWITCH ALARM SLEEP TIME ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP ON/OFIP

FONTOS: AZ ÓRA HASZNÁLATBAVÉTELE ELÖTT NE FELEJTSE EL ELTÁVOLÍTANI A VÉDŐCSÍKOKAT.

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

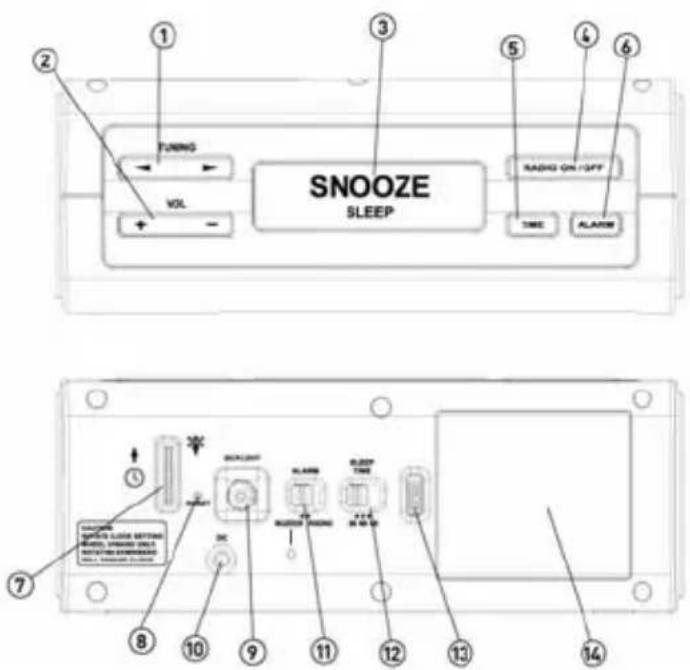

Labeled diagram of an electronic device panel showing numbered components and control buttons

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

Simple line drawing of a rectangular frame with two vertical lines and a diagonal line, labeled '3' at the bottom (no text or symbols on the diagram itself)

Simple line drawing of a rectangular frame with a V-shaped cutout and number 3 at the base (no text or symbols)

ON/OFFS ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OFFS TIME ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCO ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCCN ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC O ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OCC N ON/OSA 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

(1) Vippe ur-display
(2) Digital ur LCD
(3) Forsendelses beskyttelsesstrimler (aftag før uret tages i brug)

SNOOZE SLEEP TURING VOL RADIO ON / OFF TIME ALARM 1 2 3 4 5 6 7 8 9 10 11 12 13 14

VIGTIGT: S∅RG FOR AT AFTAGE VIPPE BESKYTTELSESSTRIMLERNE FRA BUNDEN AF URET F∅R BRUG.

Simple line drawing of a V-shaped object with a numbered label '3' at the base (no text or symbols on the object itself)

Description: Digital Flip Clock Radio
