USER MANUAL PDPS58 PIONEER

Thank you for buying this Pioneer product.

Please read through these operating instructions before using your speaker system so you will know how to make the most of its performance. After you have finished reading the instructions, put them away in a safe place for future reference.

CAUTION

About compatibility

This product is designed exclusively for use with the Pioneer plasma television. For more information on compatibility, please consult with your nearest Pioneer authorized dealer or service center.

About installation and setting

• Do not lift up the display by the speakers. A speaker may come off, so carry the display by holding it by the bottom and its handle.

• When installing the speaker, do not use any screws other than those supplied, otherwise the speaker may come off from the main unit and fall over.
• When installing the speaker, tighten the screws firmly.
• Please handle the speaker with sufficient care, as the grille net and the cabinet can become damaged or broken when they are subjected to strong external impacts.
• Placing a CRT computer screen or CRT monitor near to the speaker may result in interference or color distortion. If this happens, distance the monitor from the speaker.

About the input

• In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:
• Do not use the speaker with anything other than the specified Pioneer plasma television. Doing so may result in damage or fire.
• Be sure to turn the connected devices off and remove the power cord from the wall outlet beforehand when changing the connection or installation method.
• When using a tone control function to greatly emphasize treble sounds, do not use excessive amplifier volume.

CHECKING THE ACCESSORIES

• Speaker Cables × 2

• Speaker Mounting Fittings

BOTTOM-RIGHT

• Speaker Mounting Screws (M5 × 10 mm: Black) × 16

• Operating Instructions

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

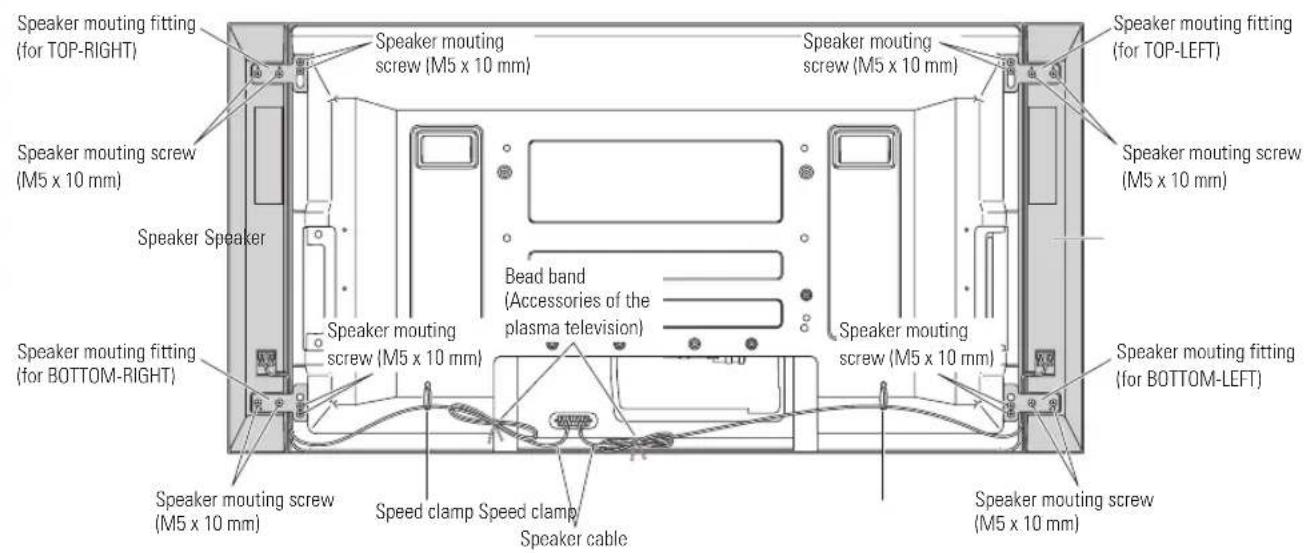

INSTALLATION ON THE PLASMA TELEVISION

Plasma television with the speaker installed

When using the table top stand:

NOTE:

Before attaching the speaker, please attach the PDK-TS29 series table top stand (or another Pioneer plasma television stand) to the plasma television.

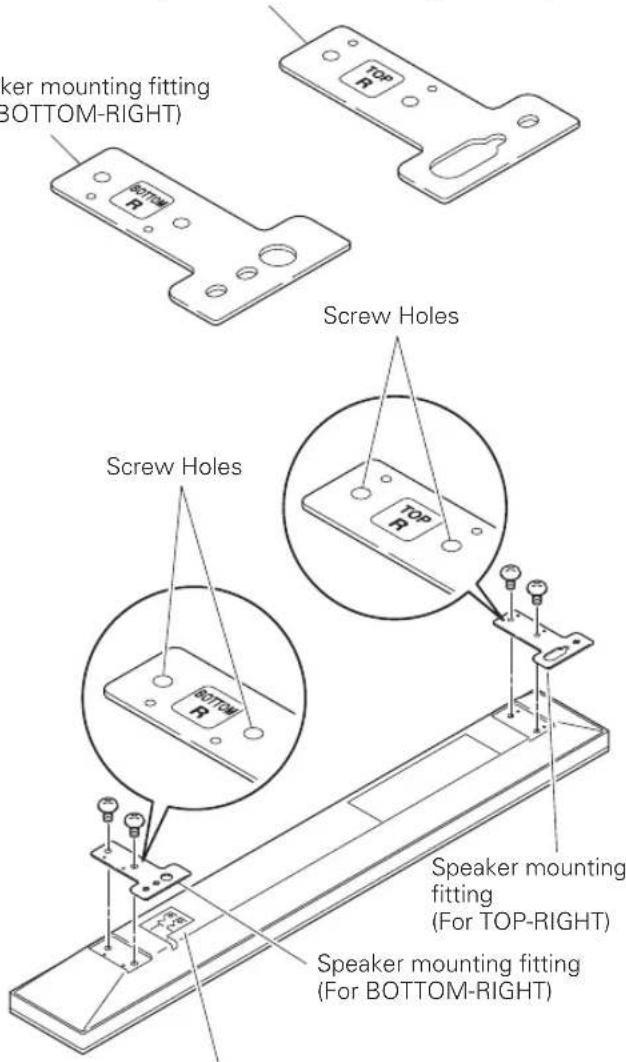

1. Attaching the Speaker Mounting Fittings to the Speakers.

There is a left speaker and a right speaker. When you are mounting them, check the label on the back to get them right.

There are top and bottom speaker mounting fittings for both the left and the right speaker. Attach the appropriate fittings to the top and the bottom on the back of the speakers using the supplied screws. (It shows the attachment of the fitting on the right side. It is attached on the left side by the same procedure.)

Speaker mounting fitting (For TOP-RIGHT)

(The skinny slot is used for mounting to the top.)

Place the speaker so its terminals (bottom) are facing you.

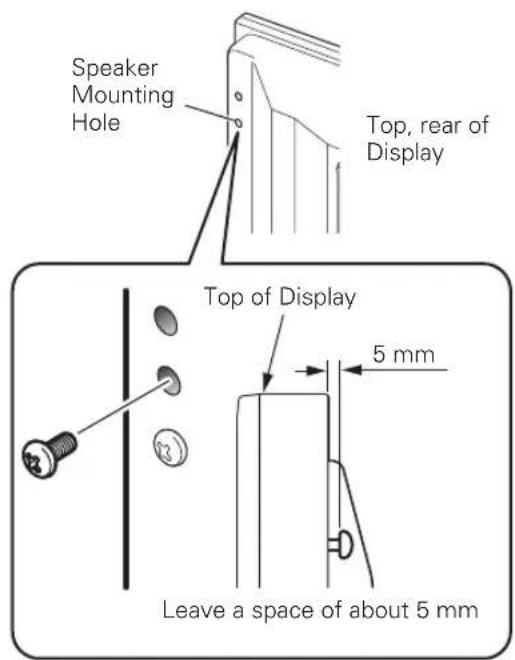

2. Screw an supplied screw into the speaker mounting hole (lower of the two) at the top, rear of the display.

Do not tighten it all the way yet. Leave it loose, with about 5mm left to tighten.

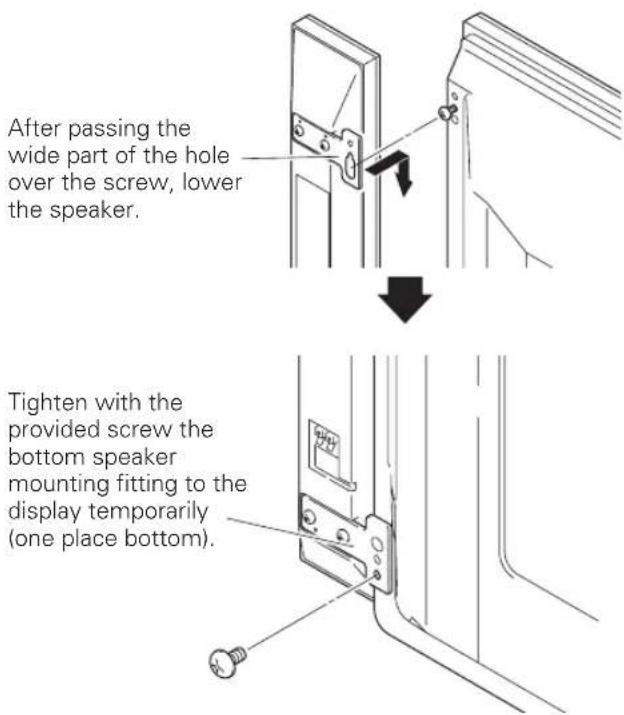

3. Hang the speaker mounting fitting on the screw you installed at the top by passing the wide part over it and lowering into the slot; screw in the lower screw temporarily.

After passing the wide part of the hole of the speaker mounting fitting (top) over the screw, lower the speaker onto it.

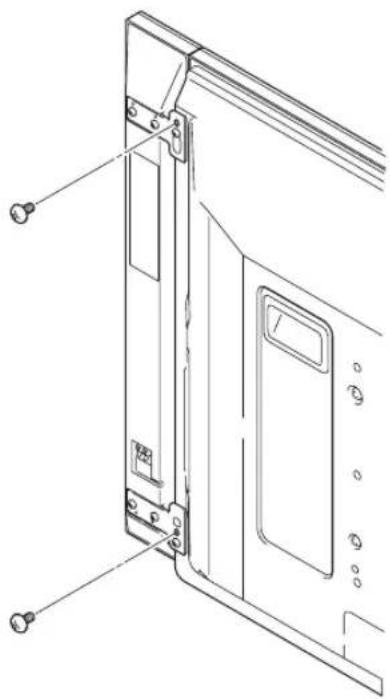

1. Adjust the position of the speaker and then tighten the upper and lower screws firmly.

2. Tighten the two screws, at the top and bottom for each speaker (total of four screws), thus fixing the speakers to the display.

1. Pass the supplied speaker cable between the speaker and the plasma television (below the speaker mounting fitting) from below.

2. Connect the speaker cables to the speaker (see next page).

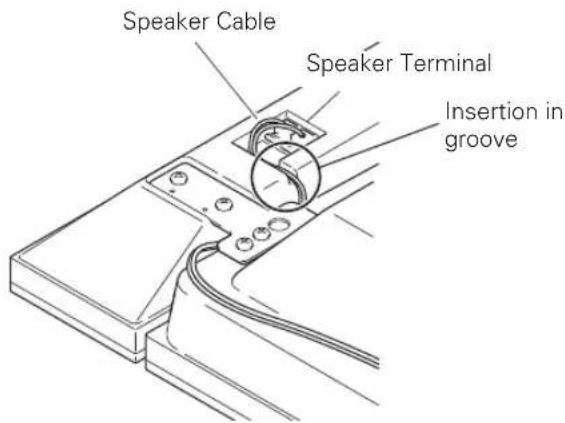

3. Insert the cable in the groove on the speaker.

1. Connect the other end of the speaker cables to the rear of plasma television (see next page).

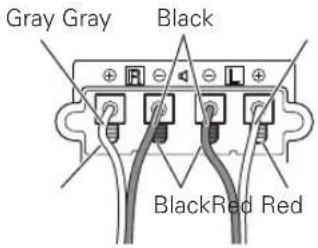

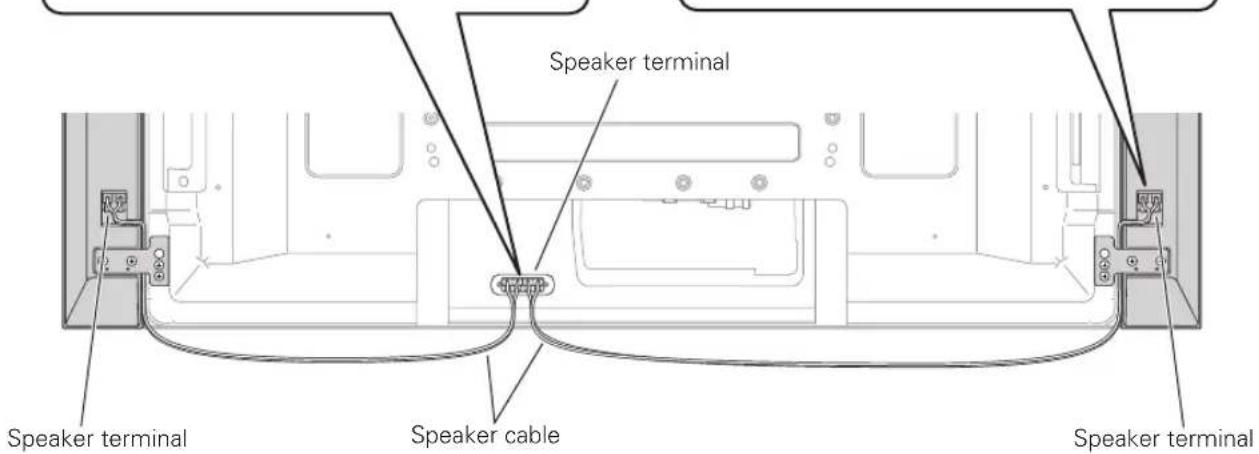

Connecting the speaker cables to the rear of plasma television.

Connect the cables correctly with respect to the polarity of the plasma television speaker terminals, that is, cable (Gray) to terminals (Red) and cable (Black) to terminals (Black).

Connecting the speaker cables to the speaker.

Connect the cables correctly with respect to the polarity of the speaker terminals, that is, cable (Gray) to terminals (Red) and cable (Black) to terminals (Black).

For illustrative purposes, the table top stand is not presented here.

NOTE:

• Press the lever and insert the end of the cable.
• When you release the lever, it clamps onto the speaker cable.

Caution

• Be sure to turn the connected devices off and remove the power cord from the wall outlet beforehand when changing the connection or installation method.
• If you insert the speaker cable too far so that the insulation is touching the speaker terminal, you may not get any sound. Please insert it with showing the copper wire.

• Check if the end of the speaker cables are securely connected to the terminals by slightly tugging on the cable after making connections. Loose connections may result in sound dropouts or noise.
• If there is a short in the and cables caused by an exposed lead wire, excessive load may be applied to the plasma television, resulting in interrupted operation or malfunction.
• Incorrect connections of the speaker cable to the right or left of the plasma television terminals with respect to the polarity may result in insufficient stereo sound effects, delivering poor bass sounds or unstable sound image.
• Bundle the cable without pulling.

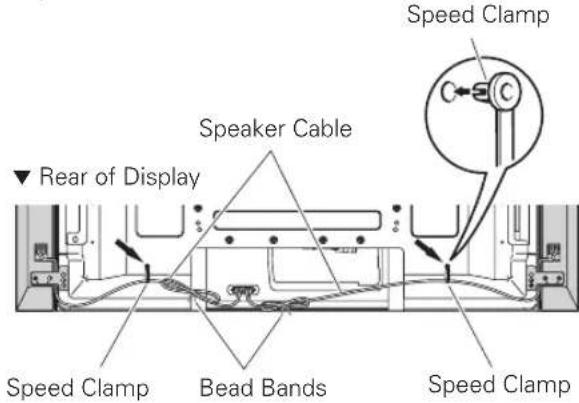

10. Bundling the cables.

Speed clamps and bead band are included with the plasma television for tidying your cables and keeping extra cable length out of the way.

Attaching speed clamps to the plasma television

Attach the speed clamps using the holes marked with below, depending on your routing system.

Attaching and removing speed clamps

Insert [1] into an appropriate hole on the rear of the plasma television and snap [2] into the back of [1] to lock the clamp.

• Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.
• Use pliers to twist the clamp 90^ , pulling outward. The clamp may deteriorate over time and become damaged if removed.
• Be careful not to subject any connecting cables to strain.

NOTE:

• Use the bead bands and speed clamps as necessary.
• When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

When using the hung on wall unit:

NOTE:

First lay the plasma television on top of a soft sheet etc., then attach the speakers.

1. Attach the speakers to the plasma television (See procedures 1 to 10 on pages 3 to 6).
2. Place the plasma television on the mounting fittings of the hung on wall unit.

For details, refer to the operating instructions supplied with the hung on wall unit.

Caution

Do not lift up the display by the speakers. A speaker may come off, so hold it by the bottom and top.

CABINET MAINTENANCE

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• When the cabinet is very dirty, wipe with a soft cloth moistened with water-diluted cleanser; then wipe again with a dry cloth. Do not use furniture wax or cleaners. They may damage the surface of the cabinet.
• Never use thinner, benzine, insecticide sprays and other chemicals on or near the cabinets, since these will corrode the surfaces.
• When a chemical cloth is used, read the cautions for the chemical cloth carefully.

SPECIFICATIONS

Cabinet Bass-reflex type

Used speakers (two-way system):
Woofer (for low tones) 6.6 cm × 10.6 cm cone type
Tweeter (for high tones) 2.5 cm semidome type

Nominal impedance 6Ω

Frequency Range. 60 Hz to 30 000 Hz

Sensitivity (1 m, 1 W) 80 dB

Permissible input : Max. input 18 W Rated input . 6 W

Crossover frequency 3 kHz External Dimensions

Accessory parts (for two speakers)
Speaker cables × 2 Screws (M5 × 10 ~mm) × 16 Brackets

TOP-LEFT × 1 BOTTOM-LEFT × 1

TOP-RIGHT × 1

BOTTOM-RIGHT × 1

Operating Instructions × 1

NOTE:

Specifications and design subject to possible modification without notice, due to improvements.

IMPORTANT NOTICE - RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE REAR.

MODEL NO.

SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

D1-4-2-6-2_En

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058 A En

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

100 (L) mm × 717 (H) mm × 62 (P) mm

Poids 1,6 kg

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.

INSTALLATION AM PLASMA-FERNSEHER

Ubergangsfrequency 3 kHz

AuBere Abmessungen 100 (B) mm × 717 (H) mm × 62 (T) mm Gewicht 1,6 kg

open links (TOP L) × 1

100 (L) mm × 717 (A) mm × 62 (P) mm

Peso 1,6 kg

Copyright © 2007 Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.
