Product Type	Powerline Ethernet Adapter
Brand	IC Intracom (INTELLINET NETWORK SOLUTIONS)
Model	503280
Standard	HomePlug AV
Interface	1 x RJ45 Ethernet port 10/100 Mbps
Maximum Data Rate	Up to 200 Mbps
Range on Powerline	Up to 300 meters
Power Supply	Via mains socket (100-240 V, 50/60 Hz)
Dimensions (approx.)	9 x 6 x 3 cm
Weight (approx.)	100 g
Security	128-bit AES encryption, network password (Private Network Name)
Package Contents	Adapter, RJ45 Ethernet cable, software CD, quick installation guide
System Compatibility	Windows (98/Me/2000/XP/Vista/7/8/10), Mac OS, Linux
Main Features	Data transmission over electrical wiring, creation of private or public network, firmware update
Care and Cleaning	Dust with a soft, dry cloth; do not use liquids or abrasive products
Safety Precautions	Do not plug into a surge-protected power strip; use a direct wall socket
Spare Parts and Repairability	No user-serviceable parts; contact customer service for repairs
General Information	CE and RoHS certified; 2-year warranty (see manufacturer's website)

Frequently Asked Questions - 503280 IC Intracom

How do I install the Powerline adapter?

Plug the adapter into a wall outlet, then connect it to your computer or router using the provided Ethernet cable. The Power LED should light up. For a multi-outlet network, repeat with other adapters.

What should I do if the Power LED does not light up?

Check that the adapter is properly plugged into a working outlet. If the problem persists, try another outlet. The LED should be solid green when powered.

How do I secure my Powerline network?

Use the PowerPacket software to set a custom network password (Private Network Name). By default, the network is open (name 'HomePlugAV'). Change this name to create a private network.

Can I plug the adapter into a power strip?

It is not recommended to use a surge-protected power strip, as this may reduce performance. Plug directly into a wall outlet. The adapter has its own surge protection.

How do I update the adapter's firmware?

Download the PIB and NVM files from the manufacturer's website, then use the 'Upgrade Firmware' option in the PowerPacket software. Follow the on-screen instructions.

What if the software does not detect the adapter?

Ensure the adapter is powered on and connected via Ethernet. Restart the software. If the problem persists, reinstall the software or check network drivers.

How do I reset the adapter to factory defaults?

Press and hold the reset button (located on the side) for 10 seconds. The LEDs will blink to confirm. The network password returns to 'HomePlugAV'.

Can I use multiple Powerline adapters together?

Yes, you can add up to 16 adapters on the same electrical network. Each adapter must be paired via the software with the same network password.

What is the maximum range of the adapter?

The theoretical range is 300 meters on the electrical network, but performance may vary depending on wiring quality and interference.

Is the product compatible with Windows 10?

Yes, the PowerPacket software is compatible with Windows 10. Make sure to use the latest version downloaded from the manufacturer's website.

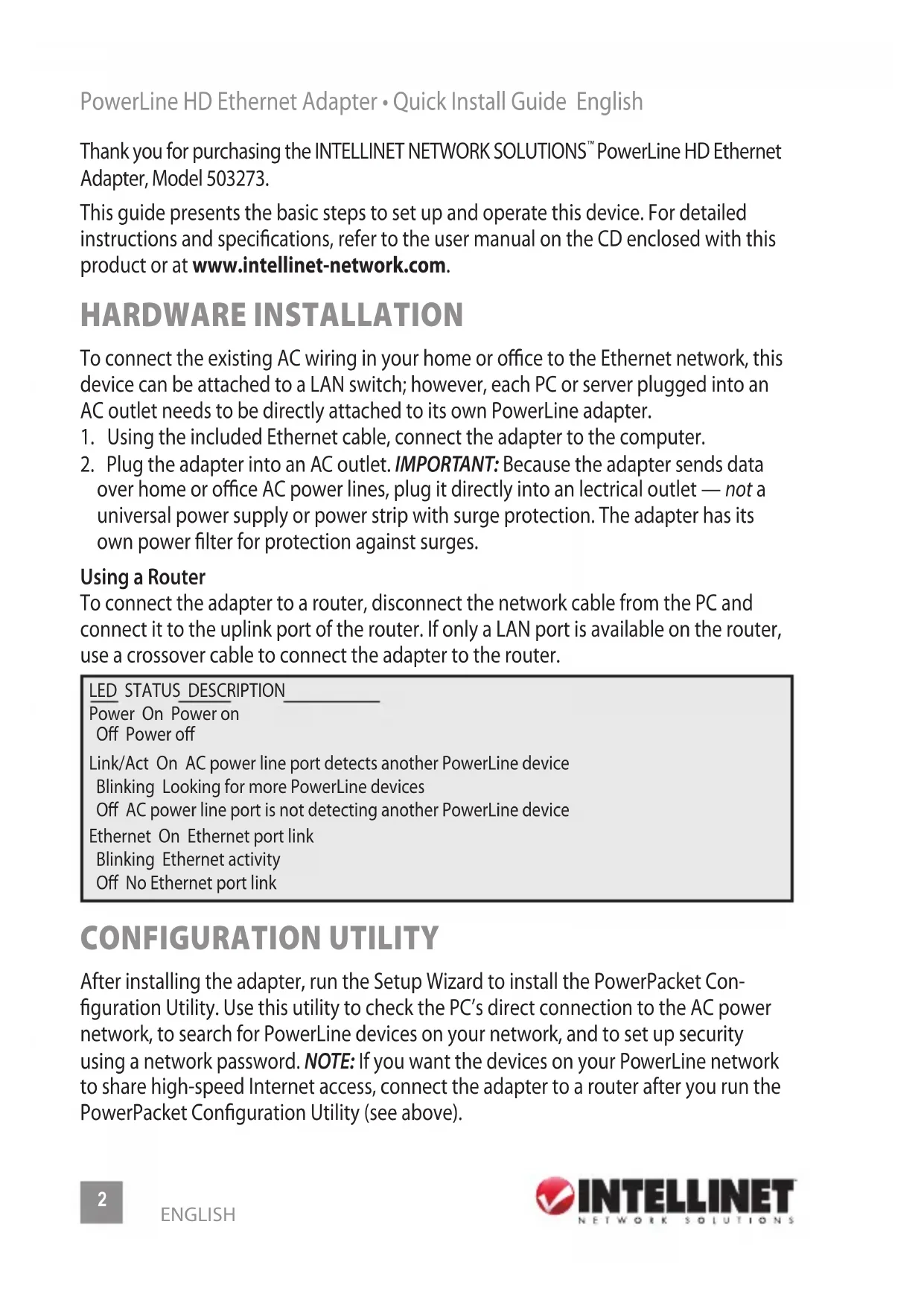

USER MANUAL 503280 IC Intracom

This guide presents the basic steps to set up and operate this device. For detailed instructions and specifications, refer to the user manual on the CD enclosed with this product or at www.intellinet-network.com.

HARDWARE INSTALLATION

To connect the existing AC wiring in your home or office to the Ethernet network, this device can be attached to a LAN switch; however, each PC or server plugged into an AC outlet needs to be directly attached to its own PowerLine adapter.

1. Using the included Ethernet cable, connect the adapter to the computer.
2. Plug the adapter into an AC outlet. IMPORTANT: Because the adapter sends data over home or office AC power lines, plug it directly into an electrical outlet — not a universal power supply or power strip with surge protection. The adapter has its own power filter for protection against surges.

Using a Router

To connect the adapter to a router, disconnect the network cable from the PC and connect it to the uplink port of the router. If only a LAN port is available on the router, use a crossover cable to connect the adapter to the router.

LED STATUS DESCRIPTION

Power On Power on

Off Power off

Link/Act On AC power line port detects another PowerLine device

Blinking Looking for more PowerLine devices

Off AC power line port is not detecting another PowerLine device

Ethernet On Ethernet port link

Blinking Ethernet activity

Off No Ethernet port link

CONFIGURATION UTILITY

After installing the adapter, run the Setup Wizard to install the PowerPacket Configuration Utility. Use this utility to check the PC's direct connection to the AC power network, to search for PowerLine devices on your network, and to set up security using a network password. NOTE: If you want the devices on your PowerLine network to share high-speed Internet access, connect the adapter to a router after you run the PowerPacket Configuration Utility (see above).

Utility Installation

1. Insert the included utility CD, then run the setup.exe program to begin the installation. (You can also run the setup program using the CD's autorun program.)
2. When the Welcome to the PowerPacket Utility Setup Wizard screen displays, click "Next."

Power Packet Utility Setup.msi

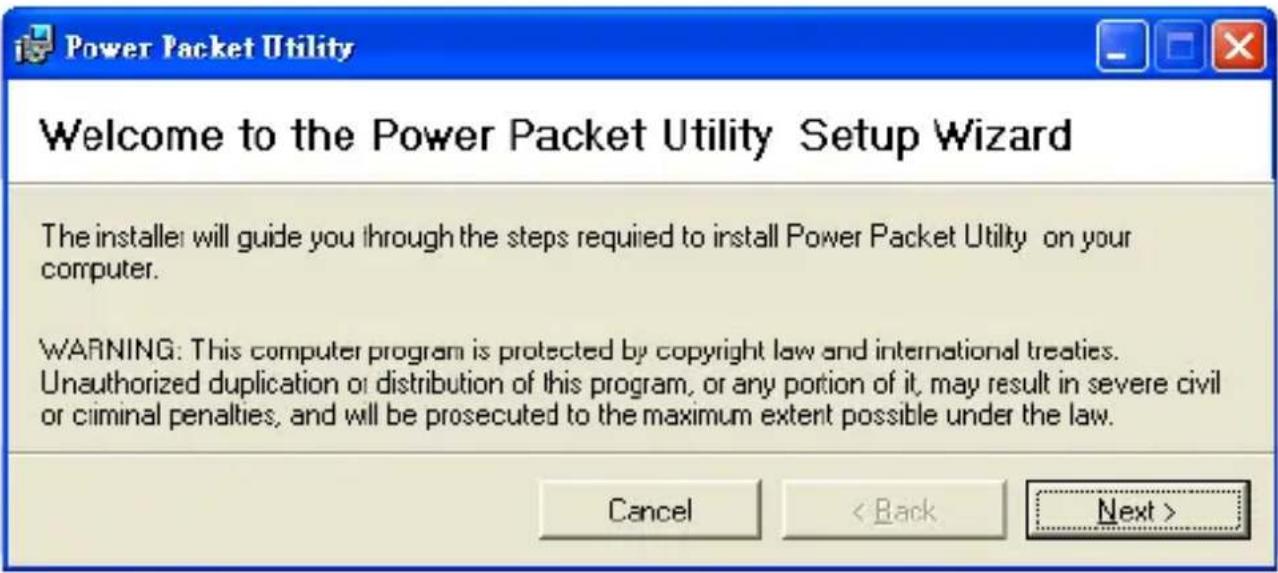

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

1. When the Select Installation Folder screen displays, click "Browse" to select a folder other than the one in the "Folder" field, and click "Next."

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next". To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility\ Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

1. When the Confirm Installation screen displays, click "Next"; when the Installation Complete screen displays, click "Close."

Accessing the PowerPacket Configuration Utility

To open the configuration utility, double-click the PowerPacket Utility icon on your desktop or click to open the "PowerPacket Utility" listing in your Start menu. The Main screen will display initially, with tabs for three other menu/screen options — Privacy, Diagnostics and About — also described below.

Power Packet Utility

Main

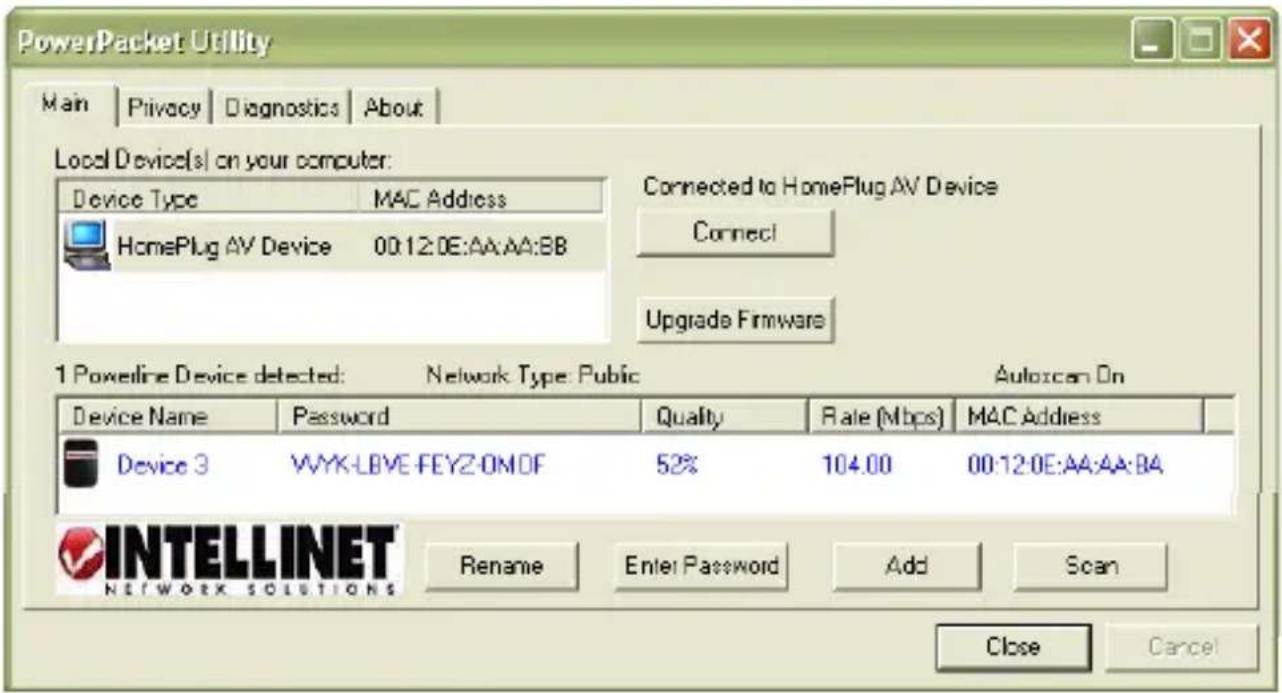

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoxcan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Local Device(s) on your computer: Devices connected locally to the host computer are listed here. In most cases, only one device will be presented.

Connect: To choose a device if there's more than one connected, highlight it and click "Connect."

Upgrade Firmware: Click to update one of the two files (PIB and NVM) that may require updating (and display the screen below). NOTE: Proceed only if you know that a new

Enter PIB & NVM files Please select appropriate Firmware and PIB files. PIB D:\project\Homeplug\AV\Intelloni\Firmware\4.1\PIB\INT6400-WaIAdapter- Browse... NVM D:\project\Homeplug\AV\Intelloni\Firmware\4.1\PW\irt6000-v4.1.0-0-2-X- Browse... OK Cancel

version of either file is available on the INTELLINET Web site or if you're instructed to do so by INTELLINET Tech Support.

Device Detected / Network Type / Autoscan: The number or status of these three references is listed just above the lower-panel window: a count of all HomePlug AV remote devices discovered to be currently on the logical network; public or private network; and whether Autoscan is on or off.

Device Name: Devices are listed in this column by their default name (as shown) unless re-defined by clicking "Rename" or by highlighting the name and editing it in place. An icon is usually displayed alongside the name, with a color distinction between HomePlug 1.0 and Turbo devices.

Password: By default, this column is blank; however, clicking "Enter Password" with a device selected on the Main screen allows you to set the password, which is required when creating a private network. When the Set Device Password screen displays, the name of the selected device appears above the "Password" text field. Enter the password, which appears on the back panel of the adapter, then click "OK." NOTE: The password is accepted regardless of the font case entered, but do include any dashes that separate the four-character alphanumeric segments. A confirmation box appears if the password was correctly entered. If a device isn't found on the network, a

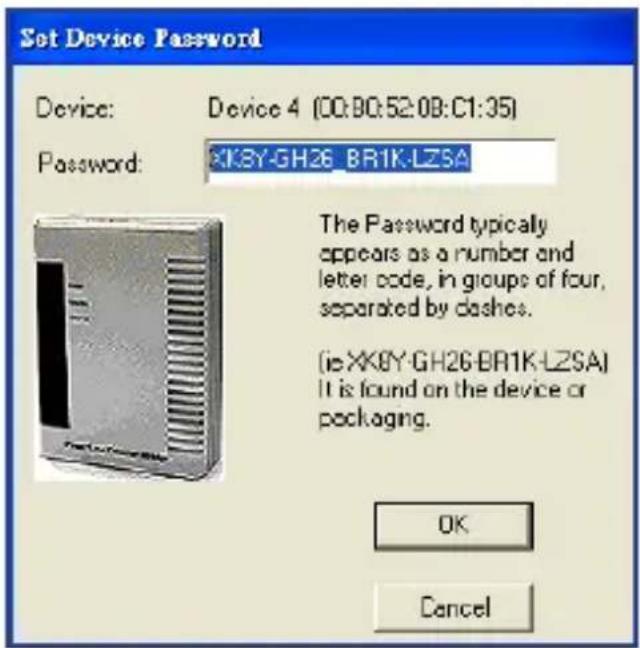

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (ie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part IS FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including interference that may cause undetired operations. Serial No. PL65000 MAC: 00120E000 Password: MNMD-VVRD-CSNO- AC 100~240V 50 ~60Hz FC CE Made in Taiwan

notification prompt will appear, along with suggested solutions.

Quality: This indicates the quality of the transmission between two devices.

Rate: This indicates the current transmission rate of the selected device.

MAC Address: This is the device's MAC address.

Add: Click to add a remote device to the existing network. When the Add Device to Network screen displays, fill in the "Device Name" and "Password" text fields, then click "OK." A confirmation box appears if the entries are correct. If a device isn't found on the network, a notification prompt will appear, along with suggested solutions.

Scan: Click to search for devices that are connected to the network. By default, the utility automatically scans every few seconds and updates the Local Devices list.

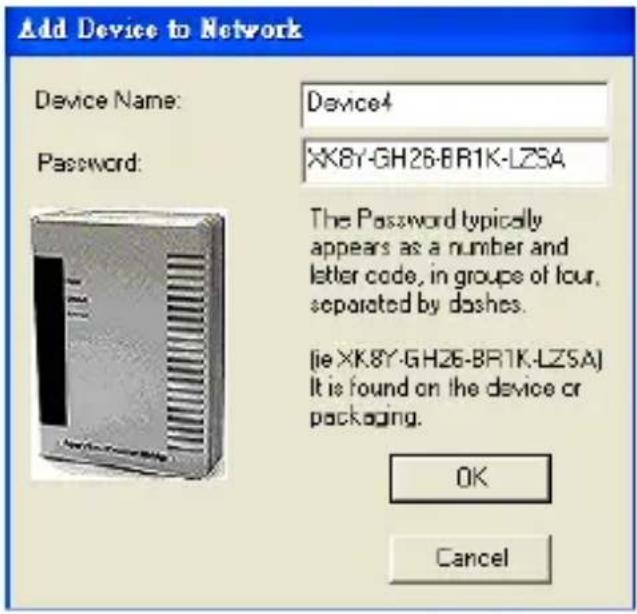

Add Device to Network Device Name: Device4 Password: XK8Y-GH26-BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (jie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

Privacy

This screen allows you to maintain security for the logical network and select the devices to be included in the network.

Private Network Name: All PowerLine HD devices are set with a default logical network (network name): This is normally "HomePlugAV," and will display in the text field when you click "Use Default (Public Network)." Alternatively, you can change to a private network by changing the network name (network password) of devices. You can always reset to the PowerLine HD network (Public) by entering "HomePlugAV" as the network name.

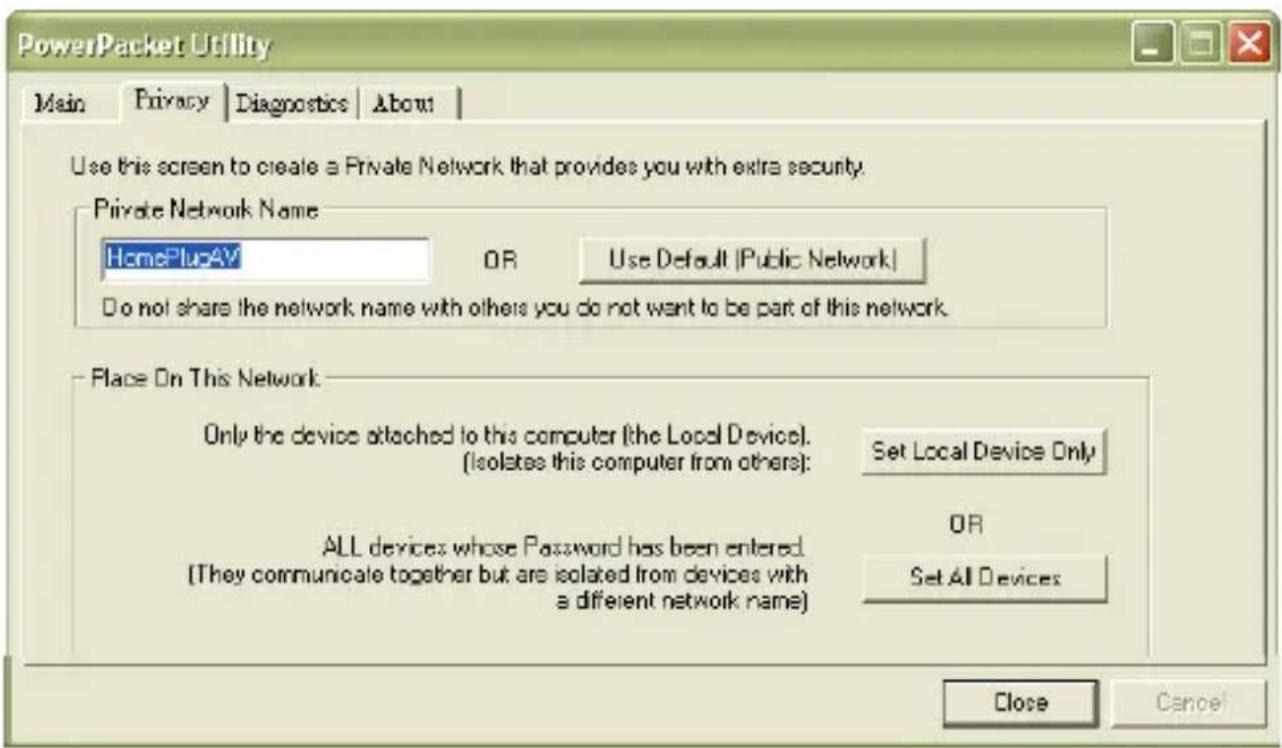

PowerPacket Utility Main | Privacy | Diagnostics | About | Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlusAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isolates this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

Set Local Device Only: Click to change the network name (network password) of the local device. If a new network password is entered, all the devices previously listed on the Main screen will no longer be present in the new network, effectively preventing the local devices from communicating with the devices in the "old" logical network.

Devices previously set up with the same logical network (same network name) will appear in the device list after selecting this option.

Set All Devices: Click to change the logical network of all devices that appear on the Main screen and whose passwords had been entered for the same logical network. A dialog window will appear to report the success of this operation. For devices whose passwords were not entered, this operation will fail and a failure message will display.

Diagnostics

This screen displays detailed information about both local and remote devices.

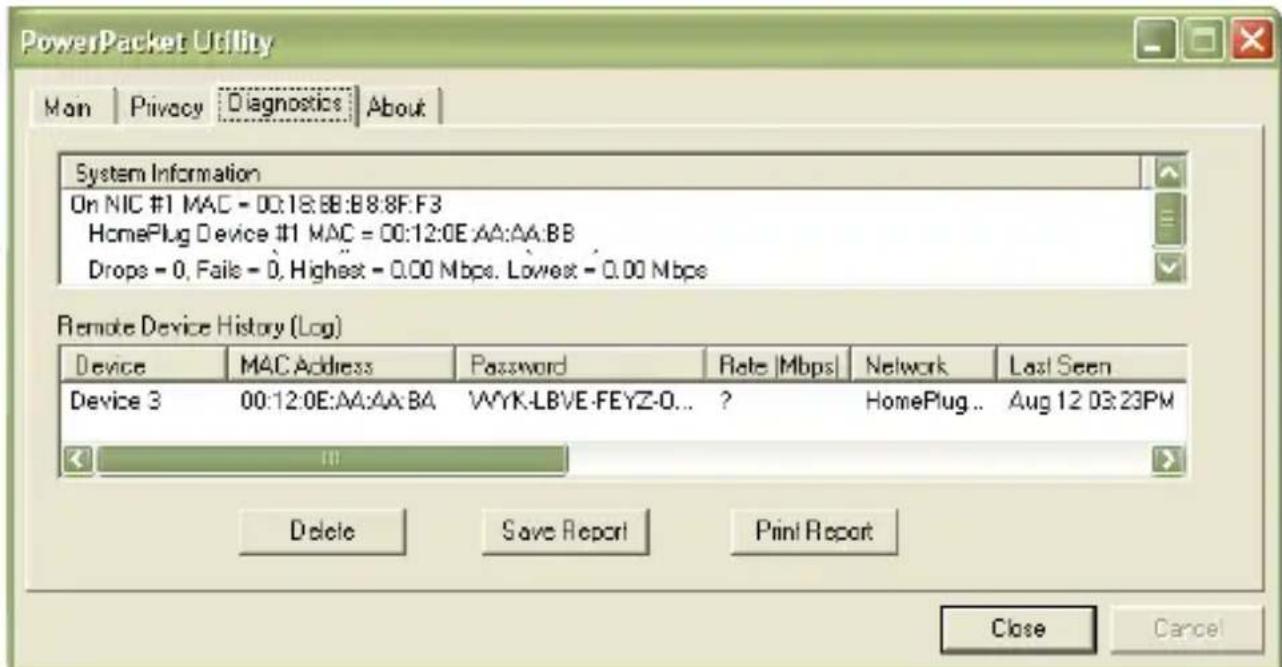

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E AA:AA:BB Drops = 0, Fails = 0, Highest = 0.00 Mbps, Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate |Mbps| Network Last Seen Device 3 00:12:0E:AA:AA:BA WYK-LBVE-FEYZ-0... ? HomePlug..-Aug 12 03:23PM < << Delete Save Report Print Report Close Cancel

System Information: This window presents device names, user names, firmware versions, packets sent/dropped/missed/failed, and other data that can be useful in monitoring and identifying a device.

Remote Device History (Log): This window presents historical data of all remote devices. Those currently active on the logical network show a transfer rate in the "Rate" column; those that are inactive or no longer exist on the network show a question mark (?) and a "Last Seen" time/date.

Delete / Save Report / Print Report: Diagnostics data can be removed, printed or saved to a text file for later reference by clicking the appropriate button.

About

This screen simply displays the software version and company information. The Autoscan feature can also be selected/activated on this screen.

Power Packet Utility Setup.msi

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next". To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility\ Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

Power Packet Utility

Main – Hauptmenü

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoscan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (ie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part 15 FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including Interference that may cause undetected operations. Serial No. PL65000 MAC: 00120E000 Password: MNMD-VVRD-CSNO- AC 100~240V 50 ~60Hz FC CE Made in Taiwan

Add Device to Network Device Name: Device4 Password: XK8Y-GH26-BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (jie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

PowerPacket Utility Main Privacy Diagnostics About Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlugAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isolates this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E AA:AA:BB Drops = 0, Fails = 0, Highest = 0.00 Mbps, Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate [Mbps] Network Last Seen Device 3 00:12:0E:AA:AA:BA WYK-LBVE-FEYZ-0... ? HomePlug..-Aug 12 03:23PM Delete Save Report.Print Report Close Cancel

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next". To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility! Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

Power Packet Utility

Menú

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoxcan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (ie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part IS FCC noise. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including interference that may cause undetired operations. Serial No. PL65000 MAG: 00120E000 Password: MNMD-VVRD-CSNO- AC 100~240V 50 ~60Hz FC CE Made in Taiwan

Add Device to Network Device Name: Device4 Password: XX8Y-GH26-BR1K-LZSA The Password typically appears as a number and letter code, in groupe of four, separated by dashes. (jie XX8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

Privacidad

PowerPacket Utility Main | Privacy | Diagnostics | About | Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlusAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isolates this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E AA:AA:BB Drops = 0, Fails = 0, Highest = 0.00 Mbps, Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate |Mbps| Network Last Seen Device 3 00:12:0E:AA:AA:BA WYK-LBVE-FEYZ-0... ? HomePlug..-Aug 12 03:23PM << Delete Save Report Print Report Close Cancel

Power Packet Utility Setup.msi

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next". To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility\ Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

Power Packet Utility

Main – Principal

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoxcan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (ie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part 15 FCC rules. Operation is subject to the following five conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including Interference (the) may cause undeemed operations. Serial No. PL65000 MAC: 00120E000 Password: MNMD-VVRD-CSNO- AC 100~240V 50~60Hz FC CE Made in Taiwan

Add Device to Network Device Name: Device4 Password: XX8Y-GH26-BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (jie XX8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

Privacy – Domaine privé

PowerPacket Utility Main Privacy Diagnostics About Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlusAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isoletes this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E:AA:AA:BB Drops = 0, Fails = 0, Highest = 0.00 Mbps, Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate |Mbps Network Last Seen Device 3 00:12:0E:AA:AA:BA WYK-LBVE-FEYZ-0... ? Homeminus..-Aug 12 03:23PM << Delete Save Report Print Report Close Cancel

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next": To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility\ Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

Power Packet Utility

Karta MAIN

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoscan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (iesXK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part 15 FCC notes. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including Interference that may cause undetected operations. Serial No. PL65000 MAG: 00120E000 Passwords: MNMD-VVRD-CSNO- AC 100~240V 50 ~60Hz FC CE Made in Taiwan

Add Device to Network

Device Name:

Password:

Device4

XK8Y-GH26-BR1K-LZSA

Exterior view of a silver electronic device with ventilation grilles and a black panel (no visible text or symbols)

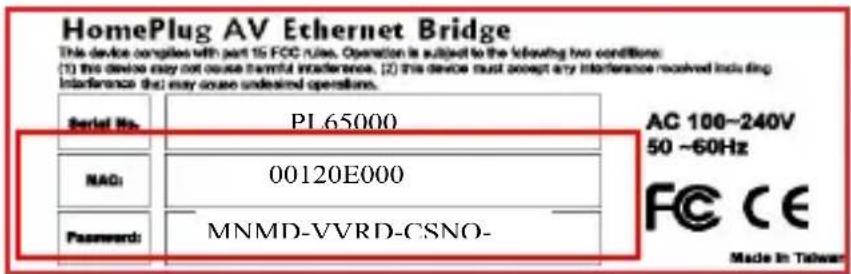

The Password typically appears as a number and letter code, in groups of four, separated by dashes.

(jie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging.

OK

Cancel

Karta PRIVACY

PowerPacket Utility Main Privacy Diagnostics About Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlusAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isolates this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E AA:AA:BB Drops = 0, Fails = 0, Highest = 0.00 Mbps, Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate |Mbps| Network Last Seen Device 3 00:12:0E:AA:AA:BA VYK-LBVE-FEYZ-0... ? Homeminus..-Aug 12 03:23PM << 111 Delete Save Report.Print Report Close Cancel

Power Packet Utility Setup.msi

Power Packet Utility Welcome to the Power Packet Utility Setup Wizard The installer will guide you through the steps required to install Power Packet Utility on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

Power Packet Utility Select Installation Folder The installer will install Power Packet Utility to the following folder. To install in this folder, click "Next". To install to a different folder, enter it below or click "Browse". Folder: C:\Program Files\Intellinet\Power Packet Utility\ Browse... Disk Cost... Install Power Packet Utility for yourself, or for anyone who uses this computer: Everyone Just me Cancel < Back Next >

Power Packet Utility

Main

PowerPacket Utility Main | Privacy | Diagnostics | About | Local Device(s) on your computer: Device Type MAC Address HomePlug AV Device 00:12:0E:AA:AA:BB Connected to HomePlug AV Device Connect Upgrade Firmware 1 Powerline Device detected: Network Type: Public Autoscan On Device Name Password Quality Rate (Mbps) MAC Address Device 3 VYK-LBVE-FEYZ-OMOF 52% 104.00 00:12:0E:AA:AA:BA INTELLINET NETWORK SOLUTIONS Rename Enter Password Add Scan Close Cancel

Set Device Password Device: Device 4 (00:00:52:08:C1:35) Password: XK8Y-GH26_BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (ie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

HomePlug AV Ethernet Bridge This device complies with part 15 FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including interference that may cause undesired operations. Serial No. PL65000 NAG: 00120E000 Password: MNMD-VVRD-CSNO- AC 100-240V 50 -60Hz FC CE Made in Taiwan

Add Device to Network Device Name: Device4 Password: XK8Y-GH26-BR1K-LZSA The Password typically appears as a number and letter code, in groups of four, separated by dashes. (jie XK8Y-GH26-BR1K-LZSA) It is found on the device or packaging. OK Cancel

PowerPacket Utility Main Privacy Diagnostics About Use this screen to create a Private Network that provides you with extra security. Private Network Name HomePlugAV OR Use Default (Public Network) Do not share the network name with others you do not want to be part of this network. Place On This Network Only the device attached to this computer (the Local Device). (Isolates this computer from others): Set Local Device Only ALL devices whose Password has been entered. (They communicate together but are isolated from devices with a different network name) OR Set All Devices Close Cancel

PowerPacket Utility Main | Privacy | Diagnostics | About | System Information On NIC #1 MAC = 00:18:BB:B8:8F:F3 HomePlug Device #1 MAC = 00:12:0E AA:AA:BB Drops = 0. Fails = 0. Highest = 0.00 Mbps. Lowest = 0.00 Mbps Remote Device History (Log) Device MAC Address Password Rate [Mbps] Network Last Seen Device 3 00:12:0E:AA:AA:BA WYK-LBVE-FEYZ-0... ? HomePlug..-Aug 12 03:23PM Delete Save Report Print Report Close Cancel
