Brand	Doro
Model	AUB 200h
Product type	Corded telephone for analog line
Hearing aid compatibility	Yes, set the hearing aid to T position
Number of direct memory keys	3 (M1 to M3)
Number of speed dial memories	10 (0 to 9)
Maximum capacity per memory	21 digits
Function keys	Mute, R, Pause, Redial, Hold, Headset, Direct memory
Handset volume control	By slider
Ringer	3 melodies (A, B, C) with 3 volume levels (low, normal, high) + temporary mute
Headset jack	Yes, on the side of the phone
Modem jack (dataport)	Yes, on the right side
Wall mountable	Possible with optional bracket (WB200/300)
Recall delay (R key)	Adjustable: 100, 300 or 600 ms (default 300 ms for France)
Dialing	Tone (DTMF) or pulse (rotary), adjustable according to PBX
Indicator light	Ringing and message waiting (adjustable according to standard)
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Safety	Disconnect the telephone during thunderstorms. Use only the original Doro headset to avoid damage.
Warranty (France)	2 years from date of purchase (receipt required)
Telephone support (France)	08 92 68 90 18 (€0.34/min) for installation help or technical questions
General information	Compliant with directives 1999/5/EC (R&TTE) and 2002/95/EC (RoHS). Declaration of conformity available at www.doro.com/dofc.

Frequently Asked Questions - AUB 200h DORO

How to store a number in direct memory (M1 to M3)?

Lift the handset, press the Prog key (ignore the dial tone). Press the desired memory key (M1, M2 or M3). Dial the number (max 21 digits). Press Prog again to save, then hang up.

How to call a speed dial number?

Lift the handset (or press the Headset key if headset is connected). Press the Speed dial key (key 4 on the diagram), then press the numeric key (0 to 9) corresponding to the stored number.

How to adjust the ringer?

Lift the handset (ignore the dial tone). Press the Prog key then the Ringer key (key 7?). Select a melody and volume by pressing keys 0 to 9 according to the table: Melody A: 1=low,2=normal,3=high; Melody B: 4,5,6; Melody C: 7,8,9; Key 0 = temporary mute. Press Prog to confirm and hang up.

How to use the redial function?

If the last number dialed was busy or to recall, lift the handset (or press the Headset key), then press the Redial key (key 10). The number is redialed automatically.

How to use the Mute key?

During a call, press the Mute key (key 4) to mute the microphone. Press again to restore sound. The associated LED flashes when the microphone is muted.

How to put a call on hold?

During a call, press the Hold key (key 11). The LED lights up. You can hang up or take another call. To retrieve the held call, press the Hold key again or lift another telephone on the same line.

How to connect and use a headset?

Plug the headset into the jack marked with a headset (left side of the phone). To answer a call or call, press the Headset key (key 9). To hang up, press again. The Headset key LED lights up when the line is active. Use an original Doro headset preferably.

How to adjust the handset listening volume?

Use the volume control slider located on the handset (key 7). Move it upward to increase volume, downward to decrease.

What to do if the telephone is not working?

Check the connections of the telephone line cord and handset cord. Disconnect any other equipment on the line (extensions, other phones). Test the phone on a working line. If the problem persists, contact your retailer or support service at 08 92 68 90 18 (€0.34/min).

Is the telephone compatible with hearing aids?

Yes, this telephone is compatible with hearing aids. To use this function, set your hearing aid to the T position (telephone coil).

USER MANUAL AUB 200h DORO

1 Wall mounting hanger hook
2 Headset socket
3 Handset socket
4 Store/Mute button and LED
5 Recall button
6 Memory button
7 Handset/Headset volume control

8 Pause button
9 Headset button and LED
10 Redial button
11 Hold button and LED
12 One-Touch memories
13 Ring/Message Wait Indicator
14 Input socket for additional equipment

Svenska

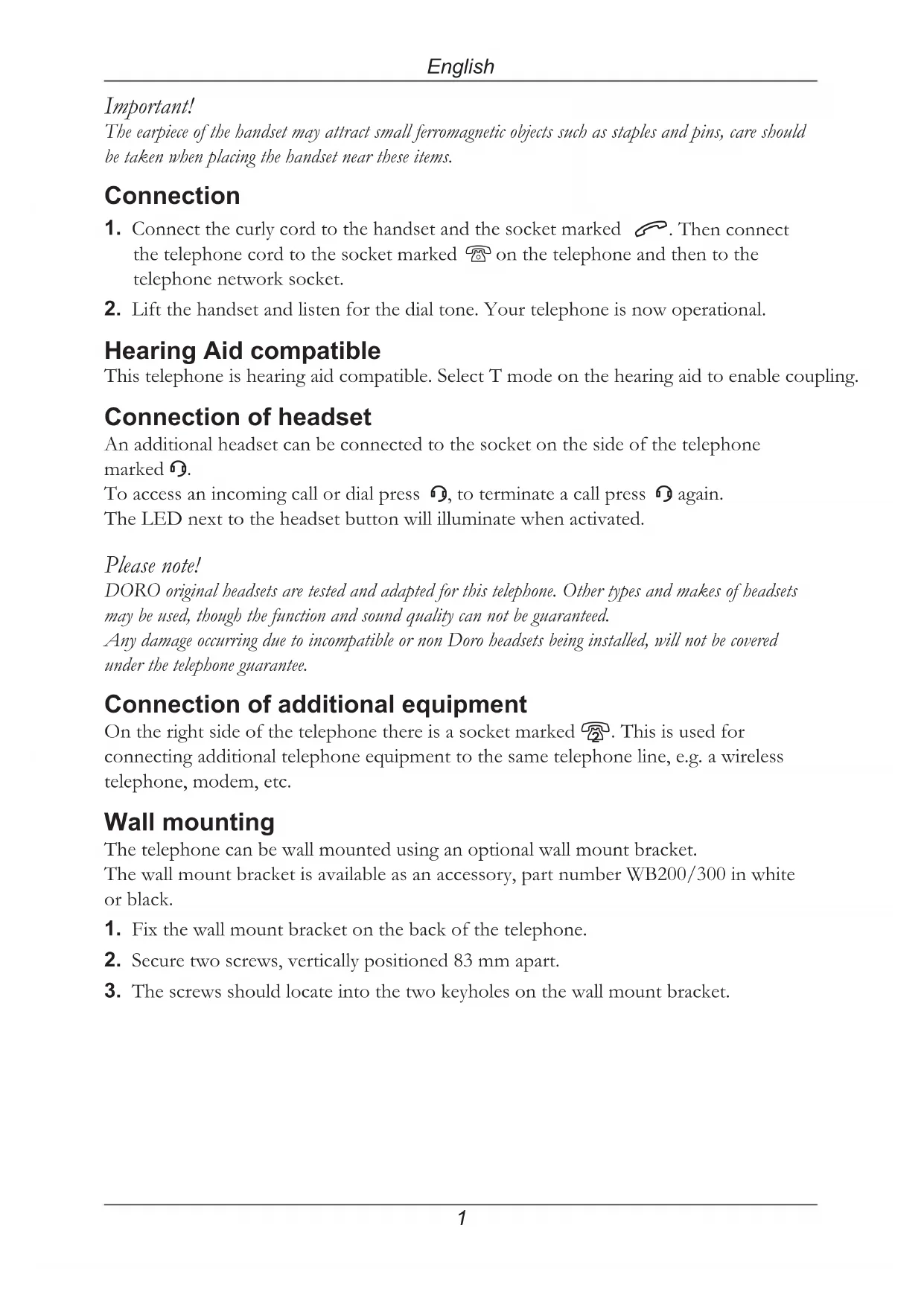

The earpiece of the handset may attract small ferromagnetic objects such as staples and pins, care should be taken when placing the handset near these items.

Connection

1. Connect the curly cord to the handset and the socket marked . Then connect the telephone cord to the socket marked on the telephone and then to the telephone network socket.
2. Lift the handset and listen for the dial tone. Your telephone is now operational.

Hearing Aid compatible

This telephone is hearing aid compatible. Select T mode on the hearing aid to enable coupling.

Connection of headset

An additional headset can be connected to the socket on the side of the telephone marked .

To access an incoming call or dial press , to terminate a call press again.

The LED next to the headset button will illuminate when activated.

Please note!

DORO original headsets are tested and adapted for this telephone. Other types and makes of headsets may be used, though the function and sound quality can not be guaranteed.

Any damage occurring due to incompatible or non Doro headsets being installed, will not be covered under the telephone guarantee.

Connection of additional equipment

On the right side of the telephone there is a socket marked . This is used for connecting additional telephone equipment to the same telephone line, e.g. a wireless telephone, modem, etc.

Wall mounting

The telephone can be wall mounted using an optional wall mount bracket. The wall mount bracket is available as an accessory, part number WB200/300 in white or black.

1. Fix the wall mount bracket on the back of the telephone.
2. Secure two screws, vertically positioned 83mm apart.
3. The screws should locate into the two keyholes on the wall mount bracket.

Volume control

The volume level in the earpiece can be increased or decreased using the volume control /

Mute button

The microphone can be turned on/off during a call by pressing .

Redial button

If the number dialled is engaged or if the last number dialled is to be redialled, lift the receiver or press the headset button and press the button.

On Hold

Press the button to place a call on hold. The LED next to the button will illuminate.

The call can be resumed by pressing the button again or from another telephone connected to the same line.

Recall

Press the R button followed by the extension number to transfer calls when connected to a PBX. Access to additional network services can be gained by using the R button, and keys. Contact your network operator for more information.

Select either TIME/EARTH recall using the switch located on the underside of the unit.

Memory

The telephone will store 3 one-touch (M1-M3) and 10 two-touch memories (up to 21 digits).

When a number is stored, you need only press one or two buttons to make a call.

Storing One-touch Memories

1. Lift the handset and press (ignore anything you hear in the earpiece).
2. Press desired location M1-M3.
3. Enter the phone number. Press and replace the handset.

Dialing using One-touch Memories

Lift the handset and press desired location M1-M3.

Storing Two-touch Memories

1. Lift the handset and press (ignore anything you hear in the earpiece).
2. Press
3. Press desired location 0-9.
4. Enter the phone number. Press and replace the handset.

Dialing using Two-touch Memories

1. Lift the handset and press
2. Press desired location 0-9.

If you need to insert a pause in the telephone number press P.

If you need to change a number, store the new number in the same location as the old one.

Ringer

1. Lift the receiver (ignore the dialling tone) and press the store button and
2. Select ring signal by pressing the number key0 -9 in accordance with the table below.
3. Press store button and replace the receiver. The ring signal is now set.

Melody type Key/level

Melody A 1=Low, 2=Normal, 3=High

Melody B 4=Low, 5=Normal, 6=High

Melody C .........7=Low, 8=Normal, 9=High

Off* 0

• If the key O is selected, the ring signal will be turned off until the next time the receiver is lifted. After that, the ring signal will revert to the previous setting.

Technical information

Some selector switches are located in a compartment on the underside of the telephone.

These switches control technical parameters for connection to PBX equipment.

IMPORTANT NOTE:

These switches should only be adjusted by qualified personnel.

Recall time

Selection of 100 / 300 / 600ms timed loop break for recall functionality.

The standard setting is 100ms for UK/Australia and 600ms for New Zealand.

EARTH/TIME (UK only)

Selection of either earth or timed loop break recall method.

Tone/Pulse

Selection of either dialling method depending on PBX.

Message Waiting Indicator

Some PBX systems have a function called Message Waiting.

The switch is located behind the battery cover on the underside of the telephone.

The MW function operates differently depending on the PBX in question. The following four alternatives are available: + , - , ringer indicator (and high DC voltage (HV).

Declaration of conformity

Doro hereby declares that this product, Doro aub200h, conforms with the essential requirements and other regulations contained in the directives 1999/5/EC (R&TTE), 2002/95/EC (ROHS).

A copy of the manufacturer's declaration is available at www.doro.com/dofc

Troubleshooting

Check that the telephone cord is undamaged and properly plugged in.

Disconnect any additional equipment that may be connected.

If the problem is resolved the fault is with the other equipment.

Test the equipment on a known working line. If the product works, then the fault is probably with your line. If you are still experiencing difficulties, contact the place of purchase.

Guarantee

This product is guaranteed for a period of 10 years from the date of purchase. Proof of purchase is required for any service or support required during the guarantee period.

This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser's part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations.

This guarantee does not in any way affect your statutory rights. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm.)

UK

If you cannot resolve the fault using the faultfinder section, technical support is available by email on [e-mail] or via a premium rate telephone number: 0905 895 0854, calls cost 50 pence per minute (prices correct at the time of publication). Further contact details are available on our website: www.doro-uk.com

Alternatively you can write to:

Customer Services

Doro UK Ltd

1 High Street

Chalfont St Peter

Buckinghamshire

SL9 9QE

Inkoppling
