USER MANUAL KULT 04 1606 0071 WMF

Design of the spiral cutter

2 Recipiente colector

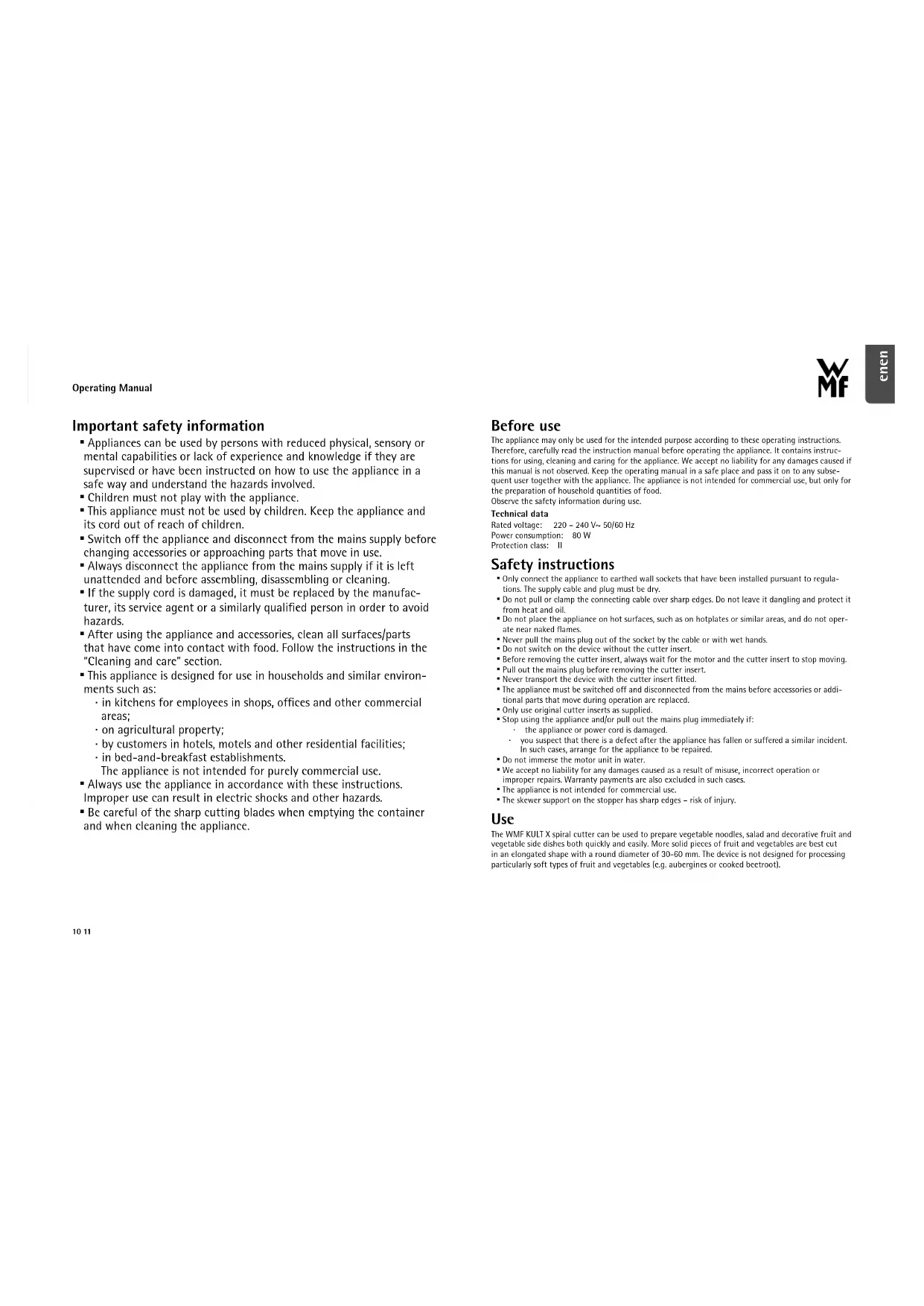

Important safety information

▪ Appliances can be used by persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they are

supervised or have been instructed on how to use the appliance in a

safe way and understand the hazards involved.

▪ Children must not play with the appliance.

▪ This appliance must not be used by children. Keep the appliance and

its cord out of reach of children.

▪ Switch off the appliance and disconnect from the mains supply before

changing accessories or approaching parts that move in use.

▪ Always disconnect the appliance from the mains supply if it is left

unattended and before assembling, disassembling or cleaning.

▪ If the supply cord is damaged, it must be replaced by the manufac-

turer, its service agent or a similarly qualified person in order to avoid

▪ After using the appliance and accessories, clean all surfaces/parts

that have come into contact with food. Follow the instructions in the

“Cleaning and care” section.

▪ This appliance is designed for use in households and similar environ-

⋅ in kitchens for employees in shops, offices and other commercial

⋅ on agricultural property;

⋅ by customers in hotels, motels and other residential facilities;

⋅ in bed-and-breakfast establishments.

The appliance is not intended for purely commercial use.

▪ Always use the appliance in accordance with these instructions.

Improper use can result in electric shocks and other hazards.

▪ Be careful of the sharp cutting blades when emptying the container

and when cleaning the appliance.

The appliance may only be used for the intended purpose according to these operating instructions.

Therefore, carefully read the instruction manual before operating the appliance. It contains instruc-

tions for using, cleaning and caring for the appliance. We accept no liability for any damages caused if

this manual is not observed. Keep the operating manual in a safe place and pass it on to any subse-

quent user together with the appliance. The appliance is not intended for commercial use, but only for

the preparation of household quantities of food.

Observe the safety information during use.

Rated voltage: 220 – 240 V~ 50/60 Hz

Power consumption: 80 W Protection class: II Safety instructions

▪ Only connect the appliance to earthed wall sockets that have been installed pursuant to regula-

tions. The supply cable and plug must be dry.

▪ Do not pull or clamp the connecting cable over sharp edges. Do not leave it dangling and protect it

▪ Do not place the appliance on hot surfaces, such as on hotplates or similar areas, and do not oper-

ate near naked flames.

▪ Never pull the mains plug out of the socket by the cable or with wet hands.

▪ Do not switch on the device without the cutter insert.

▪ Before removing the cutter insert, always wait for the motor and the cutter insert to stop moving.

▪ Pull out the mains plug before removing the cutter insert.

▪ Never transport the device with the cutter insert fitted.

▪ The appliance must be switched off and disconnected from the mains before accessories or addi-

tional parts that move during operation are replaced.

▪ Only use original cutter inserts as supplied.

▪ Stop using the appliance and/or pull out the mains plug immediately if:

⋅ the appliance or power cord is damaged.

⋅ you suspect that there is a defect after the appliance has fallen or suffered a similar incident.

In such cases, arrange for the appliance to be repaired.

▪ Do not immerse the motor unit in water.

▪ We accept no liability for any damages caused as a result of misuse, incorrect operation or

improper repairs. Warranty payments are also excluded in such cases.

▪ The appliance is not intended for commercial use.

▪ The skewer support on the stopper has sharp edges – risk of injury.

The WMF KULT X spiral cutter can be used to prepare vegetable noodles, salad and decorative fruit and

vegetable side dishes both quickly and easily. More solid pieces of fruit and vegetables are best cut

in an elongated shape with a round diameter of 30-60 mm. The device is not designed for processing

particularly soft types of fruit and vegetables (e.g. aubergines or cooked beetroot).12 13

Overview of cutter inserts

The cutter inserts provided are marked with numbers on the outside to make them easy to tell apart:

1 Tagliatelle (ca. 9 mm)

Cucumber (solid consistency) -

Note: The foods listed in the table serve as a guide; the appliance can also be used to process other

foods. As the hardness of food can vary, the use of cutter inserts is recommended.

Before using for the first time

Clean the device before use as described in the chapter on “Cleaning and Care”.

▪ Place the the cutter insert holder into the motor unit.

▪ Choose the cutter insert you want and stick it into the rack.

Please note: The blades on the cutter inserts are sharp; pick the cutter inserts up only by the

▪ Now place the filler tubes on the cutter insert and twist them in a clockwise direction until you can

feel them lock into place. Note: If the filler tubes are not locked in place, it will not be possible to

operate the machine.

▪ Place the transparent collection container inside the device to collect the food after it has been cut

into a spiral shape.

▪ Now insert the mains plug into the socket.

▪ Then pierce the relevant piece of food on the stopper.

Please note: The skewer support on the stopper has sharp edges.

▪ Pour the food with the stopper into the filler tubes and turn the device on using the start/stop

Note: Only press lightly with the stopper onto the ingredients so that they are in contact with the

▪ Turn the device off after cutting in order to fill it again.

▪ Remove the mains plug once you are finished cutting. Take the cutter insert out by pressing gently

from underneath (see picture).

Please note: The blades on the cutter inserts are sharp; pick the cutter inserts up only by the

▪ Briefly reduce the pressure on the stopper at regular intervals during the cutting to stop endless

spirals from being created. This way the vegetable noodles will be shorter and easier to portion out.

▪ Wherever possible you should fill the filler tubes vertically to get the best results.

▪ The more level the outer surface of the food is, the easier the endless spirals are to cut. For that

reason, food such as carrots should be sliced before cooking.

▪ Food with a diameter of more than 60 mm cannot be processed, however they can be made into a

round shape by cutting off the sides and then processed.

▪ We recommend a maximum chopping time of 2 minutes.14 15

▪ This product is supplied with a 13 A plug conforming to BS 1363 fitted to the

mains lead. If the plug is unsuitable for your socket outlets or needs to be

replaced, please note the following. If the plug is a non-rewireable one, cut

it from the mains lead and immediately dispose of it. Never insert it into a

socket outlet as there is a very great risk of an electric shock

▪ The replacement of the plug at the mains lead has to be done according to the

following instructions:

Important: The wires in this mains lead are coloured in accordance with the

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your plug,

⋅ the wire which is coloured blue must be connected to the terminal which

is marked with the letter N or coloured black,

⋅ the wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red.

Do not connect any wire to the terminal which is marked with the letter

E or by the earth symbol

, or coloured green or green and yellow.

▪ If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming

to BS 1362 and be ASTA approved. If any other type of plug is used, the

appliance must be protected by a 5 A fuse either in the plug or adapter or at

the distribution board.

If in doubt - consult a qualified electrician.

▪ Never use the plug without closing the fuse cover.

The device complies with the European Directives 2006/95/EG, 2004/108/EG and

At the end of its service life, this product may not be disposed of in the normal

household waste, but rather must be disposed of at a collection point for recy-

cling electrical and electronic devices. The materials are recyclable according to

their labelling. You make an important contribution to protecting our environ-

ment by reusing, recycling or utilising old devices in other ways. Please ask the

municipal administration where the appropriate disposal facility is located.

Remove the mains plug after use. The motor unit should never be placed in water,

only wiped down with a damp cloth. Never use abrasive cleaning agents. When

cleaning the cutter inserts and the skewer support, be careful not to hurt yourself

on the sharp blades and edges; Ideally, use the provided washing-up brush,

and you must always hold the cutter inserts by the plastic parts. All removable

parts (stopper, collection container, filler tubes, cutter insert holders and cutter

inserts) can be placed in the dishwasher to make cleaning easier. However, we

recommend gently cleaning the cutter inserts with warm running water and

using a washing-up brush. Regular washing in the dishwasher may blunt the
