Smoothietogo 04.1515.0011 - Blender WMF - Free user manual and instructions

Brand	WMF
Model	Smoothietogo 04.1515.0011
Product type	Portable blender
Power supply	220-240 V, 50-60 Hz
Power	300 W
Container capacity	600 ml
Number of containers included	2
Number of lids included	2
Container material	Plastic (dishwasher safe)
Blade unit material	Stainless steel
Functions	Blend, chop, crush ice, make smoothies and juices
Use as bottle	Yes, screw the lid onto the container after blending
Control type	Start button (momentary operation)
Safety	Safety stop if container is mispositioned; do not operate empty; max food temperature 60 °C
Cleaning container and lid	Dishwasher
Cleaning blade unit	Under running water (watch out for sharp blades)
Cleaning motor unit	Wipe with a damp cloth (do not immerse)
Spare parts available	Container, blade unit, motor unit, lid
Use	Domestic use only
Compliance	European directives 2014/35/EC, 2014/30/EC, 2009/125/EC

Frequently Asked Questions - Smoothietogo 04.1515.0011 WMF

What types of food can I blend with the WMF Smoothietogo?

You can blend fruits, vegetables, make smoothies, juices, and even crush ice. Cut the food into pieces before placing them in the container.

How do I start the blender?

Place the container (with the blade unit screwed on) onto the motor unit, aligning the markings and turning clockwise until locked. Plug in the appliance, then hold down the start button (3) to blend. Release to stop.

What is the maximum capacity of the container?

The maximum capacity is 600 ml. Do not exceed this level to avoid overflow.

Can I put hot foods in the blender?

No, the maximum food temperature is 60 °C. Hotter foods may damage the container or cause burns.

How do I clean the blender?

The container and lid are dishwasher safe. The blade unit can be cleaned under running water (watch out for sharp blades). The motor unit should be wiped with a damp cloth; never immerse it.

Why won't the blender start?

Check that the container is properly locked onto the motor unit. A safety device prevents operation if the container is not correctly positioned.

Can I use the container as a bottle to take my drink with me?

Yes, after blending, unscrew the blade unit and screw the included lid onto the container. You can then take your smoothie or juice with you.

How many ice cubes can I crush at once?

You can crush up to 4 ice cubes maximum. Briefly press the start button at intervals until the desired consistency is achieved.

What is the power of the appliance?

The blender has a power of 300 W and operates on a voltage of 220-240 V, 50-60 Hz.

Is the blender guaranteed?

Refer to the warranty information provided in the manual. The appliance is intended for domestic use only; any professional use or misuse may void the warranty.

USER MANUAL Smoothietogo 04.1515.0011 WMF

Design of Smoothie-to-go

1 2x Mixing container
2 Blade unit
3 Start button
4 Drive unit
5 2x Lid

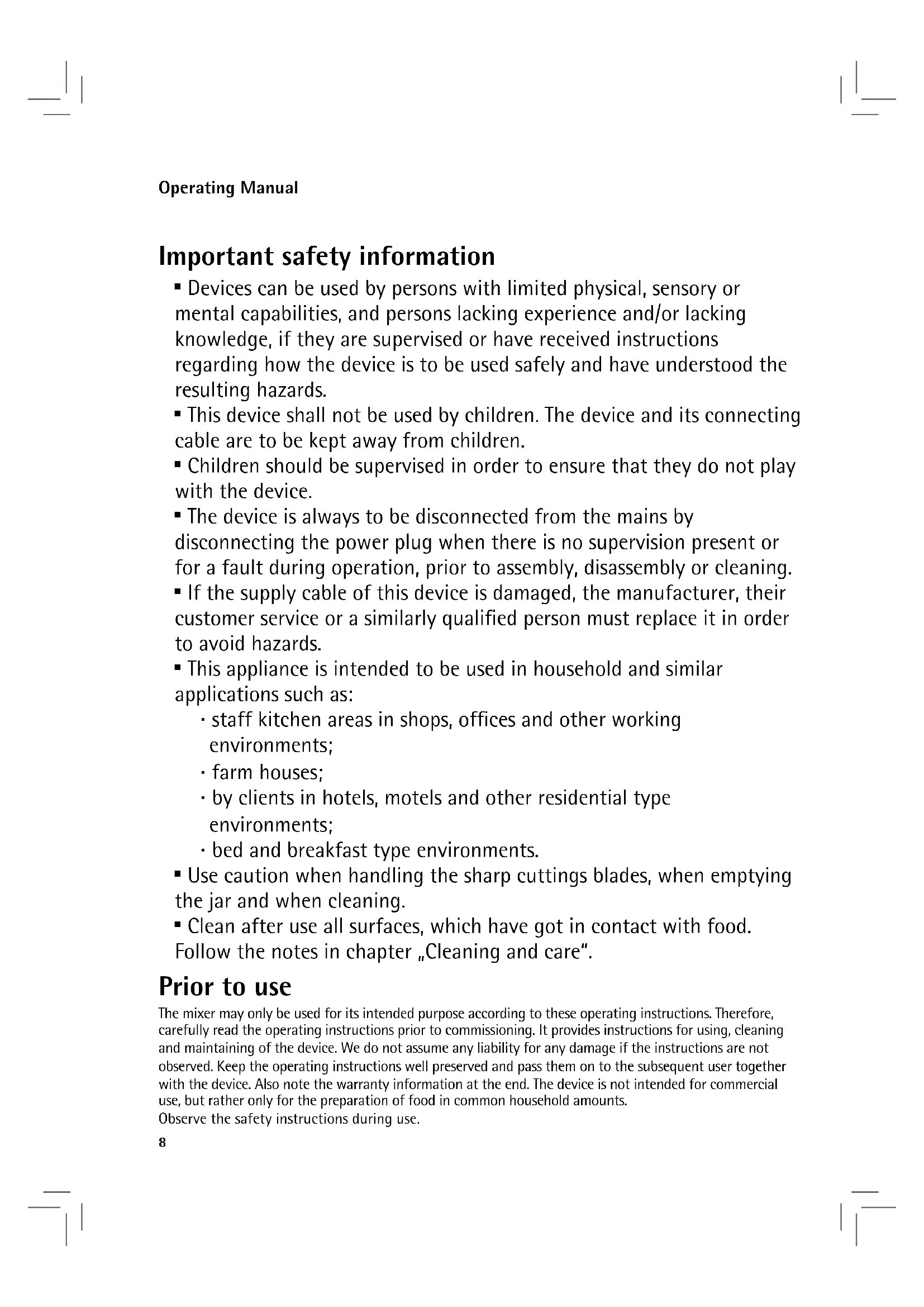

Important safety information

Devices can be used by persons with limited physical, sensory or mental capabilities, and persons lacking experience and/or lacking knowledge, if they are supervised or have received instructions regarding how the device is to be used safely and have understood the resulting hazards.
- This device shall not be used by children. The device and its connecting cable are to be kept away from children.
- Children should be supervised in order to ensure that they do not play with the device.
- The device is always to be disconnected from the mains by disconnecting the power plug when there is no supervision present or for a fault during operation, prior to assembly, disassembly or cleaning.
- If the supply cable of this device is damaged, the manufacturer, their customer service or a similarly qualified person must replace it in order to avoid hazards.
- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Use caution when handling the sharp cuttings blades, when emptying the jar and when cleaning.

• Clean after use all surfaces, which have got in contact with food. Follow the notes in chapter "Cleaning and care".

Prior to use

The mixer may only be used for its intended purpose according to these operating instructions. Therefore, carefully read the operating instructions prior to commissioning. It provides instructions for using, cleaning and maintaining of the device. We do not assume any liability for any damage if the instructions are not observed. Keep the operating instructions well preserved and pass them on to the subsequent user together with the device. Also note the warranty information at the end. The device is not intended for commercial use, but rather only for the preparation of food in common household amounts. Observe the safety instructions during use.

Technical data

Rated voltage: 220 - 240V 50 - 60Hz

Power consumption: 300 W

Protection class: II

Safety instructions

• Only connect the device to a properly installed and appropriately earthed socket. The lead and plug must be dry.
• Do not pinch the connection lead or pull it over sharp edges, do not let it hang down, and protect it from heat and oil.
• Do not place the device on hot surfaces such as hotplates etc. and do not operate near a naked flame.
• Do not pull the mains plug by the lead or pull it out of the socket with wet hands.
• Do not switch the device on if the container is empty.
  Wait until the blades have come to a standstill before removing the lid.
  Pull out the mains plug before removing the lid.
• Caution! Processing hot foods presents a scalding hazard. In extreme cases the container could be damaged. Only foods with a maximum temperature of 60^ may be processed.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Do not operate the device and/or immediately remove the mains plug if:

• the device or mains cable are damaged

• you suspect a defect after it has fallen or a similar incident.

Send the device to be repaired in these cases.

• Do not immerse the drive unit in water.
• In the case of misuse, incorrect operation or improper repairs, we accept no liability for any damage caused. Warranty payments are also excluded in such cases.
• Misuse may cause potential injury.
  The device is not intended for commercial use.

Use

The device is intended for mixing and blending foods such as fruits and vegetables, as well as for preparing juices, smoothies and shakes, and for crushing ice cubes. By using the lid (5), you can use the mixing container (1) as a bottle and take your smoothie or juice with you after preparing it.

Start-up

• Clean the device before use as described in the chapter on "Cleaning and Care".
• Cut the food, for example fruit and vegetables, into small pieces and fill the mixing container (1) with these. Fill up to the 600ml mark on the mixing container (1) as a maximum. Tip: Always add a little liquid to the mixing container (1). Add ingredients in the following order: Hard ingredients first, then soft ones.
• Now screw in the blade unit (2) by twisting clockwise onto the mixing container (1).
• Place the mixing container (1) on the drive unit (4). Ensure that the markings on the blade unit (2) align with those on the drive unit (4). Then turn the mixing container (1) in a clockwise direction by applying gentle downwards pressure until it locks into place.

Caution: The mixer will only switch on if the mixing container (1) is fitted correctly. A safety shutdown prevents the device from operating without the mixing container (1).

• Now insert the mains plug into the socket.

• Press down the start button (3) to start the mixing process.
  The longer the start button (3) is pressed down, the smoother the food will be blended. To prevent the device from overheating, do not operate it continuously for longer than one minute.

• As soon as the desired consistency is achieved, release the start button (3) and remove the mains plug.
• Remove the mixing container (1) from the drive unit (4). To this end, turn the mixing container (1) in an anti-clockwise direction by applying gentle downwards pressure.
• Unscrew the blade unit (2) by twisting anti-clockwise from the mixing container (1). You can now pour out the smoothie or juice. Alternatively, you can also use the mixing container (1) as a bottle. Screw the lid (5) onto the mixing container (1) to do this.

Crushing ice cubes

Insert up to 4 ice cubes and close the mixing container (1) with the blade unit (2). Press the start button for just a few seconds (3). As soon as the ice cubes have returned to the bottom of the mixing container (1), you can press the start button (3) again for a few seconds. Repeat the process until the crushed ice has the desired consistency.

Cleaning and Care

Remove the mains plug after use. Never immerse the drive unit (4) in water, simply wipe it with a damp cloth. Do not use any abrasive cleaning agents. Take care that when cleaning the blade unit (2) you do not injure yourself on the sharp blades.

For simple cleaning, you can put the mixing container (1) and the lid (5) in a dishwasher.

	dishwasher safe	can be rinsed under running water	wipe with a damp cloth
Mixing container (1)	✓	✓	✓
Blade unit (2)	-	✓	✓
Drive unit (4)	-	-	✓
Lid (5)	✓	✓	✓

For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.
• The replacement of the plug at the mains lead has to be done according to the following instructions:

Important: The wires in this mains lead are coloured in accordance with the following code:

blue Neutral brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows

• the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect any wire to the terminal which is marked with the letter E or by the earth symbol 心 , or coloured green or green and yellow.

• If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 5 A fuse either in the plug or adapter or at the distribution board.

If in doubt - consult a qualified electrician.

• Never use the plug without closing the fuse cover.

The device complies with the European Directives 2014/35/EG, 2014/30/EG and 2009/125/EG.

The maximum quantity and operating time: 240g carrots + 360g water

Operation: 10 Seconds ON, 1 minute OFF

At the end of its service life, this product may not be disposed of in the normal household waste, but rather must be disposed of at a collection point for recycling electrical and electronic devices. The materials are recyclable according to their labelling. You make an important contribution to protecting our environment by reusing, recycling or utilising old devices in other ways. Please ask the municipal administration where the appropriate disposal facility is located.

Subject to change.
