USER MANUAL Wall 87396 UNOLD

Modern hair dryer with coiled cord in a tiled room, next to a towel rack and electrical outlet (no visible text or symbols)

Bedienungsanleitung

Modelle 87396

Instructions for use

Instructions for use Model 87396

Technical Specifications....15

Explanation of symbols....15

For your safety....15

Installing the wall holder 17

Operation....17

Cleaning and care....18

Storage....18

Guarantee Conditions....18

Waste Disposal / Environmental Protection 18

Service 13

Installer le support mural 21

Utilisation....21

GB Power cord - wall holder to electrical outlet

GB Power cord - wall holder to hair dryer

GB ON/OFF switch and blower/heating level

E-Mail [e-mail]

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN TSCHECHIEN

„Quadra-net“ Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

befree.cz s.r.o.

Škroupova 150

537 01 Chrudim

Telefon [phone]

Modern hair dryer with a coiled cord and towel rack, mounted on a tiled wall (no text or symbols visible)

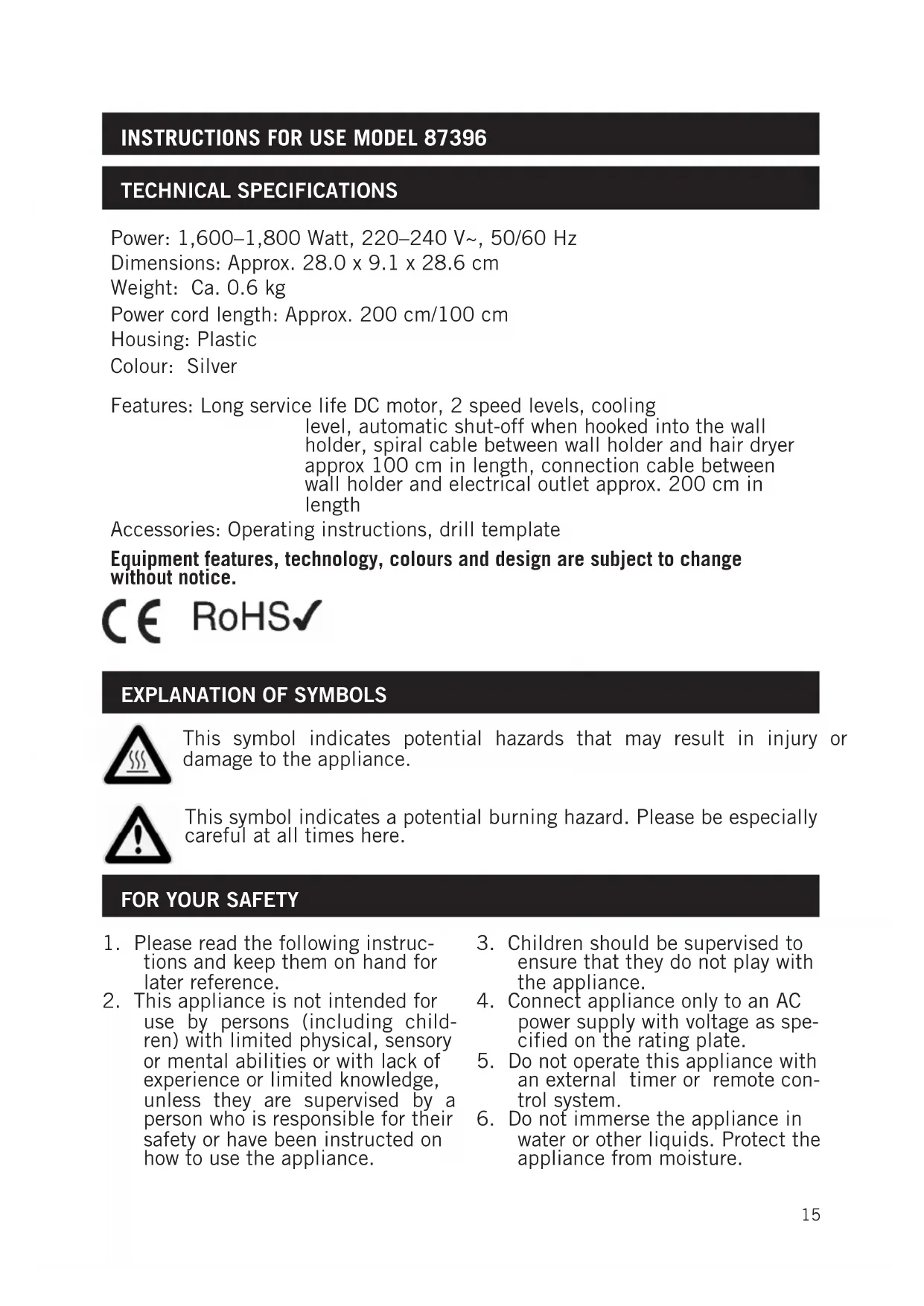

INSTRUCTIONS FOR USE MODEL 87396

TECHNICAL SPECIFICATIONS

Power: 1,600–1,800 Watt, 220–240 V\~, 50/60 Hz

Dimensions: Approx. 28.0 x 9.1 x 28.6 cm

Weight: Ca. 0.6 kg

Power cord length: Approx. 200 cm/100 cm

Housing: Plastic

Colour: Silver

Features: Long service life DC motor, 2 speed levels, cooling

level, automatic shut-off when hooked into the wall holder, spiral cable between wall holder and hair dryer approx 100 cm in length, connection cable between wall holder and electrical outlet approx. 200 cm in length

Accessories: Operating instructions, drill template

Equipment features, technology, colours and design are subject to change without notice.

RoHS√

EXPLANATION OF SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

1. Please read the following instructions and keep them on hand for later reference.

2. This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or with lack of experience or limited knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.

3. Children should be supervised to ensure that they do not play with the appliance.

4. Connect appliance only to an AC power supply with voltage as specified on the rating plate.
5. Do not operate this appliance with an external timer or remote control system.

6. Do not immerse the appliance in water or other liquids. Protect the appliance from moisture.

7. For safety reasons never use the appliance in the vicinity of a bath tub or sink filled with water, or in the vicinity of other vessels filled with water.

8. Ensure that the power cord does not come into contact with hot parts.

9. To unplug the appliance, only pull on the plug, never pull directly on the power cord.

10. Always ensure that the power cord is laid out its entire length to prevent damage due to overheating.

11. As additional protection, we recommend installation of a residual current device (RCD/FI) with a tripping characteristic of not more than 30 mA in the bathroom power circuit. Consult with your electrician.

12. The appliance is intended for household use only; it is not designed for commercial requirements.

13. Do not use the appliance outdoors.

14. During operation, leave sufficient space between the appliance and walls and other flammable objects such as curtains.

15. Do not operate the appliance in the vicinity of heat sources.

16. Ensure that the air intake grille in the appliance is unobstructed at all times. Clean the air inlet grille at regular intervals.

17. Never cover the air inlet grille or the air outlet opening with your hand or other objects.

18. If you have curlers, hairpins or similar items in your hear, ensure that they do not project more than 10 mm, to avoid contact with energised parts of the hair dryer.

19. For safety reasons, do not use the appliance to dry artificial hair.

20. To avoid burns, never aim the hot air flow directly at your face.

21. Do not use any hair sprays while the appliance is in operation.

22. Switch off the appliance before you set it down.

23. The appliance is equipped with an overheating protection circuit. If operated for too long, the appli-

ance switches off automatically to prevent damage to the appliance. After an appropriate cool-down time, you can place the appliance in service again.

1. After use or prior to cleaning the appliance, always switch off and unplug the appliance from the electrical outlet and allow it to cool.

2. As long as the plug is in the electrical outlet, even if the appliance is switched off, the appliance poses a hazard in the vicinity of water.

3. Do not insert any objects into the appliance, due to the ensuing damage, there is danger of electric shock.

4. Only use the appliance for the purposes described in these instructions.

5. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.

6. Never open the housing of the appliance. This can result in electric shock.

7. Check the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and/or repair to our customer service organisation (for address, see warranty terms). Unauthorised repairs can result in serious risks to the user and will void the warranty.

8. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or by the manufacturer's customer service organisation, or by a person with similar qualifications, to prevent hazards.

Caution! The appliance is very hot during and after operation!

Never open the housing of the appliance. There is danger of electric shock.

For safety reasons never use the appliance close to or in a bathtub or washbasin or any other container filled with water. If the hair dryer is used in a bathroom, unplug it from the wall socket after

use, since nearby water presents a danger even when the hair dryer is switched off.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

INSTALLING THE WALL HOLDER

1. Caution: If you want to install the wall holder in damp rooms, such as bathrooms, ensure that there is an adequate distance to the bathtub, sink and other vessels filled with water. The distance in this regard must be at least 1.5 meters to ensure safe operation.
2. First check whether an electrical outlet is within reach at the desired installation location.
3. Attach the wall holder with three screws. If necessary use dowel

plugs to securely attach the wall holder. Please use the attached drill template for easy installation.

1. Note: at the back of the wall holder there is a small tab. If you mount it first with a screw on the wall, you can simply mount the wall holder and then secure it with the other two screws on the right and the left hole.

OPERATION

1. Ensure that the on/off switch is on "0".
2. Plug the power plug of the wall holder into an electrical outlet (220–240 V\~, 50/60 Hz).
3. Take the hair dryer out of the wall holder.
4. Switch the appliance on via the On/Off switch.

5. Select the desired speed level. The following settings are available:
   0 = 0ff
   1 = Moderate air flow, for drying and styling hair
   2 = Powerful air flow and heat flow, for fast drying of hair

6. With the cooling button/cooling stage you can give your hair style the finishing touches and add body to your hair. You must keep

the button depressed during the desired period of operation, to get obtain a cool air flow.

1. After drying your hair, switch off the appliance via the On/Off switch and hook it back into the wall holder.

2. The appliance is equipped with a safety function: Should you forget to switch off the appliance, it will be switched off automatically when it is hooked into the wall holder. Nevertheless, the device should be switched off using the on/off switch!

3. Unplug the power plug from the electrical outlet.

Caution! The appliance is very hot during and after operation!

CLEANING AND CARE

1. Unplug the plug from the electrical outlet
2. Allow the appliance to cool.
3. Never immerse the appliance in water or other liquids in order to clean it.

4. If one of the two power cords is twisted, please untwist it immediately, otherwise damage can occur inside the power cord.

5. Take off the air inlet grille. To do this, turn it counter-clockwise and take off the grille. Remove dust and lint from the grille, if necessary you can use a paintbrush or a small brush to do this. Then, reinsert the air inlet grille and turn it clockwise until it locks in place.

6. Wipe off the appliance with a dry/damp cloth.

STORAGE

1. Unplug the plug from the electrical outlet.
2. Allow the appliance to cool.

3. To prevent damage to the power cord do not wrap the power cord around the appliance.

4. Always store the hair dryer in the wall holder, to prevent damage to the appliance.

5. Protect the appliance from dust.

GUARANTEE CONDITIONS

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

NOTICE D'UTILISATION MODÈLE 87396

SPÉCIFICATION TECHNIQUE

Puissance : 1.600–1.800 Watt, 220–240 V\~, 50/60 Hz

CONDITIONS DE GARANTIE

Misure: Circa 28,0 x 9,1 x 28,6 cm

Peso: Circa 0,6 kg

$$ 0 = 0 \text { off } $$
