USER MANUAL BV4635 UFESA

Congratulations on your choice of our appliance, and welcome among the users of ufesa products. In order to achieve best possible results we recommend using exclusively original ufesa accessories. They have been specially designed for this product. We kindly ask you to read carefully the operation manual. We call your special attention to safety precautions. Keep this operation manual for future reference.

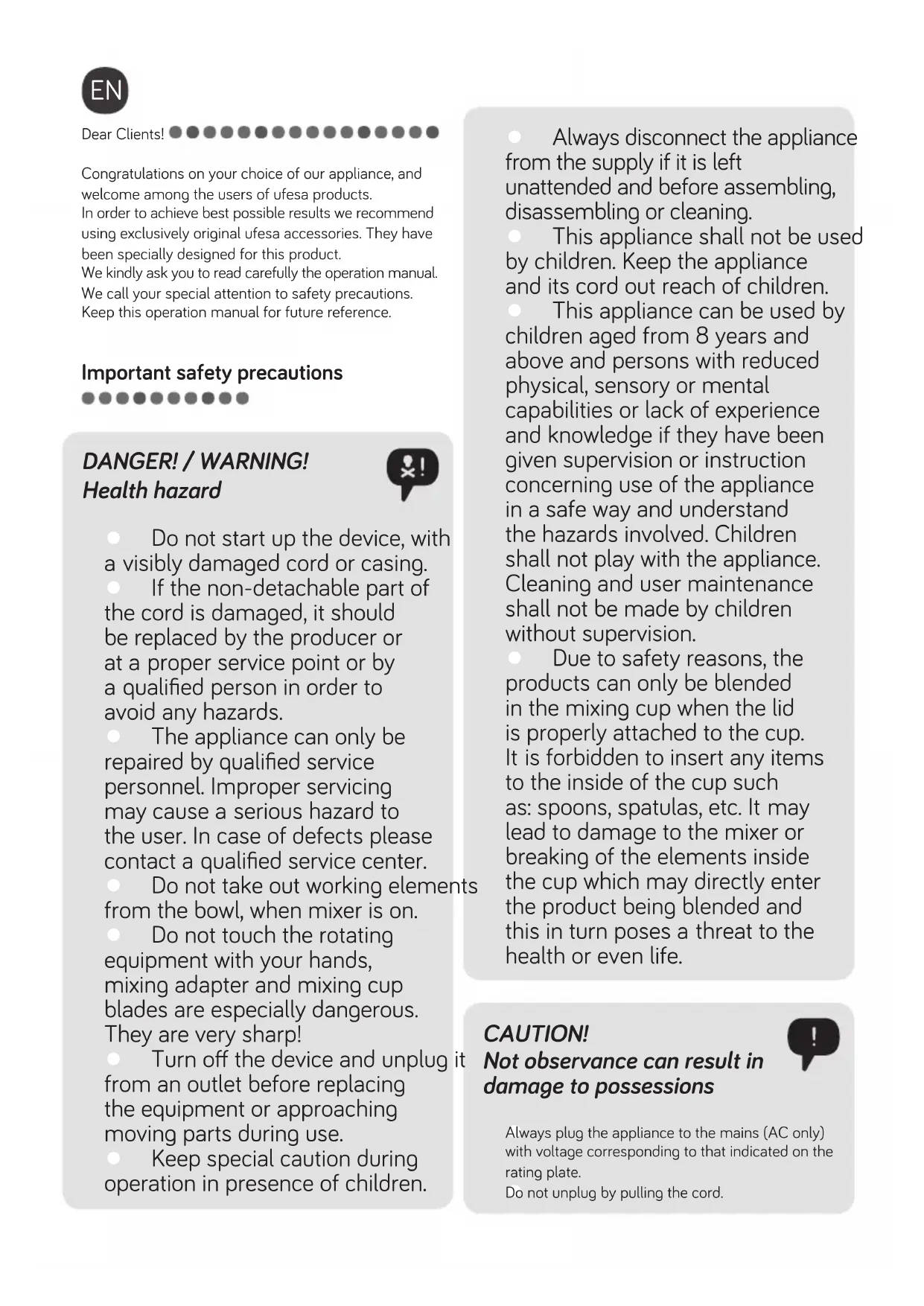

Important safety precautions

DANGER! / WARNING! Health hazard

• Do not start up the device, with a visibly damaged cord or casing.
• If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Do not take out working elements from the bowl, when mixer is on.

Do not touch the rotating equipment with your hands, mixing adapter and mixing cup blades are especially dangerous. They are very sharp!

• Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

• Keep special caution during operation in presence of children.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

This appliance shall not be used by children. Keep the appliance and its cord out reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Due to safety reasons, the products can only be blended in the mixing cup when the lid is properly attached to the cup. It is forbidden to insert any items to the inside of the cup such as: spoons, spatulas, etc. It may lead to damage to the mixer or breaking of the elements inside the cup which may directly enter the product being blended and this in turn poses a threat to the health or even life.

CAUTION!

Not observance can result in damage to possessions

Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.

Do not unplug by pulling the cord.

Do not expose the mixer and its equipment to the temperature above 60^ . You can damage your mixer.

Do not immerse the mixer motor in water, nor clean it under running water.

Do not clean the equipment when assembled on the motor.

Do not clean the casing with aggressive detergents, such as emulsion, milk, paste, etc. They can remove the graphic symbols such as: scales, labels, caution signs, etc.

Do not use mixing adapter without immersing it in products, in case of liquids, their level should not be higher then the half of adapter height.

Be careful not to flood the inner of mixing adapter casing with water - after assembling on the motor part, the motor can get flooded.

Do not use the mixer with empty mixing cup. Be careful not to flood the bottom space of mixing cup, containing clutch - after assembling on the motor part, the motor can get flooded.

Do not put simultaneously the mixer and whisk with toothed bar into the motor socket. In the moment of start-up the mixer shall get damaged.

Do not use the mixing adapter nor the mixing cup longer than 3 min., whereas the mixers and whisks not longer than 10 min.

SUGGESTION Information on the product and suggestions for its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

When finished using the appliance, unplug it and wind the cord around the motor unit.

Do not wash metal parts in a dishwasher.

Aggressive cleaning agents used in such machines cause that a/m parts get darker. Clean them manually with traditional washing up liquids.

Put the mixer and whisk with toothed bar into the motor socket marked with a star.

The manufacturer cannot accept any liability for damage to the oven or personal injury resulting from improper usage.

Technical data

Technical parameters are quoted at product nameplate.

Permitted motor operation time:

-with mixers,whisks 10 min.
-with mixing adapter or mixing cup 3 min.

Interval time before next operation (min.) 20 min.

Noise caused by the device (L_WA)

-with mixers,whisks,mixingadapter80dB/A
-with mixing cup 84 dB/A

The mixers are produced in II insulation class, they don't

need grounding.

Ufesa mixers meet current norms requirements.

The devices meet the requirements of the directives:

-Low Voltage Device (LVD) - 2006/95/EC.
Electromagnetic compatibility (EMC) - 2004/108/EC.

The product is marked with CE on the name plate.

Appliance elements

1 Mixer motor
2 Pusher button
3 Switch lever
4 Turbo button
5 Whisks or mixers sockets
6 Mixing adapter hole
7 Handle insert
Mixers: left/right with toothed bar
9 Whisks: left/right with toothed bar
10 Liquidising dics
11 Mixing attachment
12 Mixing cup
13 Doser
14 Lid
15 Knife cup

Preparing for operation

Before first use, wash all parts of the appliance that come in contact with food in warm soapy water.

Device description

• The mixer has 5 speed positions. The lever is used to set up the particular rotation speed according to the numbers: 0, 1, 2, 3, 4, and 5 on pusher button, which helps to remove (push out) the mixers or whisks from the mixer motor part.
• Additionally, the drive has "turbo" button which helps to get the maximum rotation speed immediately, regardless the speed set with the lever. Such buttons are placed both on the right and left sides of the casing intended for the convenience of both left and right-handed users. The "turbo" button is automatically blocked in "0" position.
• There are 2 sockets (holes), for whisks or mixers assembling, placed on the bottom of the motor part.
• The insert handle, placed on the top of the motor part, is made of the material increasing the comfort of holding the mixer motor part.
  There is a hole for mixing adapter or mixing cup assembling at the back of motor casing. The hole is covered with a mobile cover.
• There is a clamp and a fastener in the lower part of motor casing, for power cord winding around the motor casing.

Mixer start-up and position setting (rotation speed)

1 Place the ON/OFF switch in the _0^ position - the leftmost position. Install the selected tool.
Plug in the appliance.
3 Switch on the appliance by sliding the switch to the right.
4 If you want to increase the rotation shift the lever in position 5^ direction, choose the desired rotation speed.
In order to increase the rotation immediately, regardless set speed, press and hold one of "turbo" buttons (on the right or left side of the casing).
6 When you want to return to the previously selected speed release "turbo" button.

Preparing for operations

The whisks are intended to whipping eggs white foam, cream, rubbing yolks with sugar, cream and pancakes or omelettes dough preparation.
- The mixers are intended to work the rubbed dough, yeast dough, cheeses cakes, imbirbread cakes, etc.

• The whisks and mixers shall be assembled in sockets on the bottom of the robot.
  Press until you feel the refusal - when the clamps get fastened.

When assembled improperly, the parts fall apart during operation.

2 Insert the mixer or whisk with toothed bar into the socket marked with a star.

The reverse assembling of the mixers can cause lifting up the dough (taking the dough out of bowl).

The level of products inside the bowl should not exceed the hight of mixers or whisks working part (L).

Liquidizing disc is used for liquidizing boiled fruit and vegetables such as: carrots, potatoes, tomatoes, apples through the sieve. It partly replaces the function of the mixing adapter.

Insert the liquidizing disc on the whisk with toothed bar from the bottom side.
2 Insert the whisk into the socket marked with a star.

You can use the mixing adapter for:

• mixing liquids,
• crumbling boiled vegetables and raw, soft fruit,
• preparing different mayonnaise and pastes,
• preparing soups for infants.
  crushing ice (metal adapter only).

You can assemble the adapter after moving the cover.

Gently press the bolt and slide towards the direction shown in the figure.
2 Insert the threaded part into the motor casing hole and screw it turning right until you feel the refusal.

Inadequate screwing of the mixing adapter can result in clutch damage or the adapter damage.

Put the adapter into the processed product and switch the mixer on.

Hold the mixer in your hand all the time during operation.

Mixing cup is intended for infant soups preparation, milk shakes or pancake dough.

It has the label "500 ml max" on both sides, which indicates the maximum level of product to fill the cup and graphic scale to determine the volume 200 ml to 500 ml (according to the symbols in the drawing beside).

After moving the cover (like during assembling the adapter) assemble the cup the following way: Insert the mixing cup on the motor part so that the 3 buckles visible at the bottom of the cup got into the nuts of the motor casing.
2 Holding the motor casing handle turn the cup clockwise direction until you feel the refusal.

You shall obtain the proper connection, when the 3 buckles get under the motor casing, and the fastener on the cup rib move on the other side of the spherical buckle on the motor casing.

3 Fill the cup with products and put the cover with the doser on - you can add next products to the cup during operation.

After operation

Switch the mixer off and unplug it.
Depending on assembled equipment:
2 Push the whisks or mixers out with a pushing button.
Disassemble the liquidizing disc from the whisk.

• Disassemble the mixing adapter or mixing cup in reverse way to assembling it.
• Wind the power cord on the motor part and put the last winding under the insert.

Cleaning and maintenance

Before cleaning and maintenance, make sure that the plug is removed from the socket outlet.

• Clean the whisks and mixers with warm water with cleaning agents.

• Clean the mixing adapter and mixing cup by mixing clean, warm water (after plugging the mixer to mains supply).

• Do not wash the mixing adapter or the mixing cup in dishwasher.

• Dry the mixer equipment after cleaning and store in dry place.
• Clean the motor base using a soft cloth and then wipe it dry.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/EC. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it

must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

DISH EQUIPMENT			THE AMOUNT OF PROCESSED PRODUCT	RECOMMENDED SPEED OPERATION TIME
Soup for infants mixing adapter 1 litre | position 10 s, next V position 40 - 60 s
Vegetable puree for infants		mixing adapter	0,5 litre	I position 10 s, next V position
		liquidizing disc | position (with a sieve)		1 - 1,5 min.
Cream soup		mixing adapter 1 litre | position 10 s, next V position 30 - 45 s
		mixing cup 0,5 litre | IV position or V position 2 min.
Fruit latte		mixing adapter 0,5 litre | V position 30 - 60 s
		mixing cup 0,15 kg of fruit and 0,3 litre of kefir |V position or V position	1 - 1,5 min.
Greens: parsley, dill ...		mixing adapter	1 bundle	II position
Pancake dough		whisks	1 litre	I position 15 s, next V position
		mixing cup 0,5 litre	III, IV or V position	1 min.
Egg white foam		whisks White of 5 eggs V position 2 - 3 min.
Sponge cake dough		whisks	Made of 6 eggs	IV position
Butter cream		whisks	0,25 kg of vegetable butter	III or IV position
Whipped cream		whisks	1 litre	II position 15 s, next IV position
Potatoes puree		whisks	1 kg	I position 15 s, next V position
Potatoes and cheese dumplings stuffing		whisks	1 kg of potatoes and 0,5 kg of cottage cheese	position 15 s, next IV position
Cottage cheese with cream		whisks	0,5 kg	III position
Gingerbread dough	watery	whisks	0,5 kg of flour	I position 30 s, next III position
	dense	mixers		4 - 5 min.
Yeast dough		mixers	0,5 kg of flour	I position 30 s next V position
