USER MANUAL AS2200 UFESA

DESCRIPTION OF THE APPLIANCE

1. Floor brush
2. Telescopic tube
3. Suction hose
4. Hose handgrip
5. Suction regulating flap
6. Suction hole
7. On/Off pedal
8. Power regulator
9. Automatic cable rewind pedal
10. Bag full indicator
11. Carrying handle
12. Air outlet grill
13. Air outlet filter
14. Motor protection filter
15. Motor protection filter retainer
16. Dust bag
17. Dust bag holder
18. Upholstery nozzle
19. Crevice nozzle
20. Furniture nozzle

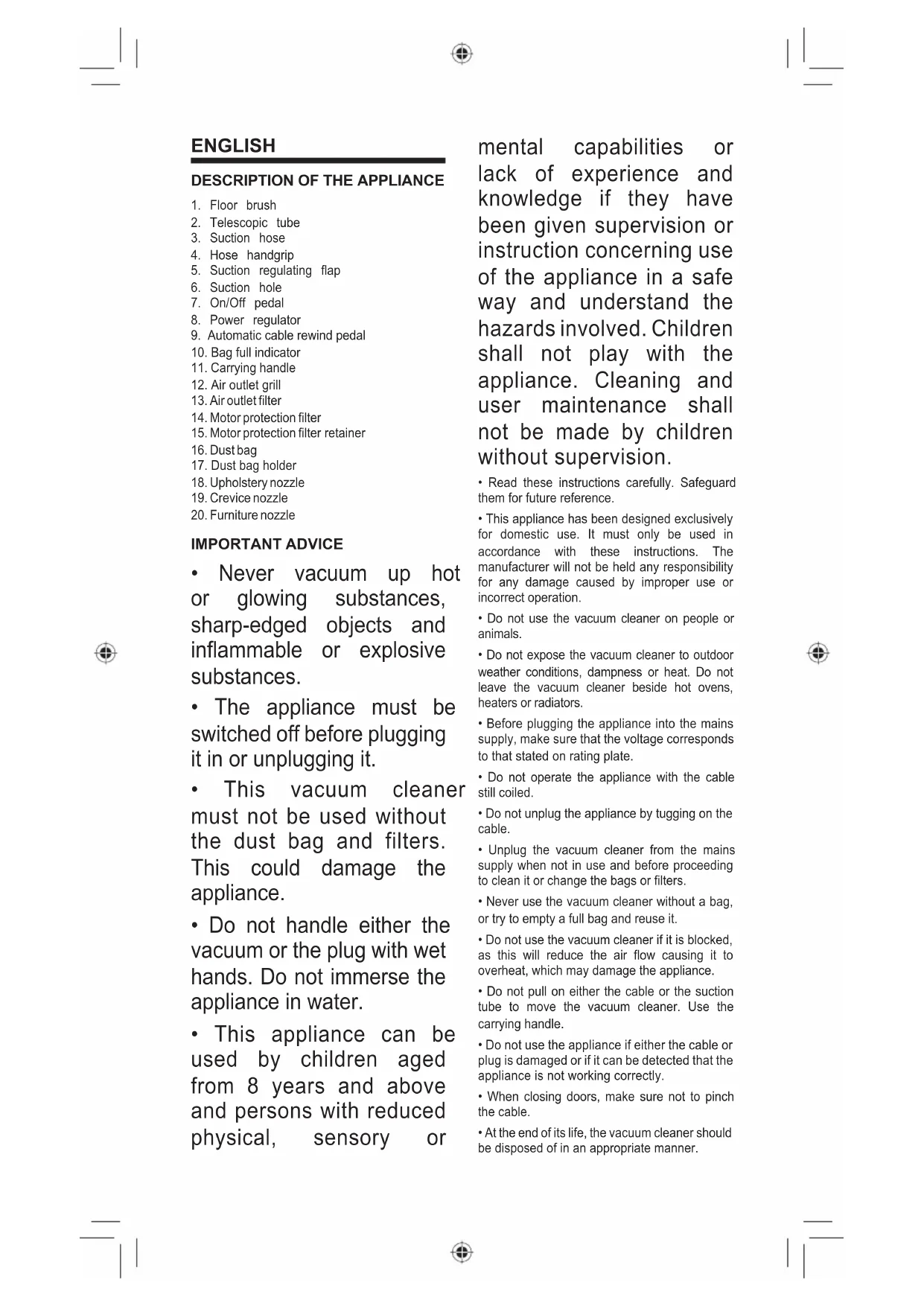

IMPORTANT ADVICE

• Never vacuum up hot or glowing substances, sharp-edged objects and inflammable or explosive substances.
• The appliance must be switched off before plugging it in or unplugging it.
• This vacuum cleaner must not be used without the dust bag and filters. This could damage the appliance.
• Do not handle either the vacuum or the plug with wet hands. Do not immerse the appliance in water.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Read these instructions carefully. Safeguard them for future reference.
• This appliance has been designed exclusively for domestic use. It must only be used in accordance with these instructions. The manufacturer will not be held any responsibility for any damage caused by improper use or incorrect operation.
• Do not use the vacuum cleaner on people or animals.
• Do not expose the vacuum cleaner to outdoor weather conditions, dampness or heat. Do not leave the vacuum cleaner beside hot ovens, heaters or radiators.
• Before plugging the appliance into the mains supply, make sure that the voltage corresponds to that stated on rating plate.
• Do not operate the appliance with the cable still coiled.
• Do not unplug the appliance by tugging on the cable.
• Unplug the vacuum cleaner from the mains supply when not in use and before proceeding to clean it or change the bags or filters.
• Never use the vacuum cleaner without a bag, or try to empty a full bag and reuse it.
• Do not use the vacuum cleaner if it is blocked, as this will reduce the air flow causing it to overheat, which may damage the appliance.
• Do not pull on either the cable or the suction tube to move the vacuum cleaner. Use the carrying handle.
• Do not use the appliance if either the cable or plug is damaged or if it can be detected that the appliance is not working correctly.
• When closing doors, make sure not to pinch the cable.

• At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• ATTENTION: Do not use the vacuum cleaner to suck up building waste (cement, brick dust, rubble, etc.). These types of particles quickly clog up the pores in the dust bag causing the appliance to overheat.

SWITCHING ON AND OPERATION

• Insert the hose (3) into the suction hole (6) so that it clicks into position.
  Pressing down the release button will help you remove the hose (3). (Fig. 1)
• Attach the telescopic tube (2) to the handgrip (4), and adjust the length to suit the user. (Fig. 2)
• Fit the floor brush (1), accessory number 18, 19, 20 to the vacuum tube (Fig. 3). The accessory parts 18, 19, 20 can also be affixed to the handgrip (4) (Fig. 4).
• Holding the power cord by the plug, pull out the required length and plug it into the mains socket. (Fig. 5)
• Press the On/Off pedal (7), (Fig. 6). Regulate the power using the power regulator (8), and push it from " - to + to increase power while pushing it from " + to " - to reduce power (Fig. 7). The intensity can be regulated from the handgrip. Opening the flap (5) reduces suction, whereas closing it increases suction. (Fig. 8)
• You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short while. Slide the catch on the brush into the groove at the rear of the appliance (Fig. 9).
• The wheels and 360^ swivel joint and the carrying handle (11) make this vacuum cleaner extremely mobile.

WHEN FINISHED

When you have finished using the appliance, set the power regulator (8) to the minimum position and press the On/Off pedal. Press the automatic cable rewind pedal (9) to wind the cable back (Fig. 10). Clip the tube onto the vacuum cleaner in a vertical position (Fig. 11).

REPLACING AND MAINTAINING

Bag full indicator (10)

When suction power decreases considerably and the bag full indicator lights up. This means that the dust bag (16) is full or that the hose, tube or filters are blocked. If this occurs, follow the instructions for changing the dust bag, cleaning the filters and unclog hose or tube.

Changing the dust bag (16)

• Open the cover following the direction of the guide-arrow. (Fig. 12)
• Take the dust bag out of the dust bag holder (17). (Fig. 13)
• Insert the bag into the bag holder, following the direction of the guide-arrow. Make sure that it slots fully down into its housing and that it fits correctly. Close the cover.

Important:

• The cover can not be closed if there is no bag fitted. Do not force it shut, check that the bag is fitted correctly.
• If the suction is irregular and the bag full indicator stays lit, check that there is nothing blocking the hose, tube or air inlet.

Cleaning and replacing the air outlet filter (13) and motor protection filter (14)

It is advisable to clean the air outlet filter (13) and motor protection filter (14) after several uses and to replace them after washing for five times.

With no bag in the vacuum cleaner, take the motor protection filter out of the retainer (15) and put a new one in. (Fig. 14)

Open the cover by pressing down the release button, take out the air outlet filter. (Fig. 15)

Never use the vacuum cleaner without the filters fitted.

ACCESSORY

Upholstery nozzle (18)

This accessory has been designed to clean all types of upholstery.

Crevice nozzle (19)

Use this accessory to vacuum crevices and deep grooves and nooks, etc.

Furniture nozzle (20)

This accessory is ideal for vacuum cleaning furniture and other delicate surface, prevent surfaces from being damaged.

ADVICE ON DISPOSAL:

Our goods come in optimized packaging.

This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/CE. The crossed wheelie bin symbol shown on the appliance indicates that when it

comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalized. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system. Your local town council can provide you with information about how to dispose of obsolete appliance.
