WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

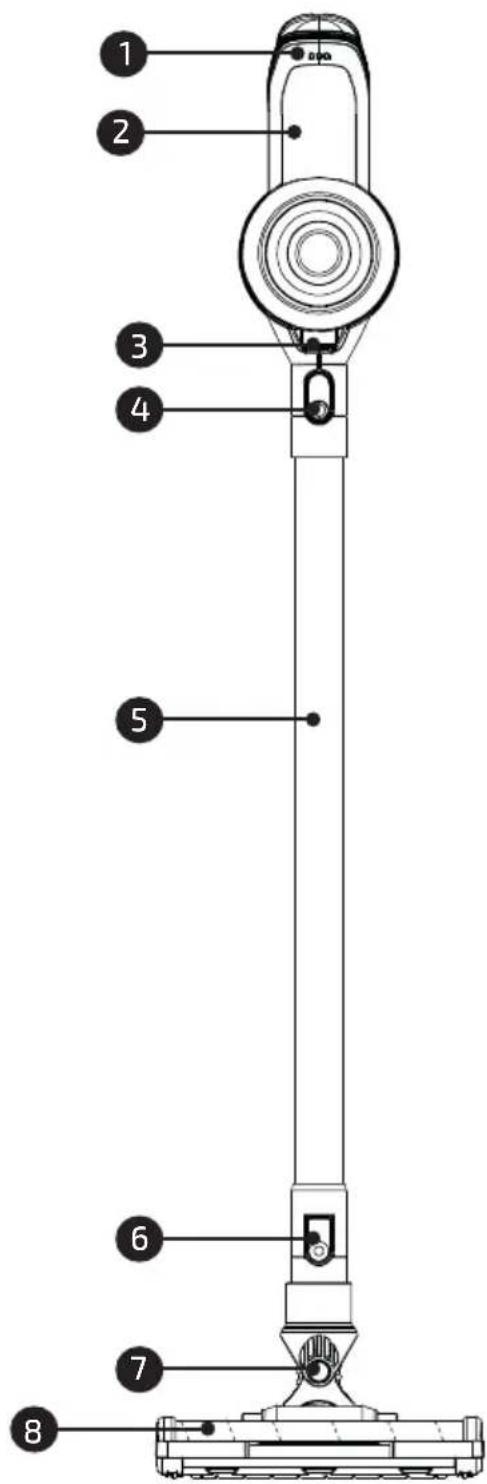

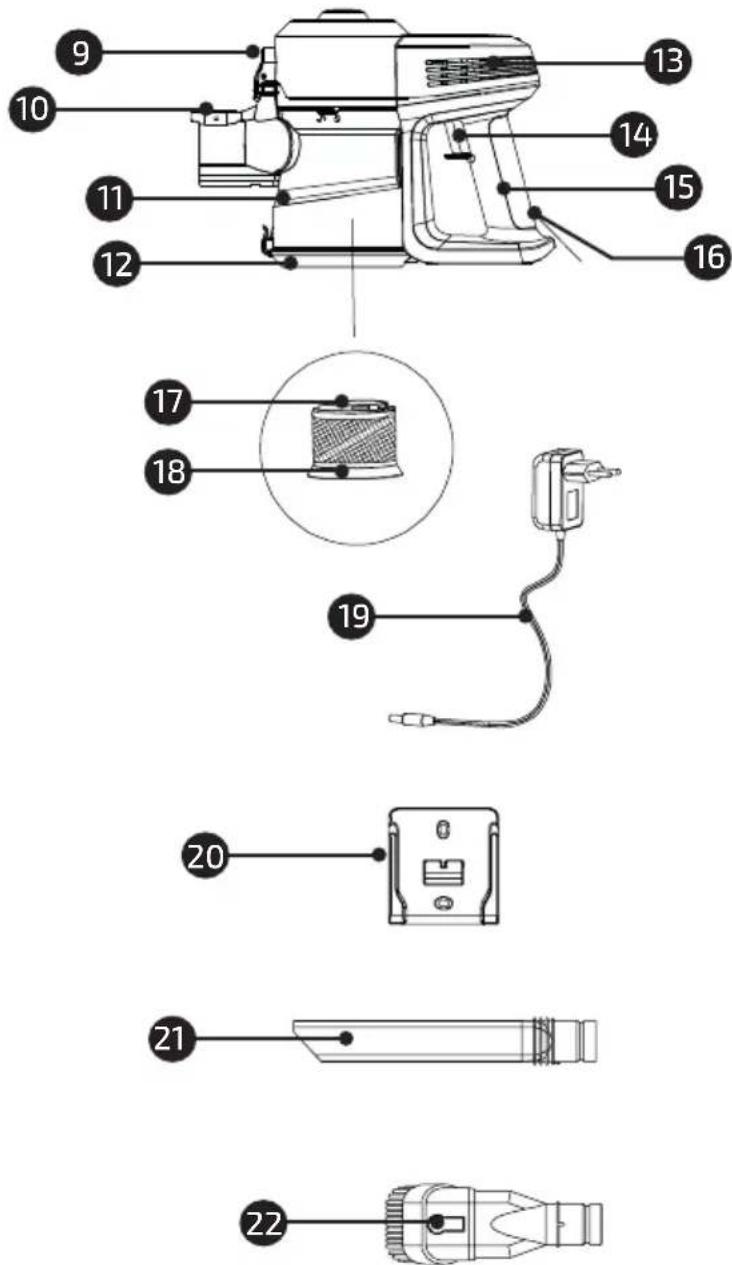

DESCRIPTION

1. Battery indicator light
2. Main unit
3. Suction seat
4. Extension tube release button
5. Extension tube
6. Floor head release button
7. Motorized floor head
8. Brush roller
9. Dust container release button
10. Dust container lock&unlock remark
11. Dust container
12. Dust empty release button
13. Air outlet
14. Power switch
15. Handle
16. Charge hole
17. Stainless net
18. Hepa filter
19. Charger
20. Wall mount
21. Long crevice nozzle
22. 2 in 1 mini corner and furniture brush

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. The adaptor cable cannot be replaced. If the cable is damaged, the adaptor will be discarded. This device can only be used with the adapter model supplied with the device and powered with the safety voltage indicated in the rating plate of the device. Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

This device can only be used with the adapter model supplied with the device and powered at very safety voltage indicated on the appliance specifications plate. Follow the DEVICE CHARGE instructions in order to charge it. Follow the device BA-TTERY REMOVAL instructions for removal of the batteries from the device.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

This symbol means that the appliance is intended to be supplied from a detachable supply unit. The appliance contains batteries that are only replaceable by skilled persons.

Due to the plastic housing of the vacuum cleaner, keep the appliance away from all the heat sources (radiators, stoves, etc). Do not block the vacuum cleaner inlet and outlet openings! Turn off the vacuum cleaner before replacing equipment.

BATTERY REMOVAL

The appliance must be disconnected from the supply mains when removing the battery.

Make sure the battery broom is fully discharged.

Press the battery removal button and remove the battery from the product.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label. The mains connection cable must not be tangled or wrapped around the product during use. Do not pull on the connection cord in order to unplug it. Do not use, connect or disconnect the device to the mains with your hands or feet wet. Proceed according to the conservation and cleaning section of this manual for cleaning. Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorized Technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device. Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorized technical support service center may carry out repairs on this product. This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty. Do not use the appliance to vacuum liquids (water, etc), sharp objects (pins, pins, nails, glass, etc), incandescent objects (matches, cigarettes). Never use the turbobrush to: Polish floors, suck (Liquids, wet or damp dust, hot ash, burning objects, such as cigarettes, matches, sharp and hard items, such us: razors, pins, thumbtacks, pieces of glass, etc), flour, cement, plaster, printer or photocopier toner, etc.

B&B Trends, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

ACCESSORIES

Extension Tube: Use for extended reach when using as an upright unit or for those hard to reach places.

Motorized Floor Head: Use this for hard floors and carpets. Easily picking up dirt dust and small debris.

2 in 1 dusting brush: Use this for vacuuming fabric furnishings such as sofas armchairs and curtains.

Long crevice nozzle: Features a narrow nozzle that makes quick work of vacuuming tight spaces such as corners and hard to reach areas.

ASSEMBLY INSTRUCTIONS

NOTE: Before assembling the appliance fix the included mount to the wall. Ensure it is placed high enough for the vacuum to be securely wall mounted.

Technical line drawing of a vacuum cleaner with front, side, and top views (no text or symbols)

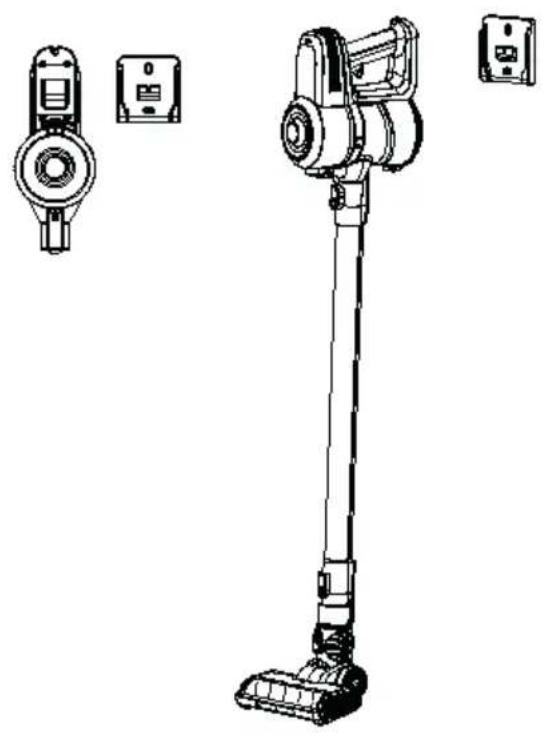

Assembling the main body

1. Install the dust container. Firstly, align the dust container unlock remark with the triangular slit.
2. Press the dust container release button and without releasing it, turn the tank clockwise until the triangular slit coincides with the dust container lock remark.

Line drawing of a kitchen mixer with a side view showing the blade and handle (no text or symbols)

1. Repeat the operation in the opposite direction to remove the dust container and check the filter.

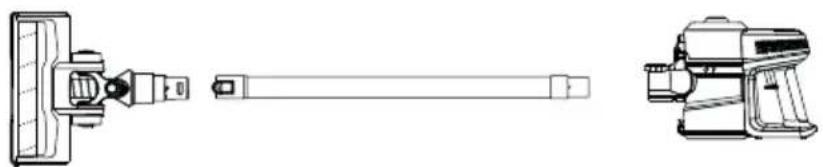

Assembling the extension tube, motorized floor brush and accessories

1. Insert the connector of the motorized floor head into the base of the extension tube by clicking it into place. Attach the floor head and extension tube to the main body by slotting it into place via the air duct connector.

Technical line drawing of a mechanical assembly with three views: front view, side view, and top view (no text or symbols)

1. Attach the long crevice nozzle or the 2 in 1 dusting brush to the base of the extension tube via the connector. It will "click" into place.

Technical line drawings of a mechanical device with three views (top, front, side), no text or symbols present.

1. If using the motorized floor head or accessories without the extension tube, simply attach it to the main body via the air duct connector. It will "click" when secure.

Pure mechanical component diagram without any text, numbers, or symbols

BEFORE FIRST USE

1. Put the unit to the wall mount.

2. Ensure that the air vent and suction pipe are free from blockages and dust. Should they suddenly clogged, switch off the appliance immediately and clear the blockage before attempting to use the vacuum again.

3. Remove any sharp or large objects from the path before using this vacuum as these may damage the appliance irreparably.

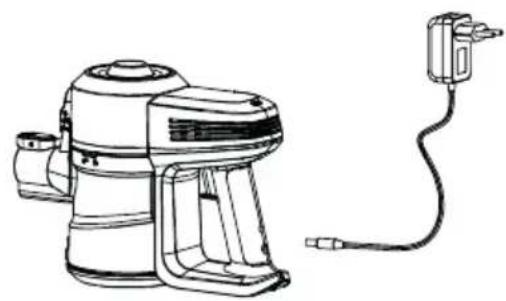

Vacuum cleaner charging:

When the batteries unit power off, please recharge it. Please use the designated adaptor to charge the vacuum cleaner. Plug the adaptor to start charging, the three indicator lights will flash when charging and when fully charged, the three lights will be stable. The lights will turn off successively as the device is used.

Line drawing of a portable electric mixer with attached power cord (no text or symbols)

Indicator light definition

	TYPE OF LIGHT DEFINITION
During charging	The indicator light is flashing The appliance is charging
	There's only one light shine fast	The battery unit is low voltage and the battery package must be changed
	There's two lights fast flashing	The charging circuit is damaged and the battery package must be changed
	There's two lights slow flashing Low ambient temperature
During use	The lights turn off successively The appliance is discharging
	There's only one light slow flashing	The battery is almost over and the appliance must be charged
	There's two lights fast flashing and unit cut off	The battery package temperature is over the limitation, the program cut off the circuit to protect the unit
	There's three lights fast flashing and unit cut off	Over load or short circuit

INSTRUCTIONS OF USE

CAUTION: The vacuum must be fully charged before using for the first time.

1. Remove the vacuum cleaner from the wall mount. If using as a handheld unit, disassemble the tube and attach the desired accessory. 2. Use the power switch to turn on the appliance. Default power is low power.
2. Push the switch twice to increase to max power, ideal when you are cleaning carpets with a high pile.
3. Push the switch three times and the power is off.

MAINTAINING & CLEANING

All the maintenance must be held after the unit is shut off.

Clean the dust cup regularly to avoid any problems.

It is recommended to dry storage and not to put heavy things on the unit.

Cleaning the dust container and filters

1. Follow the instructions regarding the installation/removing of the dust container that are described on "assembling the main body" on this instruction manual.
2. Press the dust release button to open the bottom cover and expel trash. Wipe to clean the dust container, do not immerse in water.

Technical line drawings of a blender and a water dispenser device (no text or symbols)

1. Turn the tank counterclockwise and take out the high-efficient filter and sponge filter.

Technical diagram of a mechanical device with a circular component and a magnified inset (no text or symbols)

1. Rinse the filters thoroughly under the running cold water. Do not use soap or other cleaning solvents. COMPLETELY air dry the filters before reassembling. Do not use hair dryer to dry the filter. This may cause the filter to warp.

Illustration of four different household appliances: a cylindrical jar, a pipe valve, a water dispenser with steam, and a sun (no text or symbols)

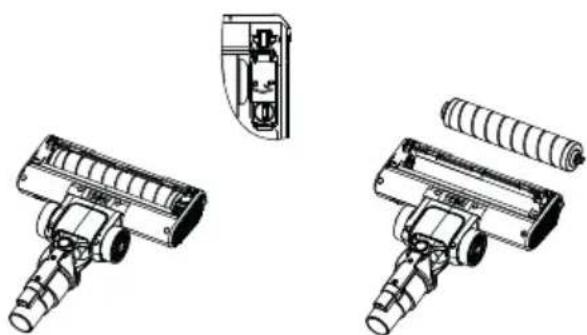

Cleaning the roller brush:

After a long period of using, the bristle may be jammed by hair or something similar, it is required to clean it on time in order to make the appliance to work efficiently.

1. Remove the motorized power brush from the main unit before cleaning the roller brush.

2. Turn the lock to unlock mark. Open the roller cover, take out the roller from the brush.

Technical line drawings of three different types of mechanical components (no text or symbols)

1. Carefully clean and remove the hairs and debris from the brush roller. Wipe to clean only, do not use any soap or harsh cleaning solvents.

2. After cleaning, reassemble the roller into the brush and turn the lock to the lock mark

3. If roller brush becomes damp, allow to dry naturally before replacing.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTION
Appliance is not power on	This can occur if the appliance has been used or stored for an extended period of time	Connect the vacuum to the charger and allow for a full charging cycle to complete
Vacuum is stopped suddenly	This will occur if the safety cut-out device has been activated. This device is designed to prevent your appliance from overheating	Ensure the vacuum is turned off, disconnect all accessories and leave to cool down for at least half an hour before attempting to operate again. Try to identify the source of the overheat by checking for blockages in the extension tube motor-drive floor head and accessories. Empty the dust container and clean or replace the filter
Suction of the vacuum is reduced	This is probably caused by dust blockages	Turn the vacuum off. Disconnect the floor head, extension tube and any accessories. Check for and remove any blockages from the dustbin filter, air duct, extension tube floor head and accessories
Motorized power brush is not rotating	This tends to occur when there are too many fibers wrapped around the brush roll restricting movement	Check the maintenance section of this manual for instructions on how to appropriately clean the brush roll
Charging indicator light does not flash up	There may be no power reaching the vacuum from the charger	Ensure that power is being supplied to the mains socket and that the charger is turned on. Ensure the charging cable is securely connected to the vacuum. Ensure the mains socket is switched off before checking the charging cable itself. Do not attempt to use if the cable is split, frayed or otherwise damaged. Instead, seek a replacement charger
Application time of the vacuum is less than it used to be	An insufficient charging cycle will result in reduced application time.	Ensure the battery has completed a full charging cycle. There may be reduced energy discharge in the battery. This is normal and gradually occurs in all batteries over time

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home

The product may contain batteries. Remove them before disposing of the product and dispose in special containers approved for this purpose.
