USER MANUAL Kira 800 AIRIS

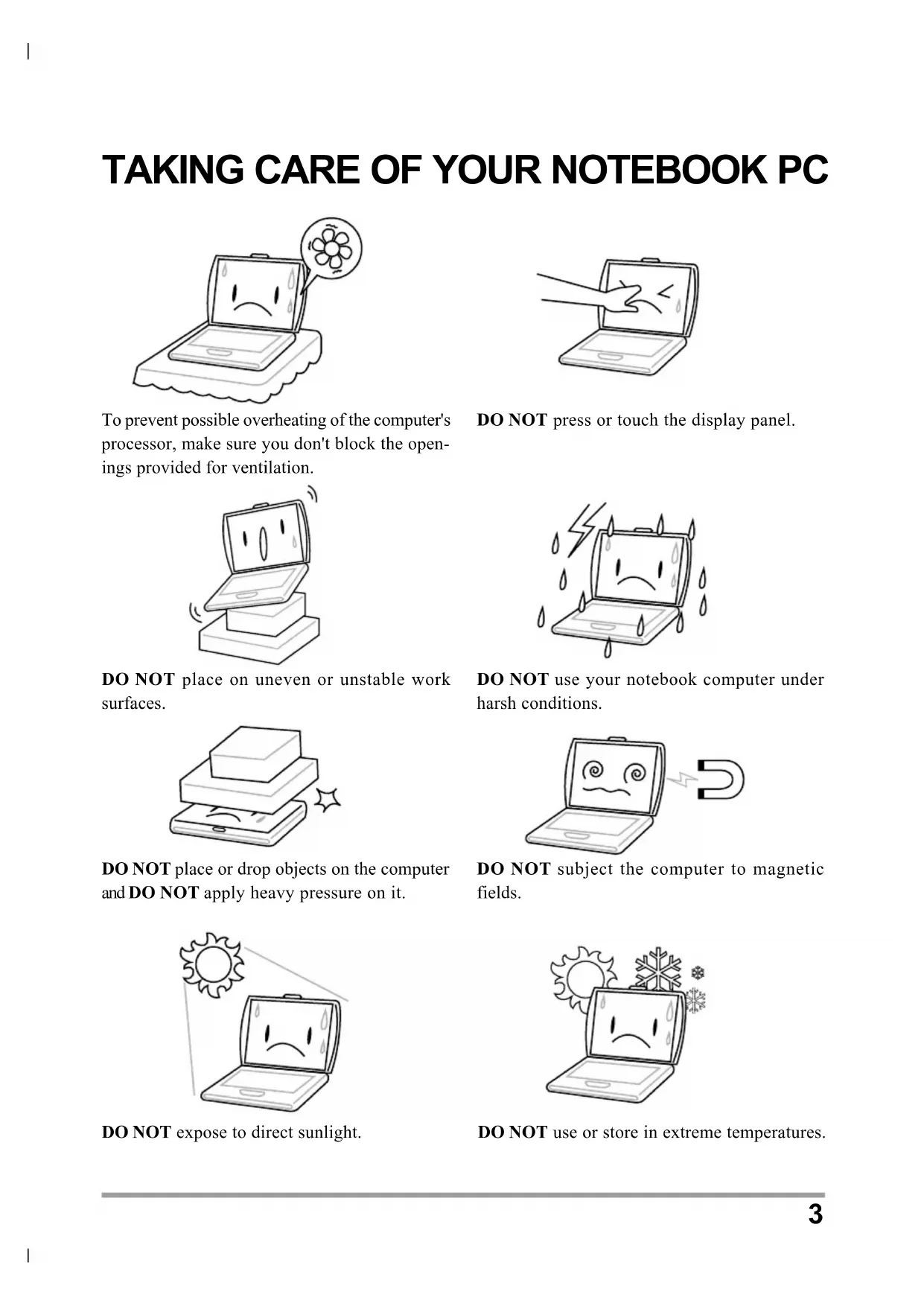

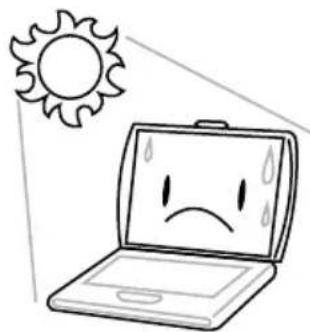

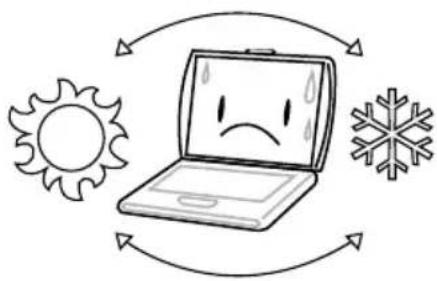

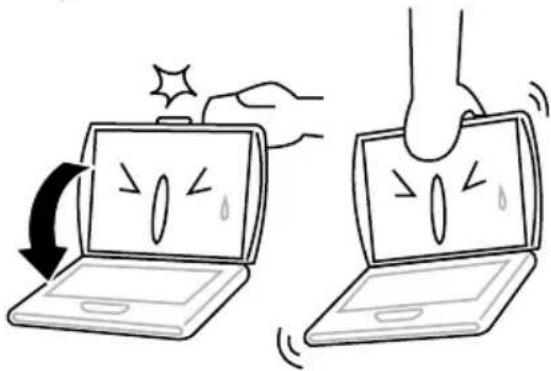

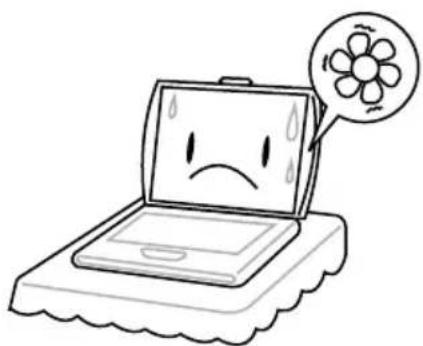

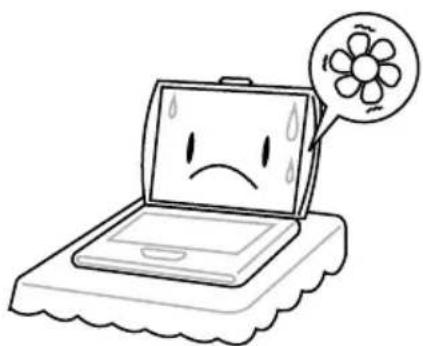

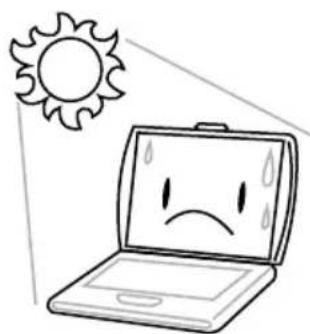

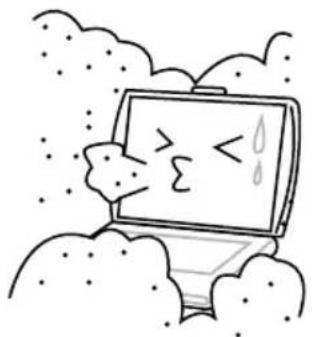

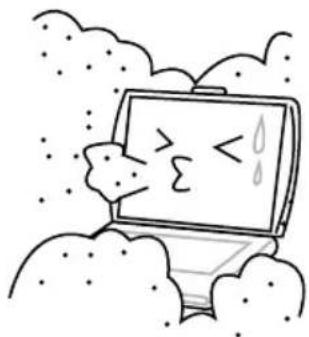

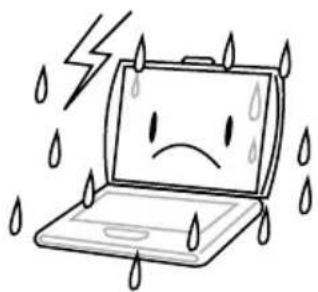

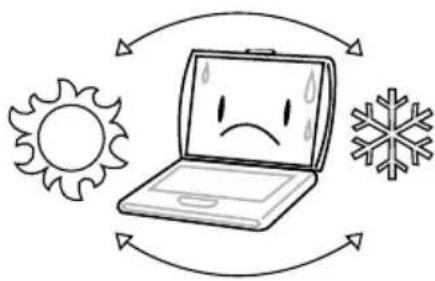

DO NOT place or drop objects on the computer and DO NOT apply heavy pressure on it. DO NOT subject the computer to magnetic fields. To prevent possible overheating of the computer's processor, make sure you don't block the open- ings provided for ventilation. DO NOT press or touch the display panel. DO NOT place on uneven or unstable work surfaces. DO NOT use your notebook computer under harsh conditions. DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.4 ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO DO NOT expose to dust and/or corrosive chemicals. DO NOT spray water or any other cleaning fluids directly on the display. DO NOT slam your notebook shut and never pick up or hold your notebook by the display. If you are traveling with your computer, remem- ber to carry it as hand luggage. Do not check it in as baggage. DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them away from children. Avoid sudden changes in temperature or humid- ity by keeping it away fromA/C and heating vents. DO NOT expose the computer to rain or moisture. ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO5

Make sure you have everything When you receive your notebook PC, unpack it carefully, and check to make sure you have all the items listed below. For a pre-configured model you should have the following:

• AC adapter with power cord

• Driver and Applications CD

• Quick Start Guide or User Guide Depending upon the configuration of your notebook, you may also need the following items:

• Super Multi DVD RW Application CD Once you have checked and confirmed that your notebook system is complete, read through the following pages to learn about all of your notebook components. Depending on the model you purchased, the actual appearance of your note- book may vary from that shown in this manual.

Familiarize yourself with the computer

OPENING THE DISPLAY PANEL

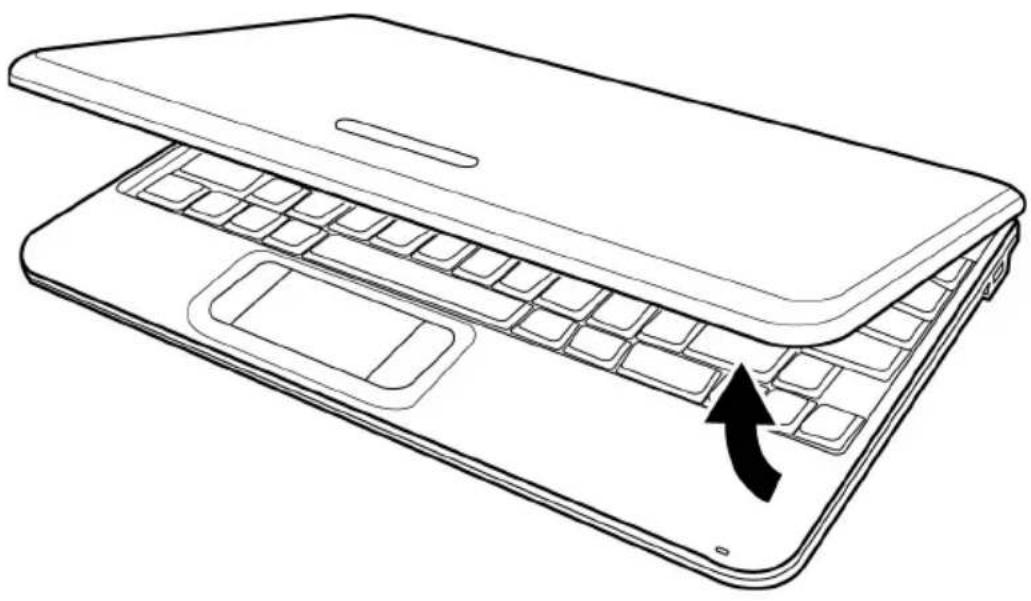

To open the display panel, simply lift the lid up. When closing it, be sure not to slam it shut.

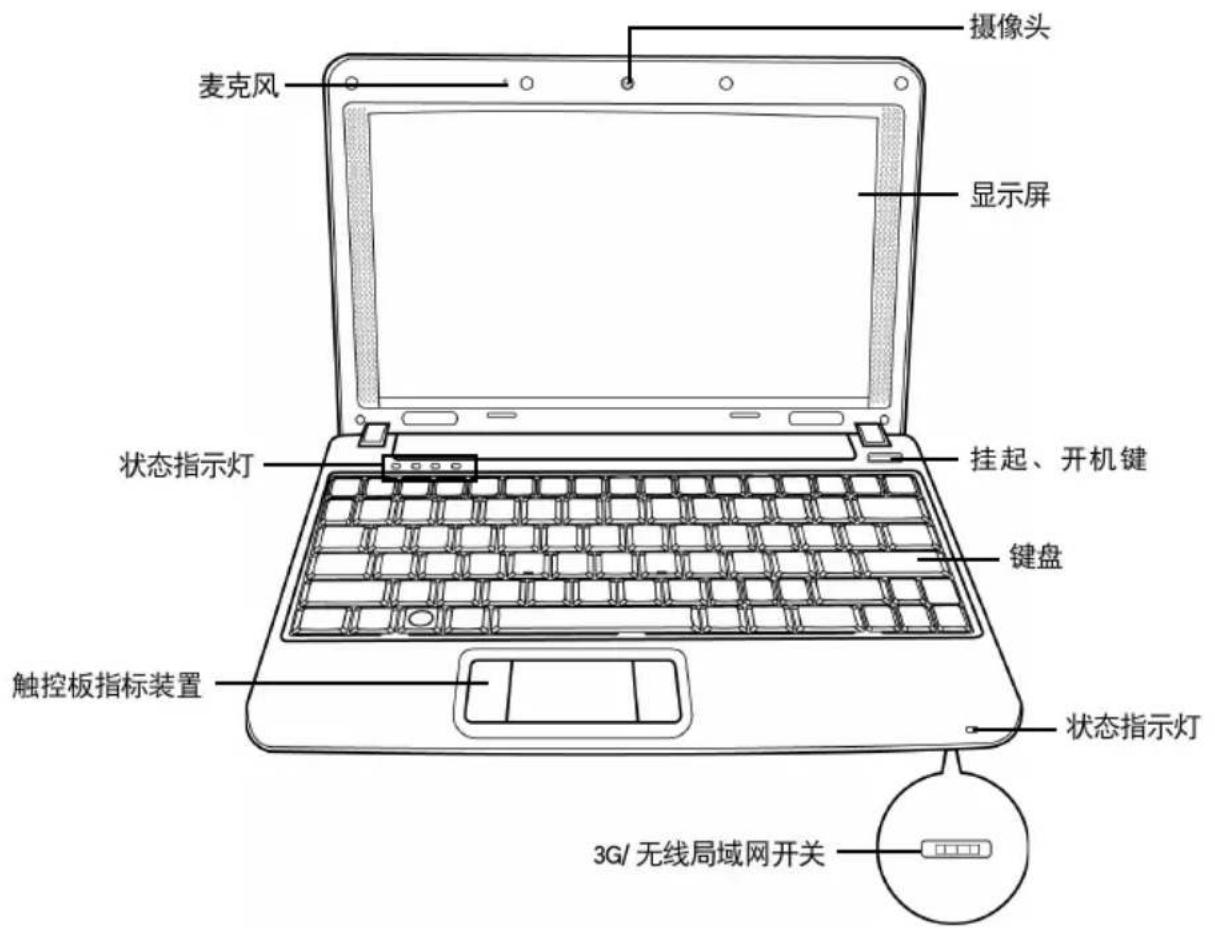

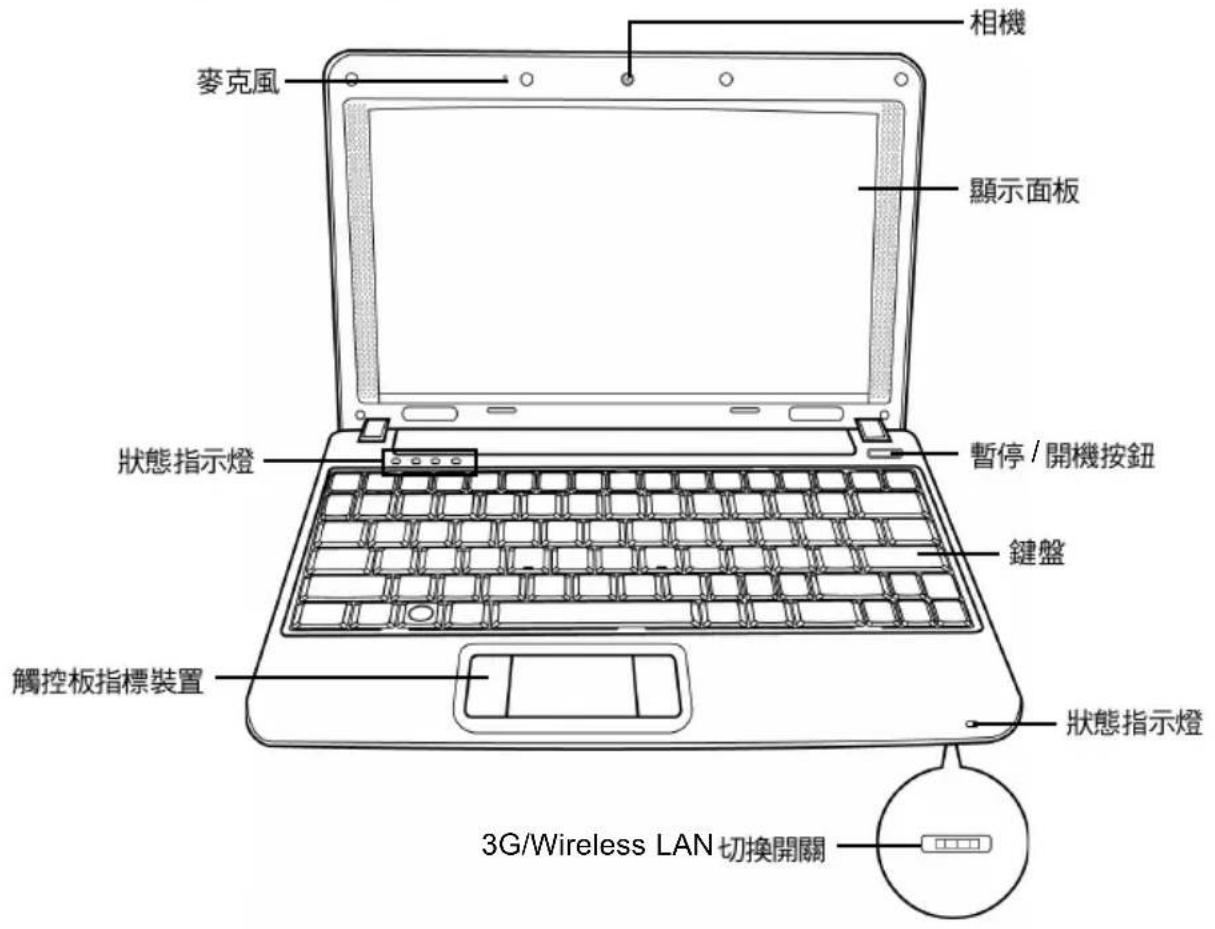

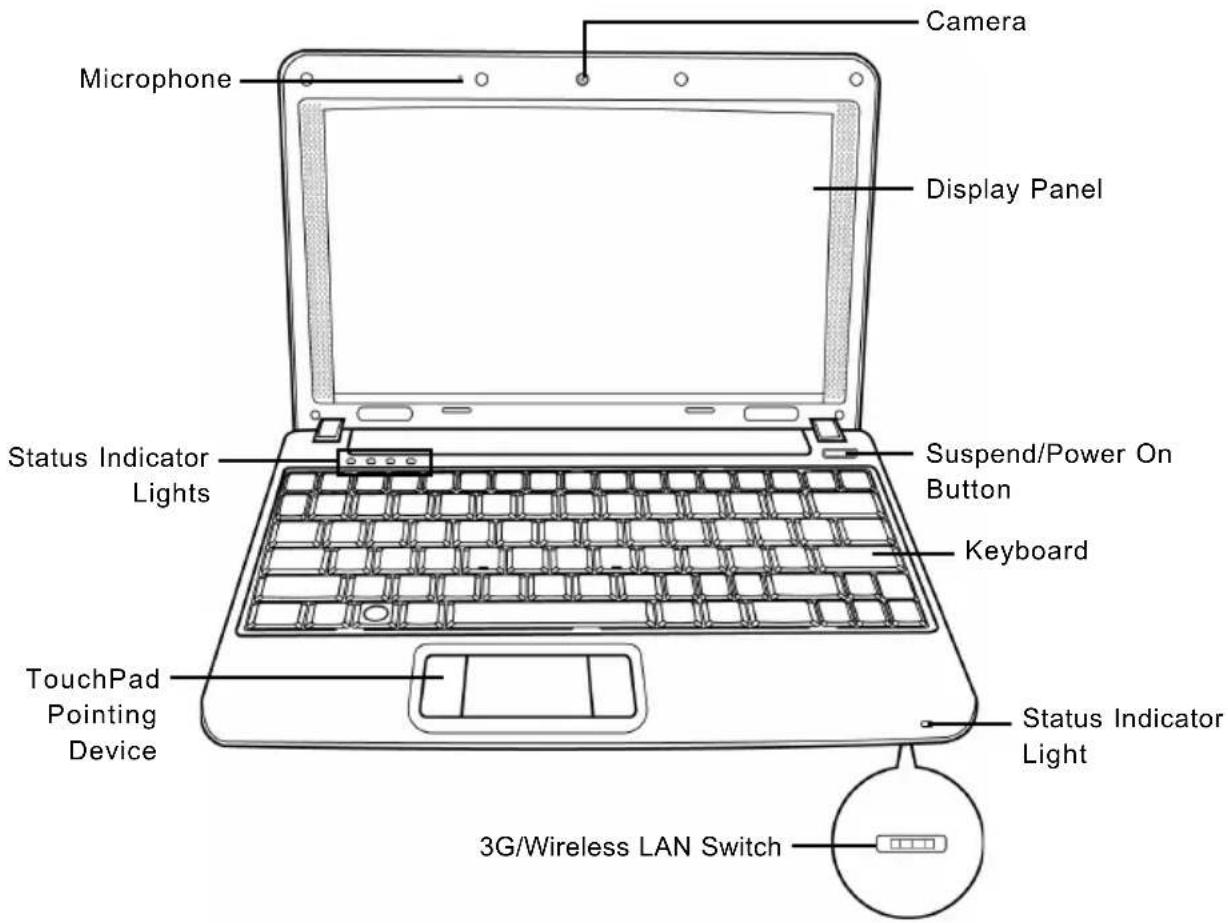

FRONT OVERVIEW The following is an overview of the front of the notebook. Microphone The built-in microphone allows for stereo reception and transmission of voice and/or other audio data onto your notebook. Camera The built-in 0.3 megapixel camera allows you to snap a photo or create a video chat or video conference with just a click. Display Panel The display panel is a color LCD panel with back lighting for the display of text and graphics. Suspend/Power On Button This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button in the Power On section for more information.) Microphone Display Panel Camera Suspend/Power On Button Keyboard Status Indicator Light 3G/Wireless LAN Switch Status Indicator Lights TouchPad Pointing DeviceBEFORE YOU START

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO Keyboard The keyboard comes with 84 keys, including dedicated Windows

keys. Status Indicator Lights The Status indicator lights correspond to specific operating modes. These modes are: Power on/ Suspend status, battery/AC adapter status, hard drive activity (HDD), Num Lock, Caps Lock, and 3G/Wireless LAN activity. 3G/Wireless LAN Switch The 3G/Wireless LAN switch allows you to switch your wireless connection between 3G and Wireless LAN. Switch to the left for 3G connection, and switch to the right to turn on Wireless LAN. TouchPad Pointing Device The TouchPad pointing device is a mouse-like cursor control with two buttons and a touch sensitive movement pad. ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

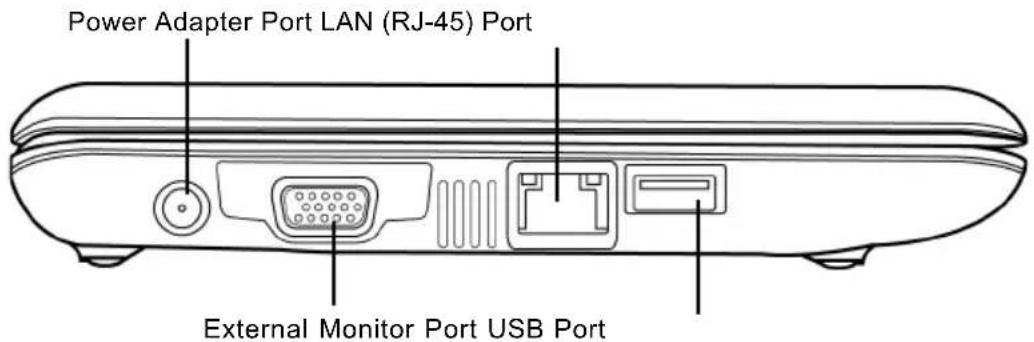

The following is a brief description of the left side of the notebook. Power Adapter Port The power adapter port allows you to plug in the AC adapter to power your notebook and charge the internal Lithium-Ion battery. External Monitor Port The external monitor port allows you to connect an external monitor. LAN (RJ-45) Port The LAN port is designed to support a 10/100 Base-TX standard RJ-45 plug. USB Port The USB port allows you to connect a Universal Serial Bus device. It supports v2.0 of the USB standard, which allows data exchange rates as high as 480 Mb/s.BEFORE YOU START

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO Microphone Jack The microphone jack allows you to connect an external mono microphone. Headphone Jack The headphone jack allows you to connect headphones or external speakers and amplifiers. USB Ports The USB ports allow you to connect Universal Serial Bus devices. They support v2.0 of the USB standard, which allows data exchange rates as high as 480 Mb/s. Memory Card Reader The memory card reader offers the fastest and most convenient method to transfer pictures, music and data between your notebook and flash compatible devices such as digital cameras, MP3 players, mobile phones, and PDAs.

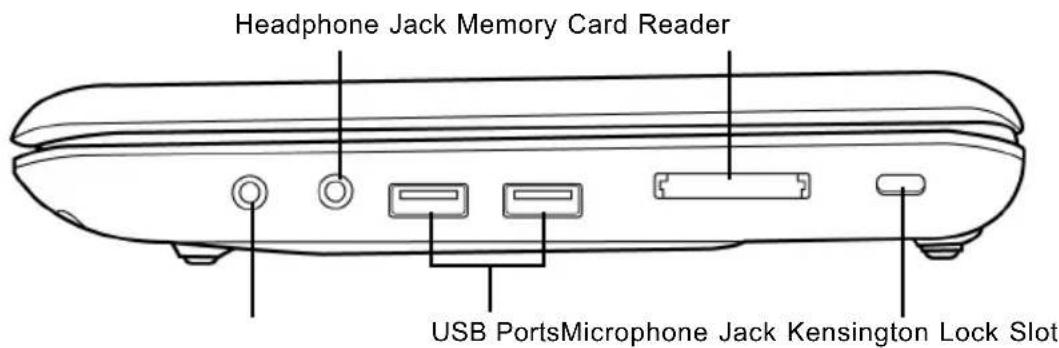

The following is a brief description of the right side of the notebook. Headphone Jack Memory Card ReaderUSB PortsMicrophone Jack Kensington Lock Slot ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

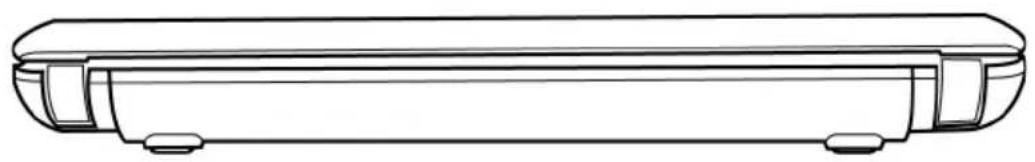

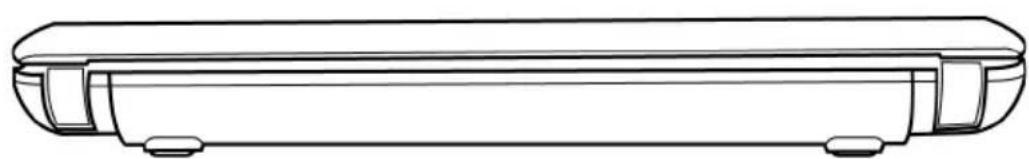

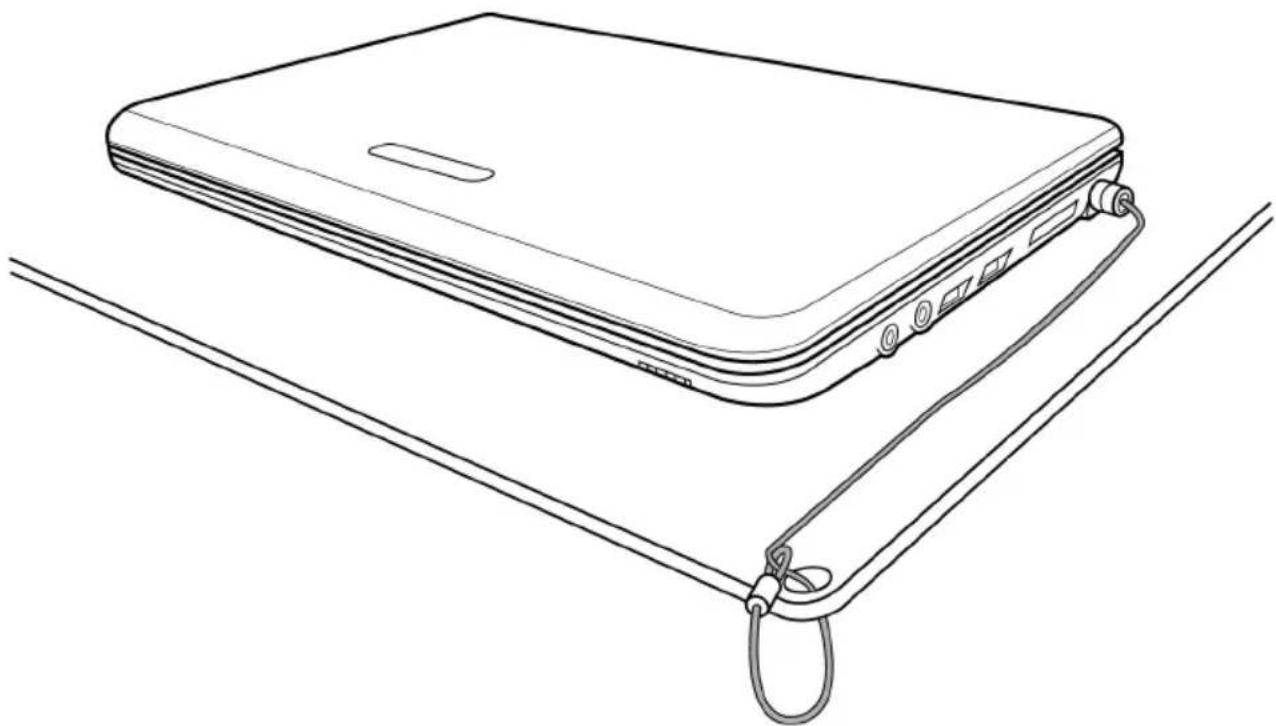

Kensington Lock Slot The Kensington lock slot allows you to secure your notebook to an immovable object with an optional security cable. BACK OVERVIEW The following is an overview of the back of the notebook.BEFORE YOU START

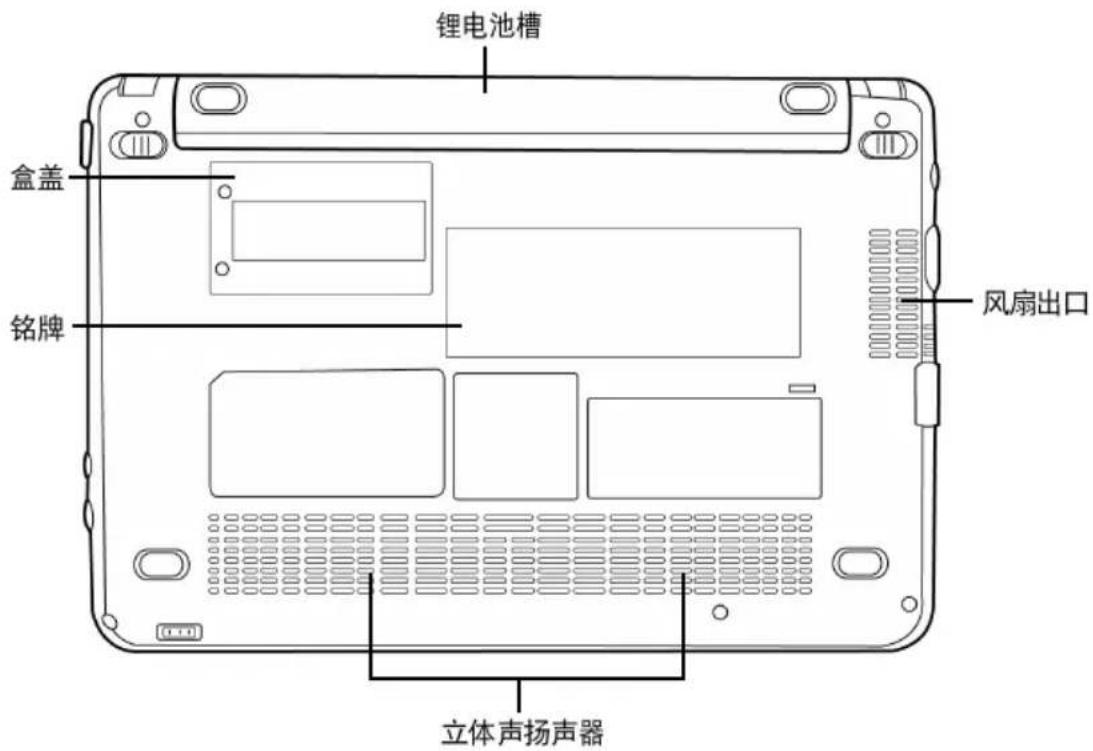

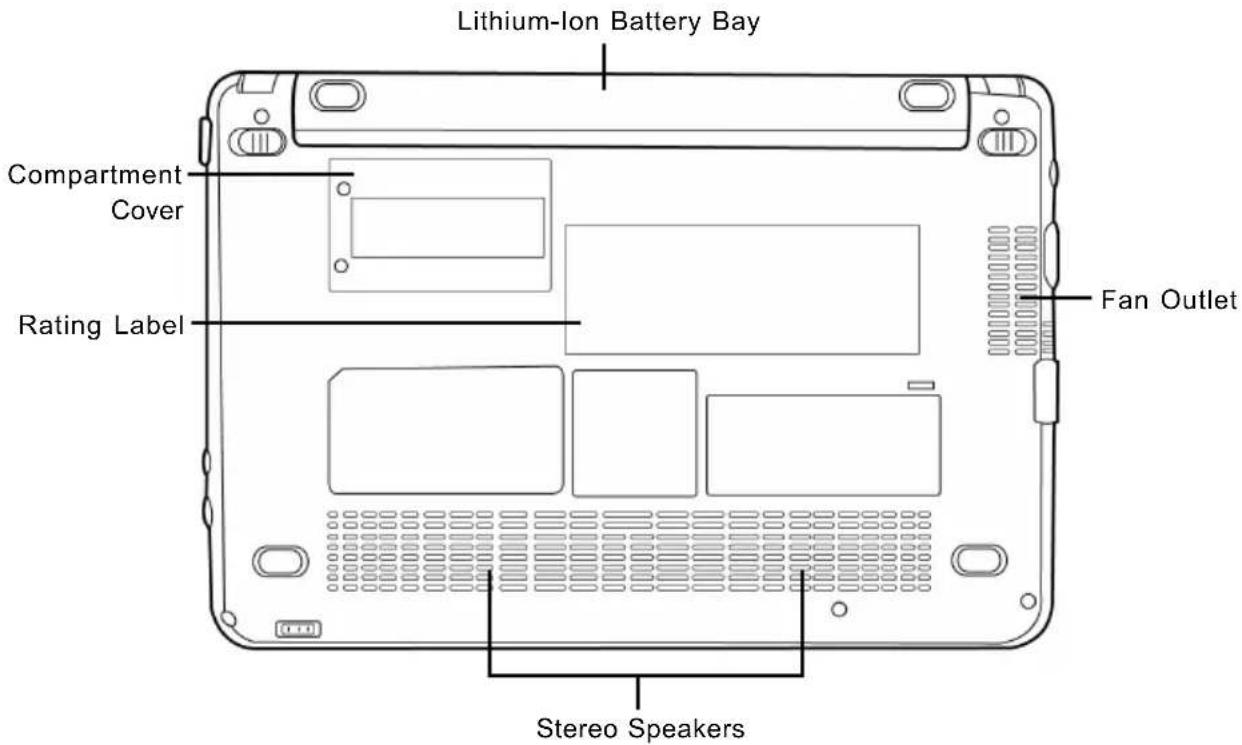

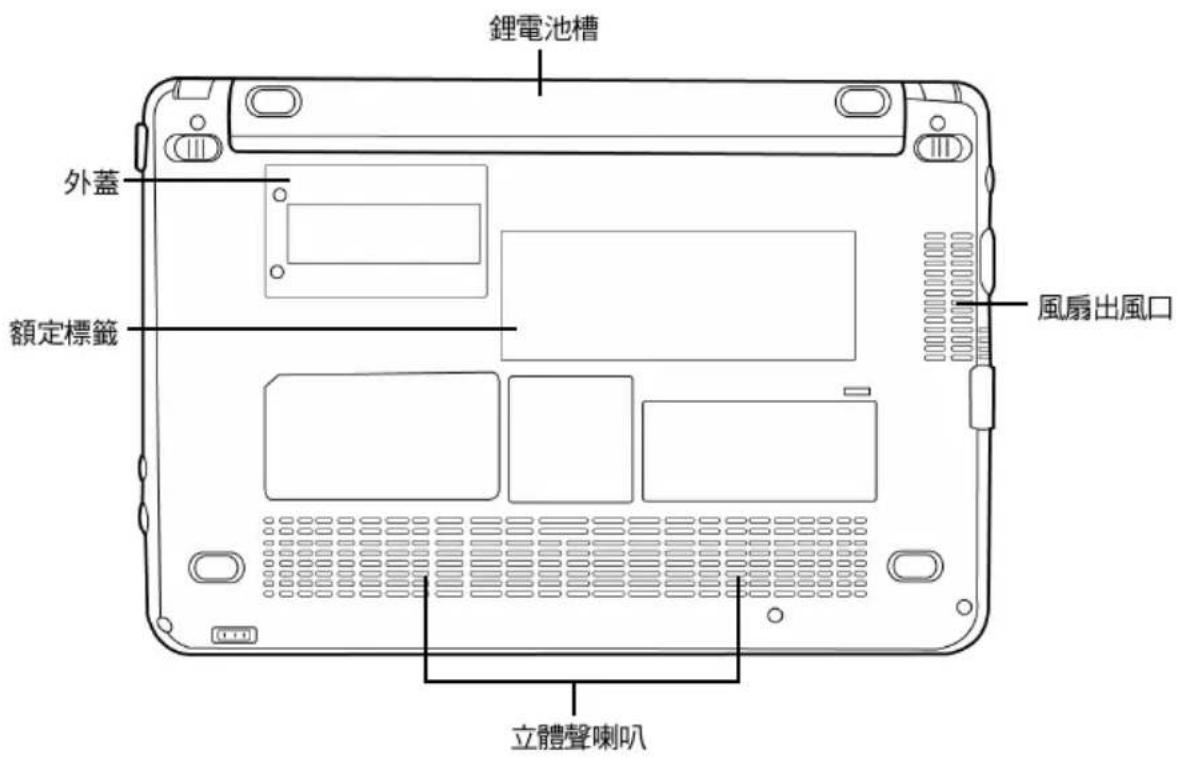

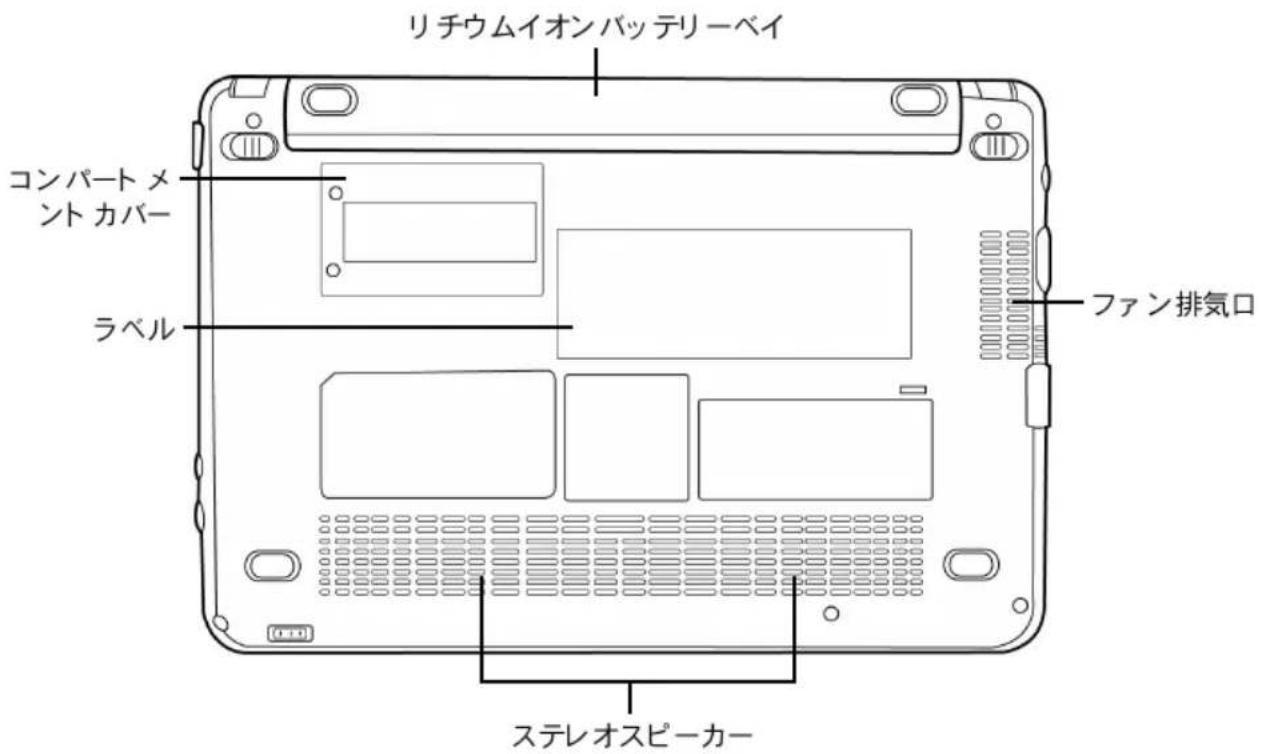

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO Stereo SpeakersFan OutletLithium-Ion Battery BayCompartmentCoverRating Label BOTTOM OVERVIEW The following is an overview of the bottom of the notebook. Lithium-Ion Battery Bay The battery bay contains the internal Lithium-Ion battery. It can be opened for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium-Ion battery. Fan Outlet This is an open port for the fan to dissipate heat from the computer's internal components. Do not block or place the computer in such a position that you inadvertently allow the outlet to become blocked. Stereo Speakers The built-in dual speakers allow for stereo sound. Rating Label The label shows the model number and other information about your notebook. Compartment Cover The 3G module compartment contains the 3G module (Not available in all configurations). ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO13 GETTING STARTED Power Sources Your computer has two types of power source: a Lithium-Ion battery or an AC adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter provides power for operating your notebook PC and charging the battery. Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack of your notebook PC.

2. Plug the AC adapter into an AC electrical outlet.

Switching from AC Adapter Power to Battery Power

1. Be sure that you have at least one charged battery installed.

2. Remove the AC adapter. Your notebook will automatically switch from DC power to battery

power. The Lithium-Ion battery is not charged upon purchase. Initially, you will need to connect the AC adapter to use your notebook PC. To protect your notebook from damage, use only Lithium-Ion batteries that meet the specification. Improper use of batteries may lead to explosion and bodily harm. Do not dispose of batteries with household waste. Contact your local recycling center or waste disposal operator to properly dispose of batteries according to the local laws and regulations of your region.

PRESERVING BATTERY LIFE

• Fully discharge and recharge the battery every 30 days to prolong battery life.

• If the battery is not used for a month or longer, remove and store the battery in a cool, dry place. Fully recharge the battery before using again. NOTE CAUTIONCAUTIONGETTING STARTED

The Lithium-Ion battery is recharged internally using the AC adapter. To recharge the battery, make sure the battery is installed and the computer is connected to the AC adapter. There is no "memory effect" in Lithium-Ion batteries; therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your note- book is in use while the battery is charging. If you want to charge the battery more quickly, put your computer into Suspend mode, or turn it off while the adapter is charging the battery. Low Battery State When the battery charge is low, a notification message appears. If you do not respond to the low battery message, the battery continues to discharge until it is too low to operate. When this happens, your notebook PC goes into Suspend mode. There is no guarantee your data will be saved once the notebook reaches this point. To protect your computer from damage, use only the power adapter that came with it because each power adapter has its own power output rating. Once your notebook goes into Suspend mode as a result of a dead battery you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you can press the Suspend/ Resume button to resume operation. In Suspend mode, your data is maintained for some time, but if a power source is not provided promptly, the Power indicator stops flashing and the light goes out, in which case you have lost the data that was not saved. Once you provide power, you can continue to use your computer while an adapter charges the battery. CAUTION ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANOGETTING STARTED

Starting Your Notebook POWER ON Suspend/Power On Button The suspend/power on button is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium-Ion battery, you can power on your notebook by pressing the suspend/power on button located above the keyboard. If you need to take an extended break, press the button again to turn it off. Do not carry your notebook around with the power on or subject it to shocks or vibration, as you risk damaging the hard disk. When you power on your notebook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your computer emits an audio warning and or displays an error message. Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the Power On Self Test (POST), your notebook loads the installed operating system. Never turn off your notebook during the Power On Self Test (POST), or an unrecoverable error may occur. CAUTIONCAUTIONGETTING STARTED

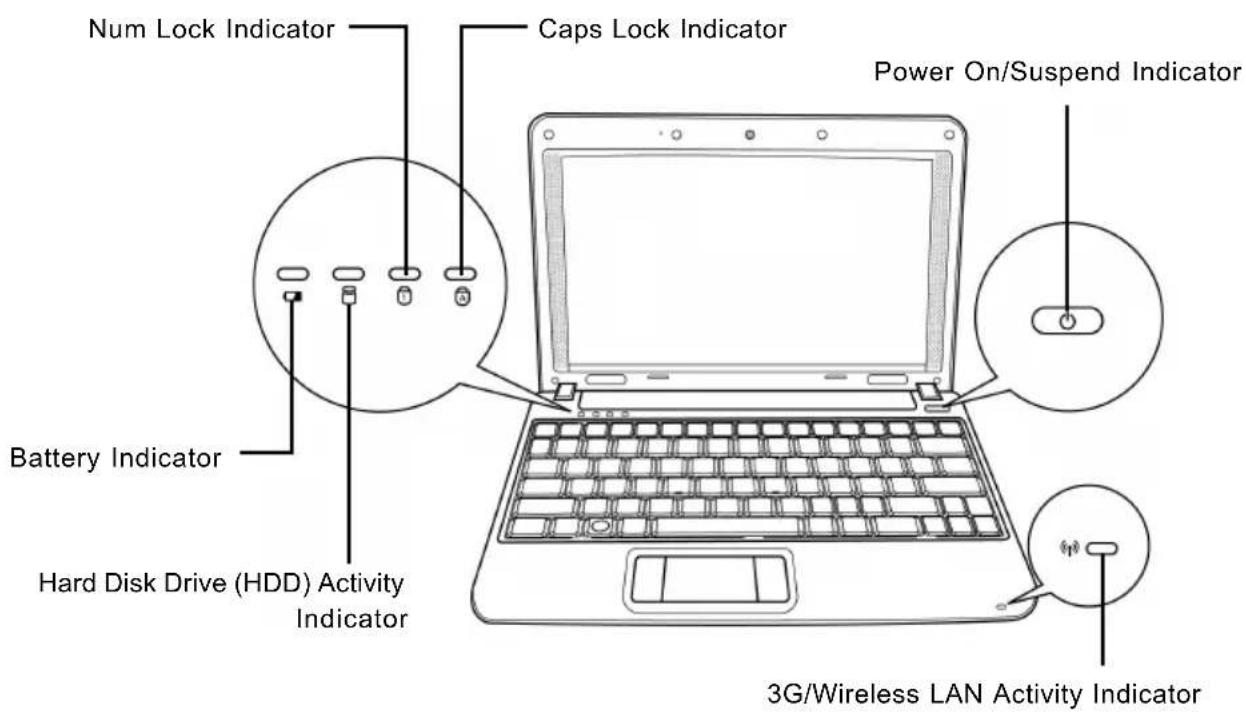

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO Power On/Suspend IndicatorBattery IndicatorNum Lock IndicatorHard Disk Drive (HDD) ActivityIndicatorCaps Lock Indicator3G/Wireless LAN Activity Indicator Status Indicators The status indicator lights correspond to specific operating modes. These modes are: Power on/ Suspend status, battery/AC adapter status, hard drive activity (HDD), Num Lock, Caps Lock, and 3G/Wireless LAN activity. Battery Indicator The Battery indicator tells you whether the Lithium-Ion battery is charging or is already fully charged.

• If you are charging your battery, the Battery indicator remains on even if your notebook is shut off.

• If there is no battery activity, the power adapters are not connected, or the power switch is Off, the Battery indicator will also be off.

• Batteries subjected to shocks, vibrations or extreme temperatures can be permanently damaged. Hard Disk Drive (HDD) Activity Indicator The Hard Disk Drive (HDD) Activity indicator tells you whether your internal hard drive is being accessed and, if so, how fast. ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANOGETTING STARTED

The Num Lock Indicator This indicator shows when the internal keyboard is in ten-key numeric keypad mode. The Caps Lock Indicator This indicator tells you that the keyboard is set to type in all capital letters. 3G/Wireless LAN Activity Indicator The 3G/Wireless LAN Activity indicator tells you whether your computer is connected to a wireless network or not.

• Green light indicates a 3G connection.

• Orange light indicates a Wireless LAN connection.

• Use the 3G/Wireless LAN switch on the front of the notebook to switch the indicator light. Power On/Suspend Indicator The light on the power button illuminates when the computer is powered on, and flashes when the computer is in the Suspend mode.GETTING STARTED

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO Using Function Keys Your computer has 8 function keys, F1 through F8. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used. The [FN] key provides extended functions for the notebook and is always used in conjunction with another key.

• [FN+F1]: Places the notebook in Suspend mode. Pressing the Power button returns it to active mode.

• [FN+F2]: Enables or disables the wireless network connection.

• [FN+F3]: Allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, both built-in display panel and external monitor, or external monitor only.

• [FN+F4]: Decreases the screen Brightness.

• [FN+F5]: Increases the screen Brightness.

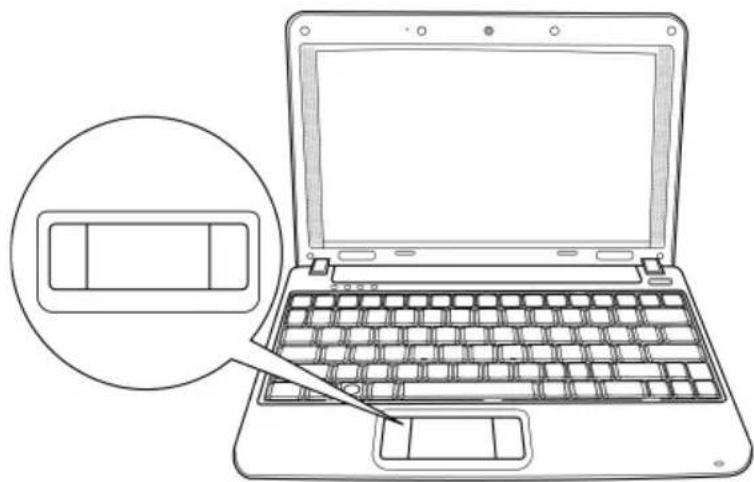

Using the TouchPad A TouchPad pointing device comes built into your computer. It is used to control the movement of the pointer to select items on your display panel. The TouchPad consists of a cursor control, a left button and a right button. The cursor control works the same way a mouse does, and moves the cursor around the display. It only requires light pressure from the tip of your finger. The left and right buttons function the same as mouse buttons. The actual functionality of the buttons may vary depending on the application that is being used. Clicking Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the TouchPad once. Double-Clicking Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and then immediately release it. You also have the option to perform the double-click operation by tapping lightly on the TouchPad twice. Dragging Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the TouchPad. First, tap the TouchPad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the TouchPad, and then release your finger.20 ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO TROUBLESHOOTING Your notebook PC is sturdy and subject to few problems in the field. However, you may encoun- ter simple setup or operating problems that you can solve on the spot, or problems with periph- eral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service. Identifying the Problem If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1. Turn off your notebook.

2. Make sure the AC adapter is plugged into your notebook and to an active AC power source.

3. Make sure that any devices connected to the external connectors are plugged in properly. You

can also disconnect such devices, thus eliminating them as possible causes of failure.

4. Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it on.

5. Go through the boot sequence.

6. If the problem has not been resolved, contact your support representative.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Conditions under which the problem occurred

• Any error messages that have occurred

• Hardware configuration

• Type of device connected, if any See the Configuration Label on the bottom of your notebook for configuration and serial numbers. ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO21 Copyright-protected technology This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be autho- rized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.MEMO2

• Relatives to the Directive 2004/108/EC amended by 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC:
