USER MANUAL Model 10+ TIVOLI AUDIO

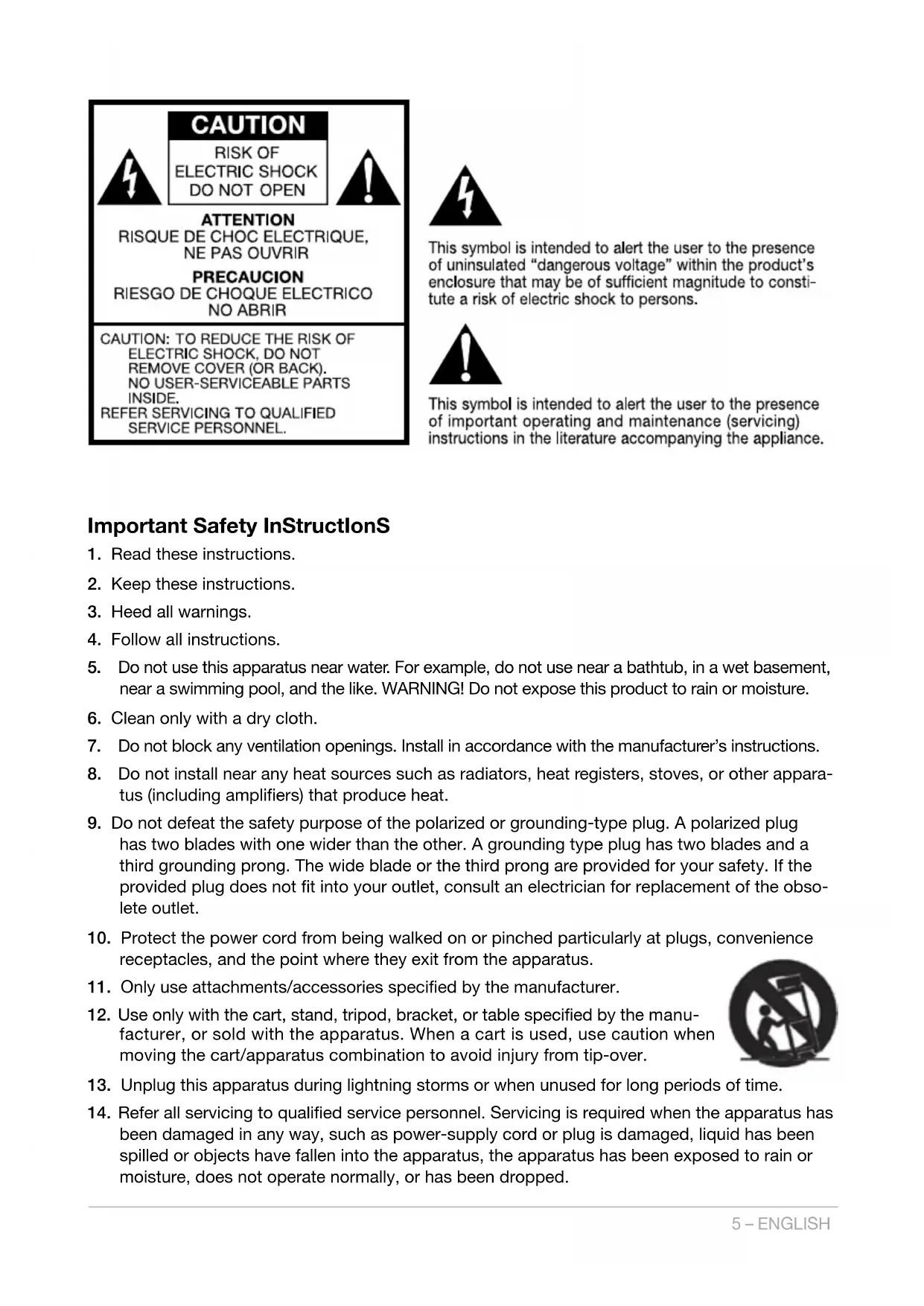

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water. For example, do not use near a bathtub, in a wet basement,

near a swimming pool, and the like. WARNING! Do not expose this product to rain or moisture.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-

tus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obso- lete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manu-

facturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.6 – ENGLISH

15. The radio must be located such that the rear AC socket and connected power cord are readily

16. This Class B digital device complies with the Canadian ICES-003.

17. For added protection for this product during a lightning storm, or when it is left unattended

and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product from lightning and power-line surges.

18. Operate this product only from the type of power source indicated on the rear panel.

For products using an external power supply, use an exact replacement if lost or damaged. For products operating from battery power, refer to the user manual.

19. Unplug this product from the wall outlet and refer servicing to qualified service personnel un-

der the following conditions: a. When the power supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the product. c. If the product has been exposed to water or rain. d. If the product does not operate normally by following the operating instructions. e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinctive change in performance.

20. If the LCD becomes cracked and damaged, do not touch the liquid.

21. Keep this product a safe distance away from naked flame, such as a lit candle.

22. Do not expose this product to splashing or dripping. Objects containing liquid, such as vases

or drinking glasses, should not be placed on top of this product.

23. The recommended operating temperature range is 41˚ F to 104˚ F (5˚ C to 40˚ C).

24. As the main plug is used to disconnect the system from the mains, connect the system to an

easily accessible AC outlet.

25. The system is not disconnected from the mains as long as it is connected to the AC outlet,

even if the system itself has been turned off.

WarnInG: tHe moDeL 10+ eXternaL antenna IS not IntenDeD to Be DetacHeD.

This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. At the end of the product’s life, take it to a collection point designated for recycling of electrical and electronic devices. Find out more about return and collection points through your local authority. The European Waste Electrical and Electronic Equipment (WEEE) Directive was implemented to dramatically reduce the amount of waste going to landfills, thereby reducing the environmental impact on the planet and on human health. Please act responsibly by recycling used products. If this product is still useable, consider giving it away or selling it.7 – ENGLISH MODEL 10+ INSTRUCTIONS Congratulations on your purchase. We believe the Model 10+ to be one of the finest DAB/DAB+/ DMB/FM table radios on the market today. We know you are eager to begin listening to your new radio, but in order to take full advantage of what your radio is capable of, please take a moment to read this owner’s manual and the safety instructions. If you have any questions, please do not hesitate to contact your dealer or Tivoli Audio. Please save the carton and original packing should you ever need to ship your radio, as shipping damage is not covered by the factory warranty. On behalf of all of us, thank you for choosing Tivoli Audio, and enjoy your Model 10+!

Tivoli Audio was founded by Tom DeVesto with the mission of bringing simple to use, elegantly designed, high quality audio products to consumers. As CEO and head of research and development at his former company, Cambridge SoundWorks, Tom was responsible for the development of many of the best selling home entertainment and multi-media products on the market. He also held senior management positions in product development at both Advent and Kloss Video. *Cambridge SoundWorks is a registered trademark of Creative Labs, Singapore. Packed with your Model 10+ you should find one each:

• 1 2.74 m (9') power cord

• 1 Remote control (battery installed) Please contact your dealer or Tivoli Audio if any of these items are missing. GUIDE TO FEATURES (FRONT PANEL)

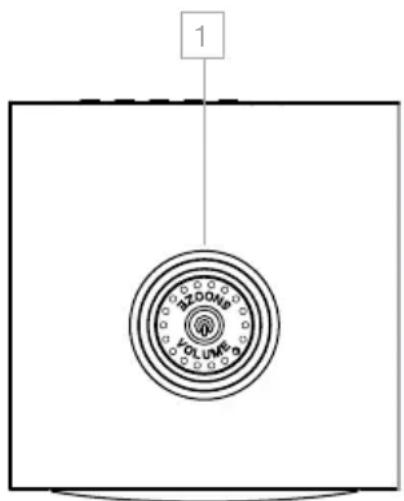

1. MULTI-FUNCTION CONTROL WHEEL (TOP):

The control wheel conveniently serves many functions: Power: When the Model 10+ is off, press to power the unit on. When the Model 10+ is on in any source, press and hold to power the unit off. Volume: When the Model 10+ is on in any source, rotate clock- wise to increase the volume level and counter-clockwise to decrease the volume level. Tuning: In Digital radio (DAB/DAB+/DMB) or FM mode, press once and rotate clockwise to manually tune up and counter- clockwise to manually tune down. Press again to select a sta- tion and return to volume control. The letter “T” will show on the display to indicate manual tuning mode. There is no tuning function in Auxiliary. After about 7 seconds of no activity, the control wheel will default back to the volume control function. Source: Press twice to access the source menu and change sources by rotating the wheel in either direction. Press again to select the source and return to volume control. After about 7 seconds of no activity, the control wheel will default back to the volume control function. Snooze: Press to engage Snooze when the alarm sounds. A icon will show on the display when Snooze is active. The Snooze time is fixed at 7 minutes. Press again during Snooze to cancel the snooze. 18 – ENGLISH

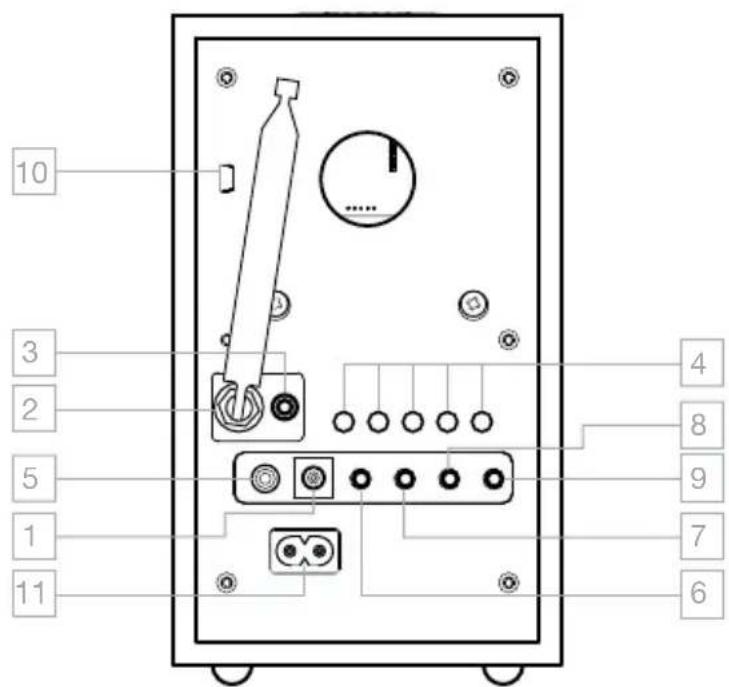

1. 12VDC/1000mA: This input is for use with

an optional 1A fused, 12VDC adapter. The adapter must be 5.5mm/2.1mm center positive.

2. EXTERNAL ANTENNA: An external

telescoping antenna is affixed to this input and is not intended to be detached. Adjust for best reception. For more, see the section marked “Digital Radio/FM Reception”.

3. HEADPHONE OUT: Connect a headset

(not included) to this variable stereo out- put for private listening. The headset will mute the primary speaker. The headset’s volume is adjusted using the control wheel or the remote control. The remote’s “Mono” button also affects this output. This stereo out-put accepts a 3.5mm stereo male mini connector. Avoid using headphones at high volume levels to prevent possible hearing damage.

4. PRESETS 1-5: Press and hold to store the currently tuned station. Press briefly to recall the

station associated with that specific preset. In FM mode, the preset number will be indicated on the display. There are 5 presets for each band.

5. R-SPR: Connect the male RCA cable from the optional Tivoli Audio Model 10 Speaker to

this female RCA output. Make sure the Stereo/Mono setting is set to Stereo by pressing the Mono button on the remote control and be sure the display shows “ST” for stereo and not “M” for mono.

6. SUB OUT: Connect the audio cable from the optional Tivoli Audio Model Subwoofer (or other

compatible subwoofer) to this output. This jack accepts a 3.5mm stereo male mini connector.

7. REC OUT: Connect a cassette deck’s audio input (or other recording device) to this fixed level

99 – ENGLISH stereo output to record the audio. The primary speaker will not be muted when using this output. This jack accepts a 3.5mm stereo male mini connector.

8. mIX In: Connect the audio output of another device, such as a computer, to this input to hear

the audio mixed in with the tuner. With the Model 10+ in Auxiliary mode, this input acts as a second Auxiliary input. This stereo input accepts a 3.5mm stereo male mini connector. The vol- ume level is controlled by the source device.

9. auX In: To hear audio from another device, such as Tivoli Audio’s Model CD, a MP3 player, or

TV, connect said device’s audio output to this stereo input and change the source to Auxiliary. This stereo input accepts a 3.5mm stereo male mini connector. Note you may need to adjust the volume level differently for an auxiliary device than the level used for radio listening.

10. ServIce: The port underneath this label is for use during service only. Do not remove the

“Service” label. Do not connect anything to this port or you could damage the Model 10+ and void your warranty.

11. poWer corD Input: Firmly insert the included power cord. When unplugging the power

cord from the wall outlet, always grasp it by the plug and not the cord. We recommend the use of a power strip with surge protection. Be sure your region’s voltage is consistant with the voltage indicated on the rear panel under the power cord input. Tivoli Audio is not responsible for damages caused by incorrect voltage. GuIDe to featureS (remote controL)

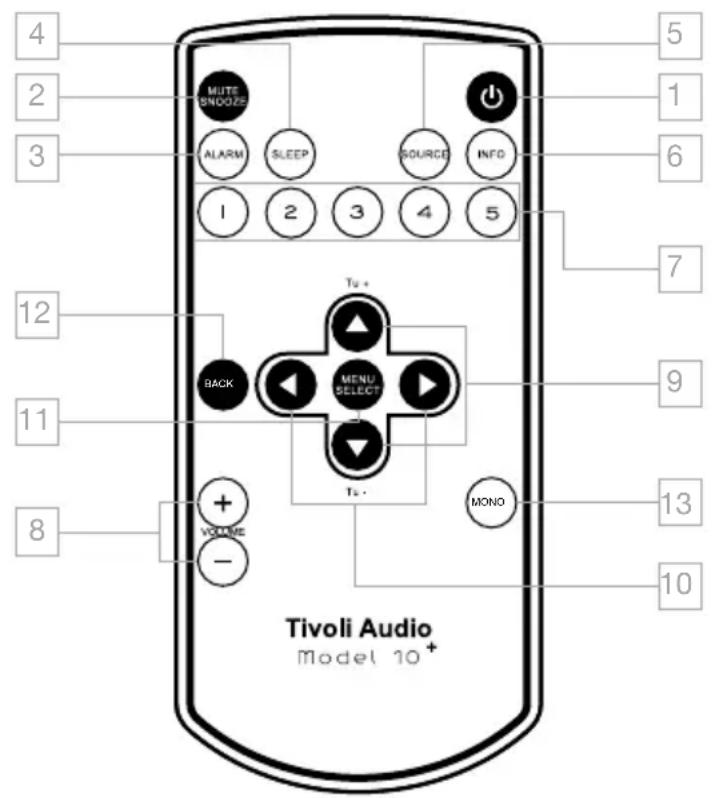

1. poWer: Press briefly to power the

Model 10+ off or on. The radio will power on to the last source used.

2. mute/SnooZe: Press to mute the audio

(the volume bars will disappear from the icon) while the unit is playing; press again or adjust the volume to restore sound. Press to mute the alarm for 7 minutes after the alarm sounds. A icon will show on the display when Snooze is ac- tive. The Snooze time is not adjustable.

3. aLarm: With the Model 10+ powered on,

use the pq and Select buttons to adjust and set the alarms. For a complete step- by-step guide, refer to the section titled “How to set the Alarm.”

4. SLeep: Press repeatedly to view the

amount of time the radio will play before it turns off automatically, and press the Select button to select that time. When the sleep timer is active you can check the remaining time by means of pressing Sleep on remote. A small clock face [ ] will show on the display when the Sleep timer is active. To cancel Sleep, press the Sleep button until the display shows “Off”.

5. Source: Press repeatedly to change sources.

6. Info: Press repeatedly to cycle through the information available depending on the source

mode you are in. This function will not work in Auxiliary mode.

7. preSetS 1-5: Press and hold to store the currently tuned station. Press briefly to recall the

station associated with that specific preset. In FM mode, the preset number will be indicated on the display. There are 5 presets for each band.

8. voLume +/–: Press the Volume + button to raise the volume level or the Volume – button to

lower the volume level. If the audio ever sounds distorted, lower the volume level to avoid dam- aging the speaker. Adjusting the volume while the Model 10+ is muted will cancel the muting.

9. pq/tune +/-: Press to adjust menu items. Use these same buttons to manually tune up or

down when in FM mode. A “T” will show on the display to indicate manual tuning mode. Press and hold to move quickly through the frequencies. It will take a second until the frequencies begin to change. Press for 1.5 seconds and release to auto scan to the next station detected. The display will show “Scanning…” Also refer to “Scan Setting” under the section “Menu and Specific Features”. In DAB mode, use the pq buttons on the remote, or press the Multi- Function Control Wheel on top of the unit, to show all available DAB/DAB+/DMB stations. Use the pq buttons or the top control wheel to highlight specific stations. The Station list will disappear between 7 and 15 seconds depending on whether it was accessed via the Control Wheel or the remote control.

10. tu: The right arrow button duplicates the Select button. The left arrow button moves you to

the previous page in certain menu items.

11. menu/SeLect: Press and hold to enter the main menu and press briefly to select items

within the menu. For more, see the section marked “Menu”.

12. BacK: Press to go back to the previous menu page.

13. mono: Press to change the Stereo/Mono setting. The display will show “M” for mono or

“ST” for stereo. “Mono” or “Stereo” will also be one of the fields shown when pressing the Info button on the remote in FM mode. This setting also affects the headphone output. For more, see the section marked “Digital Radio/FM Reception”. menu anD SpecIfIc featureS Press and hold the Menu/Select button on the remote to enter the main menu. Use the pq buttons and the Select button to change the items within the menu. Use the Back button to navigate back, or wait for 15 seconds until the timeout expires. An asterics (*) indicates the shown menu item is currently set.

1. Scan SettInG (fm moDe onLy): Press the Select button and use pq and Select button

to choose between “Strong stations only” or “All stations” when performing an auto scan (see #9 (pq/Tune +/-) under “Remote Control”. Selecting “All stations” increases the sensitivity of the scan, possibly resulting in the auto seek stopping on noise. This feature is not accessible in Auxiliary mode.

2. tIvoLI eQ: Press the Select button and use pq and Select buttons to adjust the Bass and

Treble. The adjusted values will be shown in “User EQ”. Press the Select button to turn Loudness On or Off. Turning Loudness on when listening at low volume levels is recommended since it boosts high and low frequencies resulting in a more natural sound. Use pq and Select buttons to activate any one of the pre-set EQ settings. Selecting a preset EQ will over-ride any adjustment made to the Bass and Treble settings, but Loudness will be unaffected. The “Flat” EQ restores the audio settings to the factory defaults, meaning Bass and Treble will be re-set to zero. The “Flat” EQ also restores Loudness Off. However, if the Bass and Treble had been adjusted, those settings will still be shown in “User EQ”. Simply selecting “User EQ” will reactivate the Bass and Treble settings. In the EQ menu page, the numbers to the right hand side indicate the bass and treble settings.11 – ENGLISH

3. BALANCE (FOUND UNDER TIVOLI EQ): As the Balance control has no affect when the

Model 10+ is set to Mono, this setting should remain in the center position, except when the optional Model 10 Speaker is connected and Stereo mode is selected via the remote control’s “Mono” button. Though we still recommend the center balance setting in Stereo mode, you may use the pq buttons to adjust the balance to your liking, then press the Select button to store any change.

4. TIME (FOUND UNDER SETTINGS):

Set 12/24 hour: Press the Select button and use pq and Select buttons to choose 12 or 24 hour clock format. Set time/date: Press the Select button and use pq and Select buttons to adjust the hour and then minutes, immediately followed by the date. You must also set the Auto update to “No update”. For more, refer to “Auto update” below. Auto Update: Press the Select button and use pq and Select buttons to choose between “Update from any”, “Update from DAB” (also DMB), or “Update from FM” (RDS). For any of the auto updates to work, you must have consistent reception of DAB or FM RDS with a time/date signal provided. It could take up to a minute or more for the clock to update. Tivoli Audio is not responsible for inaccurate time/date information provided by the auto update signal. To set the clock manually, select “No Update”, and then select “Set Time/Date” under the “Time” menu using the pq or tu buttons and the Select button to set the hour. Repeat to set the minutes and press Select to save. Within this same “Time” menu are additional options to set the date format, and 12/24 hour clock mode. NOtE: During a power outage, the alarm time(s) and clock will be maintained by an integrated back-up memory. When “Auto update” is set to “Update from any”, the radio may find the clock signal from the last listened station, even when the Model 10+ is in standby. Set date format: Press the Select button and use the pq and Select buttons to choose the date format you prefer.

5. BACKLIGHT (FOUND UNDER SETTINGS):

Timeout: The backlight level can be constant regardless of whether you are using any controls on the Model 10+ or not (this is the way the Model 10+ is configured from the factory), or you can customize the backlight to automatically change to a “Dim level” setting after a fixed period of time for as long as no controls are being used. Once a control on the unit or the remote is pressed, the normal backlight level is restored. Press Select and use the pq and the Select buttons to set the amount of time it will take for the backlight to change to the dim level from 10, 20 ,30, 45, 60, 90, 120, or 180 seconds, or to keep the timeout feature Off. On Level: Press Select and use the pq and Select buttons to choose the intensity of the backlight. Dim Level: If you selected a time for the backlight to change to a dim setting under “Timeout”, then press Select and use the pq and Select buttons to choose the intensity of the backlight when it changes to this dim setting. Setting the Dim level to “Off” may be desirable if the display backlight is bothersome while sleeping.

6. LANGUAGE (FOUND UNDER SETTINGS): Press Select and use pq and Select buttons to

set your language.12 – ENGLISH

7. FACTORY RESET (FOUND UNDER SETTINGS): Press Select and use the pq or tu and

Select buttons to confirm (Yes) or reject (No) the factory reset. A factory reset will restore factory defaults and cancel all your personal settings, such as presets and language. Also see the section marked “Digital Radio/FM Reception”.

8. ID (FOUND UNDER SETTINGS): Press Select to view the ID. If you contact your dealer or

Tivoli Audio with a question, you may be asked to provide the number shown in this field.

9. SLEEP (FOUND UNDER SETTINGS): Press Select and use pq and the Select buttons to

set the sleep timer to one of the available times. There is also a dedicated Sleep button on the remote control. A small clock face will show on the display when the Sleep timer is active.

HOW TO SET THE ALARM

10. With the Model 10+ powered on, Access the alarm setting either through the main menu or by

pressing the alarm button on the remote.

11. Alarm 1 is shown first. Press the Alarm button repeatedly or use the pq and Select buttons

to choose between Alarm 1 and Alarm 2. Note: At any point you can navigate through the alarm menu by using the Back or left arrow buttons, and the Select or right arrow buttons.

12. Use the pq and Select buttons to set the alarm on or off. If the time and date are not set

the Model 10+ will prompt you to set Time/Date. Otherwise, set the alarm as described in the next step.

13. Use the pq buttons to set/change the hour, then press Select. Repeat this process to set/

change the minutes, followed by AM/PM (if time is set to 12 hour format), then press Select.

14. Use the pq buttons to select how long you want the alarm to sound, then press Select.

15. Use the pq buttons to select the source you wish to wake to, then press Select. If you set

the source to DAB (includes DAB+/DMB) or FM, use the pq buttons to select the station pre- set (if presets have been stored) or last listened, then press Select.

16. Use the pq buttons to set how often the alarm should be set to wake, then press Select.

If “Once” is selected, you must set the date you wish the one time alarm to sound.

17. Lastly, use the pq buttons to set the volume level of the alarm, then press Select.

18. Repeat this process for Alarm 2 if desired.

If you make a mistake at any point in the process, press the Back button on the remote and begin again. Note: Your settings will not be saved unless you complete the entire process and the display shows “Alarm Saved”. Note: If you set the alarm source to DAB and the last listened or preset station is unavailable at the time the alarm sounds, the alarm will default to the tone. Power Loss: Should power be lost, or the Model 10+ becomes disconnected, the alarm time will be saved but the Model 10+ alarm cannot sound if there is no power. Alarm Quick Set: With the Model 10+ in standby, repeatedly press the alarm button briefly to toggle each alarm on or off.13 – ENGLISH ALARM OPTIONS The alarm sounds with a gradual volume increase. When the alarm sounds you can activate the Snooze feature or shut the alarm off. Alarm off: To stop the alarm while it is sounding, press the Alarm or Power button on remote, or press and hold the Multi-Function Control Wheel on top of the unit. Snooze: To activate Snooze while the alarm is sounding, press the Snooze button on the remote, or briefly press the Multi-Function Control Wheel on top of the unit. The Snooze time is not adjustable. Note: When in snooze mode, you can see the remaining snooze time by pressing the Snooze button on the remote. If you press the Alarm or Power button on the remote, or if you press the Multi-Function Control Wheel on top of the unit, then the snooze countdown will be cancelled.

DIGITAL RADIO (DAB/DAB+/DMB) MODE

Press and hold the Menu button on the remote to enter the main menu. Use the pq buttons and the Select button to change the items within the menu. Use the Back button to navigate back, or wait for 15 seconds until the timeout expires. An asterisk (*) indicates the shown menu item is currently set. Note: Upon entering Digital radio mode, if the Station list is empty, an auto scan will initiate.

1. AUTO SCAN: Searches the entire frequency range. If you move the Model 10+ to another

location, you must perform a new scan so the radio will find stations in the new location. To cancel the auto scan, press the Back button on remote.

2. TIVOLI EQ: Please refer to section marked “Menu and specific features”.

3. MANUAL TUNE: Press the pq buttons to manually tune specific DAB/DAB+/DMB

frequencies, then press Select to tune the displayed frequency.

4. DRC: Dynamic Range Control allows you change the sound level of stations to make

quiet passages louder to compensate for a noisy environment, or when listening at a low volume level.

5. ADVANCED MODE: If the Model 10+ is relocated to a different area, you may find stations

with the same name. If you enable “Advanced View”, “Long labels”, and “Show Ensemble” under Advanced Mode, you will be able to differentiate between extended station names. For DAB/DAB+, we suggest disabling all the Advanced Mode settings. For DMB, we suggest enabling them.

6. UPDATE LIST: If the Model 10+ is relocated to a different area, some stations may become

unavailable. Select “Update List” to remove unavailable stations from the Station list. Use the pq or tu buttons and the Select button to confirm (Yes) or deny (No) removing unavailable stations.

DAB DISPLAY MESSAGES

Secondary Services: Secondary stations will be indicated by a >> symbol next to the station name. Secondary services may not be available in your area.

?”: If this symbol appears next to the station name, it means the station is invalid or inactive. “Not Available”: Shown when tuning a DAB station with an insufficient signal.14 – ENGLISH

DIGITAL RADIO/FM RECEPTION

• The included external antenna will provide good reception. In strong FM signal locations, reducing the antenna’s length may provide better reception. If you are using the Model 10+ together with the optional Model 10 Speaker for stereo sound and you are listening to a noisy FM station, press the Mono button on the remote control, as this might make the FM station more listenable. The display will show an “M” when in mono and an “ST” when in stereo. This information will also be shown in FM mode when using the Info button on the remote. Buildings made with concrete, steel, or aluminum siding will hinder reception. Household appliances, electric blankets, computers, CD players, and other electronic devices can also adversely affect reception or inject noise. If you experience this, move the Model 10+ further from the offending device or plug it into an electrical outlet not shared by another device. Note: When moving the Model 10+ to another location where there may be different DAB stations from the previous location, it is recommended to perform a factory reset to initiate a new scan to refresh the DAB station list. RDS (FM BAND ONLY) The Radio Data System (RDS) transmits text data along with the audio broadcast. Not all FM stations utilize this service, thus text may not be present with some stations. For stations broadcasting RDS, the text still might not appear, or might appear scrambled if the signal is too weak. In such cases, experiment with the position of the FM antenna. If RDS is being received, repeatedly press the Info button to see the information available. Note RDS content is determined by each individual FM station. PLACEMENT Place the Model 10+ on a flat, stable surface. For proper bass and ventilation, do not obstruct the rear bass port. The Model 10+ is not video shielded and should be kept at minimum of 127mm away from a computer monitor or television set. Placement in a bookcase, cabinet, or close to walls or corners may inflate the bass, creating an unnatural sound. CLEANING Never use any harsh cleansers or solvents on your radio. Avoid spray-on waxes. A liquid wood polish usually yields best results. Painting or staining the wood cabinet will void your warranty. An important note about the wood cabinet: The variation in color and grain are characteristics of real wood and contribute to the cabinet’s natural beauty. The veneer for each cabinet is unique. As a result, the cabinet’s finish may not match other Tivoli Audio products. Depending on the veneer, you might also notice the wood darken over time with exposure to light. This is normal. It is also possible dyed veneers such as blue, red, etc., could fade from exposure to sunlight. This is not covered under the warranty.15 – ENGLISH LIMITED WARRANTY Tivoli Audio manufactures its products to very high standards and we are confident our products will perform well. Accordingly, we provide a limited warranty on this product against manufacturing defects in material and workmanship to the original owner. This warranty is non-transferable. Products purchased in the European Union and Norway have a minimum warranty term of two years. For countries where minimum warranty terms are determined by statute, the warranty term is the statutory period required. In all other locations, the warranty term is one year. This Limited Warranty covers the functionality of the product for its normal, intended use as speci- fied in this Owner’s Manual. It does not cover a malfunction or damage that has resulted from improper or unreasonable use or installation, using the charger to charge alkaline batteries, faulty ancillary equipment, modifications, unauthorized repair, shipping damage or loss, abuse, accidents, use on improper voltage/current, power surges, lightning or other acts of God, excess moisture, normal wear and tear, commercial use, or purchase from unauthorized dealers. Proof of purchase as evidence the unit was purchased from an authorized dealer may be required for warranty service. Please contact the dealer of purchase or local distributor for warranty service or repair. Please refrain from opening this product or taking it apart as doing so will void this Limited Warranty. There are no user serviceable parts inside. Tivoli Audio will not pay for costs incurred due to correction of reception problems, elimination of externally generated static/noise, loss of time, inconvenience, loss of use of product, or damage caused by improper use of this product. In the event the product is returned during the warranty term and is eligible for service under this Limited Warranty, we will repair or replace any defective parts within a reasonable period of time and free of charge. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS SUBJECT TO SPECIFIED CONDITIONS. YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH APPLY TO THE PRODUCT YOU HAVE ACQUIRED. THESE LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY. SOME PLACES DO NOT ALLOW THE EXCLUSION, RESTRICTION, OR MODIFICATION OF CERTAIN IMPLIED RIGHTS OR THEIR EFFECT. IN THOSE SITUATIONS THIS LIMITED WARRANTY WILL ONLY APPLY TO THE EXTENT THAT THE APPLICABLE LAW ALLOWS. The laws of your country may provide you with legal claims against the seller or manufacturer of this product. This Limited Warranty does not affect those rights. The provisions of the Limited Warranty are in lieu of any other warranties or conditions, except those provided by law. This Limited Warranty does not affect any legal rights provided to you by law and does not preclude any remedy you may have under law. In countries where liability limits are not precluded by statute, the maximum liability of Tivoli Audio shall not exceed the purchase price paid by you for the product. In countries where limitations of liability are precluded by law, Tivoli Audio shall be liable for no more than the direct damages for bodily injury, and/or real or personal property arising from the negligence of Tivoli Audio. Where not prohibited by law, Tivoli Audio shall not be liable for special, incidental, consequential, or indirect damages. Some places do not allow limitations on the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you. This Limited Warranty is void if the label bearing the serial number has been removed or defaced. If you purchased an extended service contract from your dealer and service is required after the term of this Limited Warranty has expired, please contact your extended service contract provider to obtain service.16 – ENGLISH For your convenience, you may register your product for warranty service online at our website, www.tivoliaudio.com. There is no legal obligation for you to provide personal information. However, such information allows us to maintain a record of the Tivoli Audio products acquired by you and better understand the purchasers of our products. The information collected will be used for marketing purposes by Tivoli Audio and, where permitted, to contact you in relation to the products you have acquired or other products which might be of interest to you from Tivoli Audio or other companies. The information that you provide may be processed in another country. For service, please contact your dealer or local distributor. SPECIFICATIONS: Model: Tivoli Audio Model 10+ Type: DAB/DAB+/DMB/FM clock radio Drivers: 3" full range Receiving bands: FM: 87.5-108MHz DAB (Band III)/DAB+/DMB: 174-240MHz (Receiving ranges vary by region) FM De-Emphasis: 50uSec or 75uSec (depending upon region) Dimensions: 202mm H x 117mm W x 117mm D (7.95"H x 4.61"W x 4.61"D) Weight: 1.58 kg (3.5 lbs.) All specifications subject to change without notice. Tivoli Audio reserves the right to make product changes without notice. Tivoli Audio, the Tivoli Audio logo, the Model 10+, and the Model 10 Speaker are trademarks of Tivoli Audio, LLC.17 – DANSK INDHOLDSFORTEGNELSE Sikkerhedsinstruktioner p. 18
• Introduktion; Om Tivoli Audio p. 20
• Guide til funktioner på frontpanel p. 20
• Guide til funktioner på bagpanel p. 21
• Fjernbetjening p. 22
• Menu og særlige funktioner p. 23
• Sådan indstilles alarm p. 25
• Alarm muligheder p. 26
• Digital radio (DAB/DAB+/DMB) p. 27
• Digital Radio / FM Modtagelse; RDS; Placering; Rengøring p. 27
• Garanti p. 28
• Specifikationer DAB/DAB+/DMB/FM Clock Radio18 – DANSK vIGtIGe SIKKerHeDSInStruKtIoner: p. 29

1. 12VDC/1000mA: Inngang for 1A sik-
