DHP 547USB - Cd player/recorder Trevi - Free user manual and instructions
Find the device manual for free DHP 547USB Trevi in PDF.
| Product type | CD player/recorder with AM/FM radio, USB and SD |
| Brand | Trevi |
| Model | DHP 547USB |
| Power supply | 230 V~50 Hz or 8 C (UM2) batteries not included |
| Power consumption | 18 W |
| Maximum output power | 2 W + 2 W |
| Speakers | 8 ohms |
| CD section | Semiconductor laser (790 nm), 16-bit quantization, signal-to-noise ratio 60 dB |
| Radio bands | FM 87.5 – 108 MHz, AM 540 – 1600 kHz |
| Main functions | CD/MP3 playback, USB, SD, AM/FM radio, programming (up to 20 audio CD tracks, 99 MP3), repeat, random play, clock, pause |
| Maintenance and cleaning | Soft cloth slightly dampened, avoid solvents or abrasive substances |
| Safety | Do not open the device (risk of electric shock), do not block ventilation slots, avoid moisture and heat sources |
| Spare parts and repairability | Contact the TREVI authorized service center |
| General information | High-precision electronic device; avoid vibrations, dust, high humidity |
Frequently Asked Questions - DHP 547USB Trevi
User questions about DHP 547USB Trevi
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cd player/recorder in PDF format for free! Find your manual DHP 547USB - Trevi and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DHP 547USB by Trevi.
USER MANUAL DHP 547USB Trevi

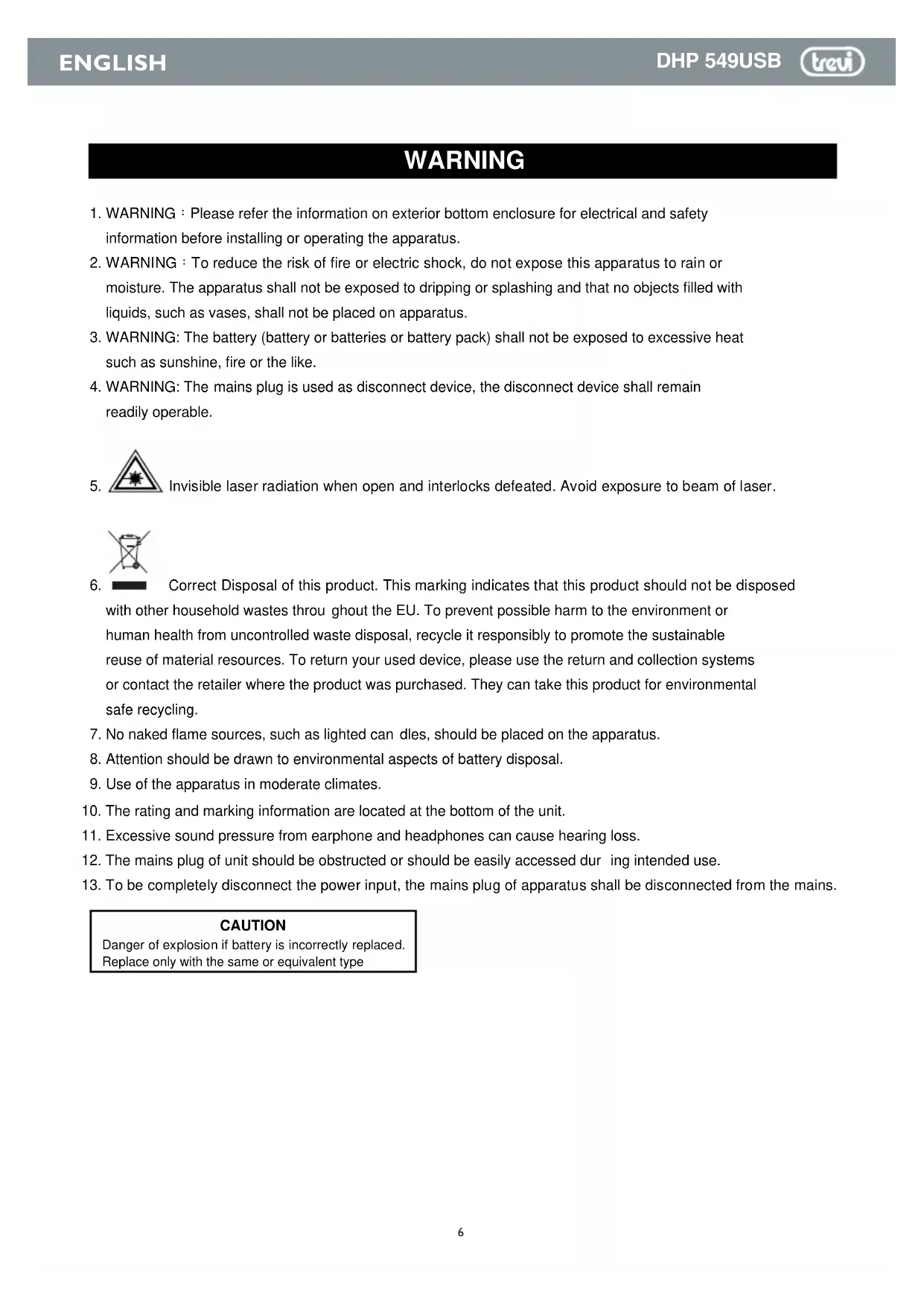

- WARNING : Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
- WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
- WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
- WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.
- Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
- No naked flame sources, such as lighted can dles, should be placed on the apparatus.
- Attention should be drawn to environmental aspects of battery disposal.
- Use of the apparatus in moderate climates.
- The rating and marking information are located at the bottom of the unit.
- Excessive sound pressure from earphone and headphones can cause hearing loss.
- The mains plug of unit should be obstructed or should be easily accessed during intended use.
- To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
WARNING
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
LIGHTNING FLASH WITH ARROWHEAD SYMBOL - within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.
The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:
CLASS 1 LASER PRODUCT LABEL -
This label is attached to the place as illustrated to inform that the apparatus contains a laser component.
WARNING LABEL INFORMING OF RADIATION -
This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.
SAFETY INSTRUCTIONS
- READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
- RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
- HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
- FOLLOW INSTRUCTIONS - All operating instructions should be followed.
- WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, .tnemesab tew a ni ro loop gnimmiws ,butyrdnual ,kinehdti
- VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
- HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
- POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance e.
- POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
- POWER LINES - An outdoor antenna should be located away from power lines.
- OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
- ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
- DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.
- SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.
Notes:
a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.
BEFORE OPERATION
Notes: CONCERNING COMPACT DISCS.
Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:
a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

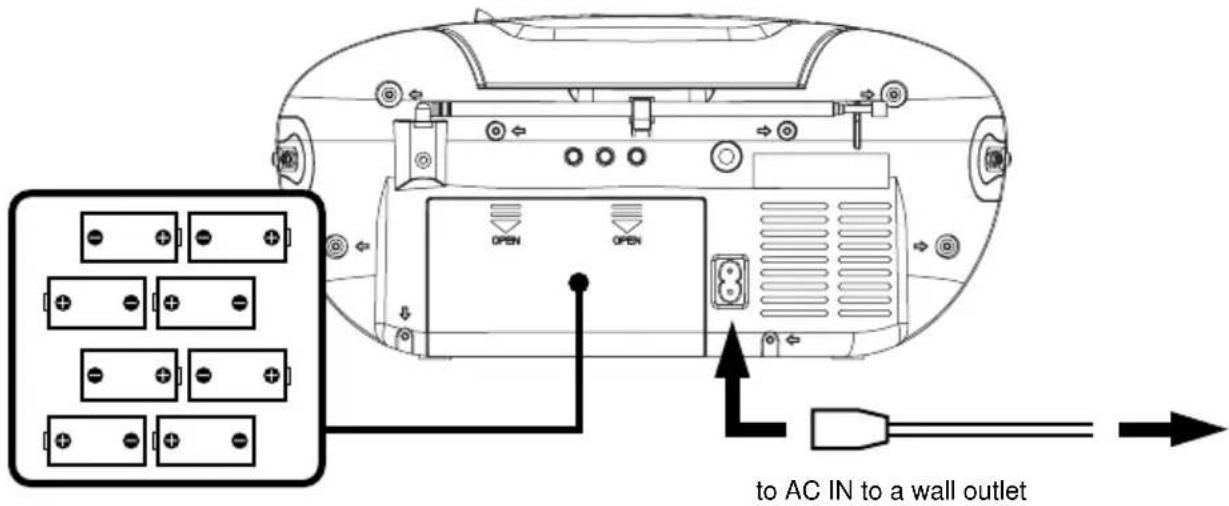

POWER SOURCES
Insert 8 × C size batteries into the battery compartment
AC POWER
You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.
BATTERY POWER
Insert 8 × "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
Notes:
- Use batteries of the same type. Never use different types of batteries together.
- To use the appliance with batteries, disconnect the AC power cord from it.

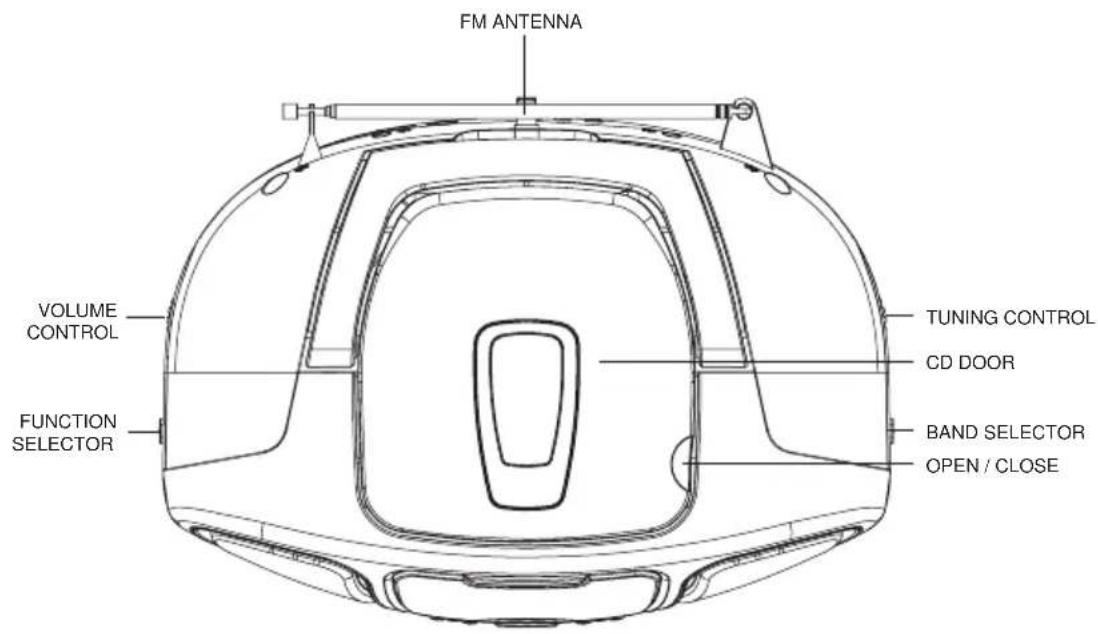

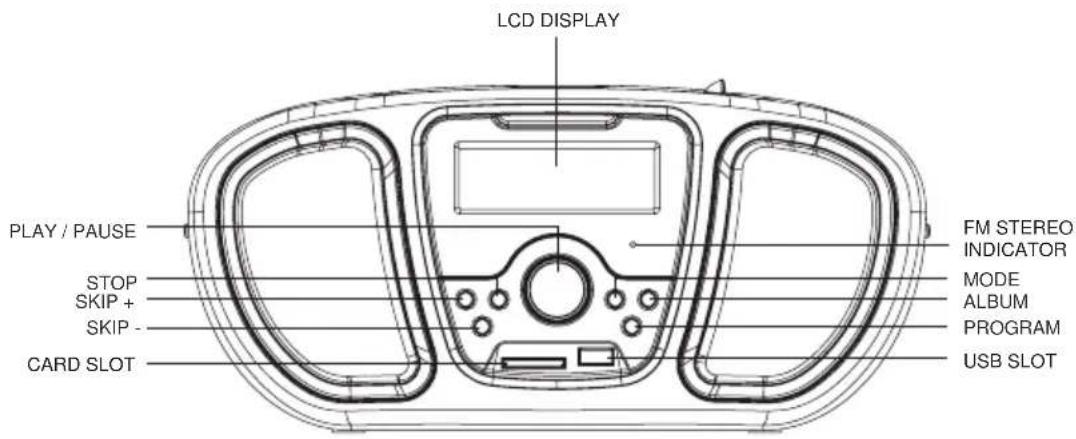

LOCATION OF CONTROL
RADIO OPERATION
GENERAL OPERATION
- Set the "FUNCTION" selector to "RADIO" mode.
- Select desired band by using the "BAND" selector.
- Adjust radio frequency to your desired station by using the "TUNING" control.
- Adjust the "VOLUME" control to the desired level.
FM / FM-STEREO RECEPTION
- Set the "BAND" selector to FM mode for MONO reception.
- Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

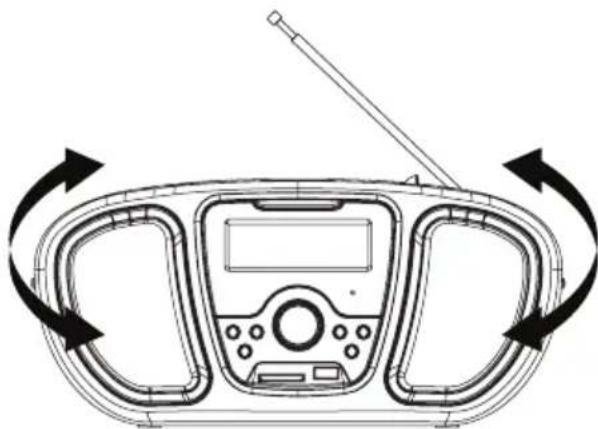

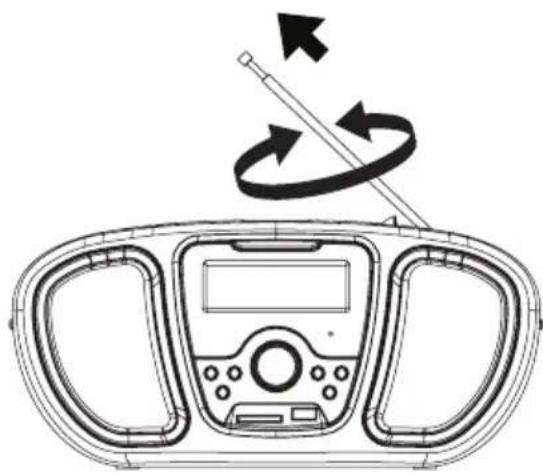

FOR BETTER RECEPTION
- Reorient the antenna for better reception.
- Reorient the appliance to get better AM reception.
CD / MP3 OPERATION
GENERAL OPERATION
PLAY/PAUSE to start playing CD / MP3 disc.
Press again to stop playing CD / MP3 operation temporarily.
Press again to resume playback.
SKIP +▶Press to go to the next track or back to the previous track.
SKIP - Press and hold while playing until you find the point of the sound.
STOP Press to stop all CD / MP3 operation.
PLAYBACK
- Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
- Open the CD door and place a CD / MP3 disc with the label up on the CD compartment.
- Close the CD door.
- Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
- Playback will start automatically from the first track.
- Adjust the "VOLUME" control to the desired level.
- Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
- Press the "STOP" button when finished.
CD / MP3 OPERATION
PROGRAM
Up to 20 tracks of CD disk, 99 tracks of MP3 disc can be programmed for disc play in any order. Be sure to press the "STOP" button before use.
- Press the "PROGRAM" button, the display will show "P01" and flash.
- Select desired track by using the "SKIP +" or "SKIP -" button. (You may select a desired album by pressing "ALBUM" button for MP3 disc.)
- Press the "PROGRAM" button again to confirm desired track into the program memory.
- Repeat step 2 and 3 to enter additional tracks into the program memory.
- When all the desired tracks have been programmed, press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
- Press the "STOP" button twice to terminate programmed playback.

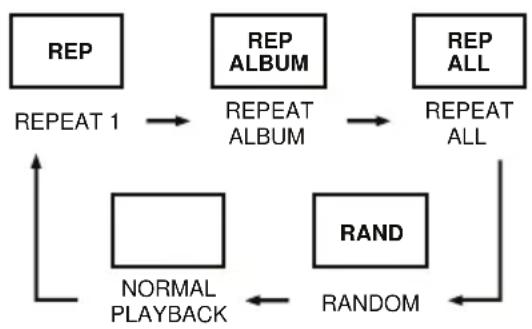

MODE
Press the "MODE" button before or during playing CD / MP3 disc, each press switches the mode function as follows:
1 - REPEAT 1
2 - REPEAT ALBUM (*MP3 ONLY)
3 - REPEAT ALL
4 - RANDOM
5-NORMAL PLAYBACK
USB / SD OPERATION
GENERAL OPERATION
PLAY / PAUSE Prbs to start playing tracks from the USB / SD card.
Press again to stop playing USB / SD operation temporarily.
Press again to resume playback.
SKIP +▶& Press to go to the next track or back to the previous track.
SKIP - I Press and hold while playing until you find the point of the sound.
STOP Press to stop all USB / SD operation.
PLAYBACK
- Plug or slot in USB / SD card device to the port.
- Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
- It will read and automatic playing USB / SD card, if no disc on disc tray.
- It will read and automatic playing DISC, if have disc on disc tray.
- Press and hold the "PLAY / PAUSE" button for a few seconds to entry USB / SD mode.
- Press and hold the "STOP" button for a few seconds to change play USB or SD card.
PROGRAM, MODE
The operation of PROGRAM, MODE are as the same as that of CD / MP3. Please refer to CD / MP3 OPERATION.
OTHER FEATURES

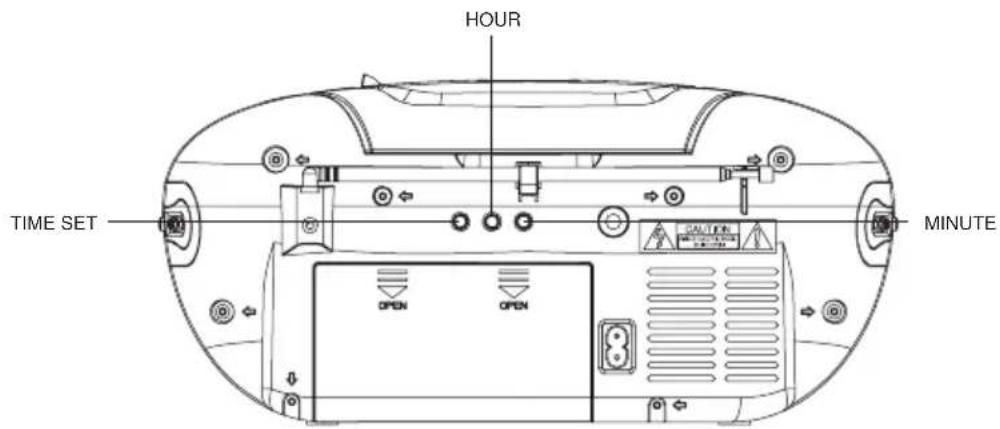

CLOCK SETTING
To adjust clock setting, make sure in CD mode.
- Press the "TIME SET" button. (Do not release "TIME SET" button during time setting)
- Press the "HOUR" button to set hour.
- Press the "MINUTE" button to set minute.
- Release all button to confirm setting. Confirmed setting will appear on the display.
VOLTAGE DANGEREUX
Dimensions: 300x150x220mm
△aσταεις 300x150x220mm
Hxεia: 8 ohm
TMHMA CD
Precautions for correct disposal of the product.
The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.
The user must take the product to special "separate waste collection centres" provided by local government, or deliver it to the retailer against the purchase of a new product.
Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.
Illegal disposal of the product leads to the enforcement of administrative penalties.
WARNING:DO NOT OPEN THE SET. NEITHER CONTROLS OR SPAREPARTS TO BEUSED BY THE USER ARE TO BEFOUND INSIDE IT. APPLY TO AUTHISED TREVI CENTERS FOR SERVICE OPERATIONS.
ATTENTION
RISQUE DE DECHARGES ELECTRIQUES
NE PAS EXPOSER A LA PLUIE ET A
L'HUMIDITE
ATTENTION:NEPASOLVIRLAPPAREIL,AL'INTEREILN,N'YAPASDECOMMANDESAMANIPULERPAR L'UTILISATEUROUPEPIECESDEREHANGEPOURTOUTESLESOPERATIONSDESERVICEILFAUTSADRESSER AUN SERVICED'ASSISTANCEAUTORISETREVI.
ACHTUNG
WIRE CONNECTIONS TO A UK THREE-PIN PLUG
The wires in this mains lead are coloured in accordance with the following wiring codes:
Blue: Neutral
Brown: Live
The wires in this mains lead must be connected to the terminals in the plug as follows:
Blue wire: N or Black
Brown wire: L or Red
Neither wire is to be connected to the earth (E or W) terminal of three-pin plug. Should the fuse fail in the plug remove the plug form the wall socket and replace the fuse with a 3 Amp. ASTA approved BS 1362 fuse.
