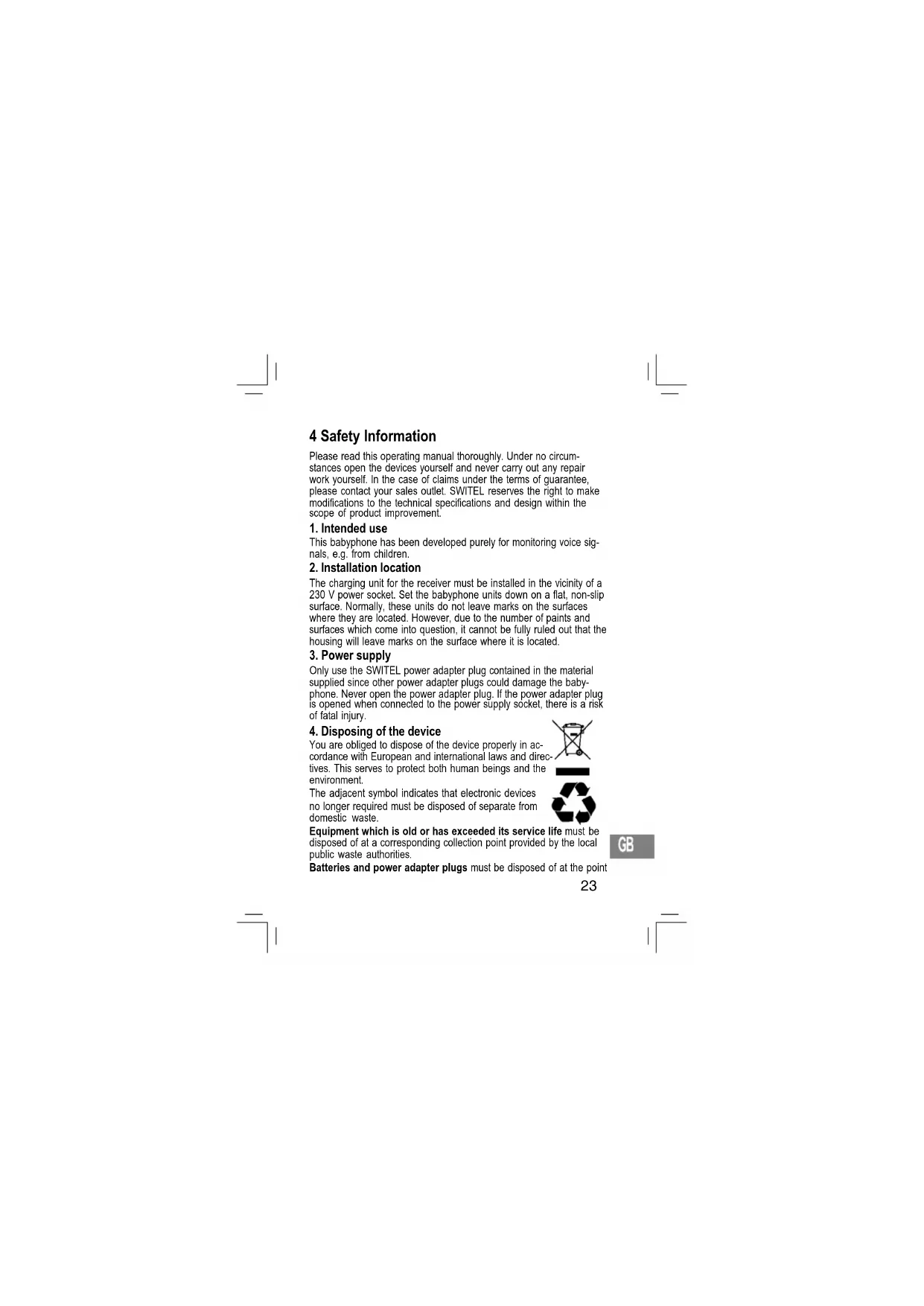

4 Sicherheitsinformation

Please read this operating manual thoroughly. Under no circumstances open the devices yourself and never carry out any repair work yourself. In the case of claims under the terms of guarantee, please contact your sales outlet. SWITEL reserves the right to make modifications to the technical specifications and design within the scope of product improvement.

1. Intended use

This babyphone has been developed purely for monitoring voice signals, e.g. from children.

2. Installation location

The charging unit for the receiver must be installed in the vicinity of a 230V power socket. Set the babyphone units down on a flat, non-slip surface. Normally, these units do not leave marks on the surfaces where they are located. However, due to the number of paints and surfaces which come into question, it cannot be fully ruled out that the housing will leave marks on the surface where it is located.

3. Power supply

Only use the SWITEL power adapter plug contained in the material supplied since other power adapter plugs could damage the babyphone. Never open the power adapter plug. If the power adapter plug is opened when connected to the power supply socket, there is a risk of fatal injury.

4. Disposing of the device

You are obliged to dispose of the device properly in accordance with European and international laws and directives. This serves to protect both human beings and the environment.

The adjacent symbol indicates that electronic devices no longer required must be disposed of separate from domestic waste.

Equipment which is old or has exceeded its service life must be disposed of at a corresponding collection point provided by the local public waste authorities.

Batteries and power adapter plugs must be disposed of at the point

GB

of sale or at a corresponding collection point provided by the local public waste authorities.

Packing materials must be disposed of according to the applicable local regulations.

5. Important

• Check the sound reception before putting the remote babyphone units into operation. This also checks whether the units have been placed out of range of each other. The sound transmission should be controlled at regular intervals: Let an adult speak quietly into the transmitter unit. It should be possible to hear the sound made in the baby's room clearly on the "receiver unit" (unit for the adults) in another room.
• During operation, do not place the transmitter and receiver units too close to each other. The units could resonate or interference noise could be produced.
• If you use a power adapter plug, do not position it in the vicinity of the baby but on a window sill or another location where the baby cannot reach it.
• Under no circumstances should the power adapter plug be connected with other equipment. Adapters for other products are not suitable for this system.
• Battery power, walls, radio waves and local characteristics can affect the range of the devices. To achieve a better performance, switch to a different channel or position the receiver unit nearer to the transmitter unit.
• Do not place the transmitter unit in the bathroom (near a bathtub).

5 Functions

Congratulations on having purchased our wireless babyphone. It contains a transmitter unit, a receiver unit and two power adapter plugs as illustrated in Fig. 1.

1. Wireless HF transmission
2. 2-channel selection
3. Voice-activated transmission with sensitivity control

4. Transmitter unit with night light (on/off selection)

5. Transmitter unit with 9 V power adapter plug (contained in the material supplied) or with a 9 V battery.

6. Receiver unit with 9 V power adapter plug (contained in the material supplied) or with a 9 V battery.
7. Receiver unit with volume control
8. Low power consumption and low HF radiation
9. Receiver unit with belt clip

6 Starting Up

1. Inserting the batteries

Only use batteries bearing the CE certificate.

• Open the battery compartment as illustrated in Fig. II.

• Insert a 9 V battery in both the transmitter unit and the receiver unit, paying attention to the correct polarity.

• Close the battery compartment.

The batteries need not be removed from the transmitter/receiver unit when they are operated using the power adapter plugs.

2. Operating using the power adapter plug

Only use adapters which bear a CE certificate.

• Connect the power adapter plug to the 9 VDC jack on the transmitter unit and to the power socket.
• Connect the power adapter plug to the 9 VDC jack on the receiver unit and to the power socket.
  -Set the channel selector on the transmitter and receiver units to the same channel (A or B).

GB

If you do not intend to use the units for a longer period of time, remove all the batteries. Otherwise, they could leak.
- It is recommended to use the 9 V power adapter plugs for both units.
If both units are equipped with batteries and the adapter plugs are connected to both, the units only operate via the batteries following a power failure when the adapter plugs are disconnected from the transmitter and receiver units.

7 Operation

1. Transmitter unit

• Ensure that the power adapter plug is connected or the battery has been inserted properly.
• Position the transmitter unit near the baby and ensure that the microphone is pointing towards the baby to enable optimum transmission. (Fig. III).

sure that the unit is out of reach of the baby. Never place the unit in the baby's bed or playpen!

• When the microphone integrated in the transmitter unit detects noises (range 1 to 2m ), it automatically starts to transmit signals to the receiver unit. When no further noise is detected, transmission is stopped.

2. Receiver unit

• Ensure that the power adapter plug is connected or the battery has been inserted properly.
• Place the receiver unit near the supervising adults (Fig. III).
• Move the loudspeaker control to the required setting.
  If a sound signal is sent by the transmitter unit, the receiver is activated and transmits the sounds received.
  A few seconds after the device has no longer received acoustic signals, the receiver automatically switches back to energy-saving mode.

3. Channel selection

Each of the units is equipped with a channel selector switch (OFF, A or B) for the transmission of the radio signals. If reception is poor or interference occurs in the radio signals, select the other channel for optimum transmission.

Ensure that both units are set to the same channel.

4. Optimising the sensitivity of voice-activation

• Set the sensitivity control to a suitable position on the transmitter unit.

5. Belt clip

The receiver unit is equipped with a belt clip.

8 Troubleshooting

1. No power

The device is switched off. Switch the device to position A or B using the OFF / A / B switch.
- Ensure that the batteries have been inserted correctly.
- Check that the power plug is correctly connected to the device.

2. No acoustic signal

Volume control on the receiver is set too low. Set a higher volume.

Sensibility control on the transmitter is set too low. Set a higher sensibility.

• The devices are out of range. Reduce the distance between the transmitter and receiver units.

• Check that both devices are set to the same channel.

3. Interference noise can be heard from the receiver

• Check that both devices are set to the same channel.

• Reduce the distance between the transmitter and receiver units.

4. Other voices or noises are received

GB

• Signal disturbances resulting from other babyphones transmitting on the same channel or through cordless phones. Change channel to reduce interference.

5. High tones (acoustic feedback)

• Receiver and transmitter are too close together. Increase the distance between the transmitter and receiver units.

The sensibility is too high. Reduce the transmitter sensibility setting.

9 Technical Specifications

1. Power supply

-Transmitter (unit for baby) / Receiver (unit for adult) 9 V battery or

• Power adapter plug AC 230 V / DC 9 V, 150 mA, 1.35 VA (socket, center positive (+))

2. Channel

-2 channels Channel A = 40.695 MHz, Channel B = 40.665 MHz

3. Operating range

• Up to 150 meters under ideal conditions
