USER MANUAL LEDJ014DP LEXIBOOK

1xDJ014 digital camera/1xUSB cable/1xhand strap/1xCD-ROM/1x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of

this product and should be discarded for your child’s safety.

INSERTING NEW BATTERIES

1. Make sure the camera is off.

2. Using a screwdriver, open the battery door located under the unit.

3. Insert 2 x AAA/LR03 1,5V type batteries (not included) observing the polarity

indicated inside the battery compartment and as per the diagram shown opposite.

4. Close the battery compartment and tighten the screw.

GETTING TO KNOW YOUR CAMERA

1. Shutter/Set button

2. Optical viewnder

7. Power on/off button

8. Battery compartment

9. Tripod hole (tripod not included)

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed

from the product before being charged. Rechargeable batteries are only to be charged under

adult supervision. Different types of batteries or new and used batteries are not to be mixed.

Only batteries of the same or equivalent type as recommended are to be used. Batteries are to

be inserted with the correct polarity. Exhausted batteries are to be removed from the product.

The supply terminals are not to be short circuited. Do not throw batteries into a re. Remove the

batteries if you are not going to use the product for a long period of time.

WARNING: Mal-function or loss of memory may be caused by strong frequency interference or

electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them

Important note: all the les stored into the unit’s internal memory will be lost when replacing the

batteries. Make sure you transfer the les to your computer before changing the batteries.

DJ014seriesIM1112_15Mar_V02.indb 9 15/03/2012 3:15 PM10

ENGLISH TAKING PHOTOS Single shooting

You are already in “Single shooting” mode when you switch on the camera. Press the shutter button

to take a photo. The camera will beep to conrm that a picture is taken. The number of pictures that

you can take in memory is shown on the LCD screen.

1. When you are in “Single shooting” mode, press the MODE button repeatedly until the “Continuous

shooting” mode icon is displayed in the upper-right corner of the screen. Press the shutter

button within the next 5 seconds to take 3 pictures continuously.

Note: When the camera’s built-in memory is full, the unit will play a double “beep” sound when you

press the shutter button to indicate that you can’t take any new pictures.

1. In “Single shooting” mode, press repeatedly the MODE button repeatedly until the “Self-timer”

icon appears on the LCD screen. Then press the shutter button within 5 seconds to turn on the

self-timer function.

2. The digital camera will take a picture 10 seconds later.

Note: The self-timer feature is automatically turned off after the picture has been taken.

CAPTURING VIDEO CLIPS

1. Switch on the camera and press the MODE button repeatedly until the video icon is

displayed on screen.

2. Press and hold the shutter button to start shooting a video.

3. Release the shutter button to stop recording and automatically save the video in AVI format.

DELETING PHOTOS Deleting the last photo taken

Turn on the unit then press repeatedly the MODE button until the icon is displayed on the

screen. Within 5 seconds, press the shutter button to delete the last photo taken.

Turn on the unit then press repeatedly the MODE button until the icon is displayed on the

screen. Within 5 seconds, press the shutter button to delete all the photos stored in the camera’s

TURNING THE CAMERA ON AND OFF

1. Press the Power on/off button to turn the camera on. The camera will make a beep sound to

conrm that it is ready for use.

2. Press and hold the Power on/off button for a few seconds again to turn it off.

Note : The camera will auto power off after 30 seconds of inactivity.

1. Insert the CD Software (included) into your CD-ROM drive.

2. In the main menu, click “Install MAGIX Photo Manager 10” and wait during the extraction.

3. Select your language and click “OK”.

4. “The MAGIX Photo Manager 10 conguration” window displays. Follow the onscreen instructions

and press “Install” to begin the installation.

5. Once you have nished installing, the “MAGIX Photo Manager 10” shortcut will appear on the desk

6. To start using “MAGIX Photo Manager 10”, double click on the shortcut. The pictures taken with the

camera automatically appear on the home screen.

System requirements (minimum conguration): Microsoft® Windows® 2000 XP I Vista® I 7. PC

with Intel® Pentium® or AMD® Athlon® 700 MHz or higher, 256 MB RAM, 120 MB hard disk space

for program les, SVGA graphics card with min. 4 MB RAM, (min. resolution 1024 x 600, 16-bit high-

color), Microsoft® compatible mouse.

Note: To enjoy unlimited use of “MAGIX Photo Manager 10” and “MAGIX Video easy SE”, you need

INSTALLING THE VIDEO SOFTWARE (Magix Video easy SE)

INSTALLING THE PHOTO SOFTWARE (Magix Photo Manager 10)

1. Insert the CD Software (included) into your CD-ROM drive.

2. In the main menu, click “Install MAGIX Video easy SE” and wait during the extraction.

3. Follow the onscreen instructions and press “Install” to begin the installation.

4. To launch “Magix Video easy SE” double clik on the shortcut.

System requirements:Intel® Pentium 4 or AMD® Athlon® 1 GHz and higher, 512 MB RAM, 400

MB free hard disk memory and a DVD drive for program installation, graphics card with a screen

resolution of at least 1024 x 768, sound card.

Supported devices: Video, TV, or graphics cards with video input.

SELECTING THE PHOTO RESOLUTION In “Single shooting” mode, press repeatedly the MODE button until one of the resolution icons is

displayed on the screen. Then press the shutter button to change the resolution.

There are 2 resolution modes:

High resolution (640x480 pixels, default mode) / Low resolution (320x240 pixels).

DJ014seriesIM1112_15Mar_V02.indb 10 15/03/2012 3:15 PM11

ENGLISH TAKING PHOTOS Single shooting

You are already in “Single shooting” mode when you switch on the camera. Press the shutter button

to take a photo. The camera will beep to conrm that a picture is taken. The number of pictures that

you can take in memory is shown on the LCD screen.

1. When you are in “Single shooting” mode, press the MODE button repeatedly until the “Continuous

shooting” mode icon is displayed in the upper-right corner of the screen. Press the shutter

button within the next 5 seconds to take 3 pictures continuously.

Note: When the camera’s built-in memory is full, the unit will play a double “beep” sound when you

press the shutter button to indicate that you can’t take any new pictures.

1. In “Single shooting” mode, press repeatedly the MODE button repeatedly until the “Self-timer”

icon appears on the LCD screen. Then press the shutter button within 5 seconds to turn on the

self-timer function.

2. The digital camera will take a picture 10 seconds later.

Note: The self-timer feature is automatically turned off after the picture has been taken.

CAPTURING VIDEO CLIPS

1. Switch on the camera and press the MODE button repeatedly until the video icon is

displayed on screen.

2. Press and hold the shutter button to start shooting a video.

3. Release the shutter button to stop recording and automatically save the video in AVI format.

DELETING PHOTOS Deleting the last photo taken

Turn on the unit then press repeatedly the MODE button until the icon is displayed on the

screen. Within 5 seconds, press the shutter button to delete the last photo taken.

Turn on the unit then press repeatedly the MODE button until the icon is displayed on the

screen. Within 5 seconds, press the shutter button to delete all the photos stored in the camera’s

TURNING THE CAMERA ON AND OFF

1. Press the Power on/off button to turn the camera on. The camera will make a beep sound to

conrm that it is ready for use.

2. Press and hold the Power on/off button for a few seconds again to turn it off.

Note : The camera will auto power off after 30 seconds of inactivity.

1. Insert the CD Software (included) into your CD-ROM drive.

2. In the main menu, click “Install MAGIX Photo Manager 10” and wait during the extraction.

3. Select your language and click “OK”.

4. “The MAGIX Photo Manager 10 conguration” window displays. Follow the onscreen instructions

and press “Install” to begin the installation.

5. Once you have nished installing, the “MAGIX Photo Manager 10” shortcut will appear on the desk

6. To start using “MAGIX Photo Manager 10”, double click on the shortcut. The pictures taken with the

camera automatically appear on the home screen.

System requirements (minimum conguration): Microsoft® Windows® 2000 XP I Vista® I 7. PC

with Intel® Pentium® or AMD® Athlon® 700 MHz or higher, 256 MB RAM, 120 MB hard disk space

for program les, SVGA graphics card with min. 4 MB RAM, (min. resolution 1024 x 600, 16-bit high-

color), Microsoft® compatible mouse.

Note: To enjoy unlimited use of “MAGIX Photo Manager 10” and “MAGIX Video easy SE”, you need

INSTALLING THE VIDEO SOFTWARE (Magix Video easy SE)

INSTALLING THE PHOTO SOFTWARE (Magix Photo Manager 10)

1. Insert the CD Software (included) into your CD-ROM drive.

2. In the main menu, click “Install MAGIX Video easy SE” and wait during the extraction.

3. Follow the onscreen instructions and press “Install” to begin the installation.

4. To launch “Magix Video easy SE” double clik on the shortcut.

System requirements:Intel® Pentium 4 or AMD® Athlon® 1 GHz and higher, 512 MB RAM, 400

MB free hard disk memory and a DVD drive for program installation, graphics card with a screen

resolution of at least 1024 x 768, sound card.

Supported devices: Video, TV, or graphics cards with video input.

SELECTING THE PHOTO RESOLUTION In “Single shooting” mode, press repeatedly the MODE button until one of the resolution icons is

displayed on the screen. Then press the shutter button to change the resolution.

There are 2 resolution modes:

High resolution (640x480 pixels, default mode) / Low resolution (320x240 pixels).

DJ014seriesIM1112_15Mar_V02.indb 11 15/03/2012 3:15 PM12

ENGLISH WEBCAM MODE Connected to your PC, your camera can be used as a webcam.

1. Connect the video camera to your computer using the USB cable provided.

2. Open the “Dual Mode Camera” folder on the desktop, then double-click the “PCCam” icon » to

view the real-time images taken by the webcam.

Instant messaging (chat)

You can use your camera as a webcam with your instant messaging client (Yahoo Messenger, MSN Messenger, Skype…).

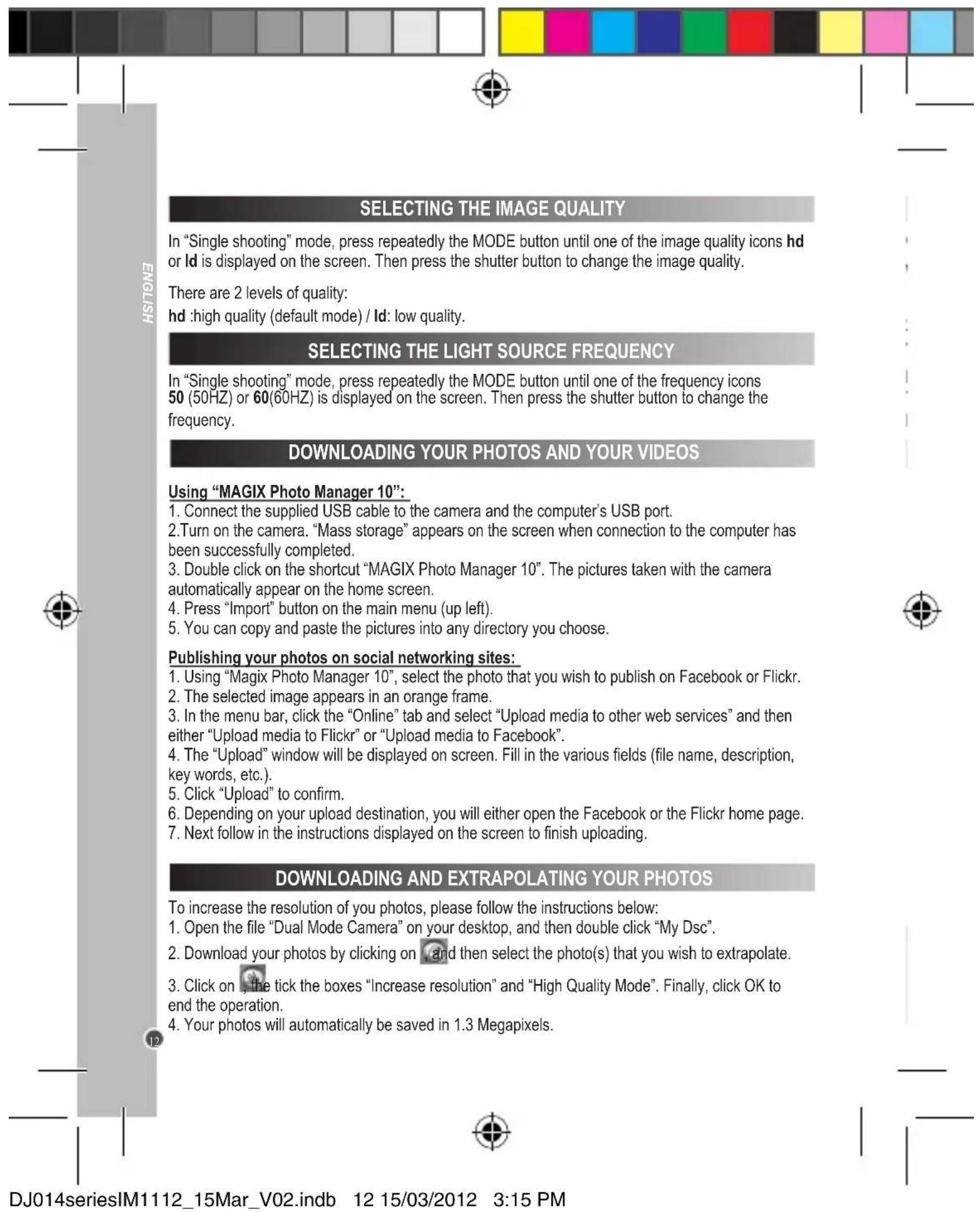

DOWNLOADING AND EXTRAPOLATING YOUR PHOTOS MAINTENANCE AND WARRANTY SELECTING THE IMAGE QUALITY In “Single shooting” mode, press repeatedly the MODE button until one of the image quality icons hd

or ld is displayed on the screen. Then press the shutter button to change the image quality.

There are 2 levels of quality:

hd :high quality (default mode) / ld: low quality.

SELECTING THE LIGHT SOURCE FREQUENCY In “Single shooting” mode, press repeatedly the MODE button until one of the frequency icons

50 (50HZ) or 60(60HZ) is displayed on the screen. Then press the shutter button to change the

To increase the resolution of you photos, please follow the instructions below:

1. Open the le “Dual Mode Camera” on your desktop, and then double click “My Dsc”.

2. Download your photos by clicking on , and then select the photo(s) that you wish to extrapolate.

3. Click on , the tick the boxes “Increase resolution” and “High Quality Mode”. Finally, click OK to

4. Your photos will automatically be saved in 1.3 Megapixels.

DOWNLOADING YOUR PHOTOS AND YOUR VIDEOS Using “MAGIX Photo Manager 10”:

1. Connect the supplied USB cable to the camera and the computer’s USB port.

2.Turn on the camera. “Mass storage” appears on the screen when connection to the computer has

been successfully completed.

3. Double click on the shortcut “MAGIX Photo Manager 10”. The pictures taken with the camera

automatically appear on the home screen.

4. Press “Import” button on the main menu (up left).

5. You can copy and paste the pictures into any directory you choose.

Publishing your photos on social networking sites:

1. Using “Magix Photo Manager 10”, select the photo that you wish to publish on Facebook or Flickr.

2. The selected image appears in an orange frame.

3. In the menu bar, click the “Online” tab and select “Upload media to other web services” and then

either “Upload media to Flickr” or “Upload media to Facebook”.

4. The “Upload” window will be displayed on screen. Fill in the various elds (le name, description,

5. Click “Upload” to conrm.

6. Depending on your upload destination, you will either open the Facebook or the Flickr home page.

7. Next follow in the instructions displayed on the screen to nish uploading.

DJ014seriesIM1112_15Mar_V02.indb 12 15/03/2012 3:15 PM13

ENGLISH WEBCAM MODE Connected to your PC, your camera can be used as a webcam.

1. Connect the video camera to your computer using the USB cable provided.

2. Open the “Dual Mode Camera” folder on the desktop, then double-click the “PCCam” icon » to

view the real-time images taken by the webcam.

Instant messaging (chat)

You can use your camera as a webcam with your instant messaging client (Yahoo Messenger, MSN Messenger, Skype…).

DOWNLOADING AND EXTRAPOLATING YOUR PHOTOS MAINTENANCE AND WARRANTY Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not expose the unit to

direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop

the unit. Do not try to twist or bend the unit.

NOTE: Please keep this instruction manual, it contains important information. This product is covered

by our 2-years warranty. For any claim under the warranty or after sale service, please contact your

distributor and present a valid proof of purchase. Our warranty covers any manufacturing material

and workmanship defect, with the exception of any deterioration arising from the non-observance of

the instruction manual or from any careless action implemented on this item (such as dismantling,

exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further

In a bid to keep improving our services, we could implement modication on the colours and the

details of the product shown on the packaging.

Reference: DJ014series

Designed and developed in Europe – Made in China

United Kingdom & Ireland

For any further information, please call:

http://www.lexibook.com

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with

regular household waste! Please actively support the conservation of resources and help

protect the environment by returning this appliance to a collection centre (if available).

This product is not a toy.

SELECTING THE IMAGE QUALITY In “Single shooting” mode, press repeatedly the MODE button until one of the image quality icons hd

or ld is displayed on the screen. Then press the shutter button to change the image quality.

There are 2 levels of quality:

hd :high quality (default mode) / ld: low quality.

SELECTING THE LIGHT SOURCE FREQUENCY In “Single shooting” mode, press repeatedly the MODE button until one of the frequency icons

50 (50HZ) or 60(60HZ) is displayed on the screen. Then press the shutter button to change the

DOWNLOADING YOUR PHOTOS AND YOUR VIDEOS Using “MAGIX Photo Manager 10”:

1. Connect the supplied USB cable to the camera and the computer’s USB port.

2.Turn on the camera. “Mass storage” appears on the screen when connection to the computer has

been successfully completed.

3. Double click on the shortcut “MAGIX Photo Manager 10”. The pictures taken with the camera

automatically appear on the home screen.

4. Press “Import” button on the main menu (up left).

5. You can copy and paste the pictures into any directory you choose.

Publishing your photos on social networking sites:

1. Using “Magix Photo Manager 10”, select the photo that you wish to publish on Facebook or Flickr.

2. The selected image appears in an orange frame.

3. In the menu bar, click the “Online” tab and select “Upload media to other web services” and then

either “Upload media to Flickr” or “Upload media to Facebook”.

4. The “Upload” window will be displayed on screen. Fill in the various elds (le name, description,

5. Click “Upload” to conrm.

6. Depending on your upload destination, you will either open the Facebook or the Flickr home page.

7. Next follow in the instructions displayed on the screen to nish uploading.

DJ014seriesIM1112_15Mar_V02.indb 13 15/03/2012 3:15 PM14

(Upload media to Facebook).

(Upload media to Facebook).

7. Tasto ACCENSIONE (on/off)
