Product type	Steam generator with iron
Brand	Hoover
Model	SRP 41051
Power supply	220-240 V, 50-60 Hz
Rated power	Approximately 2200 W
Water tank capacity	Approximately 1.5 L (removable)
Continuous steam autonomy	Up to 2 hours
Boiler pressure	High pressure (not specified)
Steam technology	Multi Steam Technology: Diffuse Caresse, Profound Care, Precise Power
Soleplate temperature adjustment	Dial with positions •, ••, •••/Max
Special functions	Dry ironing, steam, vertical steam, steam lock (pro model), automatic shut-off after 10 min
Safety	Automatic shut-off, empty tank indicator, boiler rinse indicator, anti-scale protection
Recommended water type	Tap water; if very hard, mix 50% distilled water
Maintenance	Rinse boiler every 2 months or when indicator flashes; clean soleplate with non-metallic damp sponge
Approx. dimensions (L x w x h)	30 x 25 x 30 cm
Approx. weight	4 kg
Cord length	Approximately 2 m
Steam hose length	Approximately 1.5 m
Included accessories	Iron, base with tank, support mat, locking system, transport handle
Spare parts	Available from Hoover retailers; always use original parts
Warranty	According to the conditions of the selling country
Standards	IMQ certification (safety), ISO 9001 (quality)
Environment	Compliant with WEEE (2002/96/EC); do not dispose of with household waste

Frequently Asked Questions - SRP 41051 HOOVER

What type of water should I use in the Hoover SRP 41051 steam generator?

Use tap water. If the water is very hard, mix 50% distilled water with 50% tap water. Never use pure distilled water, vinegar, perfume, or other additives, as this could damage the appliance.

How do I rinse the boiler to remove limescale?

Wait until the rinse indicator (1E) flashes or every two months. Turn off and unplug the appliance, allow it to cool for 2 hours. Remove the descaling plug, unscrew the valve with a coin, pour 0.2 L of tap water into the boiler, shake, and empty completely. Repeat twice. Screw the valve back on and replace the plug. Next time you power on, press the rinse indicator to reset.

What should I do if the empty tank indicator (1B) lights up?

This means there is no more water in the removable tank. Remove the tank by pressing the button (10), fill it with tap water without exceeding the maximum mark, then replace it. You can resume ironing immediately.

How do I use the vertical steam function?

Set the soleplate to maximum temperature (•••/Max) and select the Profound Care program on the Multi Steam Technology selector. Hang the garment, hold the iron vertically a few centimeters from the fabric and press the steam trigger while moving the iron up and down. Never direct steam towards people or animals.

Why does the appliance turn off automatically?

The automatic shut-off activates after 10 minutes of inactivity. A beep sounds and the indicator (1C) lights up. To reactivate, set the main switch (1A) to Off then On, wait for the steam ready indicator (1D) to turn off.

How to choose the right steam flow with Multi Steam Technology?

Use Diffuse Caresse for delicate fabrics (silk, cashmere): light steam sprayed on the side front. Use Precise Power for difficult areas (buttons, sleeves): concentrated jet towards the tip. Use Profound Care for thick fabrics (cotton, linen, jeans): powerful, deep, moist steam.

What should I do if the soleplate becomes brown or dirty?

Clean the soleplate with a non-metallic damp sponge. Never use detergents or chemicals. If the problem persists, contact Hoover after-sales service. To avoid soiling, do not add additives to the water and iron clean clothes.

Can I use the steam generator for dry ironing?

Yes, for domestic irons: select the desired temperature without pressing the steam trigger. For professional irons: turn on only the iron switch (1G) and adjust the temperature. Steam will not be produced.

How do I store the appliance after use?

Place the iron on the support mat, turn off and unplug the appliance, empty the water tank, wait 30 minutes for the iron to cool. Lock the iron with the locking system (2). Wind the cord and hose into the storage compartment (6). Use the transport handle (4) to move the appliance.

What should I do if steam escapes from the descaling plug?

Turn off the appliance and allow it to cool. Remove the plug and tighten the anti-scale valve correctly using a coin. If the problem persists, the valve may be damaged; contact Hoover after-sales service.

USER MANUAL SRP 41051 HOOVER

Two identical electric steam covers displayed side by side, no visible text or symbols on the covers or body.

IRONspeed

Parts Description English

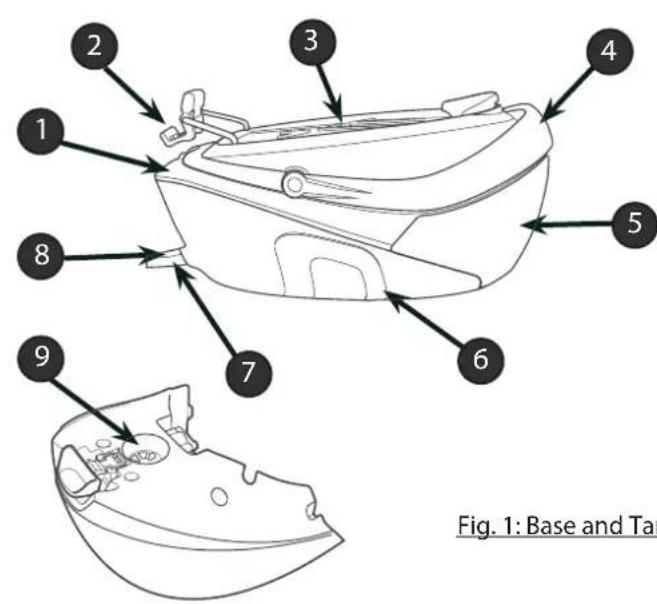

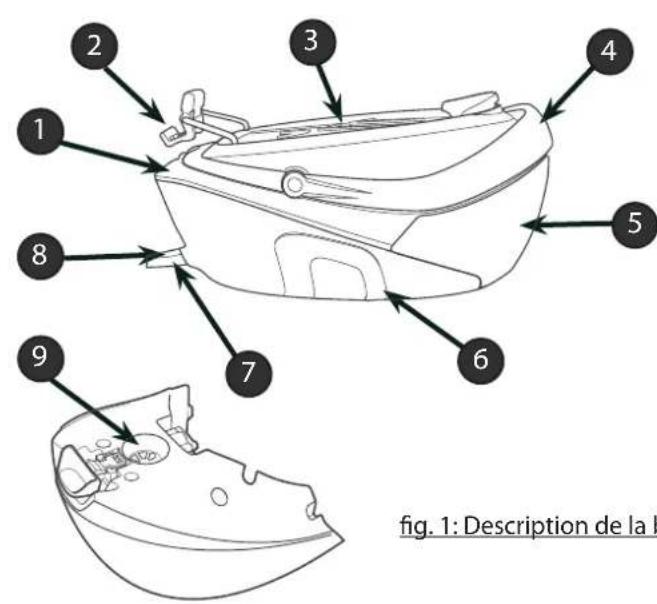

2 3 4 1 5 8 6 7 9 Fig. 1: Base and Tar

1 Control Panel

2 Iron Lock System

3 Iron Resting Mat

4 Carry Handle

5 Removable Water Tank

6 Cord Storage for Hose and Mains

7 Mains Cord

8 Supply Hose

9 Filling Inlet

Fig. 1: Base and Tank Description

Labeled diagram of an insect head with numbered parts for identification

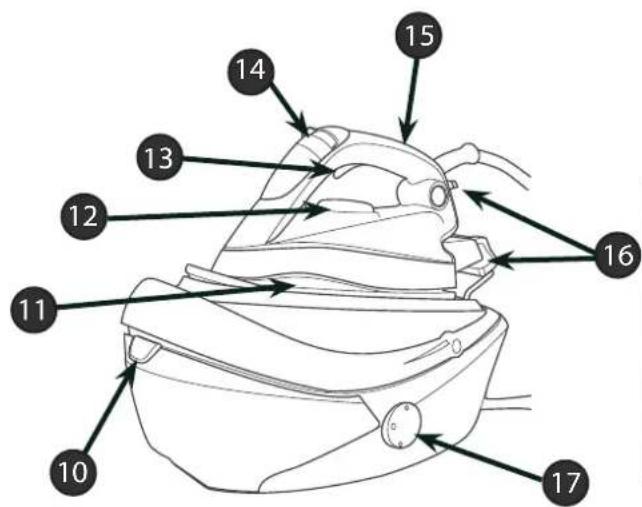

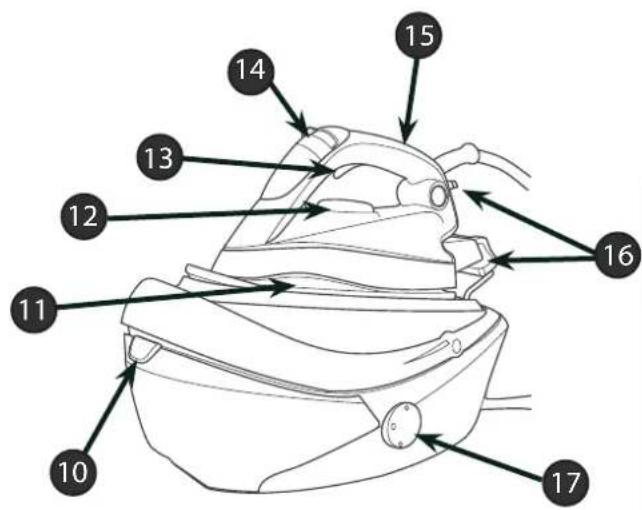

10 Removable Water Tank Knob

11 Soleplate

12 Soleplate Temperature Dial

13 Steam Trigger

14 Multi Steam Technology Selector

15 Soleplate Temperature Indicator

16 Pads for Vertical Positioning

17 Calc Removal Cap

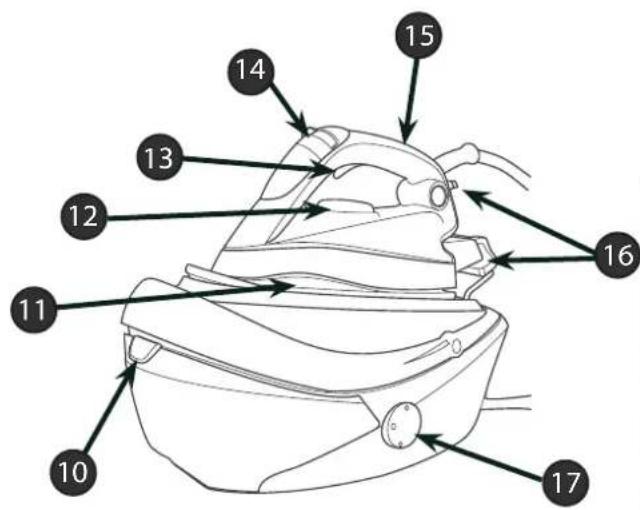

Fig. 2: Domestic Iron Description

1 - GB

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

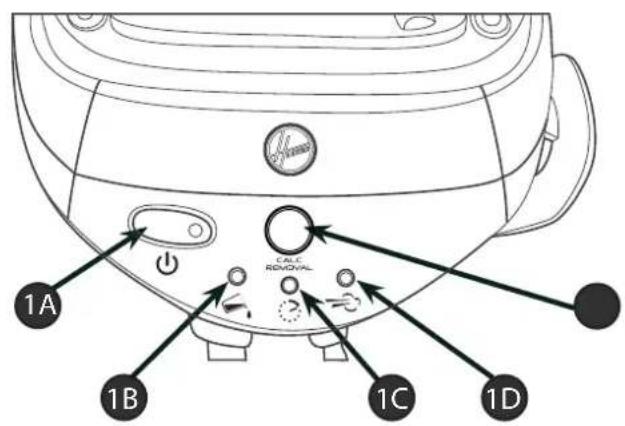

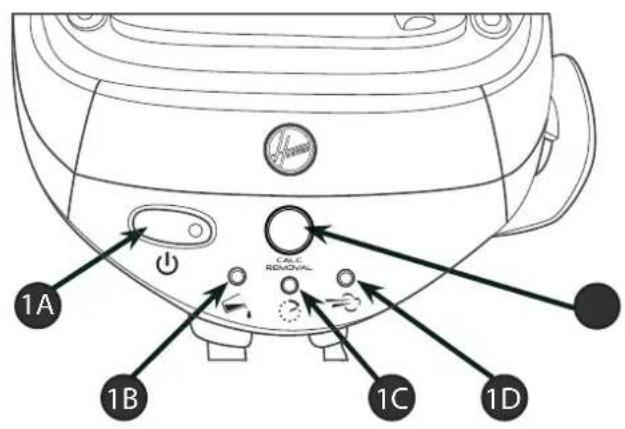

CALC REMOVAL 1A 1B 1C 1D

1A On/Off Iron with Power-On Light

1B "Water Tank Empty" Light

1C "Automatic Shut-Off" Light

1D "Steam Ready" Light

1E Boiler Rinse Indicator and Reset

Fig. 3: Domestic Iron Control Panel

Two isolated black crosshair icons on white background, no text or symbols present

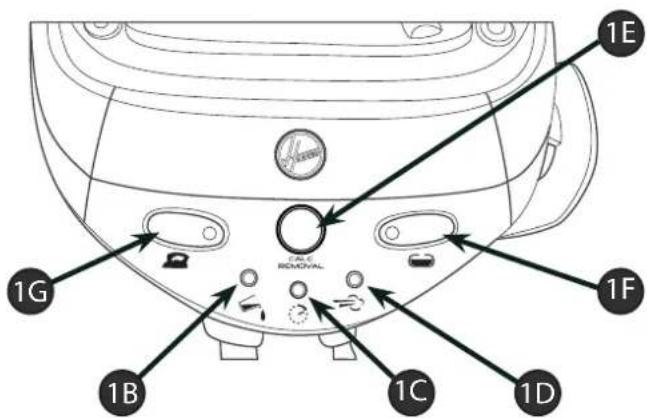

1A 1B 1C 1D 1F 1G 1E FORUM REDAVIAL

1F On/Off Boiler with Power-On Light

1G On/Off Iron with Power-On Light

Fig. 4: Pro Iron Control Panel

2 - GB

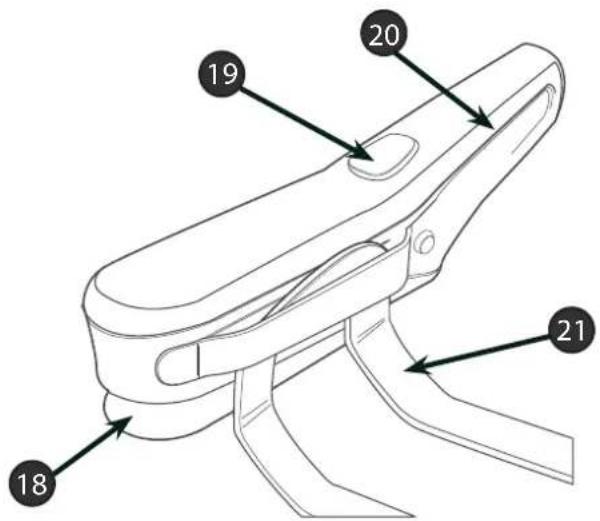

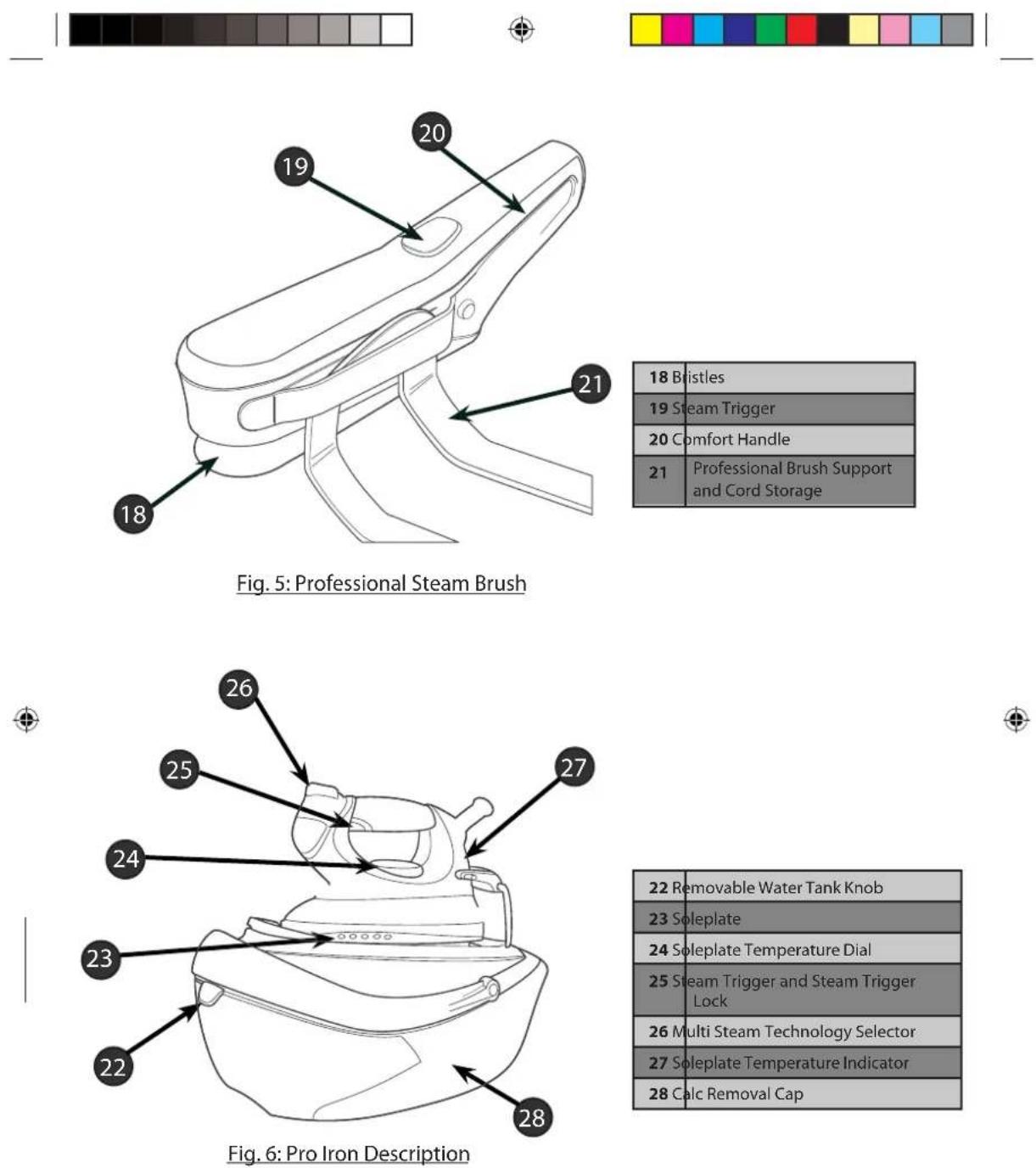

18 Bristles
19 Steam Trigger
20 Comfort Handle
21	Professional Brush Support and Cord Storage

22 Removable Water Tank Knob

23 Soleplate

24 Soleplate Temperature Dial

25 Steam Trigger and Steam Trigger Lock

26 Multi Steam Technology Selector

27 Soleplate Temperature Indicator

28 Calc Removal Cap

3 - GB

IRONspeed

GENERATION FUTURE

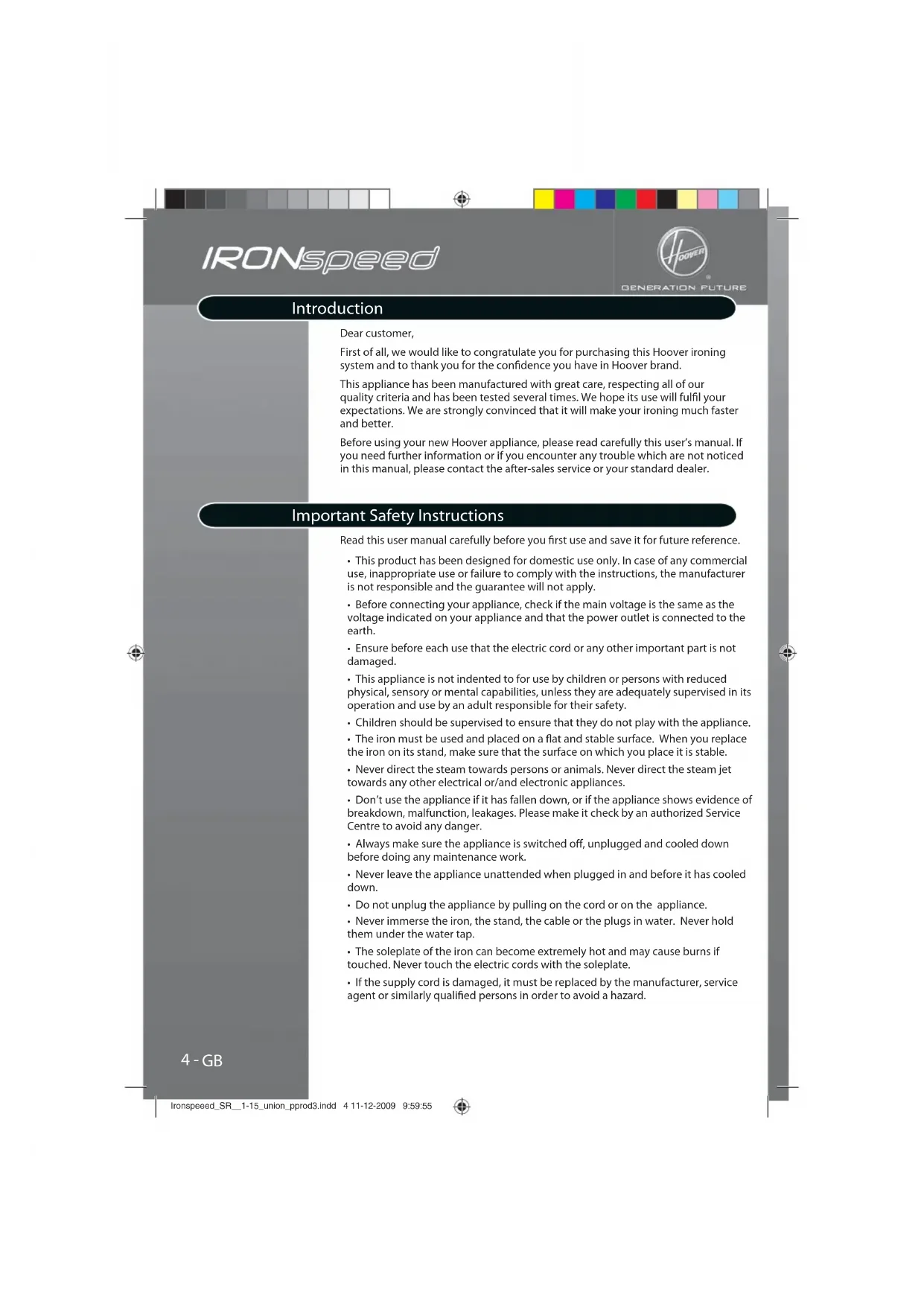

Introduction

Dear customer,

First of all, we would like to congratulate you for purchasing this Hoover ironing system and to thank you for the confidence you have in Hoover brand.

This appliance has been manufactured with great care, respecting all of our quality criteria and has been tested several times. We hope its use will fulfil your expectations. We are strongly convinced that it will make your ironing much faster and better.

Before using your new Hoover appliance, please read carefully this user's manual. If you need further information or if you encounter any trouble which are not noticed in this manual, please contact the after-sales service or your standard dealer.

Important Safety Instructions

Read this user manual carefully before you first use and save it for future reference.

- This product has been designed for domestic use only. In case of any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer is not responsible and the guarantee will not apply.

- Before connecting your appliance, check if the main voltage is the same as the voltage indicated on your appliance and that the power outlet is connected to the earth.

- Ensure before each use that the electric cord or any other important part is not damaged.

- This appliance is not indented to for use by children or persons with reduced physical, sensory or mental capabilities, unless they are adequately supervised in its operation and use by an adult responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- The iron must be used and placed on a flat and stable surface. When you replace the iron on its stand, make sure that the surface on which you place it is stable.

- Never direct the steam towards persons or animals. Never direct the steam jet towards any other electrical or/and electronic appliances.

- Don't use the appliance if it has fallen down, or if the appliance shows evidence of breakdown, malfunction, leakages. Please make it check by an authorized Service Centre to avoid any danger.

• Always make sure the appliance is switched off, unplugged and cooled down before doing any maintenance work.

- Never leave the appliance unattended when plugged in and before it has cooled down.

- Do not unplug the appliance by pulling on the cord or on the appliance.

- Never immerse the iron, the stand, the cable or the plugs in water. Never hold them under the water tap.

- The soleplate of the iron can become extremely hot and may cause burns if touched. Never touch the electric cords with the soleplate.

- If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

4-GB

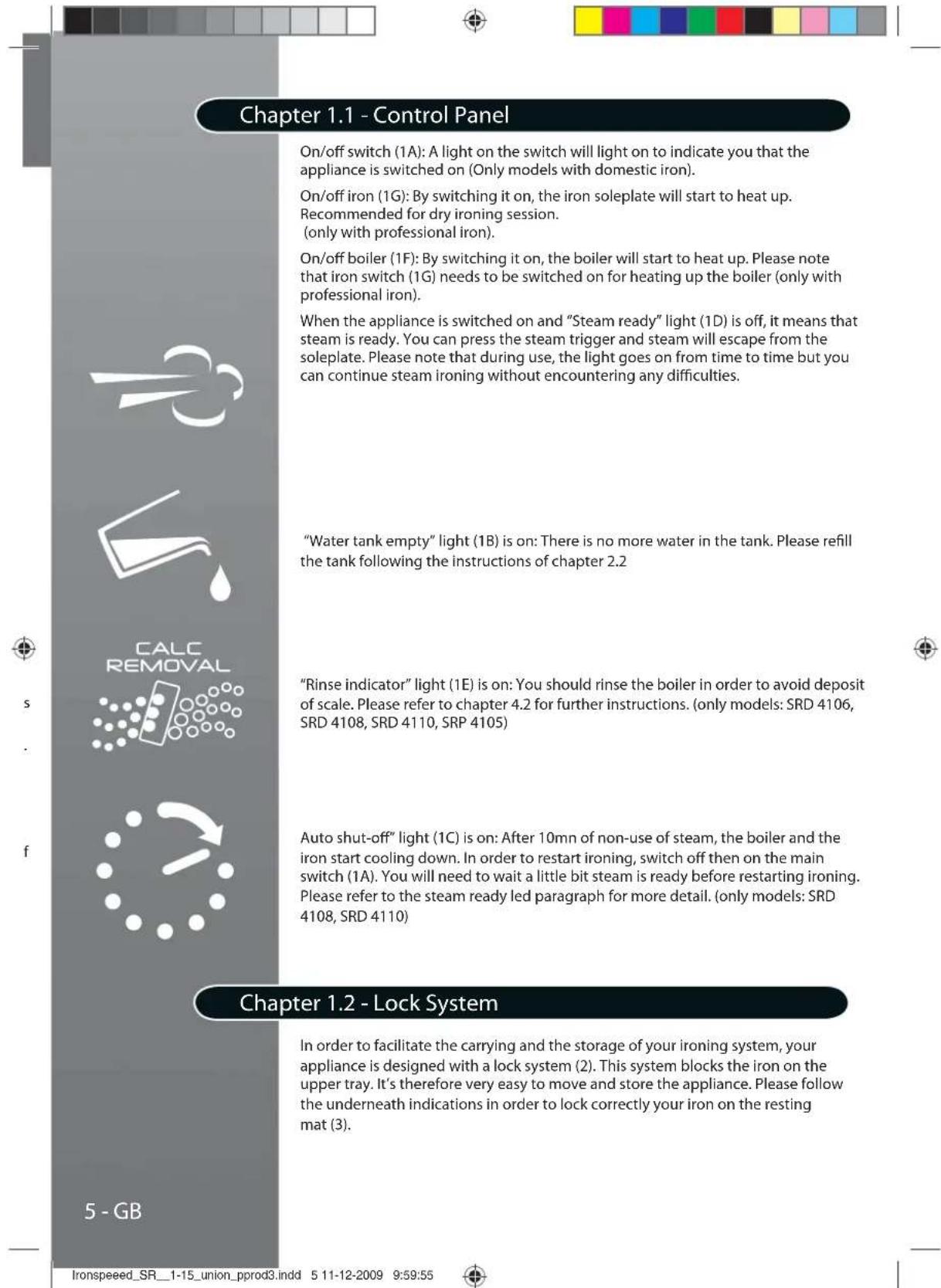

Chapter 1.1 - Control Panel On/off switch (1A): A light on the switch will light on to indicate you that the appliance is switched on (Only models with domestic iron). On/off iron (1G): By switching it on, the iron soleplate will start to heat up. Recommended for dry ironing session. (only with professional iron). On/off boiler (1F): By switching it on, the boiler will start to heat up. Please note that iron switch (1G) needs to be switched on for heating up the boiler (only with professional iron). When the appliance is switched on and "Steam ready" light (1D) is off, it means that steam is ready. You can press the steam trigger and steam will escape from the soleplate. Please note that during use, the light goes on from time to time but you can continue steam ironing without encountering any difficulties. "Water tank empty" light (1B) is on: There is no more water in the tank. Please refill the tank following the instructions of chapter 2.2 "Rinse indicator" light (1E) is on: You should rinse the boiler in order to avoid deposit of scale. Please refer to chapter 4.2 for further instructions. (only models: SRD 4106, SRD 4108, SRD 4110, SRP 4105) Auto shut-off" light (1C) is on: After 10mn of non-use of steam, the boiler and the iron start cooling down. In order to restart ironing, switch off then on the main switch (1A). You will need to wait a little bit steam is ready before restarting ironing. Please refer to the steam ready led paragraph for more detail. (only models: SRD 4108, SRD 4110) Chapter 1.2 - Lock System In order to facilitate the carrying and the storage of your ironing system, your appliance is designed with a lock system (2). This system blocks the iron on the upper tray. It's therefore very easy to move and store the appliance. Please follow the underneath indications in order to lock correctly your iron on the resting mat (3). 5 - GB Ironspeed_SR_1-15_union_pprod3.indd 5 11-12-2009 9:59:55

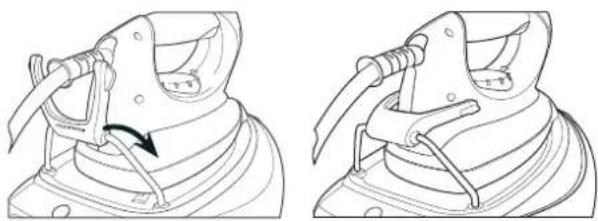

Chapter 1.2 - Lock System

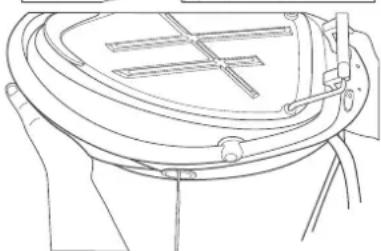

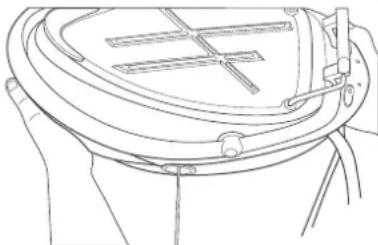

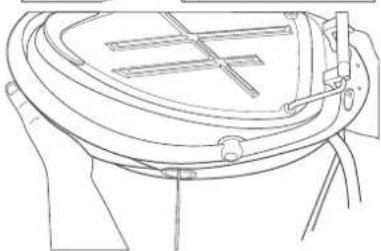

In order to facilitate the carrying and the storage of your ironing system, your appliance is designed with a lock system (2). This system blocks the iron on the upper tray. It's therefore very easy to move and store the appliance. Please follow the underneath indications in order to lock correctly your iron on the resting mat (3).

5-GB

Three technical line drawings of a mechanical component with no visible text or symbols

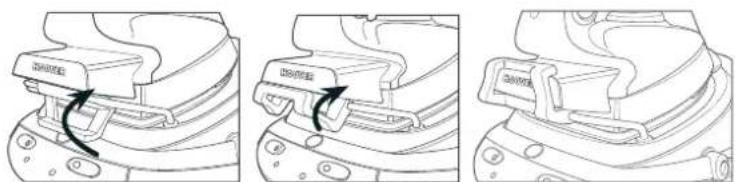

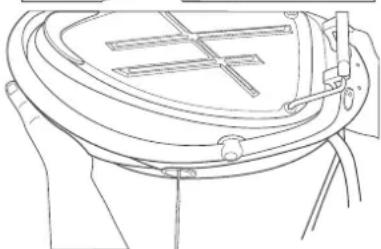

Fig. 7: Domestic Iron Lock System

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 8: Pro Iron Lock System

To unlock it, do the opposite of the instructions.

Warning: Do not carry your appliance by the iron. Use the designed handle (4).

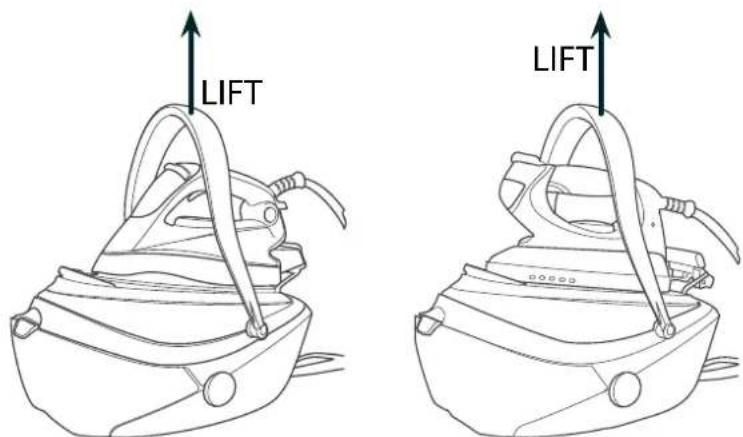

Chapter 1.3 - Carry Handle

Your steam generator is equipped with an ergonomic carry handle (4) that will allow you to comfortably transport your appliance when required.

Before using it, be sure that the iron is blocked on the iron resting mat (3). If not, follow the requested instructions in chapter 1.2. Don't forget also to store the cable on the dedicated cord storage (6) for hose and mains. Please also ensure that the water tank is empty.

LIFT LIFT

Fig. 9: Carry Handle Graphic

3

-

Chapter 1.4 - Auto Shut-Off

For your support, in the appliance is implemented a switch that automatically goes off if the appliance is not used for 10 minutes.

In order to inform you of the situation you will hear a buzzer sound and the auto shut-off light (1C) will light on.

To reactivate your appliance, switch off then on the main switch (1A) and wait that the steam ready led (1D) lights off.

Chapter 2: Preparation for Use

Due to the powerful output of steam, Hoover recommends the use of an active ironing board with blowing and vacuuming function which allows escape of any excess steam.

Place the ironing system on a stable and level surface, for example on the hard part of an ironing board or on a heat-resistant surface.

Chapter 2.1 - What Kind of Water May be Used?

The Hoover ironing system has been designed to be used with tap water only. There is no need to use distilled or pure distilled water. Nevertheless, in case your water is very hard, you can mix 50% of distilled water with 50% of tap water. Do not use any other kind of water or do not add any contents in the removable water tank as it can damage your appliance.

Chapter 2.2 - Filling the Water Tank

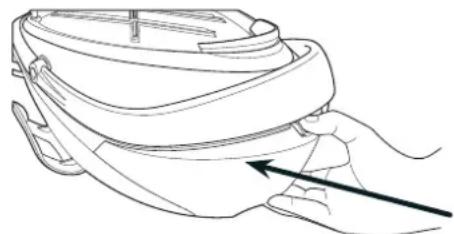

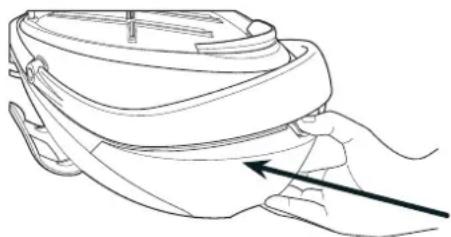

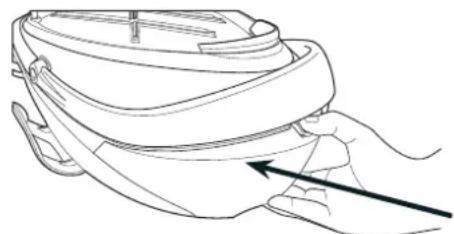

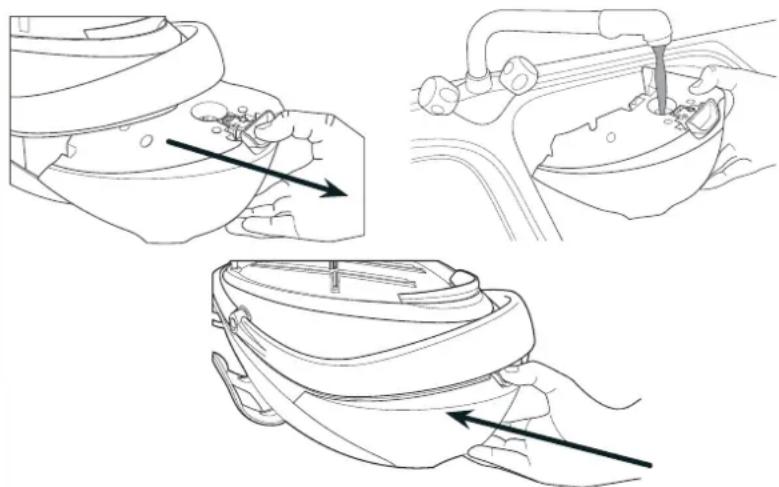

Remove the water tank (5) from the stand by pressing the water tank knob (10). Fill it with tap water. Do not exceed the max mark. Replace the tank at its original place.

Line drawings of three different cleaning or cleaning steps of a washing machine (no text or symbols present)

Line drawing of a hand holding a small appliance with a black arrow pointing to it (no text or symbols)

Fig.10: Water Tank Filling Graphic

7 - GB

Warning: Do not put any vinegar, hot water, perfume, or any other kind of chemical agents or any other contents in the water tank. It could damage the steam generator and shorten its life use.

Chapter 2.3 - Switching on the Appliance

Domestic Iron Models:

Connect the appliance with the mains cord to the earthed socket. Press on the on/off switch. The light of the on/off switch (1a) will switch on and inform you that the appliance is running on and that the boiler is heating up.

After approximately 2 minutes, the "steam ready" led will light off informing you that you can start using steam.

Professional Iron Models:

Connect the appliance with the main cord to the earthed socket. Press the iron on/off switch (1g) and the boiler on/off switch (1f). The lights of both switches should turned up and inform you that the appliance is running on. The iron soleplate and the boiler are heating up.

N.B.

The first time the appliance is used, some fumes and smell should appear. It's quite normal and will disappear quickly.

Chapter 3: Using Your Steam Generator

Chapter 3.1 - Regulating the Soleplate Temperature

M N T C O N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N N T C O N M N T C O N M N T C O N M N T C O N M N T C O N M N T C O N

Select the temperature of the soleplate by turning the dial (12) on the iron to the desired position. Wait a few moments until the temperature indicator (15) is off. It will indicate you that the soleplate has reached the requested temperature.

While ironing, the temperature dial indicator turns on and off, as the temperature adjusts without interrupting ironing.

Help:

To know the best suitable temperature for each textile, check the laundry care label of the article to be ironed. Please note that during use, the temperature light goes on from time to time. It signifies that the iron is heating up to the set temperature.

If a fabric is made with various kinds of fibres always select the soleplate temperature in adequacy with the most delicate one.

If you select a lower temperature while ironing, wait until the iron has cooled down to the set temperature before you continue ironing.

If the temperature is too low, some drops of water could escape from the soleplate. Please raise up the temperature above the 2 dots ( ) to avoid this issue

8 - GB

Chapter 3.2 - Ironing

Dry Ironing

Domestic Iron Models:

Select the temperature of the soleplate following the indications of chapter 3.1. Start your ironing without pressing the steam trigger (13), when the soleplate reaches the appropriate temperature.

Professional iron models:

Switch on only the iron switch (1g). Select the temperature of the soleplate following the indications of chapter 3.1. Start your ironing when the soleplate reaches the appropriate temperature.

Steam Ironing

Select the temperature of the soleplate following the indications of chapter 3.1. On the stand, when the steam will be ready to be used, the dedicated lamp (1d) will light off. Starting from that time you can begin your ironing and press the steam trigger (13) for having steam. The steam flow stops when you release the trigger.

You have the possibility to regulate the steam flow with the Multi- Steam Technology selector (14) in order to achieve the best results. Please refer to the dedicated chapter 3.3 for more information.

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols present)

Illustration of a hand using a power iron to press or install a socket (no text or symbols present)

Only Professional Iron Models:

Steam lock function: The steam lock allows you to steam iron without pressing the steam trigger. Steam will therefore escape continuously. To activate or deactivate the steam lock, slide forwards or backwards the steam lock (26).

N.B.

During the use, you should hear some noise coming from your steam generator. It's totally normal. It signifies that a pump injects water into the boiler. It's better to avoid using the steam trigger at this precise moment to avoid pressure falls.

Chapter 3.3 - How to Choose the Correct Soleplate Temperature and Steam?

Illustration of a hand pressing down on a car wheel (no text or symbols)

For obtaining the best results, it is really important to set perfectly the temperature of the soleplate and the steam flow you are using. Your Hoover appliance has a unique Multi-Steam Selector selector (14) which will provide outstanding results if correctly use and will simplify your ironing, making it easier and faster.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

9 - GB

Thanks to this innovative Multi-Steam Technology implemented in the appliance, you can use steam on mainly all textiles having the best results ever. You have the choice between 3 preset settings: Diffuse caress, Profound care and Precise power. Each setting will adapt the power, the humidity and the direction of the steam flow and therefore the steam flow will be adapted in adequacy with the ironed textile.

Here are the suggestions to obtain the best results:

Textile Steam Type Soleplate T°C
Wrinkled Textiles Precise Power .../Max
Tricky Zone Precise Power .../...
Jeans Profound Care Max
Cotton Profound Care ...
Linen Profound Care Max
Starched Clothes Profound Care ...
Velvet/Alcantara Profound Care ...
Wool Profound Care	..
Silk	Diffuse Caresse ...
Cashmere	Diffuse Caresse ...
Rayon	Diffuse Caresse ...
Polyester	No	•
Nylon	No	•
Acrylic	No	•
Lycra	No	•
Polyamid	No	•

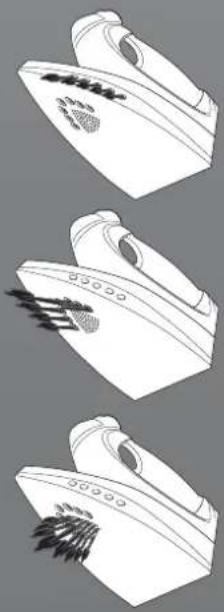

Three technical line drawings of a mechanical component with no visible text or symbols

Diffuse Caresse

This steam flow is dedicated to iron with great care the most delicate textiles like silk and cashmere with a soft and delicate flow. A reduced steam flow is spread carefully in front of the iron on a large part of textile. Fibres are better loosened in order to take away delicately and faster all the creases.

Precise Power

The flow is directed towards the tip. It permits to access the most difficult zones, like buttons, sleeves and loops through the concentrated flow in the tip and offers a constant, concentrated and powerful sprout. Difficult zones are better humidified and hence creases removed faster.

Profound Care

This vertical steam flow allows removing more easily and quickly the wrinkles on all textiles with a strong and humid jet. Steam impregnates better the fibres and the large soleplate dries the textile. Wrinkles are therefore removed faster.

Help

When steam ironing clothes on which shiny patches may occur, we recommend you to set the soleplate temperature to a lower temperature or to iron the garment on the reverse.

Start with the fabrics that needed to be ironed at a lower temperature ( · ) and finish with those that needed to be ironed at the higher temperature ( ·s/Max ).

10 - GB

Illustration of a hand using a power iron to clean or smoke (no text or symbols)

Chapter 3.4 - Vertical Steam Ironing

Set the soleplate temperature (12) to the max temperature and set the Multi-Steam Technology selector (14) to the Profound care program.

Hang curtains and clothes (jackets, suits, coats). Hold the iron in vertical position at a short distance of the fabric to avoid burning it. Press the steam trigger (13) to steam iron moving it from top to bottom.

Warning: Do not direct the steam jet towards people or animals.

Chapter 3.5 - Refilling the Water Tank During Usage

You can fill the water tank at any time during use.

When the water tank is empty, the "Empty water tank" light (1b) is on. No more steam escapes from the soleplate and steam ironing is no longer possible.

Remove the tank from the stand by pressing the tank knob (10). Refill the water tank without exceeding the max mark level. Replace the water tank at its original place. You can restart ironing immediately.

Please refer to chapter 2.2 for more detailed instructions.

Chapter 3.6 - Professional Steam Brush (only SRD4110)

The professional steam brush attached on your ironing system can be used to iron in a vertical position to easily remove creases on delicate textiles, remove odours such as smoke from textiles and refresh worn garments.

Before using the steam brush, ensure that the ironing system is filled with water. Switch on the appliance and when the steam ready LED lights up, the steam brush is ready to use. Press the steam button on the brush to start cleaning.

Warning: Do not direct the steam jet towards people or animals.

Chapter 4: Maintenance and Cleaning

All the maintenance and cleaning operations have to be done when the unplugged appliance has cooled down for at least 2 hours, to prevent any risk of burns.

Chapter 4.1 - Cleaning the Appliance

Do not use any detergent or descaling products for cleaning the soleplate. Regularly clean it with a humid and a non-abrasive cleaner.

To clean the plastic parts of the stand, please use soft clothes.

11 - GB

Chapter 4.2 - Rinsing the Boiler for Scale Maintenance

In order to extend the life of your appliance, you should rinse the boiler to avoid scale deposit in the boiler. You should rinse it every 2 months or on models SRD 4106, SRD 4108, SRD 4110 and SRP 4105 wait that the "rinse" light (1e) flashes.

Models with "Rinse" Light

When the rinse light (1e) flashes, you should continue your ironing session normally. Only remember to clean the boiler before use next time you plan to iron. Proceed as followed:

Before going on, be sure that the appliance is cooled down and unplugged for at least 2 hours.

Place the stand on the edge of your sink and place the iron on a flat surface. Remove the calc removal cap (10). Unscrew the boiler rinse safety cap anti-clockwise with a coin and remove it. Fill the boiler with 0,2 litres of tap water using a bottle and a funnel. Shake the stand and then empty the boiler completely, filing out the water in the sink. We recommend repeating this operation twice. Screw the boiler rinse safety cap with a coin and put back the calc removal cap (10).

Next time you will plug and switch on your appliance, the rinse light (1e) will continue flashing. Reset the appliance by pressing the rinse indicator and you can start your ironing session immediately.

Models Without "Rinse" Light

Before proceeding, be sure that the appliance is cooled down and unplugged for at least 2 hours.

Place the stand on the edge of your sink and place the iron on a flat surface. Remove the calc removal cap (17). Unscrew the boiler rinse safety cap anti-clockwise with a coin and remove it. Fill the boiler with 0,2 litres of tap water using a bottle and a funnel. Shake the stand and then empty the boiler completely, filing out the water in the sink. We recommend repeating this operation twice. Screw the boiler rinse safety cap with a coin and put back the calc removal cap (17).

In any case, do not use any descaling products to clean or rinse the boiler.

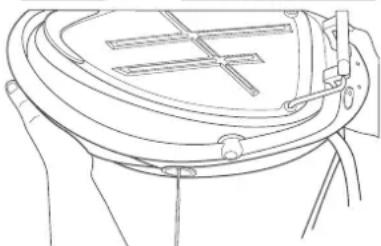

Line drawing of hands holding a small object with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a container onto a curved surface (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Fig. 11: Cleaning Operation

Chapter 4.3 - Storage

Line drawing of a steam iron with cord and power cord (no text or symbols)

Put the iron on the heat-resistant iron-resting mat (3).

Switch off the appliance and unplug it.

Empty the water tank.

Wait at least 30 minutes allowing the soleplate and the generator to cool down.

Lock the iron thanks to the iron lock system (2). Please report to the dedicated chapter 1.2 for further instructions.

Store both steam and electrical cables in the cord storage feature (6).

For model SRD 41110, put the anti-wrinkles brush on its support and put the cable in its storage.

Line drawing of a stylized helmet and seat (no text or symbols)

Use the handle (4) in order to carry the appliance by following the requested instructions of chapter 1.3.

Then you can take away your appliance in order to store it safely and easily.

13-GB

Troubleshooting

Problem Cause Solution
The appliance does not become hot	There is a connection problemThe appliance is not switched onThe soleplate temperature is too low	Check the mains cord, the plug and the wall socketPress on the on/off switchSet a higher temperature of the soleplate
The appliance does not produce steam	The appliance is not switched onThe boiler has not yet heated upThe water tank may be emptyYou are not pressing the steam triggerThe soleplate temperature is set to the maximum	Press on the on/off switchWait a few moments until the steam ready LED is offRefill the water tankPress the steam triggerIt works but steam is not visible as very hot and dry
Steam escapes from the calc removal cap when ironing	The calc removal valve is not tightened enoughThe anti-scale valve is damaged	Switch off the appliance and let it cool down.Remove the calc removal cap and tighten the valve correctlyContact your after sales service
The empty water tank LED is on	There is no more water in the tank	Refill the water tank with water
The soleplates becomes dirty or brown	There should be chemical or additives in the water used for ironingThe linen is still dirty Clean the	Never use any chemical or additives in the water.Contact your after sales service if the linen is still dirtythe soleplate with a non-metallic sponge
Water stripes appear on the textile	Your ironing board cover is saturated in water	Change the cover or use a mesh ironing board
Some scale deposit appears on the soleplate	Your boiler has not been rinsed for a while	Follow the indications in the appropriate chapter

Important Information

Hoover spares and

Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering spare parts, always check your model number.

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office. Please see all the contact details below.

Safety

Hoo ver believes that independent approval is the best way of demonstrating safety in design and manufacture. "Istituto del Marchio di Qualità" (IMQ), the independent italian national authority for the safety of domestic electrical appliances, ensures that Euro pean safety standards are met and maintained throughout the production life of an appli ance. All appliances that pass the requirements are permitted to carry the IMQ mark of safety.

Quality

ISO 9001

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001

The Environment

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with the local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

Description Français

2 3 4 1 5 8 6 7 9 fig. 1: Description de la b

Labeled diagram of an insect head with numbered parts for identification

Three-step diagram showing mechanical assembly steps with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a bowl with a directional arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to clean or wash a bowl (no text or symbols)

Line drawing of a hand holding a device with a black arrow pointing to the handle (no text or symbols)

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols present)

Illustration of a hand using a power iron to press or install a cable (no text or symbols present)

Illustration of a hand pressing down on a car wheel (no text or symbols)

Line drawing of a hand holding a small object with an arrow indicating rotation (no text or symbols)

24 - FR

Three technical line drawings of a mechanical device with no visible text or symbols

25 - FR

Illustration of a hand using a power iron to clean or smoke (no text or symbols)

Line drawing of hands holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a container onto a curved surface (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a steam iron with attached straps and cord (no text or symbols)

Line drawing of a mechanical component or housing with two views (top and side), no text or symbols present.

Pure geometric lines and crosshair symbols without any text or labels

Labeled diagram of an insect head with numbered parts for identification

1A 1B 1C 1D CELL REMOVAL

Technical diagram showing three steps of a mechanical component with Chinese labels indicating 'Close-up' and 'Close-Down'.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawings of three different cleaning or cleaning steps of a washing machine (no text or symbols present)

37 - DE

MAX CO. NO TO SLK N NY N O E L M E H G 0

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Line drawing of a hand using a power iron to press or install a piece of material (no text or symbols present)

Illustration of a hand adjusting a car seatbelt with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to interact with a device (no text or symbols present)

Three technical line drawings of a mechanical component with no visible text or symbols

Diffuse Caresse

Illustration of a hand using an iron on a surface, emitting smoke (no text or symbols)

Line drawing of hands holding a small circular object with an arrow pointing to it (no text or symbols present)

Line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a funnel into a curved pipe (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

42 - DE

Line drawing of a steam iron with attached straps and cord (no text or symbols)

Line drawing of a mechanical component or housing with two views (top and side), no text or symbols present.

Labeled diagram of an insect head with numbered parts for identification

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with attached clamps and tubing (no text or symbols)

Line drawing of a hand holding a bowl with a black arrow pointing to it (no text or symbols)

Line drawing of a hand using a tool to clean or wash a bowl (no text or symbols)

Line drawing of a hand holding a small appliance with a pointer arrow (no text or symbols)

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Illustration of a hand using a power iron to press or install a socket (no text or symbols present)

Illustration of a hand gripping a device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a steam iron to press or install a valve (no text or symbols present)

54 - IT

Three technical line drawings of a mechanical device with no visible text or symbols

55 - IT

Illustration of a hand using an iron on a machine, emitting smoke (no text or symbols)

Line drawing of hands holding a small circular object with an arrow pointing to it (no text or symbols present)

Illustration of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a bottle onto a curved surface (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a steam iron with attached straps and cord (no text or symbols)

Line drawing of a mechanical component or housing with two views (top and side), no text or symbols present.

Labeled diagram of an insect head with numbered parts for identification

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

CALL REMOVAL 1A 1B 1C 1D

Two isolated black crosshair icons on white background, no text or symbols present

1G 1B 1C 1D 1F 1E ROADYAL

Technical diagram showing a mechanical component with an arrow indicating rotation or assembly direction

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a handle and clamped parts (no text or symbols)

Line drawing of a hand holding a bowl with a black arrow pointing to it, no text or symbols present

Line drawing of a hand washing a bowl with a faucet (no text or symbols)

Line drawing of a hand holding a small appliance with a pointer arrow pointing to it (no text or symbols present)

MAX TO CEA NELN MELN NYL MELN NYL

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols present)

Illustration of a hand using a power iron to press or install a piece of paper (no text or symbols present)

Illustration of a hand holding a car seatbelt with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Three technical line drawings of a mechanical component with no visible text or symbols

Diffuse Caresse

Illustration of a hand using an iron on a machine, emitting smoke (no text or symbols)

Line drawing of hands holding a small object with an arrow pointing to it (no text or symbols present)

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a container onto a curved surface (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Fig. 11: Reinigen

72 - NL

Line drawing of a steam iron with attached straps and cord (no text or symbols)

Line drawing of a mechanical component or housing with no visible text or symbols

Labeled diagram of an insect head with numbered parts for identification

1A 1B 1C 1D CALC REMOVAL

Three-step diagram showing mechanical assembly steps with no visible text or symbols

Technical illustration of two mechanical clamping or lifting mechanisms (no text or symbols present)

ELEVAR ELEVAR

Line drawing of a hand holding a bowl with a black arrow pointing to the cup (no text or symbols)

Line drawing of a hand using a tool to clean or wash a bowl (no text or symbols)

Line drawing of a hand holding a device with an arrow pointing to the interior (no text or symbols)

82 - PT

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Illustration of a hand using a power iron to press or install a socket (no text or symbols present)

Illustration of a hand holding a car seatbelt with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

84 - PT

Three technical line drawings of a mechanical device with no visible text or symbols

85 - PT

Illustration of a hand using a iron on a machine, with no visible text or symbols

Capítulo 3.4 - Engomar a vapor na vertical

Illustration showing a hand holding a small object with an arrow pointing to it, and another hand inserting a plug into a container (no text or symbols present)

Technical line drawing showing a hand adjusting a circular component with an arrow indicating rotation (no text or symbols present)

Line drawing of a steam iron with attached straps and cord (no text or symbols)

Line drawing of a mechanical component or housing with two views (top and side), no text or symbols present.

Labeled diagram of an insect head with numbered parts for identification

CALC REMOVAL 1A 1B 1C 1D

1G 1B 1C 1D 1F 1E CALA REMOVAL

1F Caldera encendida/apagada (on/off) con luz de encendido

1G Plancha encendida/apagada (on/off) con luz de encendido

Fig. 4: Panel de control de la plancha Pro Iron

92 - ES

C

|

18 19 20 21

Three technical line drawings of a mechanical component with no visible text or symbols

Technical line drawing showing two mechanical clamping or lifting process steps (no text or symbols)

Line drawings of three different cleaning or cleaning steps of a washing machine (no text or symbols present)

97 - ES

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

Illustration of a hand using a power iron to press or install a socket (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Three technical line drawings of a mechanical device with no visible text or symbols

100 - ES

Diffuse Caresse

Illustration of a hand using a power iron to burn or smoke (no text or symbols)

Illustration showing a hand holding a small object with an arrow pointing to it, and another hand inserting a plug into a container (no text or symbols present)

Technical line drawing showing a hand adjusting a circular component with an arrow indicating rotation (no text or symbols present)

Line drawing of a steam iron with attached cable and power plug (no text or symbols)

Line drawing of a stylized helmet or helmet with a small inset view (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Labeled diagram of an insect head with numbered parts for identification

1A 1B 1C 1D COLD REMOVAL

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with attached clamps and tubing (no text or symbols)

Slika 8: Sistem zaklepanja Pro likalnika

Line drawings showing three steps of a hand cleaning a small appliance, with arrows indicating the process (no text or symbols present)

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols present)

Illustration of a hand using a power iron to press or install a socket (no text or symbols present)

Samo profesionalni likalni modeli:

Funkcija stalnega dovajanja pare; Gumb za stalno dovajanje pare vam omogoča likanje s paro brez pritiskanja na gumb za dovajanje pare. Para bo zato pritekala neprestano. Za vklop ali izklop stalnega dovajanja pare potegnite gumb za stalno (26) dovajanje pare naprej ali nazaj.

N.B.

Illustration of a hand holding a car handle with a curved arrow indicating motion (no text or symbols)

Line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a cylindrical object with a textured surface and small dark spots, resembling a container or device (no text or symbols)

Line drawing of a steam iron with motion lines indicating airflow or movement (no text or symbols)

Line drawing of a hand washing machine with black hair blades (no text or symbols)

Razpršeni način

Illustration of a hand using a iron on a machine, with no visible text or symbols

Poglavje 3.4 - Likanje z navpično paro

Nastavite temperaturo likalne plošče (12) na maksimalno temperaturo in nastavite tehnologijo Multi Steam (14) na program globinskega načina.

Line drawing of hands holding a circular object with an arrow pointing to it (no text or symbols)

Line drawing of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand pouring liquid from a container onto a curved surface (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

117-SI

Line drawing of a steam iron with attached cable and power plug (no text or symbols)

Likalnik postavite na podstavek za ohlajevanje (3).

Line drawing of a helmet and seat assembly (no text or symbols)

118-51

Odpravljanje težav
