USER MANUAL 14353 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA:1,800.851.8900

Questions?

IMPORTANT SAFETY INSTRUCTIONS

When using your flatiron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron to OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away. Loop cord loosely around iron when storing.
5. Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.
6. Do not operate the iron with a damaged cord or in the event the iron has been dropped or damaged or there are visible signs of damage or it is leaking. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

SAVE THESE INSTRUCTIONS

Other consumer safety information

This product is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

2

PLEASE READ BEFORE FIRST USE:

• During first use of the iron, it may appear to smoke. This will stop and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap water. This happens as the steam chamber becomes conditioned. This will stop after a few uses.
• Steam vents should be cleaned before first use. Prepare iron for steam ironing; then iron over an old cloth for a few minutes while letting iron steam.

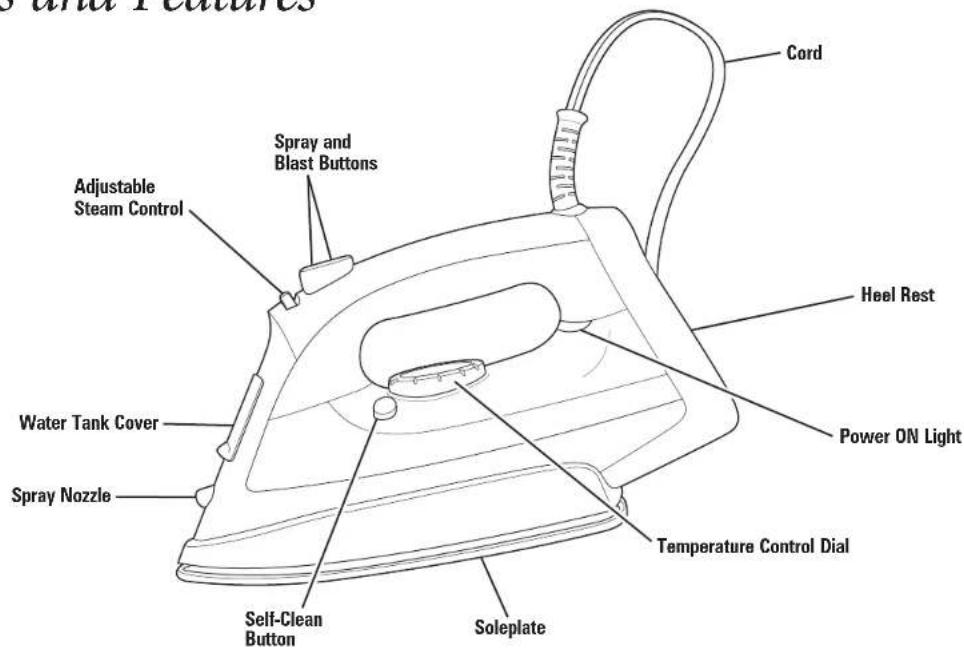

Parts and Features

3

How to Dry Iron

Turn Temperature Control Dial to desired temperature. Allow 2 minutes for iron to reach desired temperature.

POSITION SENSING/3-WAY AUTO SHUTOFF

The iron will turn off automatically when left in the following positions. The Auto Shutoff time varies based on the iron's position.

IRON POSITION

MOTIONLESS TIME

Resting on soleplate

30 seconds

Resting on either side

30 seconds or 15 minutes depending on exact orientation

Resting on heel

15 minutes

To turn iron off, turn Temperature Control Dial to OFF.

How to Steam Iron

Set the Adjustable Steam Control to Dry Iron).

Water: Use ordinary tap water. If using extremely hard water, alternate between tap water and distilled water. DO NOT add starch or fragrance to the water tank.

ing extremely hard water, tilled water. DO NOT add starch

Turn Temperature Control Dial to desired fabric setting in the steam range. Allow 2 minutes for iron to reach desired temperature.

Set Adjustable Steam Control to the desired steam level.

For vertical steaming, hold iron 6 inches (15 cm) from garment and do not allow hot soleplate to touch delicate garments. Press and release the Blast Button to steam out wrinkles. Wait at least 5 seconds before pressing Blast Button again.

5

How to Steam Iron (cont.)

To turn iron off, set Adjustable Steam Control to Dry Iron.

Turn the Temperature Control Dial to OFF.

Unplug iron.

POSITION SENSING/3-WAY AUTO SHUTOFF

The iron will turn off automatically when left in the following positions. The Auto Shutoff time varies based on the iron's position.

IRON POSITION

Resting on soleplate

Resting on either side

Resting on heel

MOTIONLESS TIME

30 seconds

30 seconds or 15 minutes depending on exact orientation

15 minutes

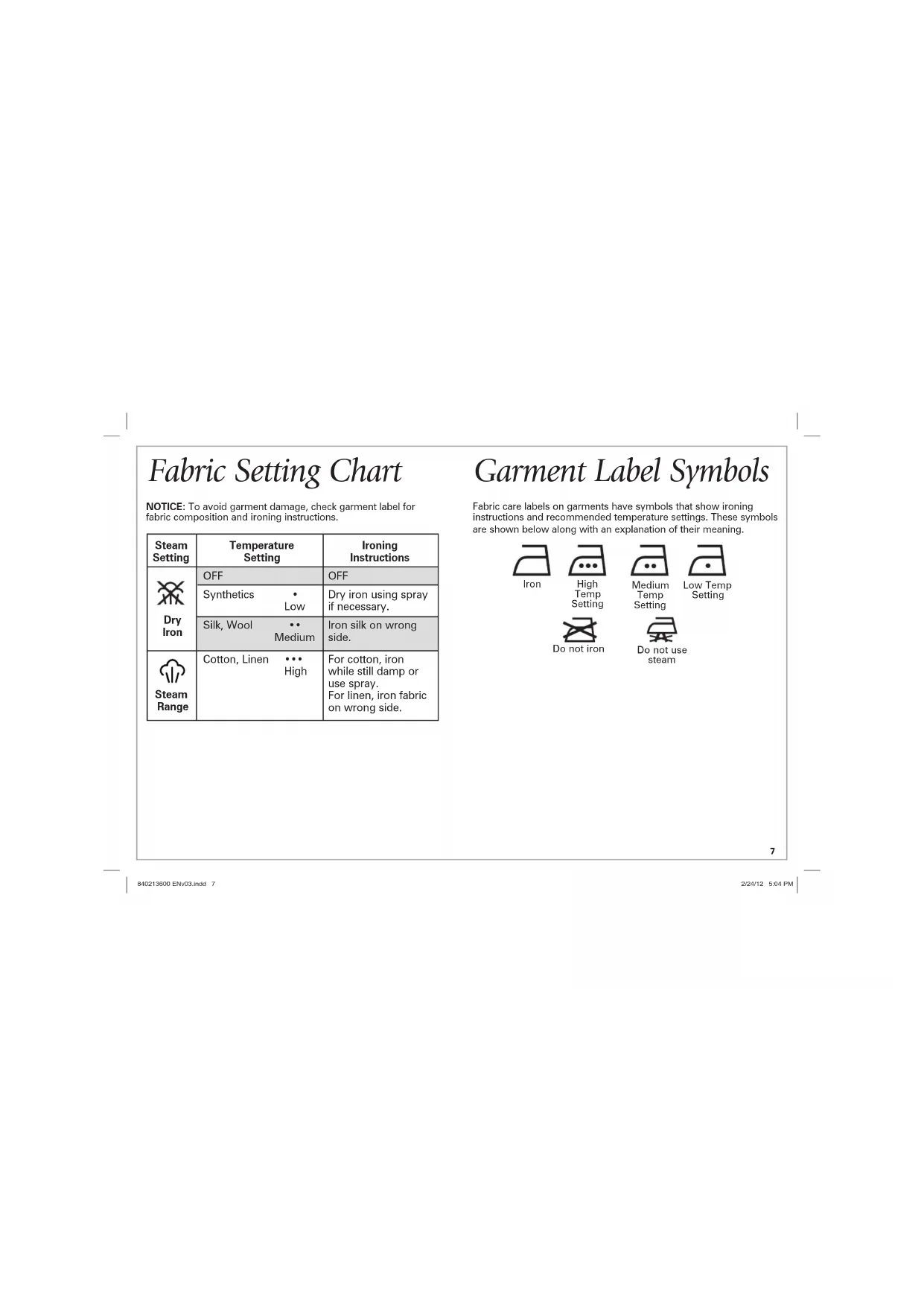

Fabric Setting Chart

NOTICE: To avoid garment damage, check garment label for fabric composition and ironing instructions.

Steam Setting	Temperature Setting	Ironing Instructions
Dry Iron	OFF	OFF
	Synthetics • Low	Dry iron using spray if necessary.
	Silk, Wool • Medium	Iron silk on wrong side.
Steam Range	Cotton, Linen • High	For cotton, iron while still damp or use spray. For linen, iron fabric on wrong side.

Garment Label Symbols

Fabric care labels on garments have symbols that show ironing instructions and recommended temperature settings. These symbols are shown below along with an explanation of their meaning.

Iron

High Temp Setting

Medium Temp Setting

Low Temp Setting

Do not iron

Do not use steam

Care and Cleaning

Allow iron to cool.

Set the Adjustable Steam Control to Dry Iron).

Turn the Temperature Control Dial to OFF. Unplug iron.

To empty water from iron, slowly tilt pointed end of iron over sink until water runs out.

Do not store iron laying flat on soleplate.

NOTICE: To avoid damage to the iron soleplate:

• Never iron over zippers, pins, metal rivets, or snaps.
• Wipe with a soapy cloth to clean occasional buildup on the soleplate. Never use abrasive cleansers or metal scouring pads, since they may scratch the surface.
  Always store iron upright on the heel rest (see Step 5).

Self-Clean Feature

To keep the steam vents clear of any buildup, follow these instructions each time you iron using steam.

Hold iron over sink.

Press and hold the Self-Clean Button until tank is empty.

Troubleshooting

PROBLEM

Iron won't heat.

Water is leaking.

Iron won't steam.

Iron leaves spots on clothing.

Twisted cord.

Wrinkles not removed.

Iron too hot/not hot enough.

PROBABLE CAUSE

• Is iron plugged in and the outlet working? Check outlet by plugging in a lamp.
  Is the Temperature Control Dial turned to a fabric setting?
• Is the Auto Shutoff Light illuminated (Power ON Light is blinking)? Move the iron to reset.
• Do not overfill the water tank.
• Adjust steam to a lower setting
• If steam ironing, is the Adjustable Steam Control in a steam position? Is the Temperature Control Dial in the steam range? Did the iron have enough time to preheat?
• If dry ironing, make sure the Adjustable Steam Control is in the Dry Iron position.
• Check water level.
  Is the Adjustable Steam Control in the (Steam) position?
• Has the iron had enough time to preheat?
• Anti-drip feature will not allow steam when temperature setting is in the dry range.
• ALWAYS empty water tank after using. Water left in tank may discolor clothing and soleplate.
• If the iron cord should become twisted, unplug iron and let cool. Hold iron cord in the middle of entire length. Let plug and iron dangle freely until cord uncoils. This will extend the life of the iron cord.
• Check Temperature Control Dial is set to correct fabric.
• Check Temperature Control Dial and adjust to desired setting. Let iron cool down 5 minutes before continuing.

Notes

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1,800,851,8900 in the U.S. or 1,800,267,2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
