Product Type	Clothes Iron
Brand	Hamilton Beach
Model	Easy Touch 14413
Power Supply	120 V ~ 60 Hz
Main Functions	Dry ironing, steam ironing, steam burst, spray, auto shut-off, self-cleaning
Temperature Settings	3 levels: Low, Medium, High
Auto Shut-Off	30 seconds on soleplate or side, 15 minutes on heel
Power Indicator	Indicator light stays on as long as iron is plugged in
Water Tank	Transparent with fill gauge, filling opening
Safety	Polarized plug, auto shut-off, overheat protection
Maintenance	Clean soleplate with a damp cloth; self-cleaning function for vents
Warranty	1 year (USA and Canada)
Customer Service (USA)	1.800.851.8900
Customer Service (Canada)	1.800.267.2826
Website	www.hamiltonbeach.com (USA) / www.hamiltonbeach.ca (Canada)

Frequently Asked Questions - Easy Touch 14413 HAMILTON BEACH

How to use steam ironing?

Set the steam lever to STEAM. Choose the desired temperature (LOW, MEDIUM or HIGH) and wait for the iron to preheat (the indicator stops flashing). Fill the water tank if necessary. Use the steam burst or spray for more efficient ironing.

What to do if the iron does not heat up?

Check that the iron is properly plugged in and that the outlet works (test with a lamp). Make sure a temperature setting (LOW, MEDIUM or HIGH) is selected. If the OFF button is flashing, the auto shut-off function is activated: select a temperature setting to turn the iron back on.

How to clean the iron soleplate?

Let the iron cool down. Lower the steam lever to DRY. Wipe the soleplate with a cloth dampened with soapy water. Never use abrasive cleaners or scouring pads, as they may scratch the surface.

How does the auto shut-off work?

The iron shuts off automatically after 30 seconds of inactivity if resting on its soleplate or side, and after 15 minutes if resting on its heel. The OFF button then flashes and a beep may sound. To reactivate, simply select a temperature setting.

How to use the self-cleaning function?

Lower the steam lever to DRY, set the temperature to HIGH and let it heat for 2 minutes. Turn off the iron and unplug it. Hold the iron over a sink, position the lever to STEAM, then press and hold the self-cleaning button until the tank is empty.

Why is water leaking from the iron?

This may be due to an overfilled tank. In steam mode, make sure the lever is on STEAM, the temperature is set, and the iron has preheated. In dry mode, check the lever is on DRY. Residual water may also come from condensation; wipe it off.

How to store the iron after use?

Turn off the iron (OFF) and unplug it. Let it cool completely. Empty the water tank. Lower the steam lever to DRY. Store the iron upright on its heel. Wrap the cord loosely around the iron.

What to do if the soleplate leaves stains on clothes?

Always empty the water tank after use. Standing water can discolor clothes and the soleplate. Clean the soleplate with a damp cloth. If stains persist, use the self-cleaning function.

How to untwist a twisted cord?

Turn off the iron and unplug it. Let it cool and empty the water. Hold the cord at the midpoint of its full length and let the plug hang freely until the cord is completely untwisted. This extends the cord's lifespan.

What to do if all temperature buttons are flashing?

Unplug the iron then plug it back in to reset the display. If the problem persists, contact customer service: at 1.800.851.8900 (USA) or 1.800.267.2826 (Canada).

USER MANUAL Easy Touch 14413 HAMILTON BEACH

Visit hamiltonbeach.com for delicious recipes, tips, and to register your product online!

Consultez hamiltonbeach.ca pour de délicieuses recettes, des conseils pratiques et pour enregistrer votre produit! iVisite hamiltonbeach.com.mx para recetas deliciosas, consejos, y para registrar su producto en línea!

Questions?

Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions?

Electric iron with control buttons and brand name 'Hamilton Beach' (no visible text beyond branding)

English 2

Français ...... 11

Español 20

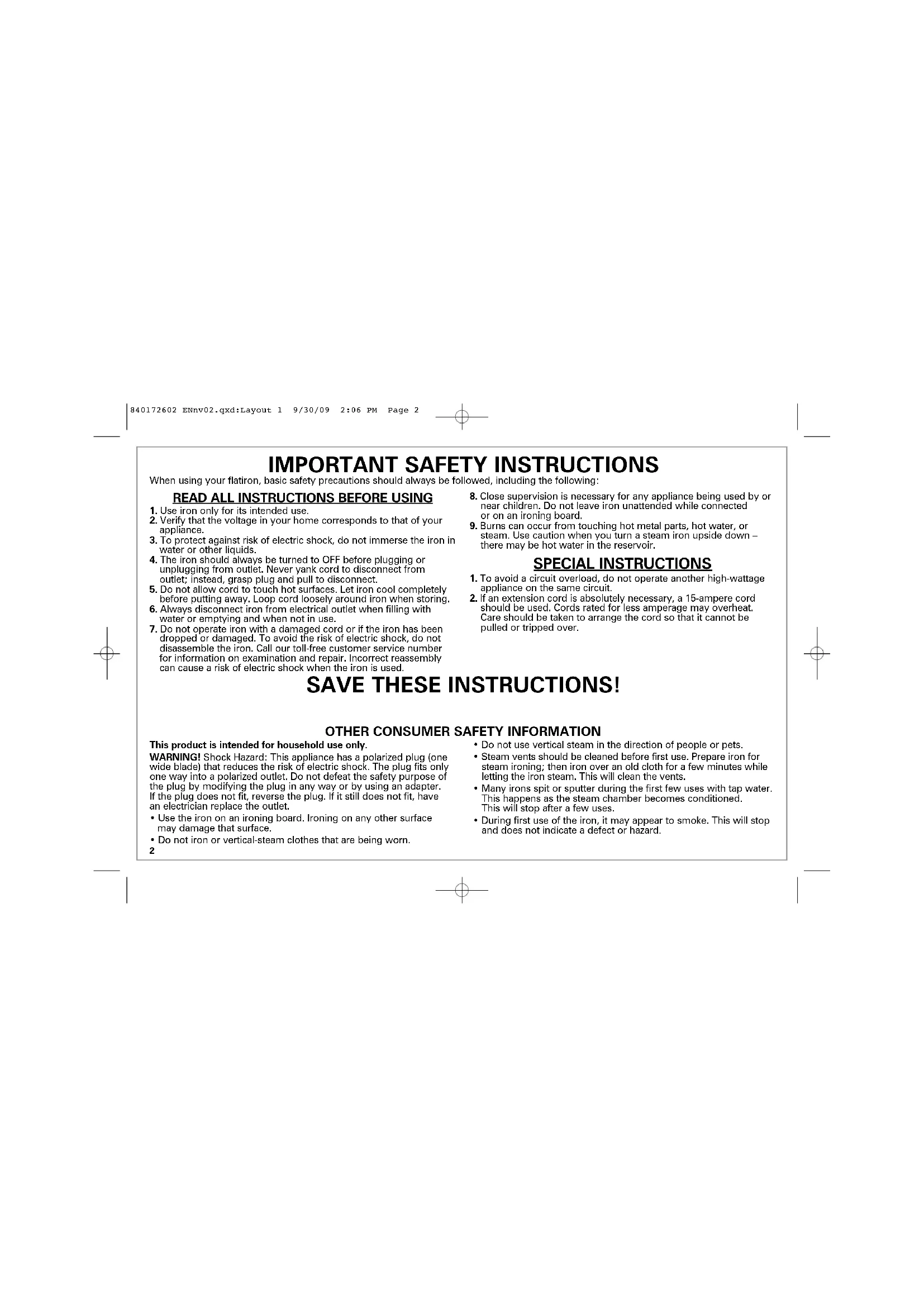

IMPORTANT SAFETY INSTRUCTIONS

When using your flatiron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.
2. Verify that the voltage in your home corresponds to that of your appliance.
3. To protect against risk of electric shock, do not immerse the iron in water or other liquids.
4. The iron should always be turned to OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
5. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
6. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.

7. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Call our toll-free customer service number for information on examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.

8. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.

9. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.

2. If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS!

OTHER CONSUMER SAFETY INFORMATION

This product is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

• Use the iron on an ironing board. Ironing on any other surface may damage that surface.

- Do not iron or vertical-steam clothes that are being worn. 2

• Do not use vertical steam in the direction of people or pets.
• Steam vents should be cleaned before first use. Prepare iron for steam ironing; then iron over an old cloth for a few minutes while letting the iron steam. This will clean the vents.
• Many irons spit or sputter during the first few uses with tap water. This happens as the steam chamber becomes conditioned. This will stop after a few uses.
• During first use of the iron, it may appear to smoke. This will stop and does not indicate a defect or hazard.

Parts and Features

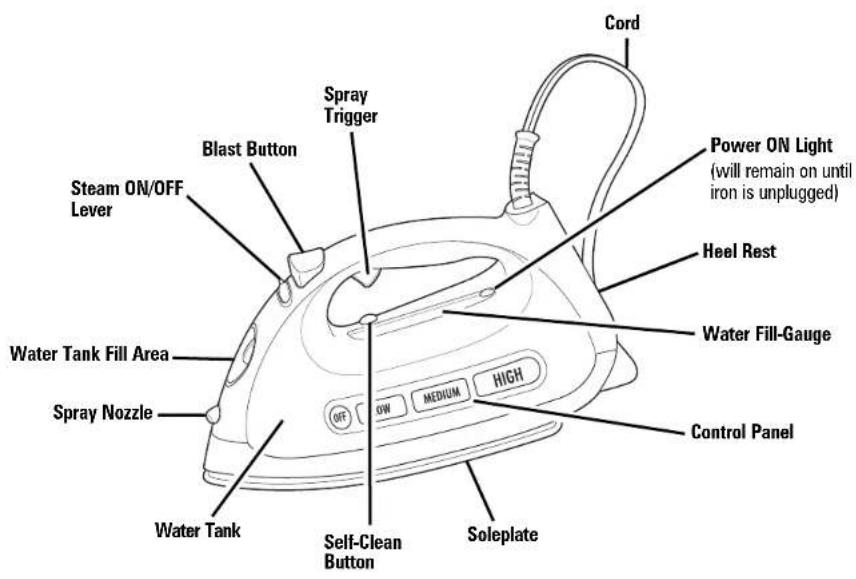

Cord Power ON Light (will remain on until iron is unplugged) Heel Rest Water Fill-Gauge Control Panel Spray Trigger Blast Button Steam ON/OFF Lever Water Tank Fill Area Spray Nozzle OFF OW MEDIUM HIGH Self-Clean Button Water Tank Soleplate

How to Dry Iron

Line drawing of an electric iron connected to a power outlet (no text or symbols)

Diagram of a mechanical or fluidic device with directional arrows and internal components (no text or symbols)

Set Steam ON/OFF to the DRY position.

LOW MEDIUM HIGH

Select desired temperature. Allow iron to heat until button stops blinking. On select models, a tone will sound when iron is ready.

Line drawing of a hand ironing an iron on a table (no text or symbols)

OFF LOW

When motionless, the Auto Off feature will engage. The OFF button will flash and, on select models, a tone will sound.

OFF LOW MEDIUM 6

When finished, press OFF button.

Line drawing of an electric iron connected to a wall-mounted power outlet (no text or symbols)

Position Sensing

The iron will turn off automatically when left in the following positions. The Auto Off time varies based on the iron's position.

IRON POSITION MOTIONLESS TIME

How to Steam Iron

Illustration of a hand using a power tool to clean iron on a cutting board, with no text or symbols present.

Diagram of a container with arrows indicating flow or movement, no readable text or symbols present

Set Adjustable Steam to STEAM.

MEDIUM HIGH 4

Select desired temperature. Allow iron to heat until button stops blinking. On select models, a tone will sound when iron is ready.

OR 5

For vertical steaming, hold iron six inches from garment and do not allow hot soleplate to touch delicate garments.

OFF LOW

When motionless, the Auto Off feature will engage. The OFF button will flash and, on select models, a tone will sound.

OFF LOW MEDIUM 7

When finished, press OFF button.

Line drawing of an electric iron connected to a wall socket (no text or symbols)

Position Sensing

The iron will turn off automatically when left in the following positions. The Auto Off time varies based on the iron's position.

IRON POSITION MOTIONLESS TIME Resting on soleplate 30 seconds Resting on either side 30 seconds Resting on heel 15 minutes

Fabric Setting Chart

NOTICE: To avoid garment damage, check garment label for fabric composition and ironing instructions.

TEMPERATURE SETTINGS FOR DRY IRONING

Synthetics Dry iron on reverse side of fabric.

Silk/Wool Dry iron on reverse side of fabric.

TEMPERATURE SETTINGS FOR STEAM IRONING

Cotton Iron while damp using steam or spray.

Linen Iron while damp on reverse side of fabric.

Garment Label Symbols

Fabric care labels on garments have symbols that show ironing instructions and recommended temperature settings. These symbols are shown below along with an explanation of their meaning.

Do not iron

Do not use steam

Care and Cleaning

Line drawing of an iron (£) being charged with a power outlet (no text or symbols)

Allow iron to cool. Set Adjustable Steam to DRY.

Diagram of a mechanical or fluidic device with directional arrows and internal components (no text or symbols)

Line drawing of a hand using an iron on a pole, no text or symbols present

Line drawing of an iron (£) with a coiled cord and handle (no text or symbols)

Do not store iron laying flat on soleplate.

NOTICE: To avoid damage to the iron soleplate:

• Never iron over zippers, pins, metal rivets, or snaps.
• Wipe with a soapy cloth to clean occasional buildup on the soleplate. Never use abrasive cleansers or metal scouring pads, since they may scratch the surface.
  • Always store iron upright on the heel rest (see Step 4).

Self-Clean Feature

To keep the steam vents clear of any buildup, follow these instructions each time you iron using steam.

Line drawing of a hand pouring liquid into a steam iron (no text or symbols)

Line drawing of an iron (£) being charged with a power outlet, no text or symbols present

Diagram showing a container with internal flow arrows and labeled parts, possibly illustrating a process or system.

MEDIUM HIGH 4

Set Adjustable Steam to DRY. Allow iron to heat on HIGH for 2 minutes.

Line drawing of an electric iron connected to a wall-mounted power outlet (no text or symbols)

Line drawing of a person using an iron on a surface, no text or symbols present

7

Illustration of hands using a power iron to clean or brush the iron, with a black arrow indicating the process (no text or symbols present)

Turn iron OFF and unplug. Set Adjustable SteamsetoTEAM.

Press and hold the Self-Clean button until tank is empty.

Troubleshooting

PROBLEM	PROBABLE CAUSE/SOLUTION
Iron won't heat.	Is iron plugged in and the outlet working? Check outlet by plugging in a lamp.Has a temperature been selected? Select LOW, MEDIUM, or HIGH button.Has Auto Off feature activated (OFF button blinking)? Select a temperature setting to turn iron back on.
Water is leaking out of the iron.	Do not overfill the water tank.If steam ironing, is Adjustable Steam in a STEAM position, has a temperature been selected, and did the iron have enough time to preheat?If dry ironing, make sure Adjustable Steam is in the DRY IRON position.
Iron won't steam.	Check water level.Has iron had enough time to preheat?Is Adjustable Steam in the STEAM position?
Iron leaves spots on clothing.	ALWAYS empty water tank after using. Water left in tank may discolor clothing and soleplate.
Wrinkles not removed.	Choose correct temperature setting for your fabric.
Fabric/clothing scorched.	Select a lower temperature setting. Allow iron to cool for 5 minutes before continuing.
Twisted cord.	If cord becomes twisted, turn iron OFF and unplug. Let cool. Empty any water from iron. Hold cord in the middle of entire length. Let plug and iron dangle freely until cord uncoils. This will extend the life of your iron cord.
All temperature selection buttons and OFF button blinking.	If all temperature selection buttons are blinking, unplug iron and then plug it back in. This should reset the display. If not, Call Customer Service (numbers on cover).

Limited Warranty

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
