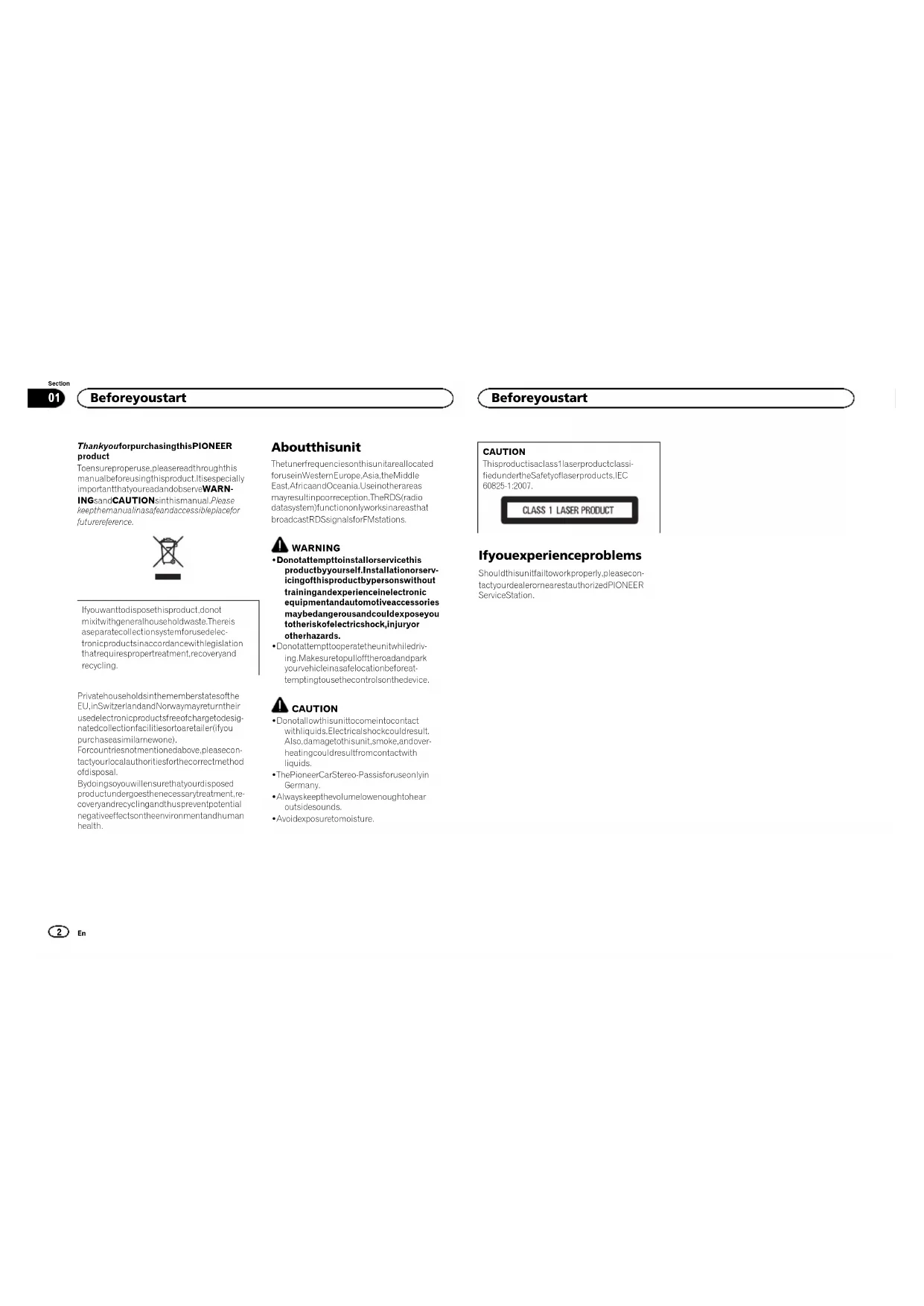

USER MANUAL DEH1600UBA PIONEER

Thank you for purchasing this PIONEER

To ensure proper use, please read through this

manual before using this product. It is especially

important that you read and observe WARN-

INGs and CAUTIONs in this manual. Please

keep the manual in a safe and accessible place for

If you want to dispose this product, do not

mix it with general household waste. There is

a separate collection system for used elec-

tronic products in accordance with legislation

that requires proper treatment, recovery and

Private households in the member states of the

EU, in Switzerland and Nor way may return their

used electronic products free of charge to desig-

nated collection facilities or to a retailer (if you

purchase a similar new one).

For countries not mentioned above, please con-

tact your local authorities for the correct method

By doing so you will ensure that your disposed

product undergoes the necessary treatment, re-

covery and recycling and thus prevent potential

negative effects on the environment and human

The tuner frequencies on this unit are allocated

for use in Western Europe, Asia, the Middle

East, Africa and Oceania. Use in other areas

may result in poor reception. The RDS (radio

data system) function only works in areas that

broadcast RDS signals for FM stations.

! Do not attempt to install or service this

product by yourself. Installation or serv-

icing of this product by persons without

training and experience in electronic

equipment and automotive accessories

may be dangerous and could expose you

to the risk of electric shock, injury or

! Do not attempt to operate the unit while driv-

ing. Make sure to pull off the road and park

your vehicle in a safe location before at-

tempting to use the controls on the device.

! Do not allow this unit to come into contact

with liquids. Electrical shock could result.

Also, damage to this unit, smoke, and over-

heating could result from contact with

! The Pioneer CarStereo-Pass is for use only in

! Always keep the volume low enough to hear

! Avoid exposure to moisture.

CAUTION This product is a class 1 laser product classi-

fied under the Safety of laser products, IEC

If you experience problems

Should this unit fail to work properly, please con-

tact your dealer or nearest authorized PIONEER Service Station.

2 Section Before you start

CAUTION Use an optional Pioneer USB cable (CD-U50E)

to connect the USB storage device as any device

connected directly to the unit will protrude out

from the unit, which could be dangerous.

a 1 (list)2 Sub information section3 TA (traffic announcements)4 TP (traffic program identification) 5 (sound retriever)6 LOC (local seek tuning) 7 (repeat) 8 (random) 9 Main information section! Tuner: band and frequency! RDS: program service name, PTY infor-mation and other literal information! CD player and USB storage device:elapsed playback time and text informa- tion

a Appears when a lower tier of folder or menuexists. Set up menu

1 After installation of this unit, turn the

ignition switch to ON.

2 Turn M.C. to switch to YES. # If you do not use the unit for 30 seconds, the setup menu will not be displayed. # If you prefer not to set up at this time, turn M.C. to switch to NO. 3 Press M.C. to select.

4 Follow these steps to set the menu.

To proceed to the next menu option, you need to

confirm your selection. LANGUAGE (multi-language)This unit can display the text information from acompressed audio file even for information em-bedded in English, Russian or Turkish.! If the embedded language and the selectedlanguage setting are not the same, text infor-mation may not display properly.! Some characters may not be displayed prop-erly.1 Turn M.C. to select the desired setting. ENG (English)—РУС (Russian)—TUR (Turk-

2 Press M.C. to confirm the selection. CLOCK SET (setting the clock) 1 Turn M.C. to adjust hour.

2 Press M.C. to select minute.

3 Turn M.C. to adjust minute.

4 Press M.C. to confirm the selection. FM STEP (FM tuning step)Use FM STEP to set FM tuning step options (seekstep settings). 1 Turn M.C. to select the FM tuning step.

100 (100 kHz)—50 (50 kHz)

2 Press M.C. to confirm the selection. QUIT appears.! The manual tuning step is fixed at 50 kHz. ! When AF and TA are turned off, the seek step

is fixed at 50 kHz even if set to 100.

5 To finish your settings, turn M.C. to select

YES. # If you prefer to change your setting again, turnM.C. to switch to NO. 6 Press M.C. to select.

! You can set up the menu options from the

system menu and initial menu. For details

about the settings, refer to System menu on

page 7 and Initial menu on page 7.

! You can cancel set up menu by pressing

! Handle the front panel with care when re-

moving or attaching it.

! Avoid subjecting the front panel to excessive

! Keep the front panel out of direct sunlight

and high temperatures.

! To avoid damaging the device or vehicle inte-

rior, remove any cables and devices attached

to the front panel before detaching it.

3 Section Using this unit

<QRD3219-A>3Black plate (4,1) Removing the front panel1 Press the detach button to release the frontpanel.2 Push the front panel upward (M) and then pullit toward (N) you.3 Always store the detached front panel in a pro-tective case or bag.Re-attaching the front panel1 Slide the front panel to the left.2 Press the right side of the front panel until it isfirmly seated.Forcing the front panel into place may result indamage to the front panel or head unit.Turning the unit on1 Press SRC/OFF to turn the unit on.Turning the unit off1 Press and hold SRC/OFF until the unit turns off. Selecting a source1 Press SRC/OFF to cycle between:RADIO—CD—USB—AUX! USB MTP displays while the MTP connectionis in use.Adjusting the volume1 Turn M.C. to adjust the volume. Note

When this unit’s blue/white lead is connected to

the vehicle’s auto-antenna relay control termi-

nal, the vehicle’s antenna extends when this

unit’s source is turned on. To retract the anten-

na, turn the source off.

Frequently used menu

operations Returning to the previous displayReturning to the previous list (the folder one levelhigher)1 Press/DIMMER.Returning to the ordinary displayCanceling the main menu1 Press BAND.Returning to the ordinary display from the list1 Press BAND. Radio

Basic operations Selecting a band1 Press BAND until the desired band (FM1,FM2, FM3 for FM or MW/LW) is displayed.Switching preset stations1 Press c or d.! Select PCH (preset channel) under SEEK touse this function.Manual tuning (step by step)1 Press c or d.! Select MAN (manual tuning) under SEEK touse this function.Seeking1 Press and hold c or d, and then release.You can cancel seek tuning by briefly pressingc or d.While pressing and holding c or d, you canskip stations. Seek tuning starts as soon asyou release c or d. Notes

! For details about SEEK, refer to SEEK (left/

right key setting) on page 5.

! This unit’s AF (alternative frequencies

search) function can be turned on and off.

AF should be off for normal tuning operation

(refer to AF (alternative frequencies search)

Storing and recalling stations

Using preset tuning buttons

1 To store: Press and hold down one of the

preset tuning buttons (1/

the number stops flashing.

2 To recall: Press one of the preset tuning

Switching the display Selecting the desired text information1 Press DISP to cycle between the following:! FREQUENCY (program service name orfrequency)! BRDCST INFO (program service name/PTYinformation)! CLOCK (source name and clock) Notes

! If the program service name cannot be ac-

quired in FREQUENCY, the broadcast fre-

quency is displayed instead. If the program

service name is detected, the program serv-

ice name will be displayed.

! Depending on the band, text information can

! Text information items that can be changed

You can tune in to a station using PTY (program

type) information. Searching for an RDS station by PTY information1 Press(list).2 Turn M.C. to select a program type.NEWS/INFO—POPULAR—CLASSICS—OTHERS3 Press M.C. to begin the search.The unit searches for a station broadcastingthat type of program. When a station is found,its program service name is displayed.! To cancel the search, press M.C. again.! The program of some stations may differfrom that indicated by the transmitted PTY.! If no station is broadcasting the type ofprogram you searched for, NOT FOUND isdisplayed for about two seconds and thenthe tuner returns to the original station. PTY list

For more details about PTY list, visit the follow-

4 Section Using this unit

2 Turn M.C. to change the menu option

and press to select FUNCTION.

3 Turn M.C. to select the function.

Once selected, the following functions can be

adjusted. # If MW/LW band is selected, only BSM, LOCALand SEEK are available.FM SETTING (FM sound quality settings)The sound quality level can be set to match thebroadcast signal conditions of the FM band sig- nal. 1 Press M.C. to display the setting mode.2 Turn M.C. to select the desired setting.! STANDARD – This is the standard setting. ! HI-FI – This is the setting to use to prioritize the high quality of stereo sound. ! STABLE – This is the setting to use to priori- tize the low noise of monaural sound.BSM (best stations memory)BSM (best stations memory) automatically storesthe six strongest stations in the order of their sig-nal strength.1 Press M.C. to turn BSM on.To cancel, press M.C. again.REGIONAL (regional)When AF is used, the regional function limits theselection of stations to those broadcasting region-al programs.1 Press M.C. to turn the regional function on or off. LOCAL (local seek tuning)Local seek tuning allows you to tune in to onlythose radio stations with sufficiently strong sig-nals for good reception.1 Press M.C. to select the desired setting. FM: OFF—LV1—LV2—LV3—LV4 MW/LW: OFF—LV1—LV2The highest level setting allows reception ofonly the strongest stations, while lower levelsallow the reception of weaker stations.TA (traffic announcement standby)1 Press M.C. to turn traffic announcementstandby on or off.AF (alternative frequencies search)1 Press M.C. to turn AF on or off.NEWS (news program interruption)1 Press M.C. to turn the NEWS function on or off. SEEK (left/right key setting)You can assign a function to the left and right keysof the unit.Select MAN (manual tuning) to tune up or downmanually or select PCH (preset channel) to switchbetween preset channels. 1 Press M.C. to select MAN or PCH.

CD/CD-R/CD-RW and USB

MTP-compatible Android devices (running

Android OS 4.0 or higher) can be connected by

MTP connection using the USB source. To con-

nect an Android device, use the cable that came

This function is not compatible with WAV.

Basic operations Playing a CD/CD-R/CD-RW1 Insert the disc into the disc loading slot withthe label side up.Ejecting a CD/CD-R/CD-RW1 Press h.Playing songs on a USB storage device1 Open the USB port cover.2 Plug in the USB storage device using a USBcable.Stopping playback of files on a USB storage de- vice 1 You may disconnect the USB storage device atany time.Selecting a folder1 Press 1/or 2/ .Selecting a track1 Press c or d.Fast forwarding or reversing1 Press and hold c or d.! When playing compressed audio, there is nosound during fast forward or reverse.Returning to root folder1 Press and hold BAND.Switching between compressed audio and CD-DA1 Press BAND.Switching between playback memory devicesYou can switch between playback memory deviceson USB storage devices with more than one MassStorage Device-compatible memory device.1 Press BAND.! You can switch between up to 32 differentmemory devices. Note

Disconnect USB storage devices from the unit

Switching the display Selecting the desired text information1 Press DISP to cycle between the following:CD-DA! ELAPSED TIME (track number and play-back time)! CLOCK (source name and clock)! SPEANA (spectrum analyzer)CD-TEXT! TRACK INFO (track title/track artist/disctitle)! ELAPSED TIME (track number and play-back time)! CLOCK (source name and clock)! SPEANA (spectrum analyzer)MP3/WMA/WAV! TRACK INFO (track title/artist name/albumtitle)! FILE INFO (file name/folder name)! ELAPSED TIME (track number and play-back time)! CLOCK (source name and clock)! SPEANA (spectrum analyzer) Selecting and playing files/

tracks from the name list

1 Press to switch to the file/track name

2 Use M.C. to select the desired file name

(or folder name). Selecting a file or folder1 Turn M.C.Playing1 When a file or track is selected, press M.C. English

5 Section Using this unit

<QRD3219-A>5Black plate (6,1) Viewing a list of the files (or folders) in the se-lected folder1 When a folder is selected, press M.C.Playing a song in the selected folder1 When a folder is selected, press and hold M.C. Operations using special buttons Selecting a repeat play range1 Press 6/to cycle between the following:CD/CD-R/CD-RW! ALL – Repeat all tracks! ONE – Repeat the current track! FLD – Repeat the current folderUSB storage device! ALL – Repeat all files! ONE – Repeat the current file! FLD – Repeat the current folderPlaying tracks in random order1 Press 5/to turn random play on or off.Tracks in a selected repeat range are played inrandom order.! To change songs during random play, press dto switch to the next track. Pressing c restartsplayback of the current track from the begin-ning of the song.Pausing playback 1 Press 4/PAUSE to pause or resume. Enhancing compressed audio and restoring richsound (sound retriever)1 Press 3/S.Rtrv to cycle between:1—2—OFF (off)1 is effective for low compression rates, and 2is effective for high compression rates. Function settings

1 Press M.C. to display the main menu.

2 Turn M.C. to change the menu option

and press to select FUNCTION.

Once selected, the function below can be ad-

justed. S.RTRV (sound retriever)Automatically enhances compressed audio andrestores rich sound.1 Press M.C. to select the desired setting.For details, refer to Enhancing compressedaudio and restoring rich sound (sound retriever)on page 6. Audio adjustments

1 Press M.C. to display the main menu.

2 Turn M.C. to change the menu option

and press to select AUDIO.

3 Turn M.C. to select the audio function.

Once selected, the following audio functions

can be adjusted. ! FADER is not available when SUB.W/SUB.Wis selected in SP-P/O MODE. For details, referto SP-P/O MODE (rear output and preout set-ting) on page 7.! SUB.W and SUB.W CTRL are not availablewhen REAR/REAR is selected inSP-P/O MODE. For details, refer toSP-P/O MODE (rear output and preout set-ting) on page 7.! SUB.W CTRL is not available when SUB.W isselected in OFF. For details, refer to SUB.W(subwoofer on/off setting) on page 6.! SLA is not available when FM is selected asthe source.FADER (fader adjustment)1 Press M.C. to display the setting mode.2 Turn M.C. to adjust the front/rear speaker bal-ance.BALANCE (balance adjustment)1 Press M.C. to display the setting mode.2 Turn M.C. to adjust the left/right speaker bal-ance.EQ SETTING (equalizer recall)1 Press M.C. to display the setting mode.2 Turn M.C. to select the equalizer.POWERFUL—NATURAL—VOCAL—CUS-TOM1—CUSTOM2—FLAT—SUPER BASSThe equalizer band and equalizer level can becustomized when CUSTOM1 or CUSTOM2 isselected.If selecting CUSTOM1 or CUSTOM2, completethe procedures outlined below. If selectingother options, press M.C. to return to the pre-vious display.! CUSTOM1 can be set separately for eachsource.! CUSTOM2 is a shared setting used in com-mon for all sources.3 Press M.C. to display the setting mode.4 Press M.C. to cycle between the following:Equalizer band—Equalizer level5 Turn M.C. to select the desired setting. Equalizer band: 80HZ—250HZ—800HZ— 2.5KHZ—8KHZEqualizer level: +6 to –6! You can also switch the equalizer by pressingEQ repeatedly.LOUDNESS (loudness)Loudness compensates for deficiencies in the low-frequency and high-frequency ranges at low vol- ume. 1 Press M.C. to select the desired setting. OFF (off)—LOW (low)—MID (mid)—HI (high) SUB.W (subwoofer on/off setting)This unit is equipped with a subwoofer outputwhich can be turned on or off.1 Press M.C. to select the desired setting. NOR (normal phase)—REV (reverse phase)— OFF (subwoofer off)SUB.W CTRL (subwoofer adjustment)Only frequencies lower than those in the selectedrange are outputted from the subwoofer.1 Press M.C. to display the setting mode.2 Press M.C. to cycle between the following:Cut-off frequency—Output level—Slope levelRates that can be adjusted will flash.3 Turn M.C. to select the desired setting. Cut-off frequency: 50HZ—63HZ—80HZ— 100HZ—125HZ—160HZ—200HZOutput level: –24 to +6 Slope level: –12— –24 BASS BOOST (bass boost)1 Press M.C. to display the setting mode.2 Turn M.C. to select a desired level.0 to +6 is displayed as the level is increased ordecreased.HPF SETTING (high pass filter adjustment) Using this unit

6 Section Using this unit

<QRD3219-A>6Black plate (7,1)

Use this function when wanting to listen only to

high-frequency sounds. Only frequencies higher

than the high-pass filter (HPF) cutoff are output

1 Press M.C. to display the setting mode.

2 Press M.C. to cycle between the following:

Cut-off frequency—Slope level

3 Turn M.C. to select the desired setting.

Cut-off frequency: OFF—50HZ—63HZ—80HZ

—100HZ—125HZ—160HZ—200HZ Slope level: –12— –24

SLA (source level adjustment)

This function prevents the volume from changing

too dramatically when the source switches.

! Settings are based on the FM volume level,

which remains unchanged.

! The MW/LW volume level can also be adjusted

1 Press M.C. to display the setting mode.

Adjustment range: +4 to –4

PW SAVE (power saving) is canceled if the ve-

hicle battery is disconnected and will need to be

turned back on once the battery is reconnected.

When PW SAVE (power saving) is off, depend-

ing on connection methods, the unit may con-

tinue to draw power from the battery if your

vehicle’s ignition doesn’t have an ACC (acces-

3 Turn M.C. to select the system menu

Once selected, the following system menu func-

tions can be adjusted.

! MUTE MODE and PW SAVE are not available

LANGUAGE (multi-language)

1 Press M.C. to select the desired setting.

ENG (English)—РУС (Russian)—TUR (Turk-

CLOCK SET (setting the clock)

1 Press M.C. to display the setting mode.

2 Press M.C. to select the segment of the clock

display you wish to set.

3 Turn M.C. to adjust the clock.

12H/24H (time notation)

1 Press M.C. to select the desired setting.

12H (12-hour clock)—24H (24-hour clock)

AUTO PI (auto PI seek)

The unit can automatically search for a different

station with the same programming, even during

1 Press M.C. to turn Auto PI seek on or off.

AUX (auxiliary input)

Activate this setting when using an auxiliary de-

vice connected to this unit.

1 Press M.C. to turn AUX on or off.

1 Press M.C. to turn the dimmer on or off.

! You can also change the dimmer setting by

pressing and holding

MUTE MODE (mute mode)

Sound from this system is automatically muted or

attenuated when a signal from equipment with a

mute function is received.

1 Press M.C. to display the setting mode.

2 Turn M.C. to select the desired setting.

! 20dB ATT – Attenuation (20dB ATT has a

stronger effect than 10dB ATT)

! 10dB ATT – Attenuation

PW SAVE (power saving)

Switching this function on enables you to reduce

the consumption of battery power.

! Turning on the source is the only operation al-

lowed when this function is on.

1 Press M.C. to turn the power save on or off.

1 Press and hold SRC/OFF until the unit

2 Press and hold SRC/OFF until the main

menu appears in the display.

Only for DEH-1600UBA Press M.C. to display the main menu.

Once selected, the following initial menu func-

tions can be adjusted.

FM STEP (FM tuning step)

1 Press M.C. to select the FM tuning step.

100 (100 kHz)—50 (50 kHz)

SP-P/O MODE (rear output and preout setting)

The rear speaker leads output and the RCA output

of this unit can be used to connect a full-range

speaker or subwoofer. Select a suitable option for

1 Press M.C. to display the setting mode.

2 Turn M.C. to select the desired setting.

! REAR/SUB.W – Select when there is a full-

range speaker connected to the rear speak-

er leads output and there is a subwoofer

connected to the RCA output.

! SUB.W/SUB.W – Select when there is a

subwoofer connected directly to the rear

speaker leads output without any auxiliary

amp and there is a subwoofer connected

! REAR/REAR – Select when there is a full-

range speaker connected to the rear speak-

er leads output and the RCA output.

If there is a full-range speaker connected to

the rear speaker leads output and the RCA

output is not used, you may select either

REAR/SUB.W or REAR/REAR.

1 Press and hold SRC/OFF until the unit

2 Press and hold SRC/OFF until the main

menu appears in the display.

Only for DEH-1600UBA Press M.C. to display the main menu.

3 Turn M.C. to change the menu option

4 Turn M.C. to select the system menu

For details, refer to System menu on page 7.

7 Section Using this unit

<QRD3219-A>7Black plate (8,1)

1 Insert the stereo mini plug into the AUX

2 Press SRC/OFF to select AUX as the

AUX cannot be selected unless the auxiliary set-

ting is turned on. For more details, refer to AUX

(auxiliary input) on page 7.

Switching the display Selecting the desired text information1 Press DISP to cycle between the following:! Source name! Source name and clock If an unwanted display appears

4 Turn M.C. to switch to YES.

5 Press M.C. to select.

! When installing this unit in a vehicle without

an ACC (accessory) position on the ignition

switch, failure to connect the red cable to the

terminal that detects operation of the ignition

key may result in battery drain.

O N S T A R T O F F ACC position No ACC position

! Use of this unit in conditions other than the

following could result in fire or malfunction. — Vehicles with a 12-volt battery and negativegrounding.— Speakers with 50 W (output value) and 4 W to8 W (impedance value). ! To prevent a short-circuit, overheating or mal-

function, be sure to follow the directions

below. — Disconnect the negative terminal of the bat-tery before installation.— Secure the wiring with cable clamps or adhe-sive tape. Wrap adhesive tape around wiringthat comes into contact with metal parts toprotect the wiring.— Place all cables away from moving parts,such as the shift lever and seat rails.— Place all cables away from hot places, suchas near the heater outlet.— Do not connect the yellow cable to the batteryby passing it through the hole to the enginecompartment.— Cover any disconnected cable connectorswith insulating tape.— Do not shorten any cables.— Never cut the insulation of the power cable ofthis unit in order to share the power withother devices. The current capacity of thecable is limited.— Use a fuse of the rating prescribed.— Never wire the negative speaker cable directlyto ground.— Never band together negative cables of multi-ple speakers. ! When this unit is on, control signals are sent

through the blue/white cable. Connect this

cable to the system remote control of an ex-

ternal power amp or the vehicle’s auto-anten-

na relay control terminal (max. 300 mA

12 V DC). If the vehicle is equipped with a

glass antenna, connect it to the antenna

booster power supply terminal.

! Never connect the blue/white cable to the

power terminal of an external power amp.

Also, never connect it to the power terminal

of the auto antenna. Doing so may result in

battery drain or a malfunction.

! The black cable is ground. Ground cables for

this unit and other equipment (especially,

high-current products such as power amps)

must be wired separately. If they are not, an

accidental detachment may result in a fire or

1600UBG and DEH-1600UBB only)

Hard-wired remote control adapter can be

connected (sold separately).

1 To power cord input

2 Depending on the kind of vehicle, the func-

tion of 3 and 5 may be different. In this

case, be sure to connect 4 to 5 and 6 to

Back-up (or accessory)

Connect to the constant 12 V supply termi-

Accessory (or back-up)

Connect to terminal controlled by ignition

7 Connect leads of the same color to each

8 Black (chassis ground)

The pin position of the ISO connector will dif-

fer depending on the type of vehicle. Connect

9 and b when Pin 5 is an antenna control

type. In another type of vehicle, never con-

Connect to system control terminal of the

power amp (max. 300 mA 12 V DC).

Connect to auto-antenna relay control termi-

nal (max. 300 mA 12 V DC).

c Yellow/black (DEH-1600UB, DEH-1600UBG

and DEH-1600UBB only)

If you use an equipment with Mute function,

wire this lead to the Audio Mute lead on that

equipment. If not, keep the Audio Mute lead

free of any connections.

Gray/black: Front right *

In some vehicles, the ISO connector may be

divided into two. In this case, be sure to con-

nect to both connectors.

! Change the initial menu of this unit. Refer to

SP-P/O MODE (rear output and preout set-

The subwoofer output of this unit is monau-

! When using a subwoofer of 70 W (2 W), be

sure to connect the subwoofer to the violet

and violet/black leads of this unit. Do not

connect anything to the green and green/

Power amp (sold separately)

Perform these connections when using the op-

1 System remote control

Connect to Blue/white cable.

2 Power amp (sold separately)

3 Connect with RCA cables (sold separately)

4 To Rear output or subwoofer output

5 Rear speaker or subwoofer

! Check all connections and systems before

! Do not use unauthorized parts as this may

! Consult your dealer if installation requires

drilling of holes or other modifications to the

! Do not install this unit where: — it may interfere with operation of the vehicle.— it may cause injury to a passenger as a resultof a sudden stop. ! The semiconductor laser will be damaged if

it overheats. Install this unit away from hot

places such as near the heater outlet.

! Optimum performance is obtained when the

unit is installed at an angle of less than 60°.

! When installing, to ensure proper heat dis-

persal when using this unit, make sure you

leave ample space behind the rear panel and

wrap any loose cables so they are not block-

DIN front/rear mount

This unit can be properly installed using either

front-mount or rear-mount installation.

Use commercially available parts when instal-

1 Insert the mounting sleeve into the dash-

For installation in shallow spaces, use the sup-

plied mounting sleeve. If there is enough space,

use the mounting sleeve that came with the ve-

2 Secure the mounting sleeve by using a

screwdriver to bend the metal tabs (90°) into

2 1 Dashboard English

<QRD3219-A>9Black plate (10,1) 2 Mounting sleeve# Make sure that the unit is installed securely inplace. An unstable installation may cause skippingor other malfunctions. DIN Rear-mount

1 Determine the appropriate position

where the holes on the bracket and the side

2 Tighten two screws on each side.

3 1 Tapping screw (5 mm × 8 mm)2 Mounting bracket3 Dashboard or console Removing the unit

1 Remove the trim ring. 1 Trim ring2 Notched tab! Releasing the front panel allows easier ac-cess to the trim ring.! When reattaching the trim ring, point theside with the notched tab down. 2 Insert the supplied extraction keys into

both sides of the unit until they click into

3 Pull the unit out of the dashboard.

Removing and re-attaching the front

You can remove the front panel to protect your

For details, refer to Removing the front panel and

Re-attaching the front panel on page 4.

Symptoms are written in bold and causes in reg-

ular, non-indented text. Regular, indented text is

used to indicate actions to be taken. The display automatically returns to the ordinarydisplay.You did not perform any operation within about 30seconds.Perform operation again.The repeat play range changes unexpectedly.Depending on the repeat play range, the selectedrange may change when another folder or track isbeing selected or during fast forwarding/reversing.Select the repeat play range again.A subfolder is not played back.Subfolders cannot be played when FLD (folder re-peat) is selected.Select another repeat play range.NO XXXX appears when a display is changed(NO TITLE, for example).There is no embedded text information.Switch the display or play another track/file.The unit is malfunctioning.There is interference.You are using a device, such as a cellular phone,that may cause audible interference.Move electrical devices that may be causing theinterference away from the unit. Error messages

When you contact your dealer or your nearest

Pioneer Service Center, be sure to note the error

Symptoms are written in bold and causes in reg-

ular, non-indented text. Regular, indented text is

used to indicate actions to be taken.

Common AMP ERRORThis unit fails to operate or the speaker connection isincorrect; the protective circuit is activated.Check the speaker connection. If the messagefails to disappear even after the engine isswitched off/on, contact your dealer or anauthorized Pioneer Service Station forassistance. CD player ERROR-07, 11, 12, 17, 30The disc is dirty.Clean the disc.The disc is scratched.Replace the disc.ERROR-07, 10, 11, 12, 15, 17, 30, A0There is an electrical or mechanical error.Turn the ignition switch OFF and back ON, orswitch to a different source, then back to the CDplayer.ERROR-15The inserted disc is blank.Replace the disc.ERROR-23Unsupported CD format.Replace the disc. Installation

10 Section Additional information

<QRD3219-A>10Black plate (11,1) FORMAT READSometimes there is a delay between the start of play-back and when you start to hear any sound.Wait until the message disappears and you hearsound.NO AUDIOThe inserted disc does not contain any playable files.Replace the disc.SKIPPEDThe inserted disc contains DRM protected files.The protected files are skipped.PROTECTAll the files on the inserted disc are embedded with DRM. Replace the disc. USB storage device FORMAT READSometimes there is a delay between the start of play-back and when you start to hear any sound.Wait until the message disappears and you hearsound.NO AUDIOThere are no songs.Transfer the audio files to the USB storage deviceand connect.The connected USB storage device has security en-abled.Follow the USB storage device instructions todisable the security.SKIPPEDThe connected USB storage device contains DRMprotected files.The protected files are skipped.PROTECTAll the files on the connected USB storage deviceare embedded with DRM.Replace the USB storage device.N/A USBThe connected USB device is not supported by thisunit.! Connect a USB Mass Storage Class compliantdevice.! Disconnect your device and replace it with acompatible USB storage device.CHECK USBThe USB connector or USB cable has short-circuited.Check that the USB connector or USB cable isnot caught in something or damaged.The connected USB storage device consumes morethan maximum allowable current.Disconnect the USB storage device and do notuse it. Turn the ignition switch to OFF, then toACC or ON and then connect only compliantUSB storage devices.ERROR-19Communication failed.Perform one of the following operations.–Turn the ignition switch OFF and back ON.–Disconnect the USB storage device.–Change to a different source.Then, return to the USB source.ERROR-23USB storage device was not formatted with FAT12,FAT16 or FAT32.USB storage device should be formatted withFAT12, FAT16 or FAT32. STOP There are no songs in the current list.Select a list that contains songs. Handling guidelines

Discs and player Use only discs that feature either of the followingtwo logos.Use 12-cm discs.Use only conventional, fully circular discs.The following types of discs cannot be used withthis unit:! DualDiscs! 8-cm discs: Attempts to use such discs withan adaptor may cause the unit to malfunction.! Oddly shaped discs! Discs other than CDs! Damaged discs, including discs that arecracked, chipped or warped! CD-R/RW discs that have not been finalizedDo not touch the recorded surface of the discs.Store discs in their cases when not in use.Do not attach labels, write on or apply chemicalsto the surface of the discs.To clean a CD, wipe the disc with a soft cloth out-ward from the center.Condensation may temporarily impair the player’sperformance. Let it rest for about one hour to ad-just to a warmer temperature. Also, wipe anydamp discs off with a soft cloth.Playback of discs may not be possible because ofdisc characteristics, disc format, recorded applica-tion, playback environment, storage conditions,and so on.Road shocks may interrupt disc playback.When using discs that can be printed on label sur-faces, check the instructions and the warnings ofthe discs. Depending on the discs, inserting andejecting may not be possible. Using such discsmay result in damage to this equipment.Do not attach commercially available labels orother materials to the discs.! The discs may warp making the disc unplay-able.! The labels may come off during playback andprevent ejection of the discs, which may resultin damage to the equipment. USB storage device Connections via USB hub are not supported.Do not connect anything other than a USB stor-age device.Firmly secure the USB storage device when driv-ing. Do not let the USB storage device fall onto thefloor, where it may become jammed under thebrake or accelerator pedal.Depending on the USB storage device, the follow-ing problems may occur.! Operations may vary.! The storage device may not be recognized.! Files may not be played back properly.! The device may cause audible interferencewhen you are listening to the radio. English

Additional information

11 Appendix Additional information

compatibility (disc, USB)

WMA File extension: .wmaBit rate: 48 kbps to 320 kbps (CBR), 48 kbps to384 kbps (VBR)Sampling frequency: 32 kHz, 44.1 kHz, 48 kHzWindows Mediaä Audio Professional, Lossless,Voice/DRM Stream/Stream with video: Not com-patible MP3 File extension: .mp3Bit rate: 8 kbps to 320 kbps (CBR), VBRSampling frequency: 8 kHz to 48 kHz (32 kHz,44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version: 1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version1.x.)M3u playlist: Not compatibleMP3i (MP3 interactive), mp3 PRO: Not compatible WAV File extension: .wavQuantization bits: 8 and 16 (LPCM), 4 (MSADPCM)Sampling frequency: 16 kHz to 48 kHz (LPCM),22.05 kHz and 44.1 kHz (MS ADPCM) ! You cannot use this function with USB MTP.

Supplemental information Only the first 32 characters can be displayed as afile name (including the file extension) or a foldername.Russian text to be displayed on this unit should beencoded in one of the following character sets:! Unicode (UTF-8, UTF-16)! A character set other than Unicode that isused in a Windows environment and is set toRussian in the multi-language settingThis unit may not work properly depending on theapplication used to encode WMA files.There may be a slight delay at the start of playbackof audio files embedded with image data or audiofiles stored on a USB storage device that has nu-merous folder hierarchies. Disc Playable folder hierarchy: up to eight tiers (A prac-tical hierarchy is less than two tiers.)Playable folders: up to 99Playable files: up to 999File system: ISO 9660 Level 1 and 2, Romeo, JolietMulti-session playback: CompatiblePacket write data transfer: Not compatibleRegardless of the length of blank sections be-tween the songs from the original recording, com-pressed audio discs play with a short pausebetween songs. USB storage device Playable folder hierarchy: up to eight tiers (A prac-tical hierarchy is less than two tiers.)Playable folders: up to 500Playable files: up to 15 000Playback of copyright-protected files: Not compati- ble Partitioned USB storage device: Only the first par-tition can be played.There may be a slight delay when starting play-back of audio files on a USB storage device withnumerous folder hierarchies. CAUTION

! Pioneer cannot guarantee compatibility with

all USB mass storage devices and assumes

no responsibility for any loss of data on

media players, smart phones, or other devi-

ces while using this product.

! Do not leave discs or a USB storage device

in any place that is subject to high tempera-

Sequence of audio files

The user cannot assign folder numbers and

specify playback sequences with this unit. Example of a hierarchy 

05 : Folder: Compressedaudio file01 to 05: Foldernumber1 to 6: Playbacksequence Disc

Folder selection sequence or other operation

may differ depending on the encoding or writing

Playback sequence is the same as recorded se-

quence in the USB storage device.

To specify the playback sequence, the following

method is recommended.

1 Create a file name that includes numbers

that specify the playback sequence (e.g.,

001xxx.mp3 and 099yyy.mp3).

2 Put those files into a folder.

3 Save the folder containing files on the USB

However, depending on the system environment,

you may not be able to specify the playback se-

For USB portable audio players, the sequence is

different and depends on the player.

Russian character chart D: C D: C D: C D: C D: C : А : Б : В : Г : Д

: Р : С : Т : У : Ф : Х : Ц : Ч: Ш, Щ : Ъ : Ы : Ь : Э : Ю : Я

D: Display C: Character

Copyright and trademark

Supply of this product only conveys a license for

private, non-commercial use and does not con-

vey a license nor imply any right to use this prod-

uct in any commercial (i.e. revenue-generating)

real time broadcasting (terrestrial, satellite,

cable and/or any other media), broadcasting/

Additional information

12 Appendix Additional information

<QRD3219-A>12Black plate (13,1)

streaming via internet, intranets and/or other

networks or in other electronic content distribu-

tion systems, such as pay-audio or audio-on-de-

mand applications. An independent license for

such use is required. For details, please visit

http://www.mp3licensing.com.

WMA Windows Media is either a registered trademark

or trademark of Microsoft Corporation in the

United States and/or other countries.

This product includes technology owned by

Microsoft Corporation and cannot be used or

distributed without a license from Microsoft

Android is a trademark of Google Inc.

General Power source 14.4 V DC (10.8 V to 15.1 V al-lowable)Grounding system Negative typeMaximum current consumption 10.0 ADimensions (W × H × D): DIN Chassis 178mm × 50mm × 165mmNose 188mm × 58mm × 16mm D Chassis 178mm × 50mm × 165mmNose 170mm × 46mm × 16mmWeight 1 kg Audio Maximum power output ... 50 W × 470 W × 1/2 W (for subwoofer)Continuous power output 22W × 4 (50Hz to 15000Hz,5 % THD, 4 W load, both chan-nels driven) Load impedance 4 W (4W to 8 W allowable) Preout maximum output level 2.0VLoudness contour +10 dB (100 Hz), +6.5 dB(10 kHz) (volume: –30 dB)Equalizer (5-Band Graphic Equalizer):Frequency 80Hz/250 Hz/800 Hz/2.5 kHz/8 kHzEqualization range ±12 dB (2 dB step)Subwoofer (mono):Frequency 50Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz Slope –12 dB/oct, –24 dB/oct Gain +6dB to –24 dBPhase Normal/Reverse CD player System Compact disc audio systemUsable discs Compact discSignal-to-noise ratio 94dB (1 kHz) (IEC-A network)Number of channels 2 (stereo)MP3 decoding format MPEG-1 & 2 Audio Layer 3WMA decoding format Ver. 7, 7.1, 8, 9, 10, 11, 12 (2chaudio)(Windows Media Player)WAV signal format Linear PCM & MS ADPCM(Non-compressed) USB USB standard specification USB 2.0 full speedMaximum current supply 1AUSB Class MSC (Mass Storage Class)File system FAT12, FAT16, FAT32MP3 decoding format MPEG-1 & 2 Audio Layer 3WMA decoding format Ver. 7, 7.1, 8, 9, 10, 11, 12 (2chaudio)(Windows Media Player)WAV signal format Linear PCM & MS ADPCM(Non-compressed) FM tuner Frequency range 87.5 MHz to 108.0 MHz Usable sensitivity 9 dBf (0.8 µV/75 W, mono, S/N: 30 dB)Signal-to-noise ratio 72dB (IEC-A network) MW tuner Frequency range 531kHz to 1 602 kHzUsable sensitivity 25µV (S/N: 20 dB)Signal-to-noise ratio 62dB (IEC-A network) LW tuner Frequency range 153kHz to 281kHzUsable sensitivity 28µV (S/N: 20 dB)Signal-to-noise ratio 62dB (IEC-A network) Note

Specifications and the design are subject to

modifications without notice.

Additional information

13 Appendix Additional information

BASS BOOST (accentuation des graves)

! 20dB ATT – Atténuation (20dB ATT aun

<QRD3219-A>22Black plate (23,1)

23 Section Installation

<QRD3219-A>23Black plate (24,1)

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Pente –12 dB/oct, –24 dB/oct

(Windows Media Player)

(Windows Media Player)

<QRD3219-A>28Black plate (29,1)

<QRD3219-A>32Black plate (33,1)

<QRD3219-A>33Black plate (34,1)

<QRD3219-A>34Black plate (35,1)

Lettore CD ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Consumo massimo 10,0 A Dimensioni (L × A × P):

(Windows Media Player)

(Windows Media Player)

<QRD3219-A>42Black plate (43,1)

<QRD3219-A>43Black plate (44,1)

ERROR-07, 10, 11, 12, 15, 17, 30, A0

<QRD3219-A>52Black plate (53,1)

<QRD3219-A>53Black plate (54,1)

<QRD3219-A>57Black plate (58,1)

NOR (Normalphase)—REV (Gegenphase)—

<QRD3219-A>63Black plate (64,1)

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

<QRD3219-A>70Black plate (71,1)

<QRD3219-A>73Black plate (74,1)

BASS BOOST (bass boost)

HPF SETTING (high pass filter aanpassen)

Accessoire (of back-up)

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

<QRD3219-A>81Black plate (82,1)

D Chassis 178mm × 50mm × 165 mm

Helling –12 dB/oct, –24 dB/oct

Versie 7, 7.1, 8, 9, 10, 11, 12

(Windows Media Player)

Versie 7, 7.1, 8, 9, 10, 11, 12

(Windows Media Player)

<QRD3219-A>82Black plate (83,1)

<QRD3219-A>88Black plate (89,1)

<QRD3219-A>92Black plate (93,1)

<QRD3219-A>98Black plate (99,1)

PIONEER ELECTRONICS (USA) INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

ã 2013 PIONEER CORPORATION. All rights reserved.
