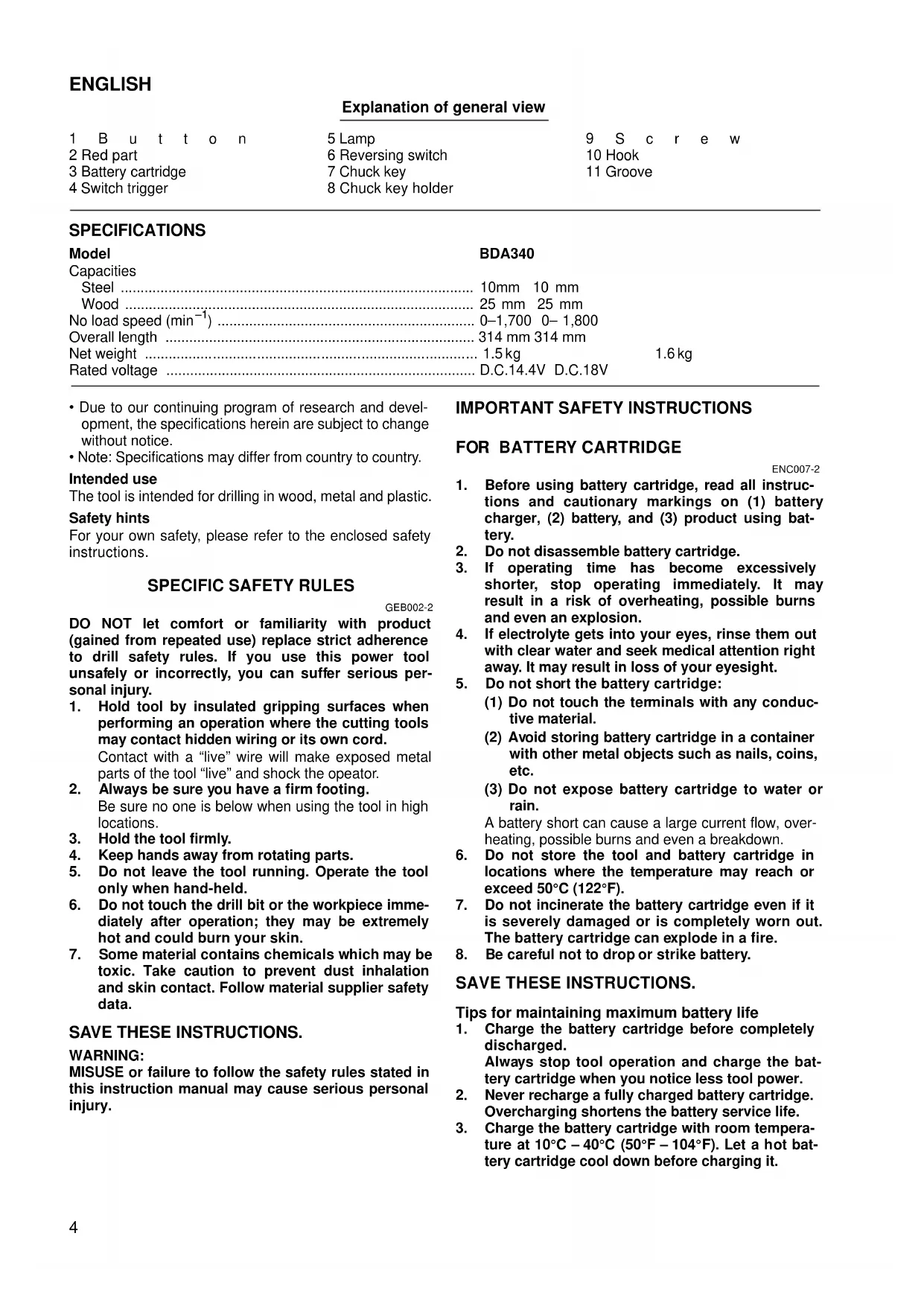

ENGLISH Explanation of general view

Net weight 1.5 kg 1.6 kg

Rated voltage D.C.14.4V D.C.18V

• Due to our continuing program of research and devel-

opment, the specifications herein are subject to change

• Note: Specifications may differ from country to country.

The tool is intended for drilling in wood, metal and plastic.

For your own safety, please refer to the enclosed safety

SPECIFIC SAFETY RULES GEB002-2 DO NOT let comfort or familiarity with product

(gained from repeated use) replace strict adherence

to drill safety rules. If you use this power tool

unsafely or incorrectly, you can suffer serious per-

1. Hold tool by insulated gripping surfaces when

performing an operation where the cutting tools

may contact hidden wiring or its own cord.

Contact with a “live” wire will make exposed metal

parts of the tool “live” and shock the opeator.

2. Always be sure you have a firm footing.

Be sure no one is below when using the tool in high

3. Hold the tool firmly.

4. Keep hands away from rotating parts.

5. Do not leave the tool running. Operate the tool

only when hand-held.

6. Do not touch the drill bit or the workpiece imme-

diately after operation; they may be extremely

hot and could burn your skin.

7. Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation

and skin contact. Follow material supplier safety

SAVE THESE INSTRUCTIONS.

MISUSE or failure to follow the safety rules stated in

this instruction manual may cause serious personal

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE ENC007-2 1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery

charger, (2) battery, and (3) product using bat-

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may

result in a risk of overheating, possible burns

and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right

away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conduc-

(2) Avoid storing battery cartridge in a container

with other metal objects such as nails, coins,

(3) Do not expose battery cartridge to water or

A battery short can cause a large current flow, over-

heating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or

exceed 50°C (122°F).

7. Do not incinerate the battery cartridge even if it

is severely damaged or is completely worn out.

The battery cartridge can explode in a fire.

8. Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

Always stop tool operation and charge the bat-

tery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tempera-

ture at 10°C – 40°C (50°F – 104°F). Let a hot bat-

tery cartridge cool down before charging it.5

FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and the bat-

tery cartridge is removed before adjusting or checking

function on the tool.

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before insertion or removal of

the battery cartridge.

• To remove the battery cartridge, withdraw it from the

tool while sliding the button on the front of the cartridge.

• To insert the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Always insert it all the way until it locks in

place with a little click. If you can see the red part on

the upper side of the button, it is not locked completely.

Insert it fully until the red part cannot be seen. If not, it

may accidentally fall out of the tool, causing injury to

you or someone around you.

• Do not use force when inserting the battery cartridge. If

the cartridge does not slide in easily, it is not being

Switch action (Fig. 2)

• Before inserting the battery cartridge into the tool,

always check to see that the switch trigger actuates

properly and returns to the “OFF” position when

To start the tool, simply pull the switch trigger. Tool speed

is increased by increasing pressure on the switch trigger.

Release the switch trigger to stop.

• Be sure to hold the tool firmly before the tool is

Lighting up the front lamp (Fig. 3)

• Do not look in the light or see the source of light

Pull the switch trigger to light up the lamp. The lamp

keeps on lighting while the switch trigger is being pulled.

The light automatically goes out 10 – 15 seconds after

the switch trigger is released.

• Use a dry cloth to wipe the dirt off the lens of lamp. Be

careful not to scratch the lens of lamp, or it may lower

Reversing switch action (Fig. 4)

This tool has a reversing switch to change the direction of

rotation. Depress the reversing switch lever from the A

side for clockwise rotation or from the B side for counter-

When the reversing switch lever is in the neutral position,

the switch trigger cannot be pulled.

• Always check the direction of rotation before operation.

• Use the reversing switch only after the tool comes to a

complete stop. Changing the direction of rotation

before the tool stops may damage the tool.

• When not operating the tool, always set the reversing

switch lever to the neutral position.

• Always be sure that the tool is switched off and the bat-

tery cartridge is removed before carrying out any work

Installing side grip (auxiliary handle) (Fig. 5)

• Always be sure that the side grip is installed securely

Screw the side grip on the tool securely. The side grip

can be installed on either side of the tool, whichever is

Installing or removing drill bit (Fig. 6)

To install the bit, place it in the chuck as far as it will go.

Tighten the chuck by hand. Place the chuck key in each

of the three holes and tighten clockwise. Be sure to

tighten all three chuck holes evenly.

To remove the bit, turn the chuck key counterclockwise in

just one hole, then loosen the chuck by hand.

After use, return the chuck key to the storage cavity on

Chuck key holder (Fig. 7)

To install the chuck key holder, fix it to the convex portion

of the tool housing on either side and then secure it with

a screw. To remove, loosen the screw and then take it

The hook is convenient for temporarily hanging the tool.

This can be installed on either side of the tool.

To install the hook, insert it into a groove in the tool hous-

ing on either side and then secure it with a screw.

To remove, loosen the screw and then take it out.

• Hold the tool firmly with one hand on the gripping part

of the tool and the other hand on the side grip when

performing the tool. (Fig. 9)

To prevent the bit from slipping when starting a hole,

make an indentation with a center-punch and hammer at

the point to be drilled. Place the point of the bit in the

indentation and start drilling.

Use a cutting lubricant when drilling metals. The excep-

tions are iron and brass which should be drilled dry.

• Pressing excessively on the tool will not speed up the

drilling. In fact, this excessive pressure will only serve

to damage the tip of your bit, decrease the tool perfor-

mance and shorten the service life of the tool.

• There is a tremendous force exerted on the tool/bit at

the time of hole break through. Hold the tool firmly and

exert care when the bit begins to break through the

• A stuck bit can be removed simply by setting the

reversing switch to reverse rotation in order to back out.

However, the tool may back out abruptly if you do not

• Always secure small workpieces in a vise or similar

• If the tool is operated continuously until the battery car-

tridge has discharged, allow the tool to rest for 15 min-

utes before proceeding with a fresh battery.

MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and the bat-

tery cartridge is removed before attempting to perform

inspection or maintenance.

To maintain product SAFETY and RELIABILITY, repairs,

any other maintenance or adjustment should be per-

formed by Makita Authorized Service Centers, always

using Makita replacement parts.

ACCESSORIES CAUTION:

• These accessories or attachments are recommended

for use with your Makita tool specified in this manual.

The use of any other accessories or attachments might

present a risk of injury to persons. Only use accessory

or attachment for its stated purpose.

If you need any assistance for more details regarding

these accessories, ask your local Makita service center.

• Plastic carrying case

• Various type of Makita genuine batteries and chargers7

Para manter a SEGURANÇA e FIABILIDADE, as repara-

EC-DECLARATION OF CONFORMITY Model; BDA340, BDA350

We declare under our sole responsibility that this product

is in compliance with the following standards of standard-

in accordance with Council Directives, 2004/108/EC and

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND PORTUGUÊS DANSK

For European countries only

The typical A-weighted noise level determined according

Sound pressure level (L

Uncertainty (K): 3 dB (A).

The noise level under working may exceed 85 dB (A).

Wear ear protection.

The vibration total value (tri-axial vector sum) determined

according to EN60745-2-1:

Work mode: Drilling into metal

Vibration emission (a

Vibrationsemission (a
