USER MANUAL TAB77DUAL Sunstech

How to use TF card ....6

How to connect with computer ....7

Connection to Internet....8

Camera....9

Trouble Shooting....10

Specifications

Display: 7 inch 1024X600 Capacitive multi-touch screen

CPU: A20 Dual-Core A7 1.2GHz

RAM: 1GB DDR III

GPU Mali-400@450Mhz

Internal Storage: 8 GB

Expansion Memory: Micro SD card up to 32GB (not supplied)

Built-In Wireless: 802.11b/g/n

Micro USB 2.0 / OTG

What's Inside The box

Tablet - 1pc

Power Adapter -1pc

USB Cable-1pc

OTG Cable-1pc

Instruction manual - 1pc

Warranty card 1pc

Tablet Part

sunstech® TABLET MODEL NO:1A8770243.66A DC5V mm 2A Made in China CE RESET MIC DCIN/USB TF CARD 1 2 3 4 5 6

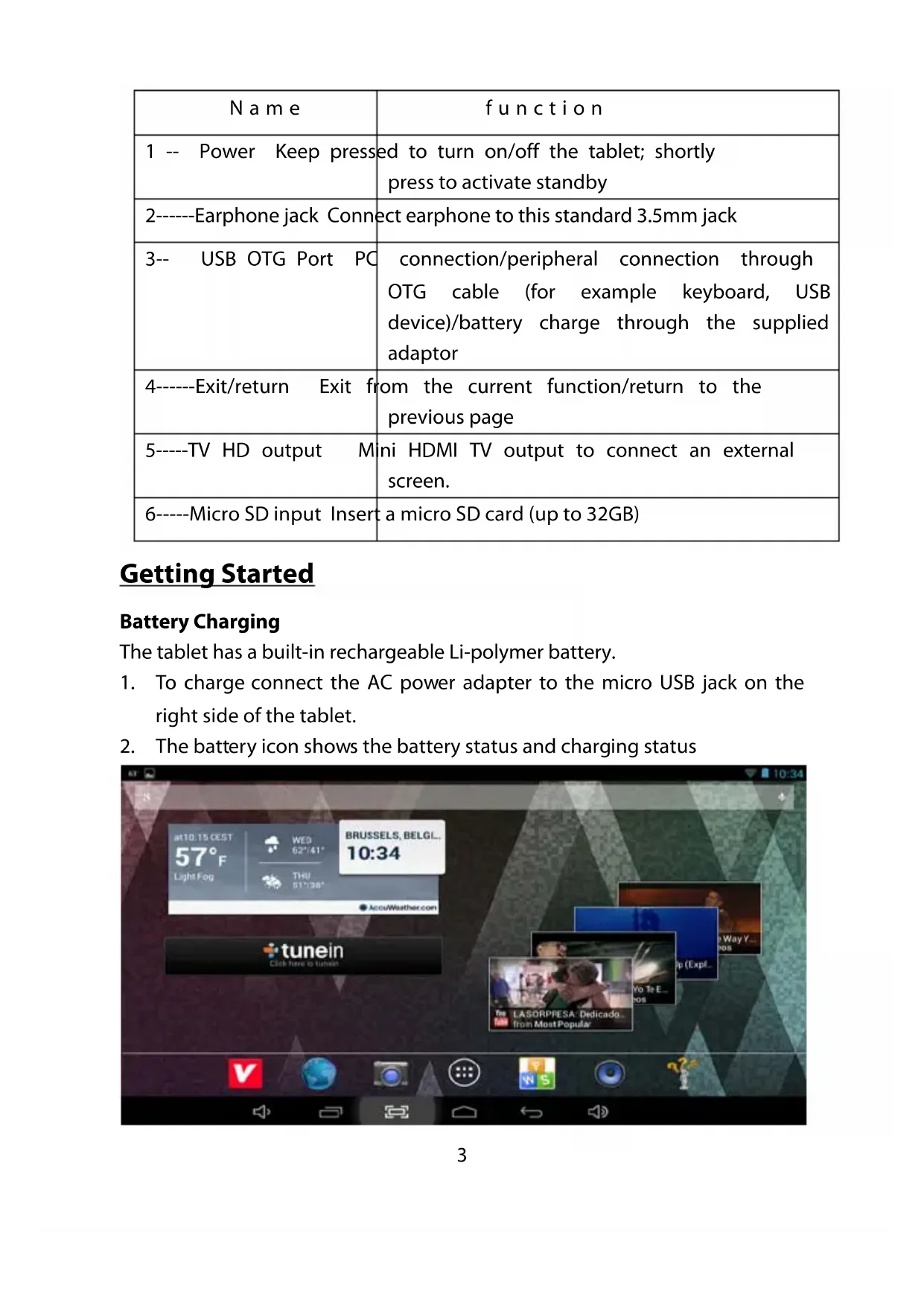

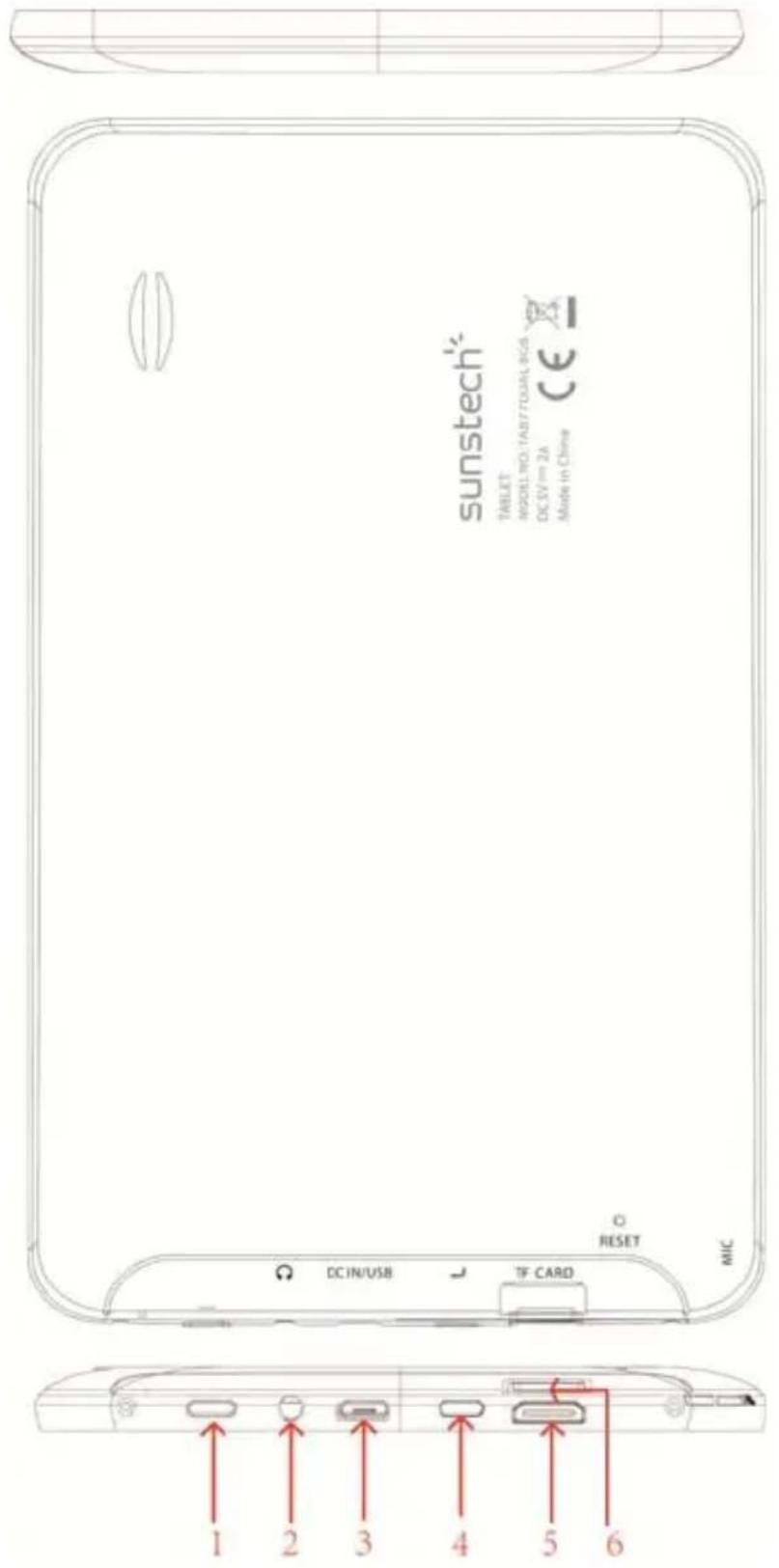

Name	function
1 -- Power Keep pressed to turn on/off the tablet; shortly press to activate standby
2----Earphone jack Connect earphone to this standard 3.5mm jack
3-- USB OTG Port PC	connection/peripheral connection through OTG cable (for example keyboard, USB device)/battery charge through the supplied adaptor
4----Exit/return Exit from the current function/return to the previous page
5----TV HD output Mini HDMI TV output to connect an external screen.
6----Micro SD input Insert a micro SD card (up to 32GB)

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the micro USB jack on the right side of the tablet.

2. The battery icon shows the battery status and charging status

410:15 CEST 57°F Light Fog WE3 62°/41° THU 51°/38° BRUSSELS, BELGI... 10:34 AccuWeather.com tunein Click here to tunein Yo Te E... ExpI... LASORPRESA: Dedicado... from Most Popular

1. The tablet can be used even if the battery is being charged.
   the above icons indicate the different level of electricity left in the battery
2. No replacement of battery without authorization, or the explosion hazard might happen.
3. Recharge it for at least half hour if it has been idle for long time and fails to start itself.
4. Regularly recharge it at least one time monthly
5. 40^-5^ is the optimum temperature for the battery recharging or the battery performance might deteriorate slightly

Disposal

the battery might contain the polluting material, please give it to the official recycling-station before disposing the tablet pc, and don't litter.

Power ON/OFF

ON:

press the ⏻ button for continuous 5 seconds until the tablet turns "ON".

OFF:

1. Press the ⏻ button for continuous 5 seconds and it will appear
2. Select OK to power off the tablet

Screen Lock

This feature locks the screen, at the same time turn OFF the screen's backlight after a few seconds.

Screen locks when:

1. System is idle.
2. Manually activated by pressing the Power button once.

Screen unlock :

Diagram showing a hand pressing a lock icon with a red arrow pointing to an open lock symbol, indicating lock status change.

Home screen

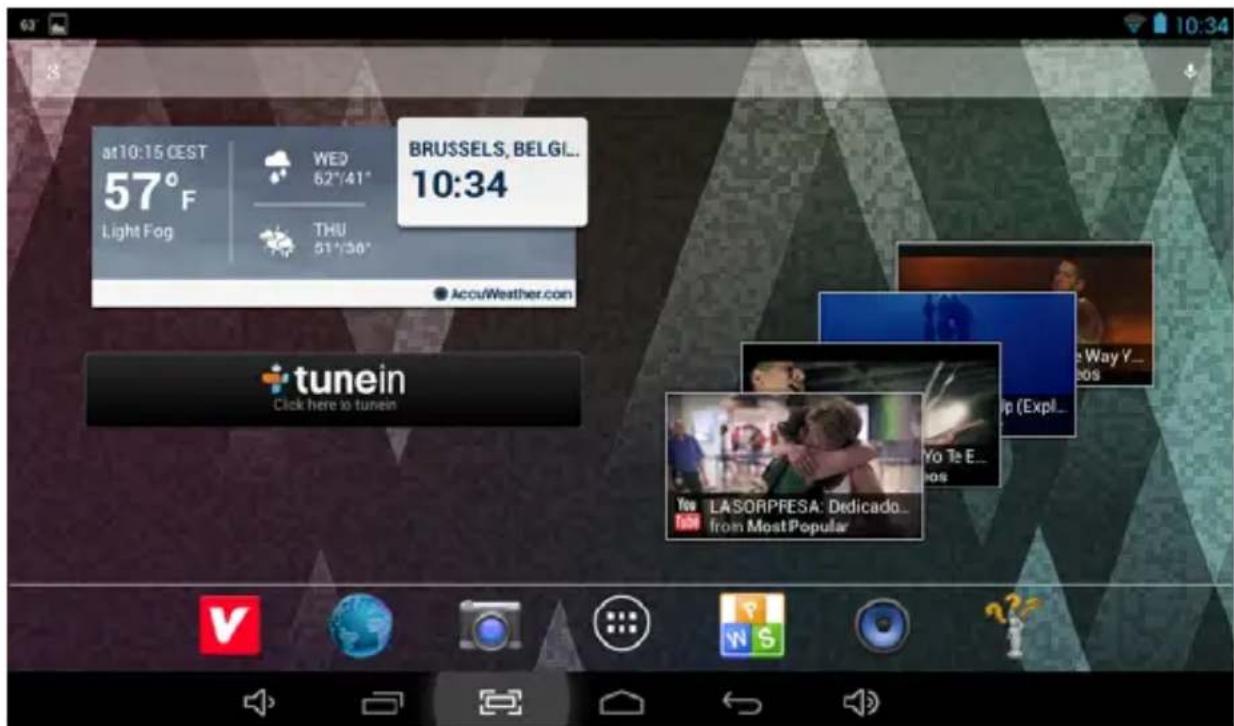

The Home screen will look similar to the picture below. It is actually five

screens, each of which can have a different layout of icons. To switch between screens, simply slide your finger left or right across the display.

The status bar and navigation buttons are always visible, no matter which Home screen you can currently viewing.

at10:15 CEST 57° F Light Fog WED 62°/41° THU 51°/30° BRUSSELS, BELGI... 10:34 AccuWeather.com tunein Click here to tunein Yes LASORPFESA: Dedicado... from Most Popular

The Desktop contains shortcuts to your most-used applications and widgets. Touch the screen icon to quickly search the World Wide Web using Google.

The 🐘️ icon will launch the Application menu.

The status bar displays system information, such as current time, wireless connectivity and battery.

Touch to Expand the status bar for more detailed information.

The ← button moves back one step to the previous menu/page.

The button returns immediately to the Android desktop.

The button display a menu of recently opened applications.

Settings Menu

The settings menu allows you to adjust Tablet system configuration.

To change settings:

1. Touch the "Settings" menu icon on the Application menu. The Settings menu will open.
2. Guide your finger up or down the left side of the screen to scroll through the list of available categories.
3. Touch a category title to view further options on the right side of the screen.

Wi-Fi - Connect to /disconnect from wireless networks, view connection status

Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note: this function is available only on devices supplied with 3G card)

Sound - Change volume, touch sound, screen lock sounds etc

Display - Change brightness, wallpaper, sleep settings, font size etc

Storage - Manage NAND and Micro SD card, view available capacity etc

Battery - See battery status and powered-on time Apps - Manage applications, running services etc Accounts - Manage accounts etc

Location services - Change approximate location detection, improve search results

Security - Change screen lock type, encryption, password, credential storage etc

Language & input Select language, add to the dictionary, edit on-screen keyboard settings, vocal search, etc

Backup & reset - Backup & restore data, perform factory reset, etc

Date & time - Set date, time zone, time, clock format etc

Accessibility - Set up large text, auto-rotate screen, speak password etc

Developer options - Advanced functions for Android developers - debugging, HDCP check etc

About tablet - Information about your Android device

How to Use TF card

1. Insert the TF card into the TF card slot. Gently push TF card into slot until it clicks into place.

2. A prompt will be seen on the screen saying "Preparing SD card"

Removing TF card

1. Close all applications and documents which have been opened from the TF card.
2. Select "Setting" and find "Storage" then click "Unmount SD card".
3. A prompt will be seen on the screen saying "SD card safe to remove"
4. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the card and the slot.

Software Keyboard

The tablet has a software keyboard which automatically show up when you tap the place on screen where text or number are to be entered.

Touch Screen

The touch screen responds to finger touch.

Note: don't place any object on the touch screen for it may damage or crush the screen.

Single Click: single click one icon to choose the icon or option you want.

Long Press: press and hold one icon to make appear a menu related to executed function (if available).

Drag: drag on the screen and you can move between magic cube sides or drag the application icons into the shortcut bar.

How to connect with computer

Note: Turn on your Tablet before connect the Tablet to PC by USB cable.

1 Use USB cable to connect with the computer. System will notice USB connected on bottom of screen.

2 Press USB connected on the top bar, then click Turn on USB storage, click OK.

1. Then the USB connection has been successfully.

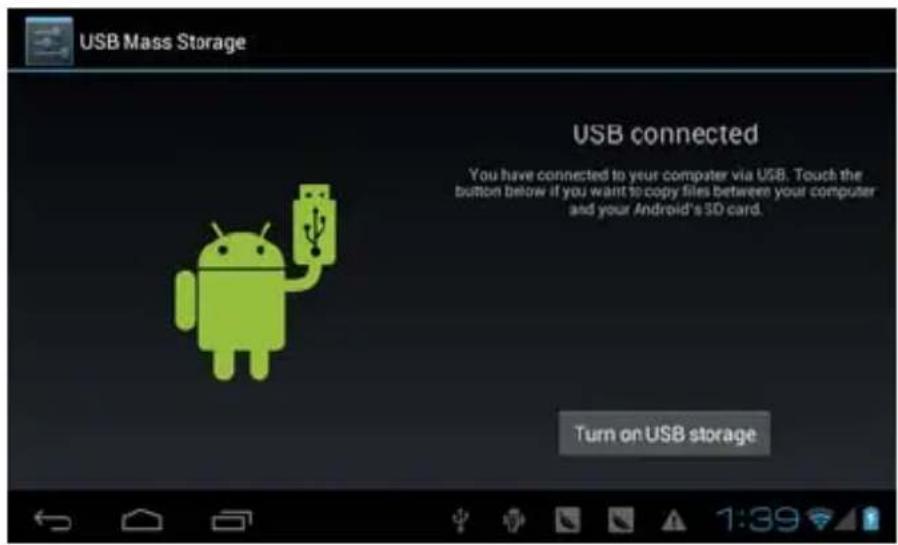

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's 3D card. Turn on USB storage

Connection to Internet

Wireless:

1 Select "Settings"

2 Select "Wi-Fi" and slide OFF to ON status.

OFF ON

3 All detected wireless networks in the area will be listed, Click to select desired wireless connection.
4 Enter WEP key or network key if necessary.
5 Once connected to a wireless network, settings will be saved
6 Wireless icon will appear on the taskbar when connected successfully.

Note: when the tablet detects the same wireless network in the future, the device will connect to the network automatically with same password record.

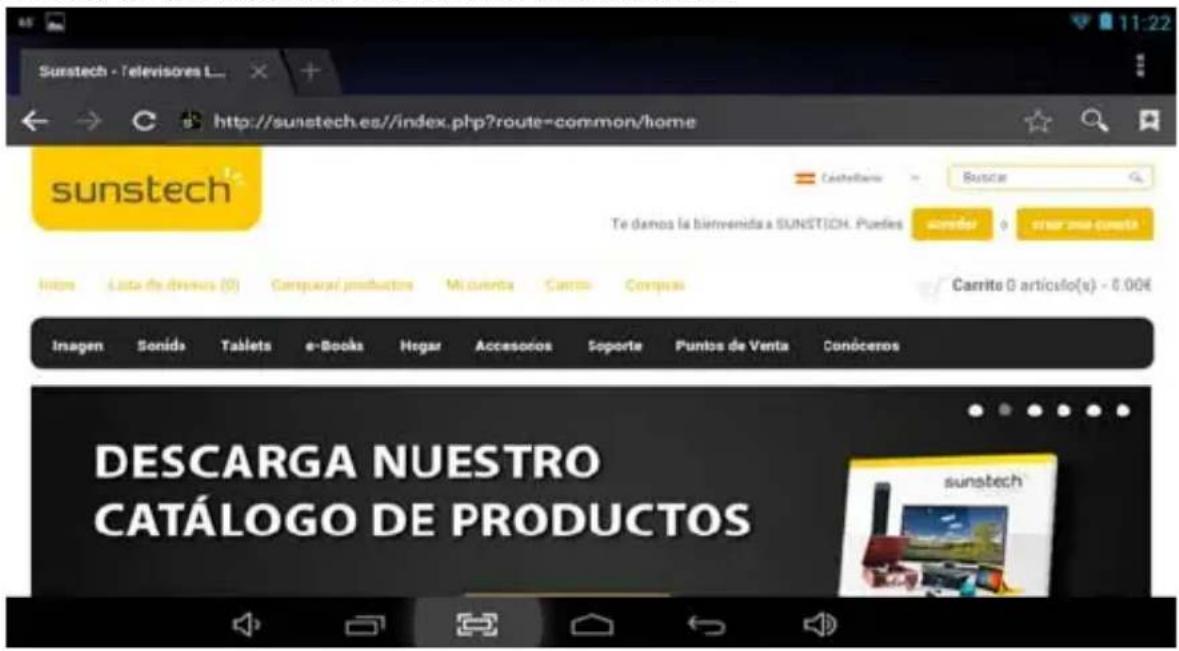

Web Browsing

Connect to the internet and launch the browser.

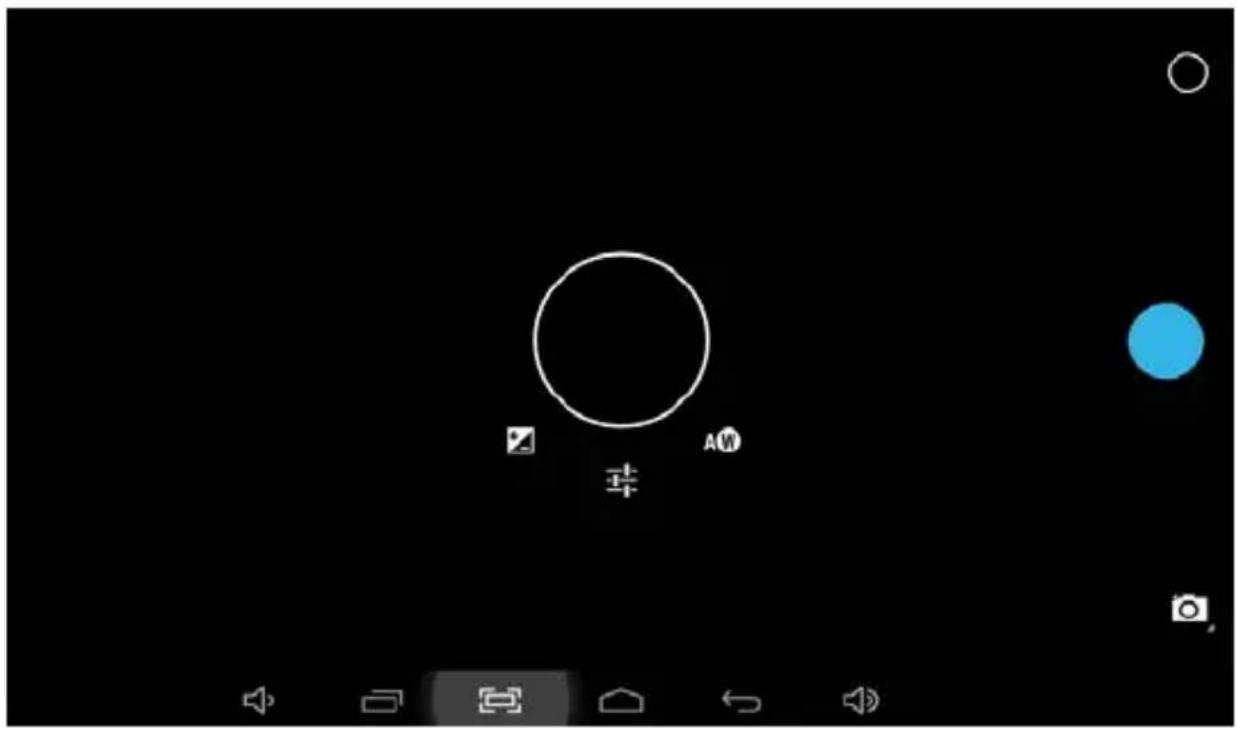

to enter camera mode and the interface is shown as

车 AW

1. Touch the icon

the middle to take photo

1. Move the icon 📄 on bottom and you can switch camera mode to camera recording mode.
2. Touch the icon 📋 on the top right to see the previous picture and you can also delete, share, set it as the wallpaper. Click return button to exit camera interface.

Trouble Shooting

Close Application

All running applications take up system memory and will slow down system response. Please shut down all idle applications to release memory and get the system speed back to normal.

To close the application, click the icon of the system configuration interface. See services and the interface is shown as fol

on the shortcut bar to enter

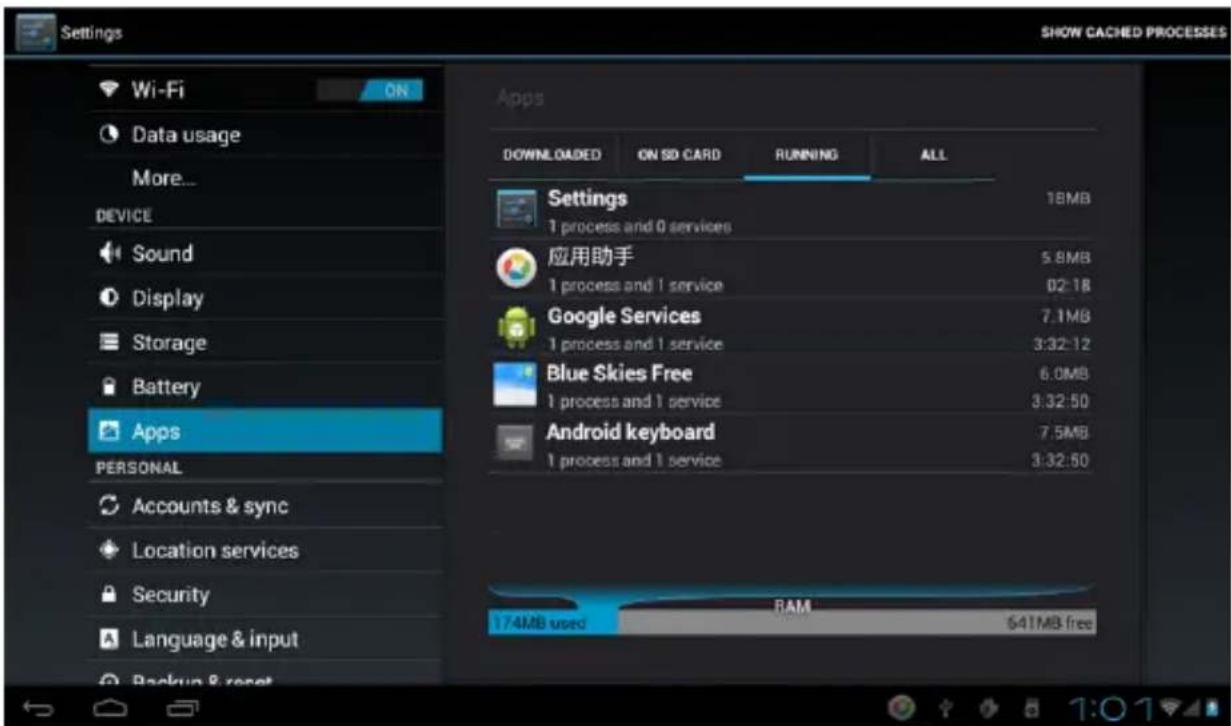

Application → Running

Settings Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset Settings 1 process and 0 services 应用助手 5.8MB 1 process and 1 service D2:1B Google Services 7.1MB 1 process and 1 service 3:32:12 Blue Skies Free 6.0MB 1 process and 1 service 3:32:50 Android keyboard 7.5MB 1 process and 1 service 3:32:50 174MB used BAM 641MB free SHOW CACHED PROCESSES

Tap the application you want to close. A pop-up window will be displayed. Tap "Stop" to close that application.

Mandatory Power off

1. Press and hold the power button for 5 seconds and the device will be powered off.
2. Press the reset button on the back and the device will be forced to be powered off.

If you want to reset the factory setting and erase all materials, please press Settings → Backup and Reset → Factory data reset.

** Warning: Factory data reset setting will delete your data and configuration of system and applications from downloading.

**Please use this function carefully.

Recovery Mode:

How to enter in recovery mode.

Please follow these steps.

1-To enter in the recovery mode first you should power off the device,
2-Then long-press the "ON-OFF" key and "Return" Key at the same time until the Recovery mode has appeared, pls try it.

3-After a new menu will appear and then you must use the touch panel to select "Wipe data/ factory reset" then press "Power" and then select "Yes delete all user data"

Then press "power" again. The unit will then begin the recovery mode.(this process may last for a few minutes).

4-When it finishes select "reboot system now" press the "power button" and the unit will re-start itself. (this process may last for a few minutes)

How to download the software using the unit.

IMPORTANT: When you download the software, all data will be deleted as photos, videos and Apps that you have been installed.

Do not interrupt this process please make sure the battery is fully charged.

Please, follow these steps.

1- Open browser and search and open this link: www.sunstech.es/download/

2- Select the model of the tablet that you have and download the software.(This software is installed In the INTERNAL SD).
3- When it finished the download, select the App "Update" in your unit.
4-Select "Local Update", "Download".
5-Select the software / download and wait until the process is finished.

Warranty conditions

- The warranty of this product is for 2 years since the purchase date.

- The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Pb

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection

systems for used electrical and electronic products.Please help us to conserve the environment we live in!

Diagram showing a cross symbol and a downward arrow pointing to a line, possibly indicating a process or concept.

1. DO NOT place objects on top of the device, as objects may scratch the device.

Diagram showing a cross symbol above a droplet with arrows pointing to particles, possibly indicating a process or detection.

1. DO NOT expose the device to dirty or dusty environments.

Black and white soccer ball with a cross symbol and downward arrow, no text or labels present

1. DO NOT place the device on an uneven or unstable surface.

Illustration of basic writing and drawing tools including a cross, eraser, pencil, ruler, and paper (no text or symbols)

1. DO NOT insert any foreign objects into the device.

×

1. DO NOT expose the device to strong magnetic or electrical field.

Simple graphic with a black X and a sunburst shape (no text or symbols)

1. DO NOT expose the device to direct

sunlight as it can damage the device. Keep it away from heat sources.

60^ C(140^ F)

Two black arrows pointing up and down, stacked vertically (no text or symbols)

20^ C(68^ F)

1. DO NOT store your device in temperatures higher than 40^(104^) . The internal operating temperature for this device is from 20^(68^) to 60^(140^) .

Simple illustration of a cloud with raindrops and a black X symbol (no text or labels)

1. DO NOT use the device in the rain.

Illustration of a hand holding a mobile phone with a keypad, enclosed in a circle (no text or symbols)

1. Please check with your Local Authority or retailer for proper disposal of electronic products.

Symbolic illustration of a person sitting on a chair with an 'X' mark and a downward arrow, no text present.

1. The device and adaptor may product some heat during normal operation of charging. To prevent

discomfort or injury from heat exposure, DO NOT leave

the device on your lap.

sunstech® POWER SUPPLY : POWER (IN STANDBY): (IN USE): CE回

1. POWER INPUT RATING:

Refer to the rating label on thedevice and be sure that thepower adaptor complies with

the rating. Only use accessories specified by the manufacturer.

Illustration showing a hand cleaning a cloth next to a spray bottle with a cross mark (no text or symbols)

1. Clean the device with a soft cloth. If needed, dampen the cloth slightly

before cleaning. Never use abrasives or cleaning solutions.

-OFF

1. Always power off the device to install or remove external devices that do not support hot-plug.

1. Disconnect the device from an

electrical outlet and power off before cleaning the device.

Simple line drawing of a screwdriver and a cross symbol (no text or labels)

1. DO NOT disassemble the device. Only a certified service technician should perform repair.

HOT

1. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Diagram showing a rectangular object with internal structure and four separate rectangular blocks below (no text or symbols)

1. Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries according to the instruction.

Simple diagram showing a black downward arrow pointing to a white rectangular area, with a wall-mounted component nearby (no text or symbols)

1. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily

accessible.

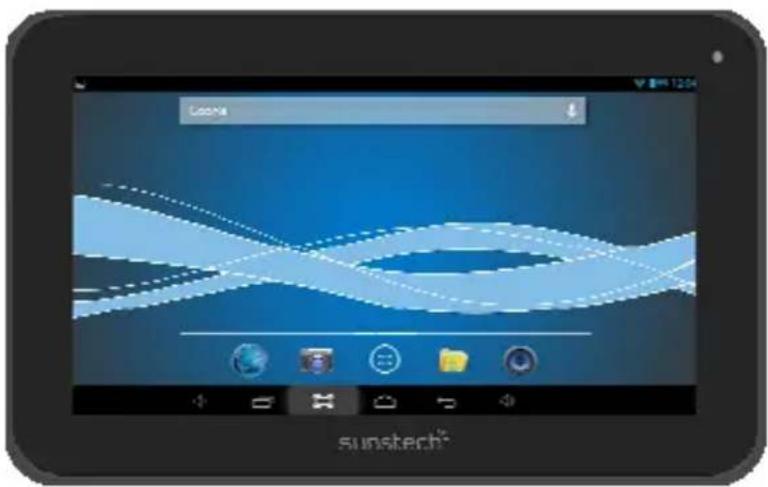

sunstech ^1/2

TAB77DUAL

Tablet PC

Sunstech®

Android 4.2

Manual de usuario

Índice

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's 3D card. Turn on USB storage

Conexión a Internet

Inalámbrica:

Screenshot of a mobile phone interface with a white circular dial, icons, and a blue circle labeled 'AW' on black background

1. Toque el icono

Settings Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset AppS DOWNLOADED ON SD CARD RUNNING ALL Settings 1 process and 0 services 18MB 应用助手 5.8MB 1 process and 1 service 02:18 Google Services 7.1MB 1 process and 1 service 3:32:12 Blue Skies Free 6.0MB 1 process and 1 service 3:32:50 Android keyboard 7.5MB 1 process and 1 service 3:32:50 174MB used RAM 641MB free

Diagram showing a cross symbol and a downward arrow pointing to a line, possibly indicating a process or concept.

Diagram showing a cross symbol with an arrow pointing downward to a patterned circle containing irregular shapes, possibly indicating a process or concept.

Black and white soccer ball with a cross symbol and downward arrow, no text or labels present

Illustration of basic geometric shapes including a cross, eraser, pencil, and ruler (no text or symbols)

Simple graphic with a black X and a sunburst shape (no text or symbols)

Simple illustration of a cloud with raindrops and a black X symbol (no text or labels)

Illustration of a hand holding a mobile phone with a keypad, enclosed in a circle (no text or symbols)

Symbolic image showing a person sitting with a cross and a downward arrow, indicating incorrect or incorrect behavior.

Simple line drawing of a hand cleaning a cloth next to a spray bottle with a cross mark (no text or symbols)

Simple line drawing of a screwdriver and a cross symbol (no text or labels)

Diagram showing a rectangular object with internal structure and four separate cylindrical components below, with an arrow pointing to the top portion.

Simple diagram showing a wall with two dots and a downward arrow pointing to a flat surface (no text or symbols)

Appareil photo....11

Dépannage....12

Caractéristiques

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Mobile phone status bar screenshot showing a white circle with 'AVW' label and control icons below

Settings Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset Settings 1 process and 0 services 应用助手 5.8MB 1 process and 1 service D2:1B Google Services 7.1MB 1 process and 1 service 3:32:12 Blue Skies Free 6.0MB 1 process and 1 service 3:32:50 Android keyboard 7.5MB 1 process and 1 service 3:32:50 174MB used BAM 641MB free SHOW CACHED PROCESSES

Diagram showing a cross symbol and a downward arrow pointing to a line, possibly indicating a process or concept.

Diagram showing a cross symbol pointing to a droplet with an arrow indicating downward motion, possibly illustrating a process or environmental change.

Black and white soccer ball with a cross symbol and downward arrow, no text or labels present

Illustration of basic geometric shapes including a cross, rectangle, pencil, and ruler (no text or symbols)

Simple illustration of a cross and a sun with radiating lines (no text or symbols)

Two black arrows pointing up and down, stacked vertically (no text or symbols)

20^ C(68^ F)

Simple illustration of a cloud with raindrops and a black X symbol (no text or labels)

Illustration of a hand holding a mobile phone with a keypad, enclosed in a circle (no text or symbols)

Symbolic image showing a person sitting with a cross and a downward arrow, indicating incorrect or incorrect behavior.

Simple line drawing of a hand cleaning a cloth next to a spray bottle with a cross mark (no text or symbols)

Simple line drawing of a screwdriver and a cross symbol (no text or labels)

Diagram showing a rectangular object with internal structure and four separate cylindrical components below (no text or symbols)

Simple diagram showing a black downward arrow pointing to a white rectangular area, with a small electrical outlet nearby (no text or symbols)

Diagram showing a hand pressing a lock icon with a red arrow indicating lock function to unlock

Ecră inicial

at 10:15 CEST 57°F Light Fog WED 62°/41° THU 51°/38° BRUSSELS, BELGI... 10:34 ● Aca/Weather.com tunein Click here to tunein Yes LA SORPRESA: Dedicato... from Most Popular

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's 3D card. Turn on USB storage

Ligação à Internet

Wireless:

Camera menu interface with white circular adjustment knob, blue circle, and control buttons

Settings Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset Applications DOWNLOADED ON SD CARD RUNNING ALL Settings 1 process and 0 services 18MB 应用助手 5.8MB 1 process and 1 service 02:18 Google Services 7.1MB 1 process and 1 service 3:32:12 Blue Skies Free 6.0MB 1 process and 1 service 3:32:50 Android keyboard 7.5MB 1 process and 1 service 3:32:50 174MB used RAM 641MB free

Diagram showing a cross symbol and a downward arrow pointing to a line, possibly indicating a process or concept.

Diagram showing a cross with an arrow pointing downward to a plate with scattered particles, indicating a process or solution step.

Black and white soccer ball with a cross symbol and downward arrow, no text or labels present

Illustration of basic geometric shapes including a cross, rectangle, paperclip, and ruler (no text or symbols)

Simple graphic with a black X and a sunburst shape (no text or symbols)

Two black arrows pointing up and down, stacked vertically (no text or symbols)

20^ C(68^ F)

Simple illustration of a cloud with raindrops and a black X symbol (no text or labels)

Illustration of a hand holding a mobile phone with a keypad, enclosed in a circle (no text or symbols)

Symbolic image showing a person sitting with a cross and a downward arrow, indicating incorrect or incorrect behavior.

Simple line drawing of a hand cleaning a cloth next to a spray bottle with a cross mark (no text or symbols)

Simple line drawing of a screwdriver and a cross symbol (no text or labels)

Diagram showing a rectangular object with an arrow pointing to four separate rectangular blocks (no text or symbols present)

Simple diagram showing a wall with two dots and a downward arrow on a flat surface (no text or symbols)
