USER MANUAL Edel 2 UNOLD

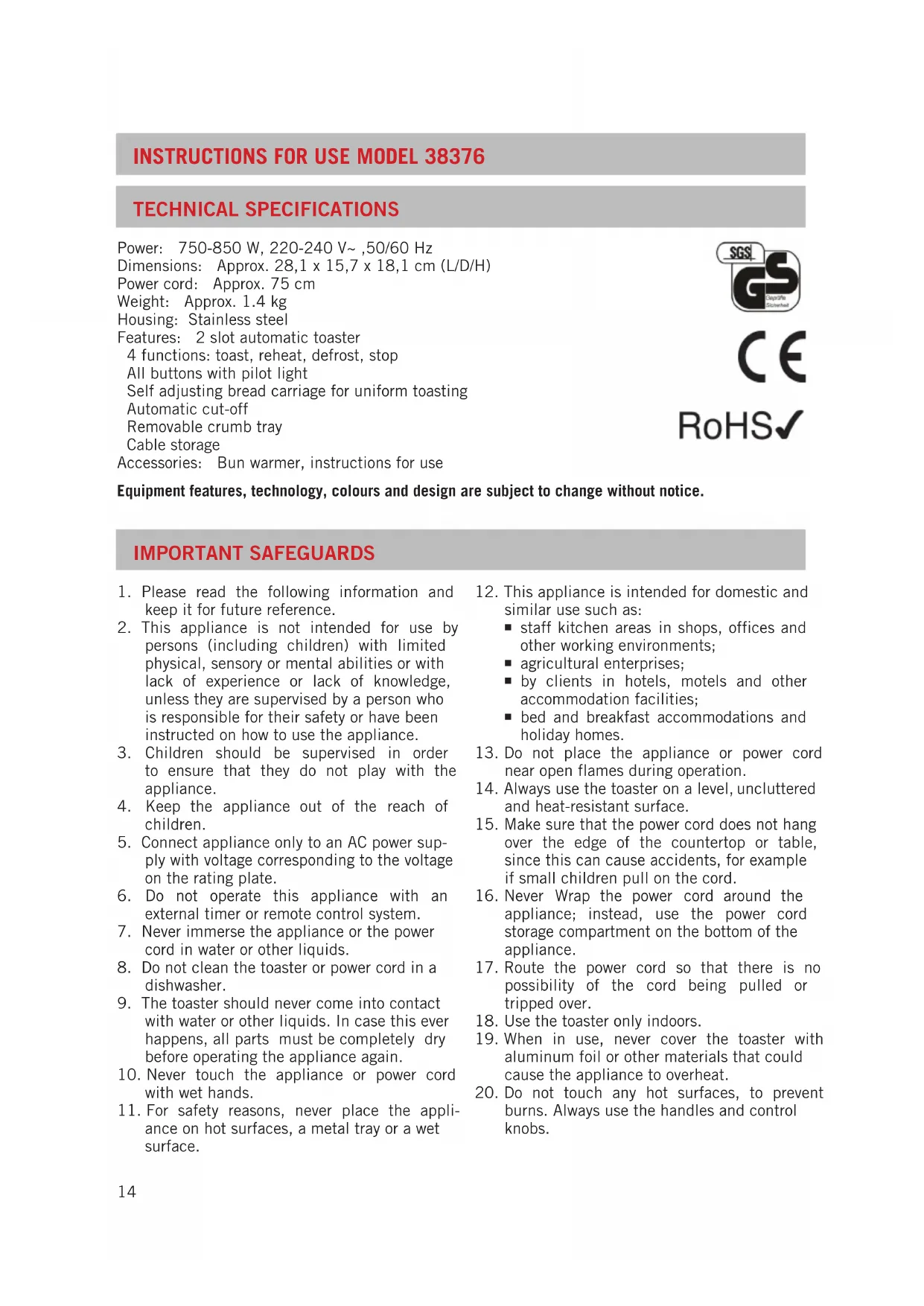

imporTanT safeguards Technical specificaTions Power: 750-850 W, 220-240 V~ ,50/60 Hz Dimensions: Approx. 28,1 x 15,7 x 18,1 cm (L/D/H) Power cord: Approx. 75 cm Weight: Approx. 1.4 kg Housing: Stainless steel Features: 2 slot automatic toaster 4 functions: toast, reheat, defrost, stop All buttons with pilot light Self adjusting bread carriage for uniform toasting Automatic cut-off Removable crumb tray Cable storage Accessories: Bun warmer, instructions for use

1. Please read the following information and

keep it for future reference.

2. This appliance is not intended for use by

persons (including children) with limited physical, sensory or mental abilities or with lack of experience or lack of knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.

3. Children should be supervised in order

to ensure that they do not play with the appliance.

4. Keep the appliance out of the reach of

5. Connect appliance only to an AC power sup-

ply with voltage corresponding to the voltage on the rating plate.

6. Do not operate this appliance with an

external timer or remote control system.

7. Never immerse the appliance or the power

cord in water or other liquids.

8. Do not clean the toaster or power cord in a

9. The toaster should never come into contact

with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.

11. For safety reasons, never place the appli-

ance on hot surfaces, a metal tray or a wet surface.

12. This appliance is intended for domestic and

similar use such as: staff kitchen areas in shops, offices and other working environments; agricultural enterprises; by clients in hotels, motels and other accommodation facilities; bed and breakfast accommodations and holiday homes.

13. Do not place the appliance or power cord

near open flames during operation.

14. Always use the toaster on a level, uncluttered

and heat-resistant surface.

15. Make sure that the power cord does not hang

over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

16. Never Wrap the power cord around the

appliance; instead, use the power cord storage compartment on the bottom of the appliance.

17. Route the power cord so that there is no

possibility of the cord being pulled or tripped over.

18. Use the toaster only indoors.

19. When in use, never cover the toaster with

aluminum foil or other materials that could cause the appliance to overheat.

21. Never use the appliance near flammable

materials such as curtains.

22. Do not move the appliance as long as it is in

operation, to prevent injuries.

23. Never operate the appliance without the

crumb tray; empty the tray regularly.

24. Do not toast foods that can melt.

25. Do not insert excessively large foods or

any metal foils, silverware or tools in the appliance. They could cause a fire or short circuit.

26. Do not use the appliance with accessories

of other manufacturers or brands, to prevent damage.

27. Unplug the appliance from the power supply

after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

28. Clean the appliance after every use.

29. Check the appliance, the plug and the power

cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.

30. If the supply cord is damaged, it must be

replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

1. Different types of bread have varying mois-

ture content. Therefore, the same toast dark- ness setting can produce different results.

2. For bread that is slightly dry, use a lower

toast darkness setting.

3. For fresh bread or whole grain bread, use a

higher toast darkness setting.

4. Bread with an irregular surface requires a

higher toast darkness setting.

5. Thick bread slices need more time for toas-

ting; it may even be necessary to toast the bread a second time.

6. When toasting raisin bread, remove all rai-

sins from the surface, since otherwise they could burn.

7. Cut rolls in half before toasting.

8. If you toast only one slice, please select a

low toast darkness setting.

9. If you toast several slices one after the other,

the bread will be somewhat darker at the same toast darkness setting.

1. Remove all packaging materials and any

transport safety devices.

2. Check to make sure that all accessories are

3. Clean the toaster with a damp cloth, as

described in the chapter “Cleaning and care” on page 17.

4. Check to make sure that all parts are assem-

bled correctly and the appliance is stable. Make sure that there is sufficient space bet- ween the toaster and walls or other applian- ces, since the toaster becomes hot during operation.

5. Connect the appliance via the power cord to

the power supply (220-240 V~, 50/60 Hz ).

6. Before toasting bread the first time, conduct

one toasting cycle without bread. Press the toast lever down until it locks into place.

7. When the toasting cycle is completed, the

toast lever automatically jumps up. Now you can starting toasting bread.16 operaTion - ToasTing

1. Prepare the toaster as described in the sec-

tion “Before using the appliance the first time”.

2. Place the bread slices in the slots in the

3. Set the desired toast darkness with the

darkness control. You can select from six toast darkness settings: level 1. is very light and level 5 is very dark. For golden brown toast set the lever in the middle position.

4. Press the toast lever down until it locks into

place. The indicator lamp for “Stop” lights up and the toaster starts toasting.

5. You can interrupt the toasting cycle any

time by pressing the “Stop” button.

6. When the bread has been toasted to the set

darkness, it is automatically ejected. The appliance shuts off automatically.

7. For easier removal of the toasted bread

slices, the toaster features a lift function. Press the toast lever upward to remove the toast. operaTion - warming

1. Place the bread slices in the slots in the

warmer on the toaster so it is level and then place the rolls on top.

3. Press the toast lever down until it locks into

away. The indicator lamp on this button lights up.

5. The bread or roll is warmed without being

6. You can interrupt the warming cycle any

time by pressing the “Stop” button.

7. After completion of the warming cycle the

bread is automatically ejected and the indi- cator lamps go out. The appliance shuts off automatically.

8. Please note that you cannot set the toast

darkness when using the warming function. The warming function can be used to warm up bread or rolls without toasting. operaTion - Thawing

1. Place the bread slices in the slots in the

warmer on the toaster so it is level and then place the rolls on top.

3. Press the toast lever down until it locks into

4. Select the desired toast darkness setting.

5. We recommend the following toast darkness

settings: for bread from the refrigerator or thin frozen bread slices. for frozen waffles or rolls for thicker frozen bread slices and for rolls and thick toast slices.

6. Press the toast lever down until it locks into

away. The indicator lamp on this button lights up.

8. The bread or roll is thawed and toasted.

9. You can interrupt the cycle any time by

pressing the “Stop” button.

10. After completion of the thawing cycle the

bread is automatically ejected and the indi- cator lamps go out. The appliance shuts off automatically. The thawing function first thaws out the bread and then toasts it, which means that the thawing cycle lasts somewhat longer than the normal toasting cycle.17 cleaning and care

3. Do not immerse the appliance and power

cord in water or other liquids or wash them in the dishwasher.

4. Wipe off the toaster with a damp cloth and a

little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

5. To remove stuck bread slices, unplug the

toaster and turn it over and shake lightly. Never attempt to remove stuck bread slices with sharp or pointed tools or silverware.

6. Remove crumbs and any small pieces of

bread from the crumb tray regularly. To do this, pull the crumb tray on the side all the way out and empty it. Wipe the crumb tray with a damp cloth, then dry it thoroughly and push it back into the appliance.

7. The appliance must be completely dry

before you use it again.18 guaranTee condiTions We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. wasTe disposal / enVironmenTal proTecTion Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.19
